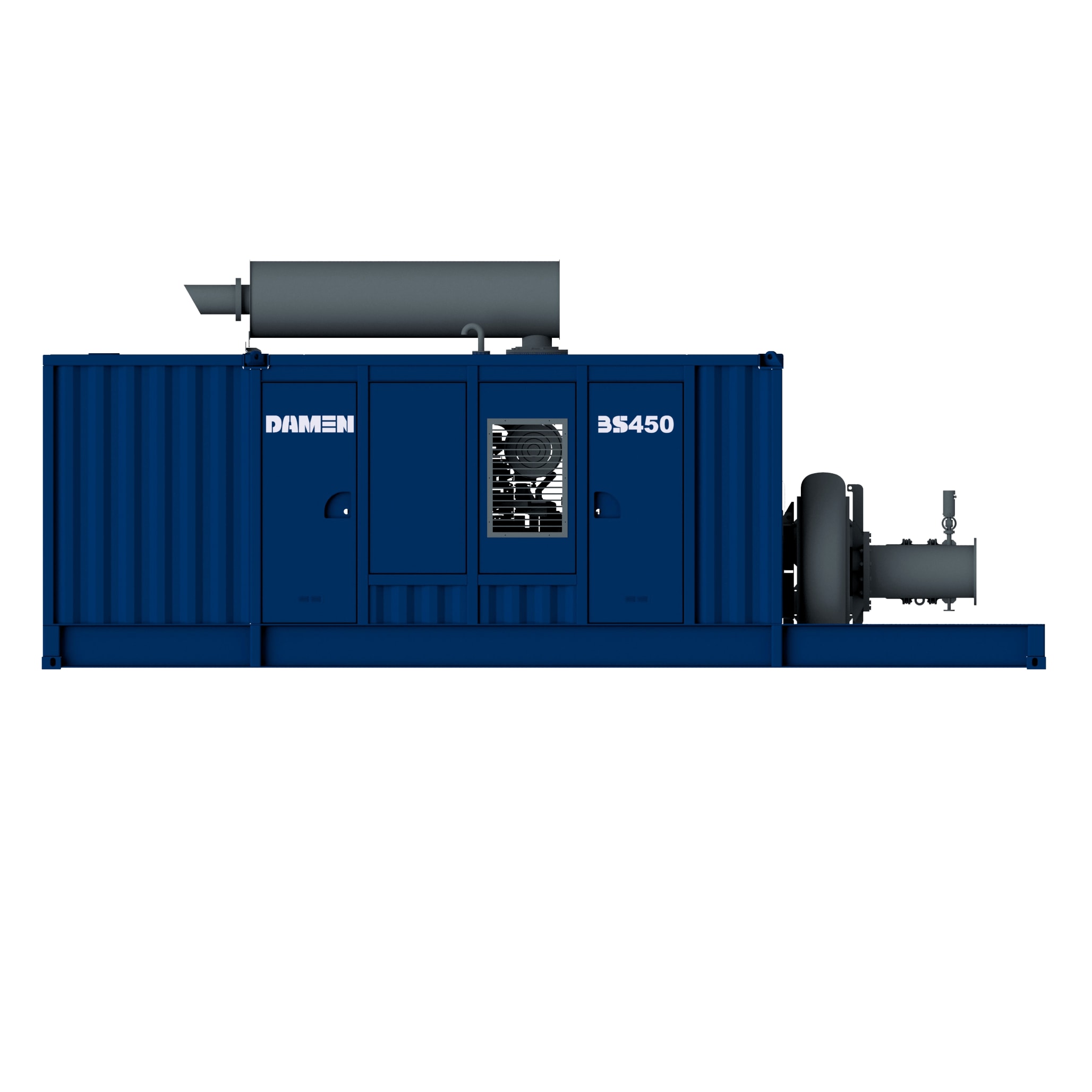

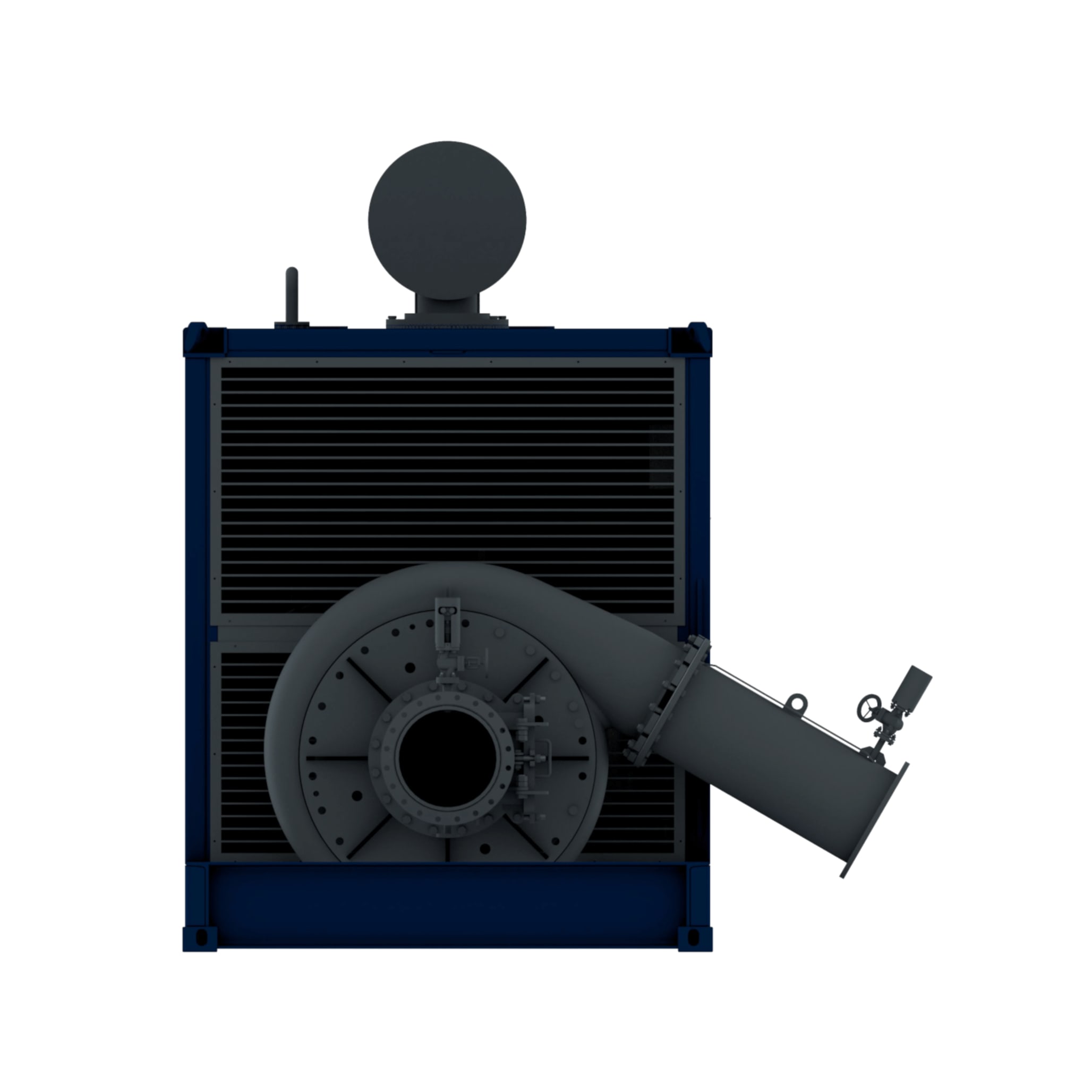

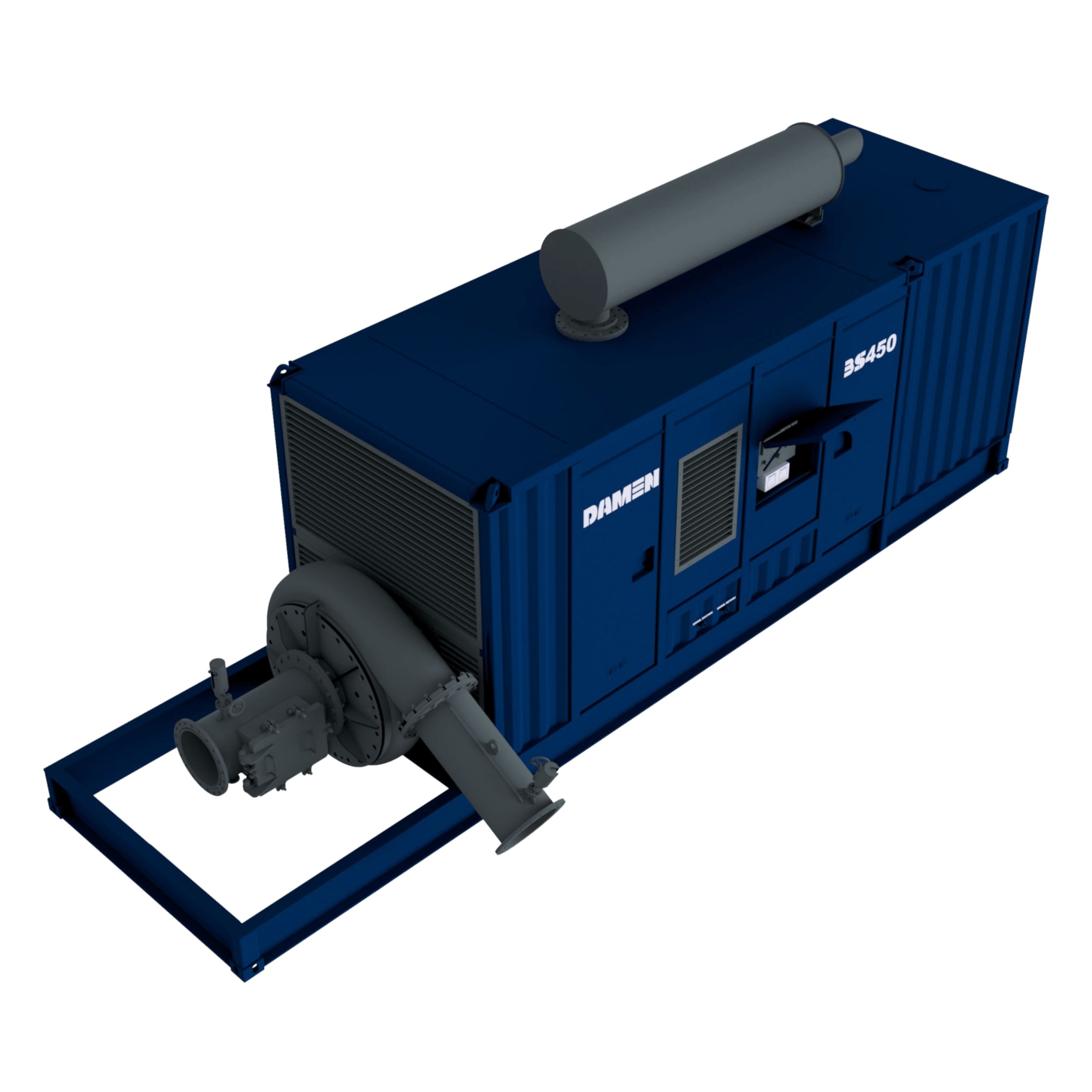

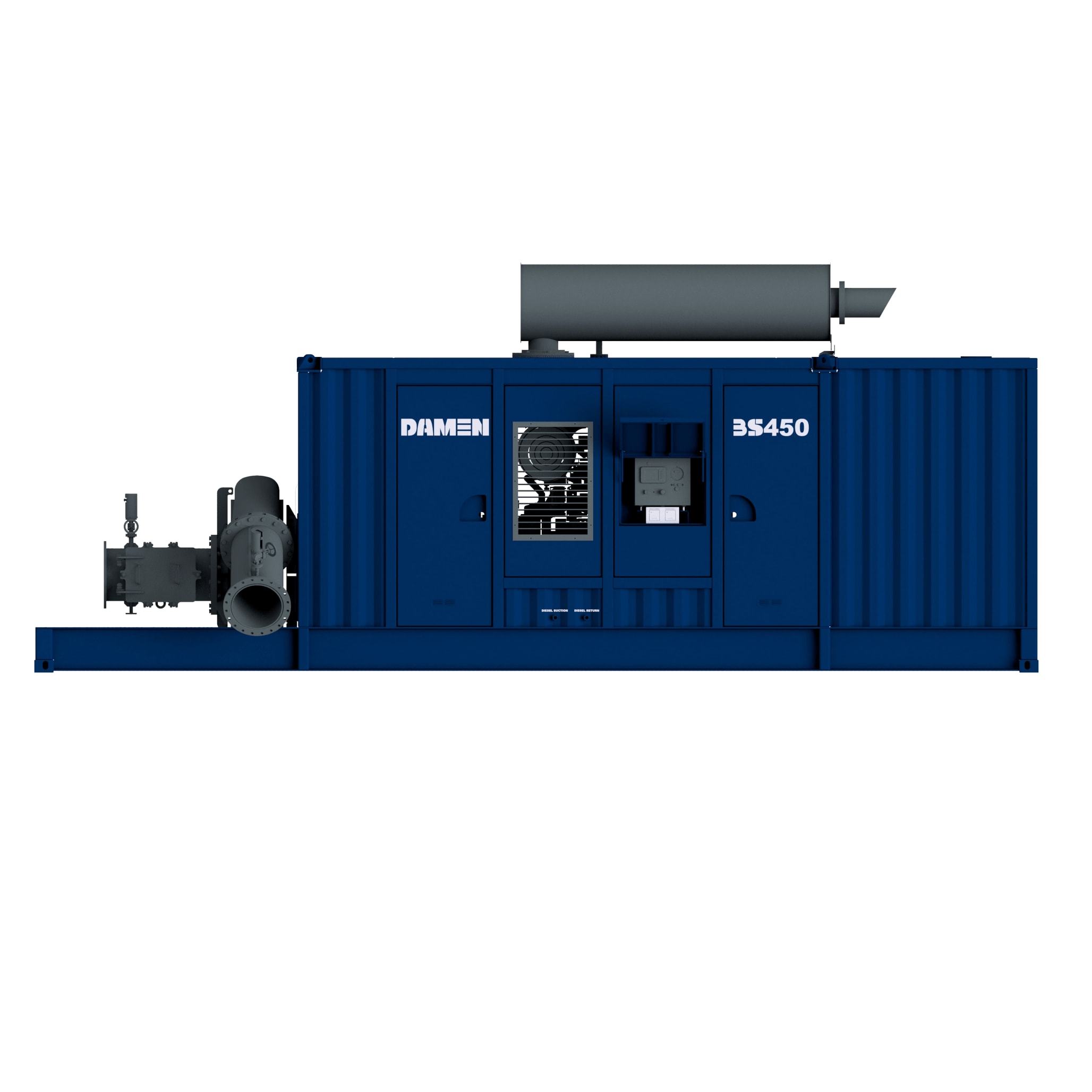

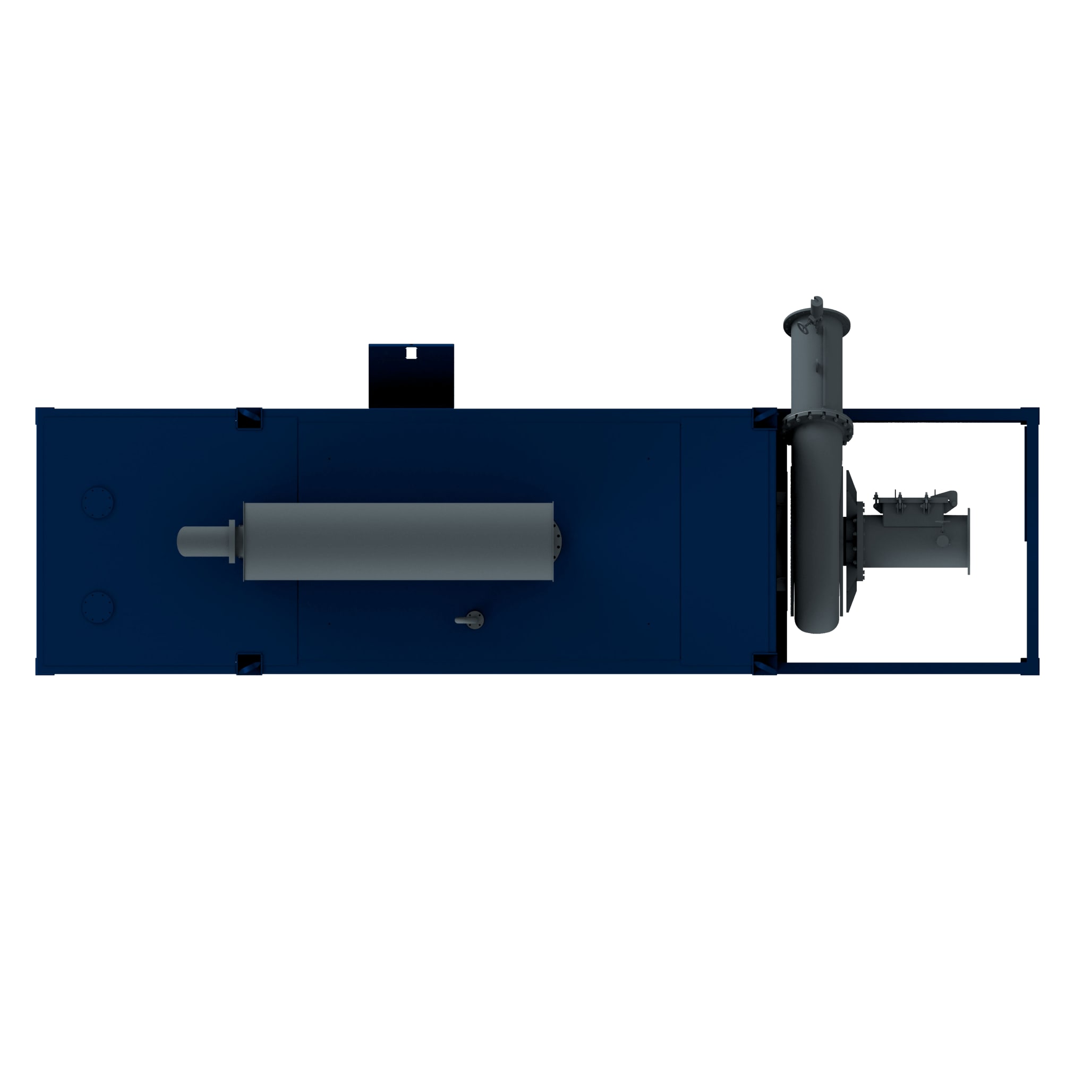

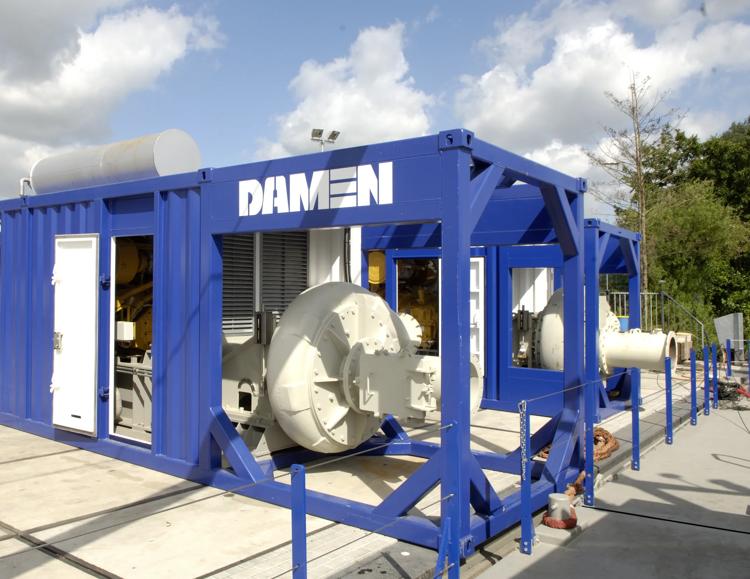

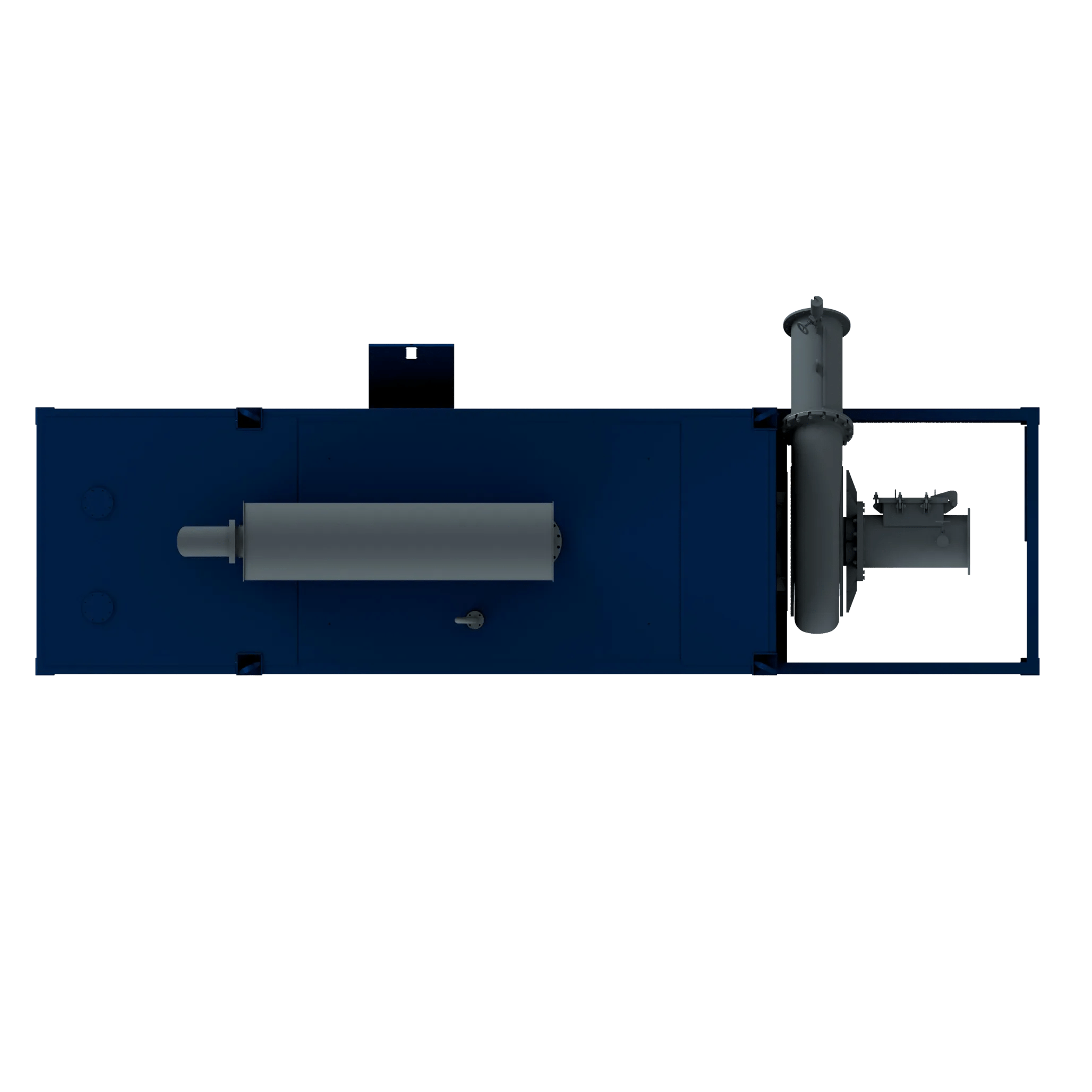

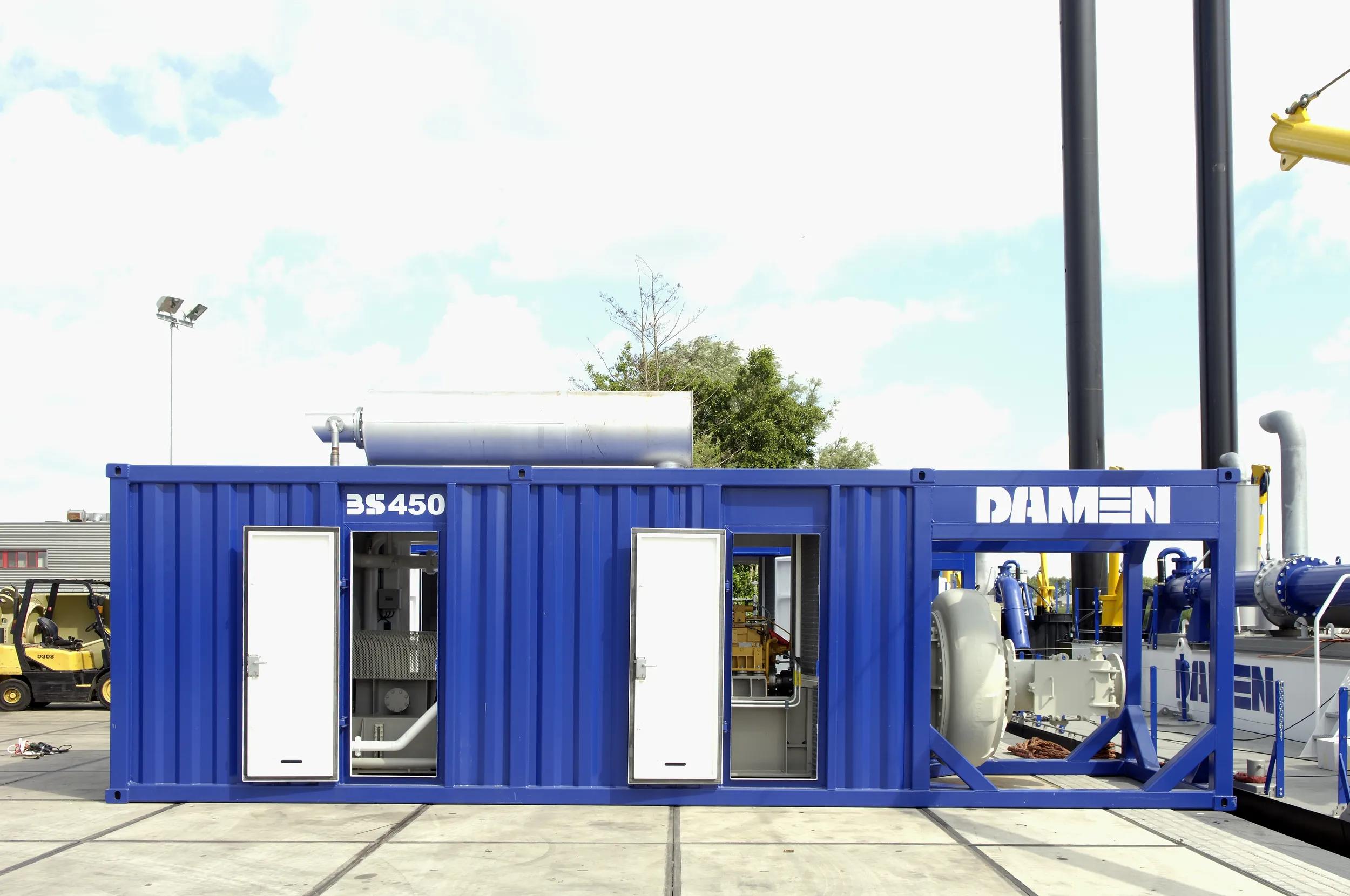

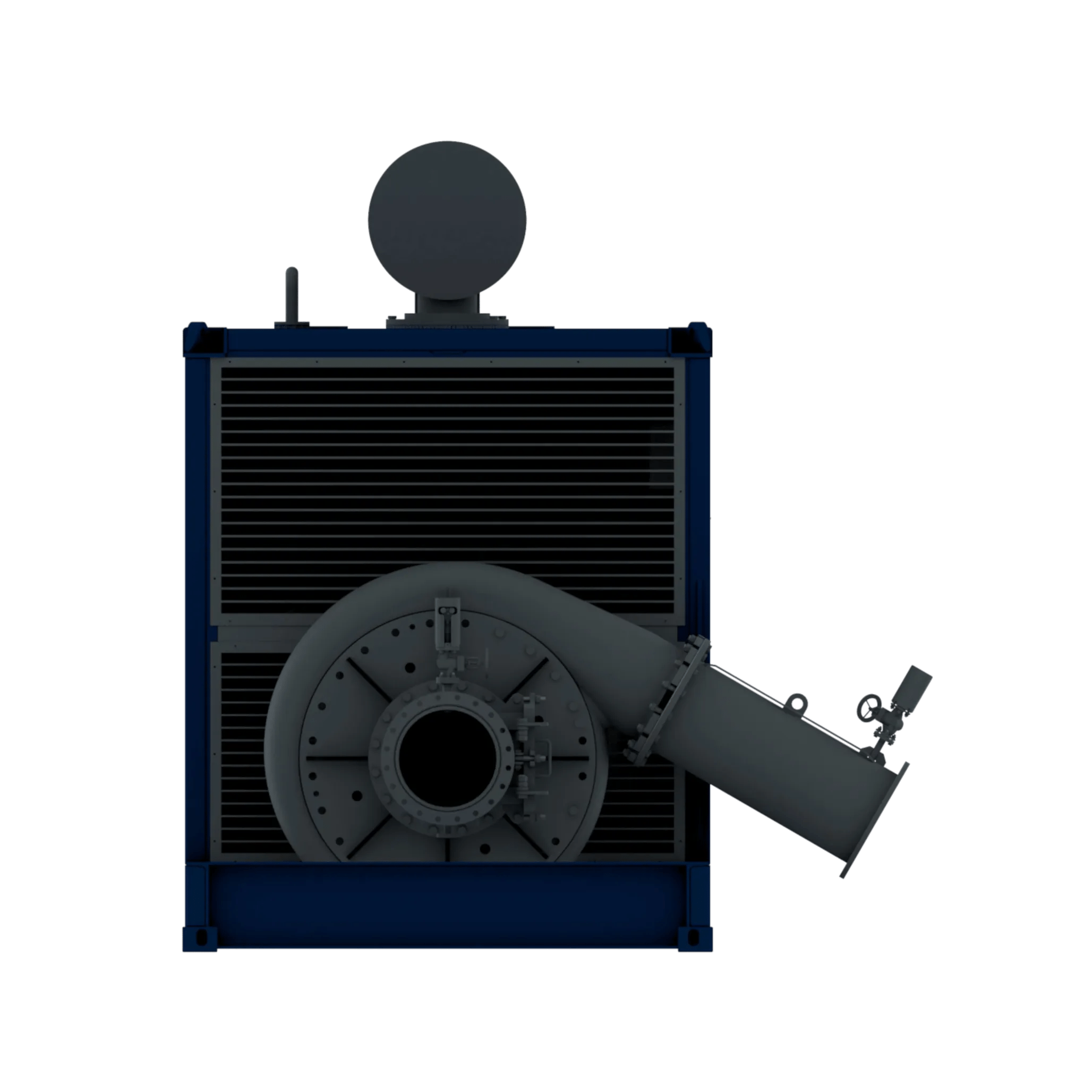

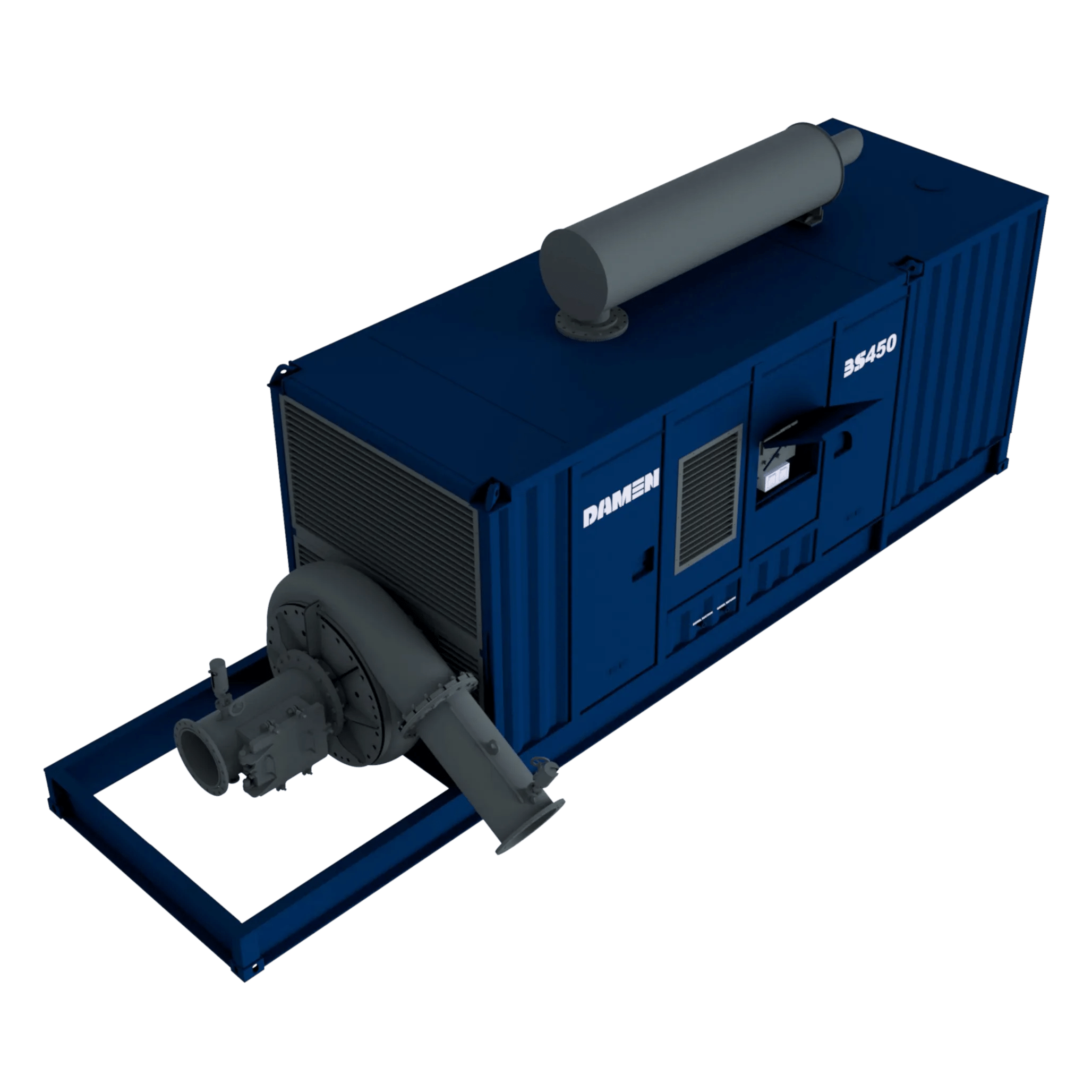

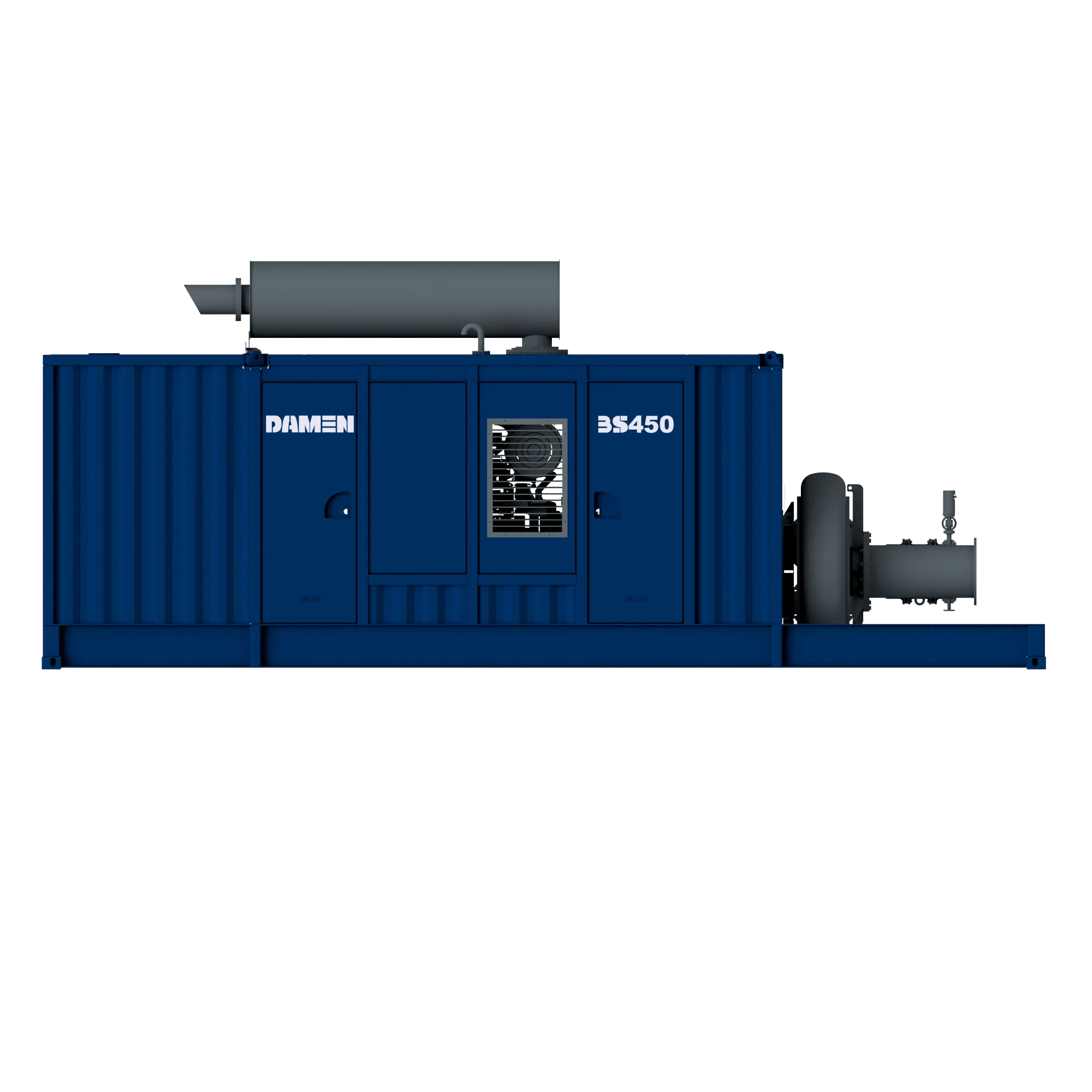

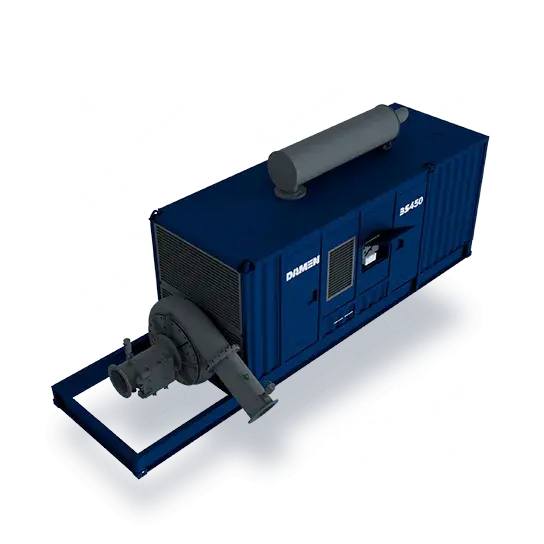

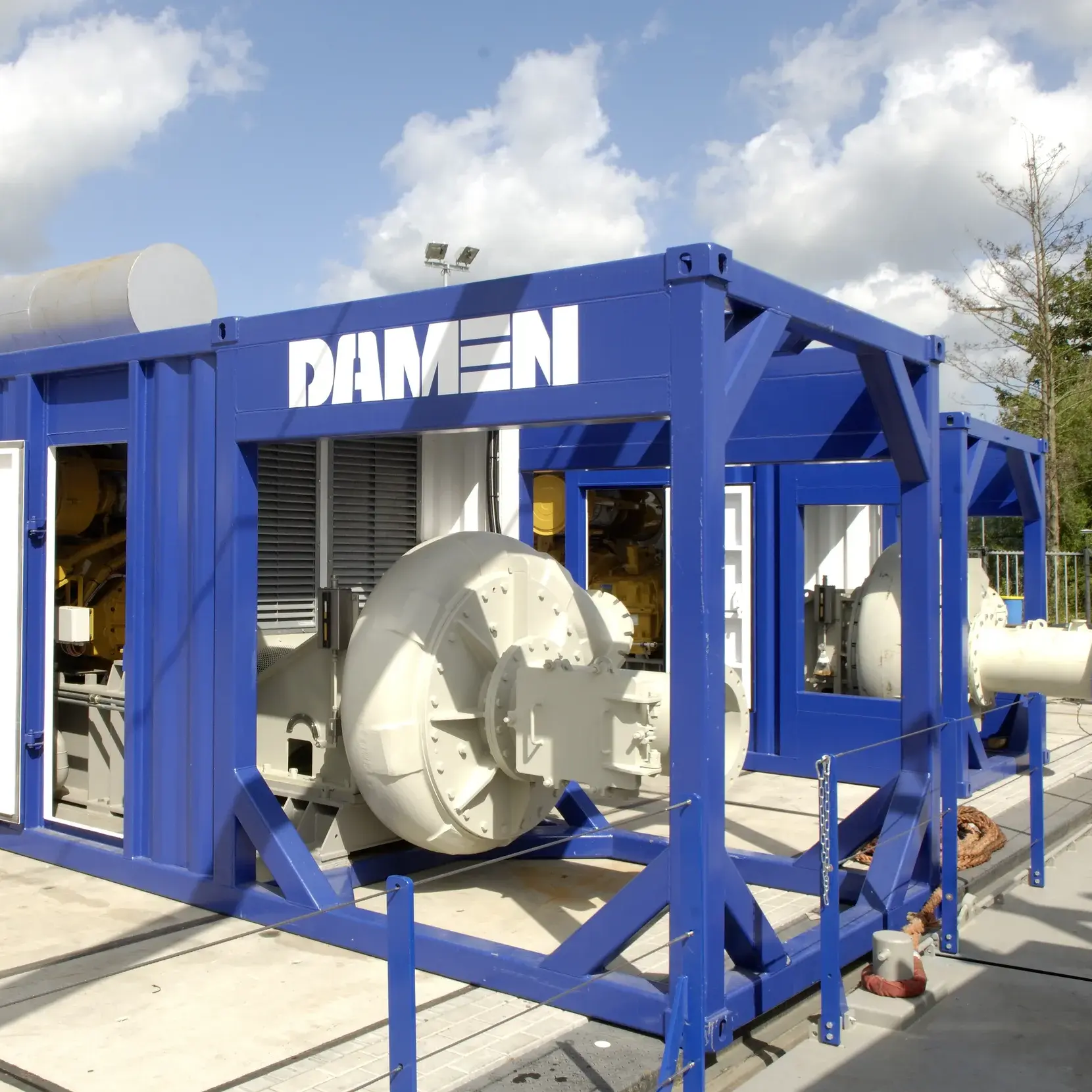

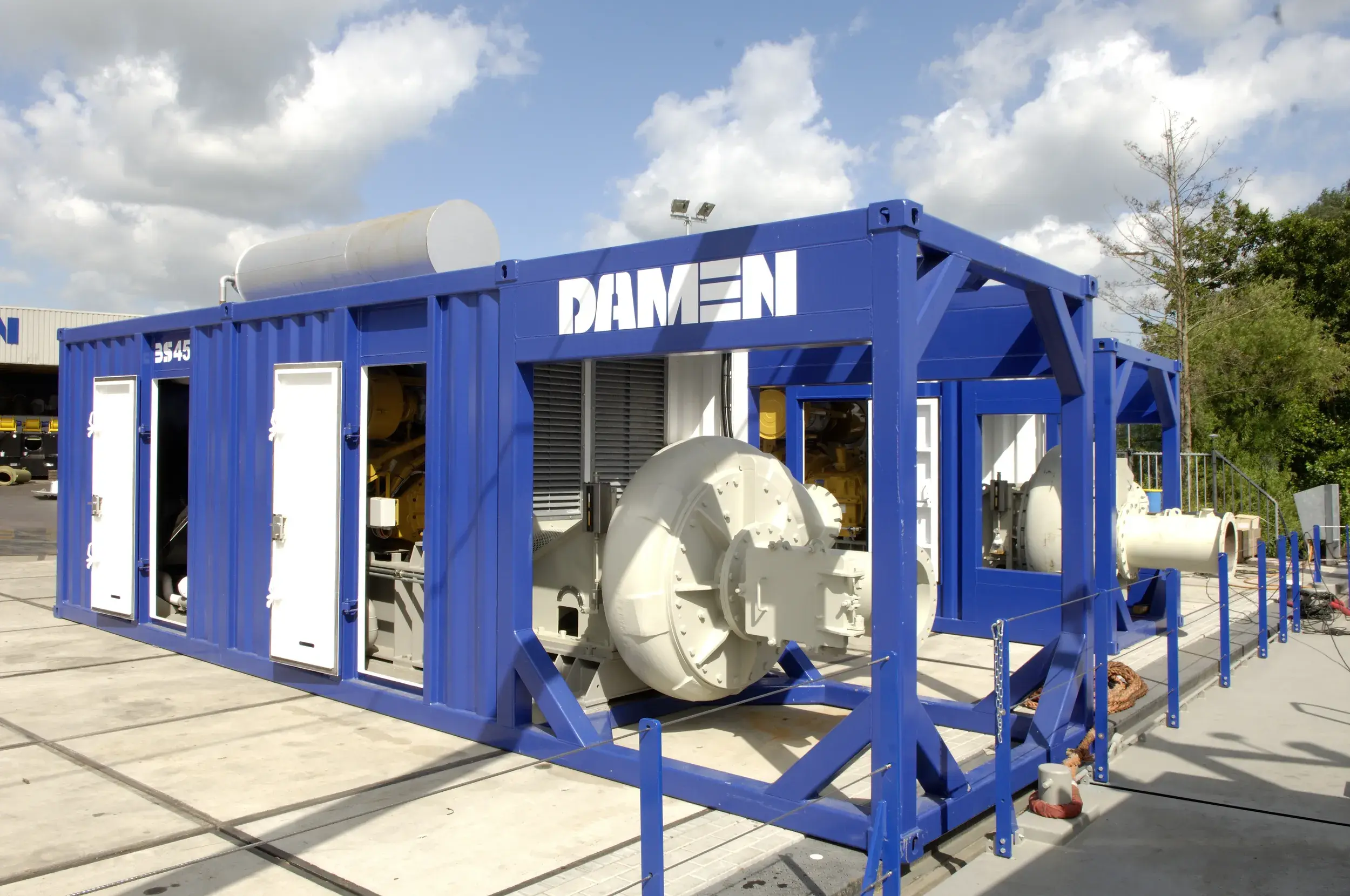

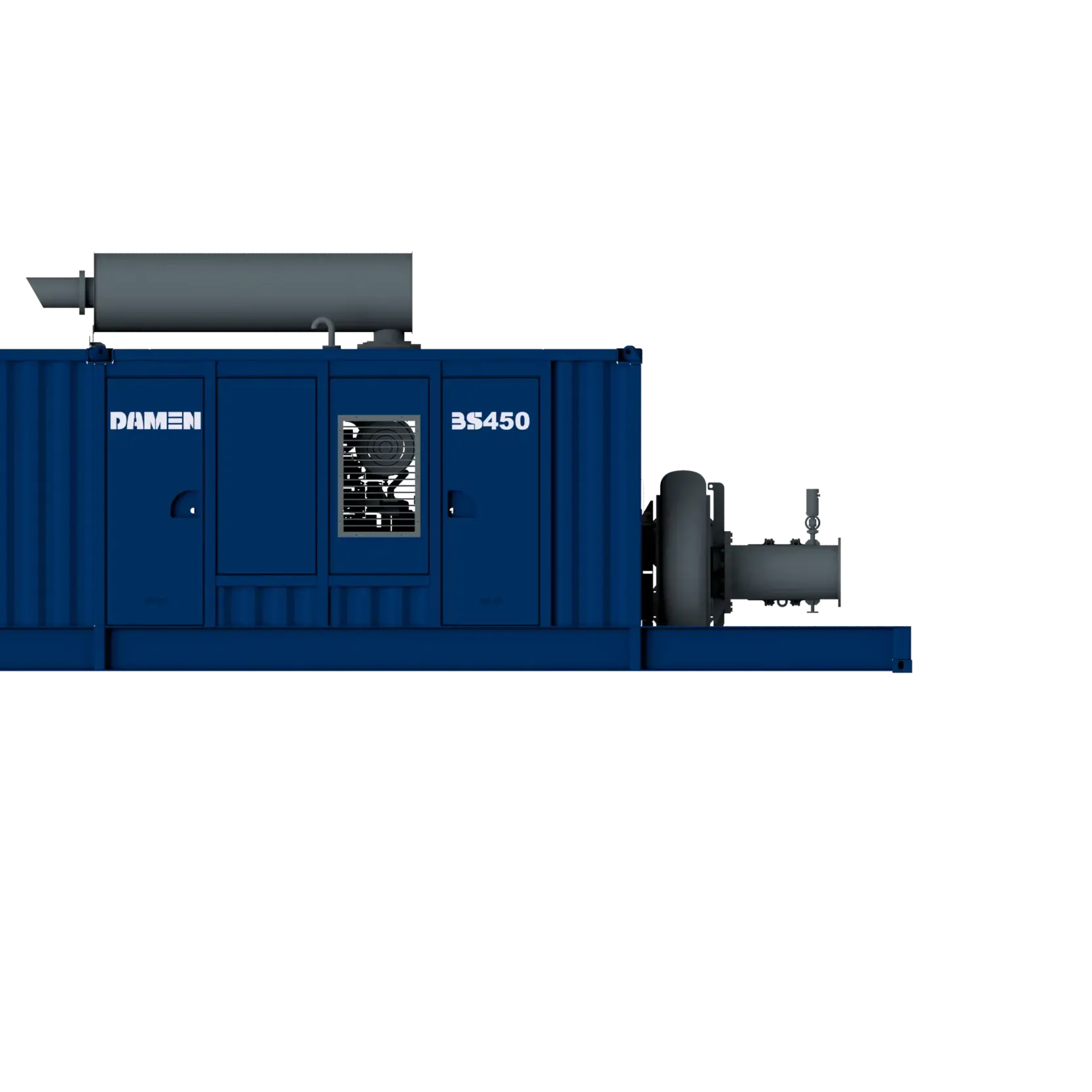

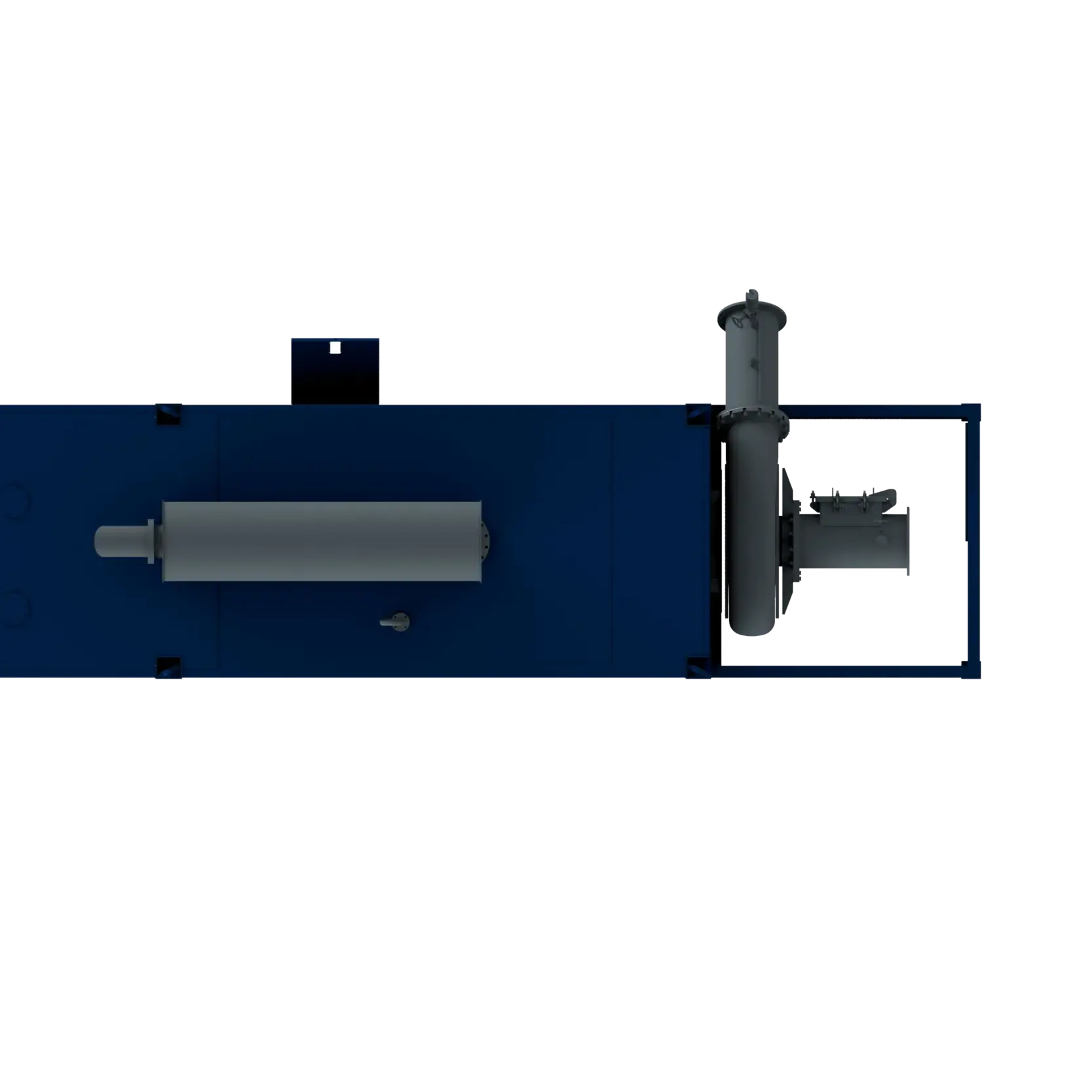

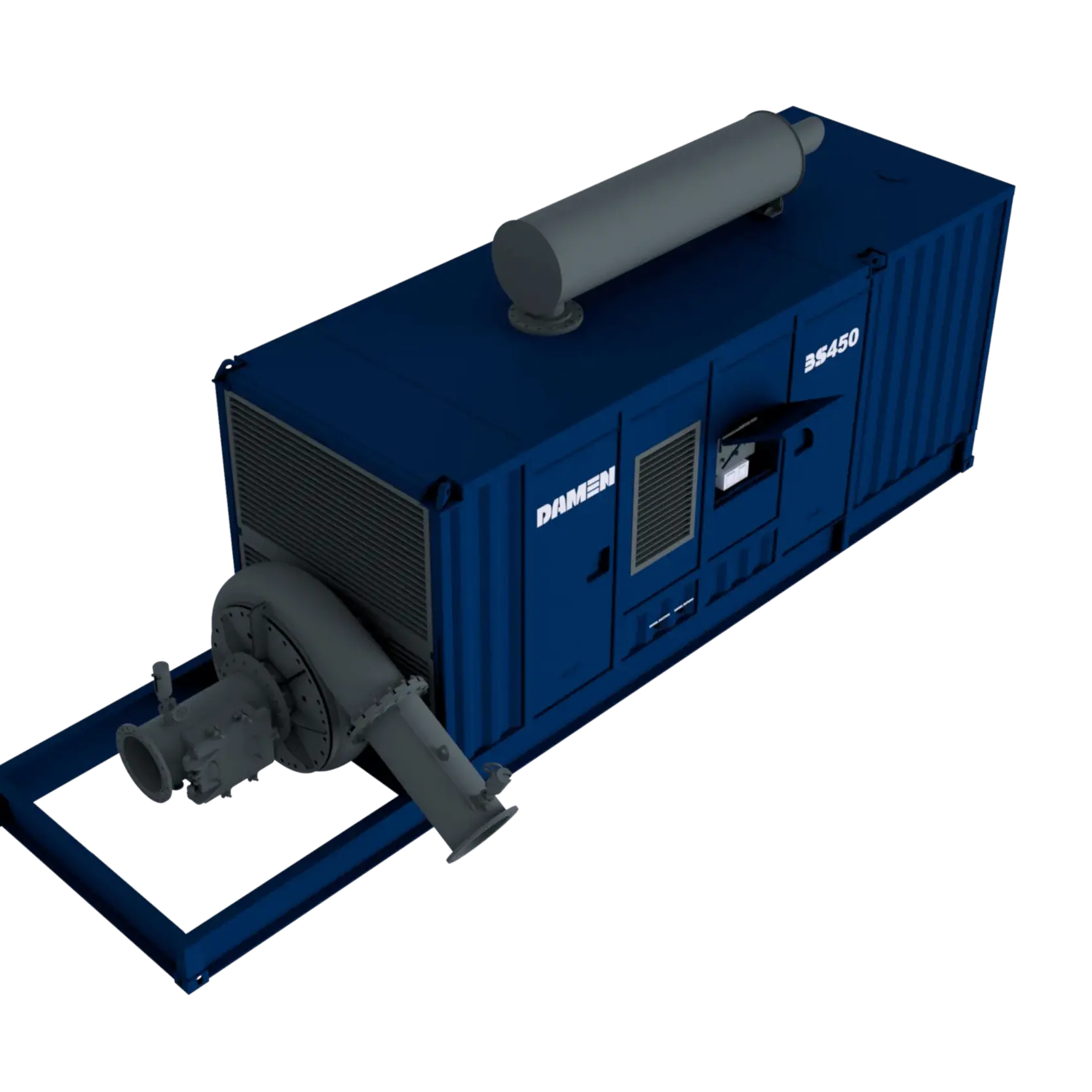

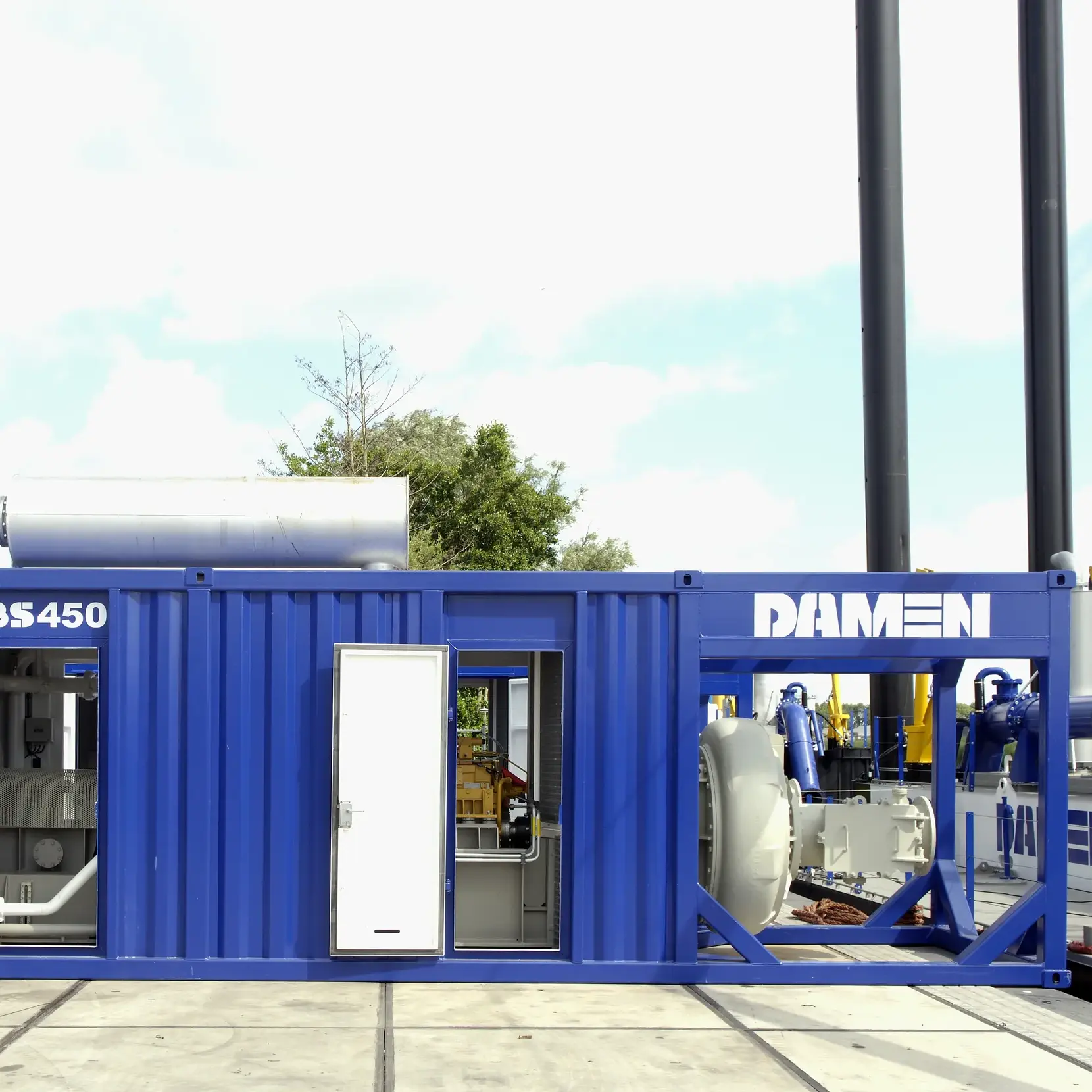

Booster Station BS450
Booster Station BS450
To be used on the deck of your hopper dredger, on a pontoon or somewhere in the field: this booster adds discharge pressure, allowing you to cover much longer discharge distances. The booster pumping unit matches the output of sand mining dredgers and maintenance dredgers as long as the dredge pipe diameter is identical.
- Remote control
- Fuel tank
- Electrically powered version
- Floating platform
- Wear resistant dredge pump
- CAT diesel engine
- EU stage IIIA
- Radiator cooled
Key figures
450
709
3000
24
9.13
Transport dimensions
- Overall length
- 9.13 m
- Overall width
- 2.44 m
- Overall height
- 2.9 m
- Weight
- 24 t
Engine installation
- Dredge pump diesel
- CAT C32
- Max power rating
- 709 kW @ 1,600 rpm
- Regulation
- EU stage IIIA
Dredge installation
- Dredge production
- 3000 m³/h
- Dredge pipe diameter
- 450 mm
- Dredge pump
- Damen BP45-1100
- Impeller diameter
- 1100 mm
Do you want to know more?
Compare similar Booster Stations
| Pipe diameter (mm) | Power (kW) | Production (m³/h) | Weight (t) | Overall length (m) | ||
|---|---|---|---|---|---|---|
| Booster Station BS450 | 450 | 709 | 3000 | 24 | 9.13 | |
| Booster Station BS350 | 350 | 450 | 2000 | 13.5 | 7.25 | |

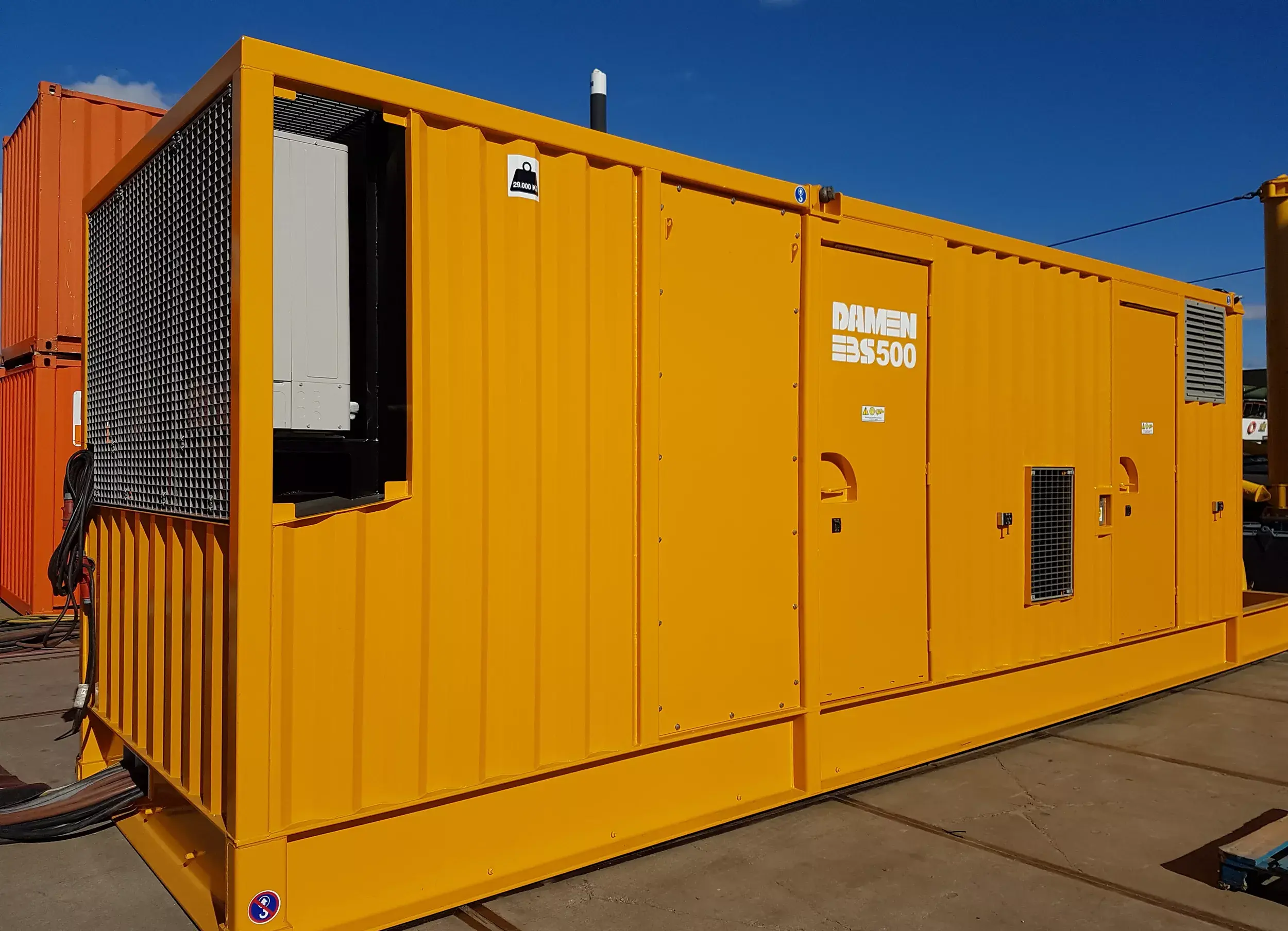

| Booster Station BS500 | 500 | 954 | 4000 | 32 | 9.13 |
Booster Station BS450
- Pipe diameter (mm)
- 450
- Power (kW)
- 709
- Production (m³/h)
- 3000
- Weight (t)
- 24
- Overall length (m)
- 9.13
- Pipe diameter (mm)
- 350
- Power (kW)
- 450
- Production (m³/h)
- 2000
- Weight (t)
- 13.5
- Overall length (m)
- 7.25
- Pipe diameter (mm)
- 500
- Power (kW)
- 954
- Production (m³/h)
- 4000
- Weight (t)
- 32
- Overall length (m)
- 9.13
