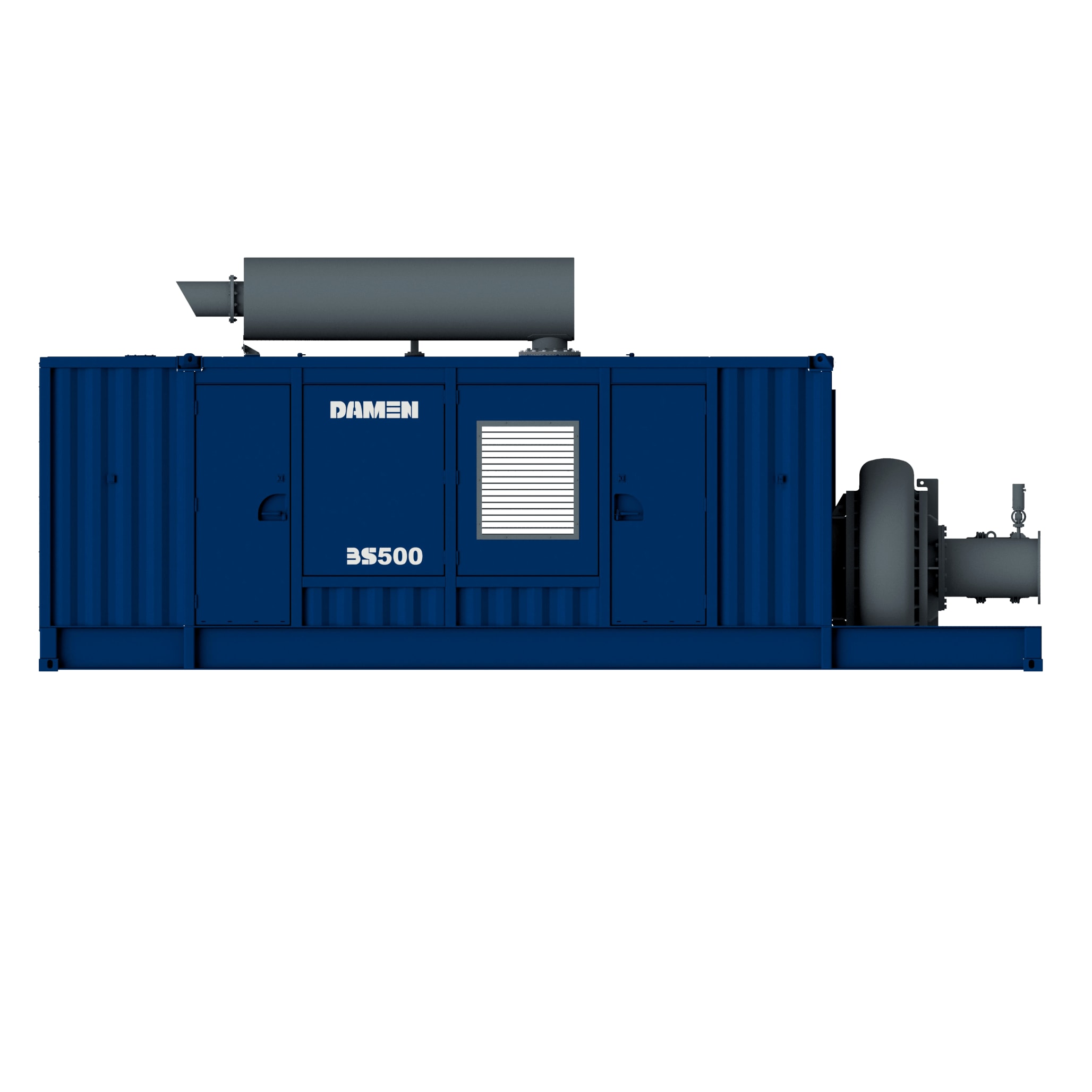

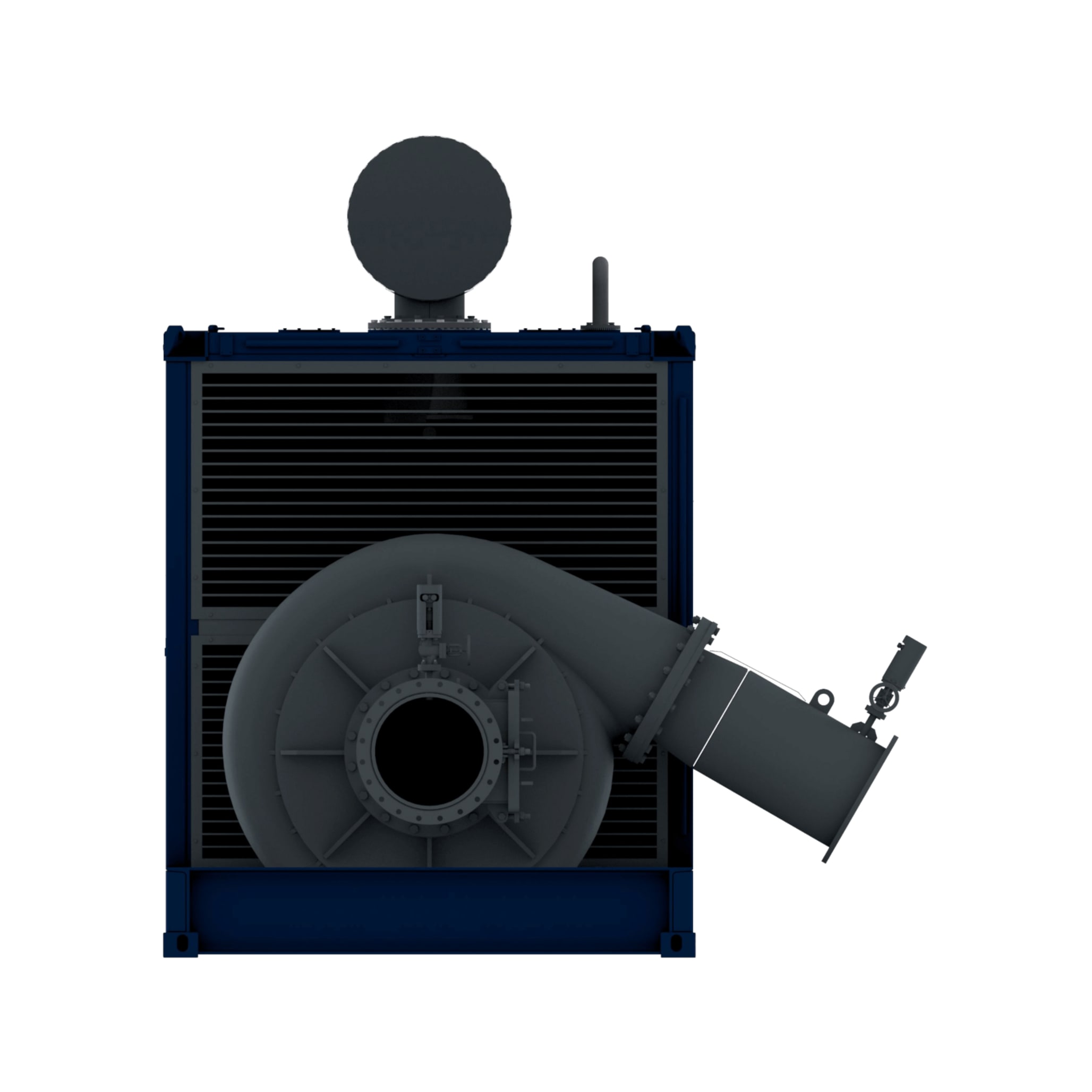

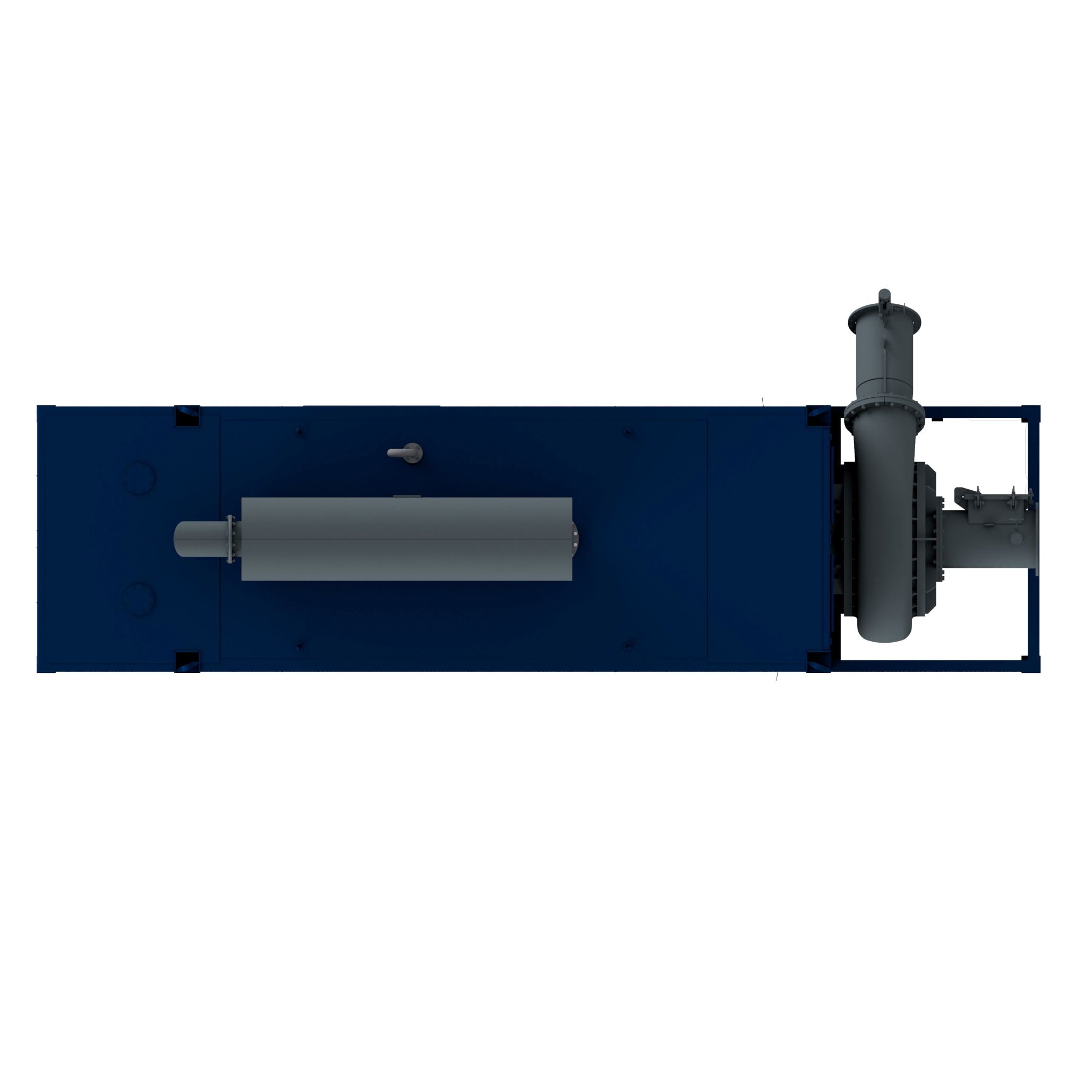

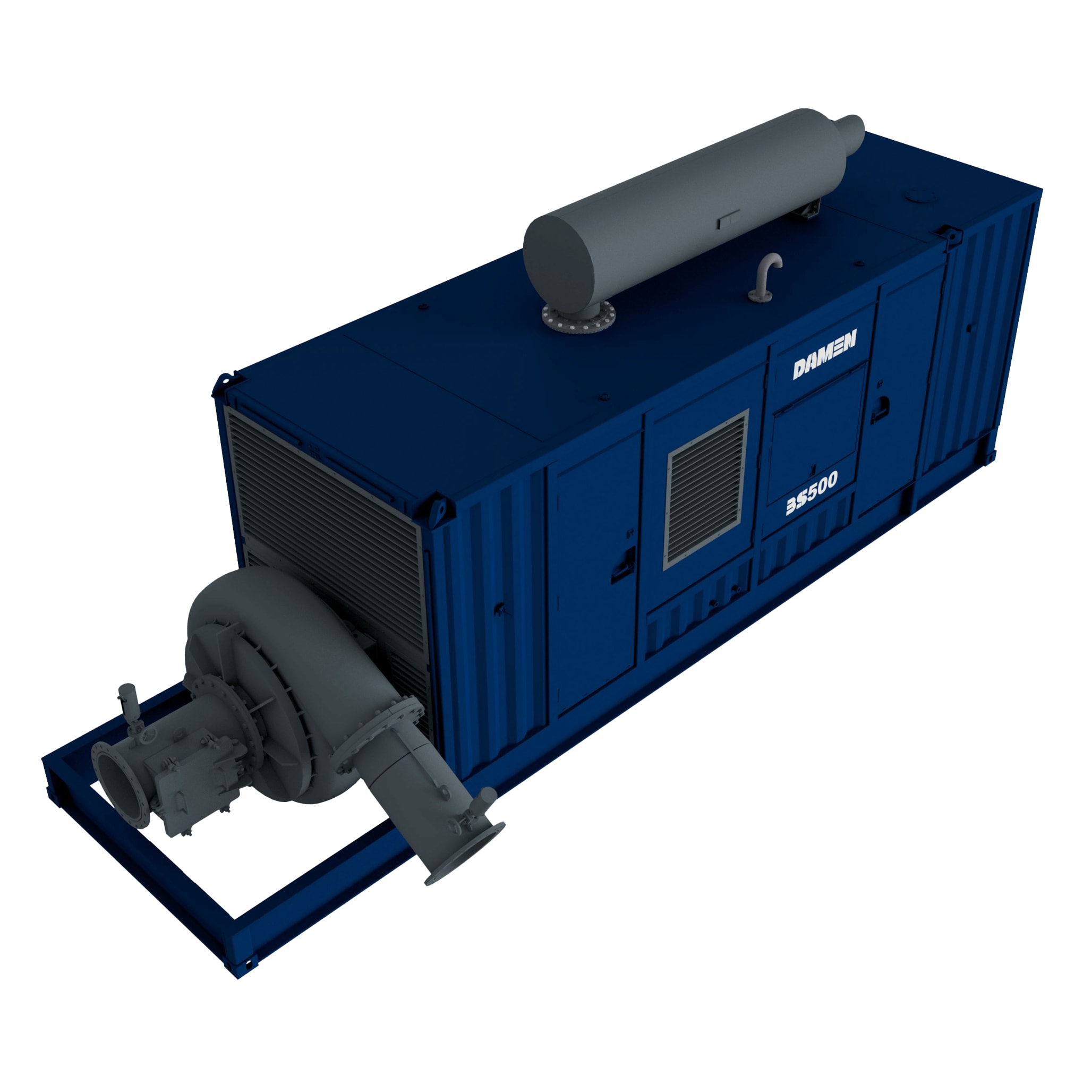

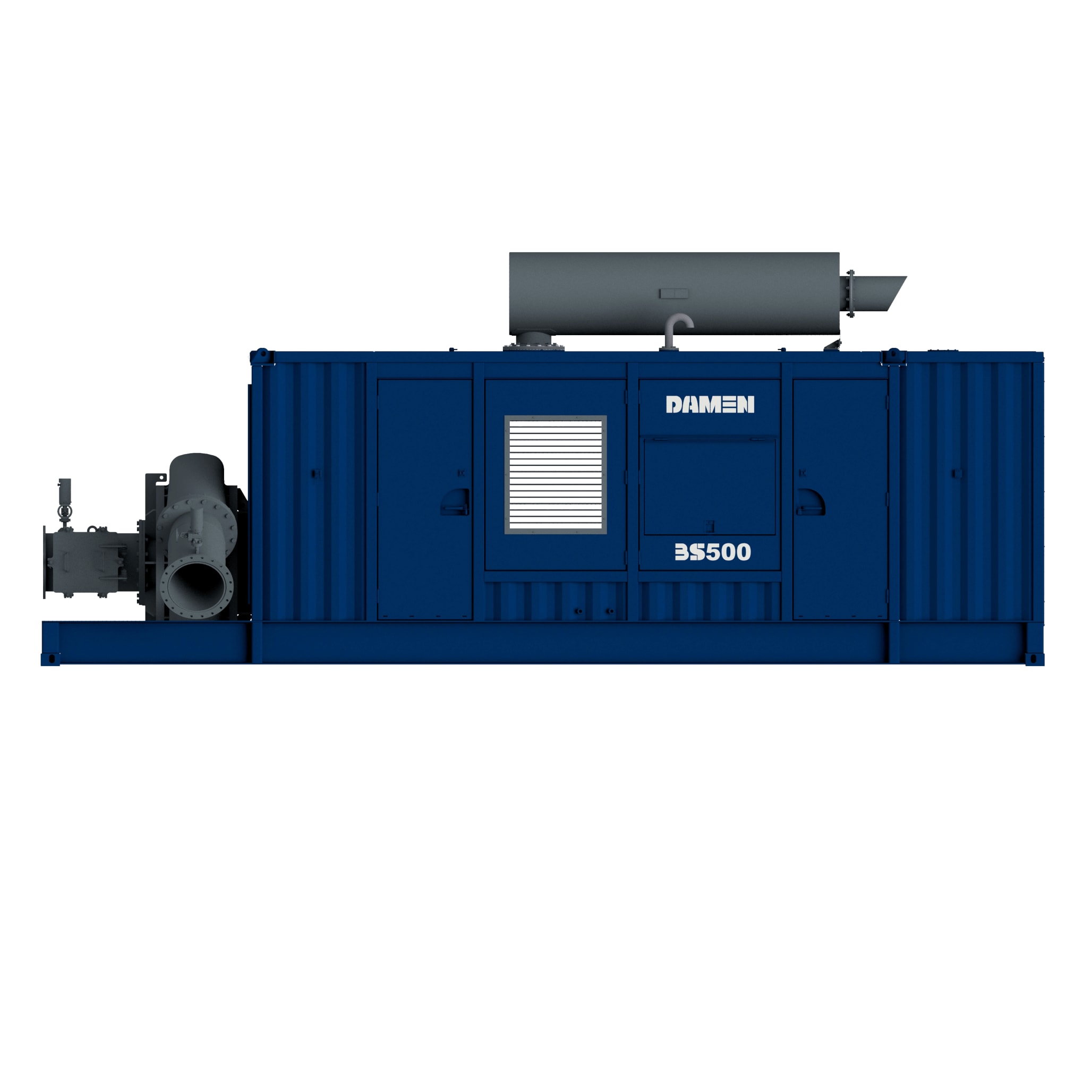

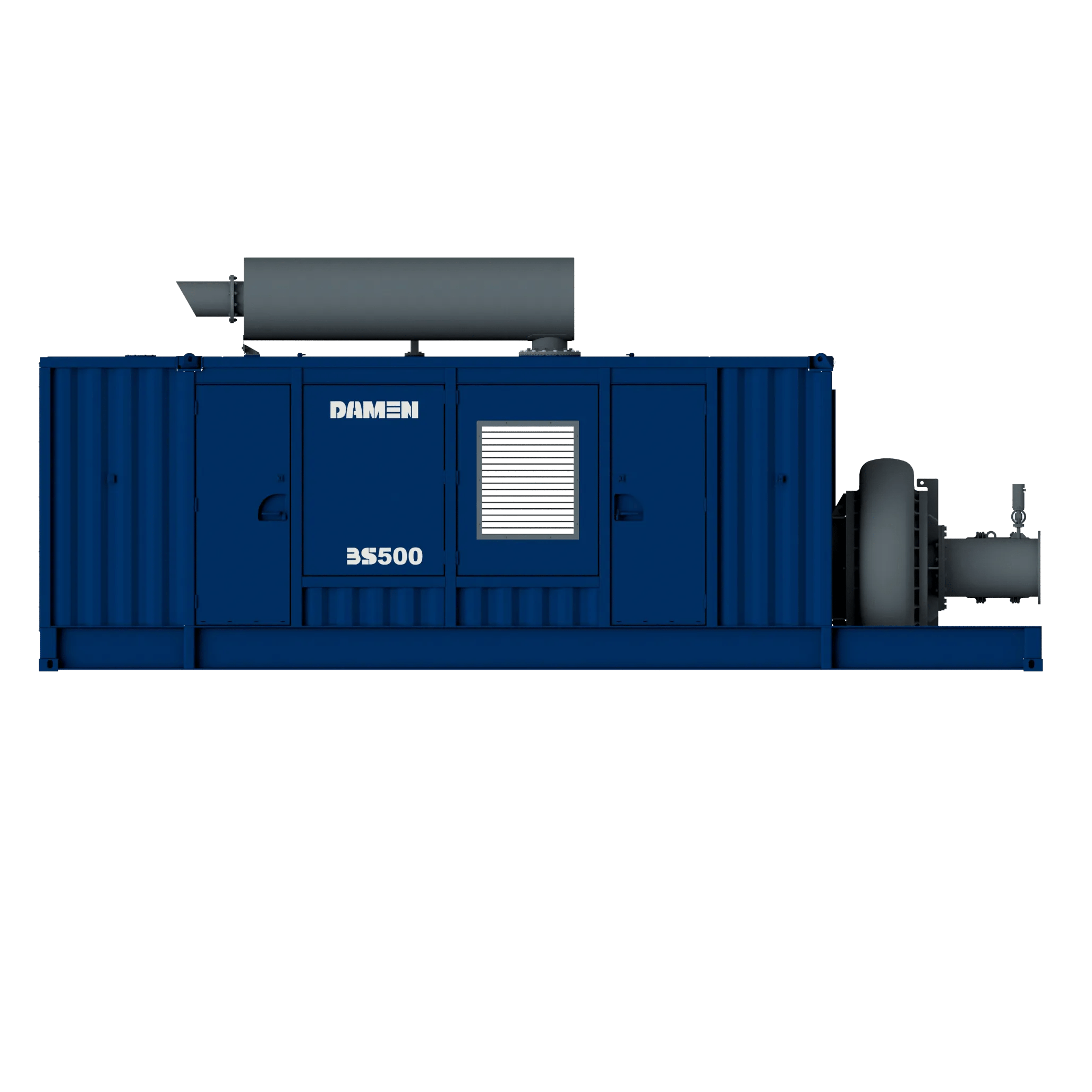

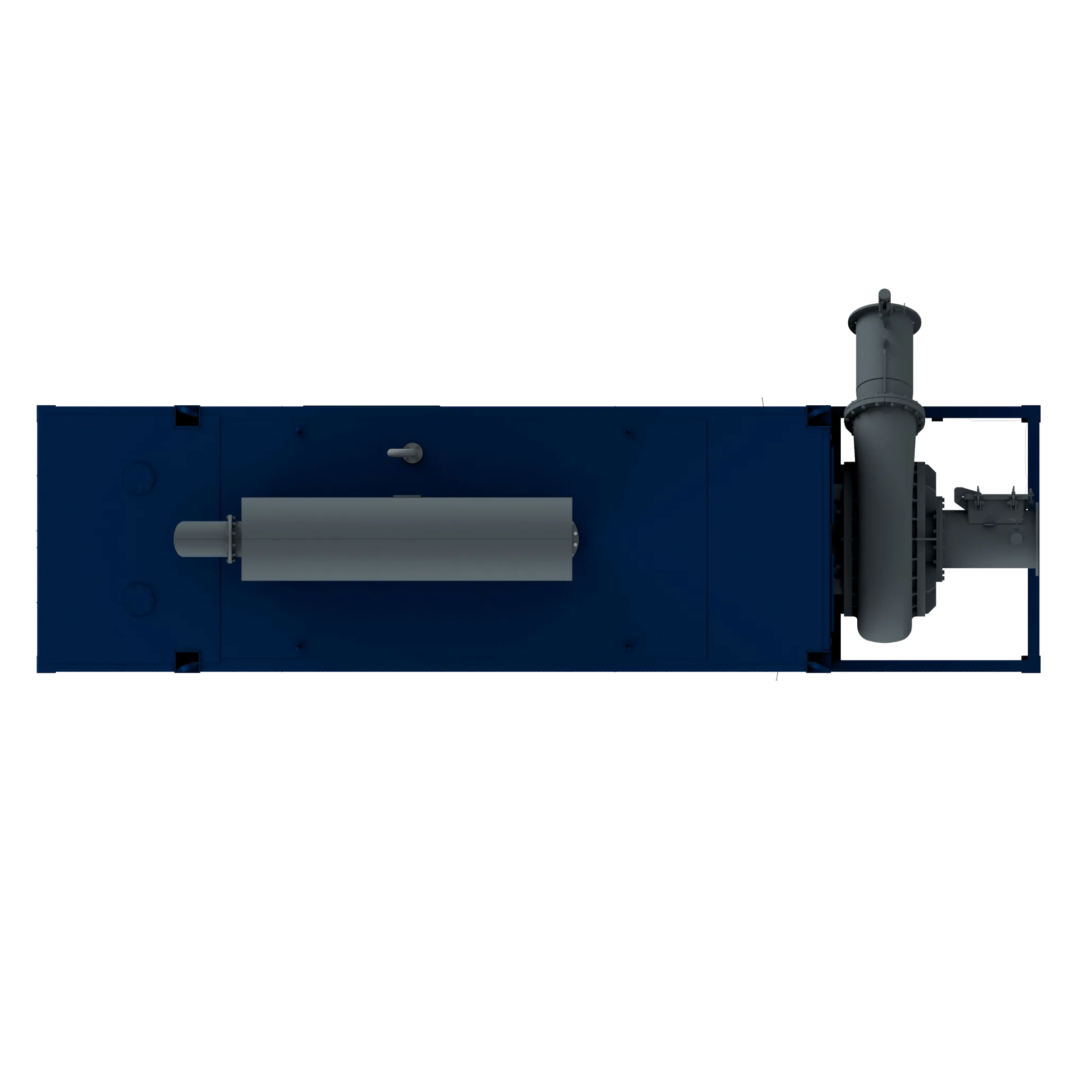

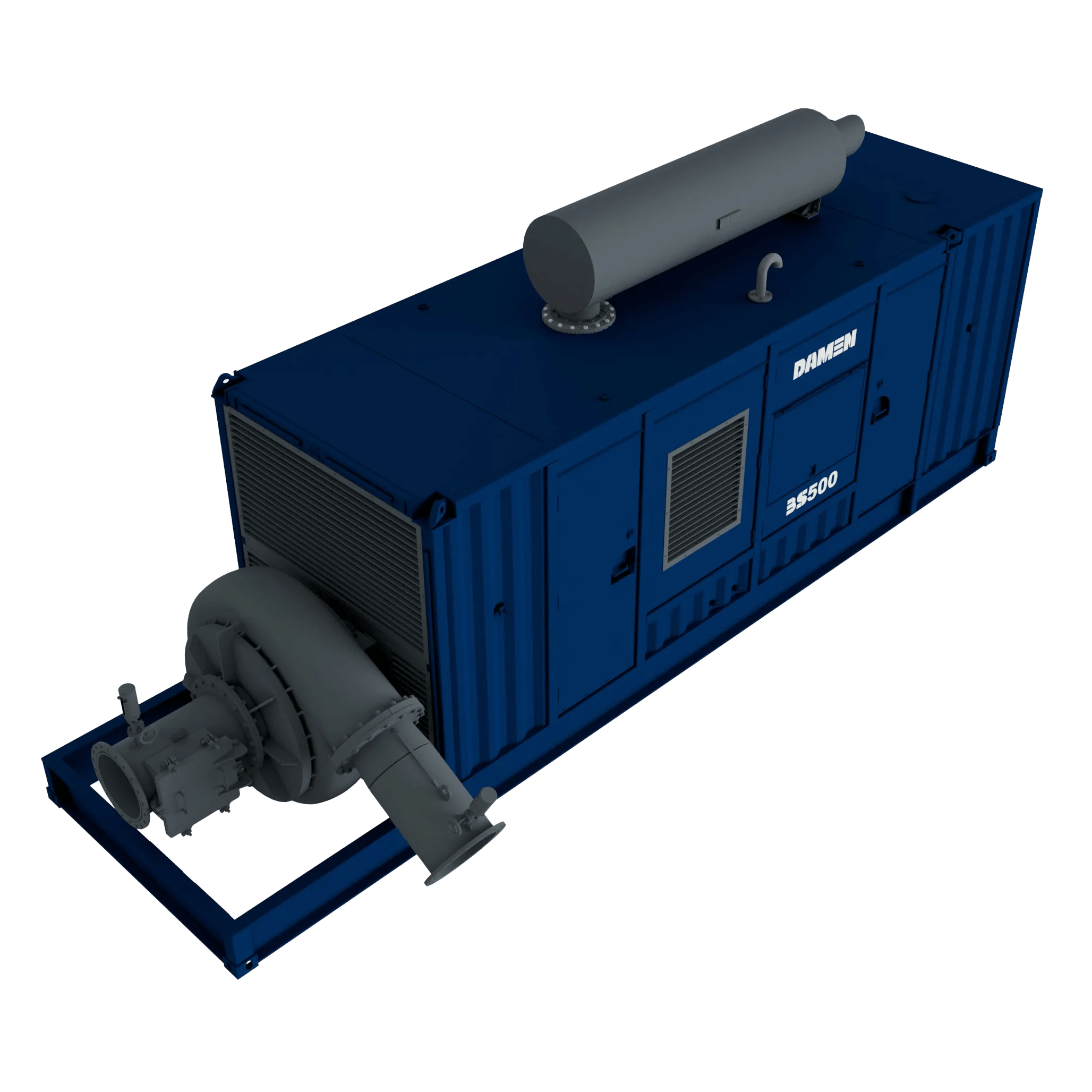

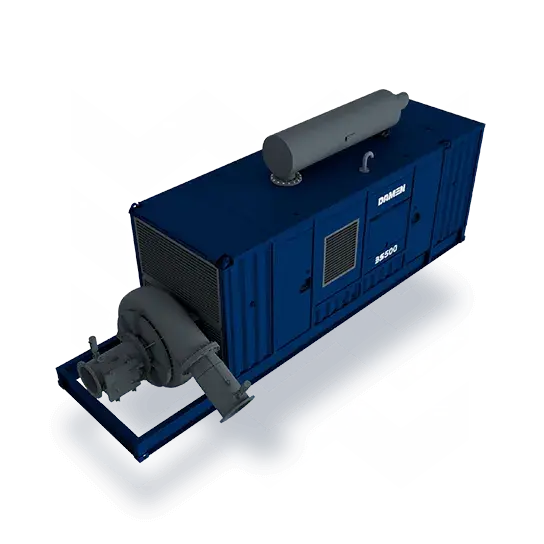

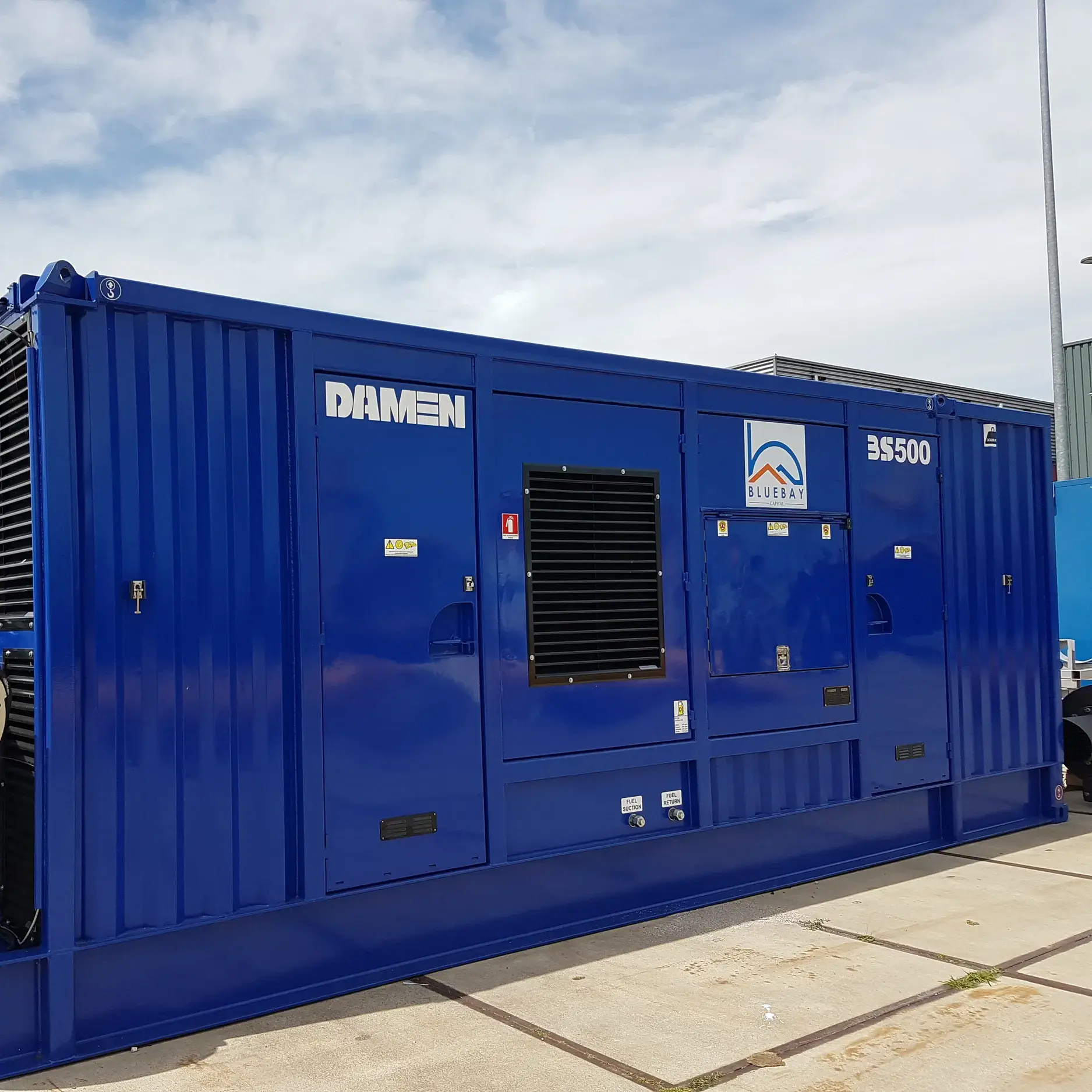

Booster Station BS500
Booster Station BS500

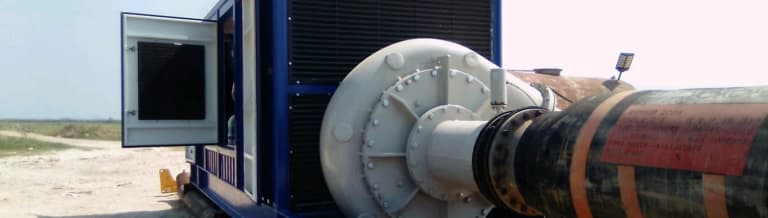

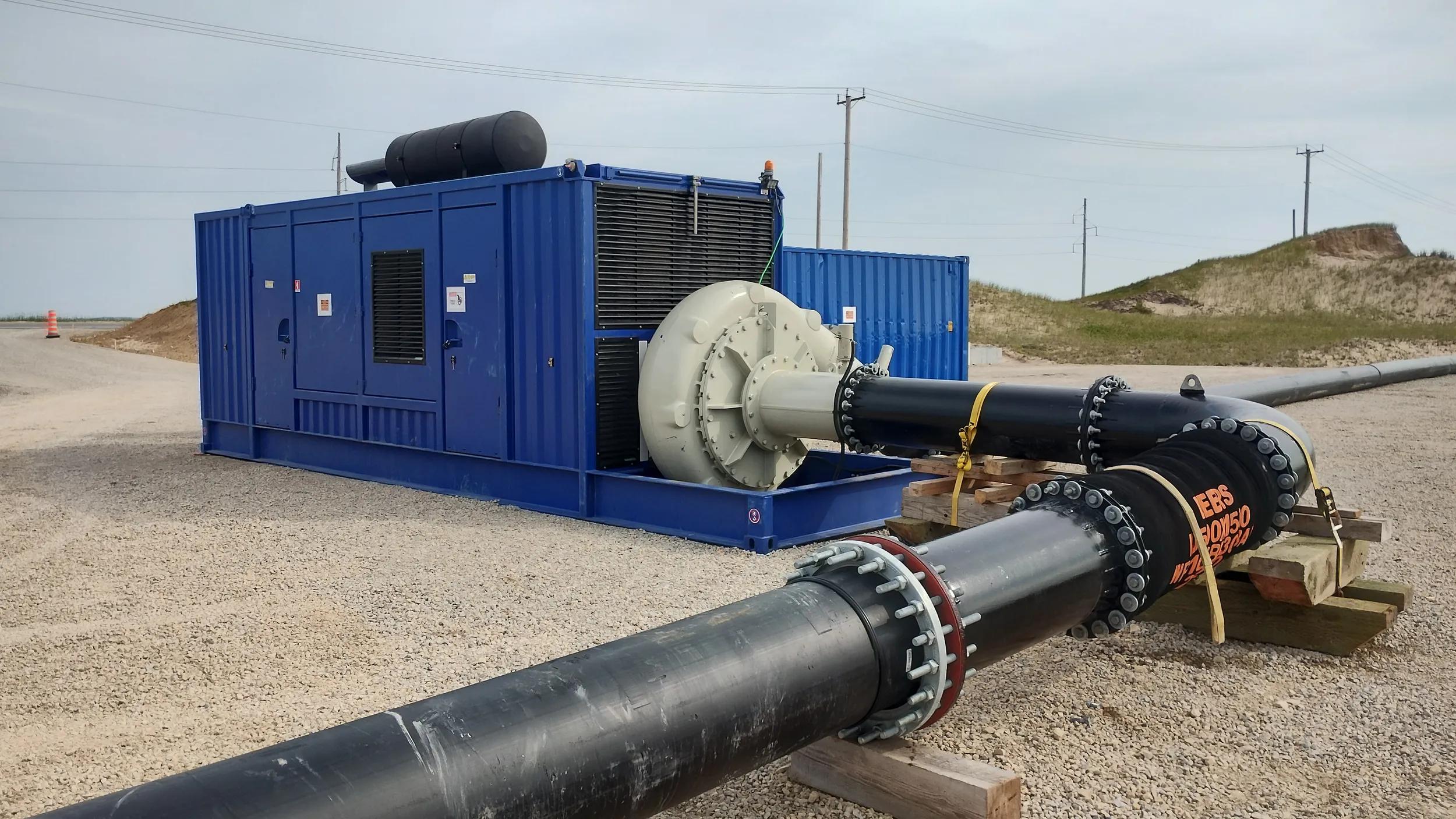

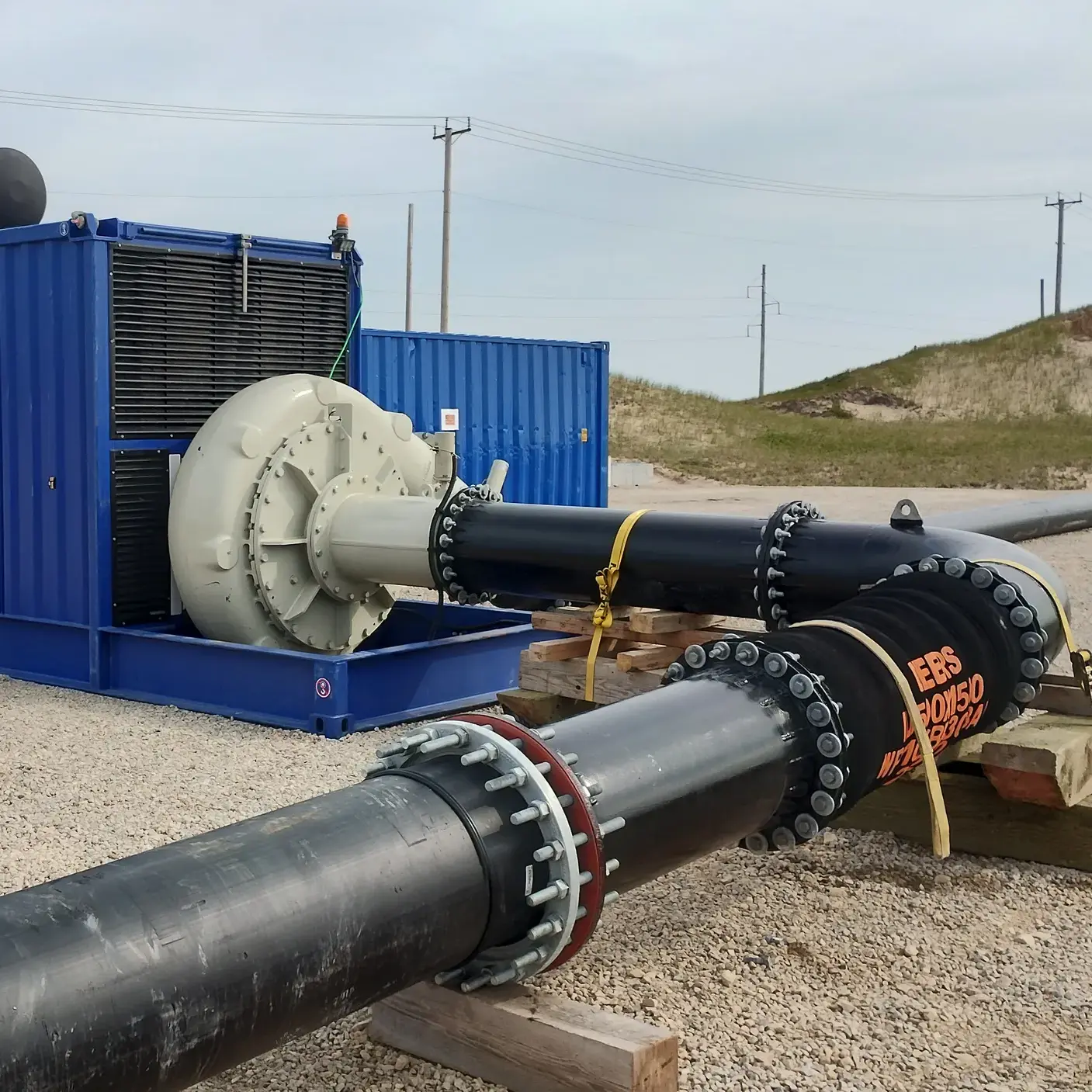

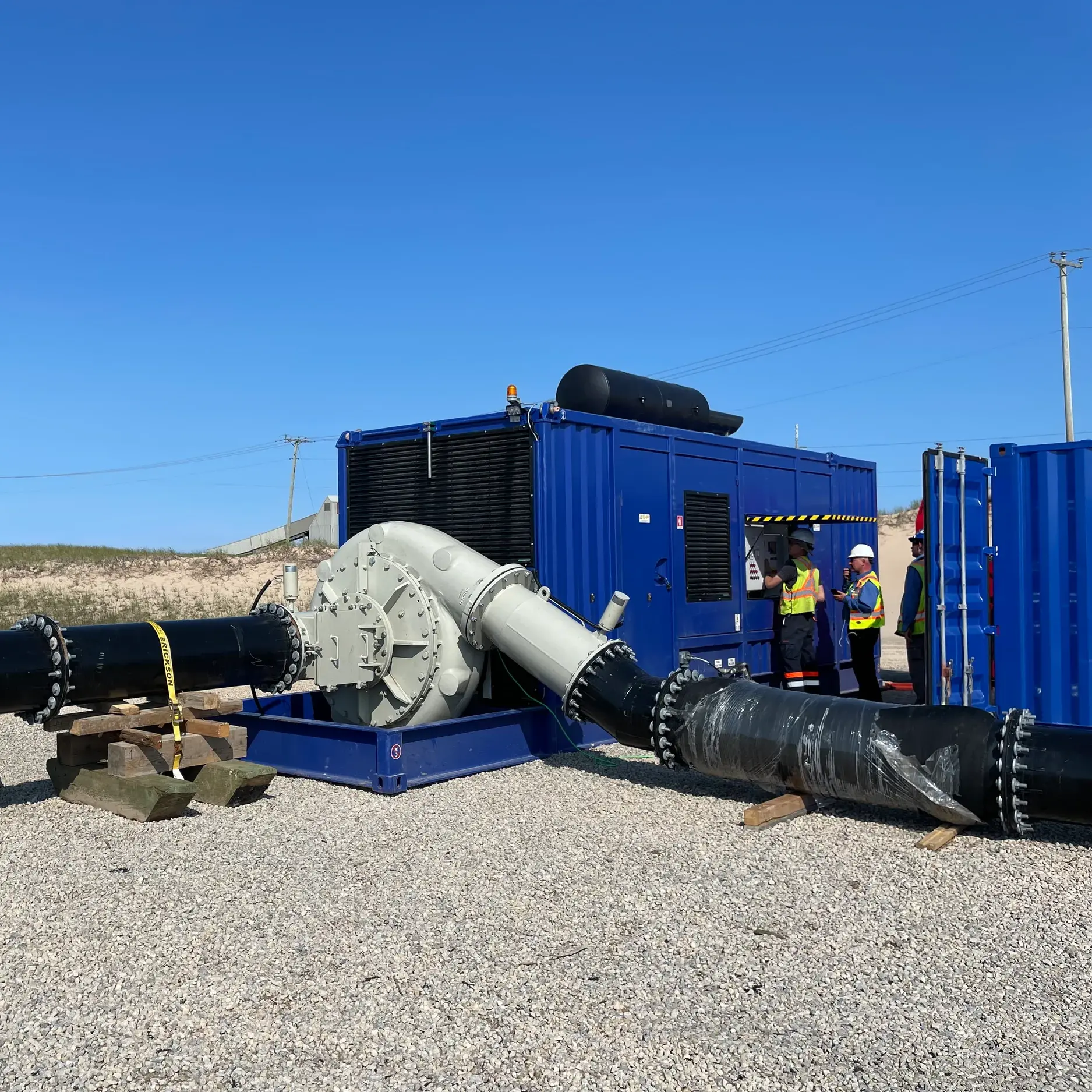

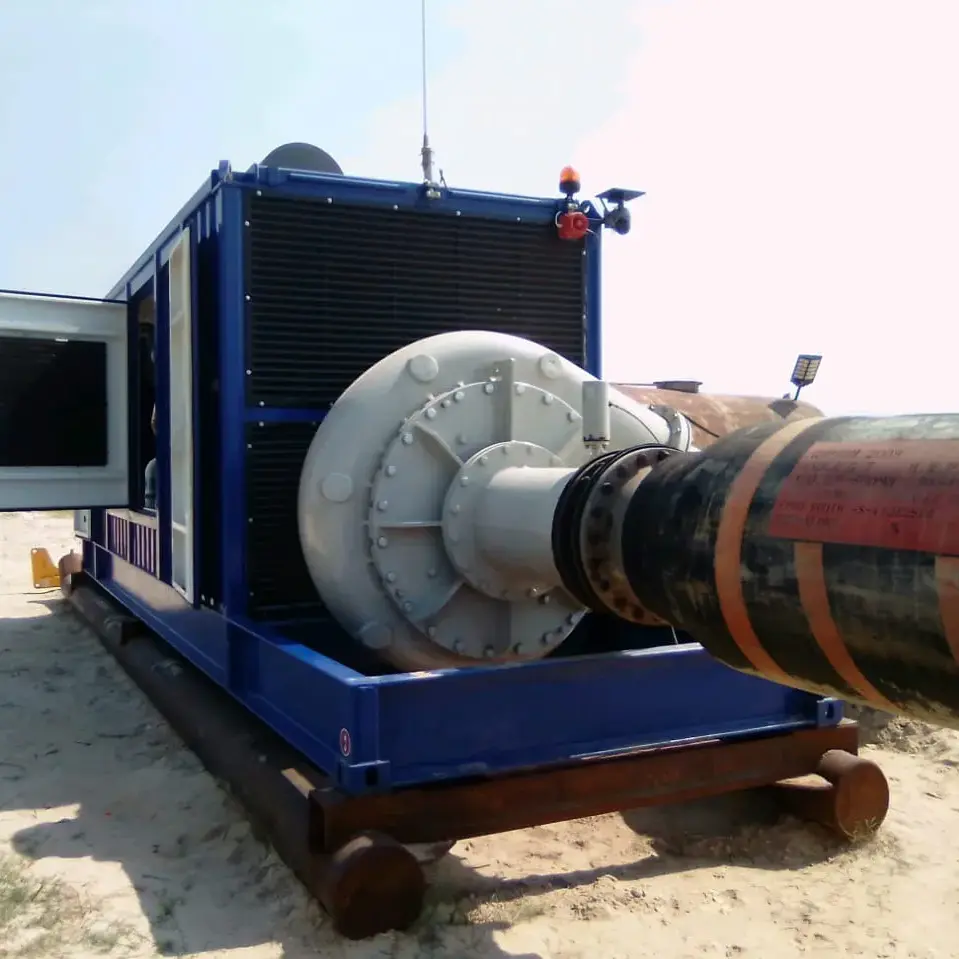

Standardised, fully containerised Booster Station, ready to be shipped to your job site. Designed for practical transport and a swift start-up. The booster pumping station is designed to work in series with a Cutter Suction Dredger or Mining Dredger, improving overall productivity over longer pumping distances.
- Remote control
- Fuel tank
- Electrically powered version

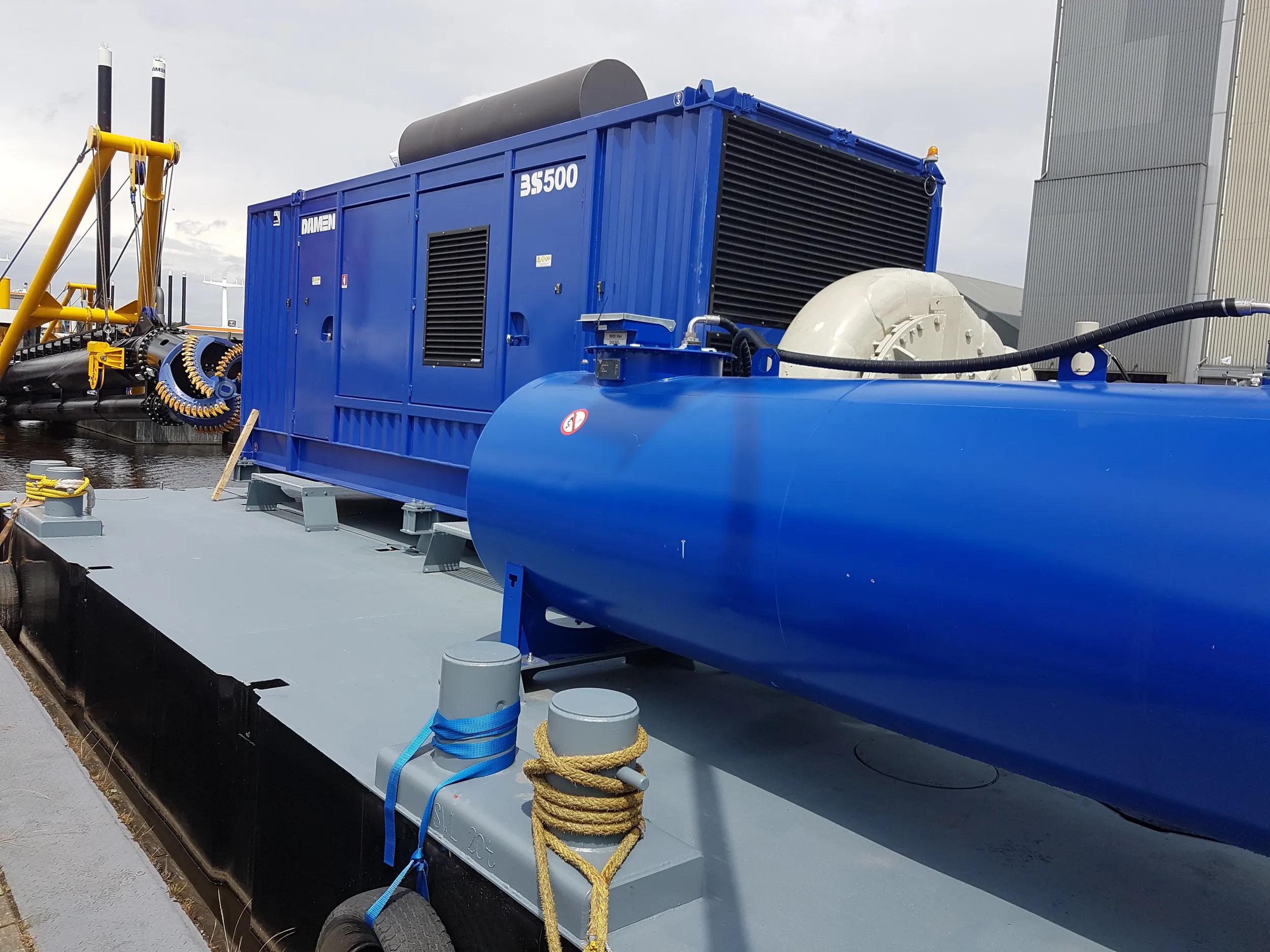

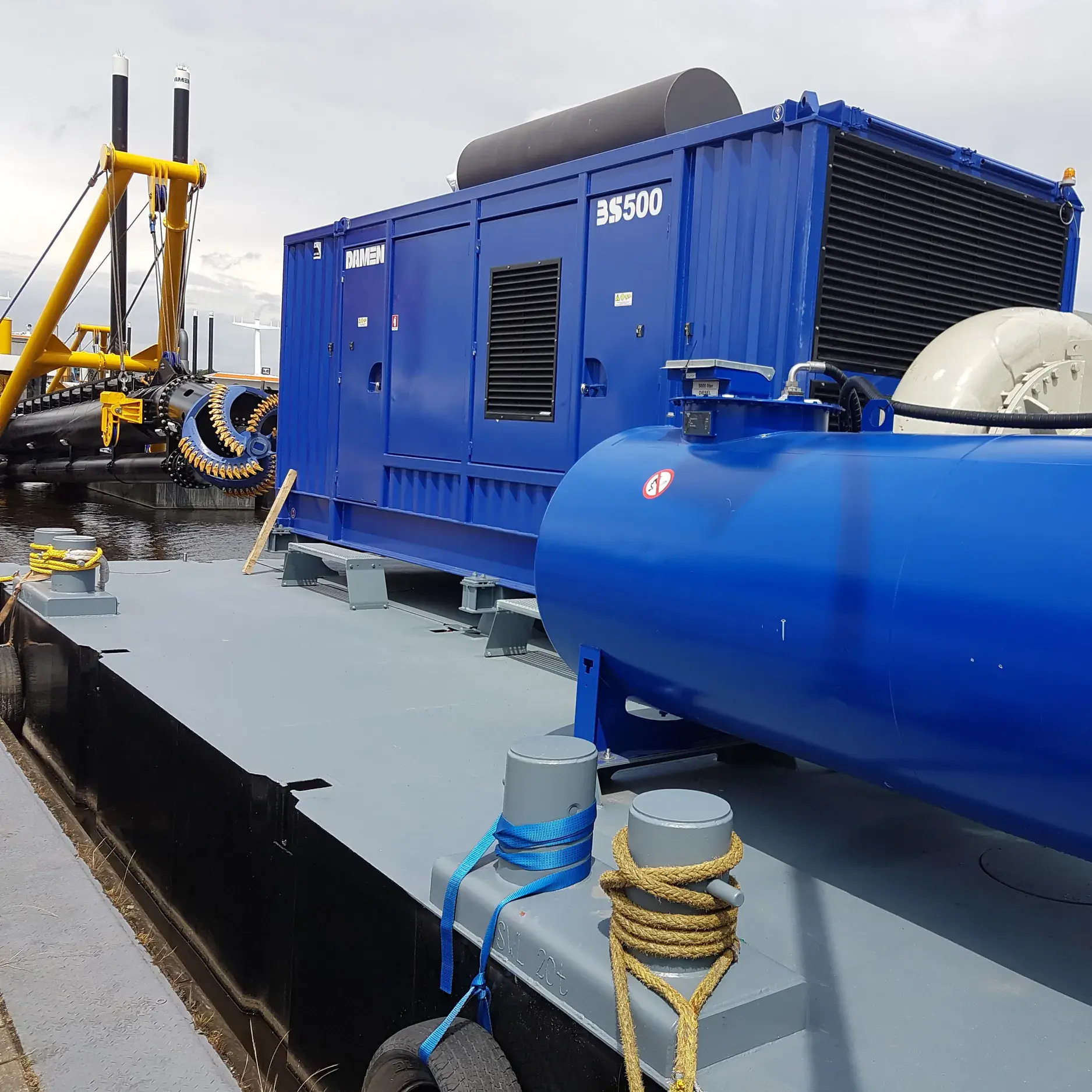

- Floating platform
- Maximum fuel efficiency
- Practical no-flush pump seal
- Ready for operation
- Container-sized
Key figures
500
954
4000
32
9.13

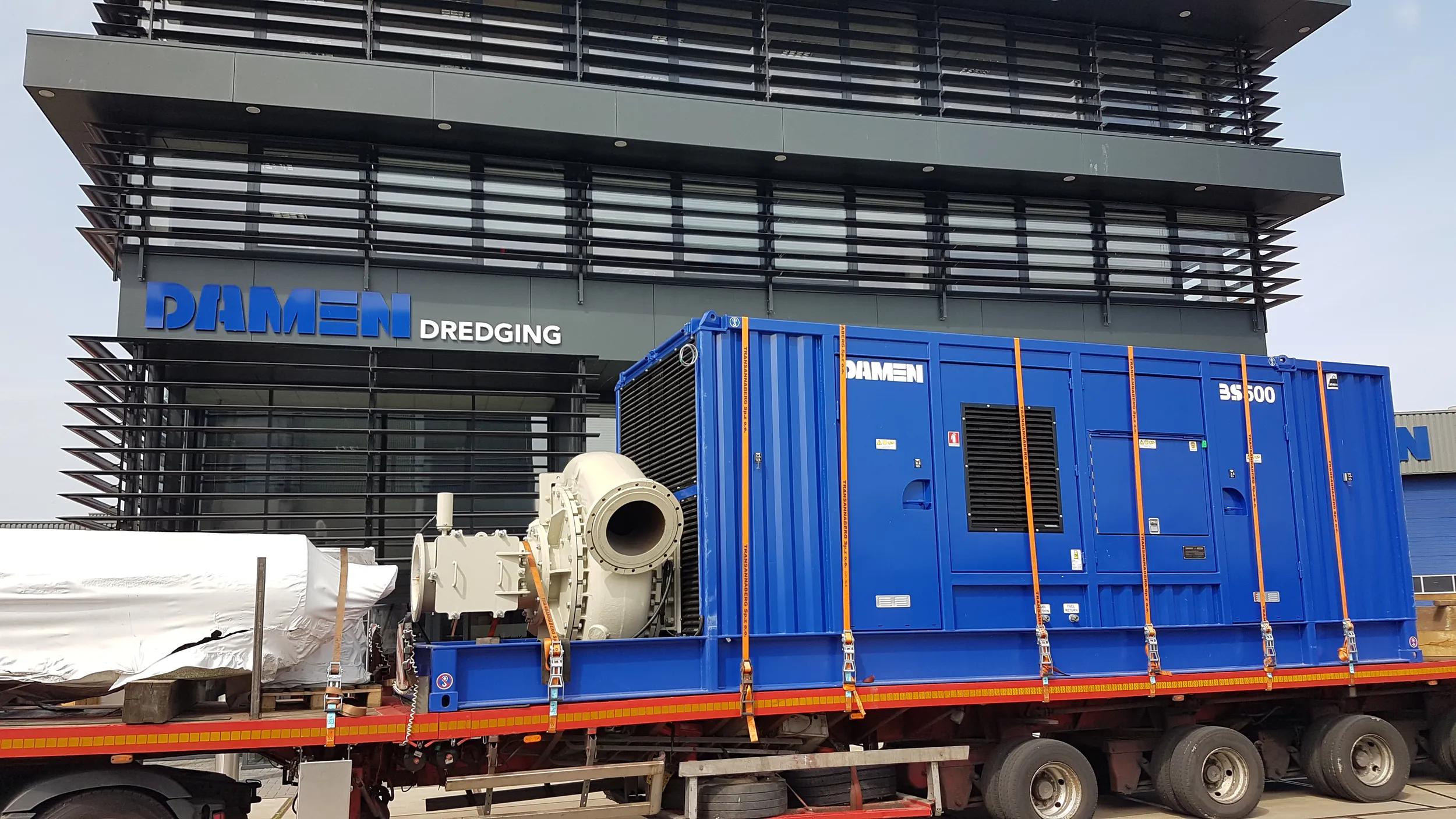

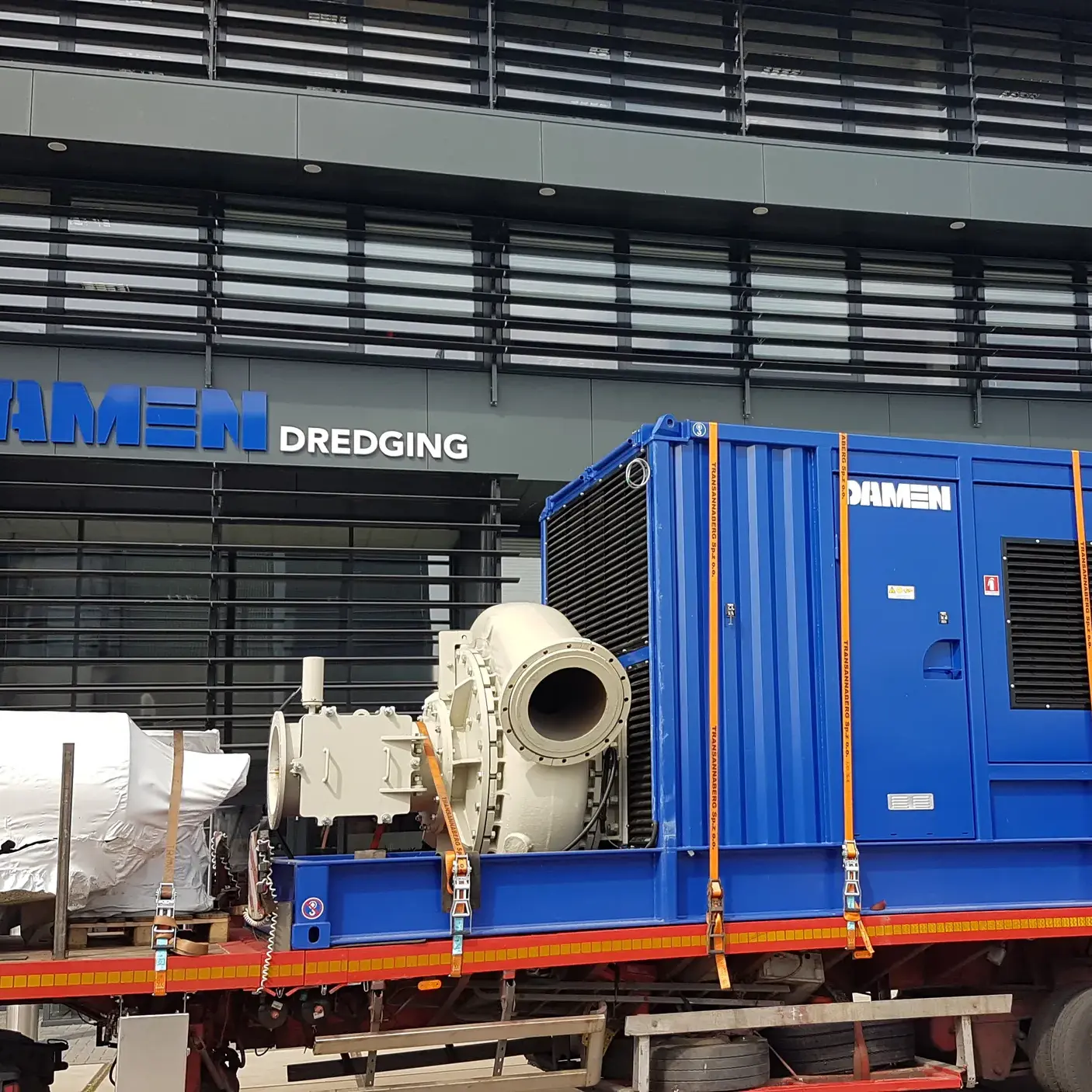

Transport dimensions
- Overall length
- 9.13 m
- Overall width
- 2.44 m
- Overall height
- 2.9 m
- Weight
- 32 t

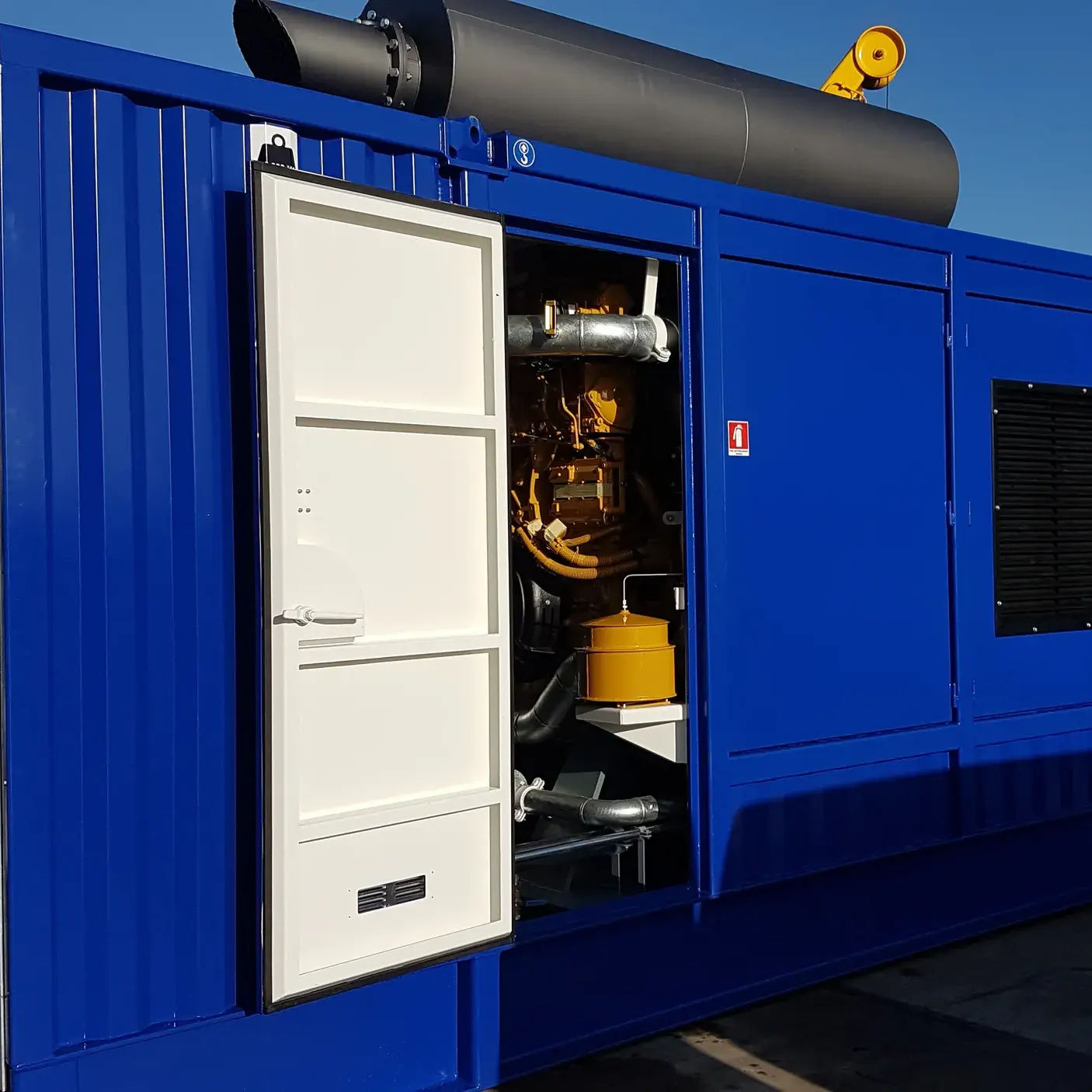

Engine installation
- Dredge pump diesel
- CAT 3512C
- Max power rating
- 954 kW @ 1,600 rpm
- Regulation
- IMO Tier II

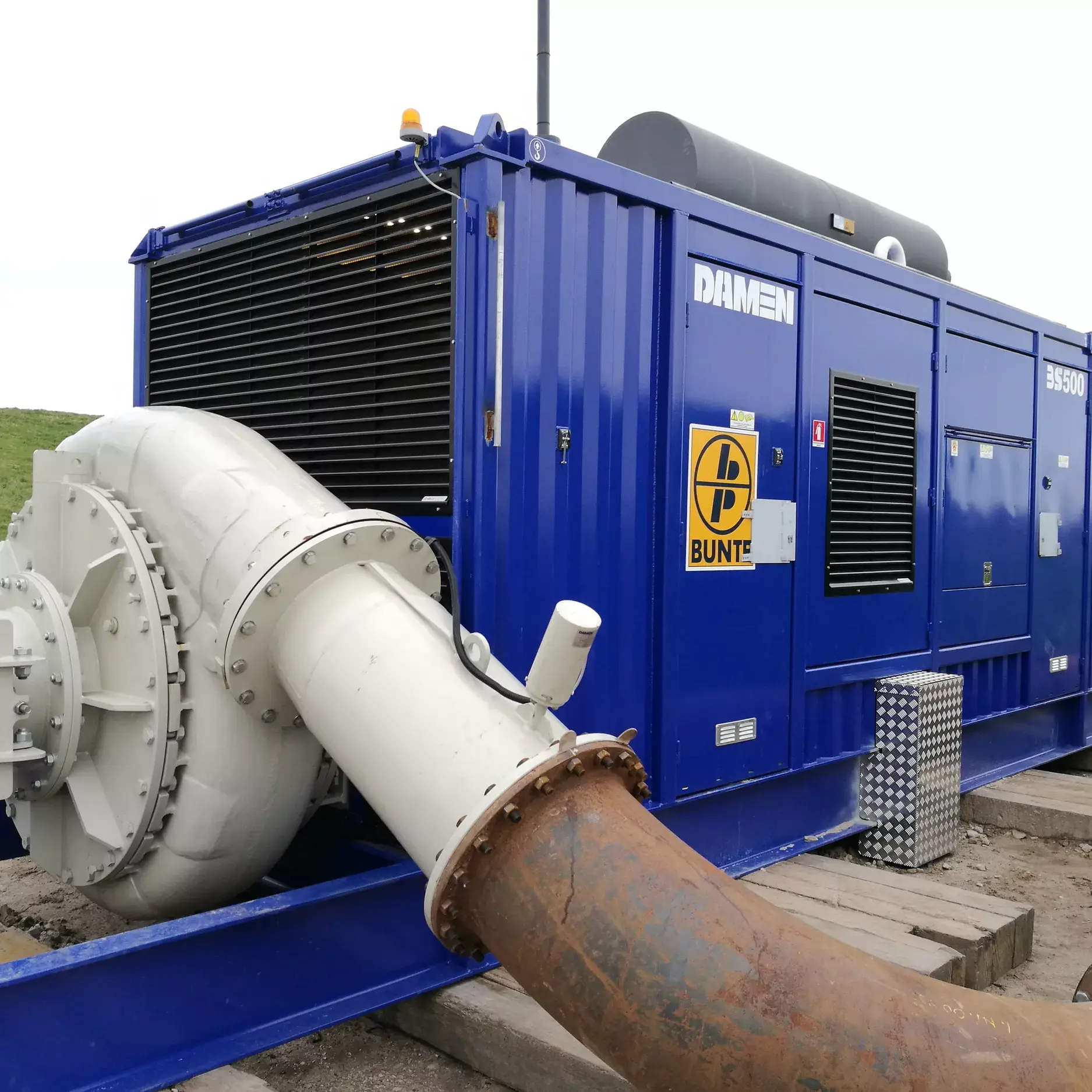

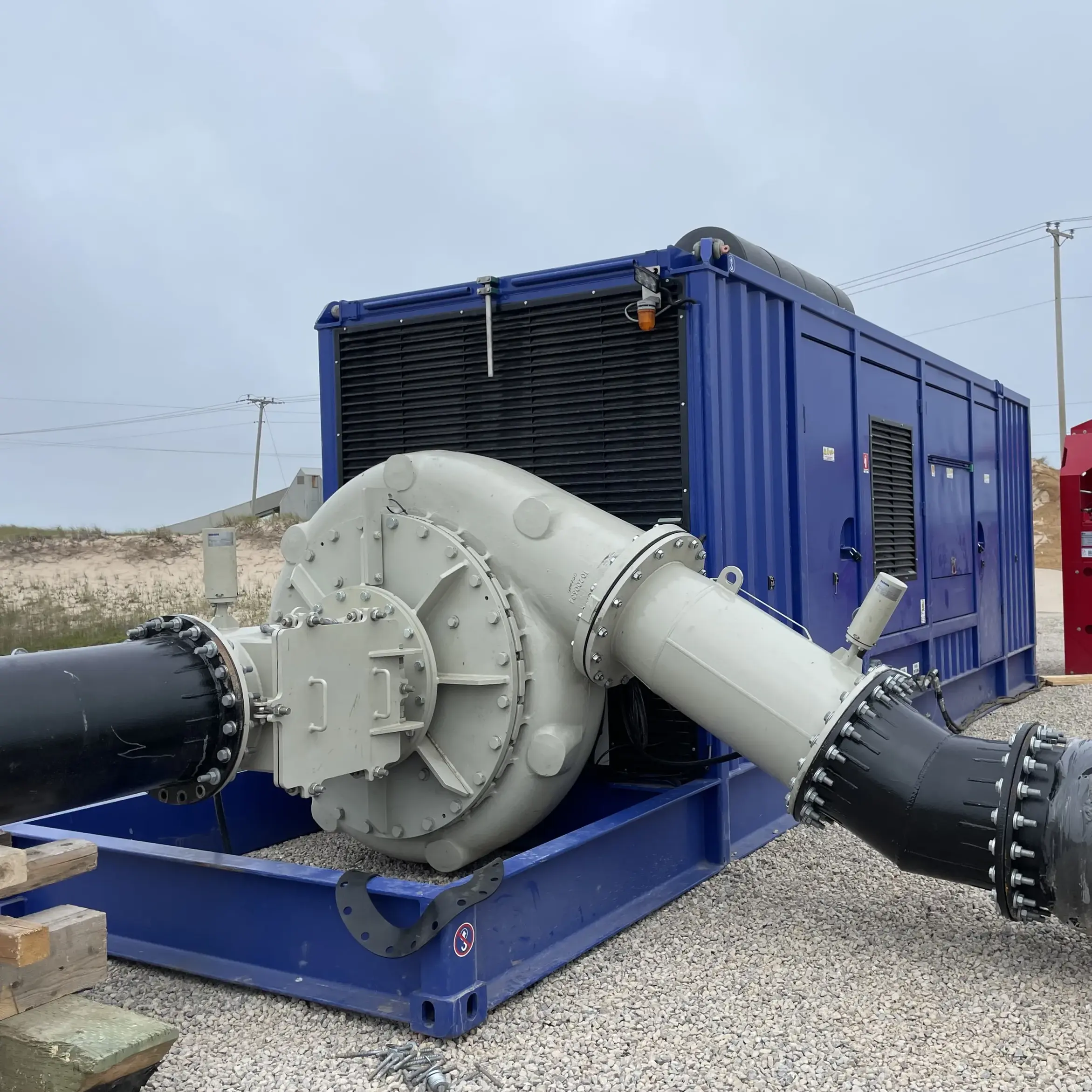

Dredge installation
- Dredge production
- 4000 m³/h
- Dredge pipe diameter
- 500 mm

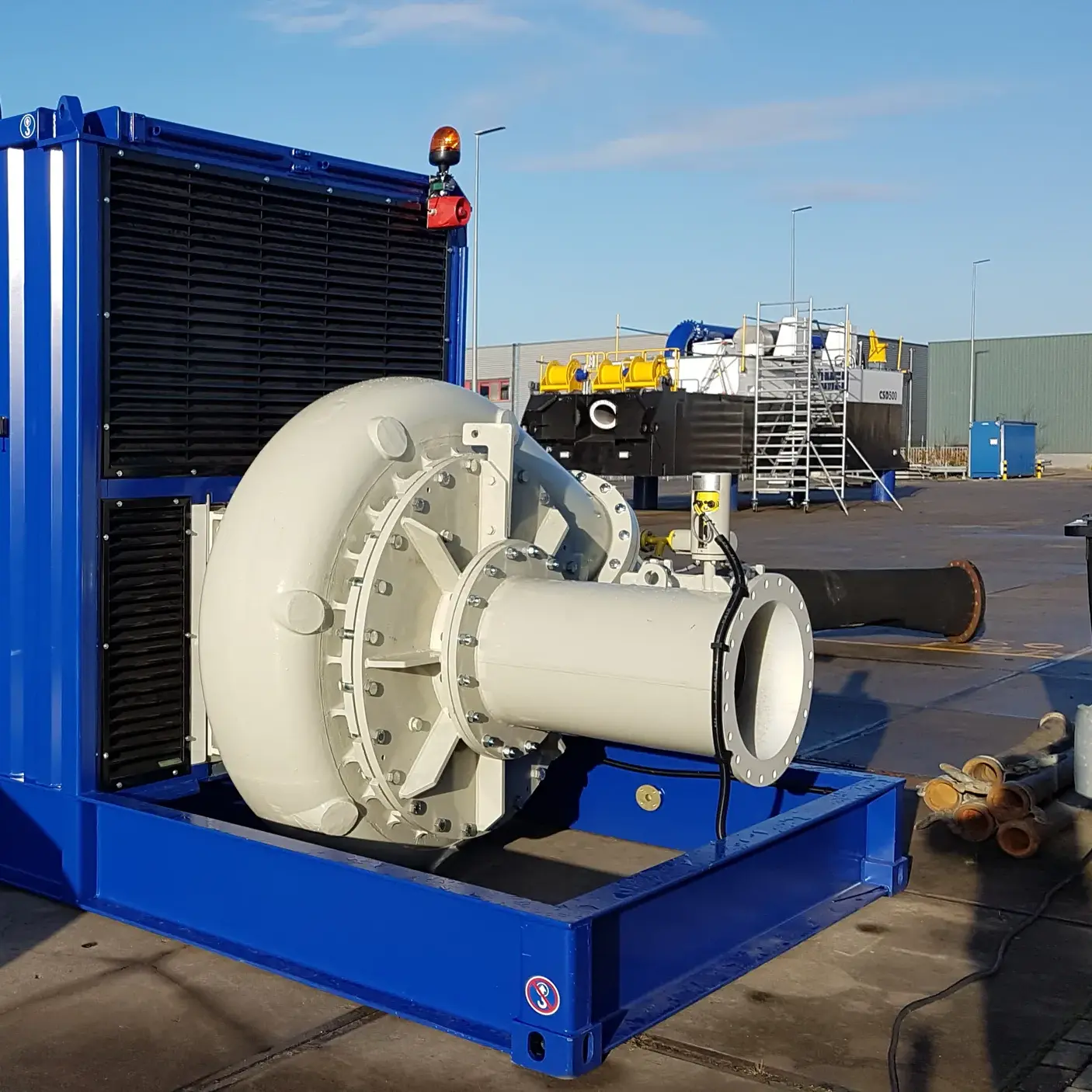

- Dredge pump
- Damen BP5045
- Impeller diameter
- 1175 mm
Do you want to know more?
Compare similar Booster Stations
| Pipe diameter (mm) | Power (kW) | Production (m³/h) | Weight (t) | Overall length (m) | ||
|---|---|---|---|---|---|---|
| Booster Station BS500 | 500 | 954 | 4000 | 32 | 9.13 | |
| Booster Station BS450 | 450 | 709 | 3000 | 24 | 9.13 | |
| Booster Station BS650 | 650 | 1.825 | 7000 | 51 | 12.9 |
Booster Station BS500
- Pipe diameter (mm)
- 500
- Power (kW)
- 954
- Production (m³/h)
- 4000
- Weight (t)
- 32
- Overall length (m)
- 9.13
- Pipe diameter (mm)
- 450
- Power (kW)
- 709
- Production (m³/h)
- 3000
- Weight (t)
- 24
- Overall length (m)
- 9.13
- Pipe diameter (mm)
- 650
- Power (kW)
- 1.825
- Production (m³/h)
- 7000
- Weight (t)
- 51
- Overall length (m)
- 12.9
