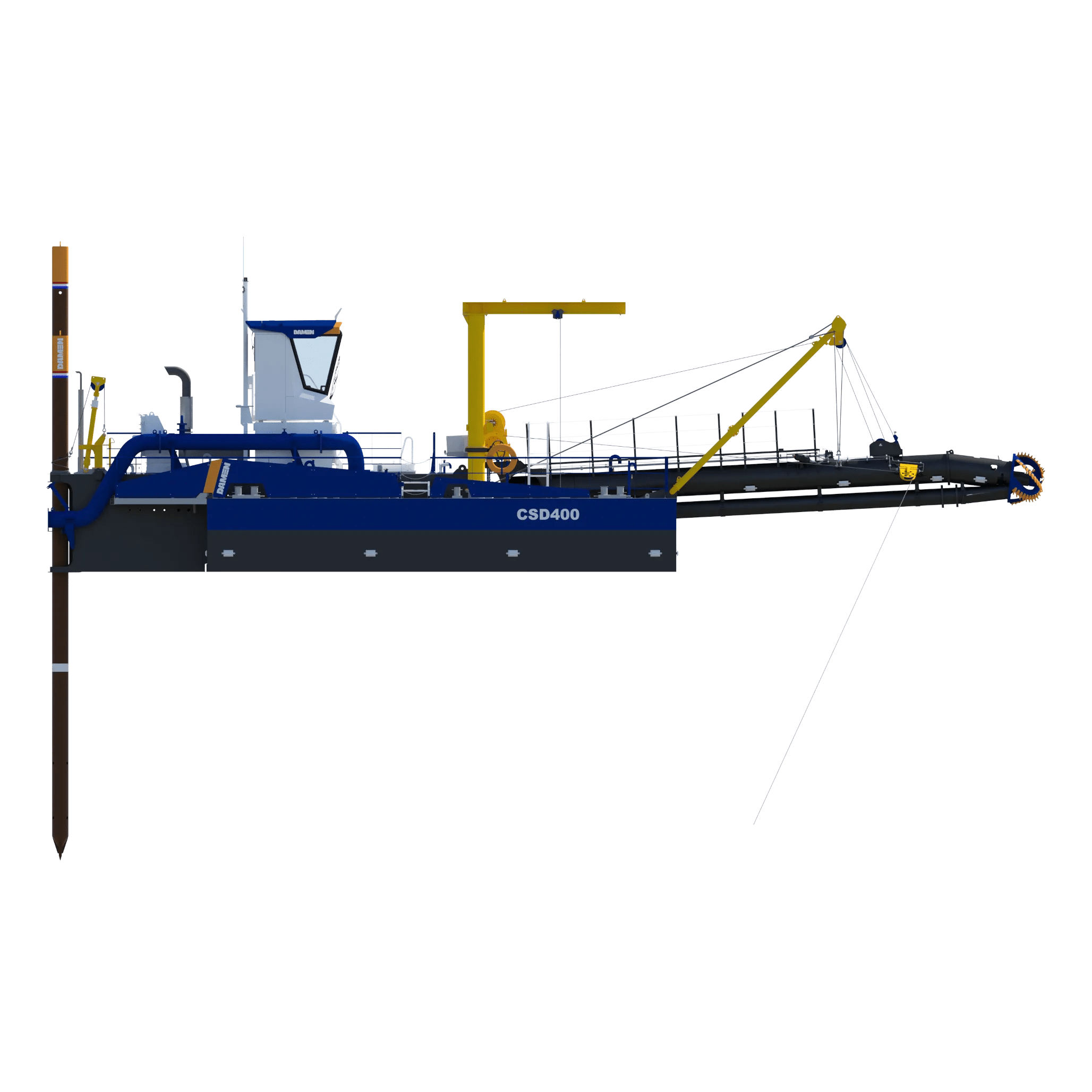

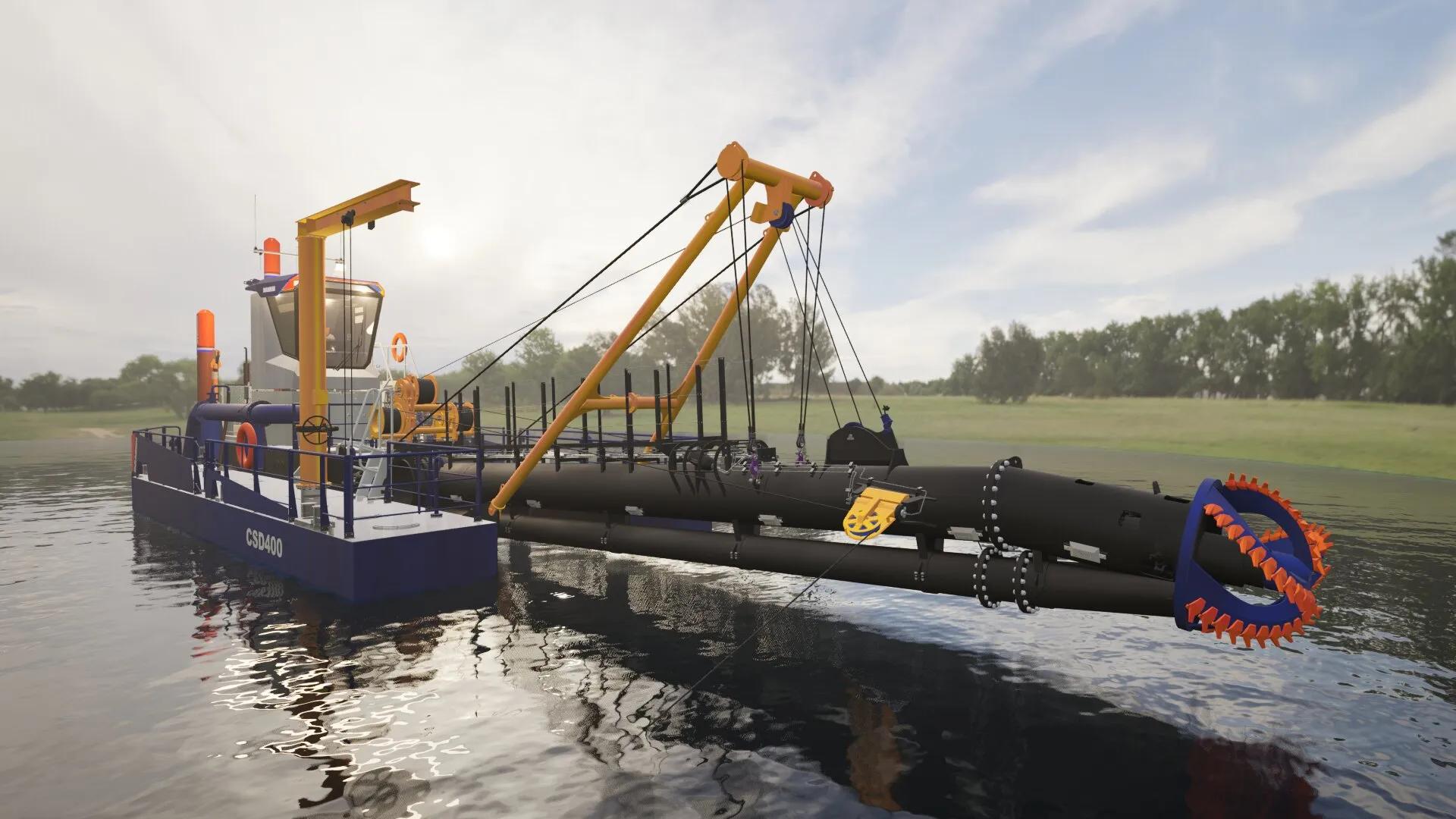

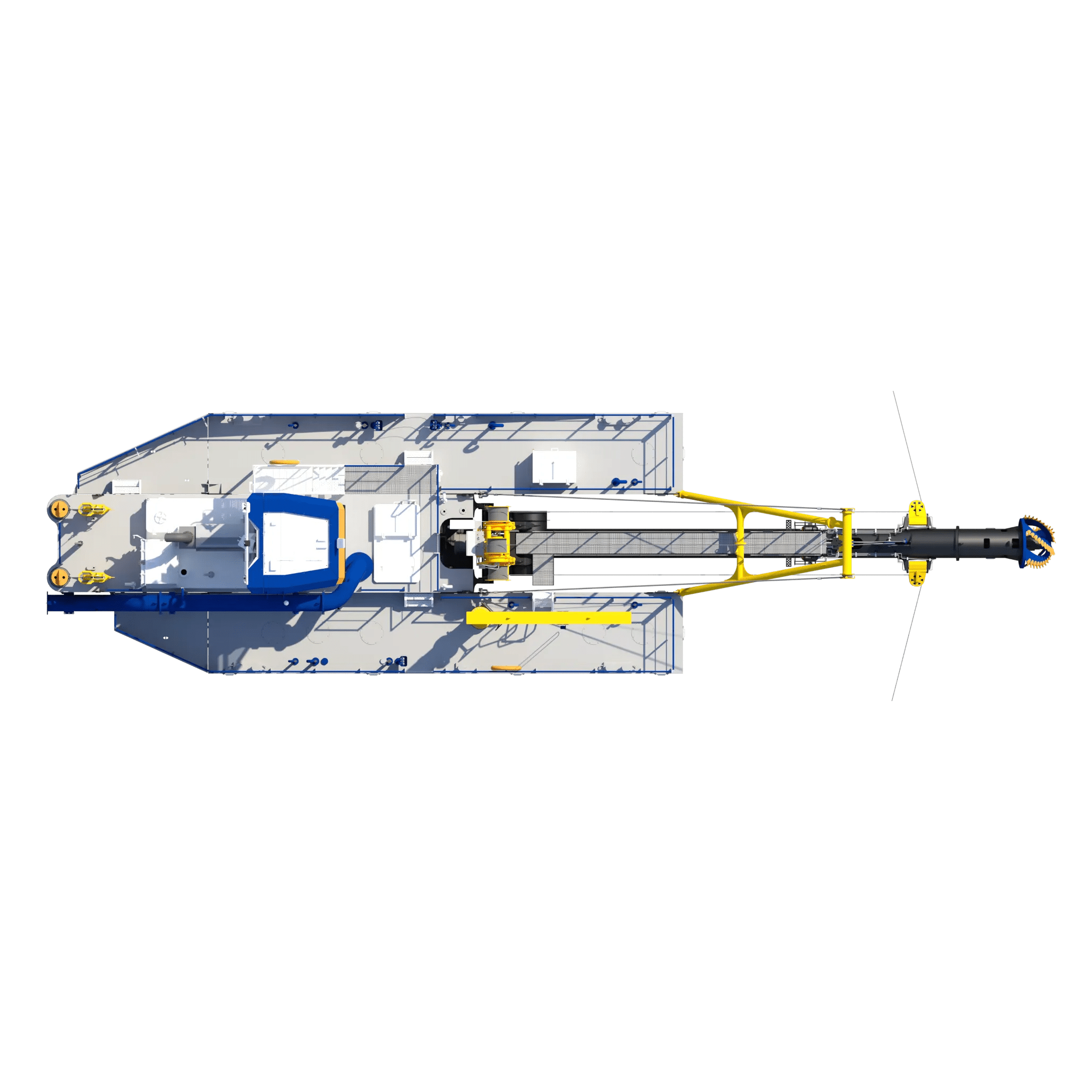

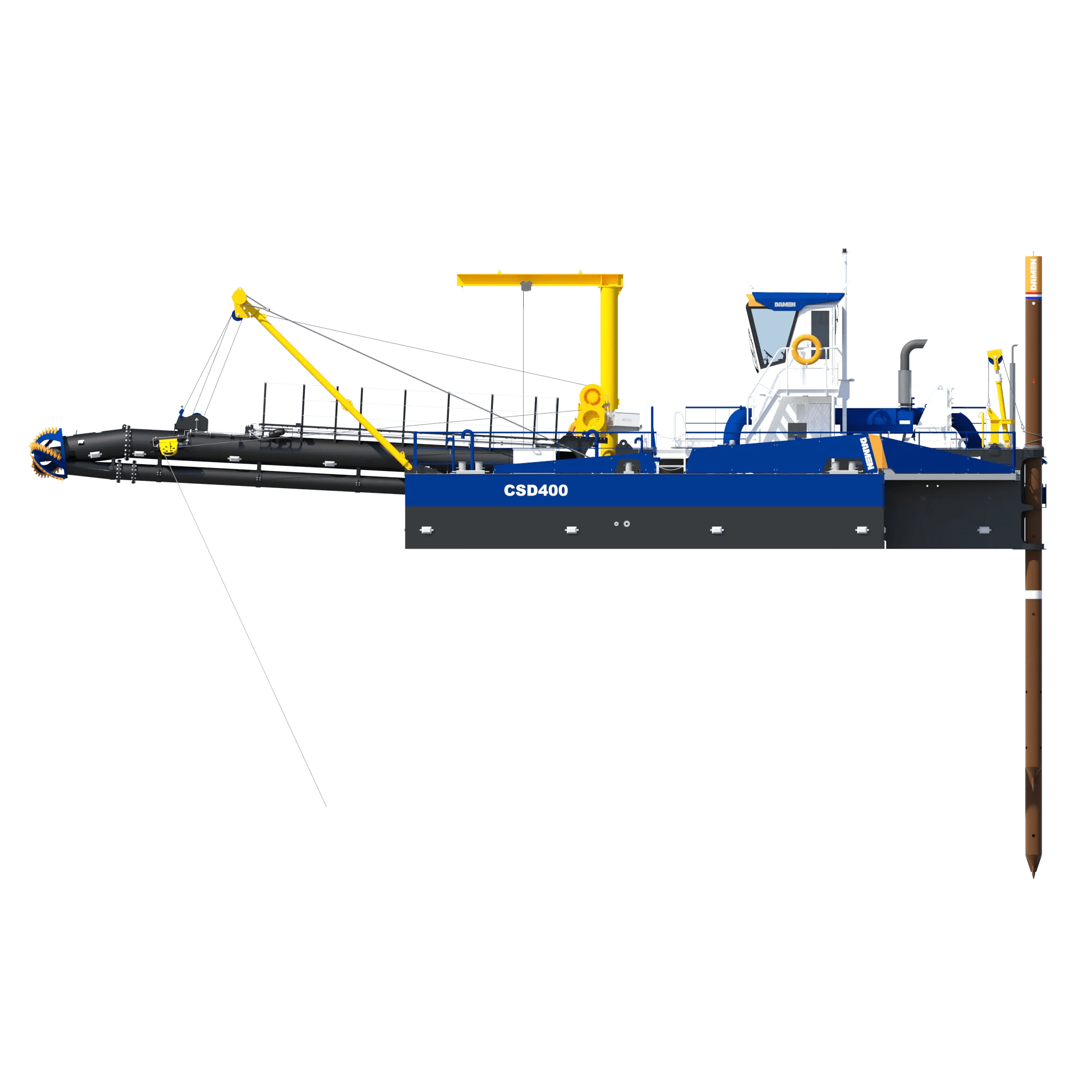

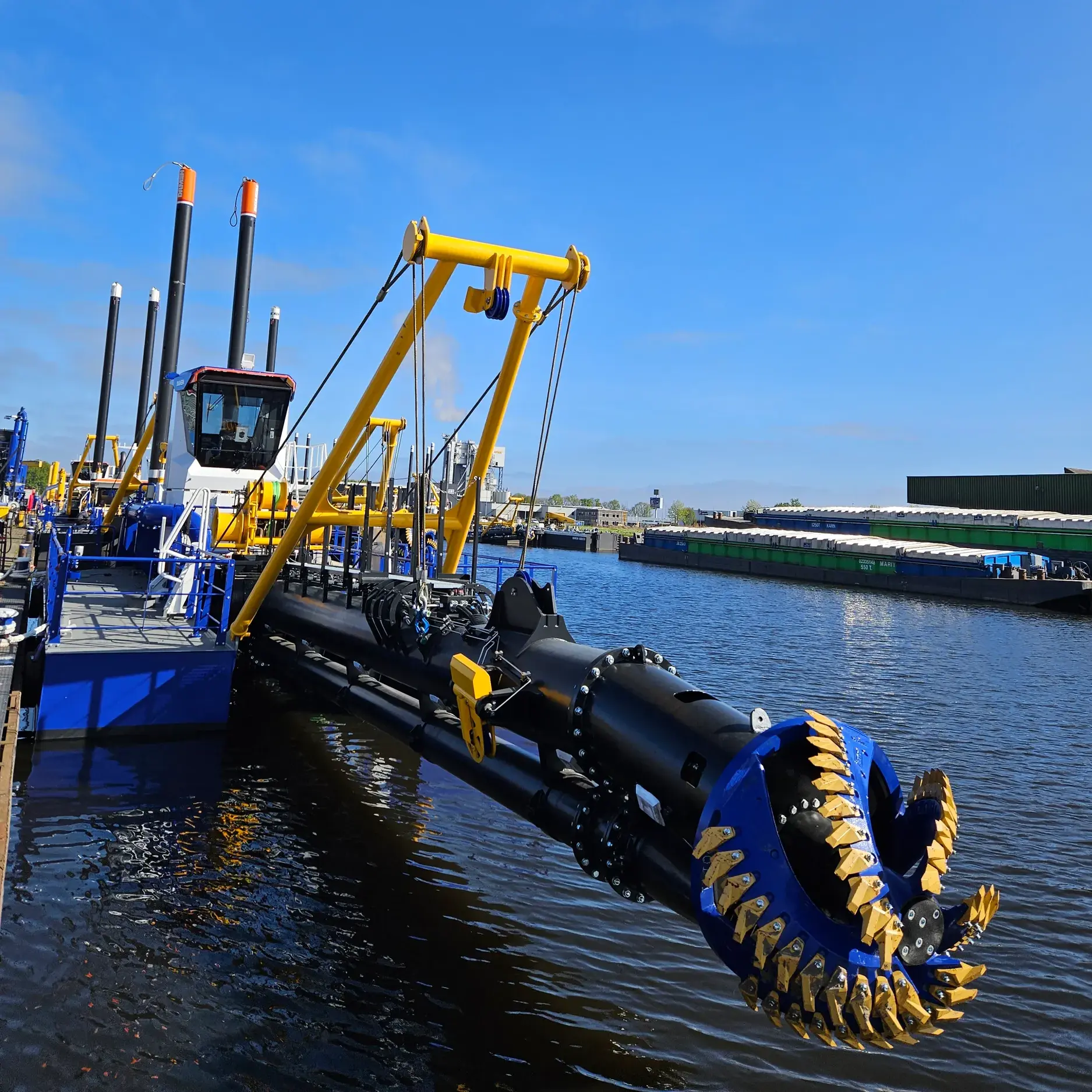

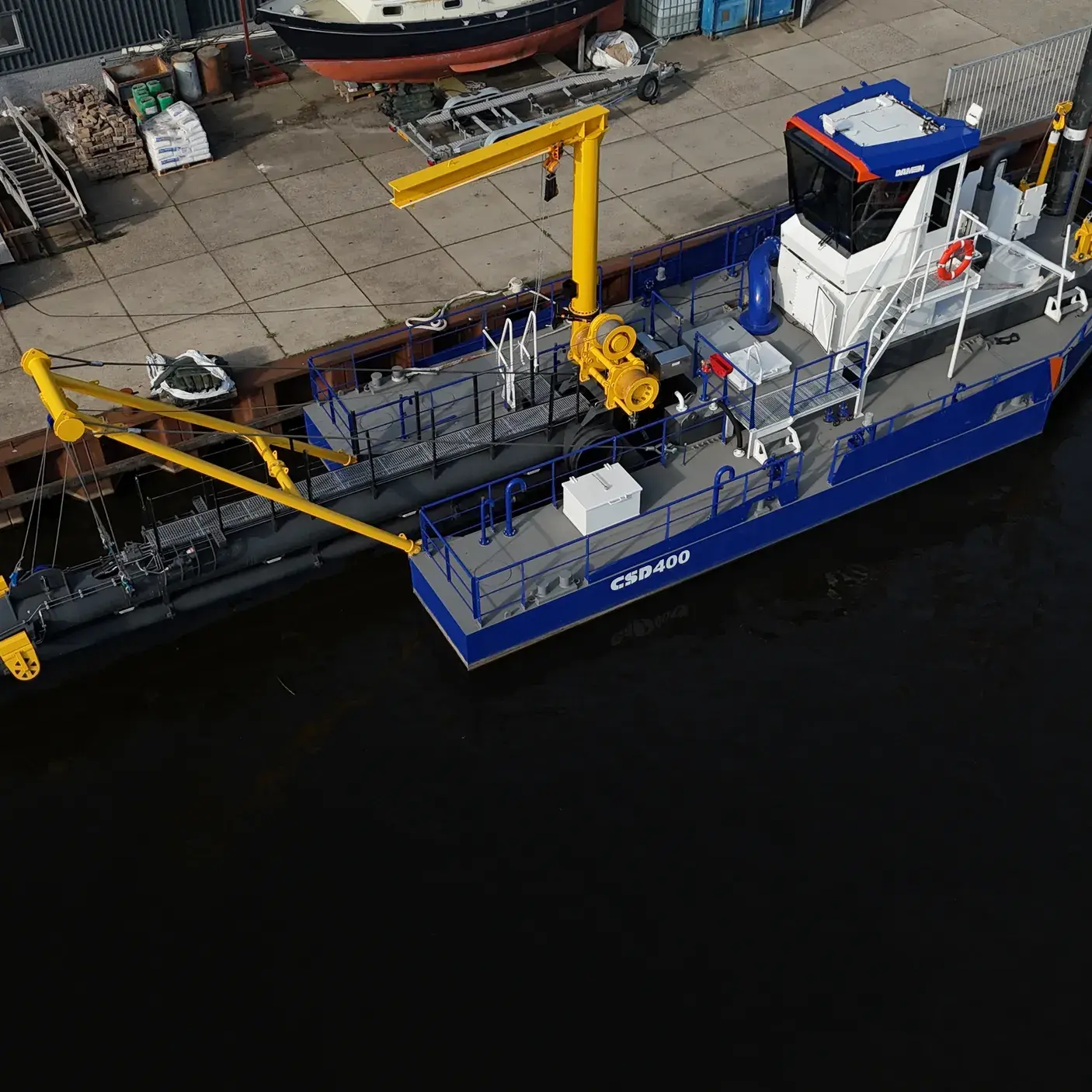

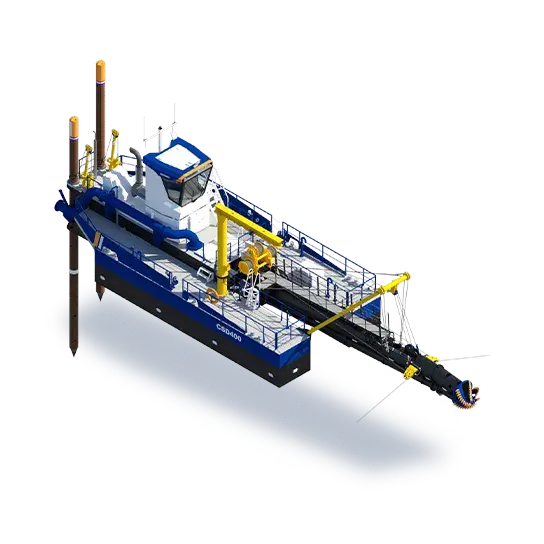

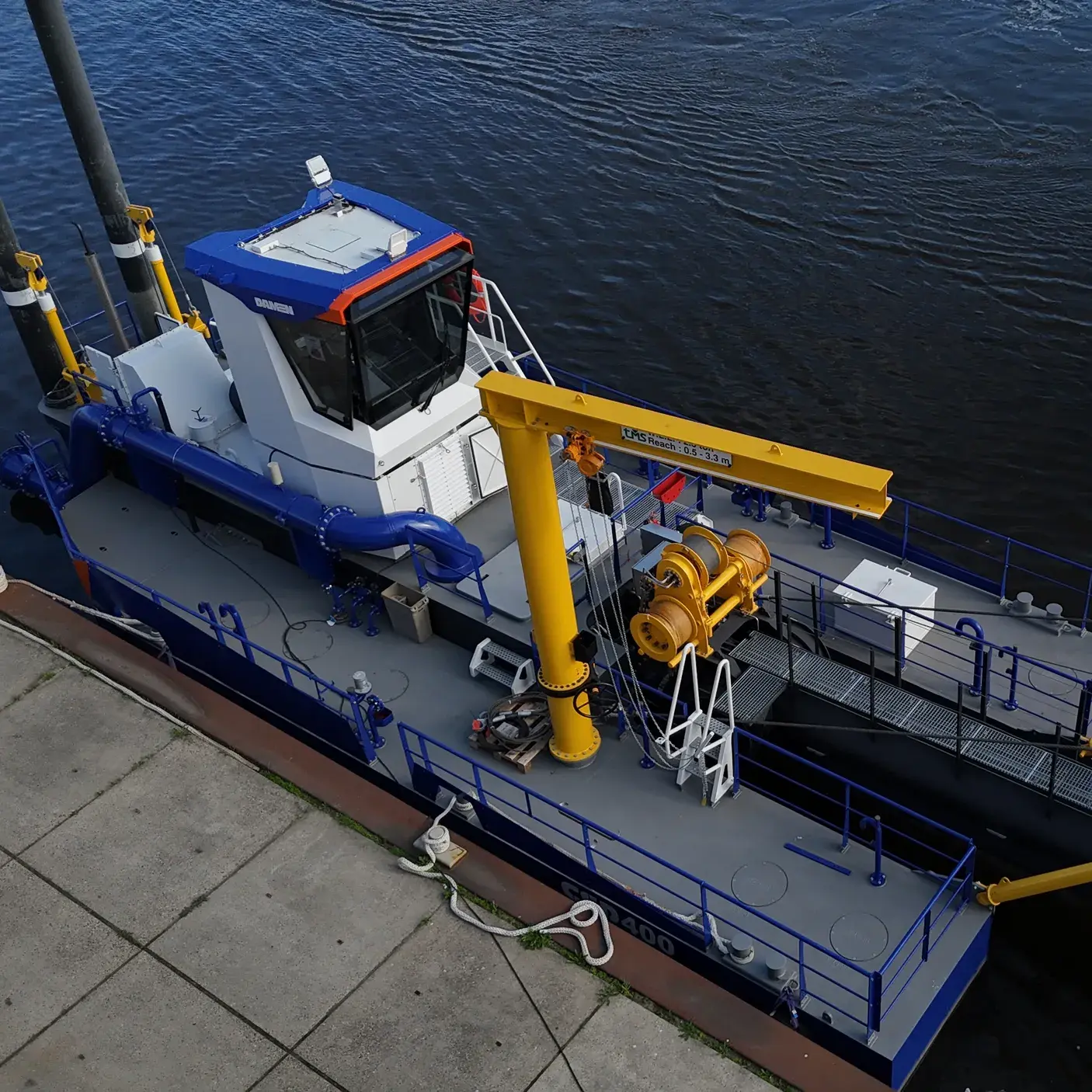

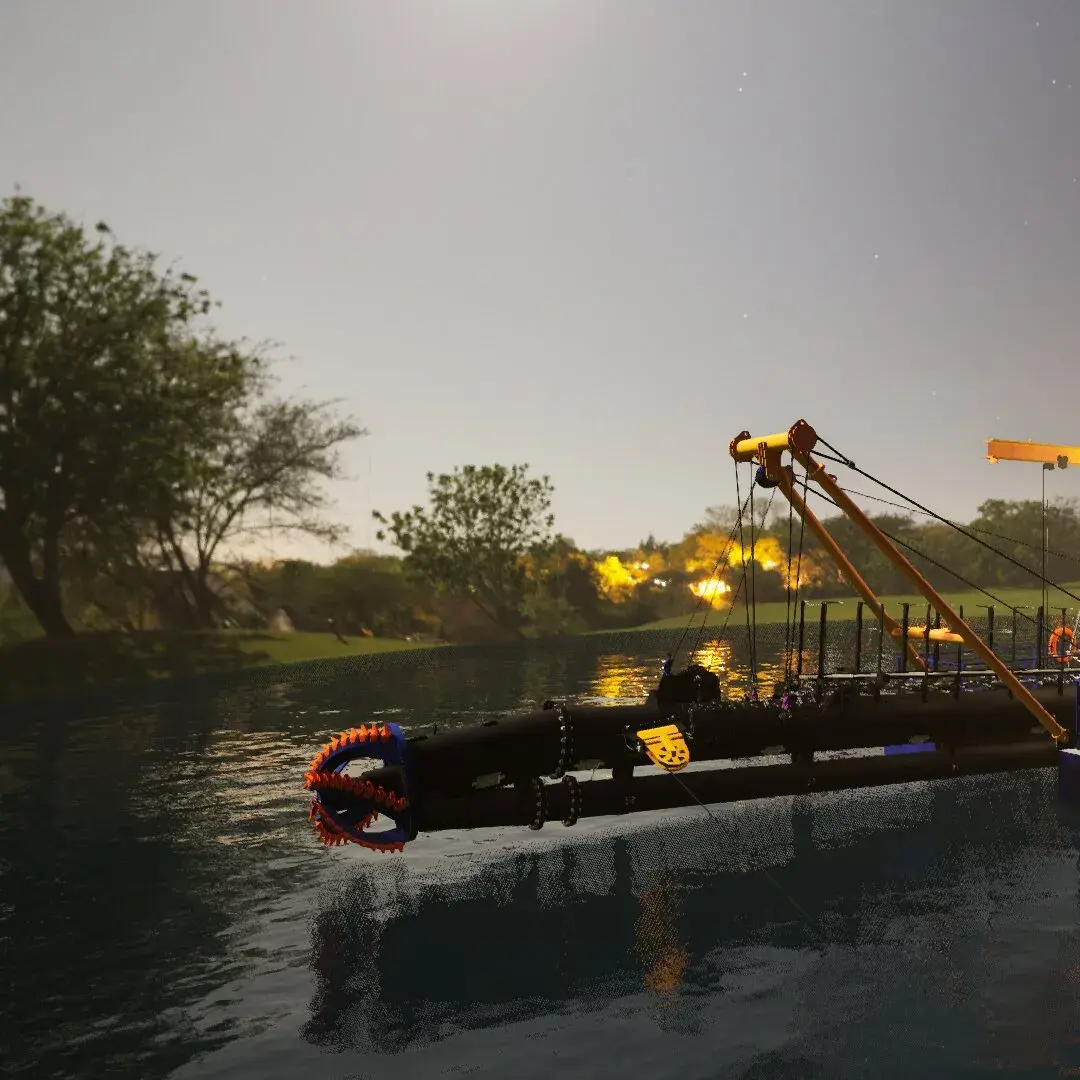

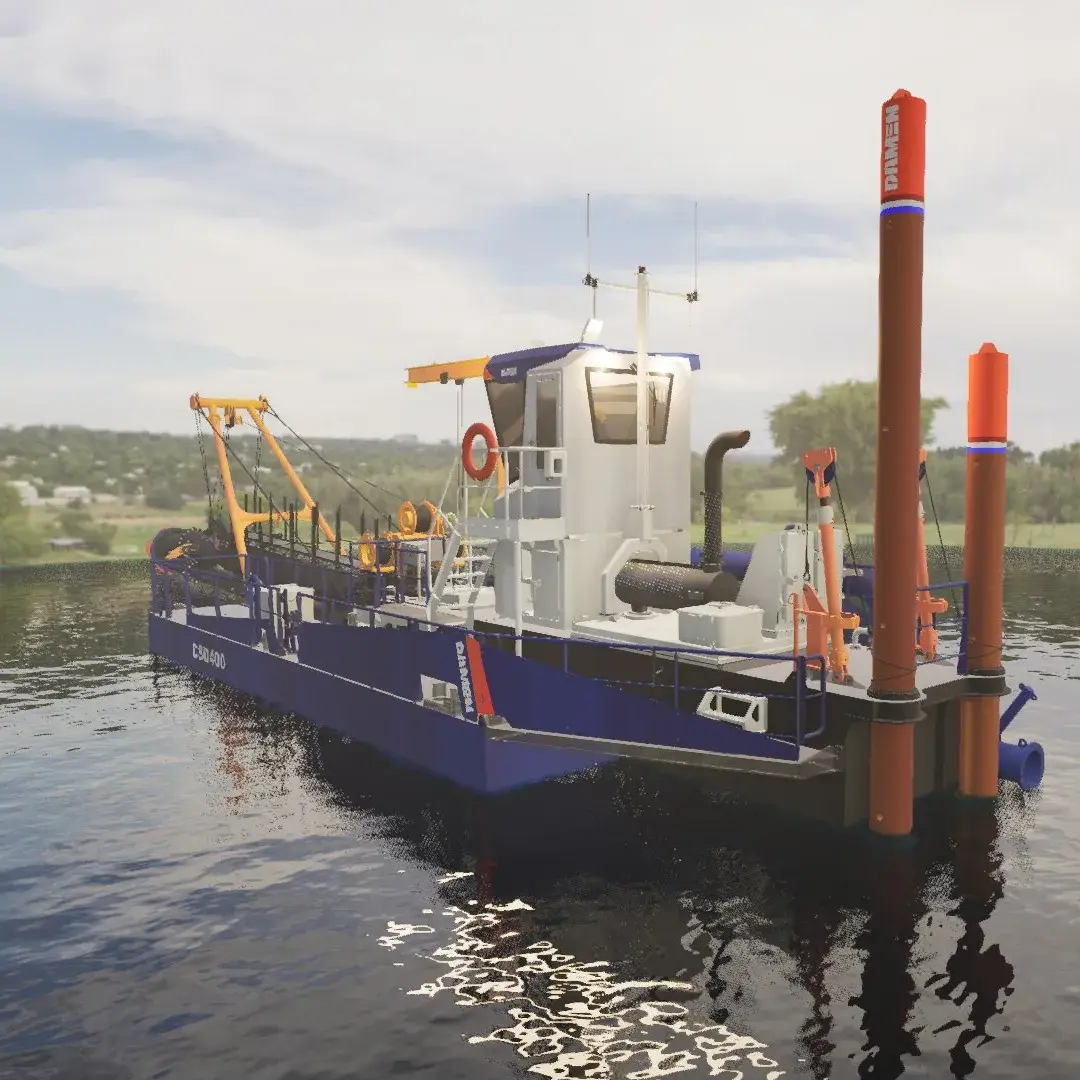

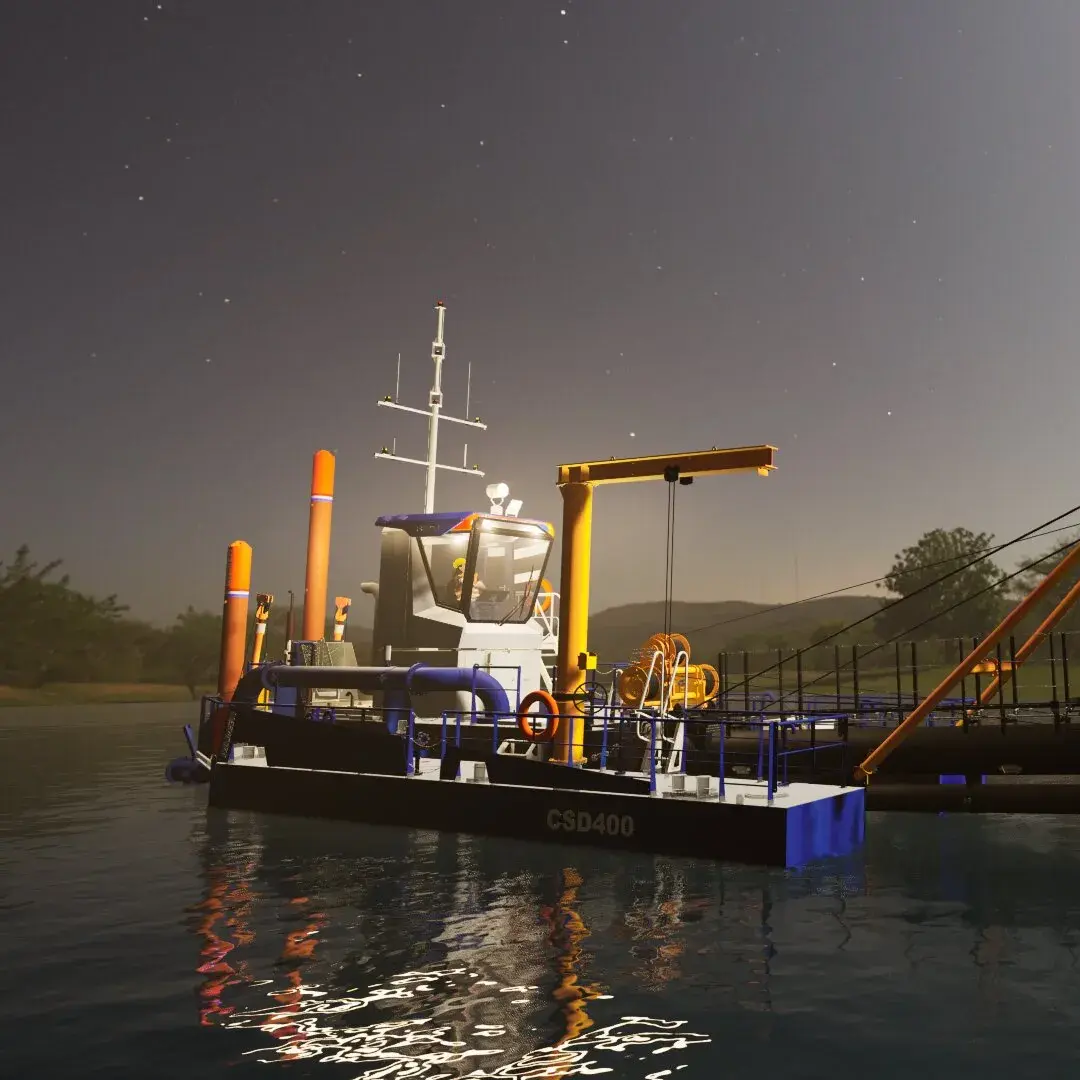

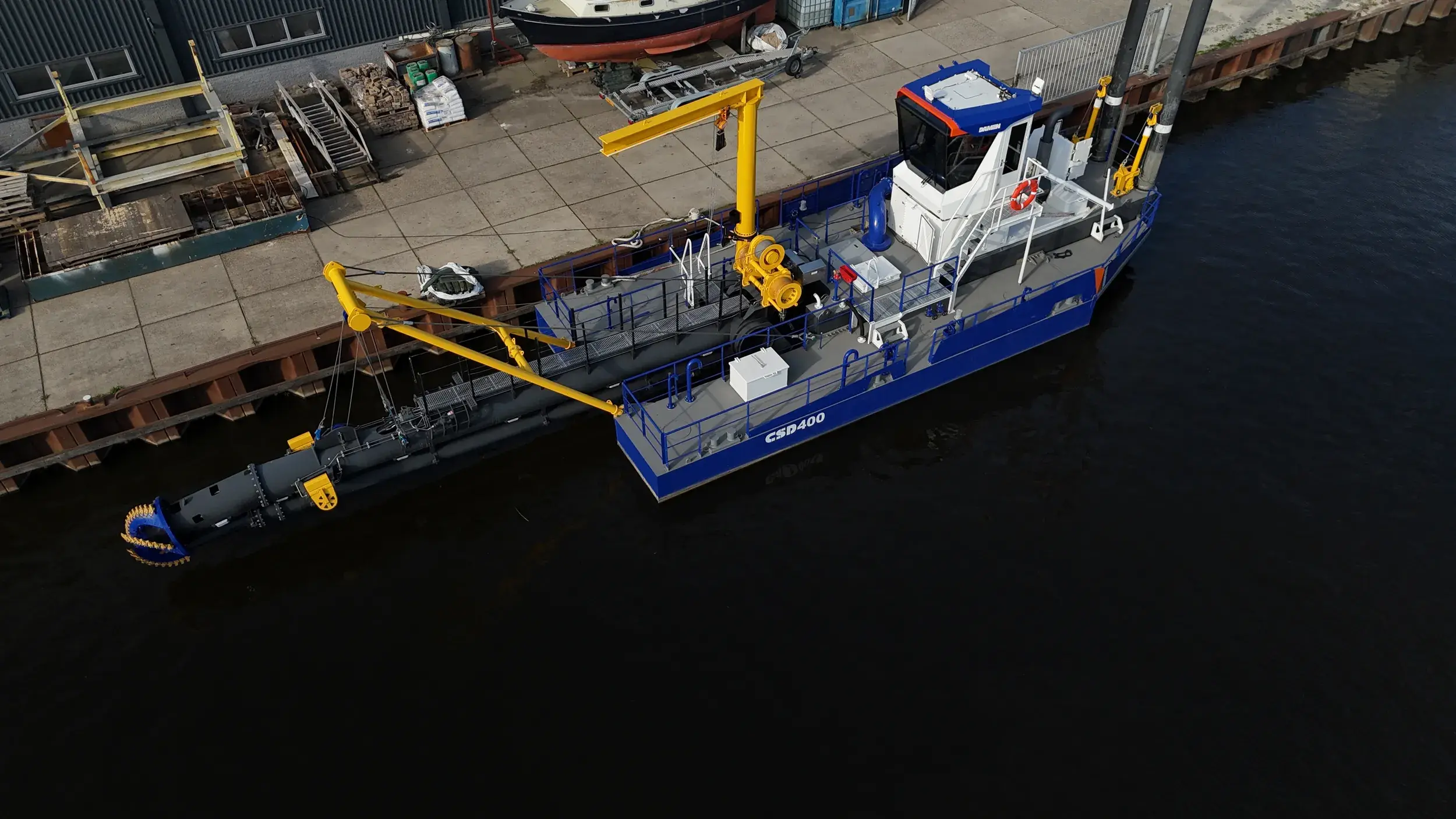

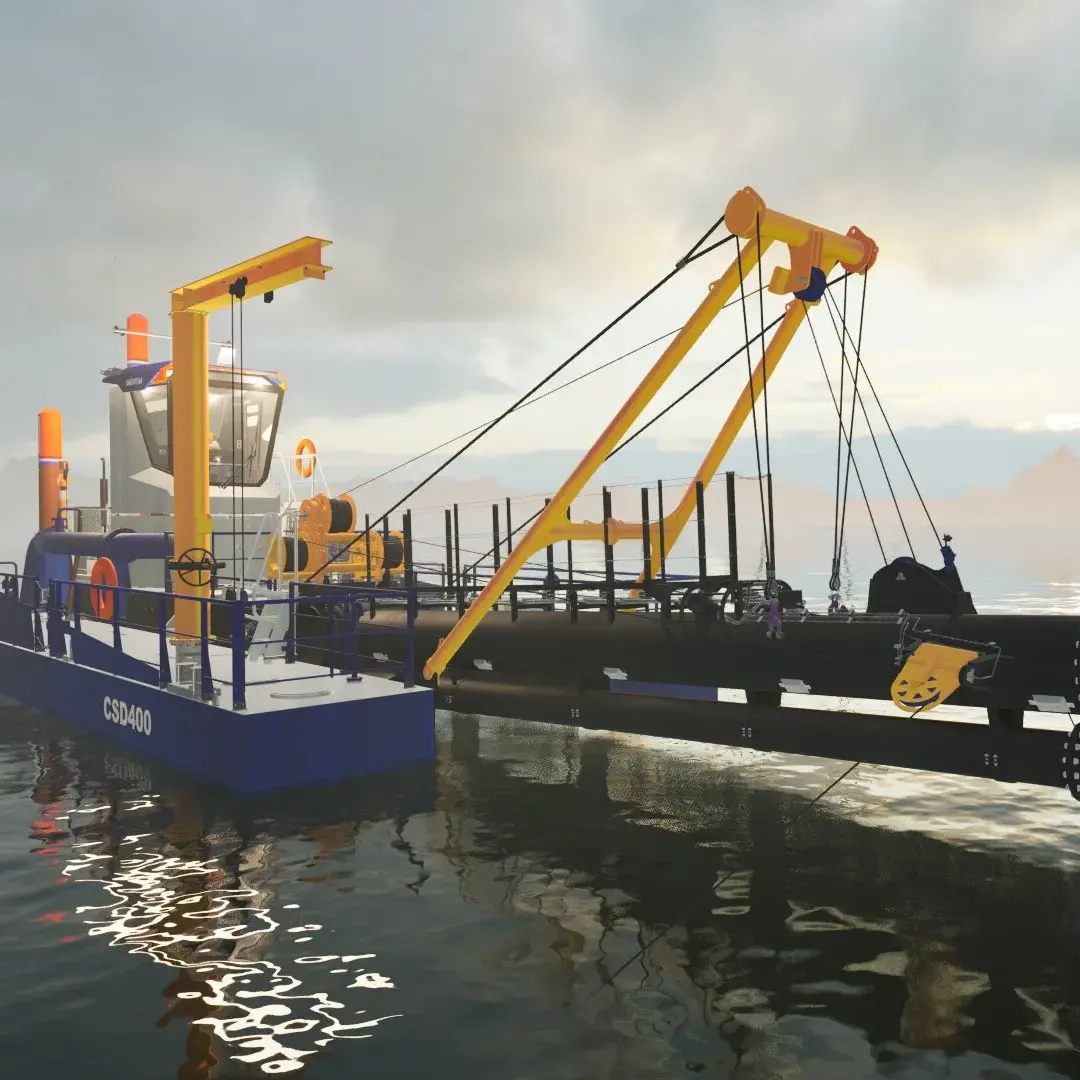

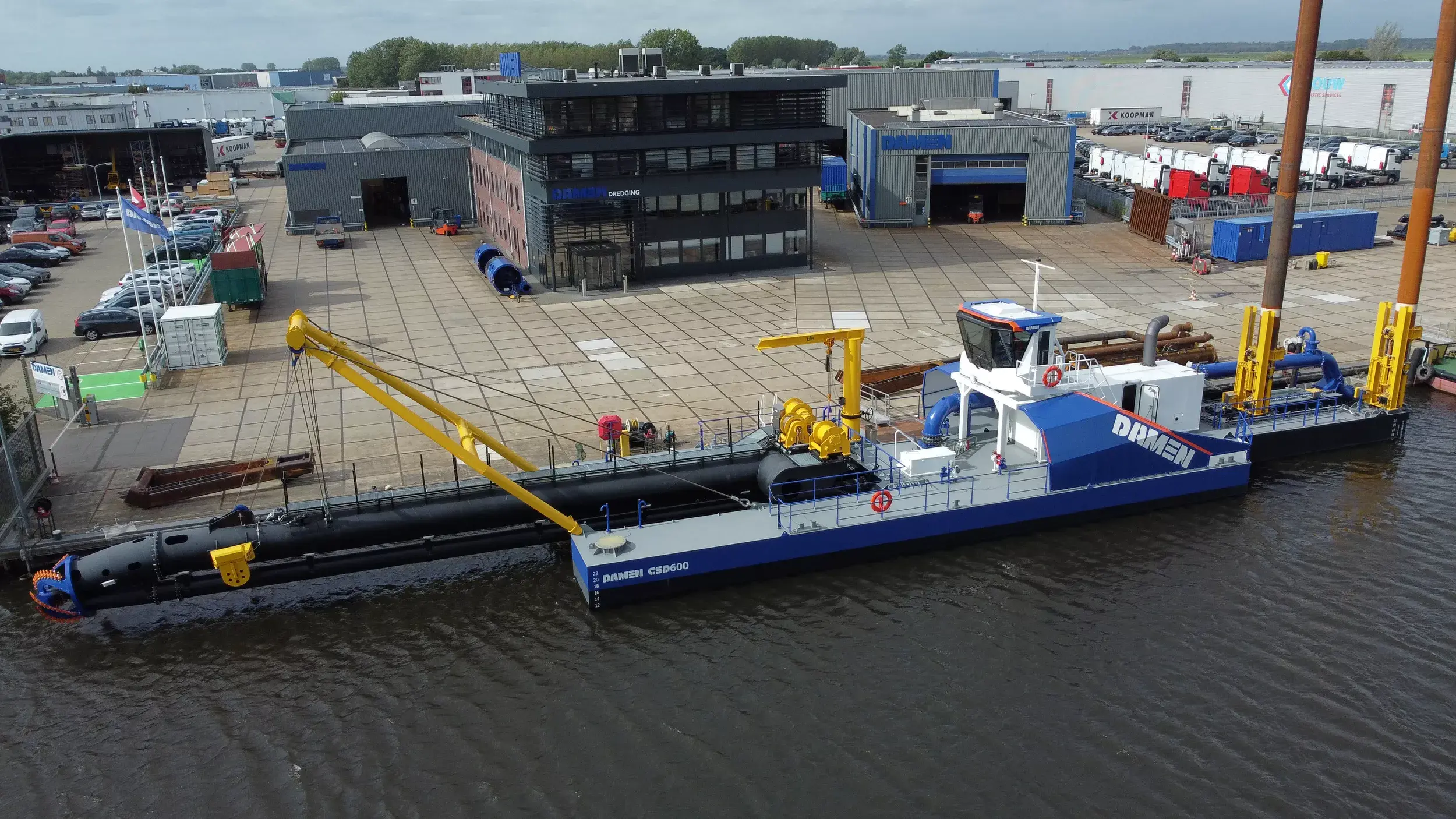

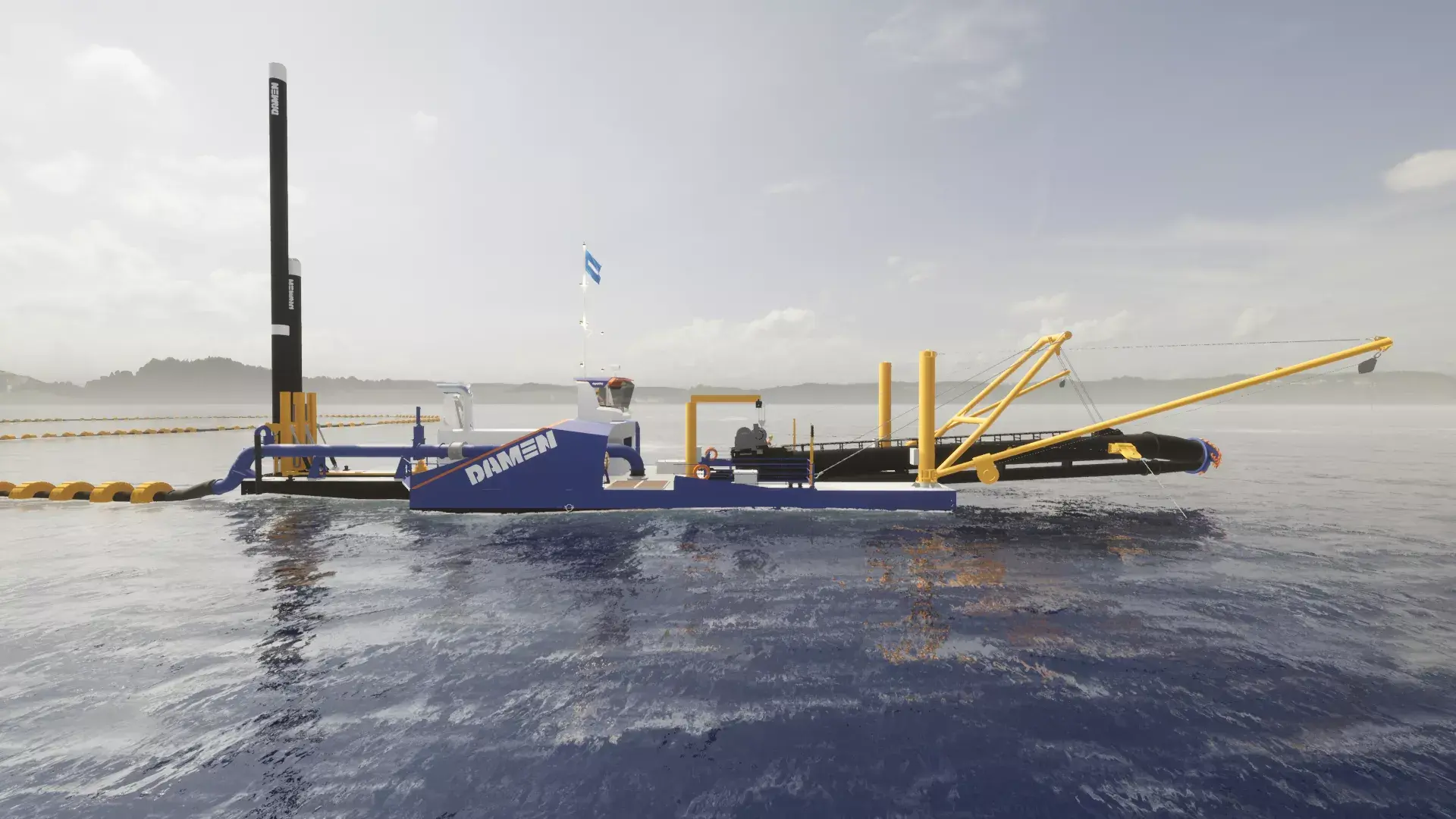

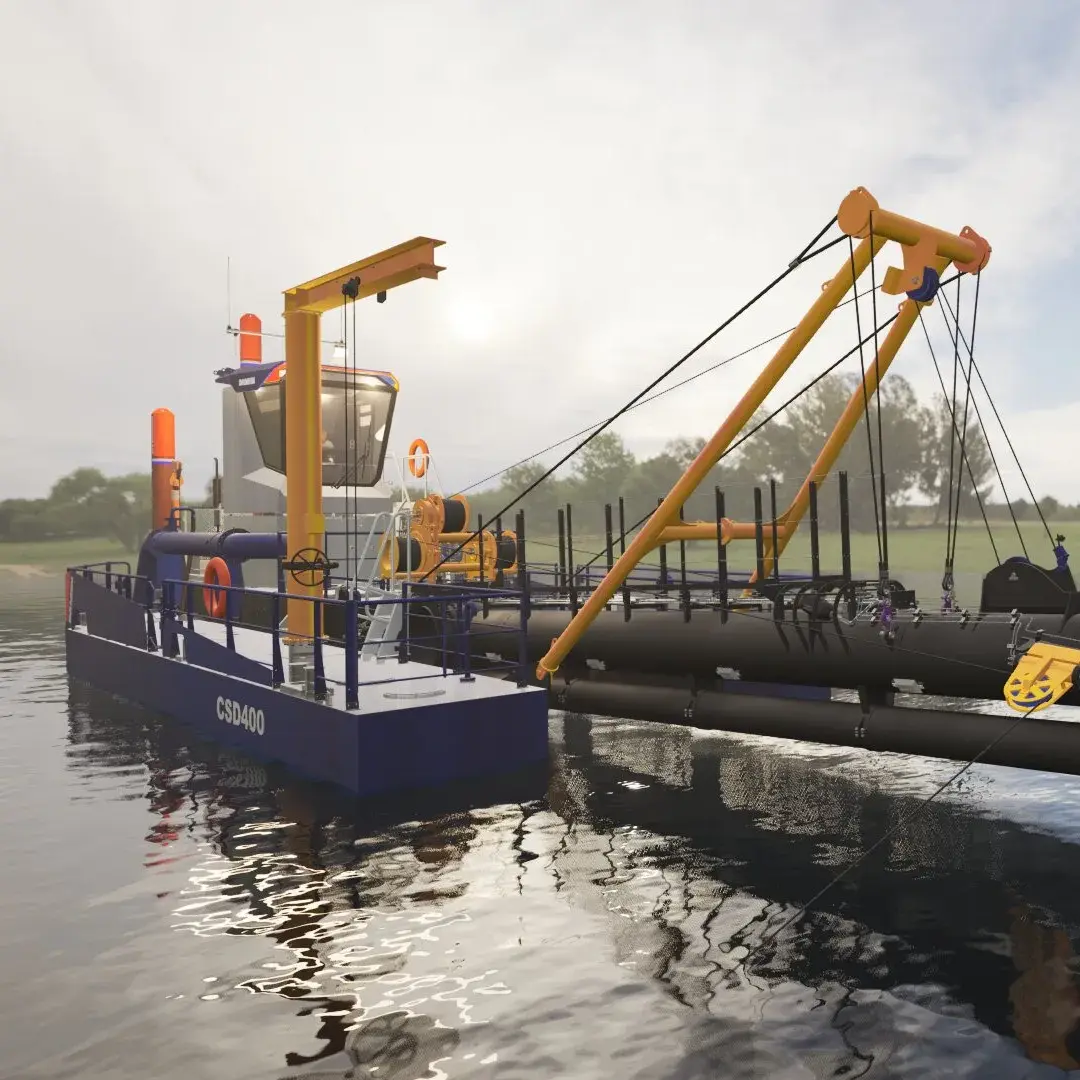

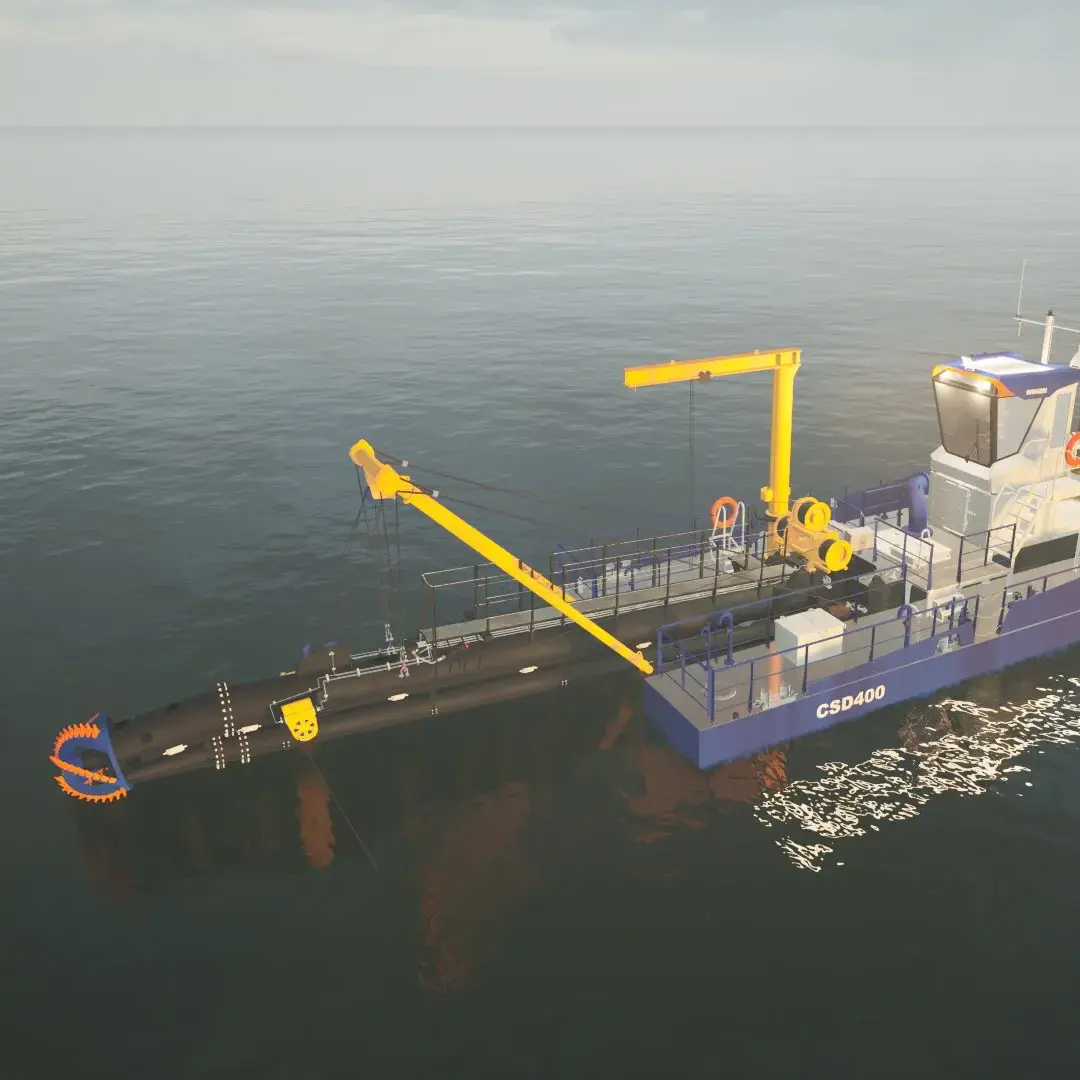

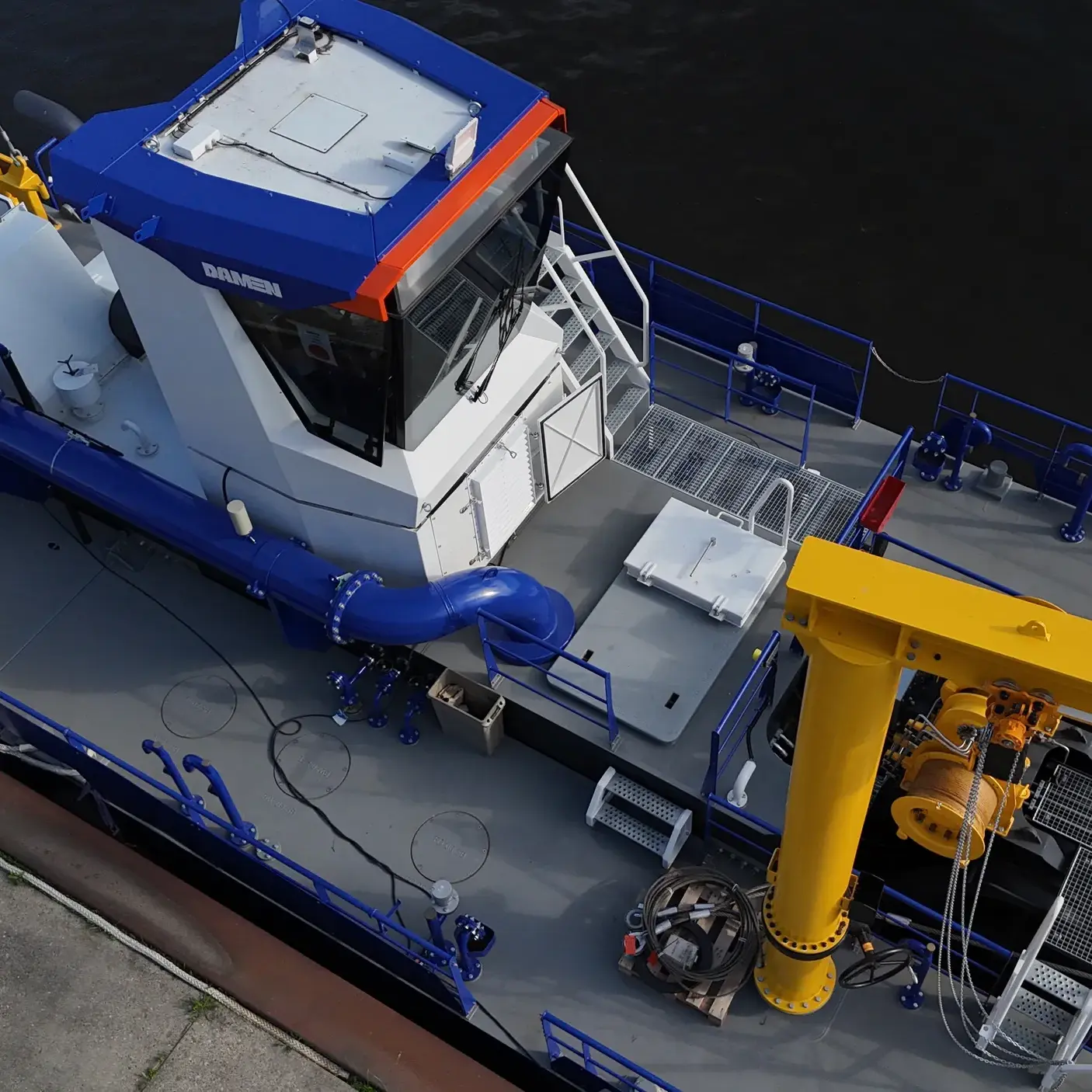

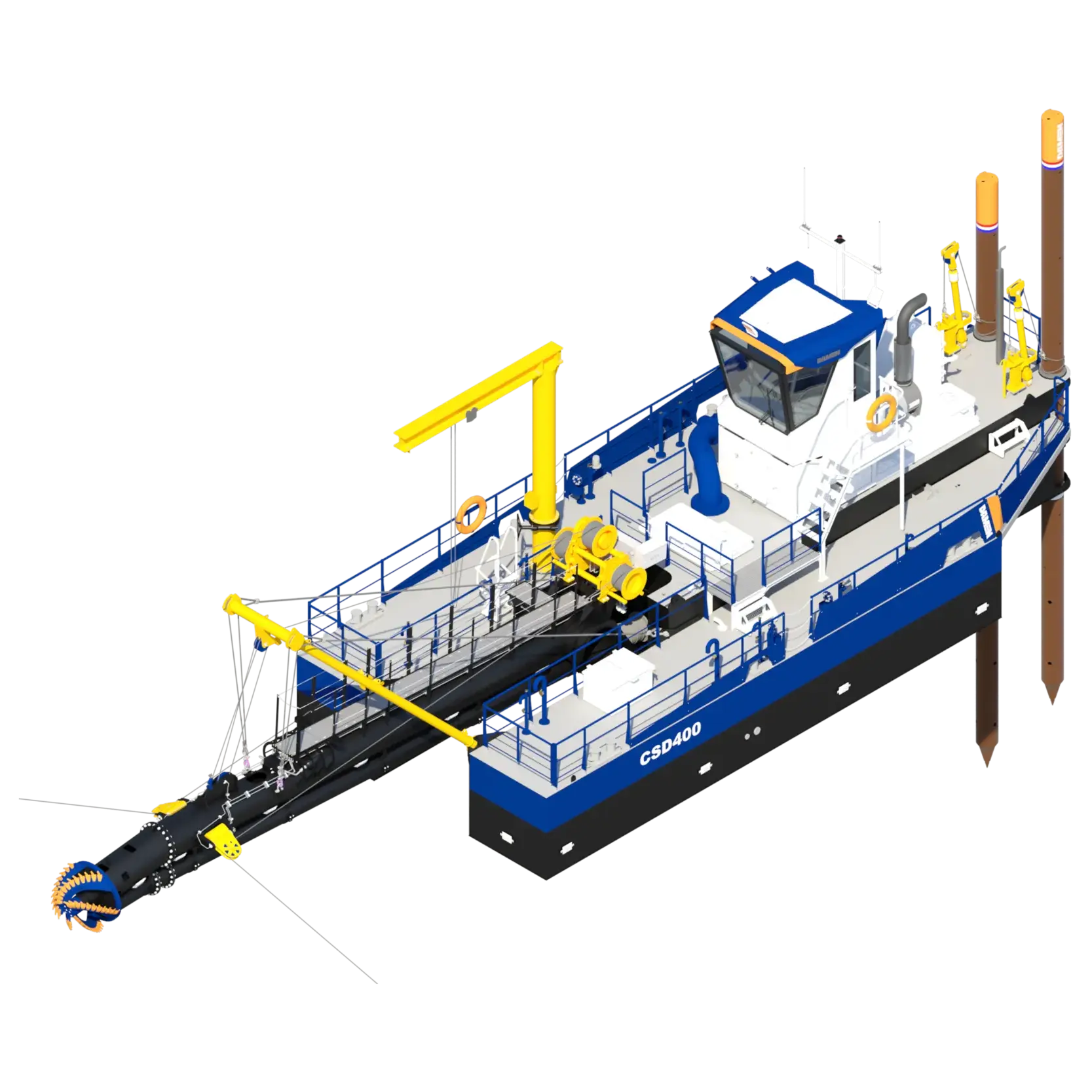

CSD400

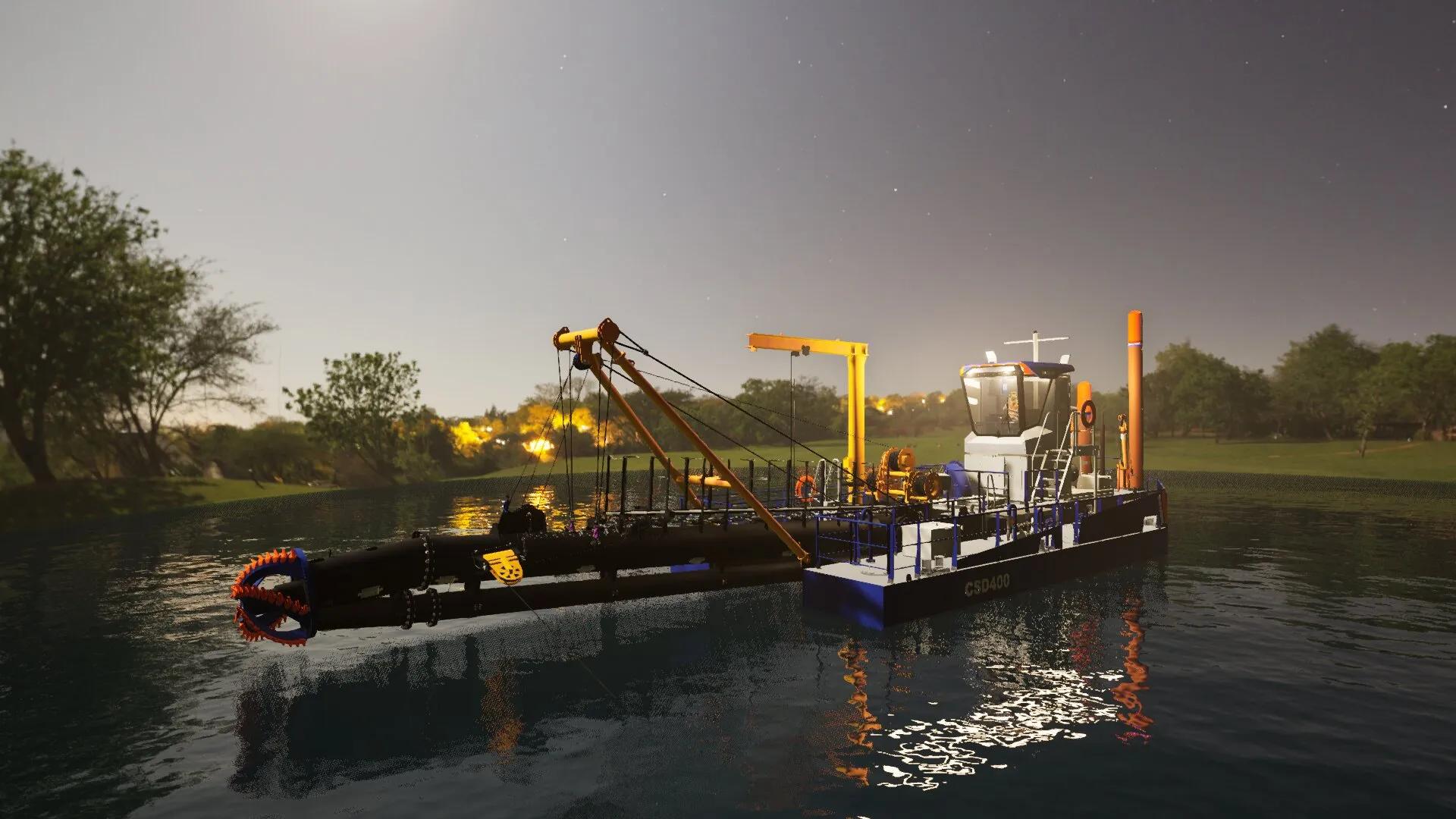

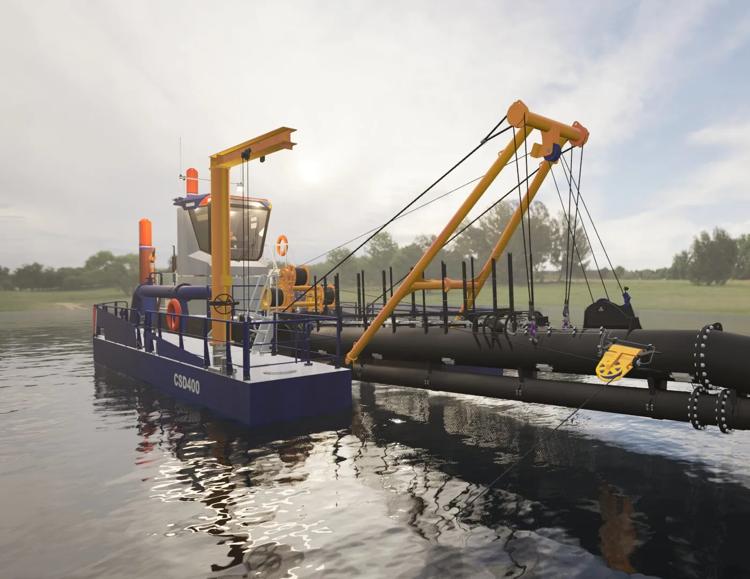

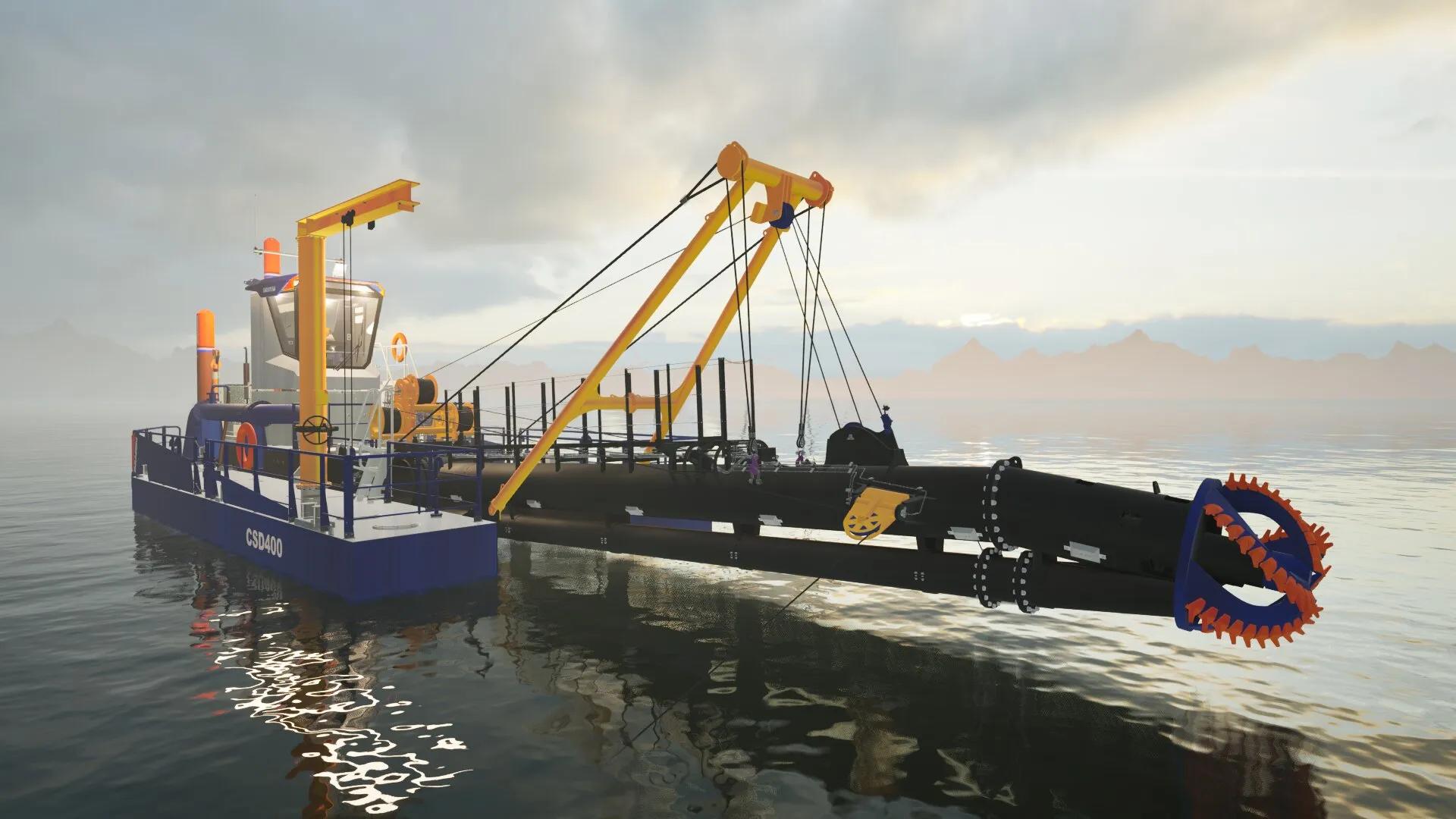

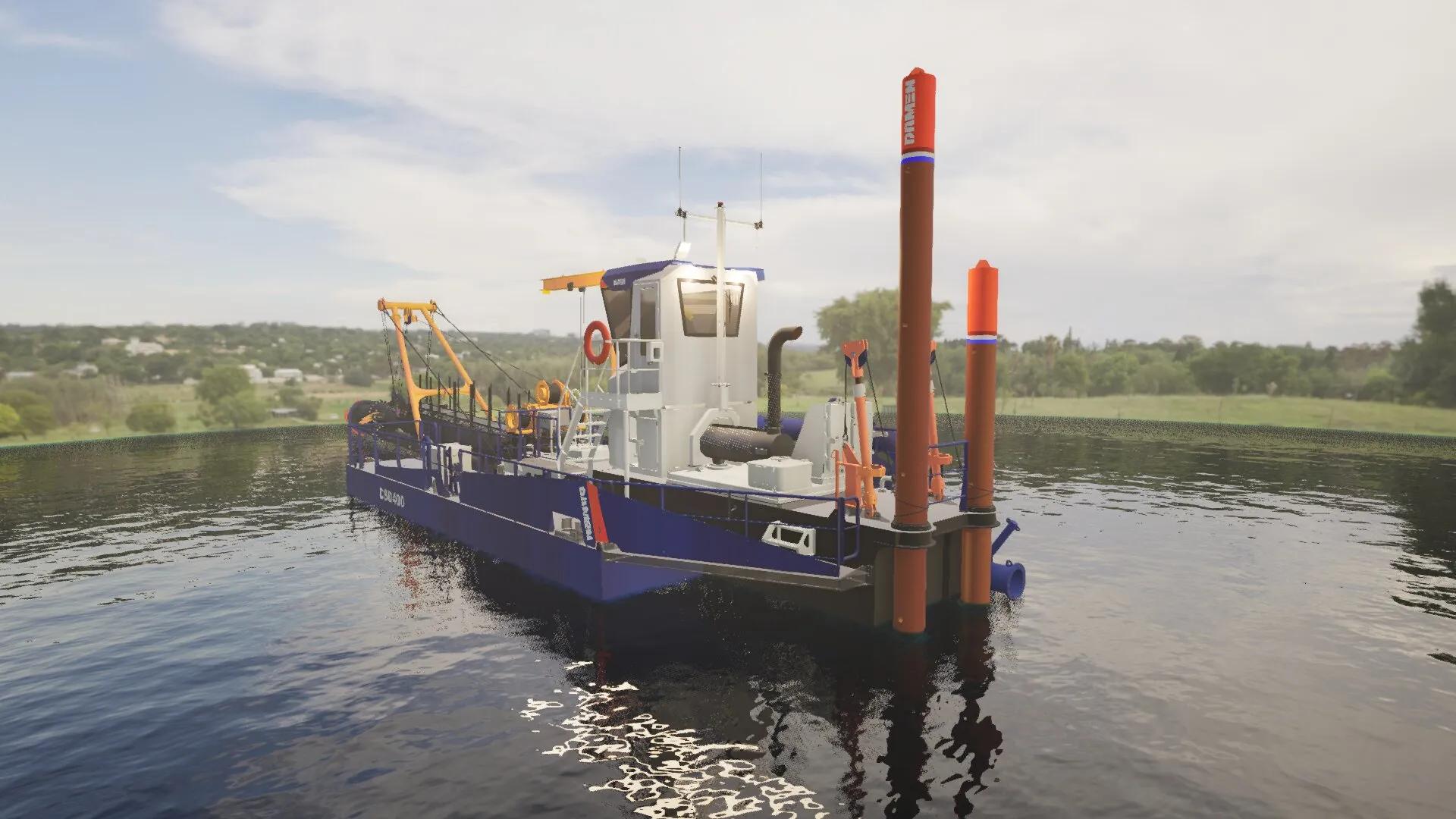

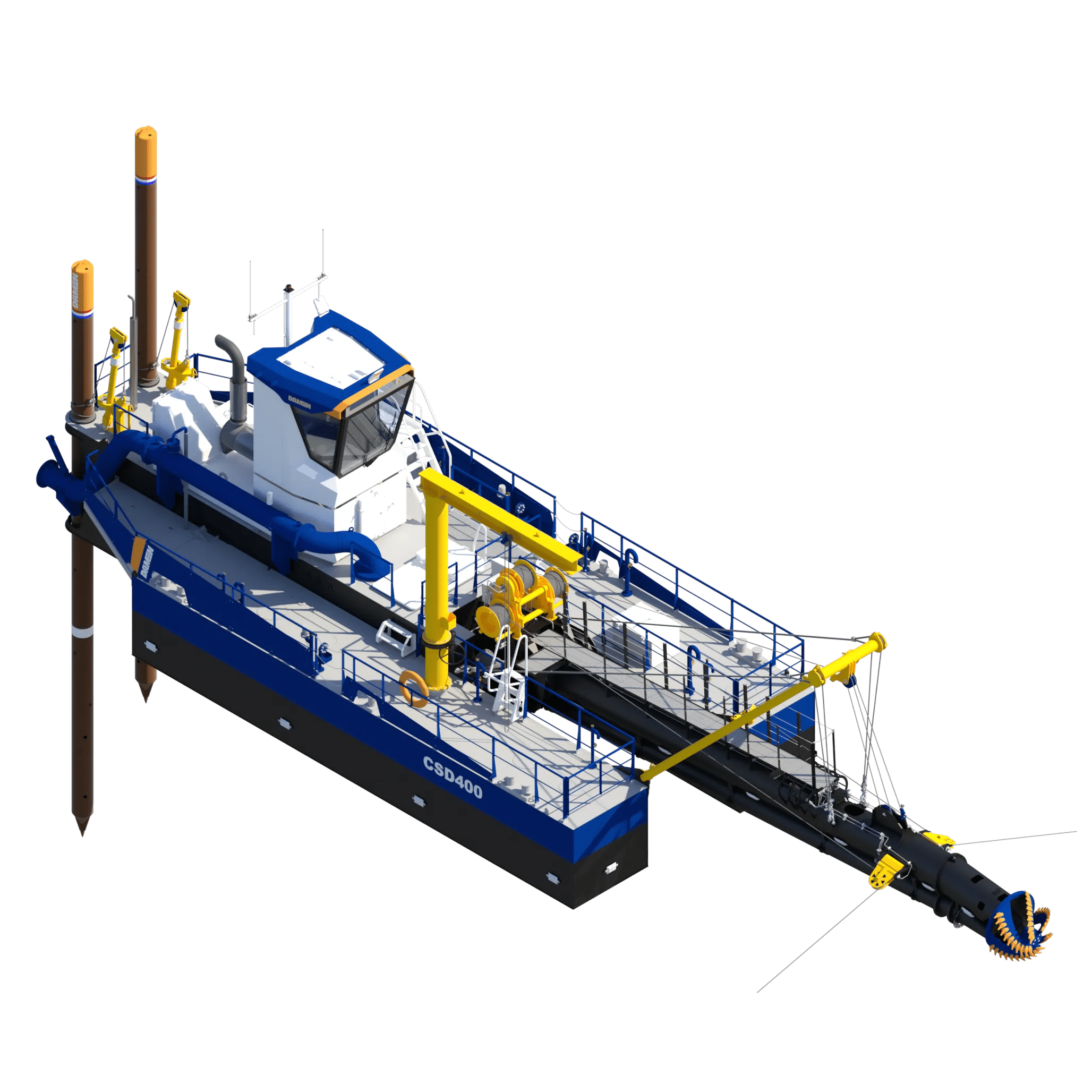

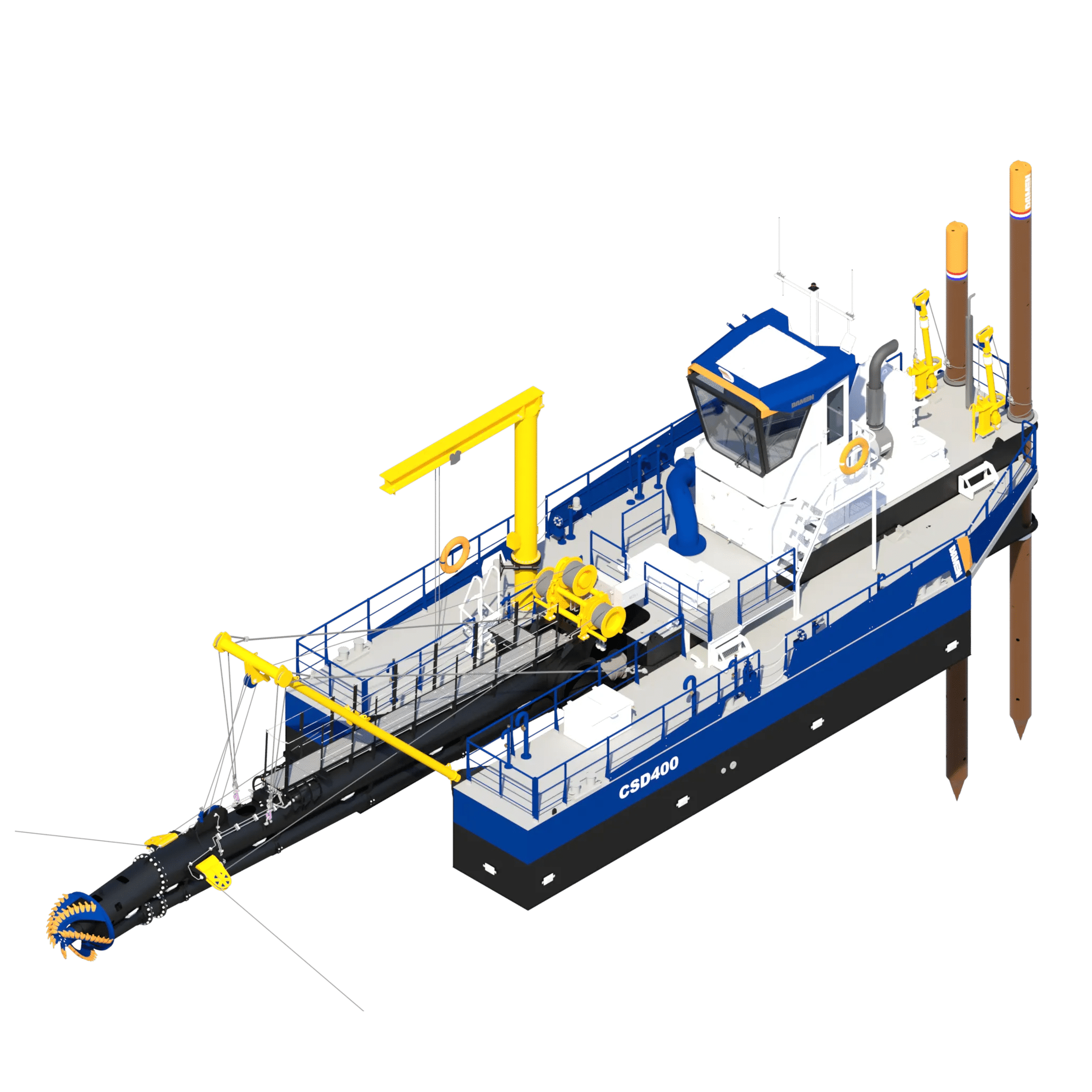

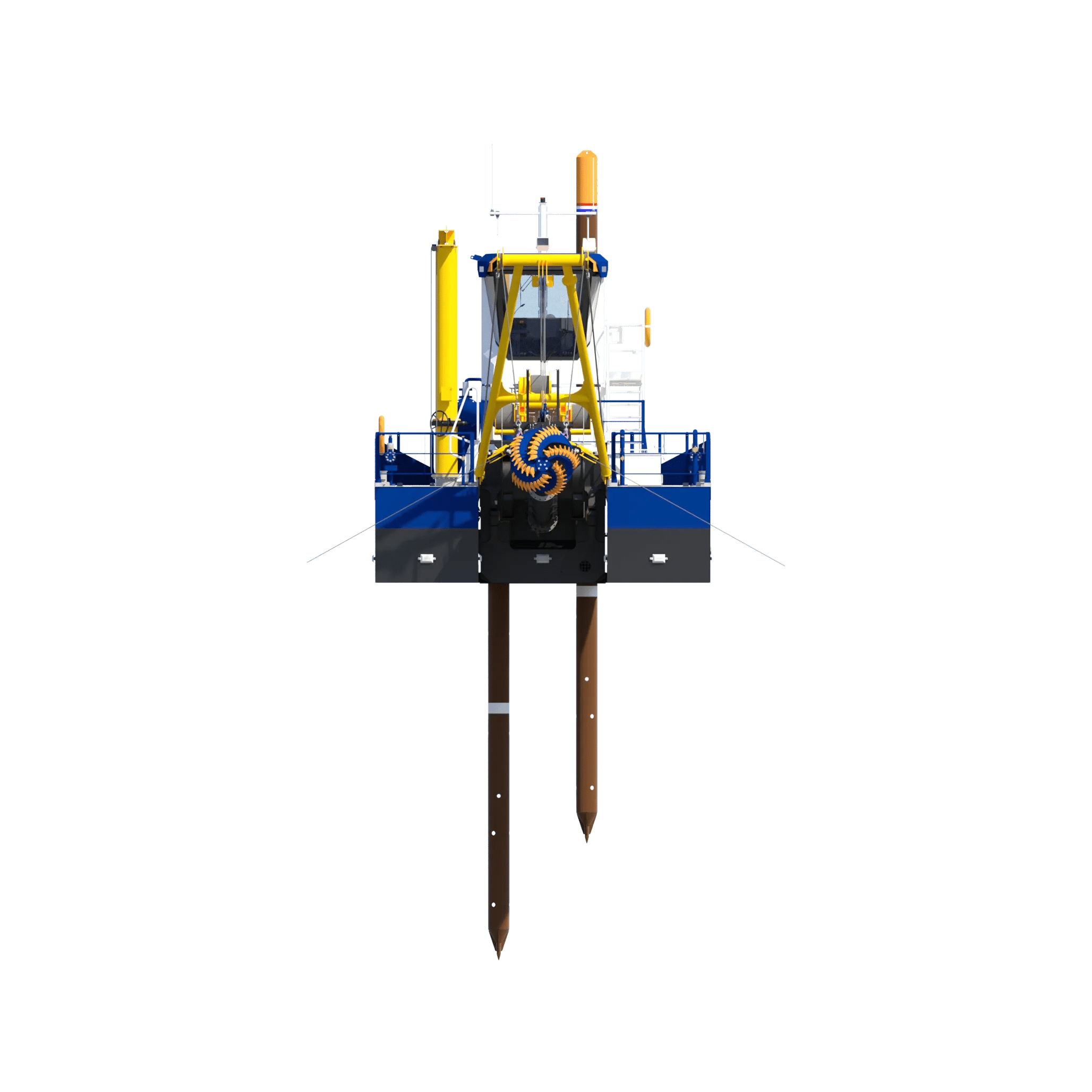

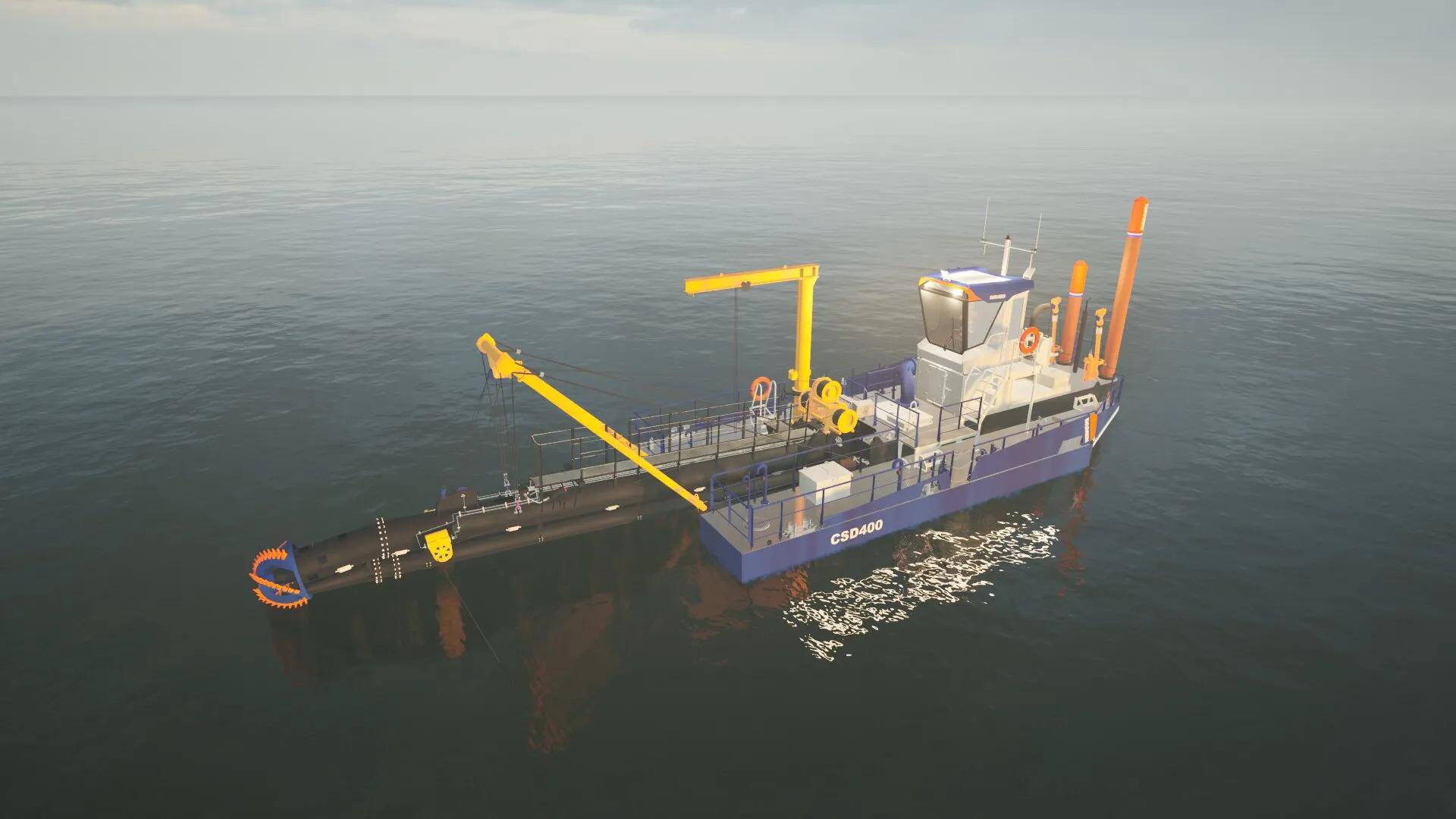

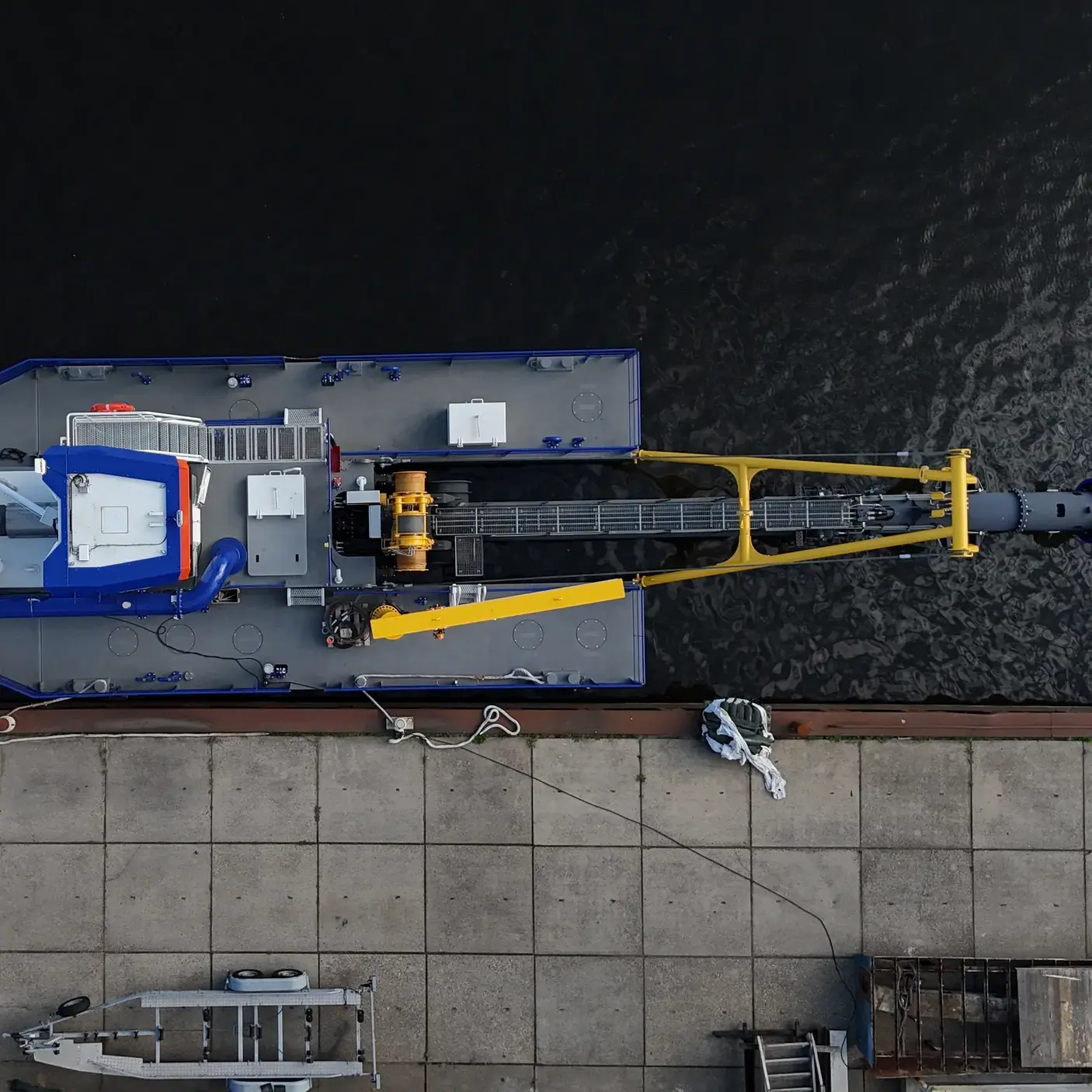

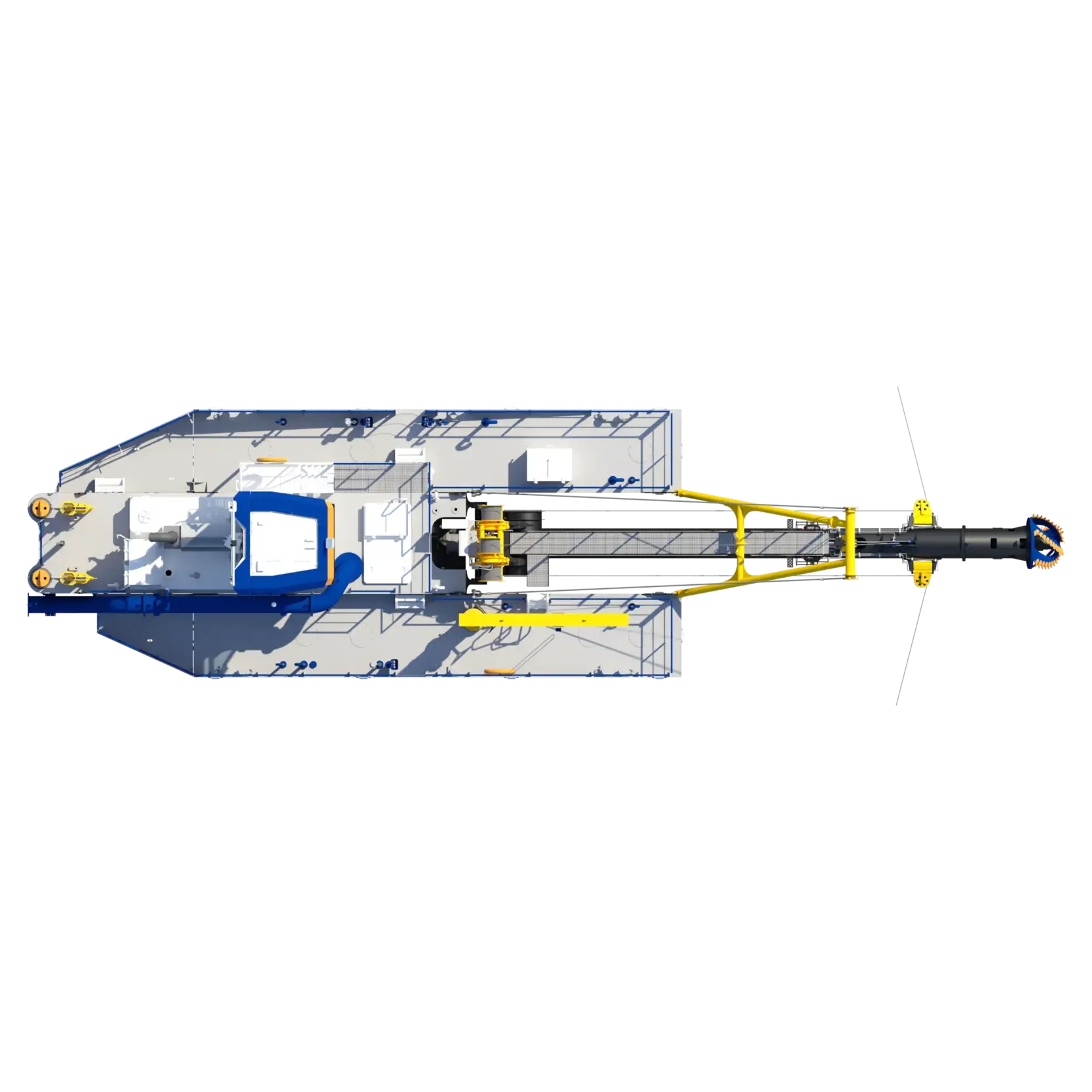

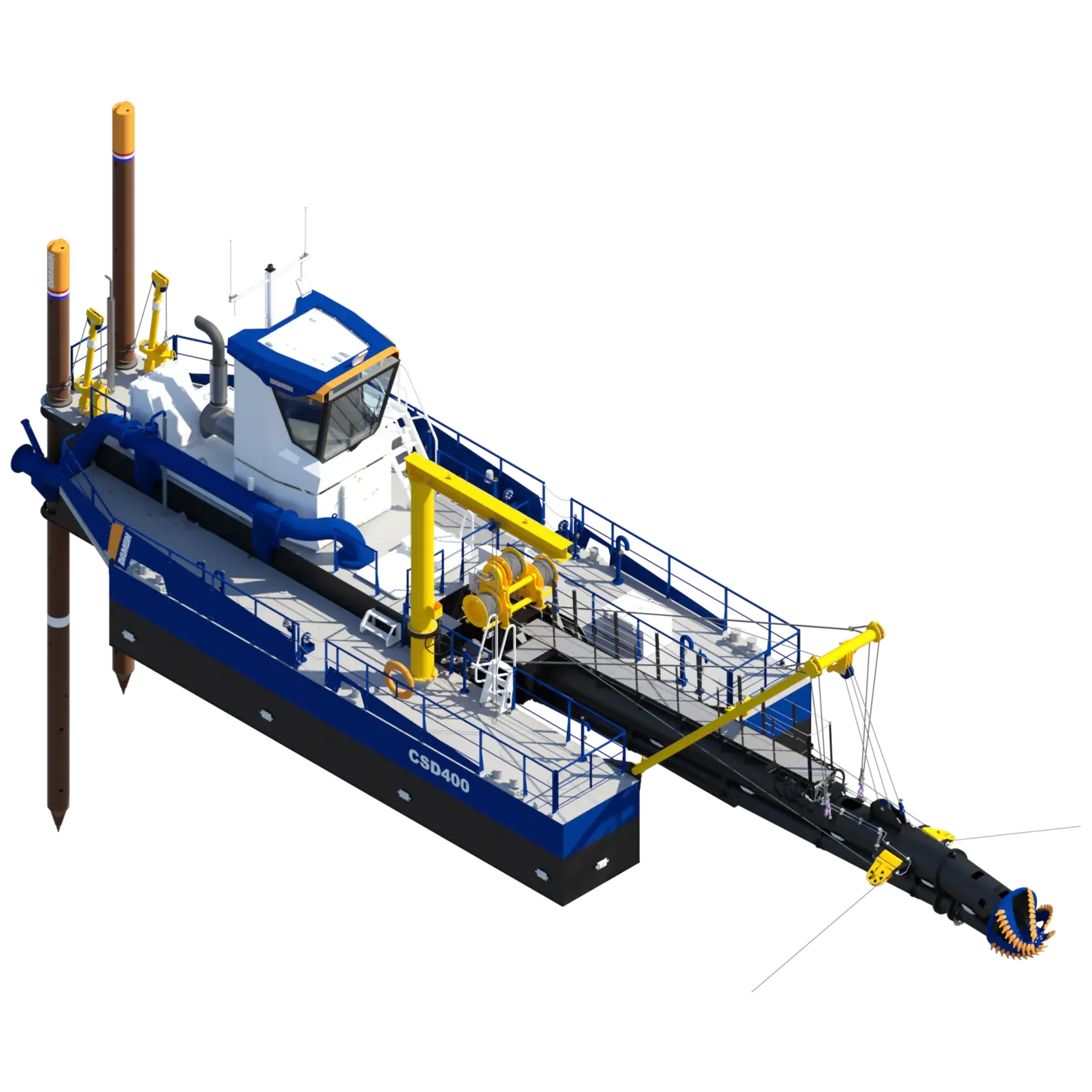

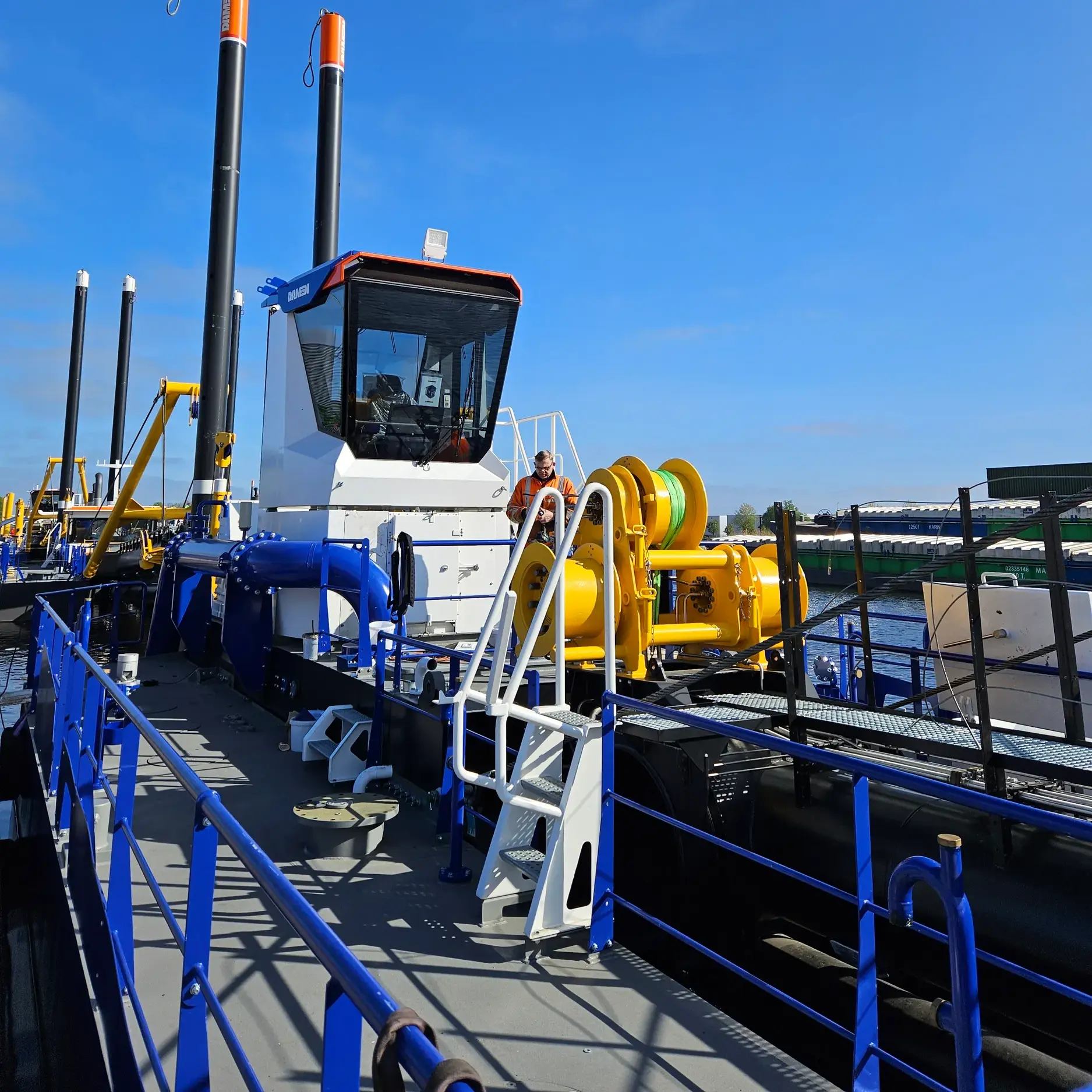

The new CSD400 is a compact powerhouse, capable of dredging up to 9 meters. It features powerful and fast side wire winches and high cutter power. This highly efficient dredger, with a large swing width, ensures excellent operational efficiency. Designed with sustainability and dredging efficiency in mind, it includes a compact hydraulic unit with a variable axial pump. The modular cutter suction dredger can be easily shipped in container-sized units.
- Increased dredging depth to -11 m
- IMO Tier III / EU Stage V Emission Reduction System
- Dredge automation
- Air conditioning system
What size of dredger perfectly matches your operation? Configure your own
- Closed loop fresh water cooling system
- Compact hydraulic system requiring only 0.5 m³ of oil
- Intuitive control system boosts the dredging performance
- Separate diesel gen set powers the 230/400V system
Key figures
2700
9
516
400
60
Dredge performance
- Pipe diameter
- 400 mm
- Dredge production
- 2700 m³/h
- Dredging depth
- 9 m
- Swing width
- 27 m
Equipment
- Cutter power
- 60 kW
- Cutter diameter
- 1300 mm
- Fuel capacity
- 16 m³
- Total installed power
- 516 kW
Dimensions
- Length
- 24.6 m
- Draught
- 1.1 m
- Air draught
- 6.2 m
- Total weight
- 62 t
| Production (m³/h) | 2700 | 2000 | 3400 | |
|---|---|---|---|---|
| Dredging depth (m) | 9 | 9 | 12 | |
| Power (kW) | 516 | 447 | 970 | |
| Pipe diameter (mm) | 400 | 350 | 450 | |
| Cutter power (kW) | 60 | 55 | 110 | |
| - | - | - |
