Cutting compacted sand

Cutting compacted sand

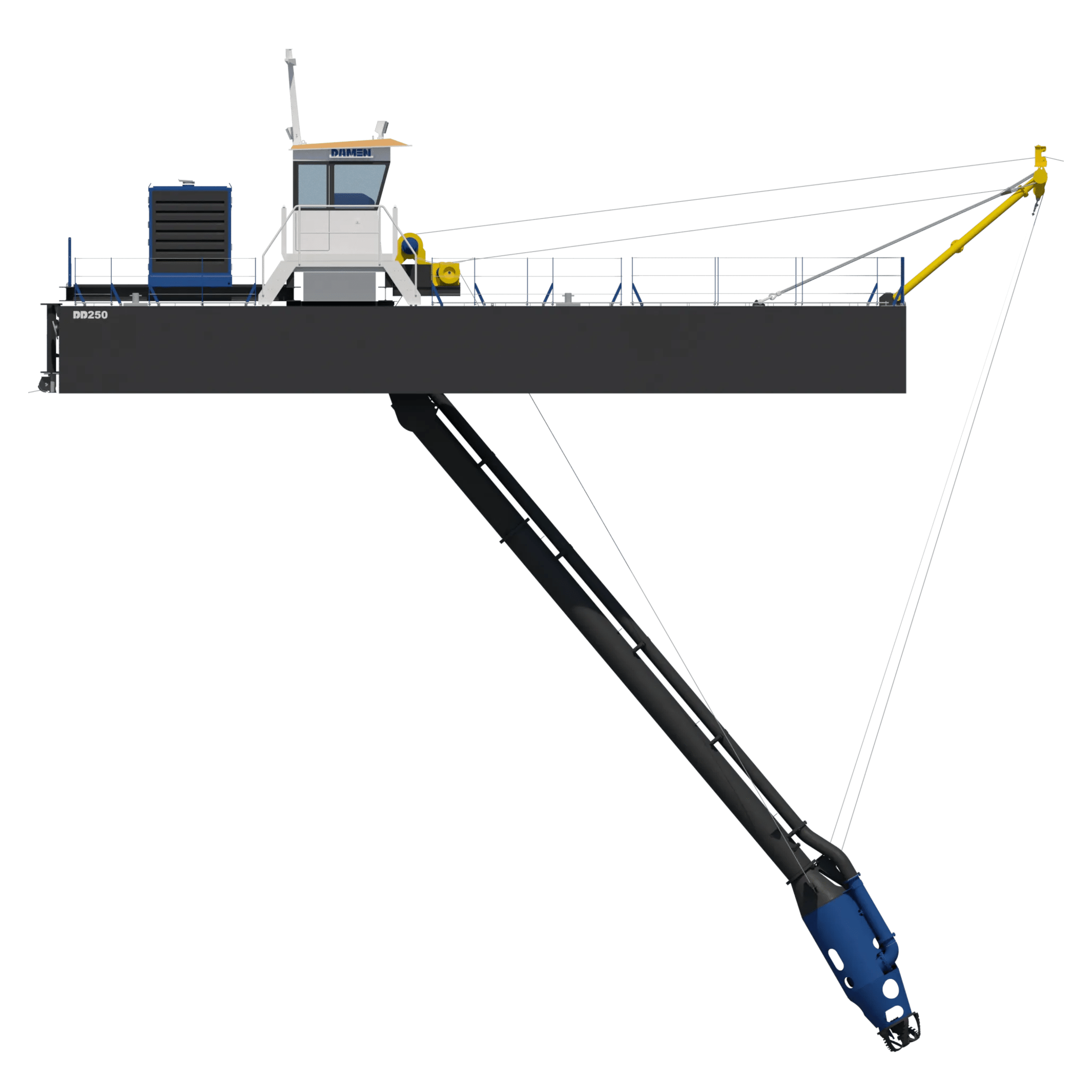

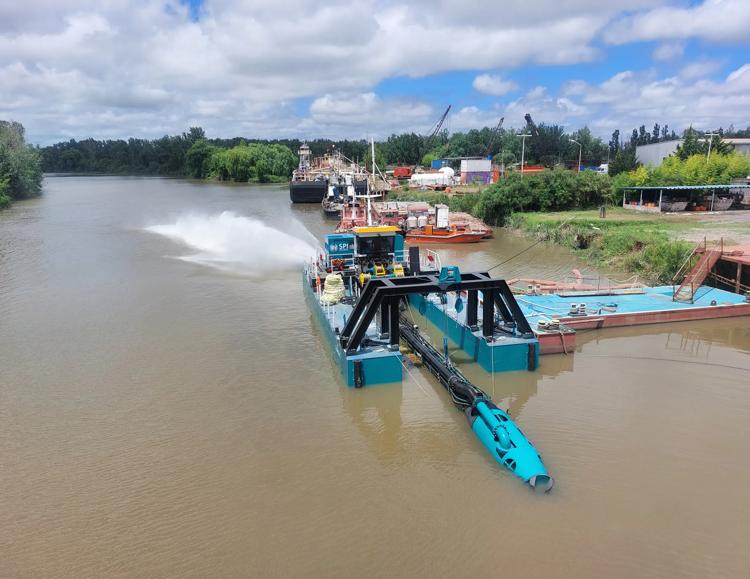

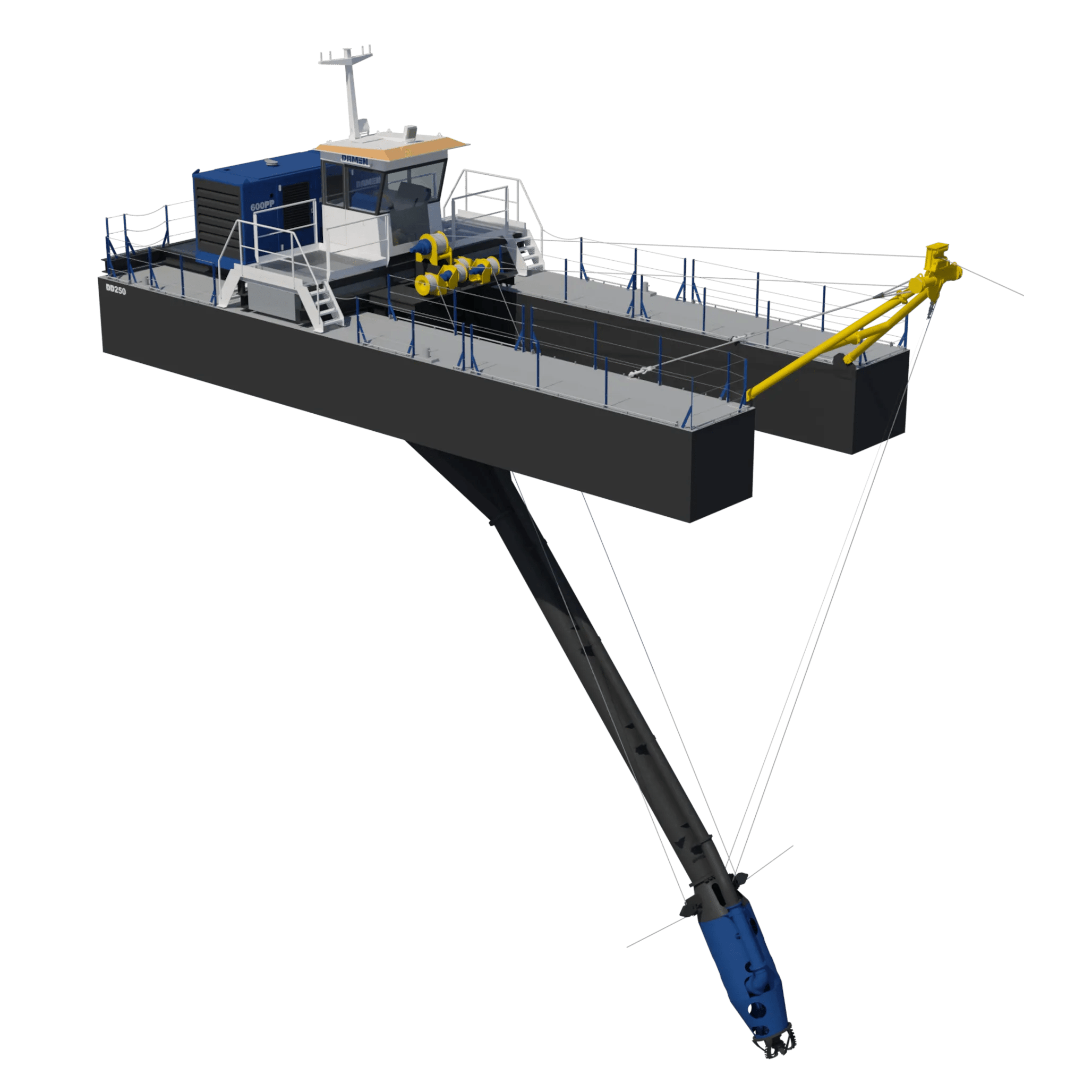

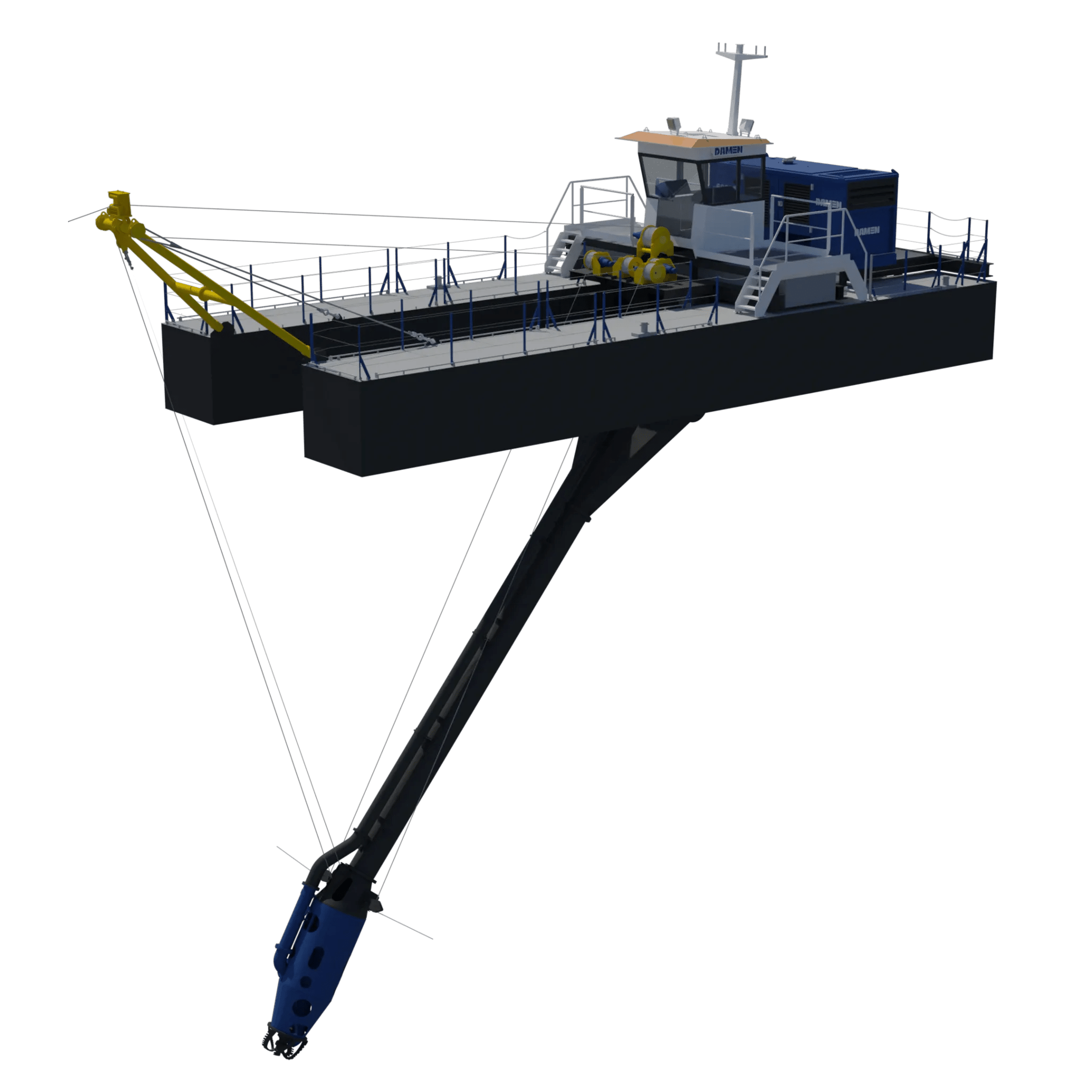

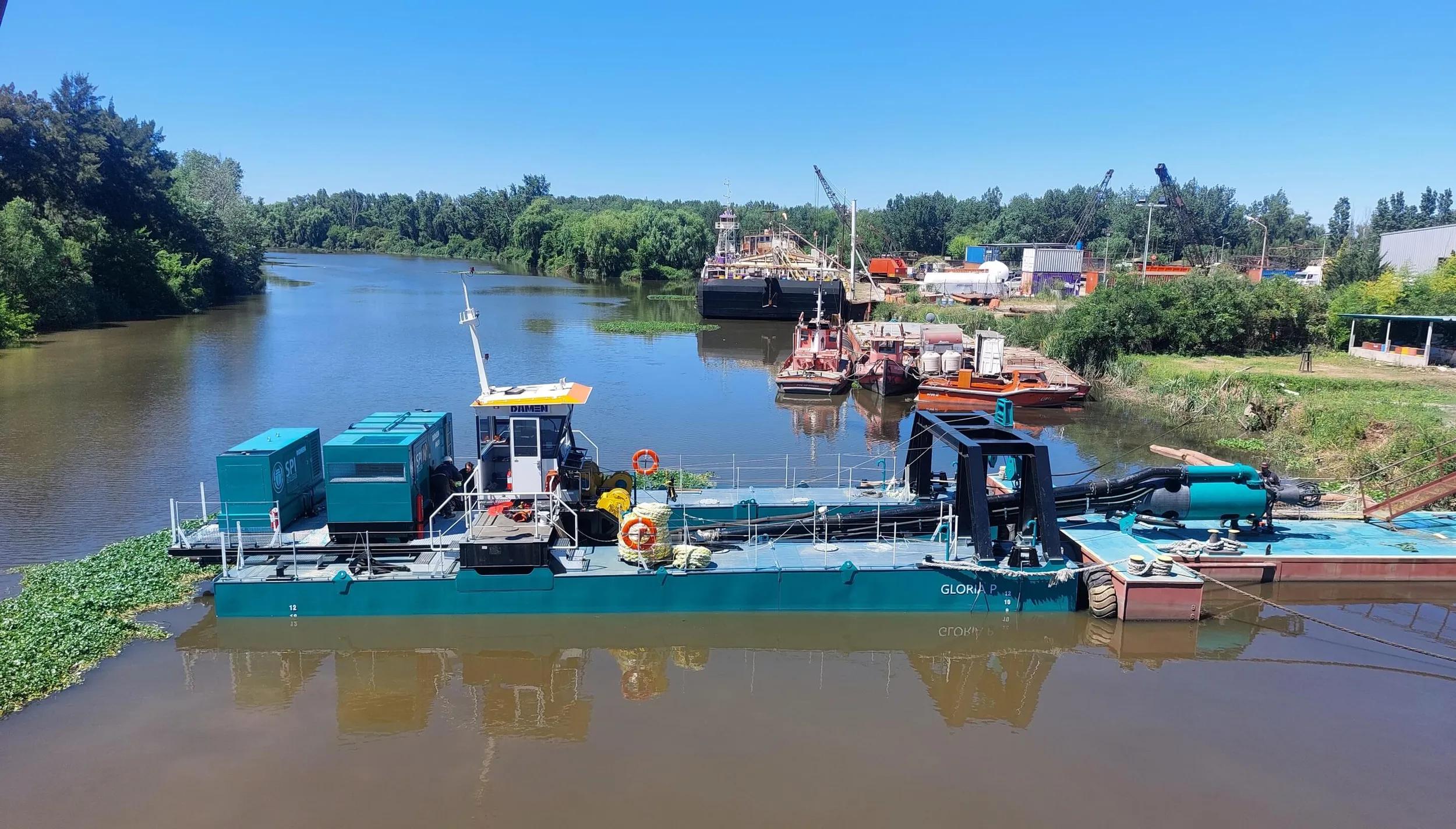

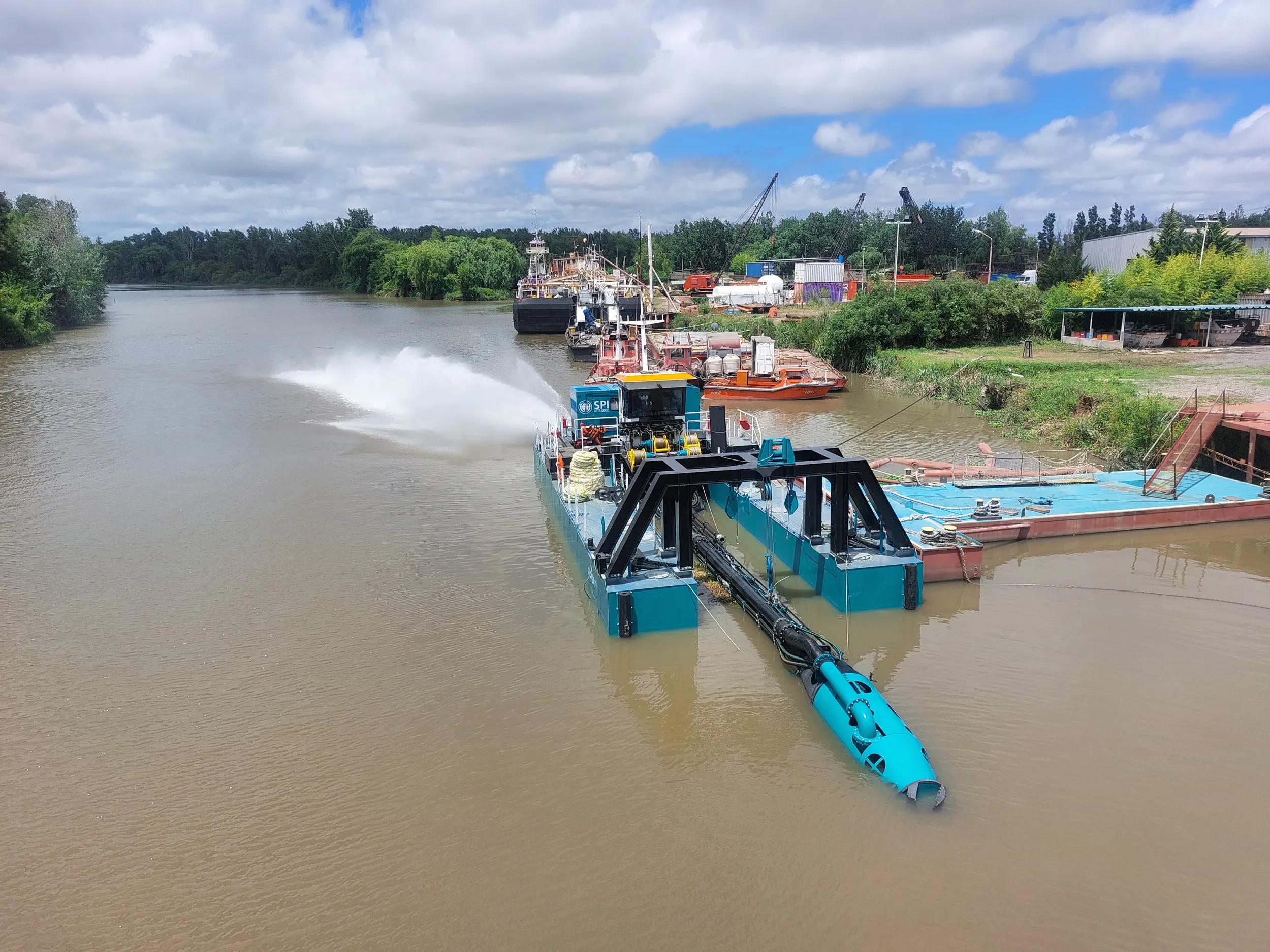

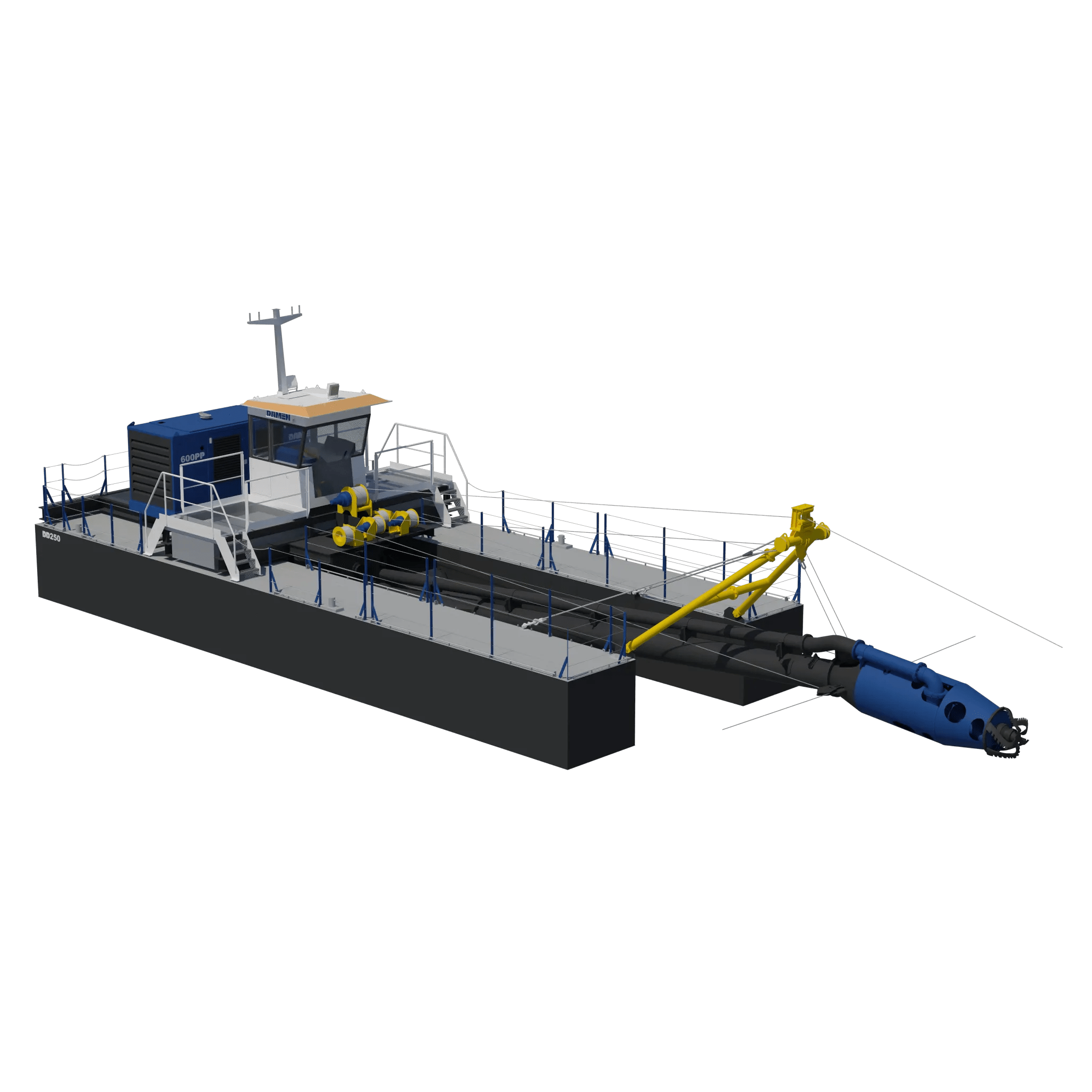

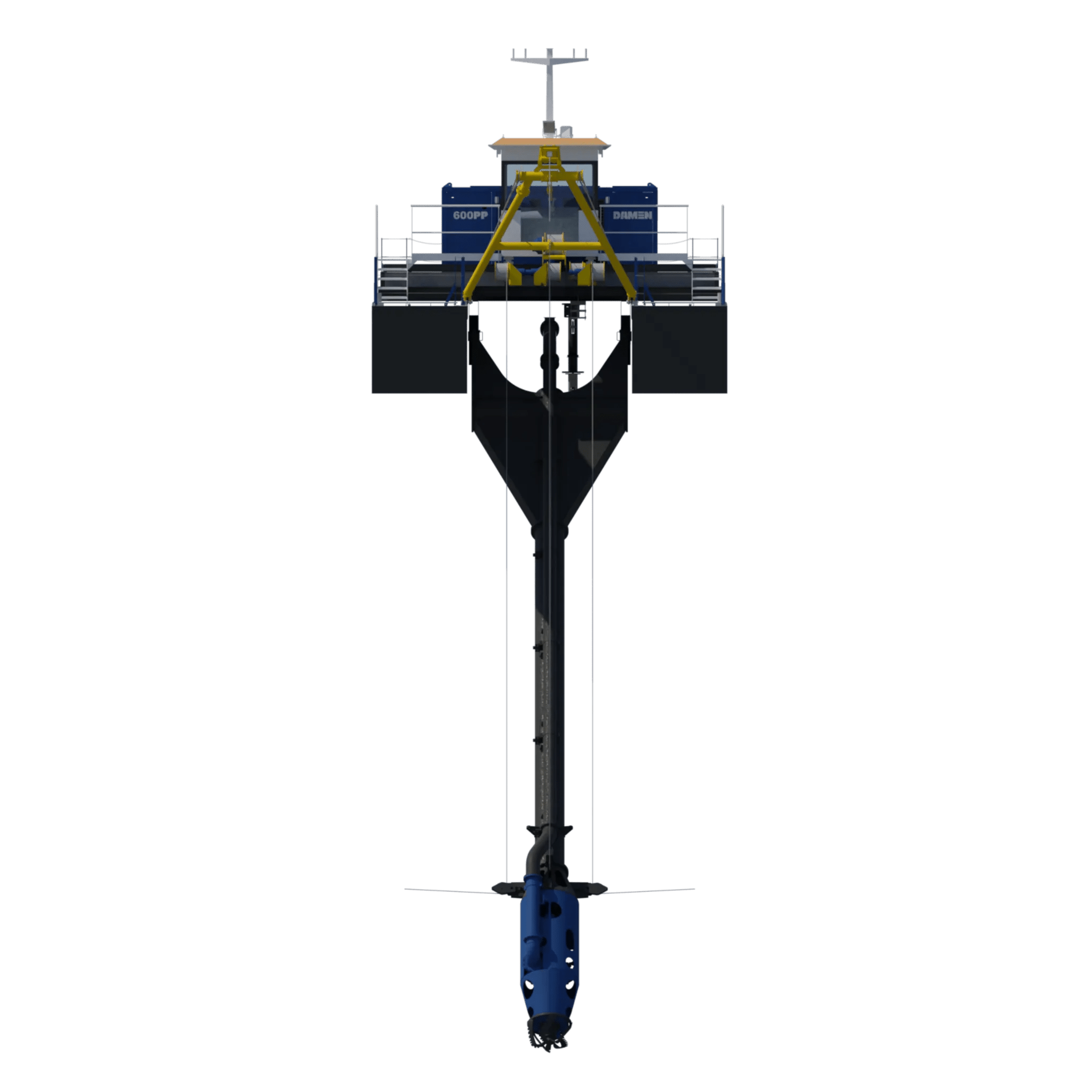

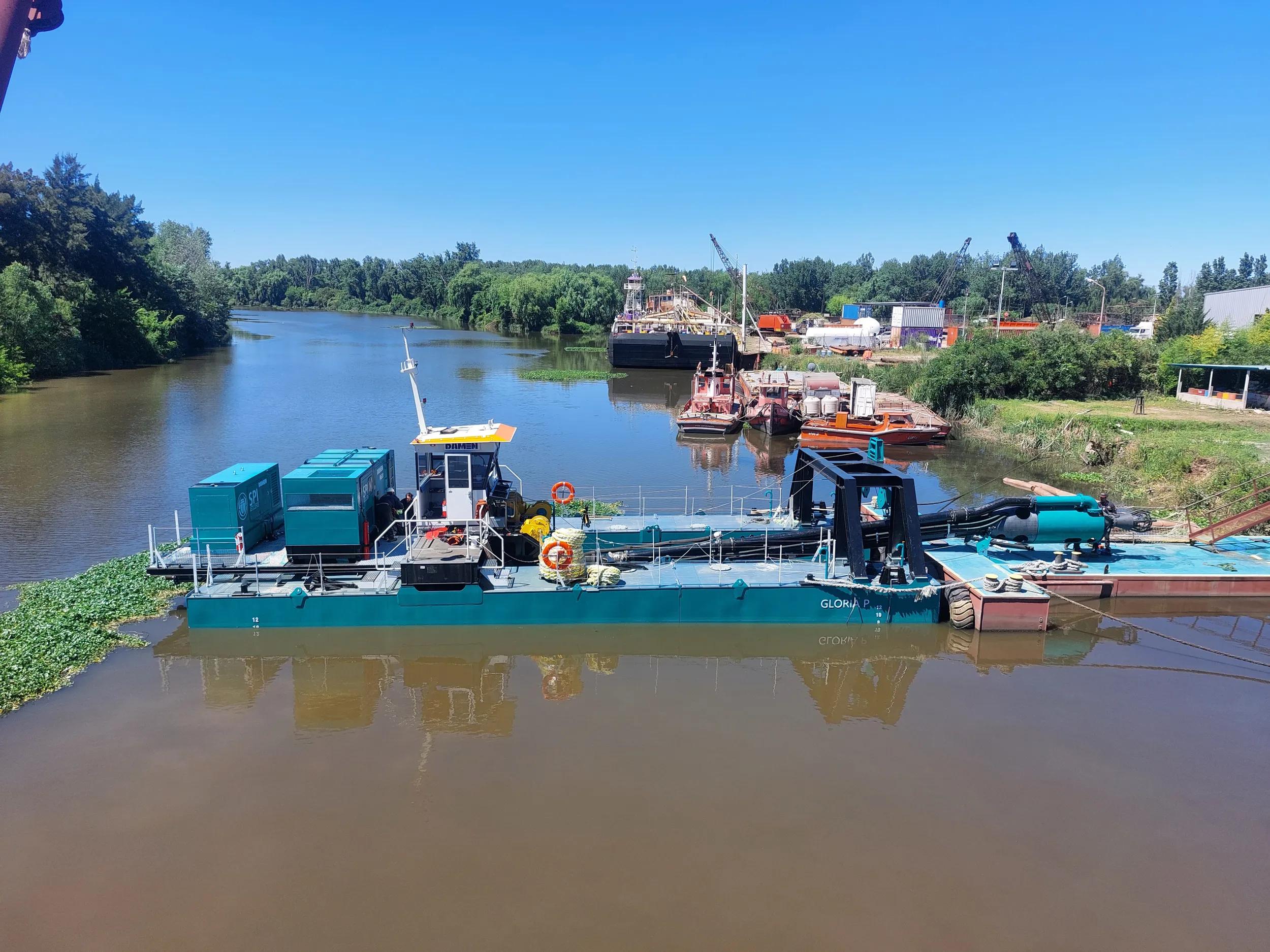

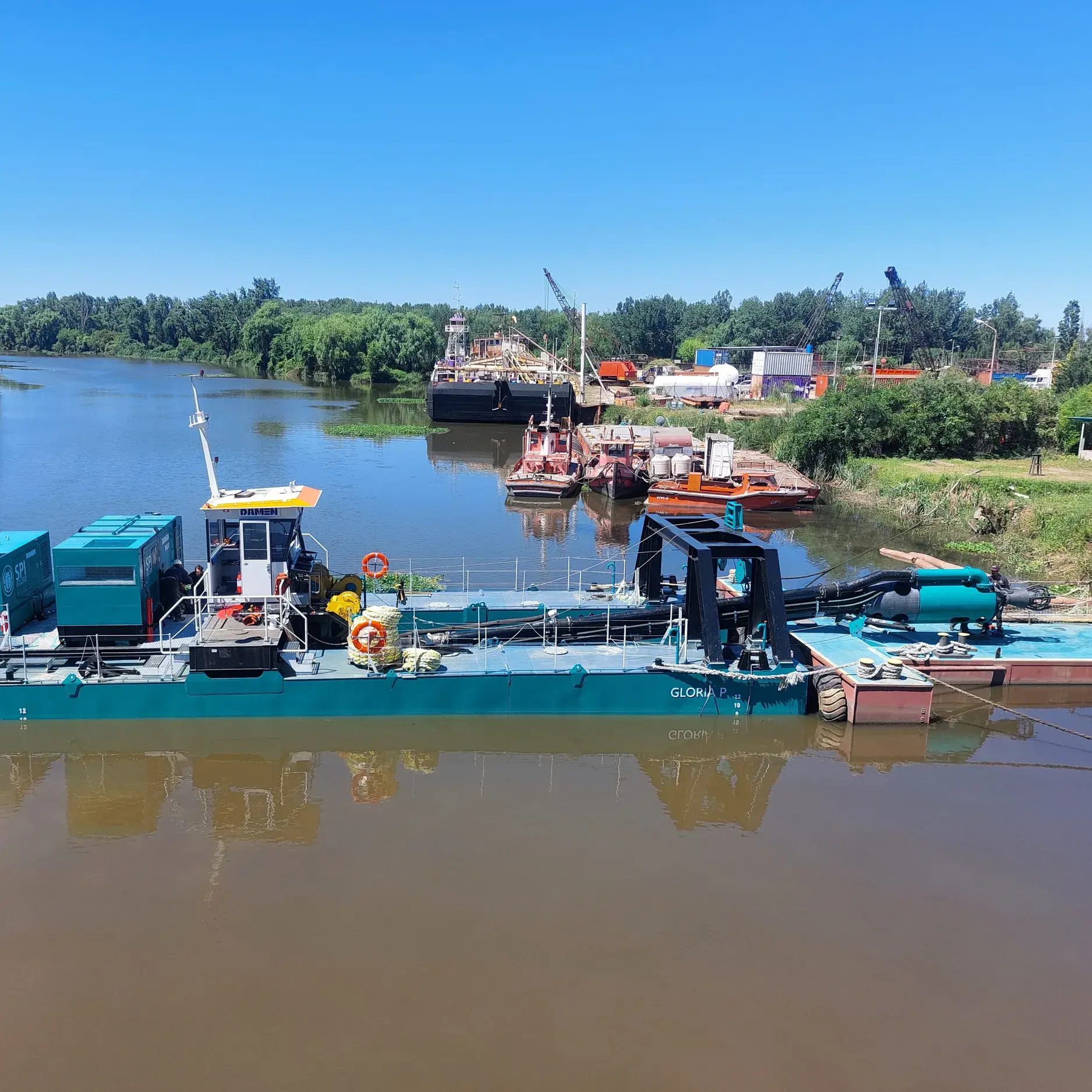

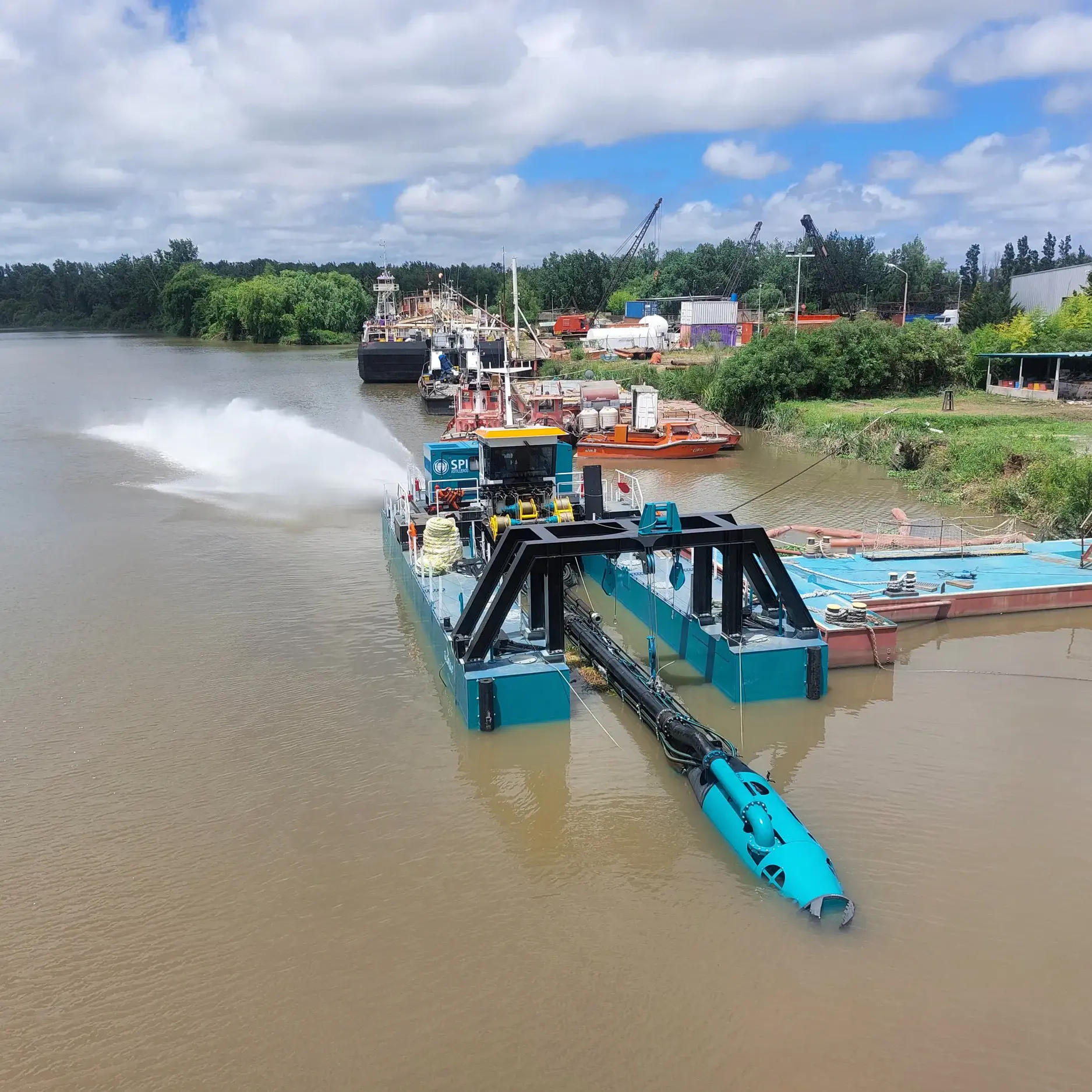

A cutter head breaks up compacted soils. Located at the dredger’s suction mouth and submersible dredge pump, the cutter head boosts the mixture concentration as well as the overall dredge production. The DOP Dredger with a cutter head is mainly used in sand mining or capital dredging projects. This flexible dredger can be built locally using a dredge components package, or it can be transported to the dredge location using standard open top containers.
  • Production measurement
  • Position visualisation
  • Communication & navigation package
  • Floating & land pipe line

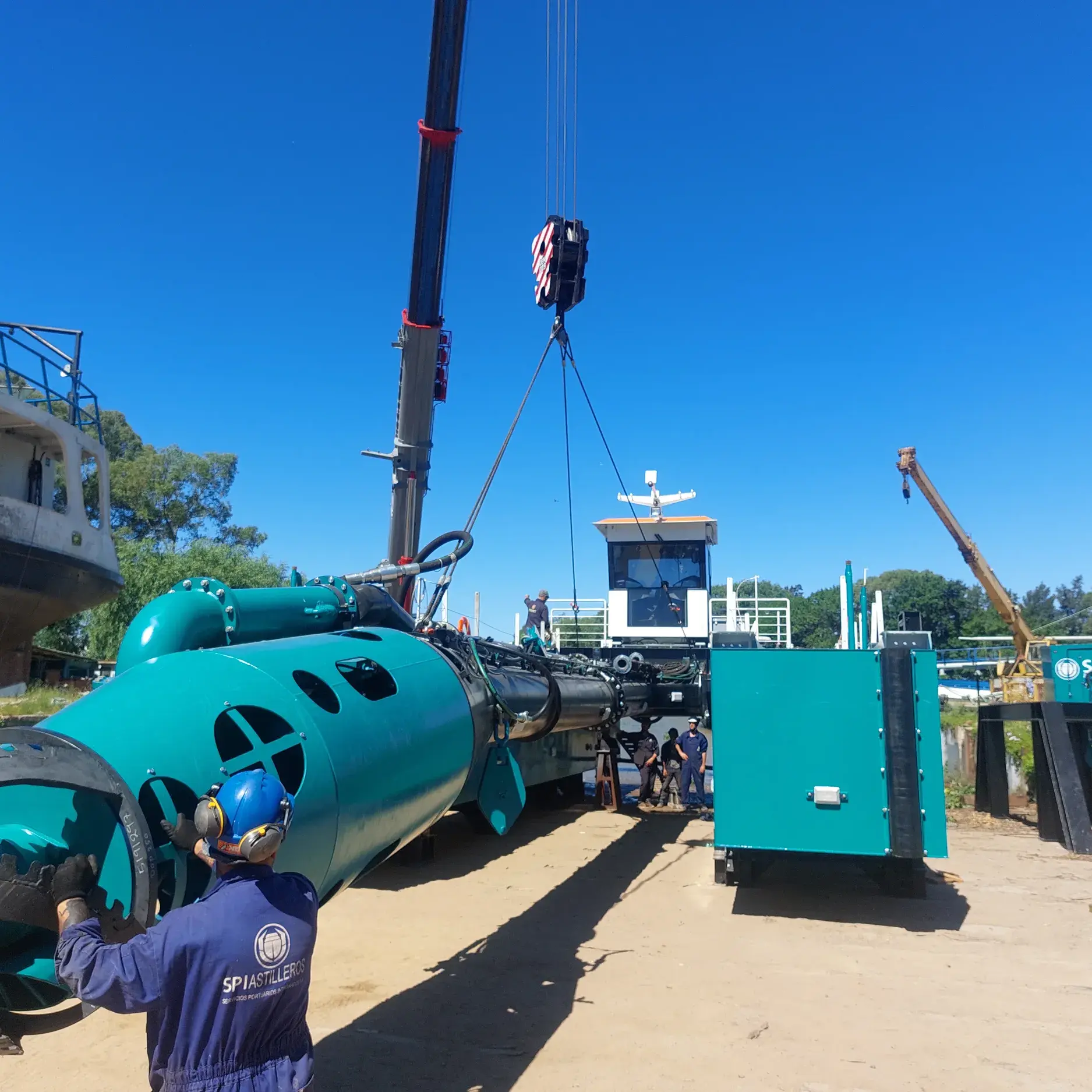

  • Submersed dredge pump for high efficiency

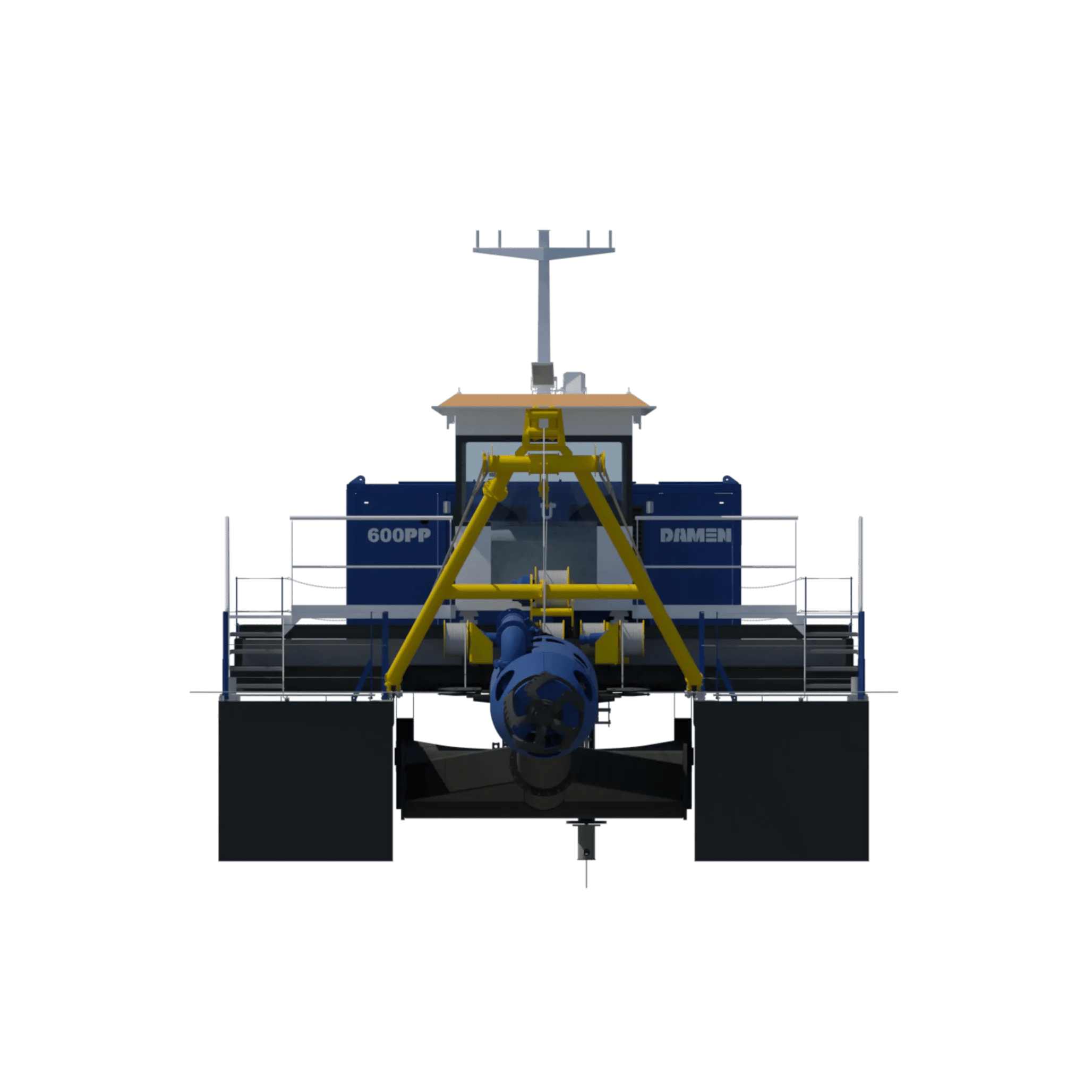

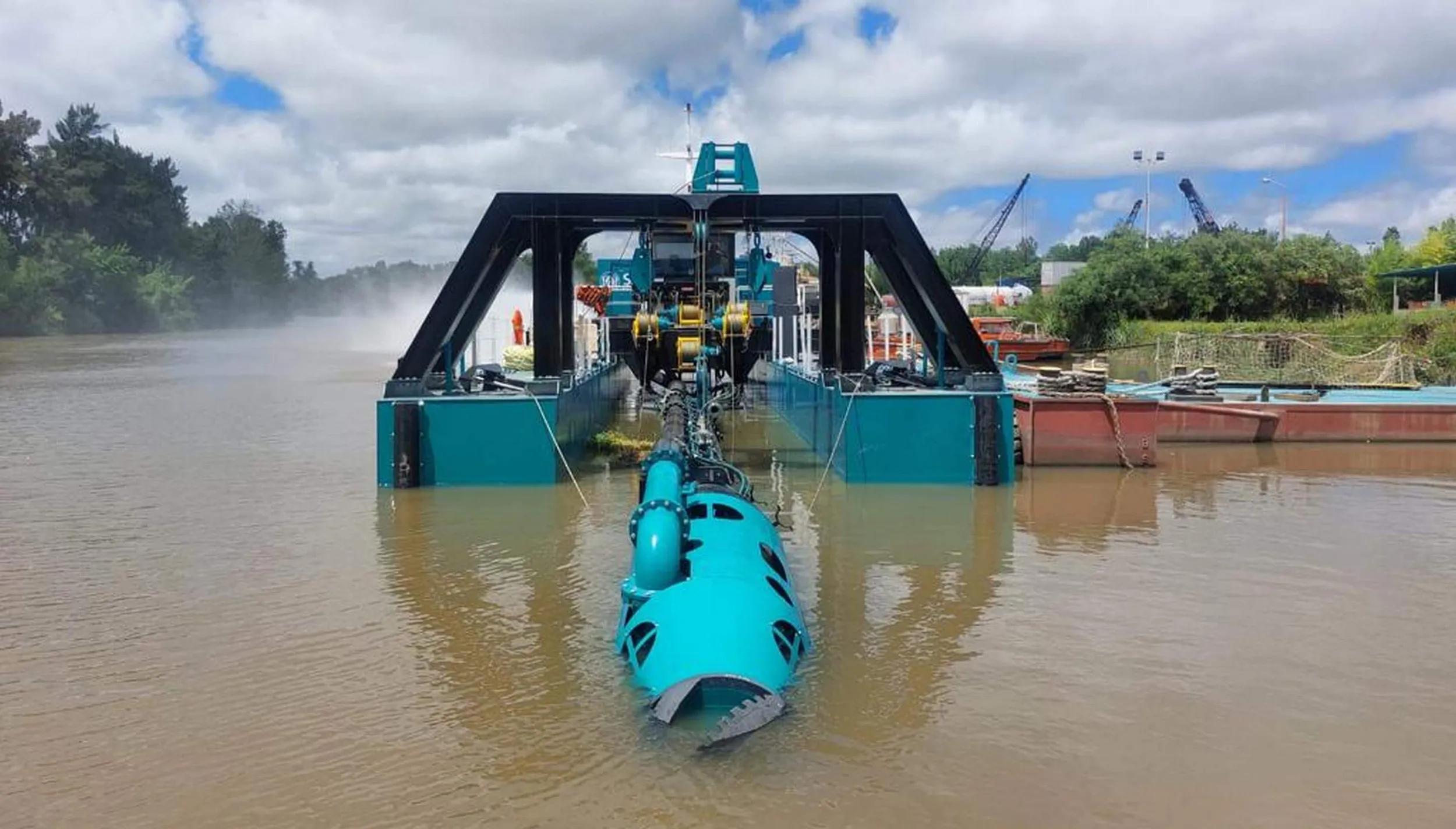

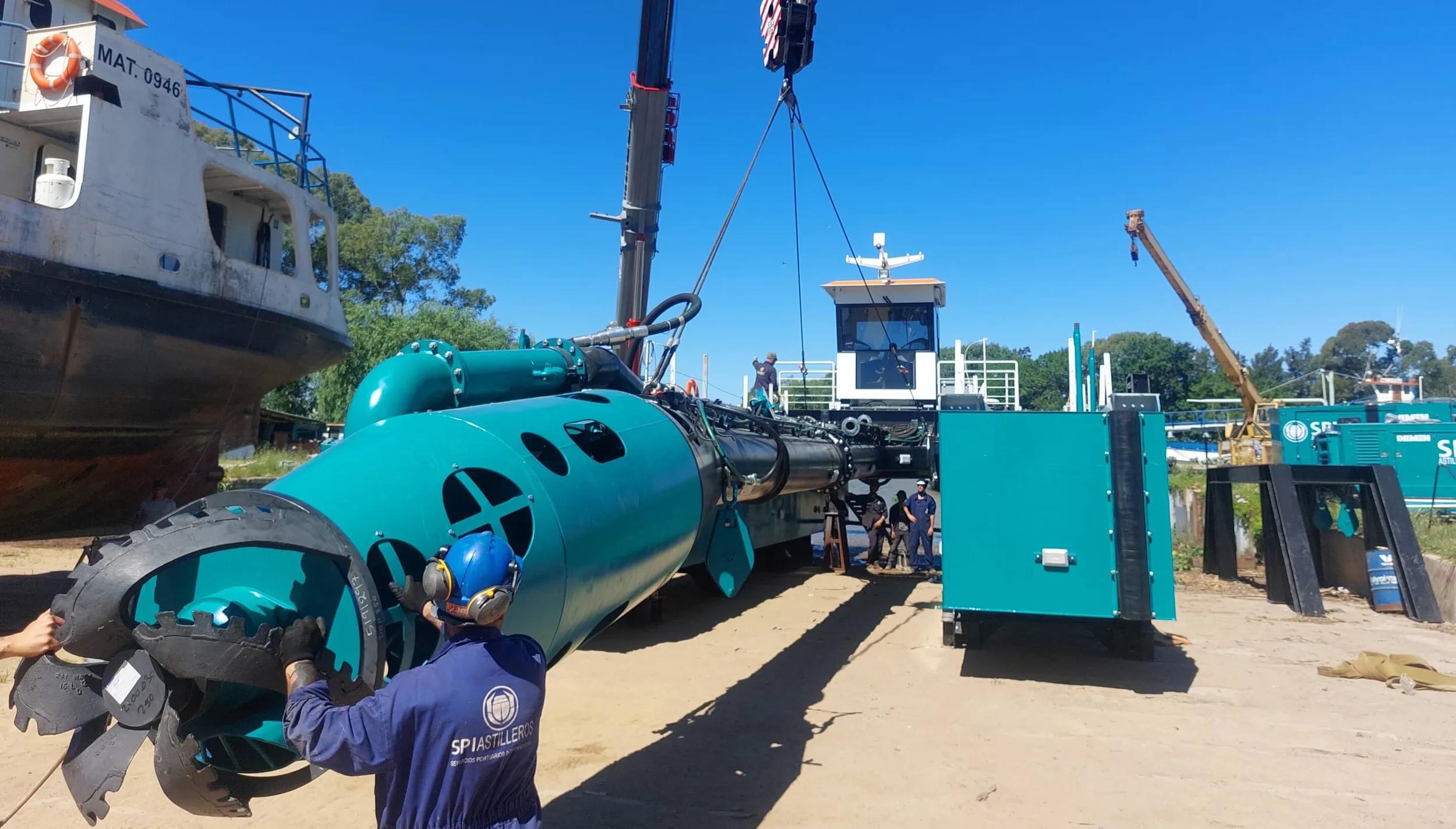

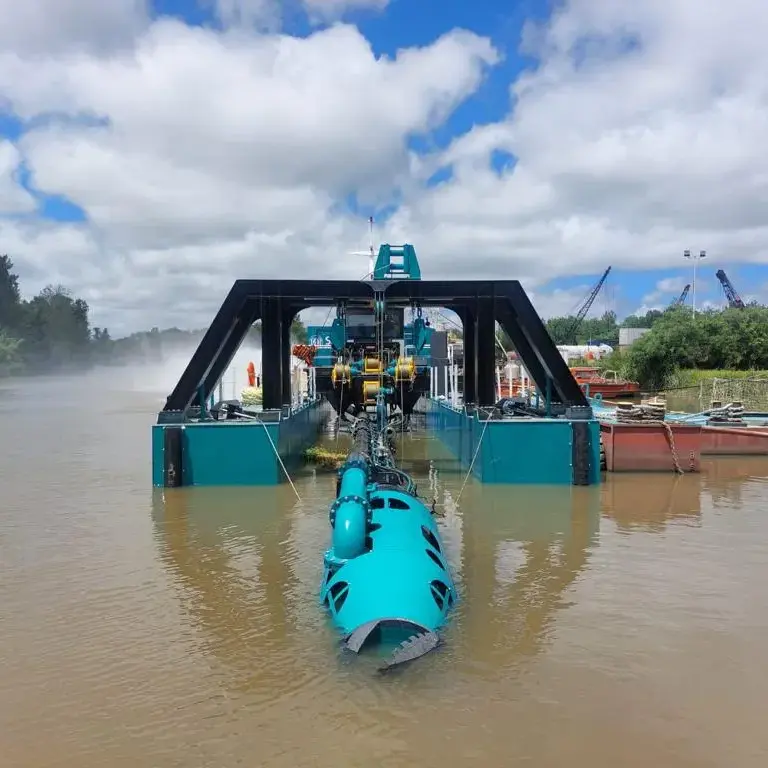

  • Cutter head breaks up compacted soils
  • Pontoons can be made locally
  • Modular design can be transported in compact elements

Key figures

600 - 2400

-15

150 - 350

175 - 565

24 - 26

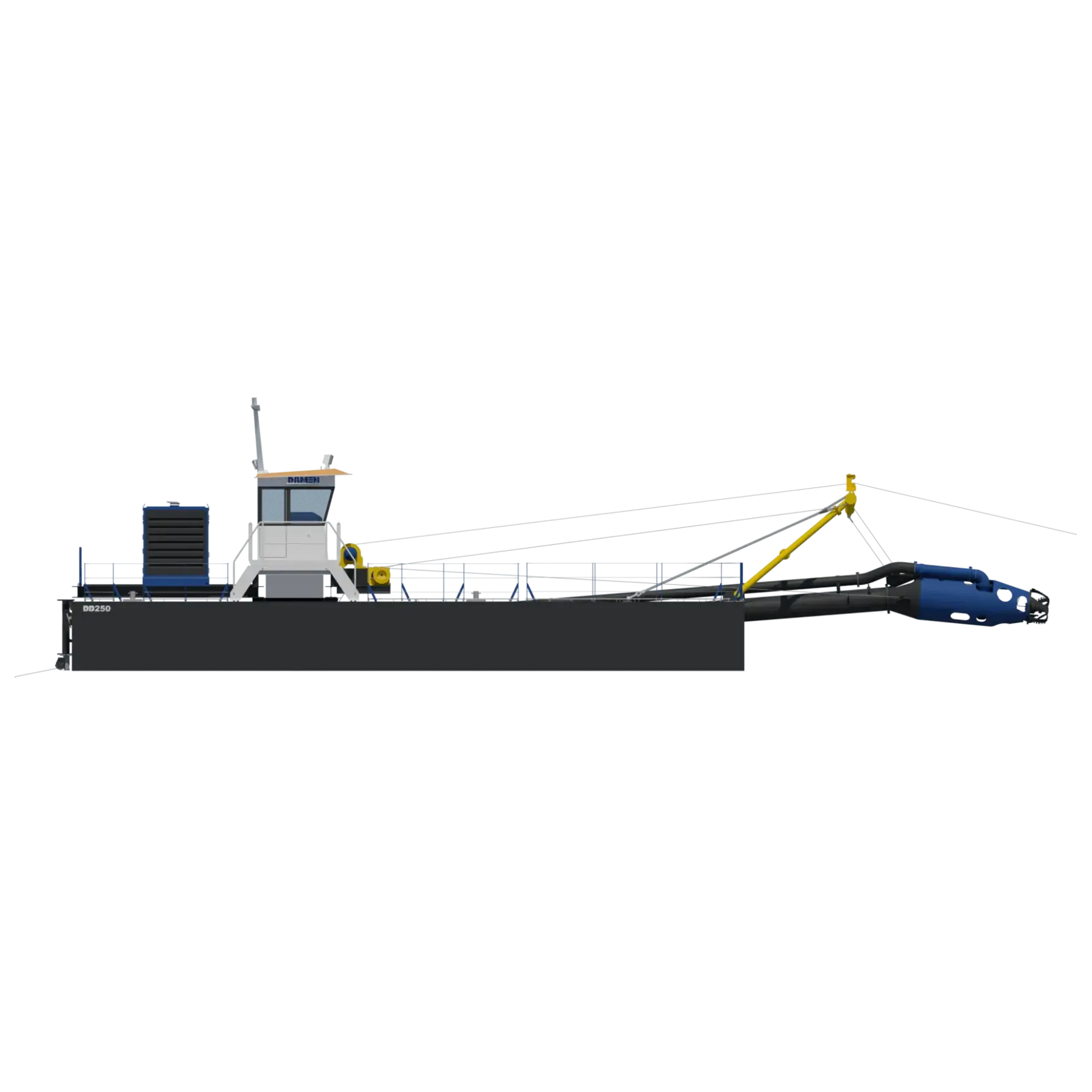

Dimensions

Overall length
24 - 26 m
Beam
7.35 m
Depth pontoons
1.8 m
Total weight
48 - 59 t

Engine installation

Power pumpshaft
80 - 360 kW max
Total installed power
175 - 565 kW
Hydraulic power pack
252 - 972 I/min
Cutter power
13 - 47 kW
Fuel tank
5 m³

Dredge installation

Dredge production
600 - 2400 m³/h
Dredge pipe diameter
150 - 350 mm
Max head
3.2 - 5.3 bar

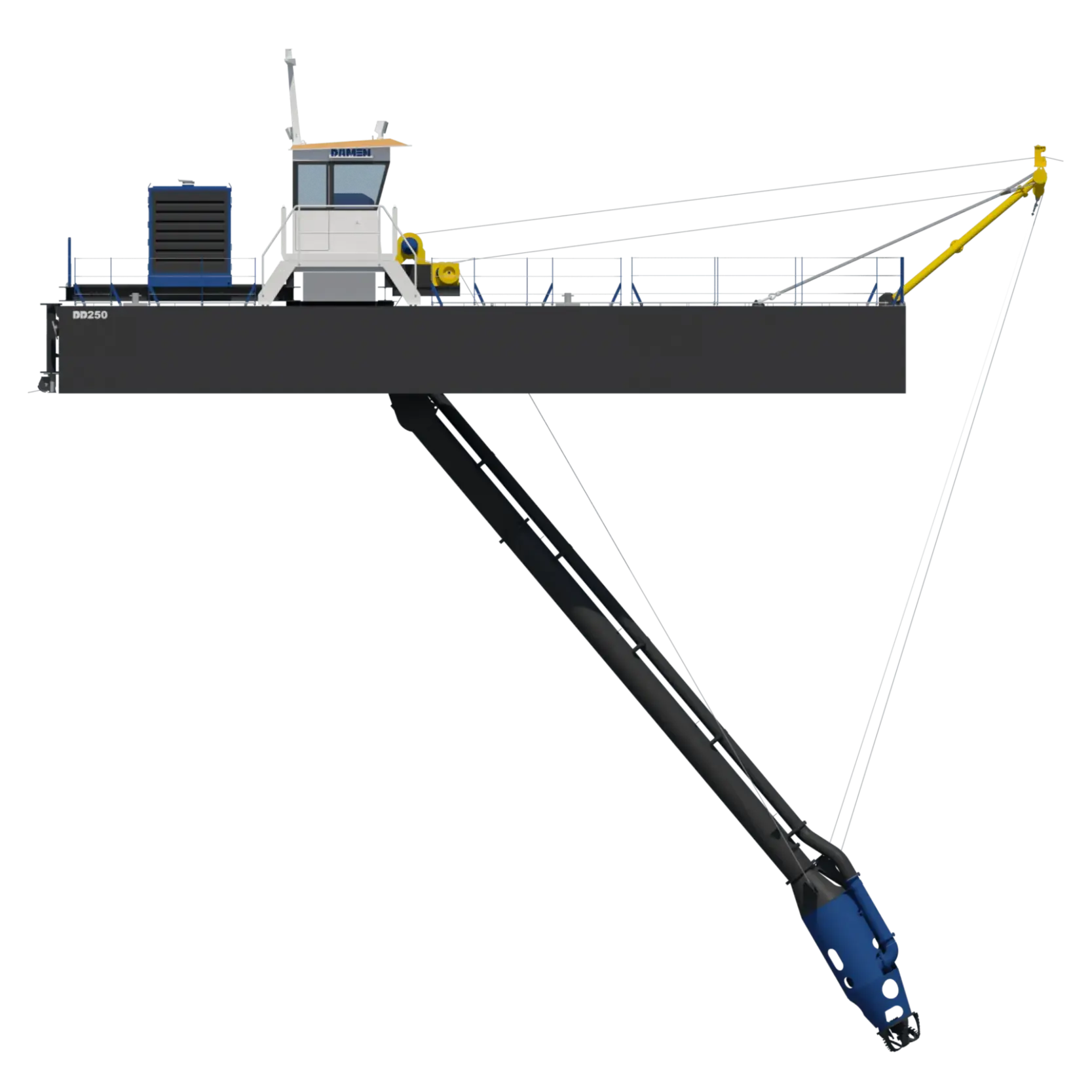

Max dredging depth
-15 m
Do you want to know more?

Compare similar vessels

Production (m³/h)Max dredging depth (m)Pipe diameter (mm)Power (kW)Length (m)
Cutting compacted sand600 - 2400-15150 - 350175 - 56524 - 26
Deep dredging600 - 2400-20150 - 350175 - 56530 - 32
Deeper dredging600 - 2400-30150 - 350175 - 56544 - 46
Cutting compacted sand
Production (m³/h)
600 - 2400
Max dredging depth (m)
-15
Pipe diameter (mm)
150 - 350
Power (kW)
175 - 565
Length (m)
24 - 26
Production (m³/h)
600 - 2400
Max dredging depth (m)
-20
Pipe diameter (mm)
150 - 350
Power (kW)
175 - 565
Length (m)
30 - 32
Production (m³/h)
600 - 2400
Max dredging depth (m)
-30
Pipe diameter (mm)
150 - 350
Power (kW)
175 - 565
Length (m)
44 - 46
