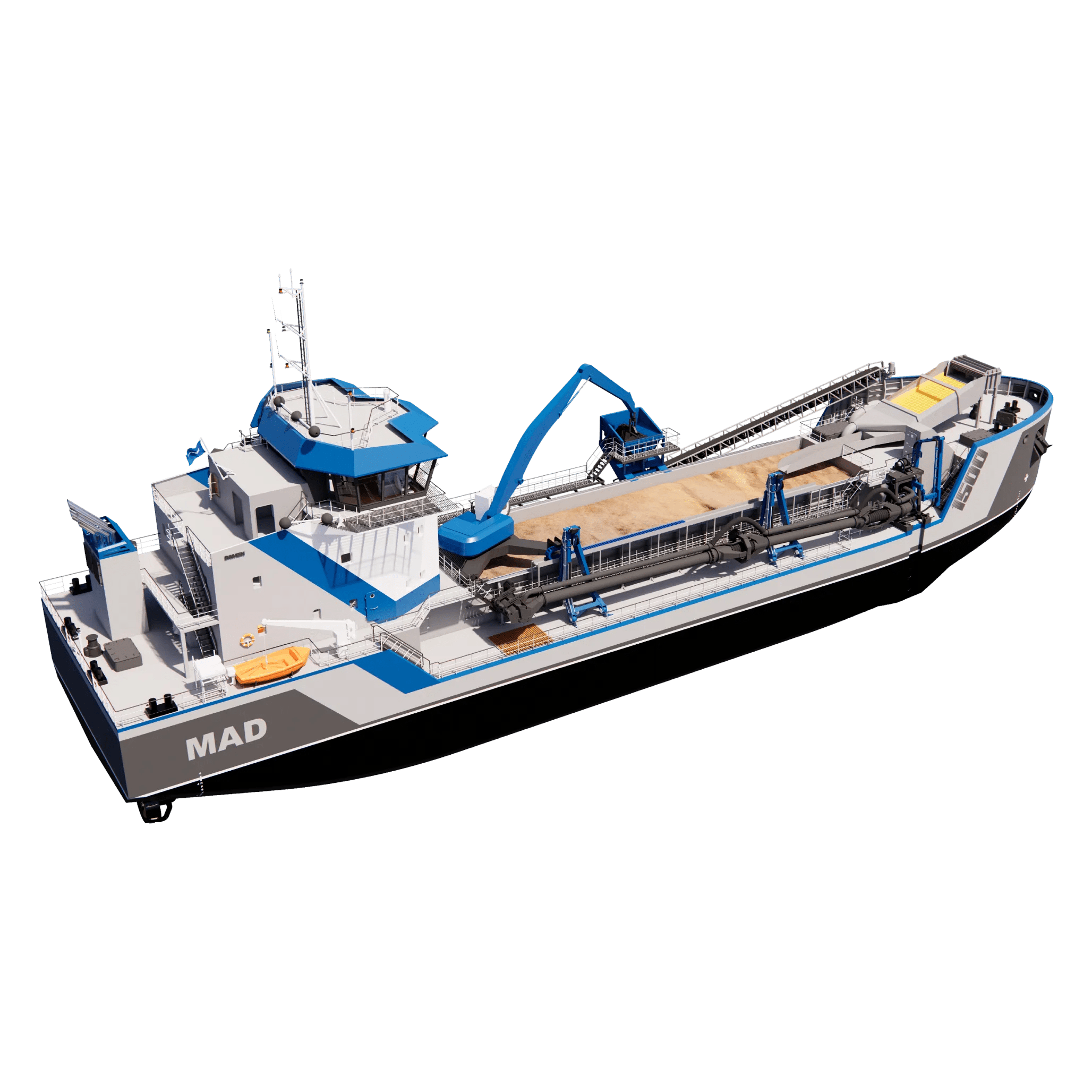

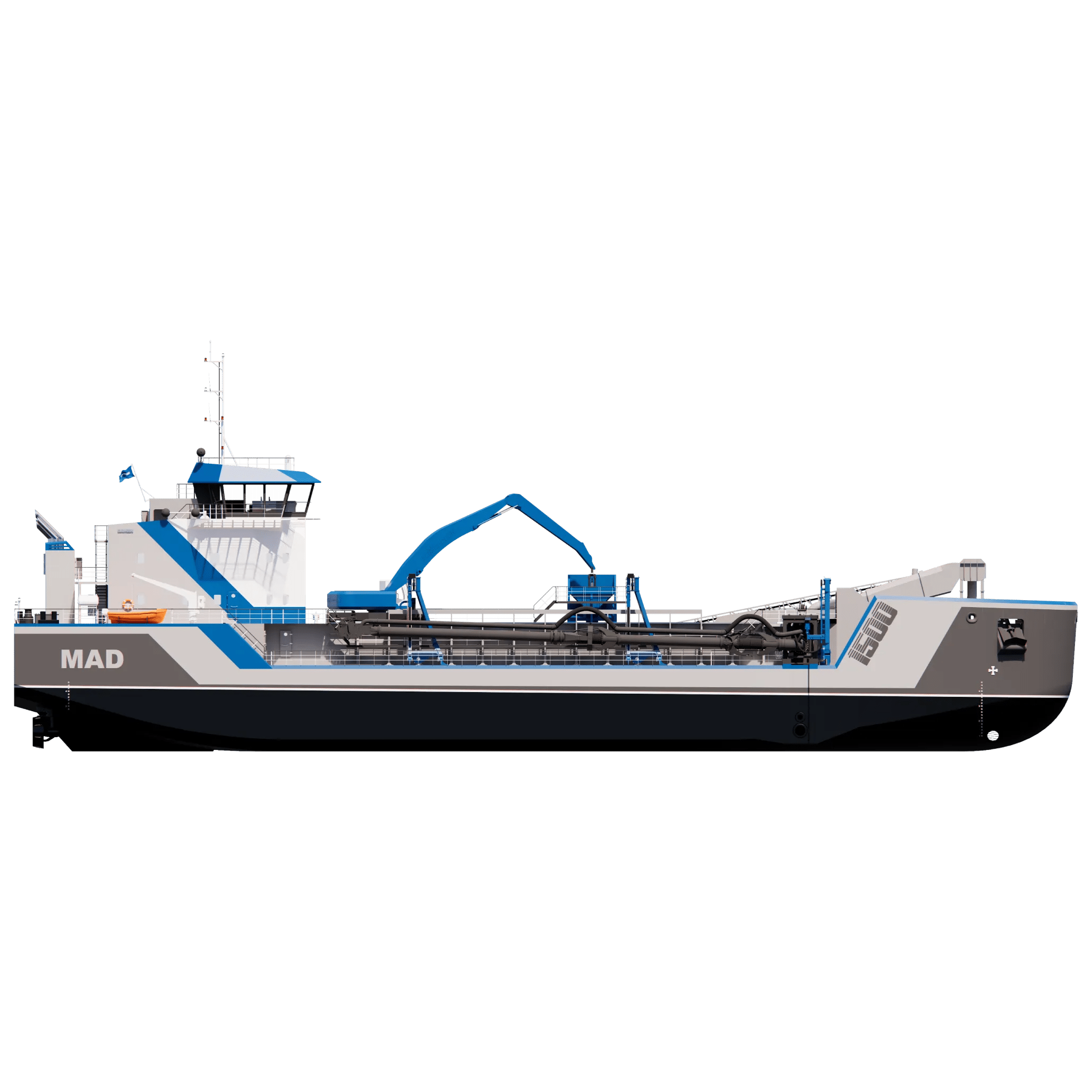

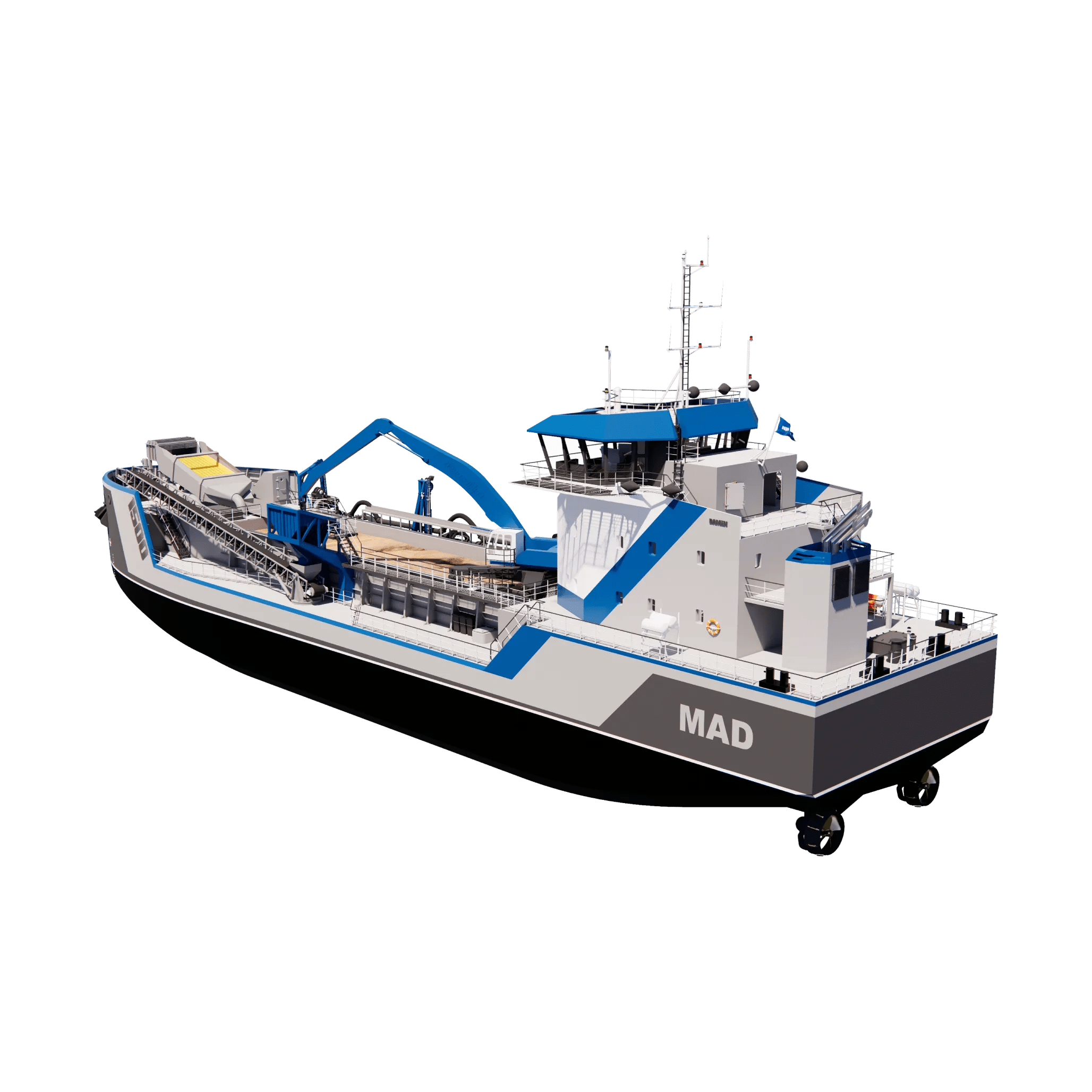

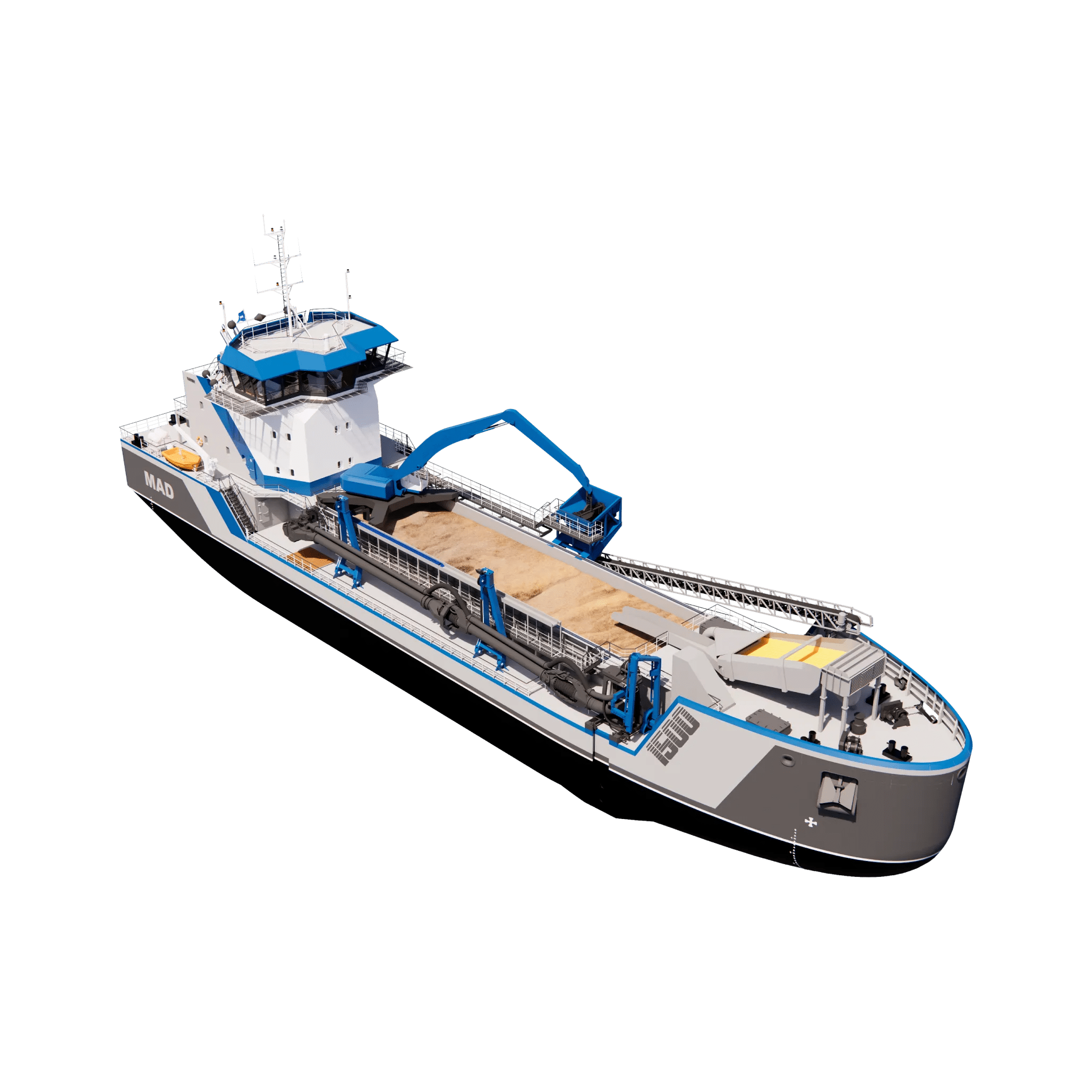

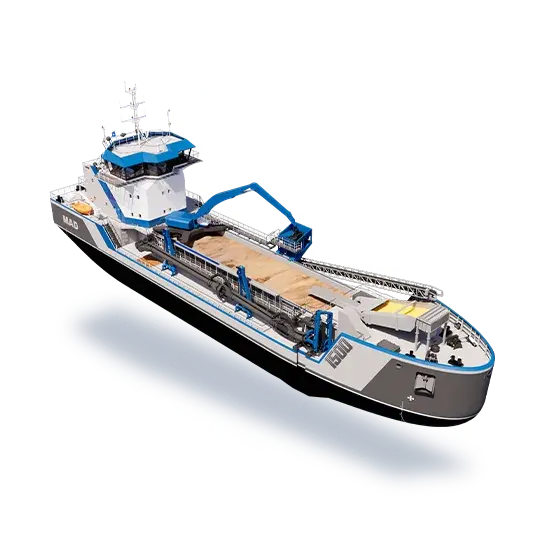

Marine Aggregate Dredger MAD 1500
Marine Aggregate Dredger MAD 1500

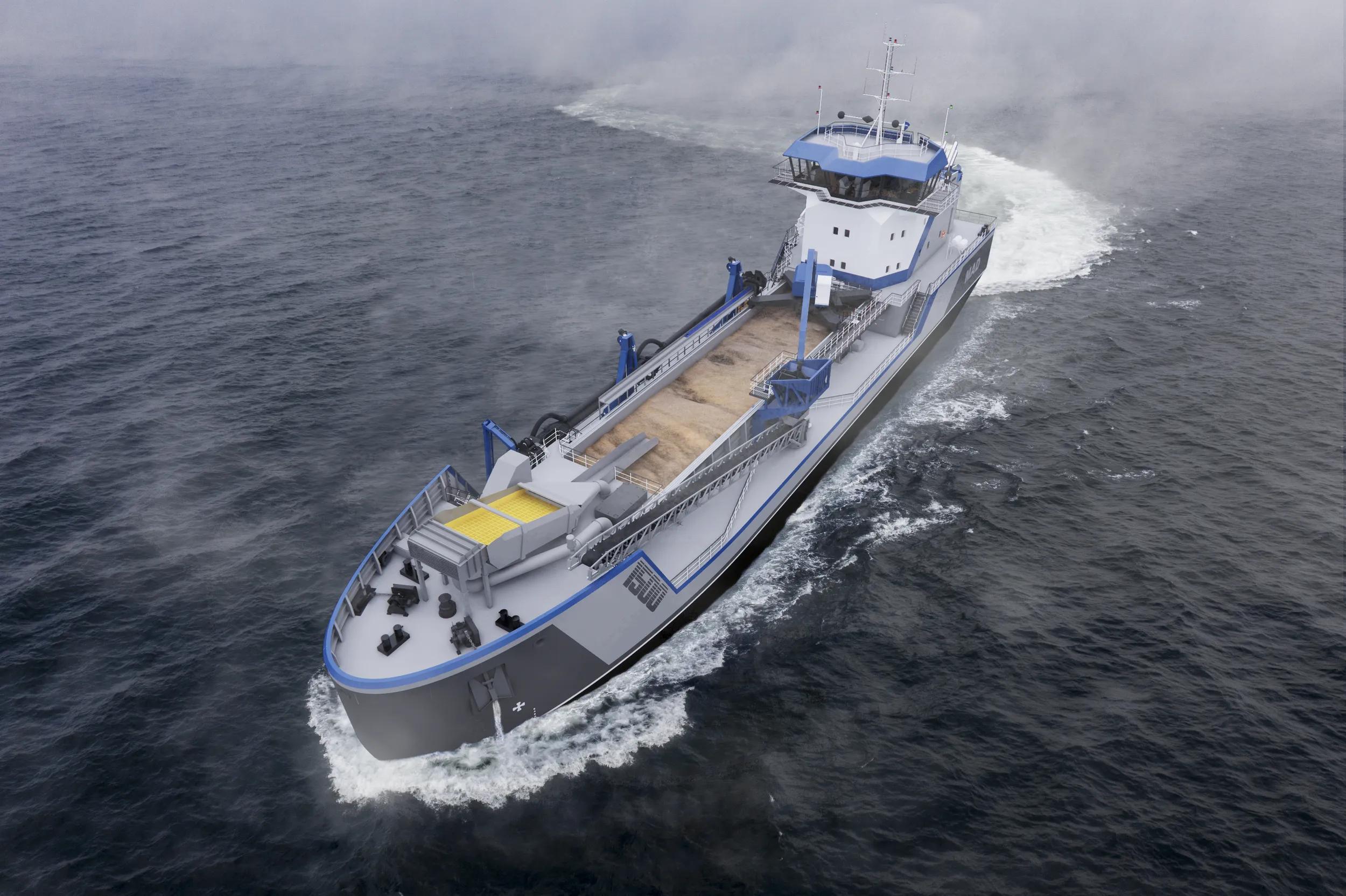

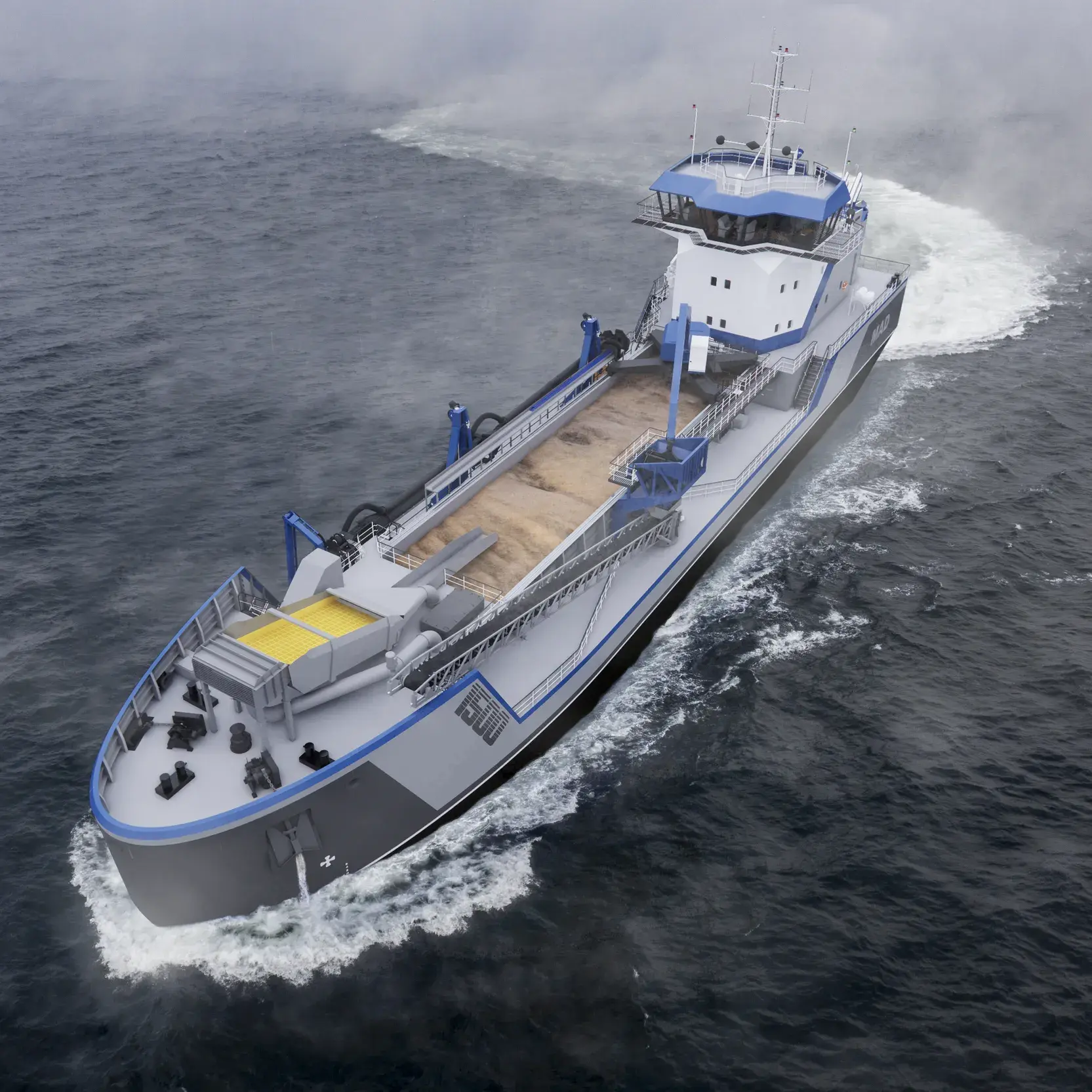

Offshore deposits of sand and gravel can be mined efficiently using a Marine Aggregate Dredger. This specific type of Trailing Suction Hopper Dredger has been designed for offshore mining of coarse building materials. Efficient loading is assured by a trailing suction pipe, offloading is arranged by a grab with conveyer belts. The optimised hull design and the enclosed bow shape ensure that the Marine Aggregate Dredger excels in harsh operating conditions.
- 25m shore conveyor
- Energy storage systems
- Dredging depth adapted to your requirements
- Hybrid diesel-electric machinery installation
- Winches for dredging equipment positioned below deck
- Screening installation with easily changeable grid
- Easy operatable excavator crane for discharging
Key figures
30
1500
2800
600
11.5
Dimensions
- Length o.a.
- 71.6 m
- Beam moulded
- 15.2 m
- Draught
- 4.85 m
- Deadweight
- 2800 t
Dredge performance
- Hopper capacity
- 1500 m³
- Dredging depth
- 30 m
- Trailing pipe diameter
- 600 mm
- Speed loaded
- 11.5 kn
Equipment
- Propulsion power
- 2 x 1300 kW
- Azimuth FPP propeller
- 2 x 1900 mm
- Bow thruster power
- 280 kW
- Fuel oil
- 320 m³
Do you want to know more?
Compare similar Aggregate Dredgers
Dredging depth (m) | Hopper capacity (m³) | Deadweight (t) | Trailing pipe diameter (mm) | Speed loaded (kn) | ||
---|---|---|---|---|---|---|
Marine Aggregate Dredger MAD 1500 | 30 | 1500 | 2800 | 600 | 11.5 | |
Marine Aggregate Dredger MAD 8000 | 70 | 8300 | 16200 | 900 | 14 | |

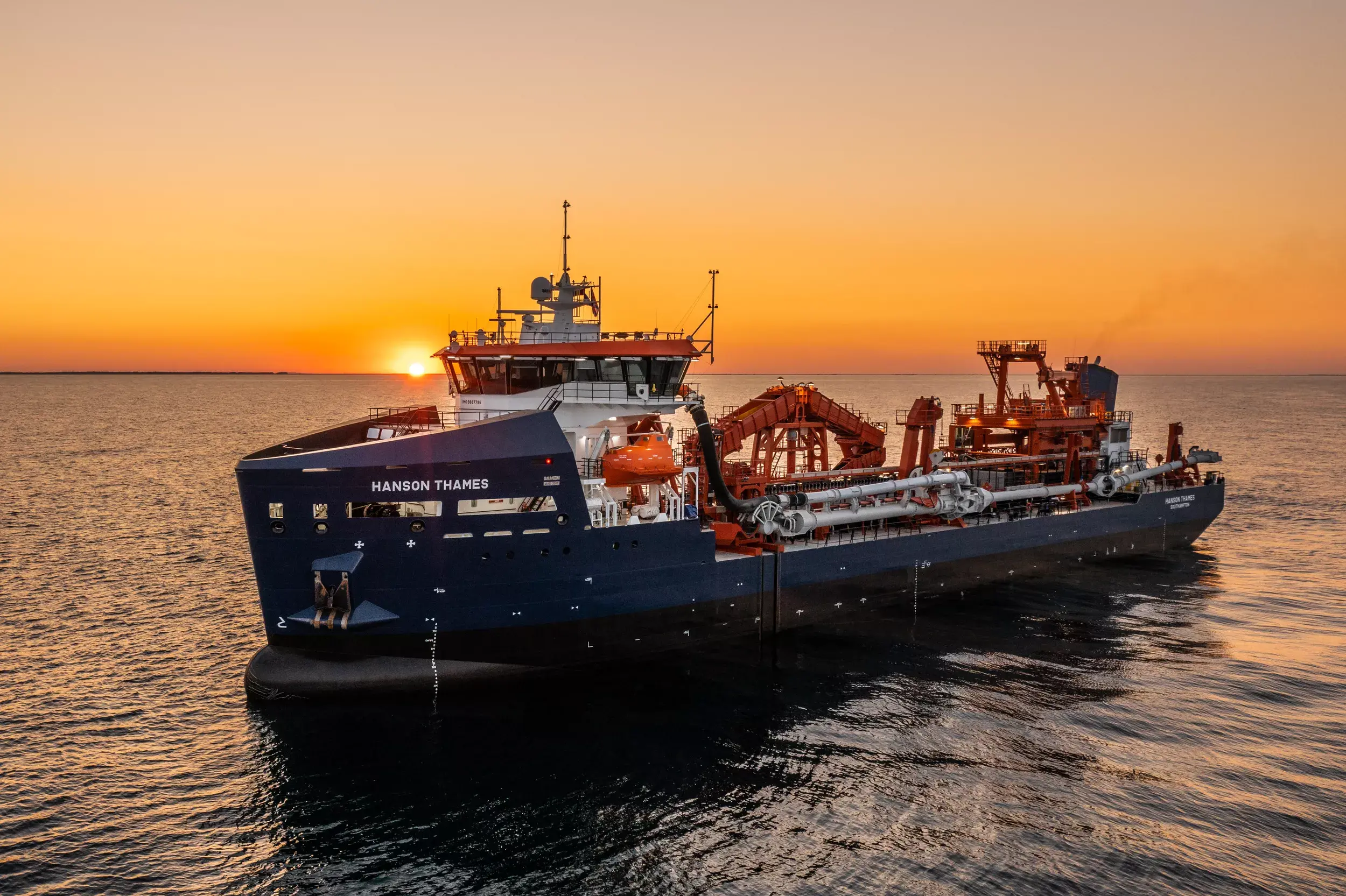

Marine Aggregate Dredger MAD 3500 | 55 | 3500 | 7000 | 700 | 13.2 |
Marine Aggregate Dredger MAD 1500
- Dredging depth (m)
- 30
- Hopper capacity (m³)
- 1500
- Deadweight (t)
- 2800
- Trailing pipe diameter (mm)
- 600
- Speed loaded (kn)
- 11.5
- Dredging depth (m)
- 70
- Hopper capacity (m³)
- 8300
- Deadweight (t)
- 16200
- Trailing pipe diameter (mm)
- 900
- Speed loaded (kn)
- 14
- Dredging depth (m)
- 55
- Hopper capacity (m³)
- 3500
- Deadweight (t)
- 7000
- Trailing pipe diameter (mm)
- 700
- Speed loaded (kn)
- 13.2
