Marine Aggregate Dredger MAD 3500
Marine Aggregate Dredger MAD 3500

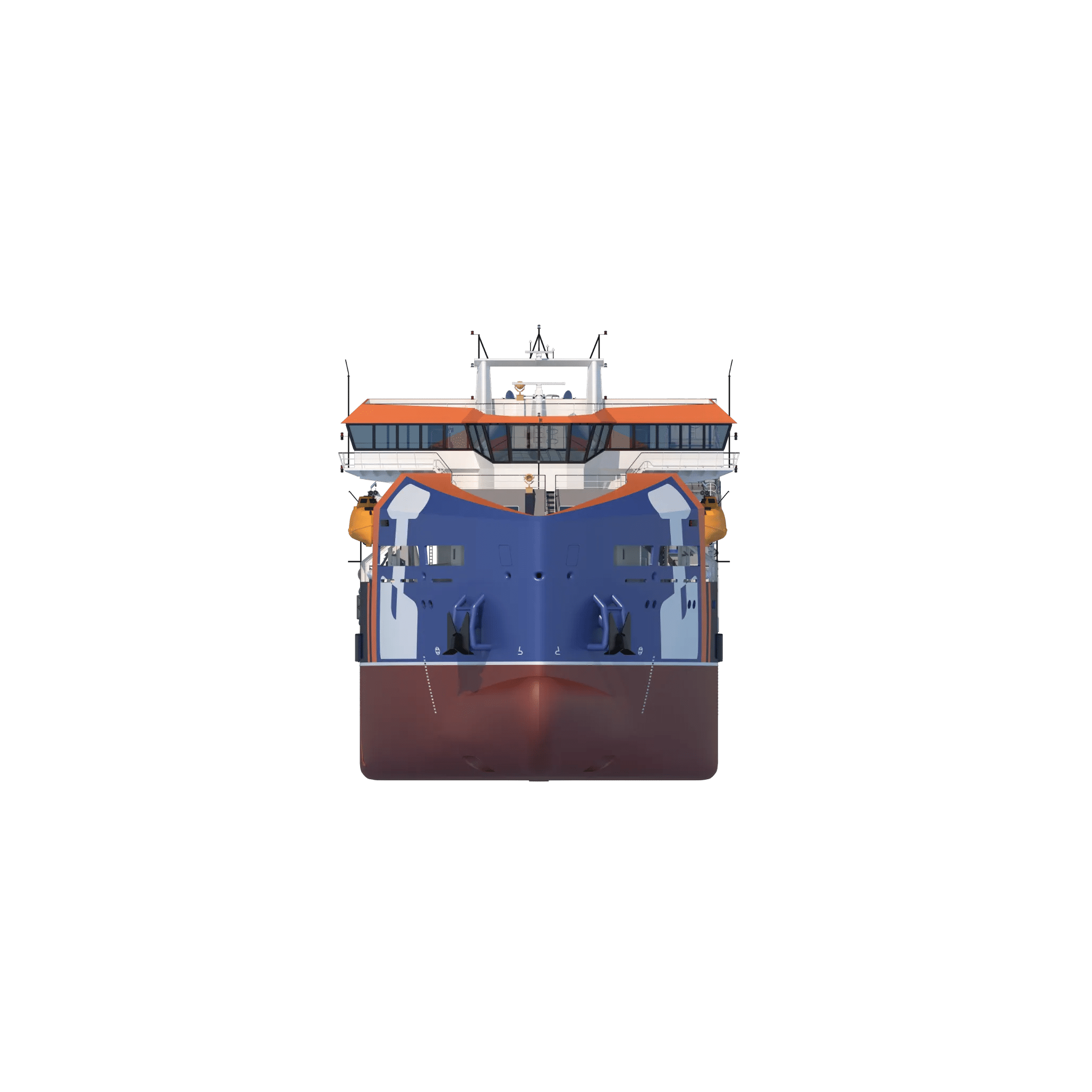

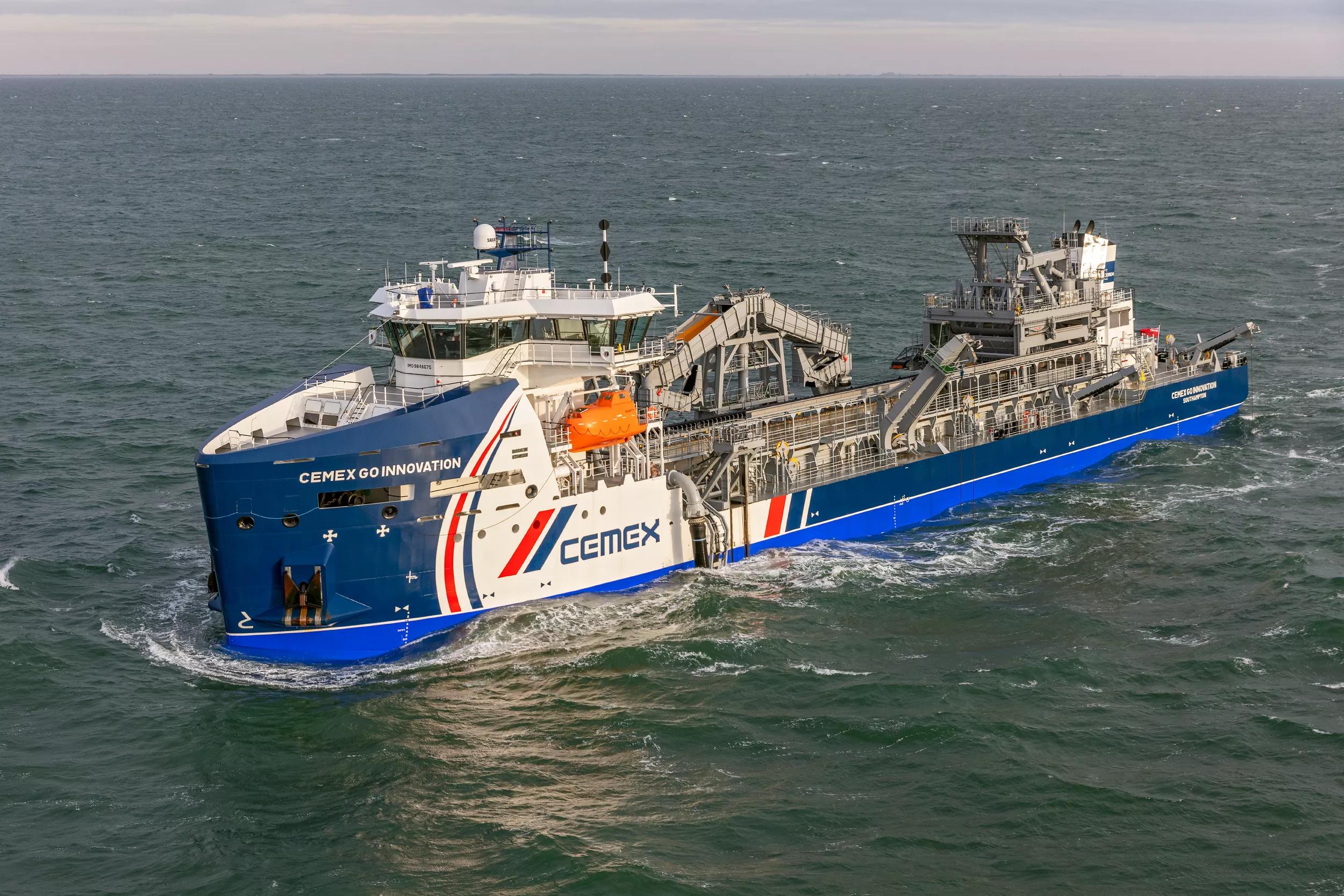

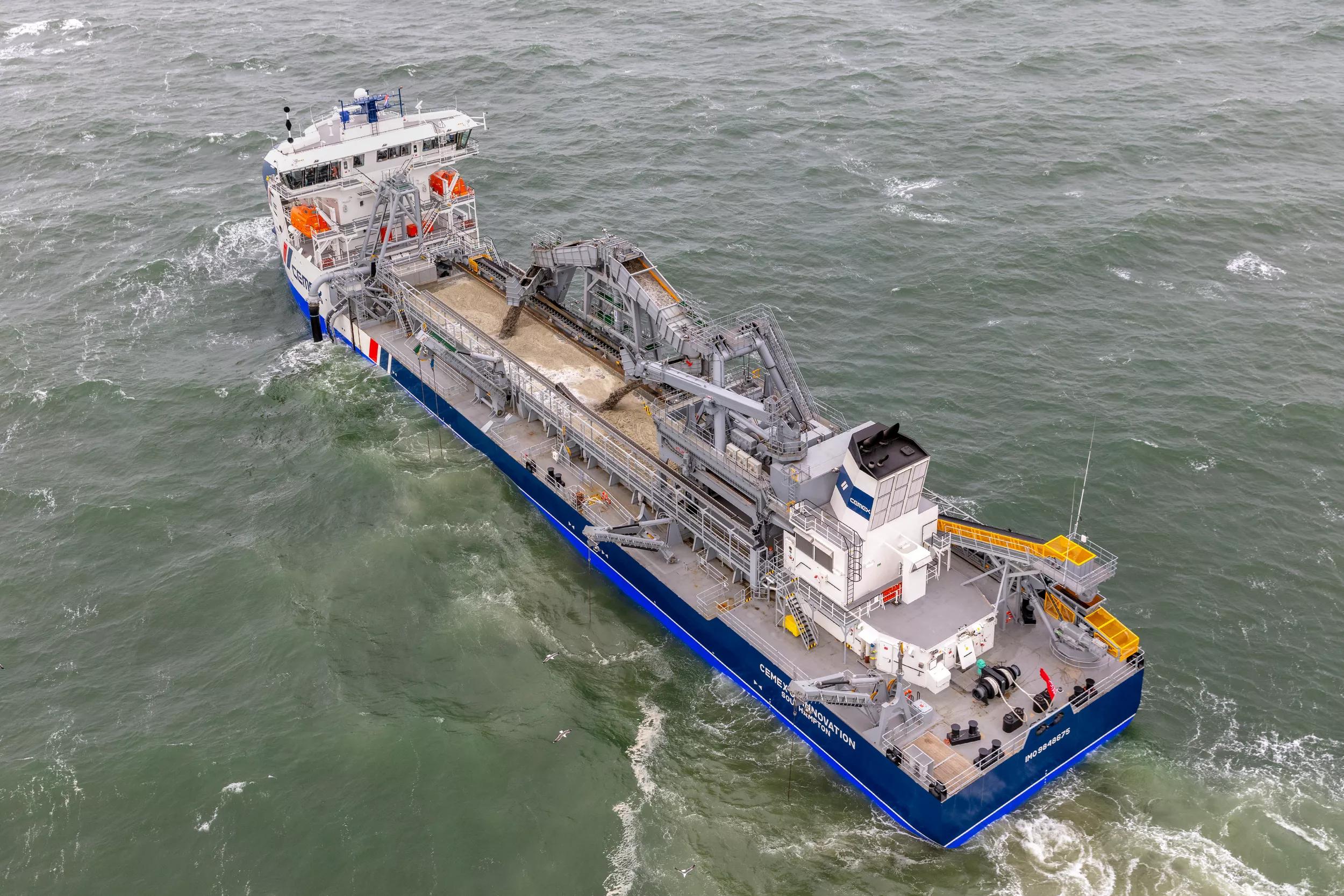

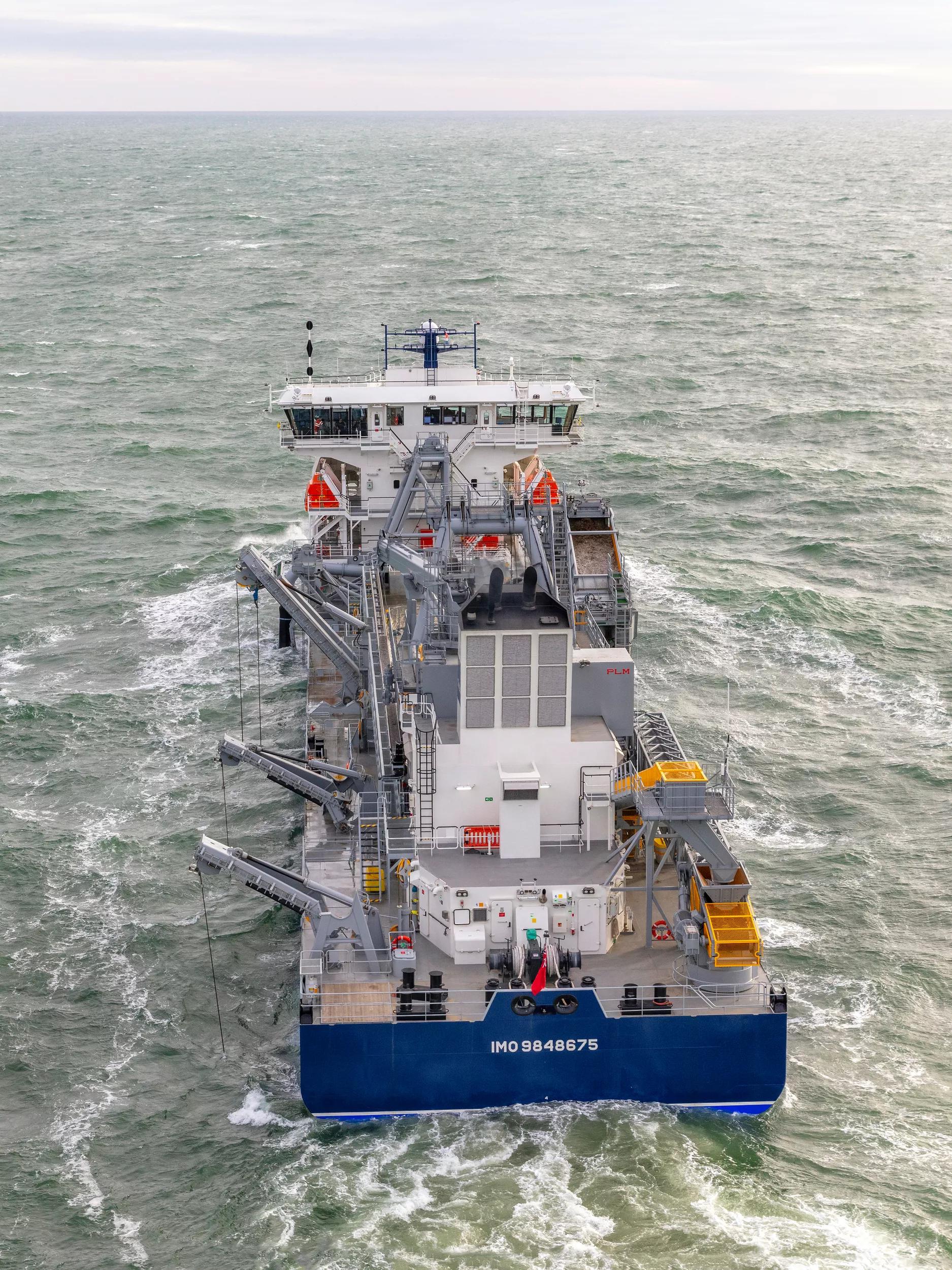

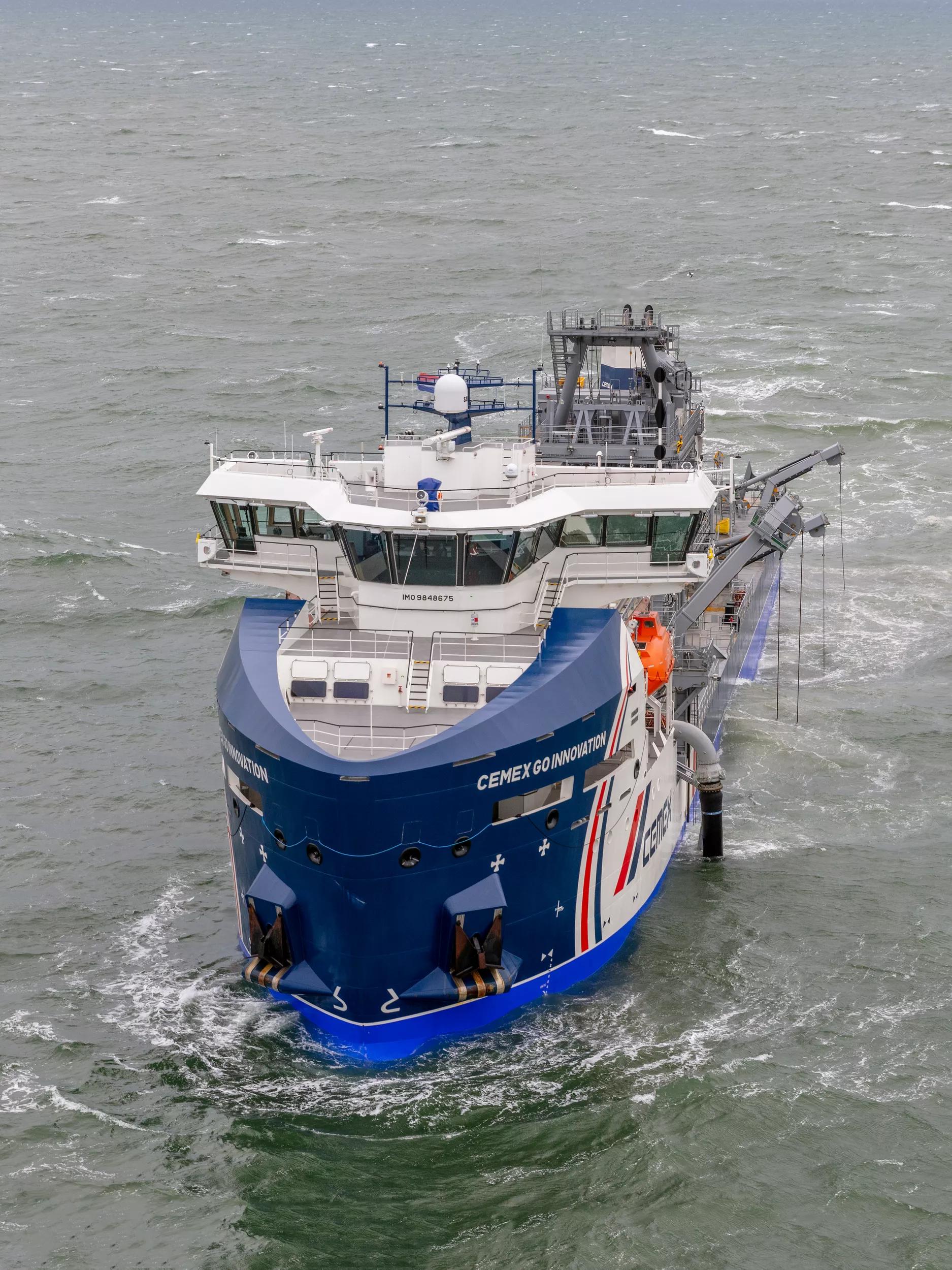

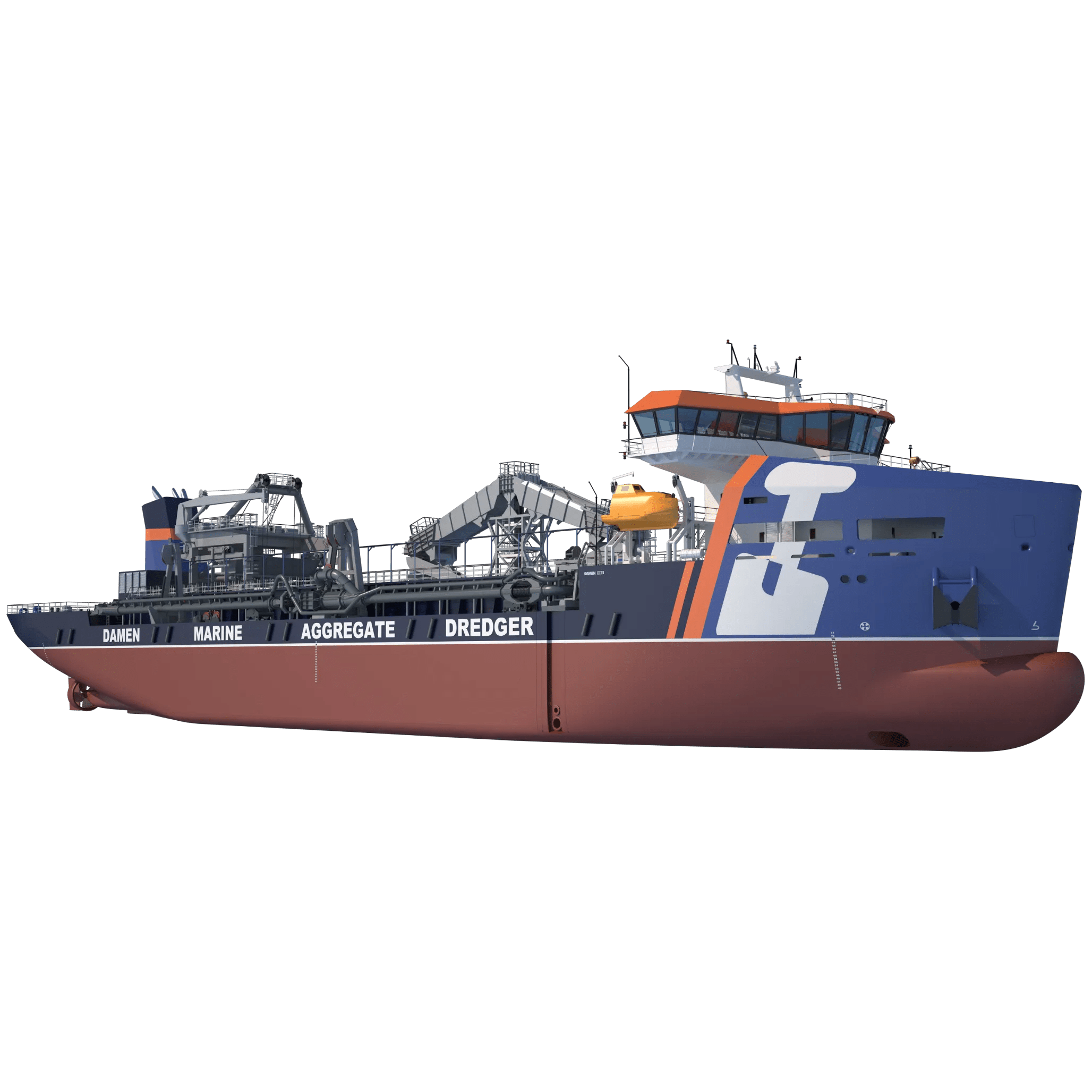

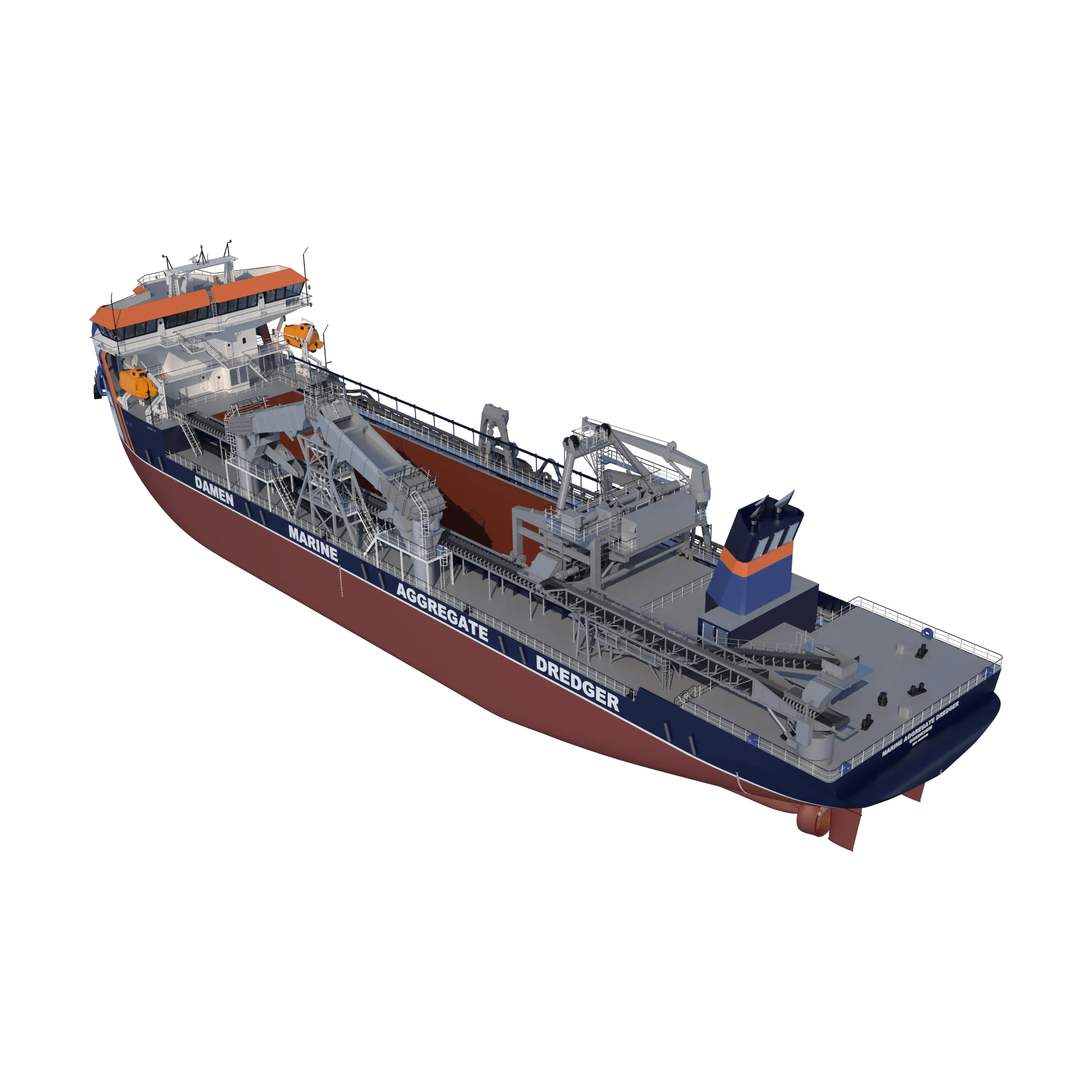

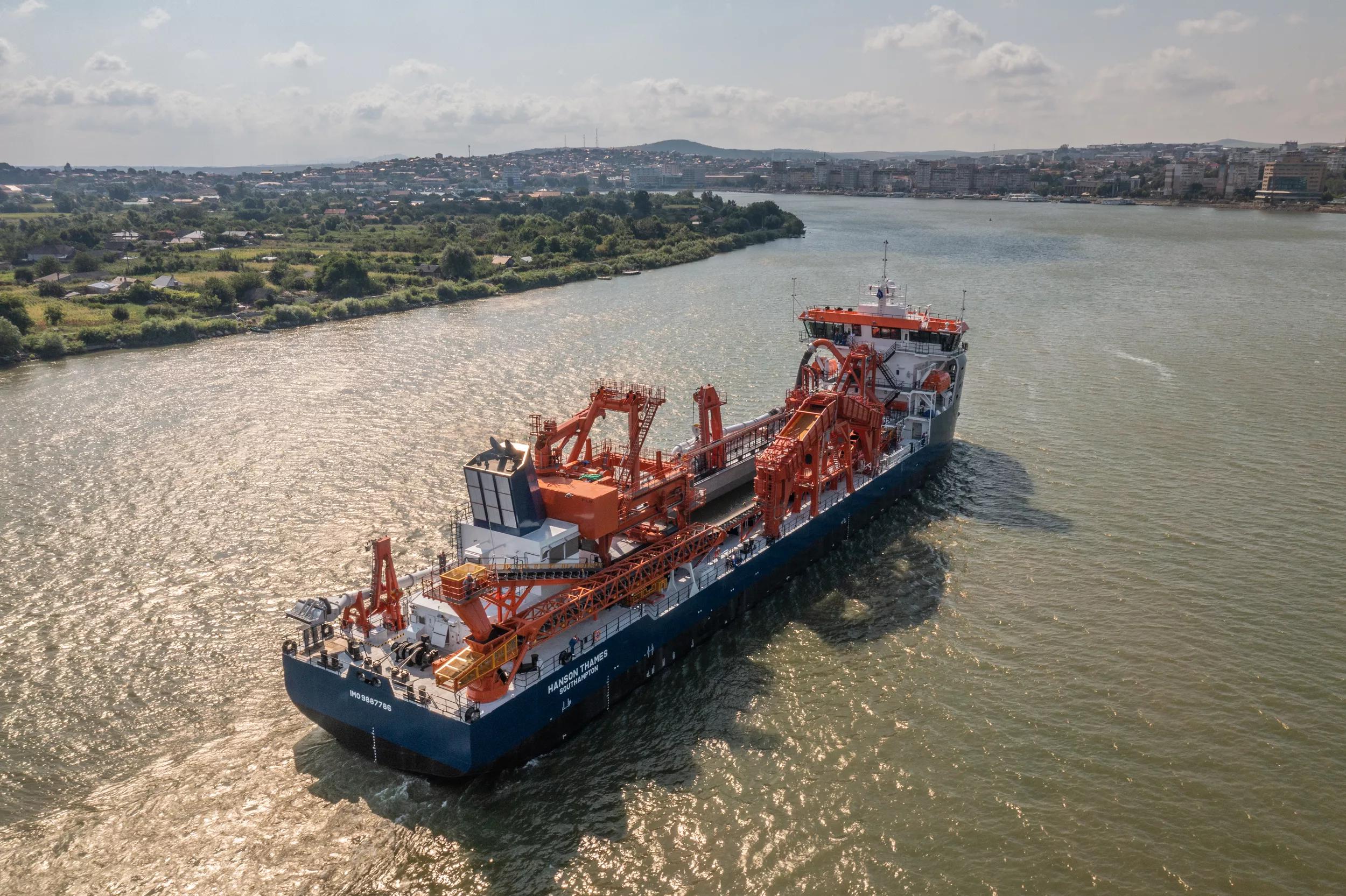

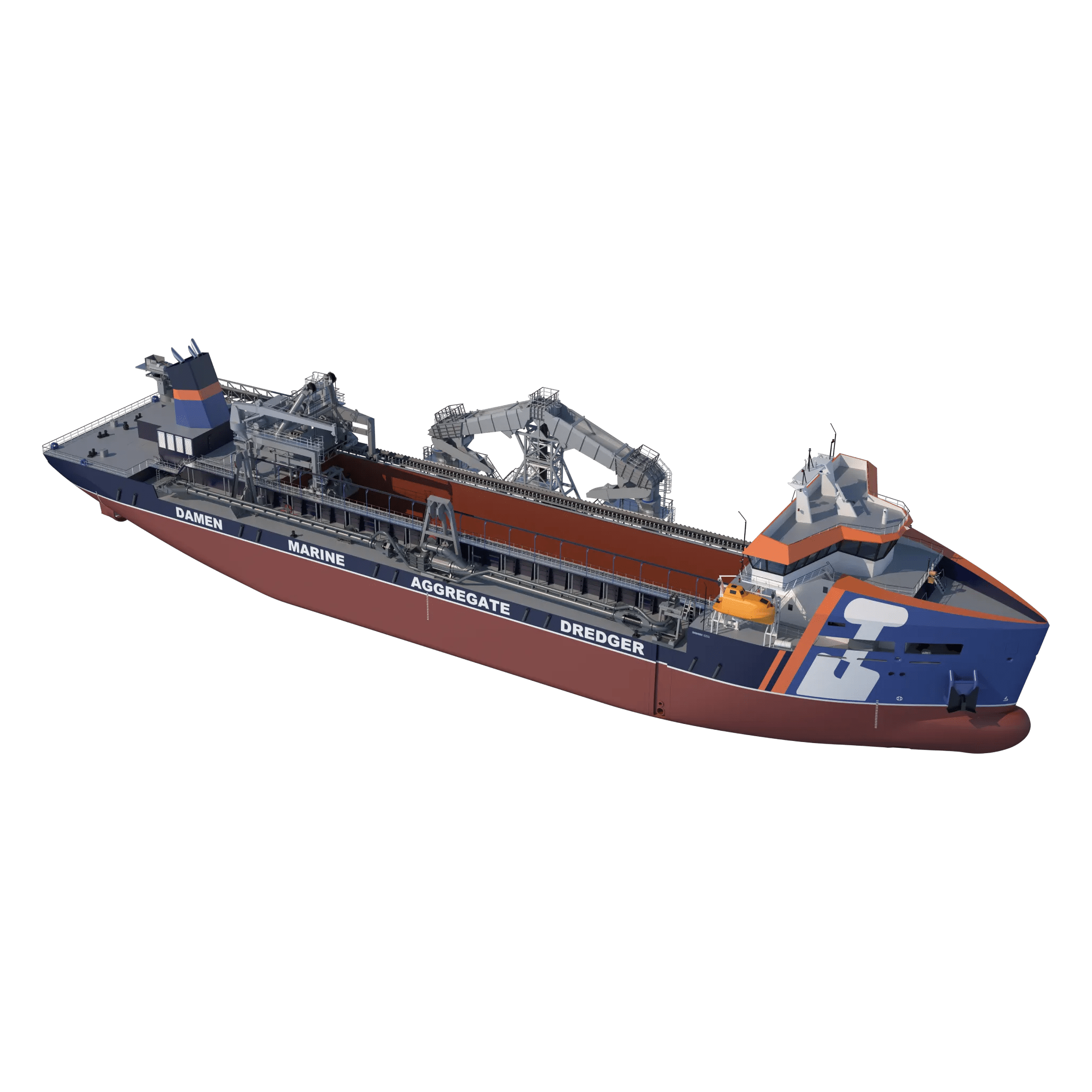

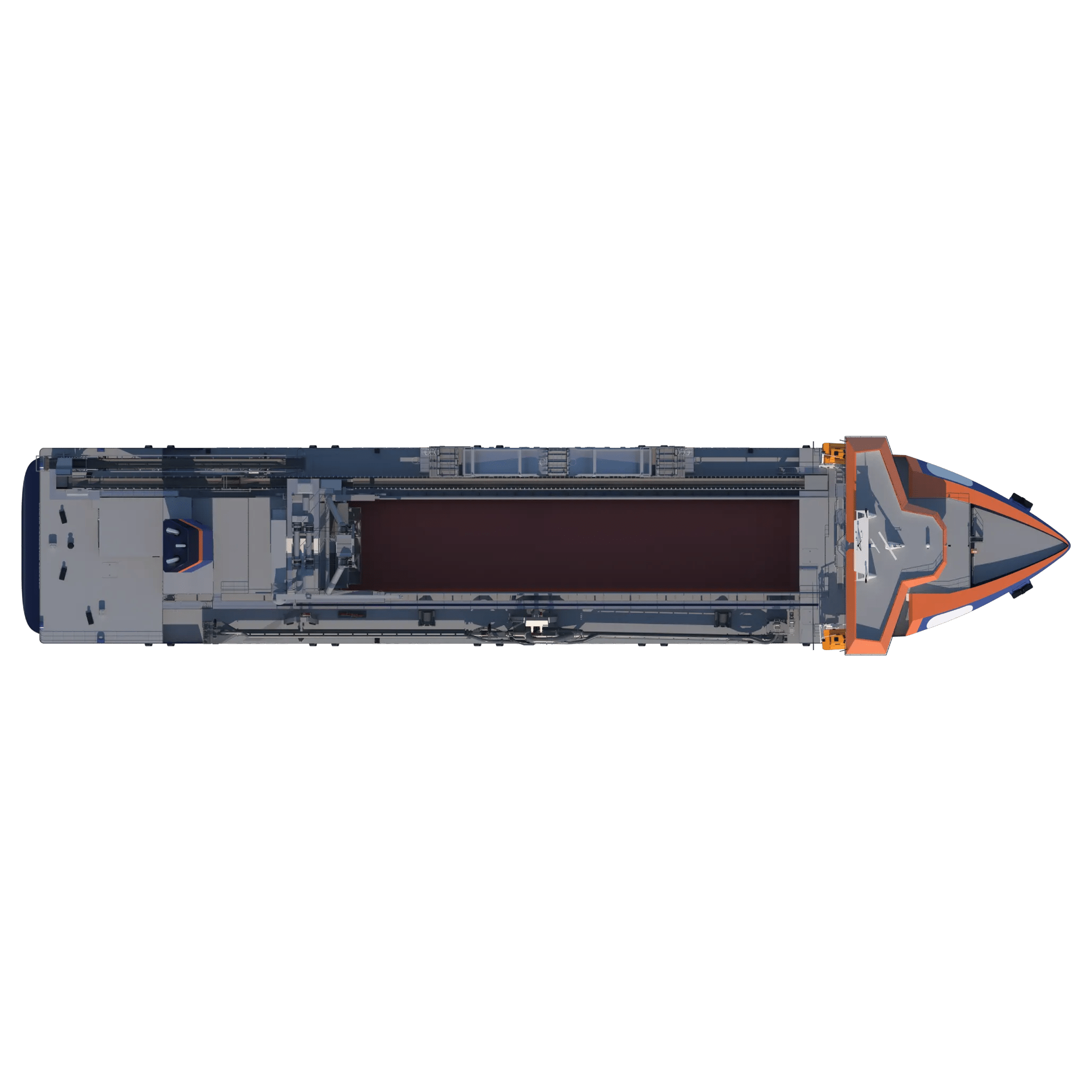

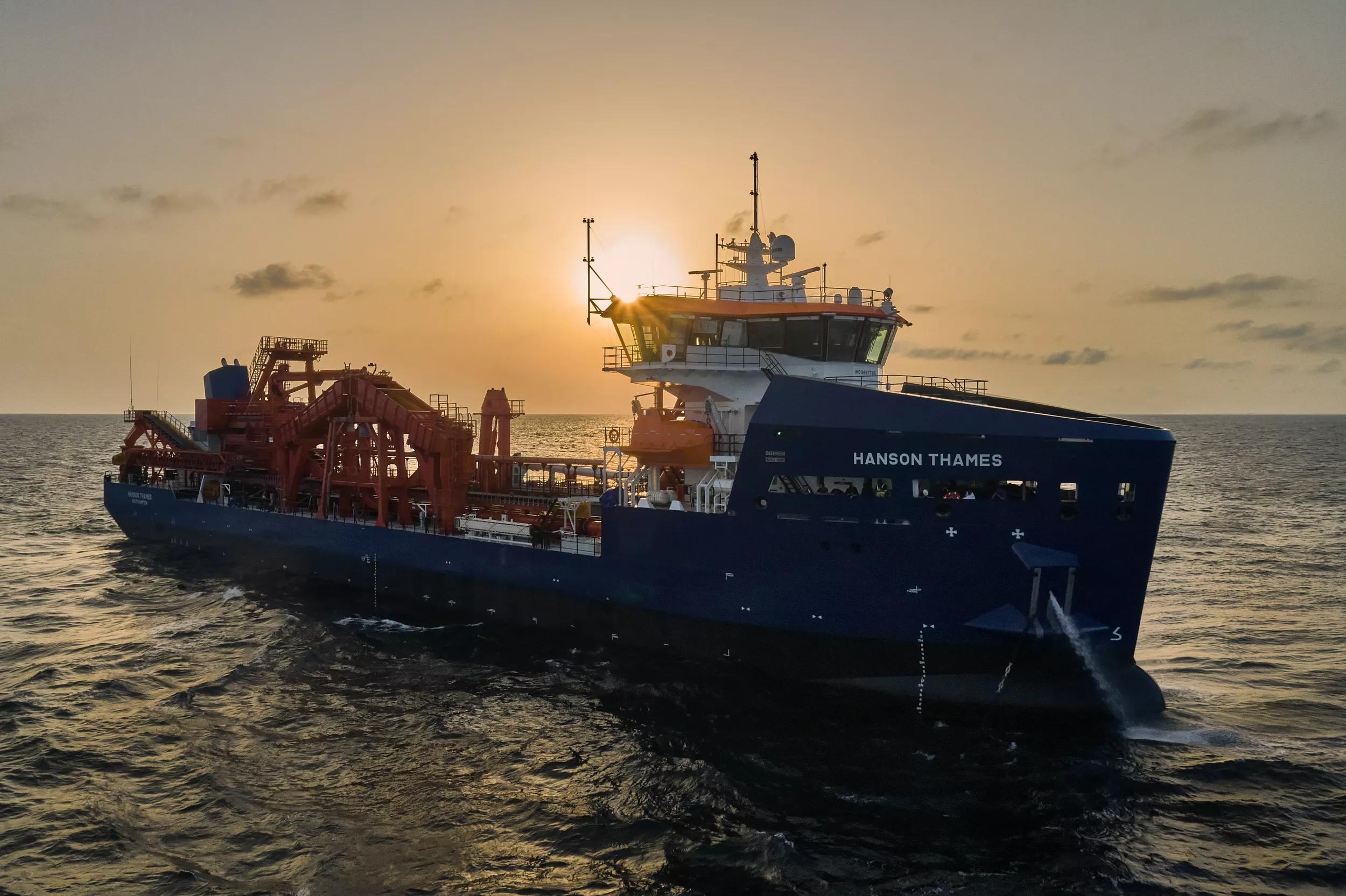

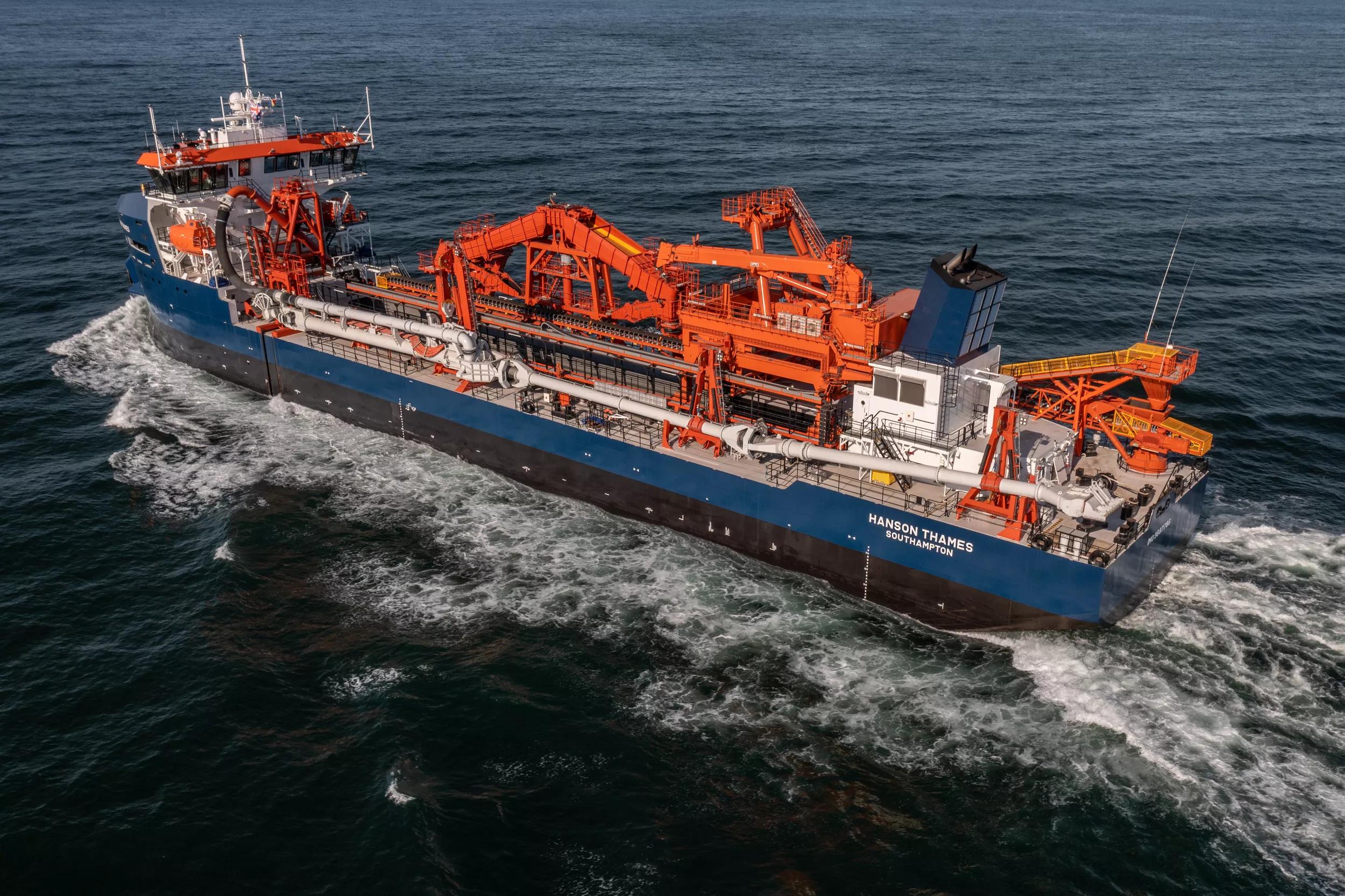

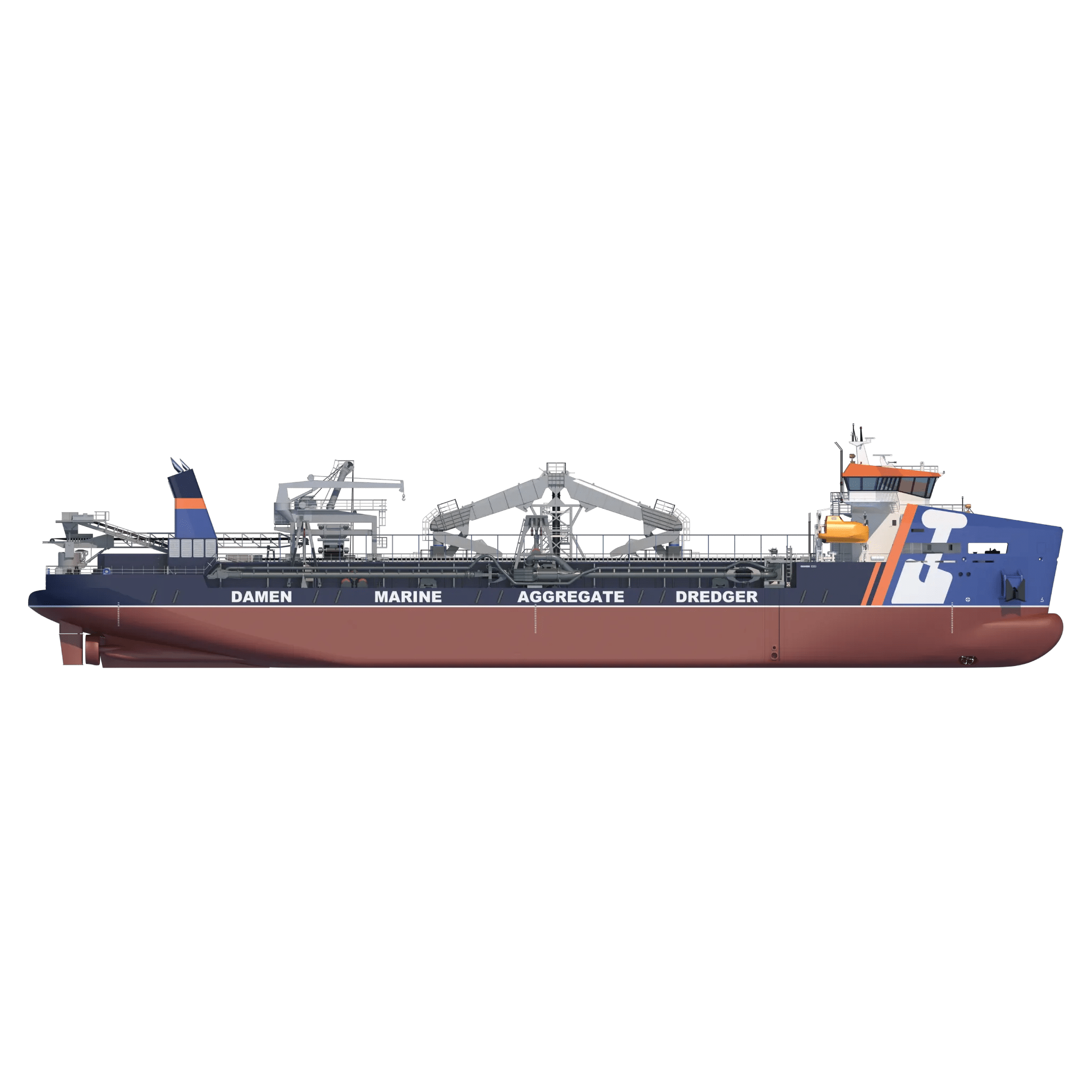

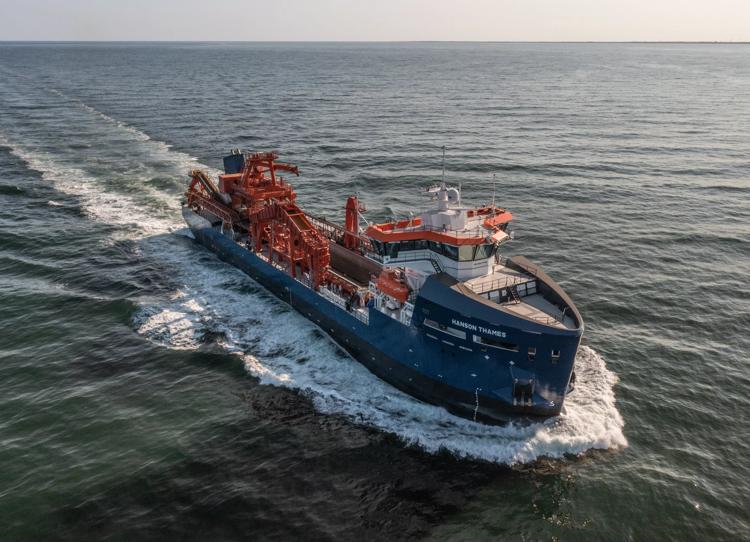

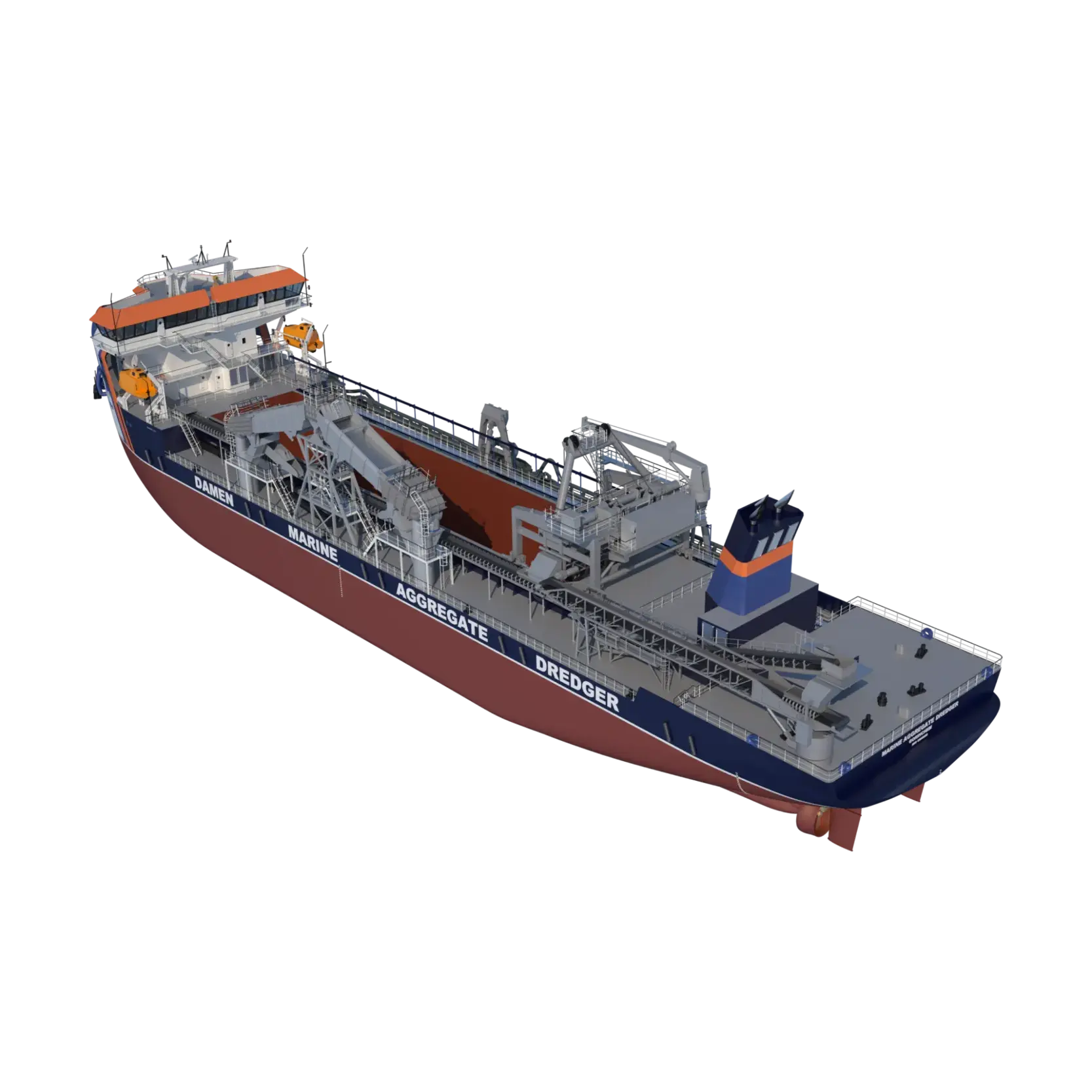

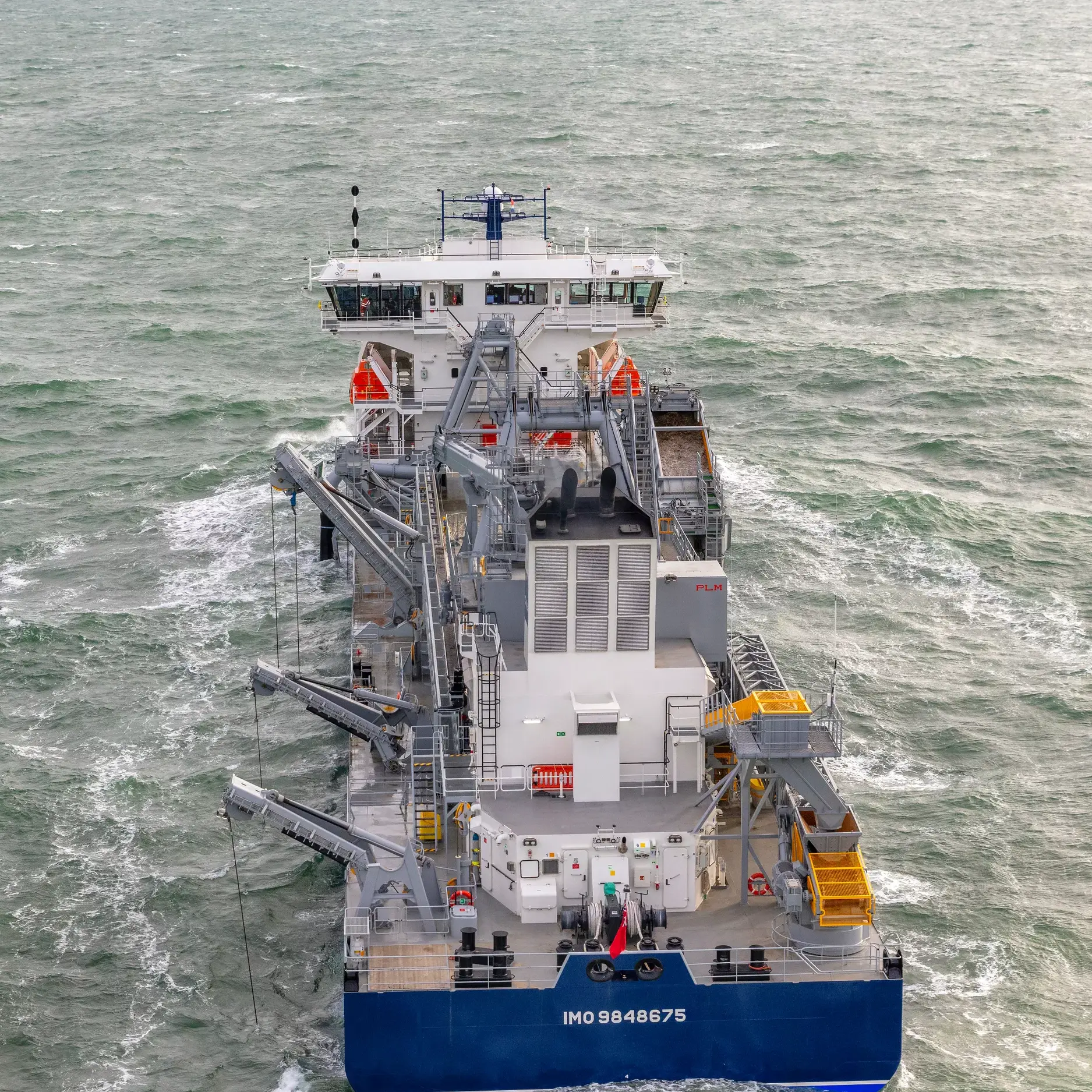

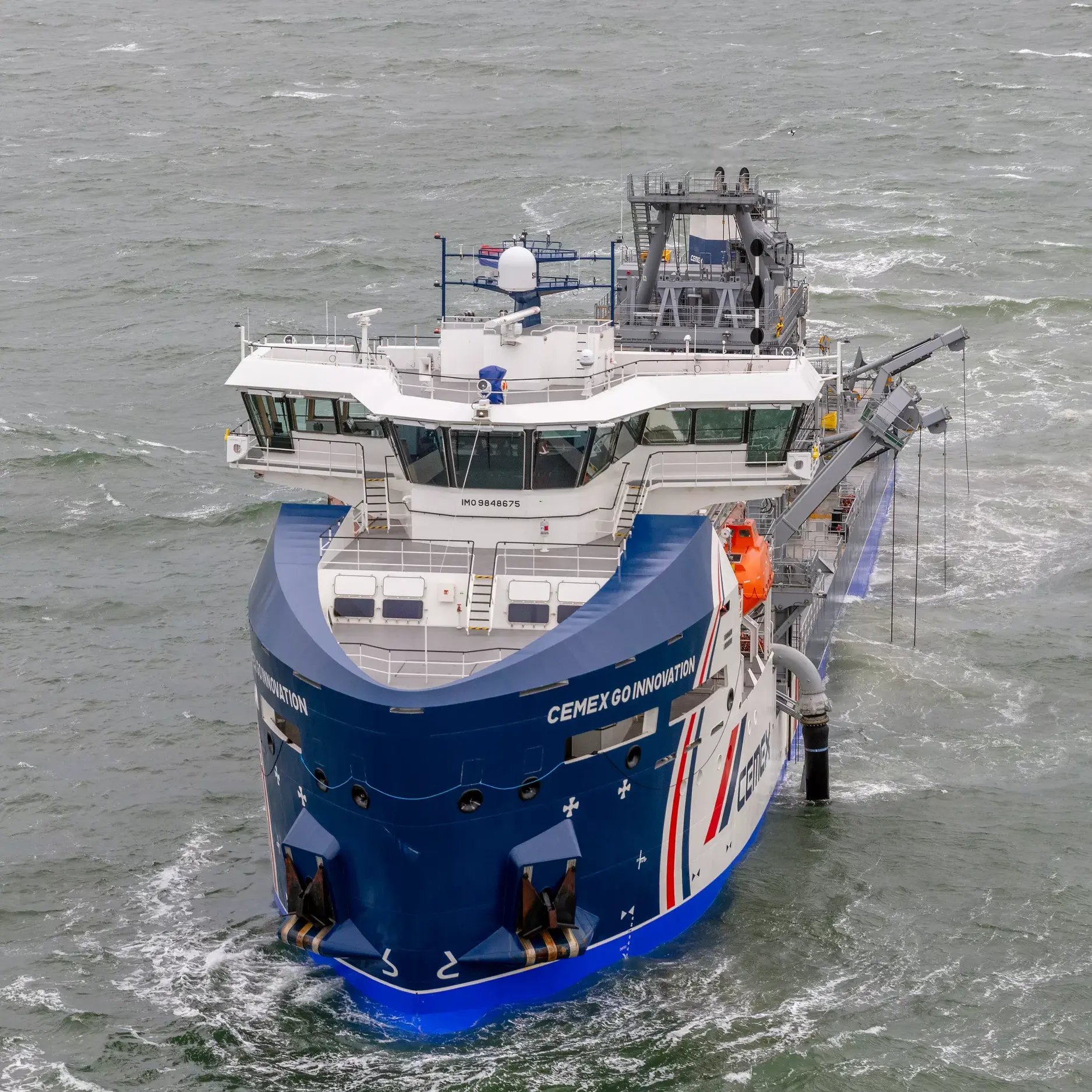

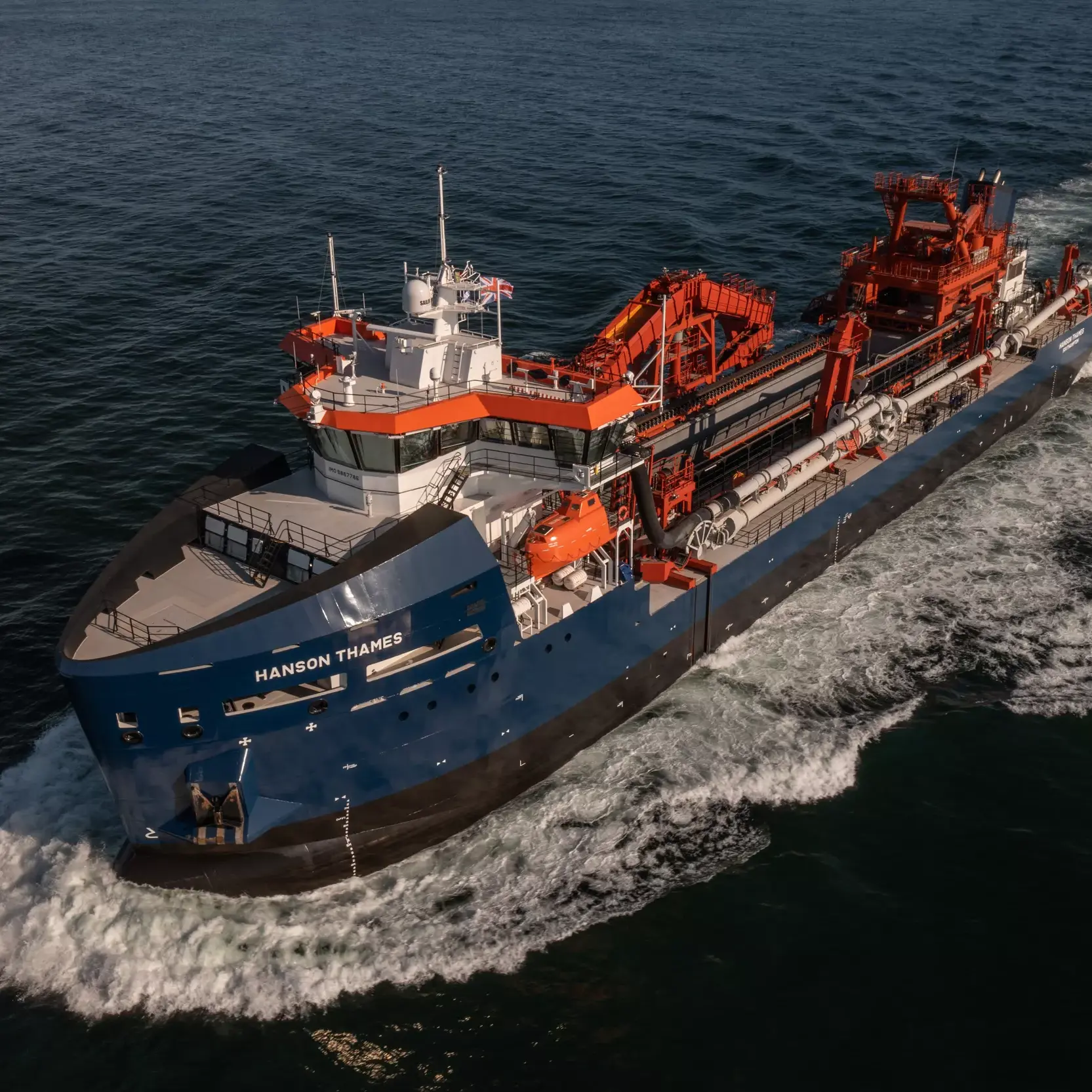

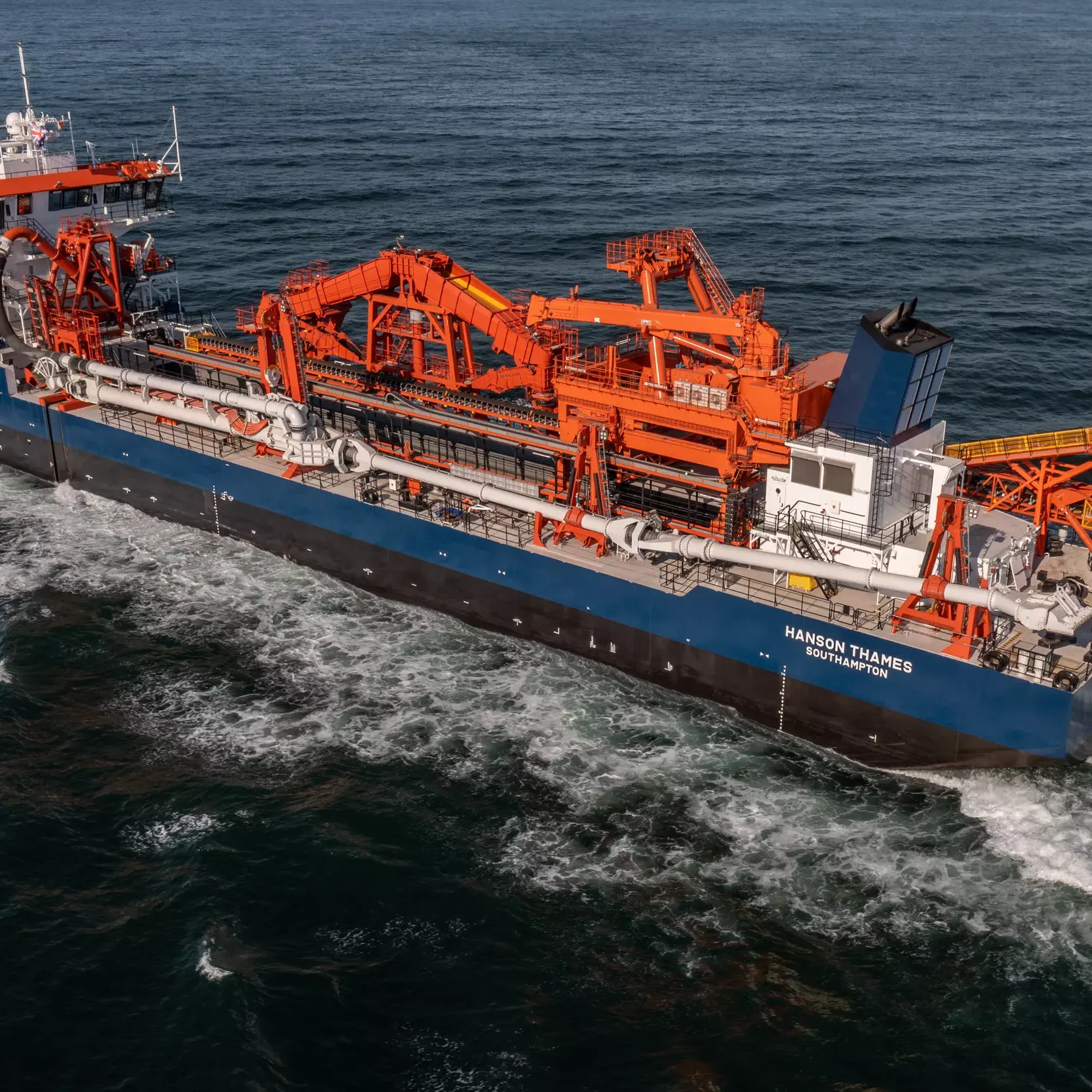

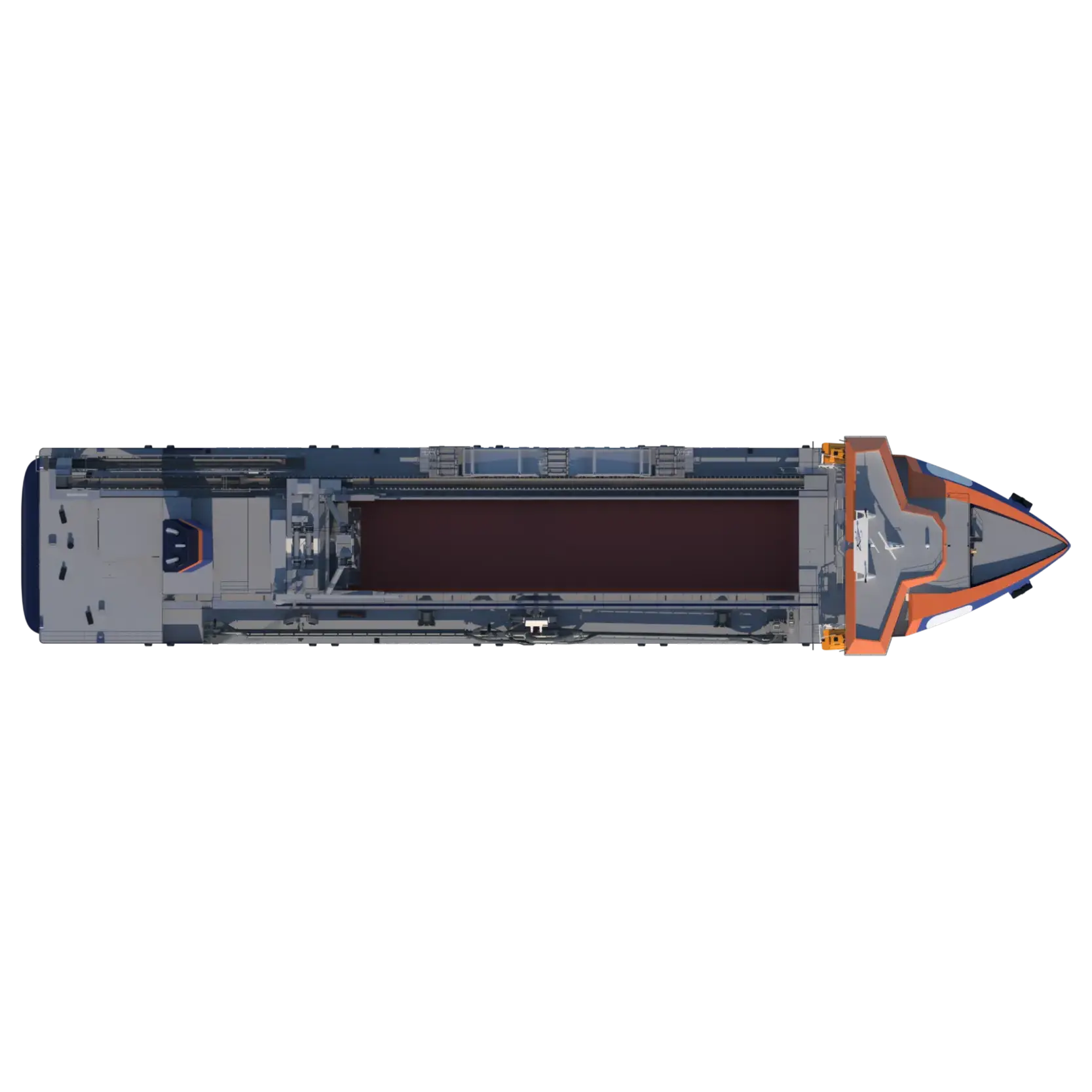

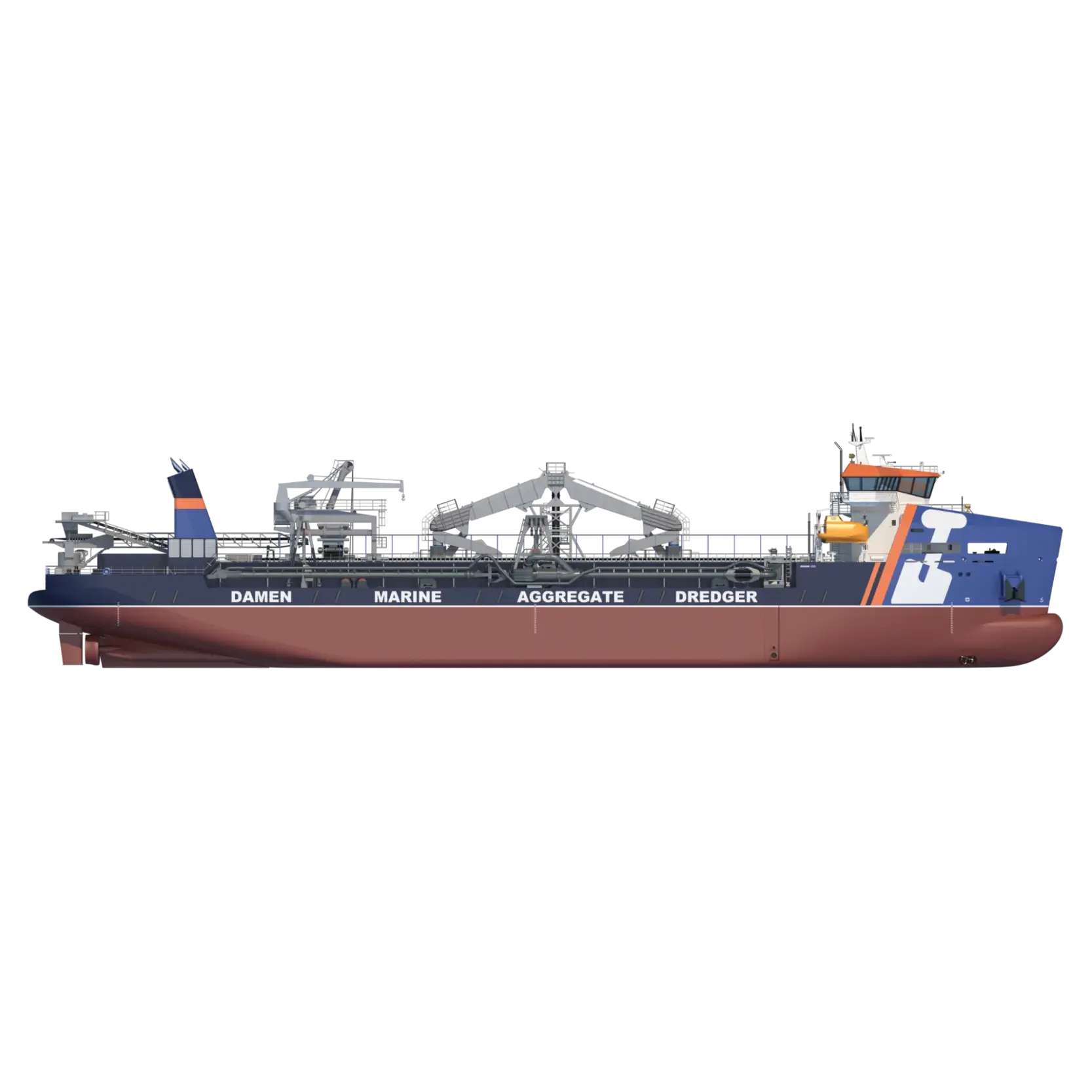

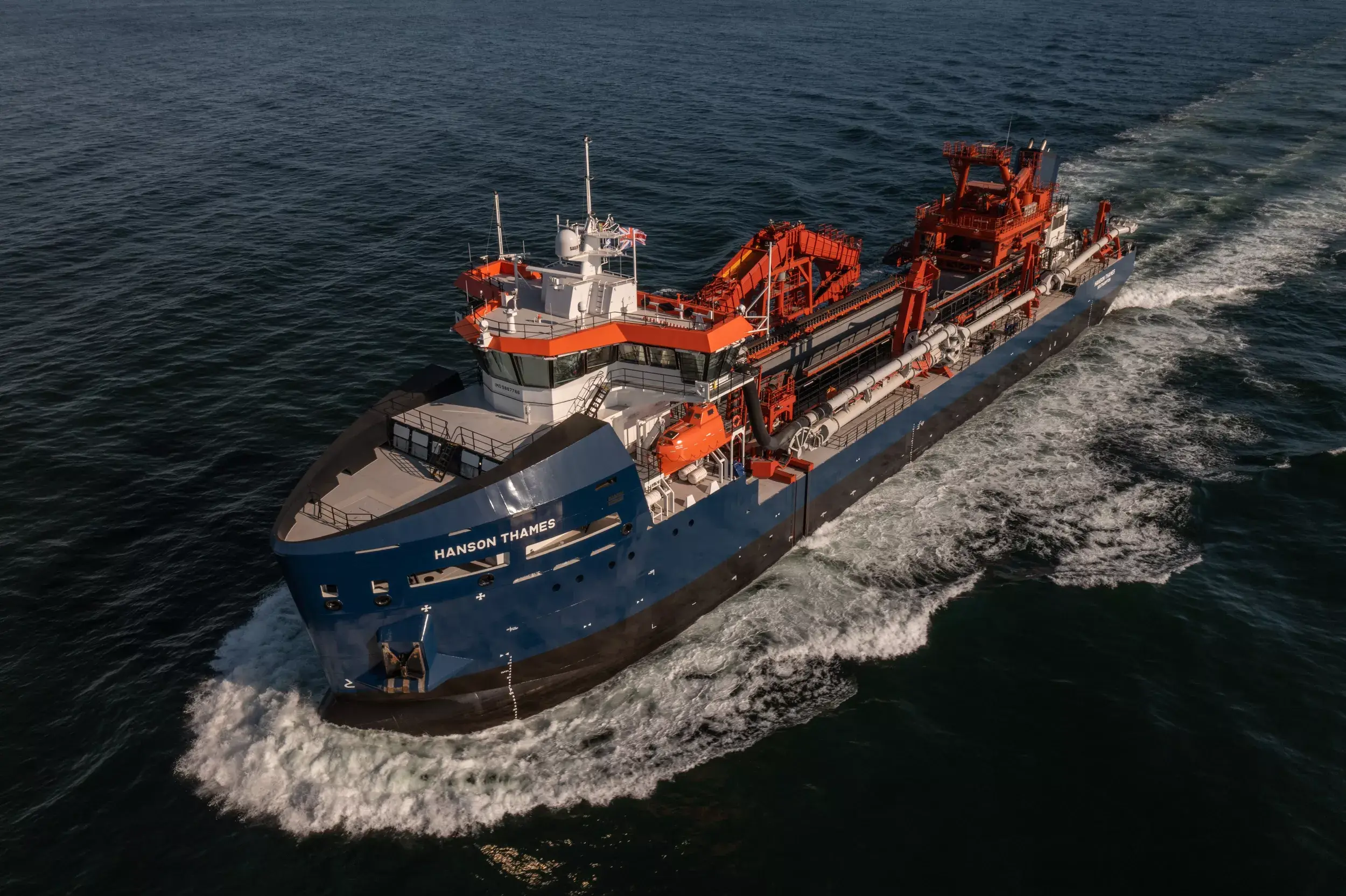

The Marine Aggregate Dredger is a specific type of Hopper Dredger, designed for efficient offshore mining of sand and gravel. The offshore bow provides excellent seakeeping behavior, and the accommodation and bridge on the foreship ensure safe and comfortable operations. For practical maintenance, the trailing suction system does not have hull penetration. A fully automated grab arranges efficient dry offloading.
- Various wear resistant materials
- Energy storage systems
- Dredging depth adapted to your requirements
- Enclosed bow to protect deck equipment
- High-capacity de-watering installation
- Winches positioned below deck
- Two spud poles for efficiently and safe mooring
Key figures
55
3500
7000
700
13.2
Dimensions
- Length o.a.
- 103.25 m
- Beam moulded
- 16.4 m
- Draught
- 7 m
- Deadweight
- 7000 t
Dredge performance
- Hopper capacity
- 3500 m³
- Dredging depth
- 55 m
- Trailing pipe diameter
- 700 mm
- Speed loaded
- 13.2 kn
Equipment
- Propulsion power
- 2 x 2040 kW
- Azimuth FPP propeller
- 2 x 2800 mm
- Bow thruster power
- 2 x 300 kW
- Fuel oil
- 400 m³
Do you want to know more?
Compare similar Aggregate Dredgers
| Dredging depth (m) | Hopper capacity (m³) | Deadweight (t) | Trailing pipe diameter (mm) | Speed loaded (kn) | ||
|---|---|---|---|---|---|---|
| Marine Aggregate Dredger MAD 3500 | 55 | 3500 | 7000 | 700 | 13.2 | |
| Marine Aggregate Dredger MAD 1500 | 30 | 1500 | 2800 | 600 | 11.5 | |
| Marine Aggregate Dredger MAD 8000 | 70 | 8300 | 16200 | 900 | 14 |
Marine Aggregate Dredger MAD 3500
- Dredging depth (m)
- 55
- Hopper capacity (m³)
- 3500
- Deadweight (t)
- 7000
- Trailing pipe diameter (mm)
- 700
- Speed loaded (kn)
- 13.2
- Dredging depth (m)
- 30
- Hopper capacity (m³)
- 1500
- Deadweight (t)
- 2800
- Trailing pipe diameter (mm)
- 600
- Speed loaded (kn)
- 11.5
- Dredging depth (m)
- 70
- Hopper capacity (m³)
- 8300
- Deadweight (t)
- 16200
- Trailing pipe diameter (mm)
- 900
- Speed loaded (kn)
- 14
