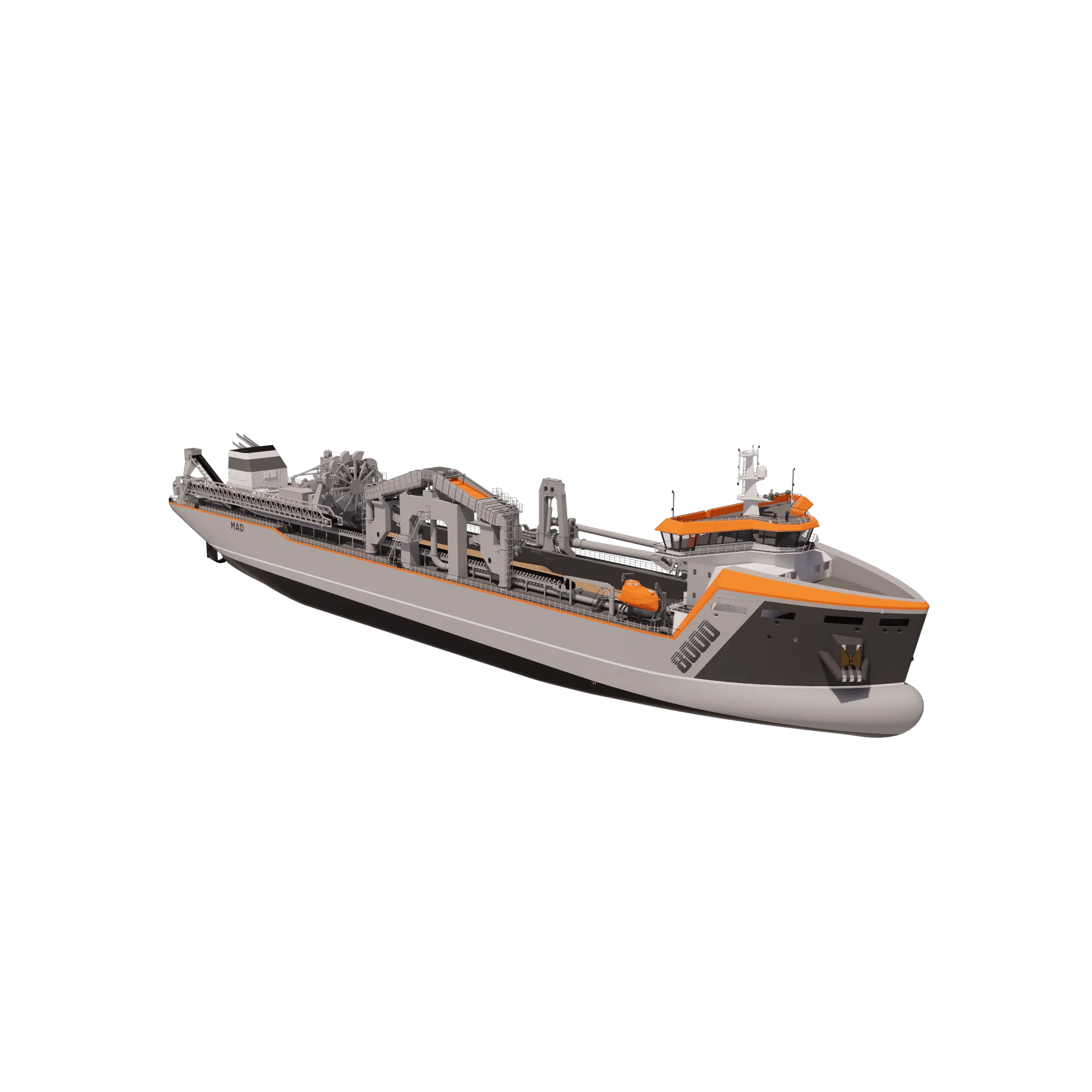

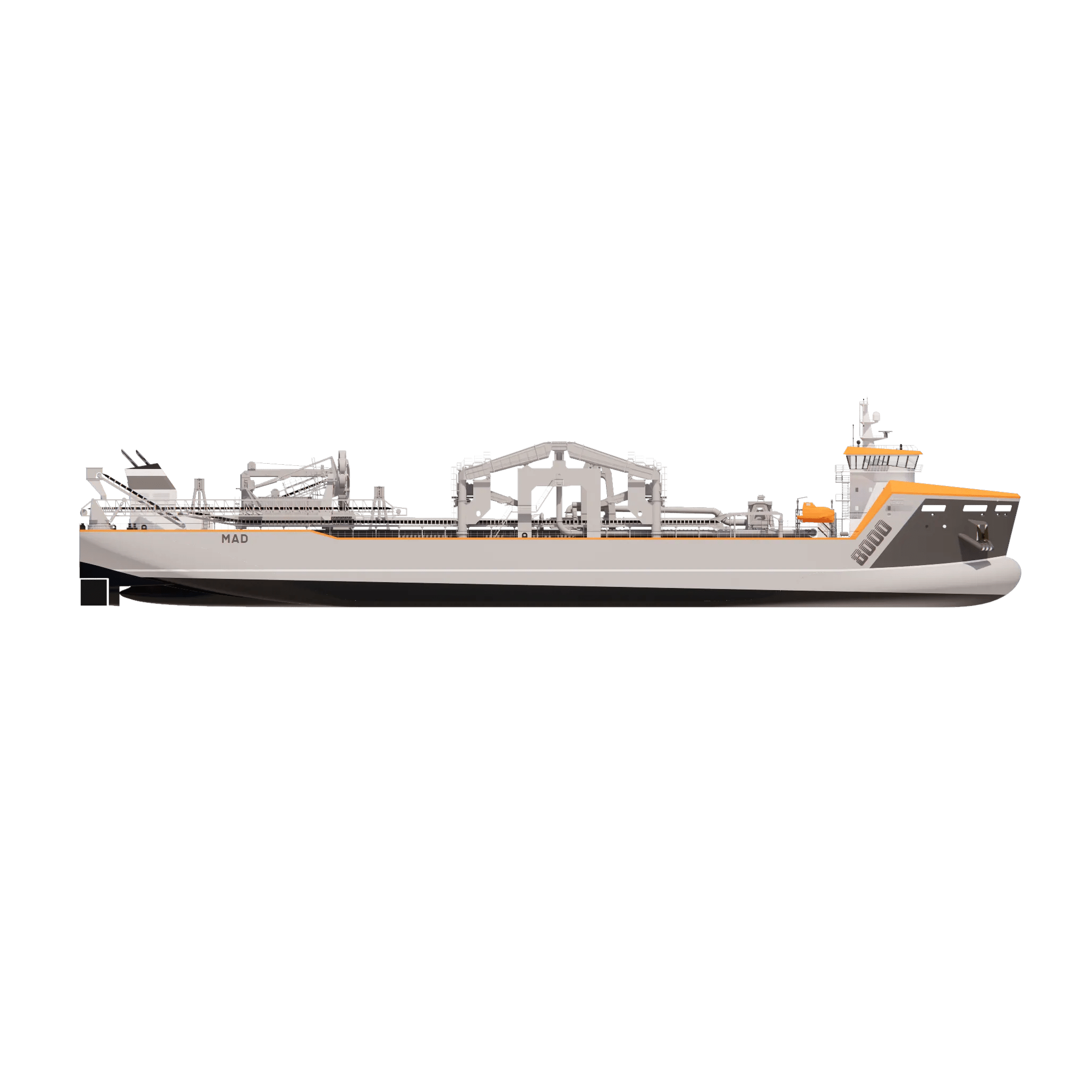

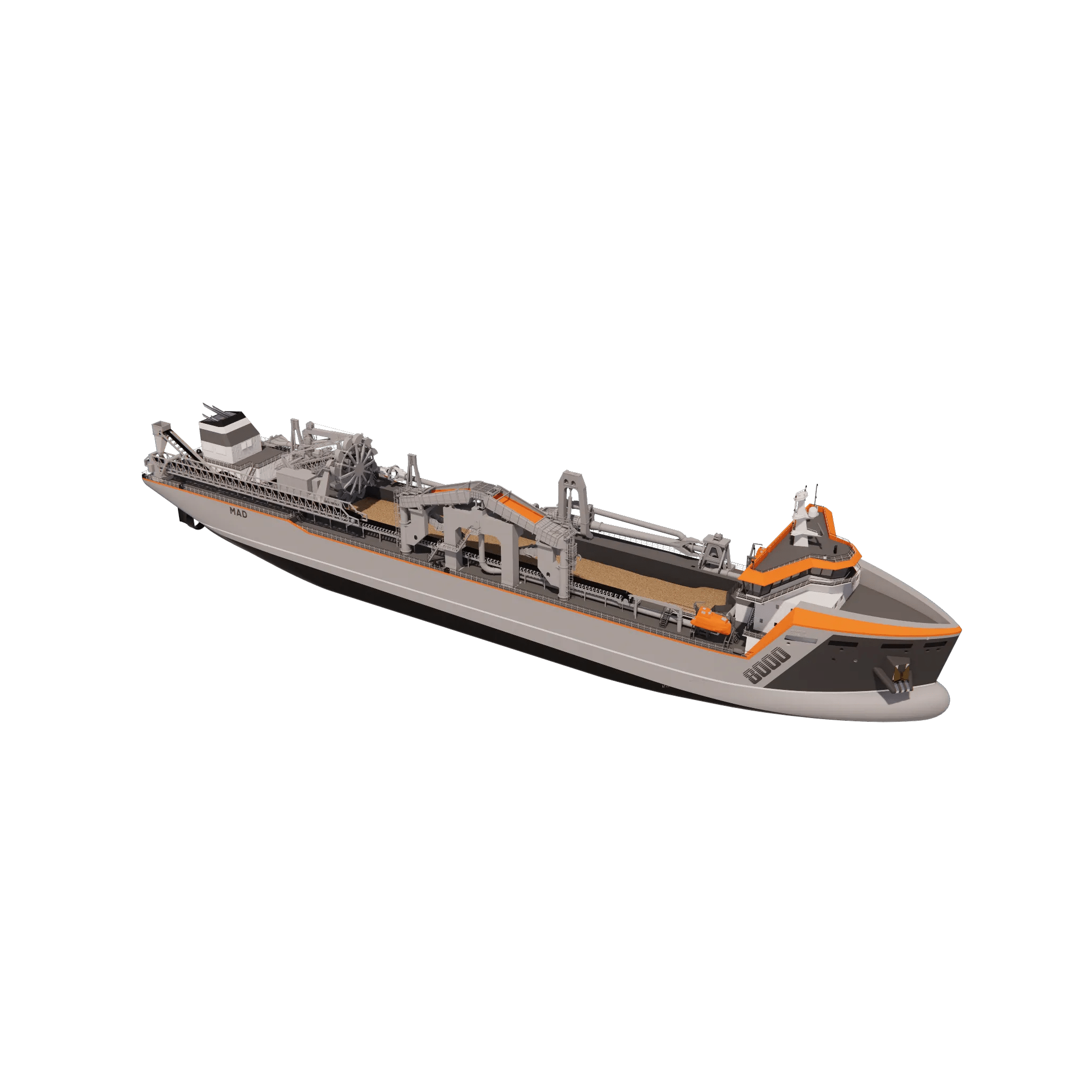

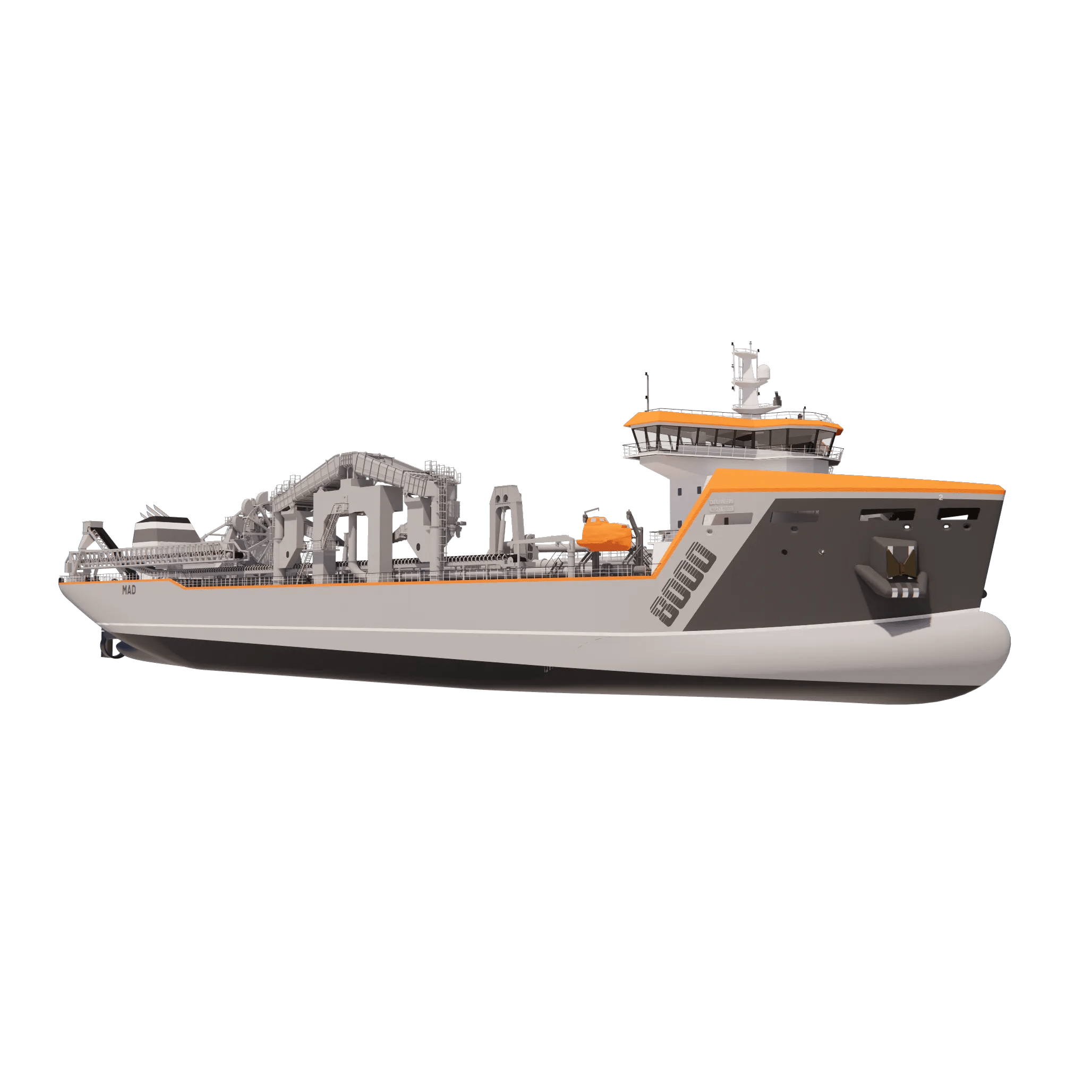

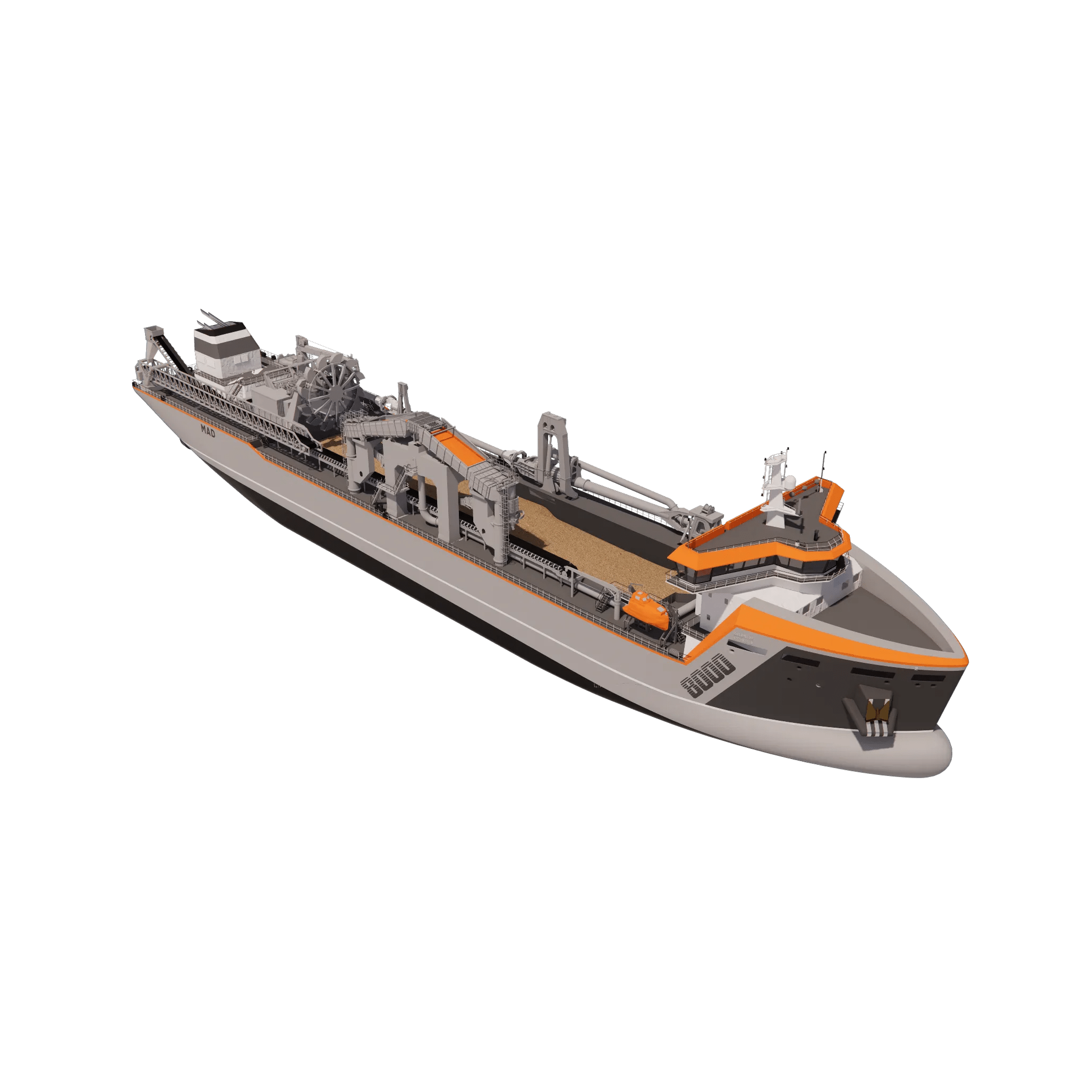

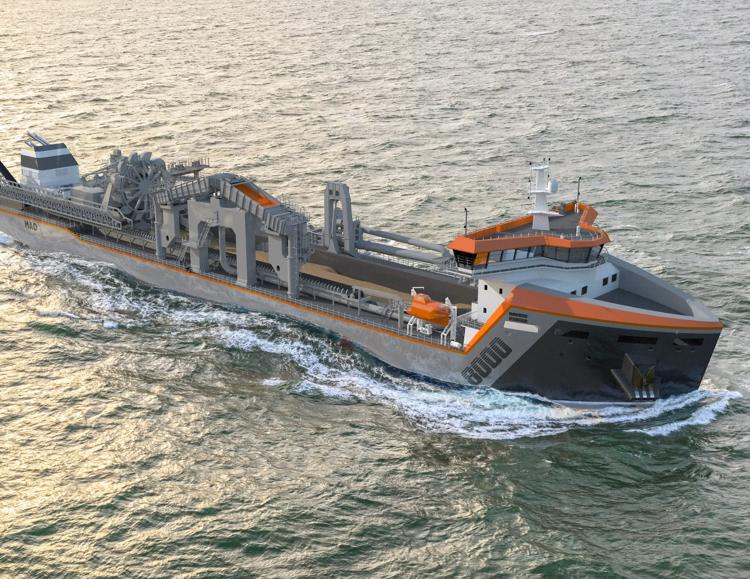

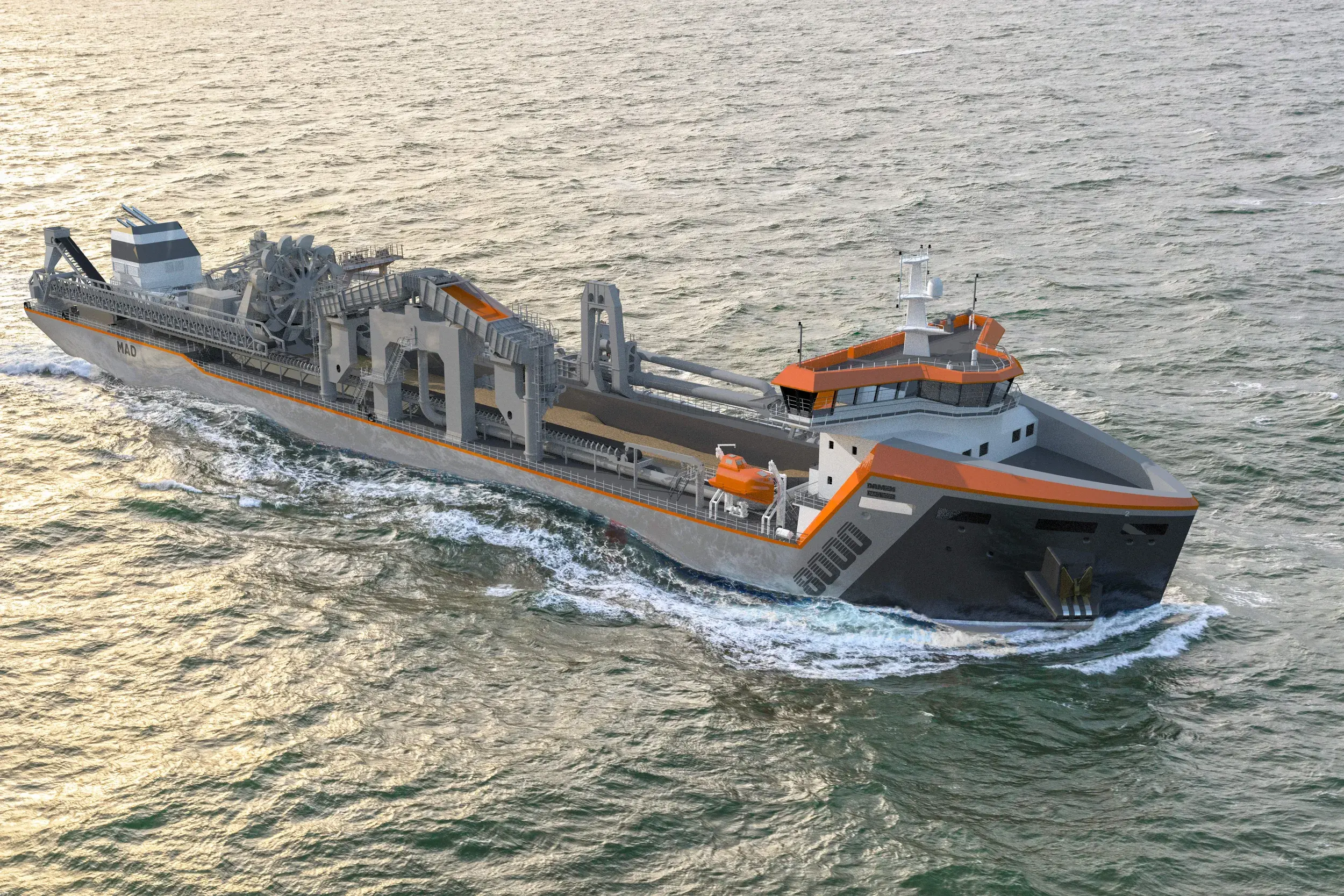

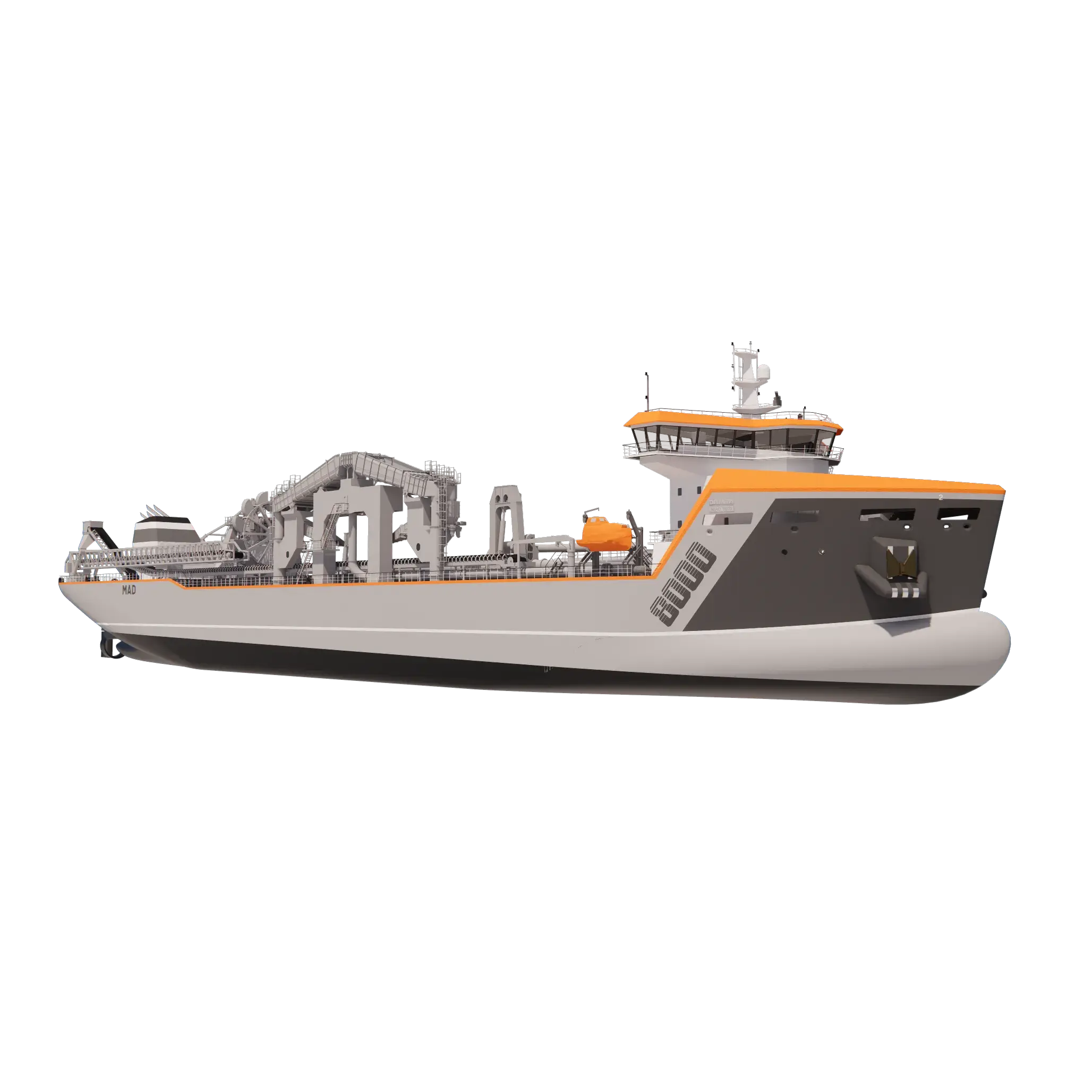

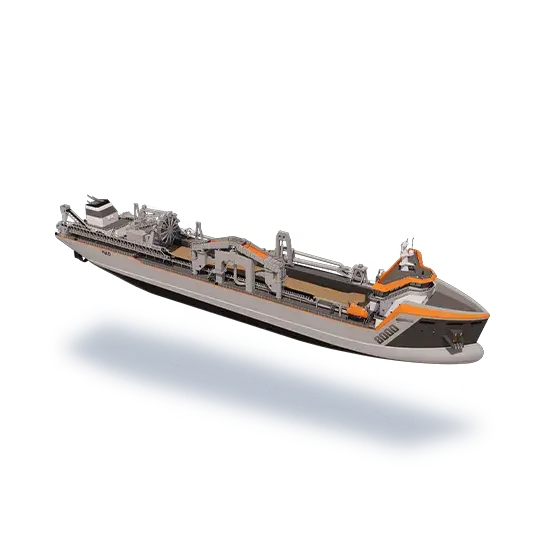

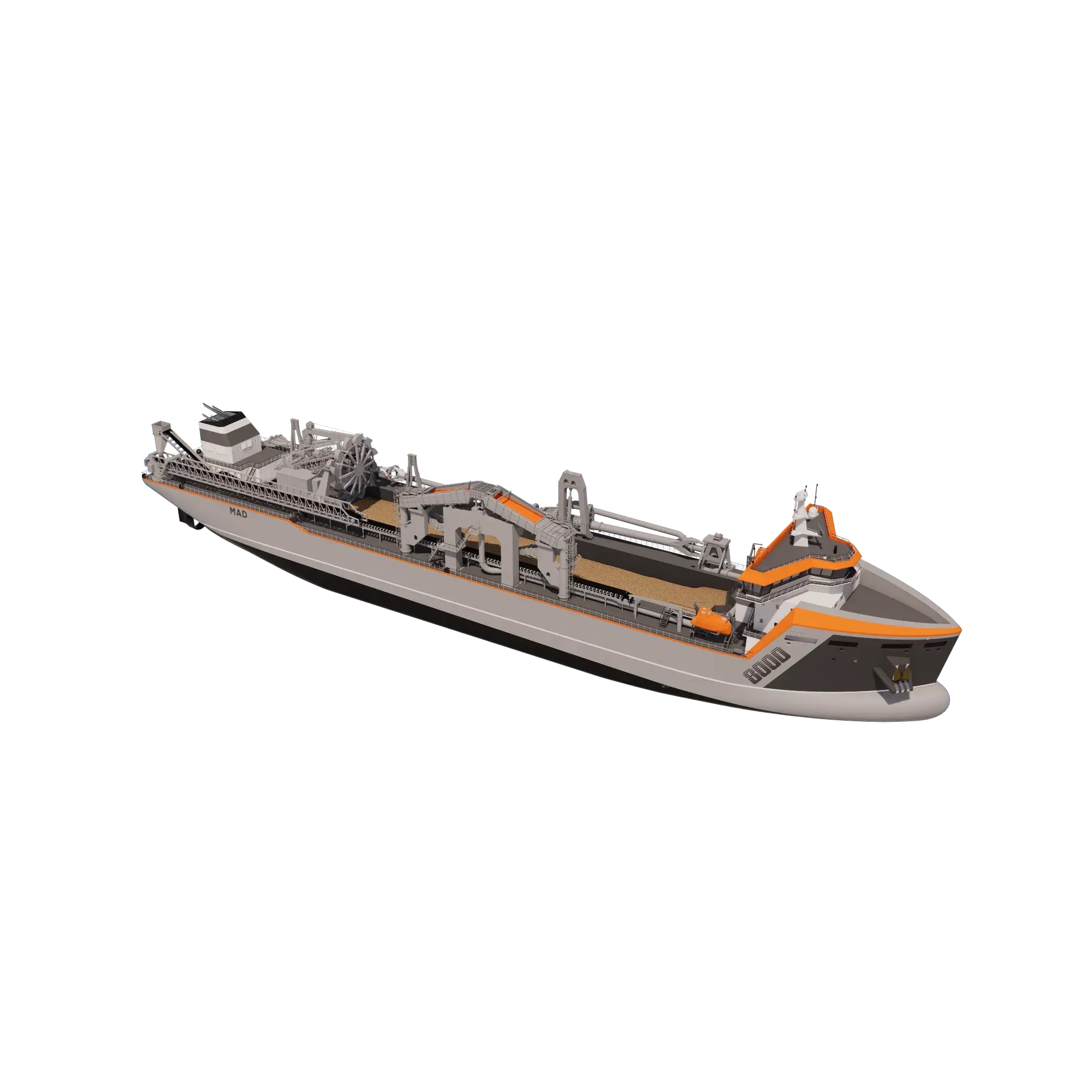

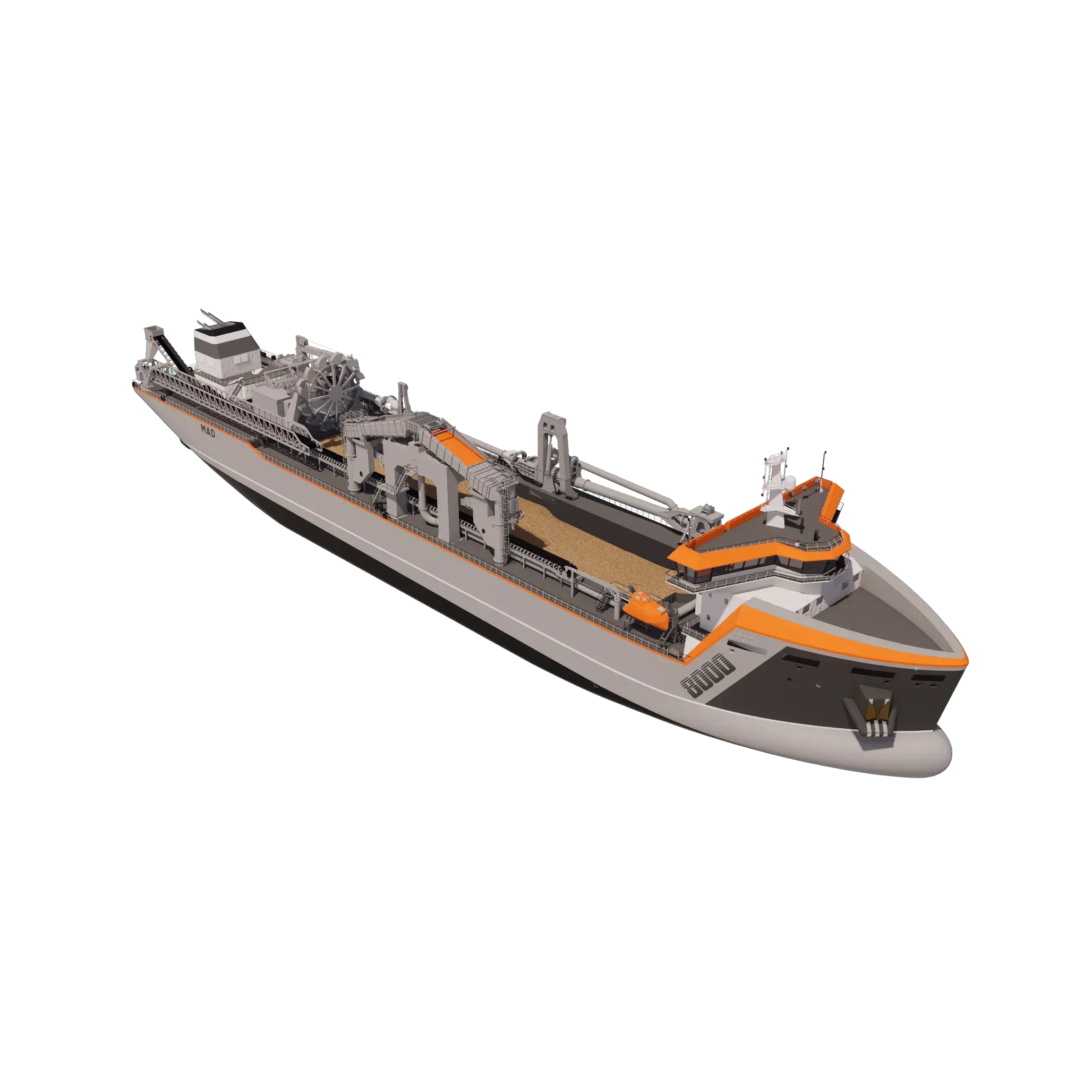

Marine Aggregate Dredger MAD 8000
Marine Aggregate Dredger MAD 8000

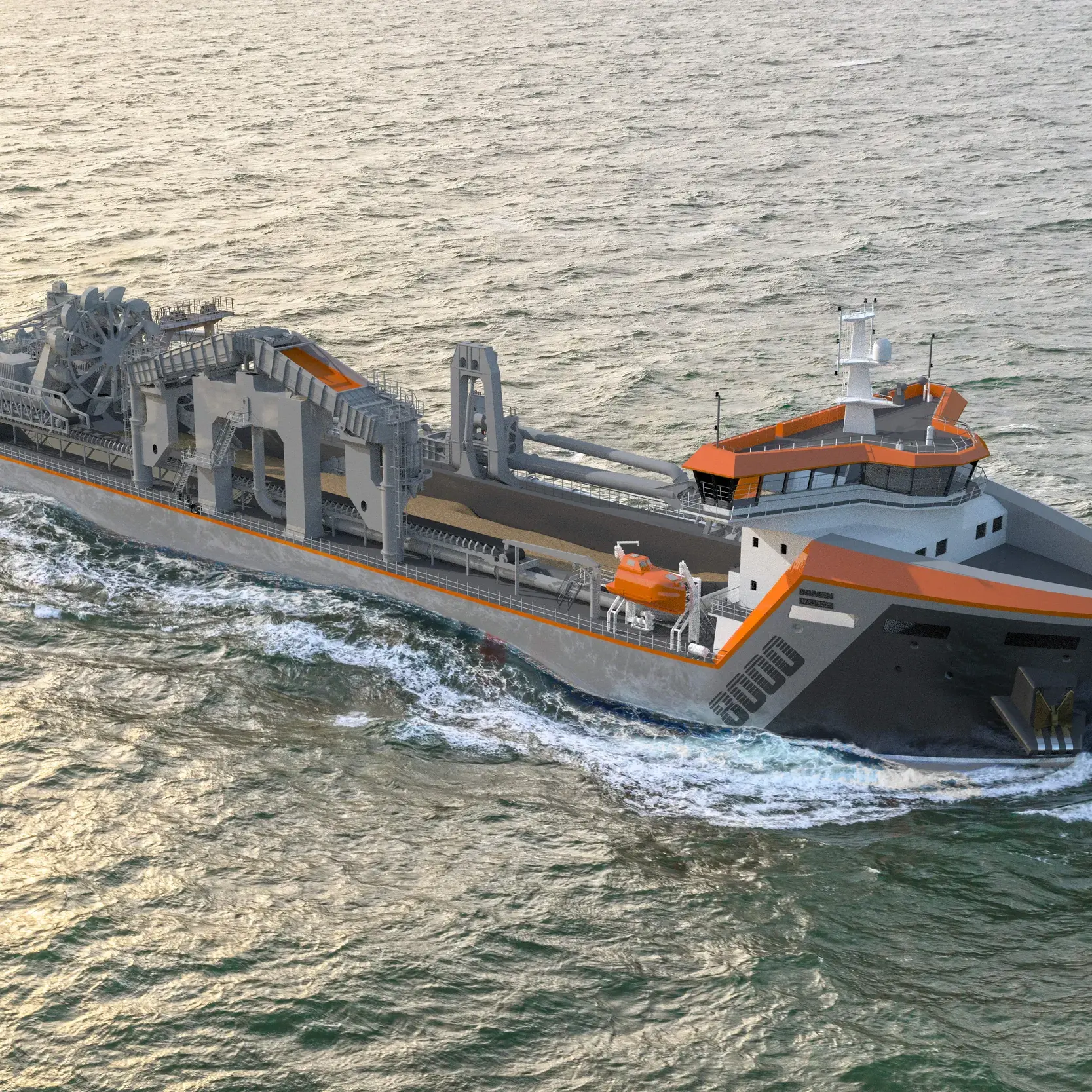

As an offshore mining Hopper Dredger, the Marine Aggregate Dredger is optimised for deep dredging of sand and gravel. The offshore bow provides excellent seakeeping behavior, and the accommodation and bridge on the foreship ensure safe and comfortable operations. For practical maintenance, the trailing suction system does not have hull penetration. A fully automated bucket wheel unloader assures efficient dry offloading.
- Various wear resistant materials
- Energy storage systems
- Dredging depth adapted to your requirements
- Efficient machinery installation

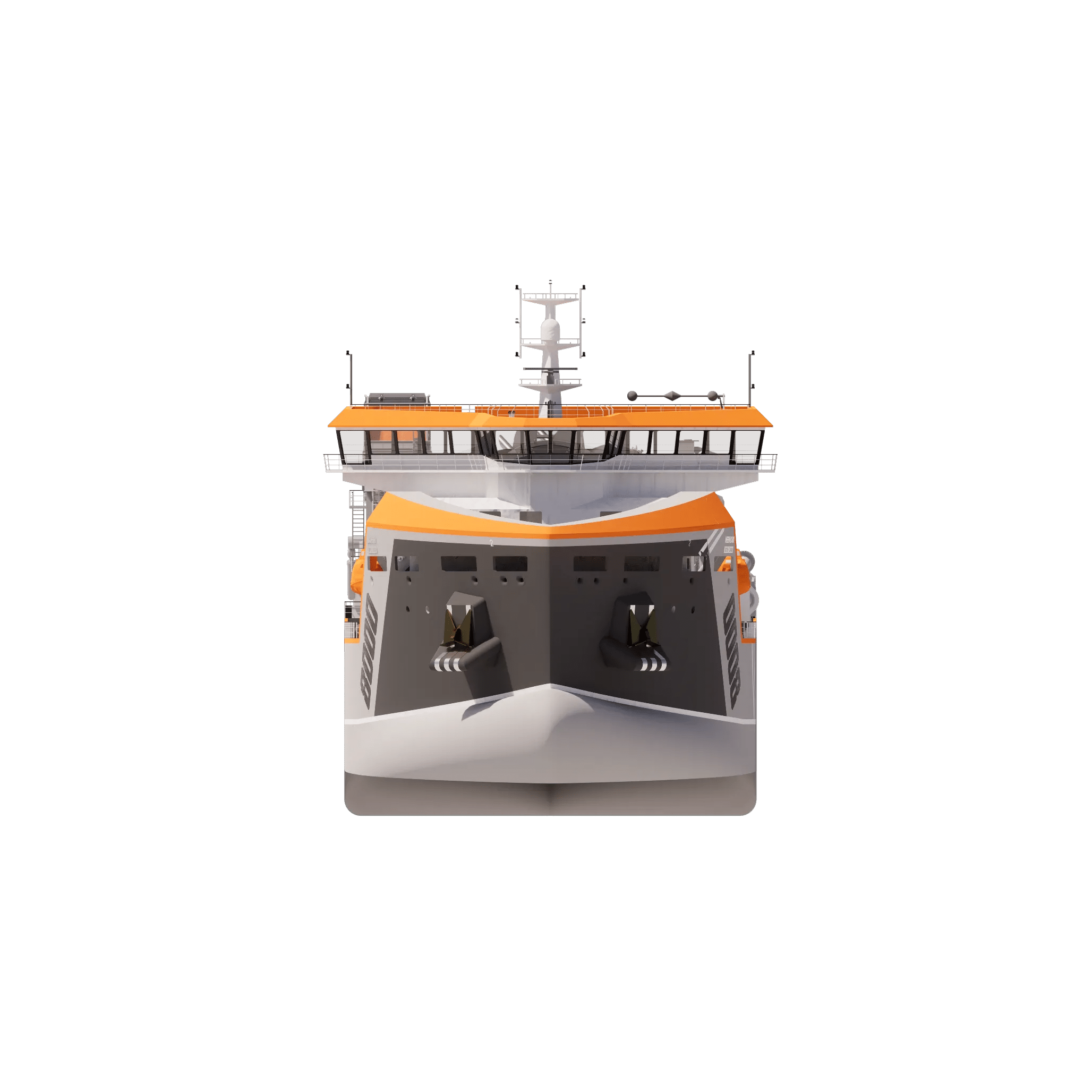

- Enclosed bow to protect deck equipment
- High-capacity de-watering installation
- Two spud poles for efficiently and safe mooring
Key figures
70
8300
16200
900
14
Dimensions
- Length o.a.
- 142.9 m
- Beam moulded
- 24.6 m
- Draught
- 7.75 m
- Deadweight
- 16200 t
Dredge performance
- Hopper capacity
- 8300 m³
- Dredging depth
- 70 m
- Trailing pipe diameter
- 900 mm
- Speed loaded
- 14 kn
Equipment
- Propulsion power
- 2 x 3200 kW
- Azimuth FPP propeller
- 2 x 3300 mm
- Bow thruster power
- 2 x 500 kW
- Fuel oil
- 780 m³
Do you want to know more?
Compare similar vessels
| Dredging depth (m) | Hopper capacity (m³) | Deadweight (t) | Trailing pipe diameter (mm) | Speed loaded (kn) | ||
|---|---|---|---|---|---|---|
| Marine Aggregate Dredger MAD 8000 | 70 | 8300 | 16200 | 900 | 14 | |
| Marine Aggregate Dredger MAD 3500 | 55 | 3500 | 7000 | 700 | 13.2 | |
| TSHD 5000 Multi Purpose | 30 | 5100 | 8250 | 900 | 13.1 |
Marine Aggregate Dredger MAD 8000
- Dredging depth (m)
- 70
- Hopper capacity (m³)
- 8300
- Deadweight (t)
- 16200
- Trailing pipe diameter (mm)
- 900
- Speed loaded (kn)
- 14
- Dredging depth (m)
- 55
- Hopper capacity (m³)
- 3500
- Deadweight (t)
- 7000
- Trailing pipe diameter (mm)
- 700
- Speed loaded (kn)
- 13.2
- Dredging depth (m)
- 30
- Hopper capacity (m³)
- 5100
- Deadweight (t)
- 8250
- Trailing pipe diameter (mm)
- 900
- Speed loaded (kn)
- 13.1
