WID 600
  • Modular system
  • Fits any workboat

WID 600

WID 600

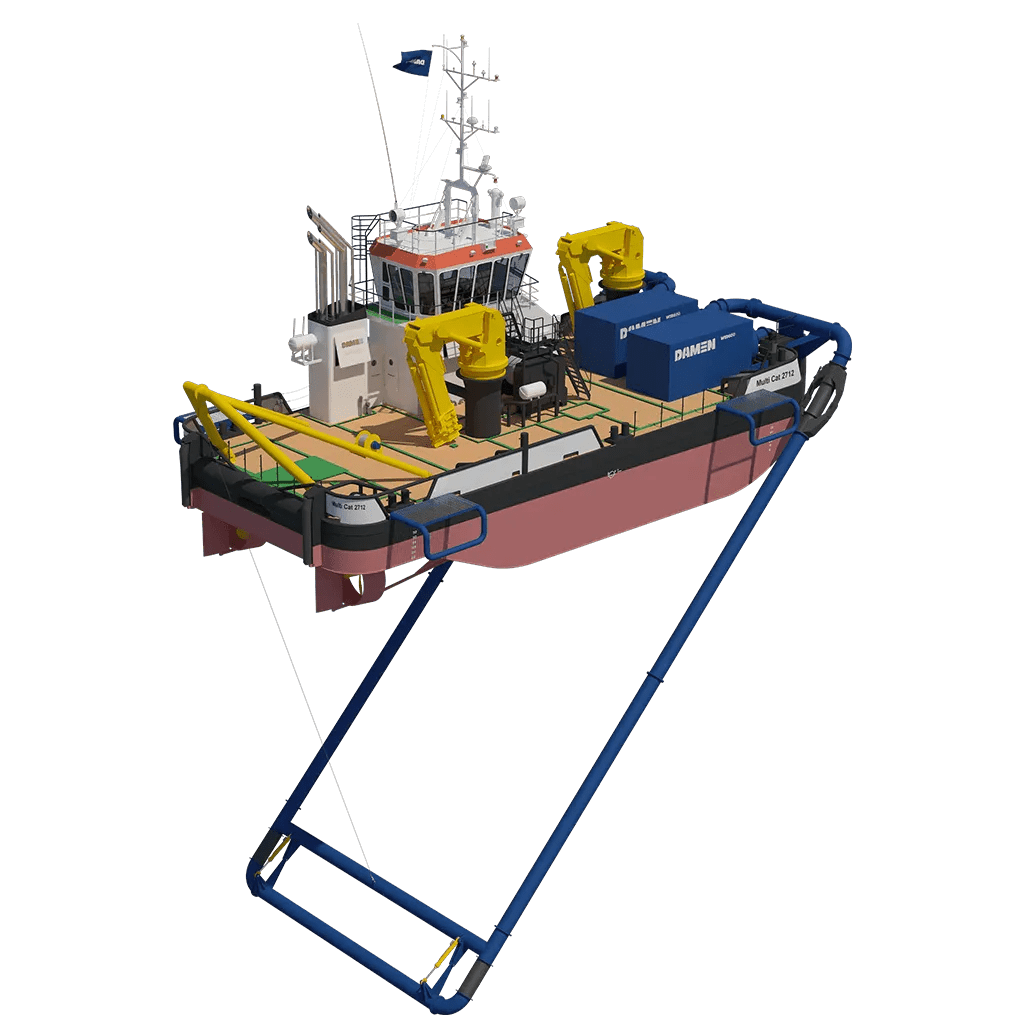

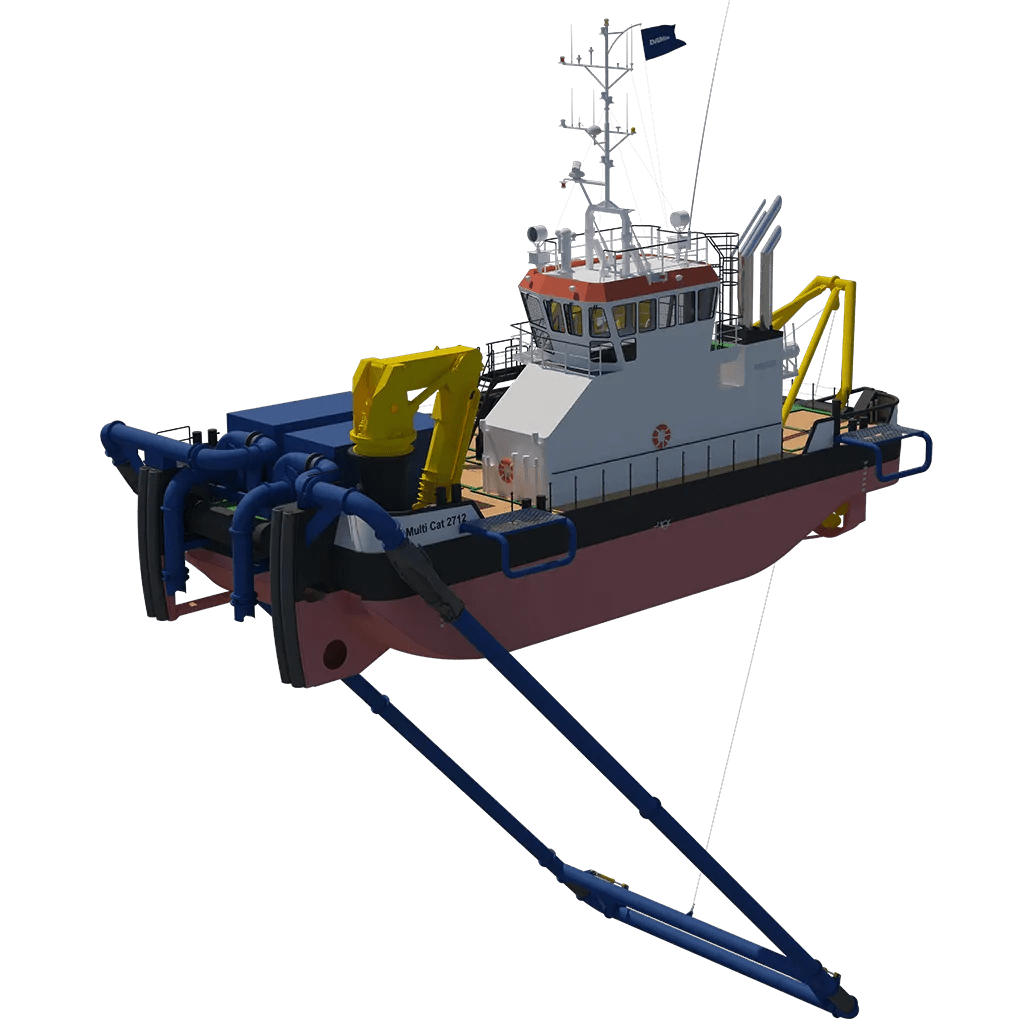

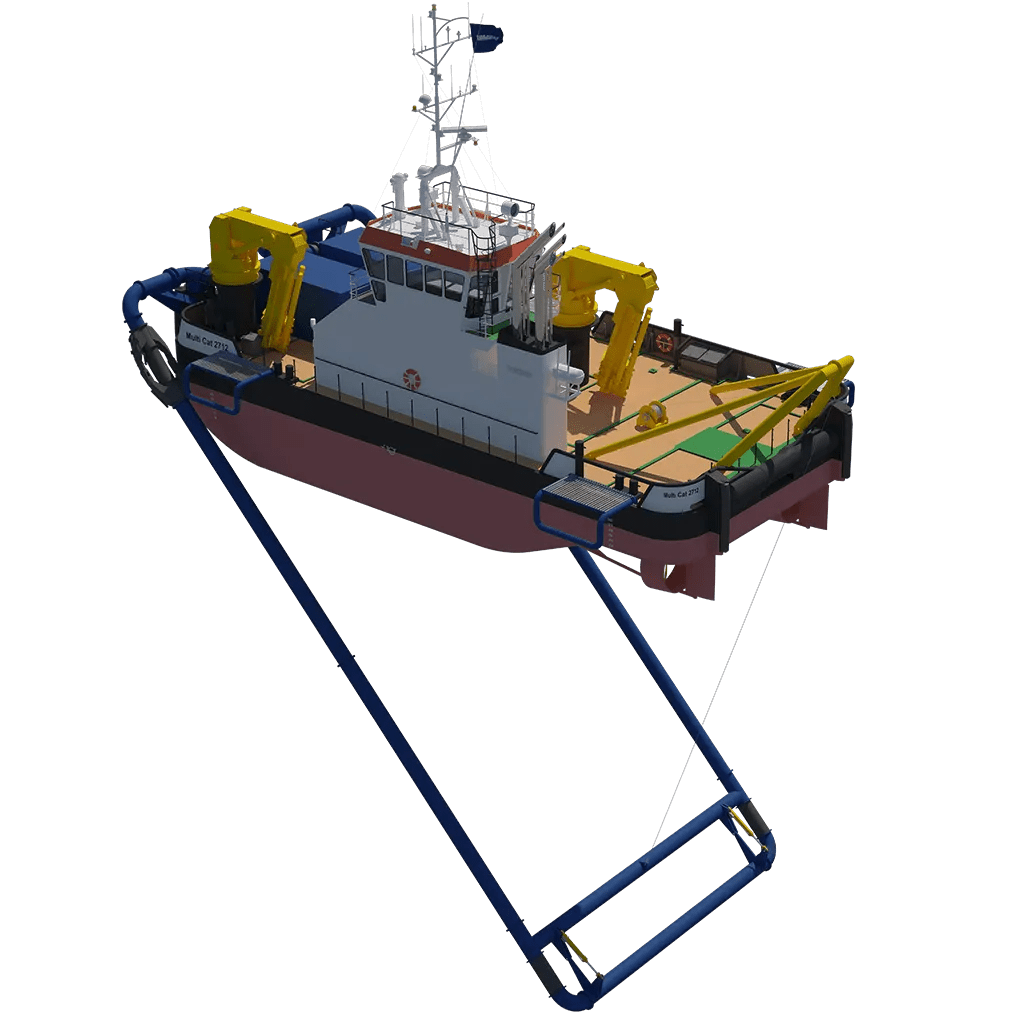

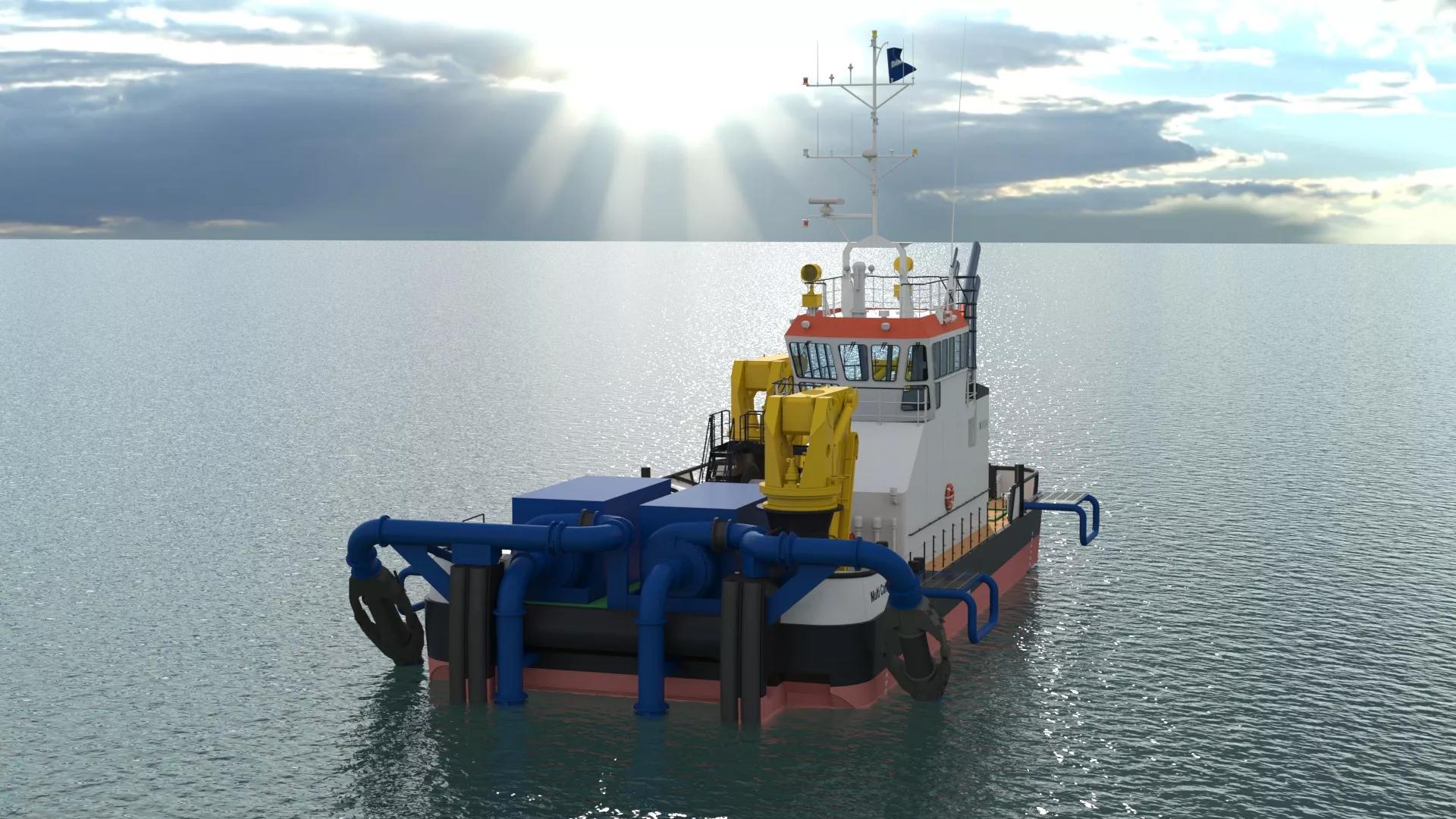

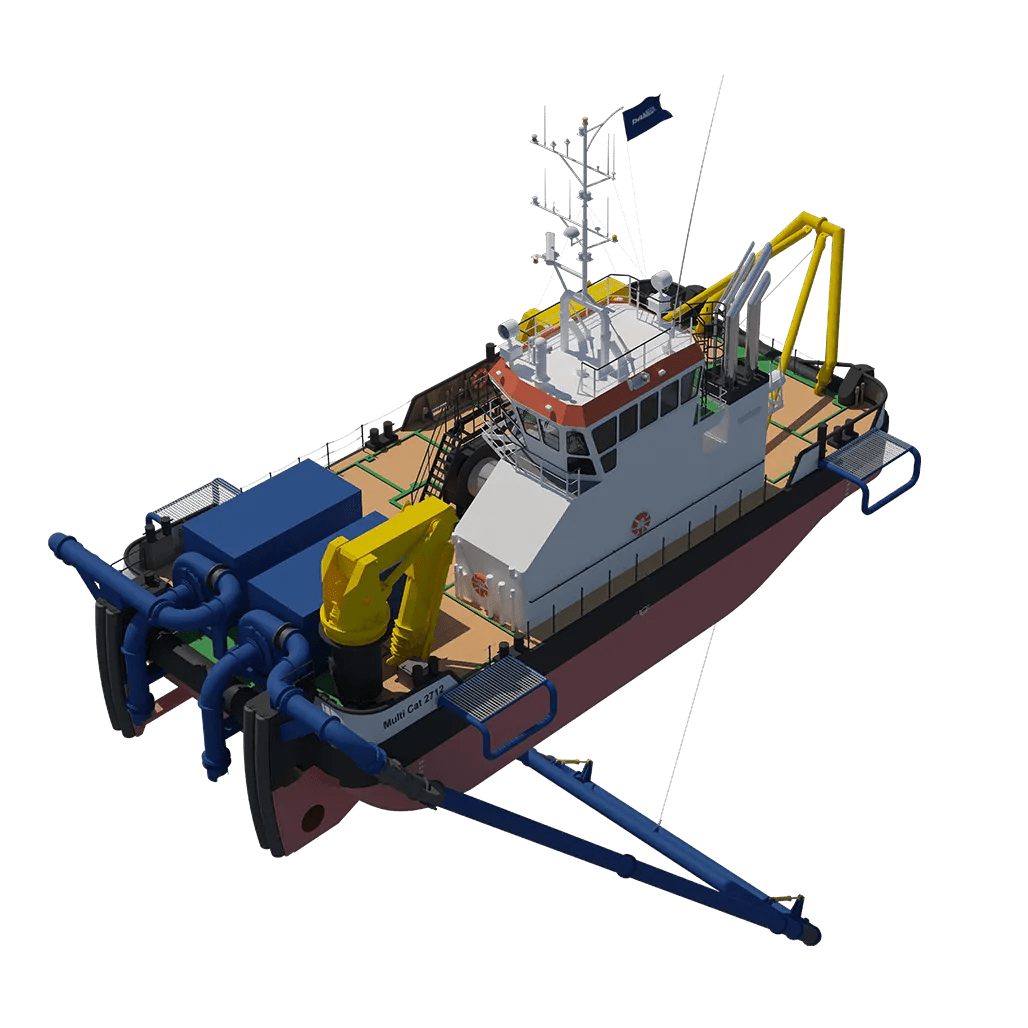

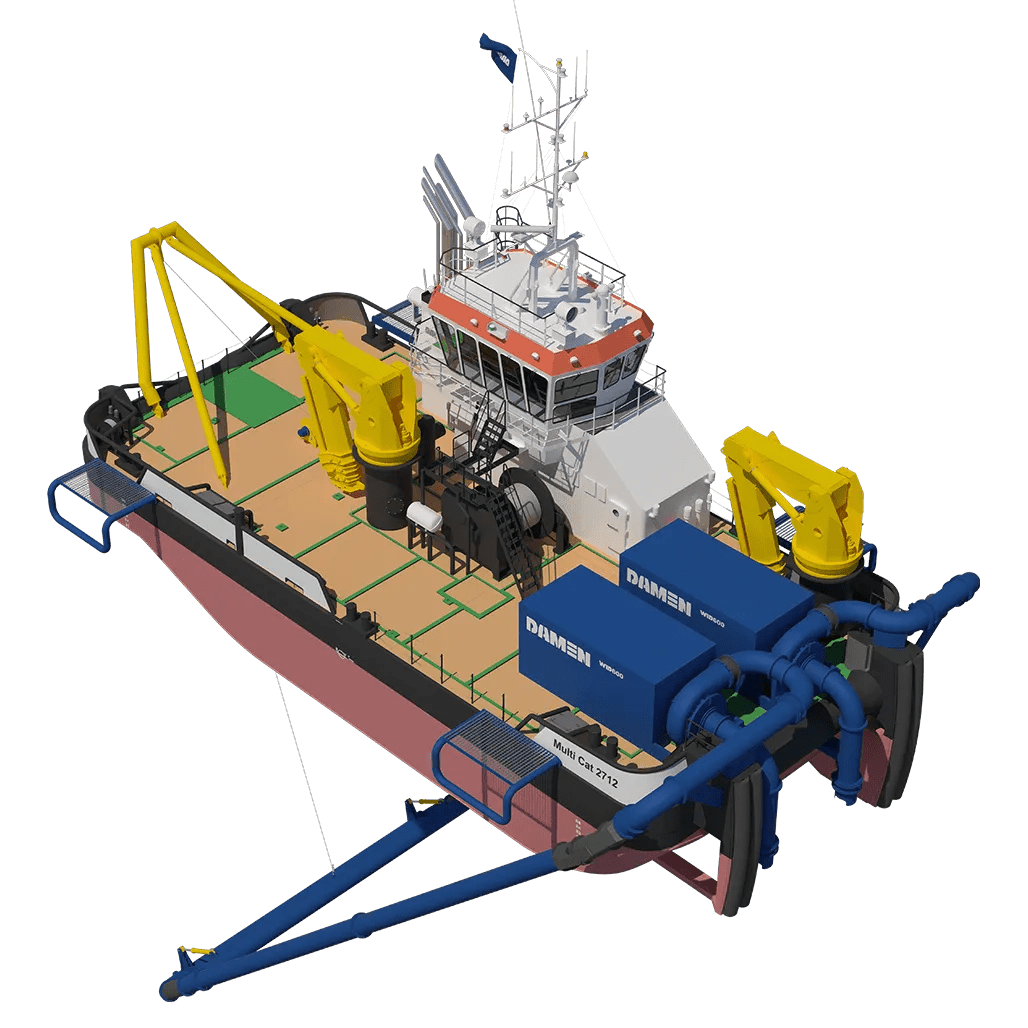

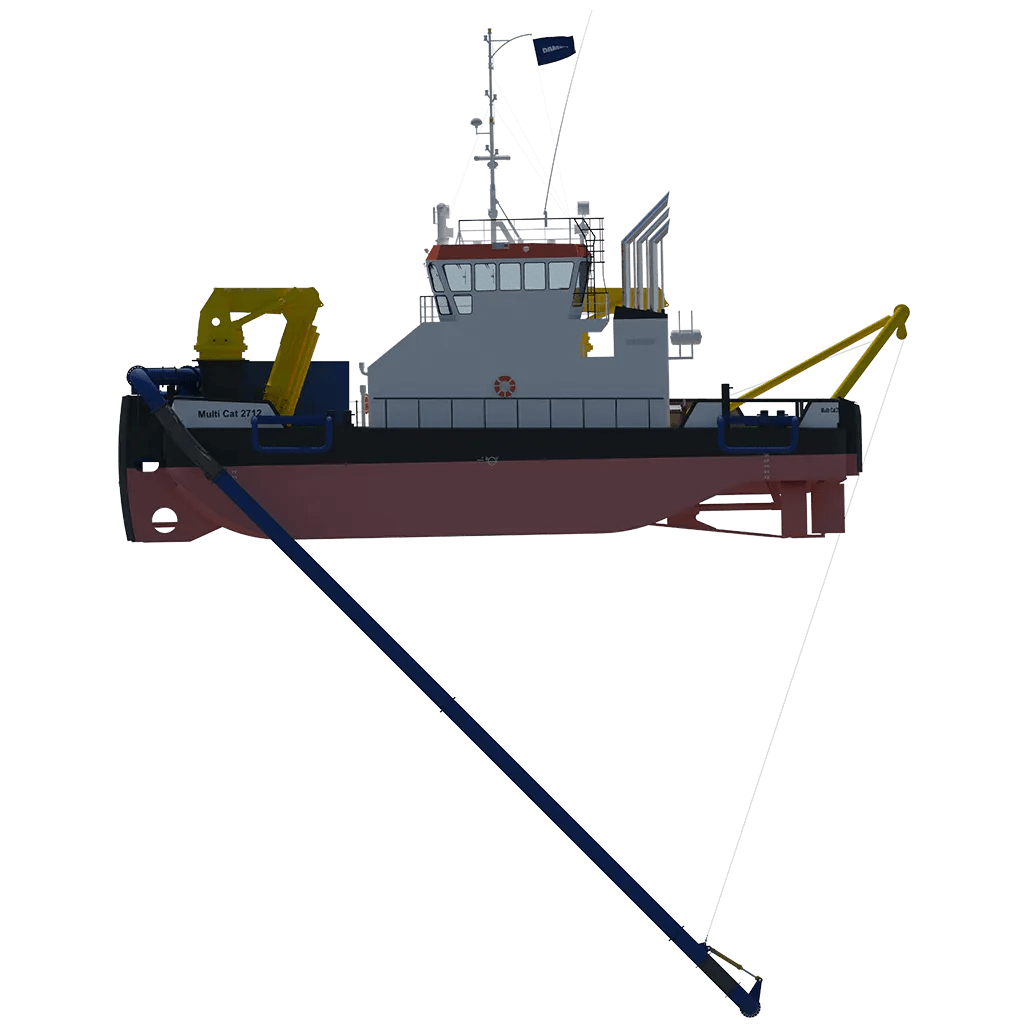

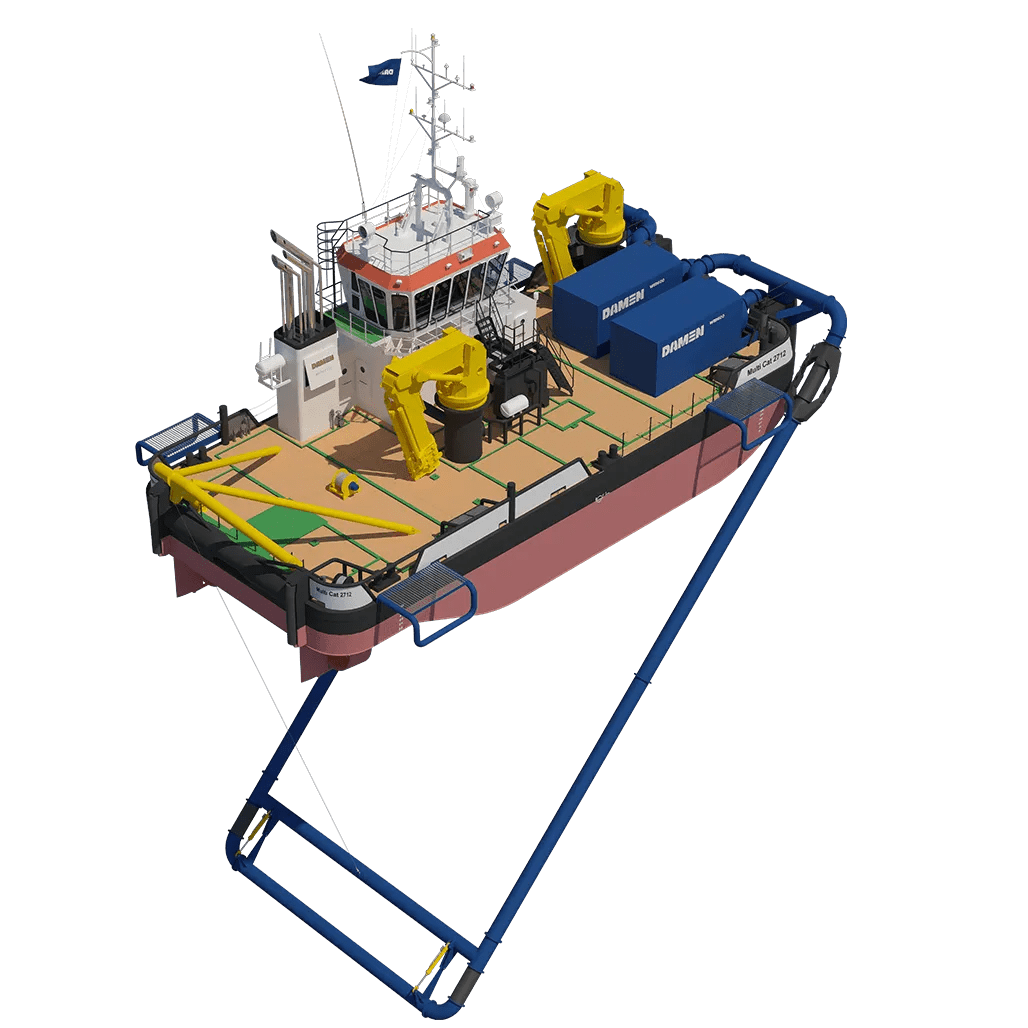

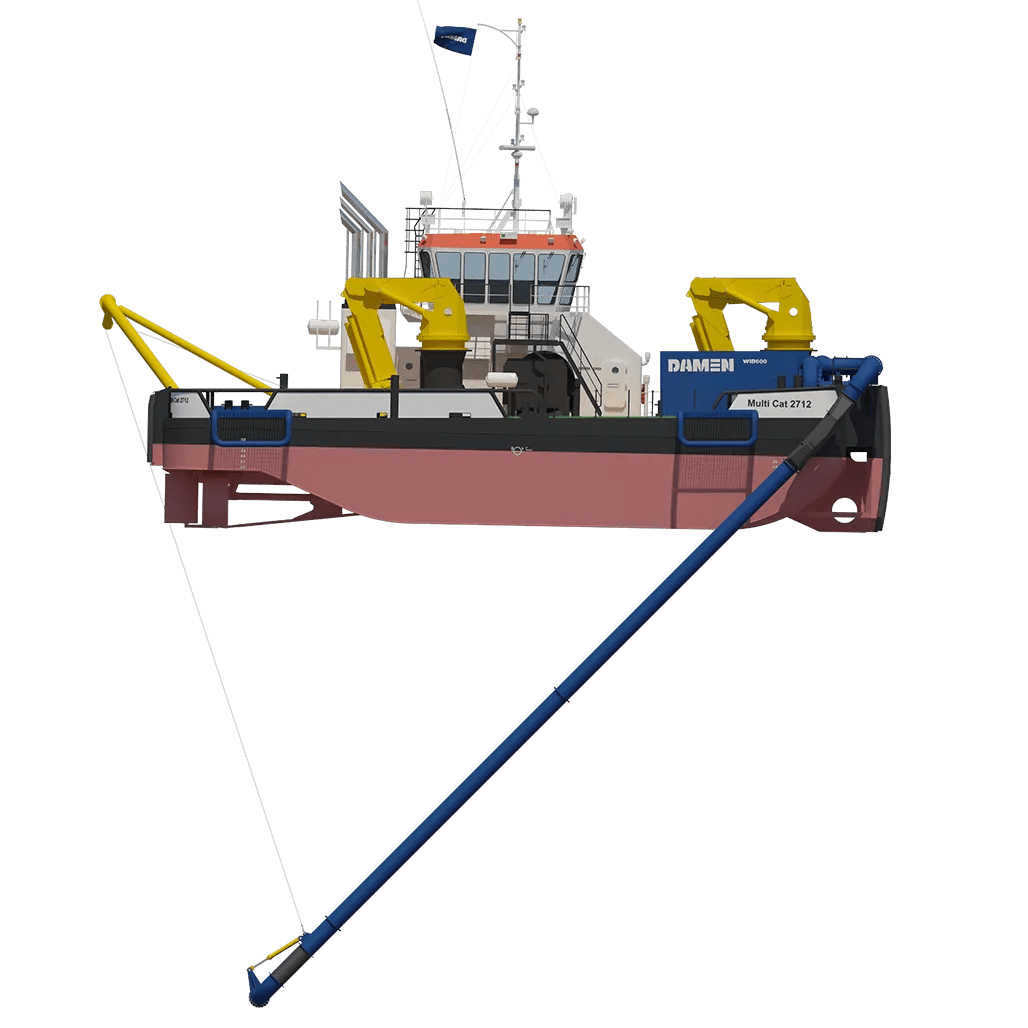

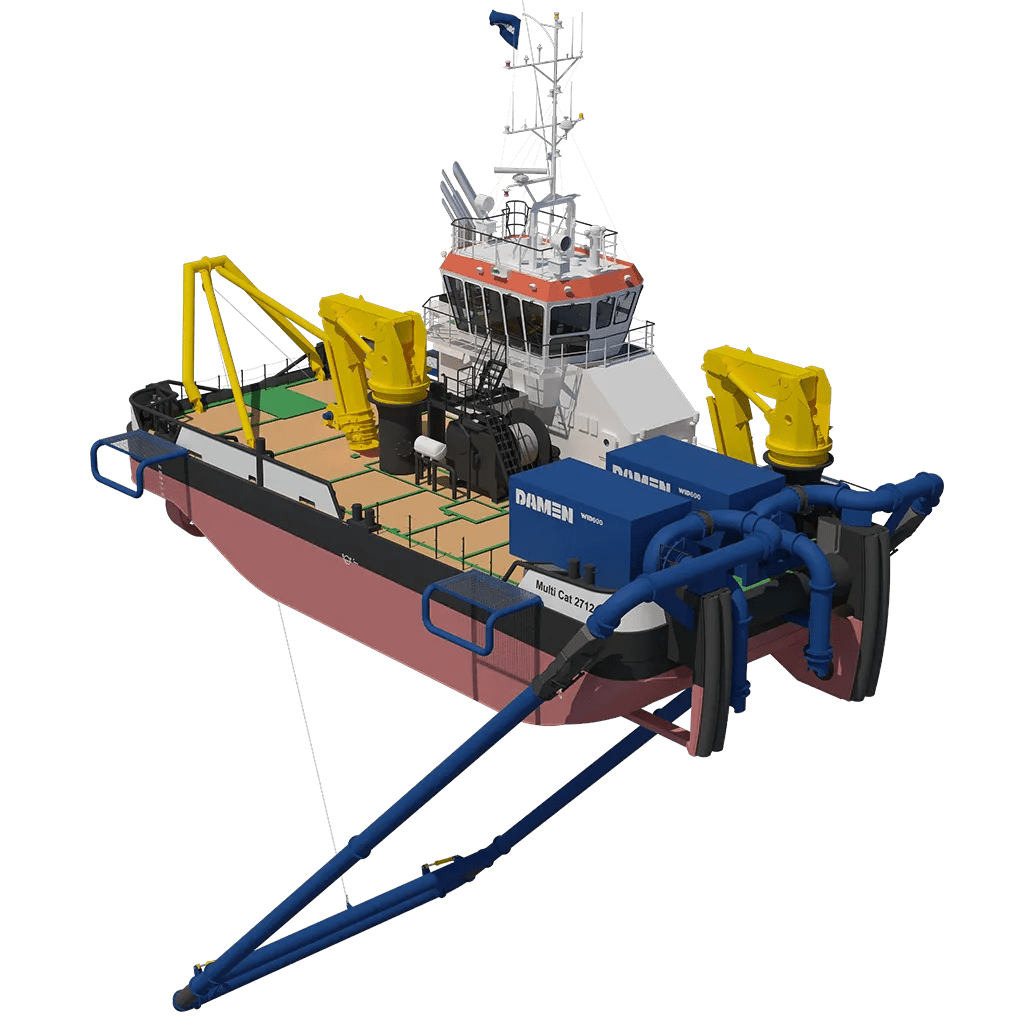

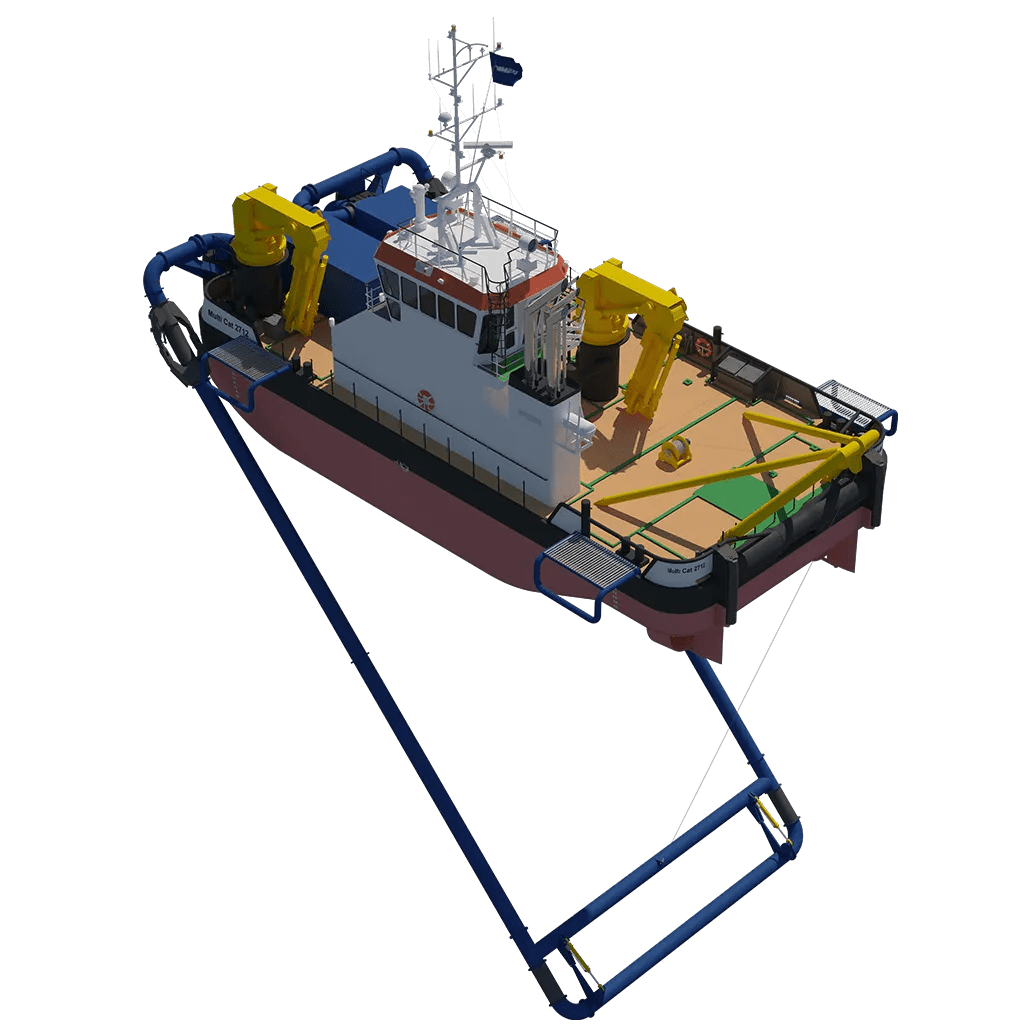

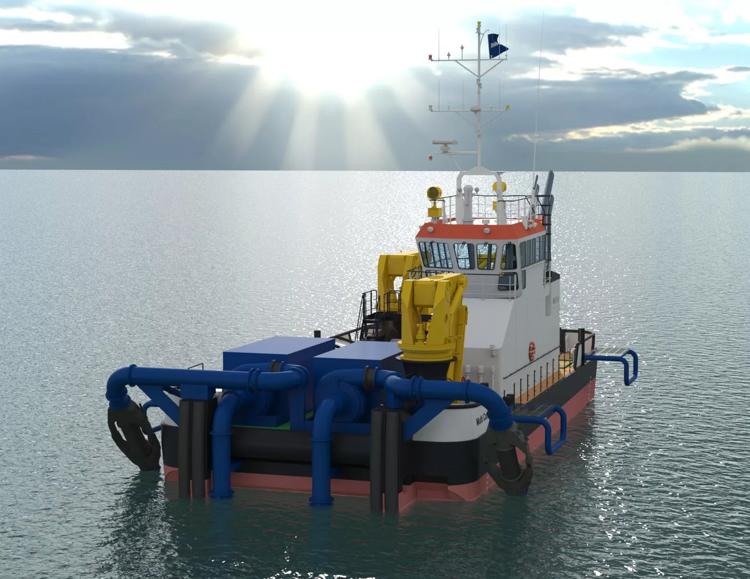

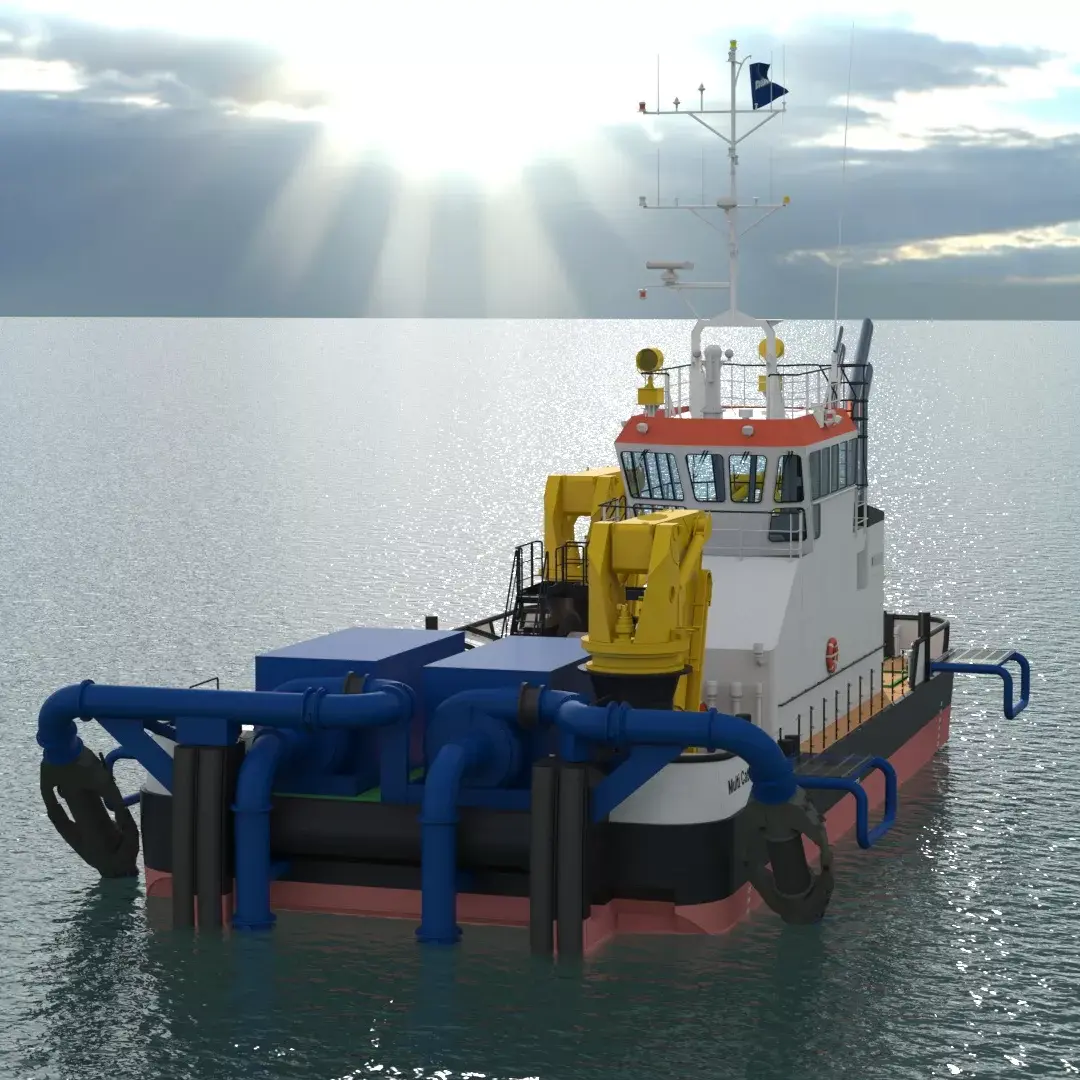

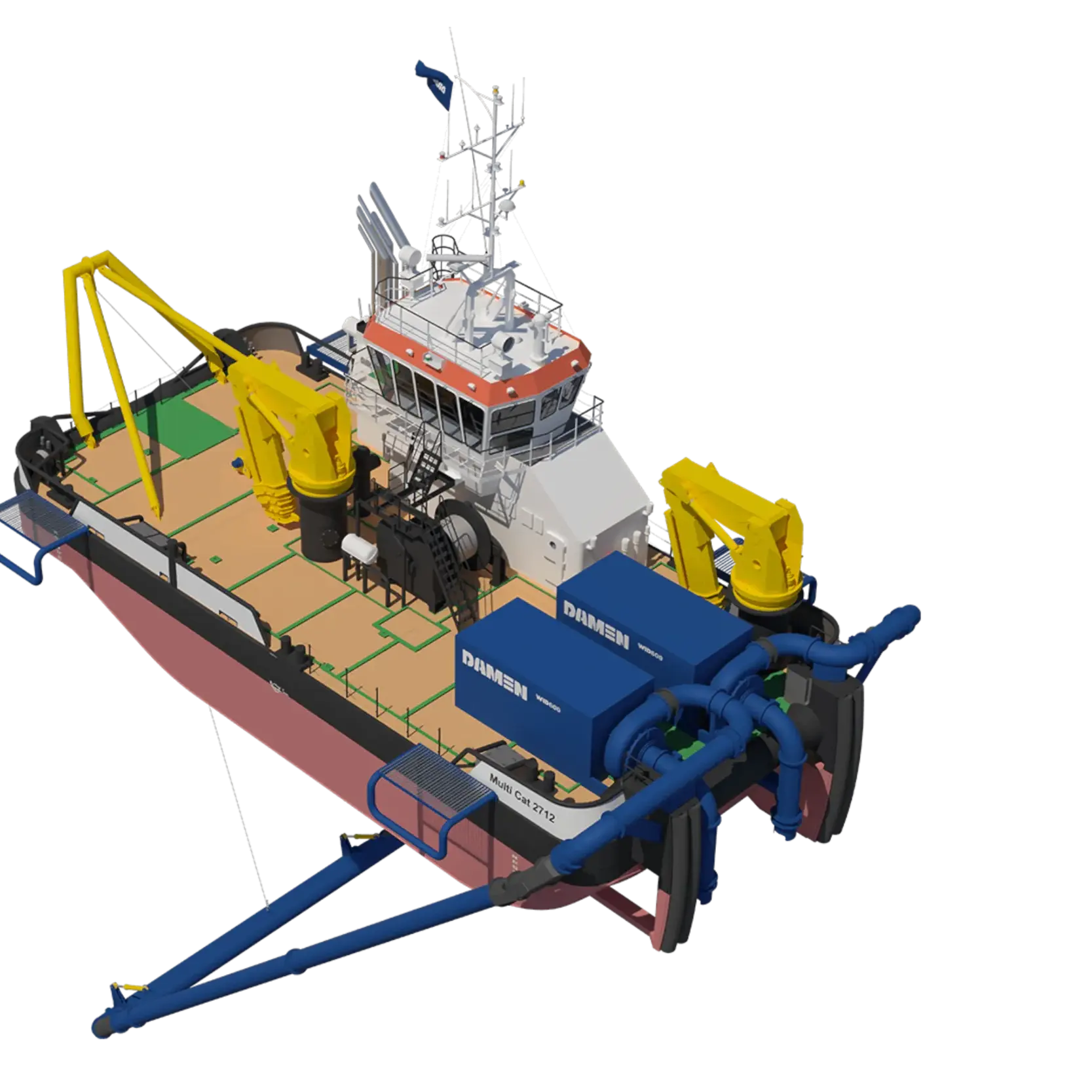

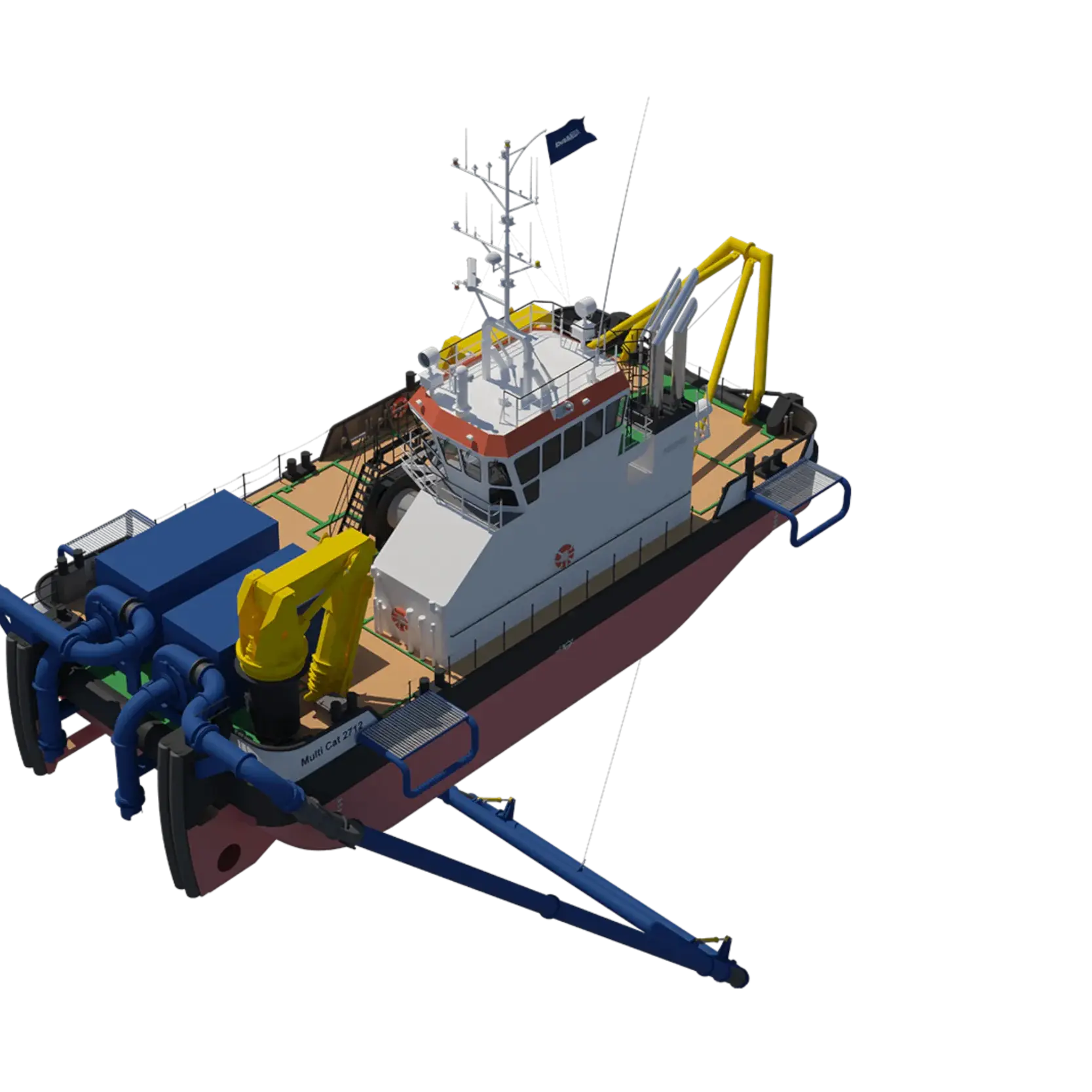

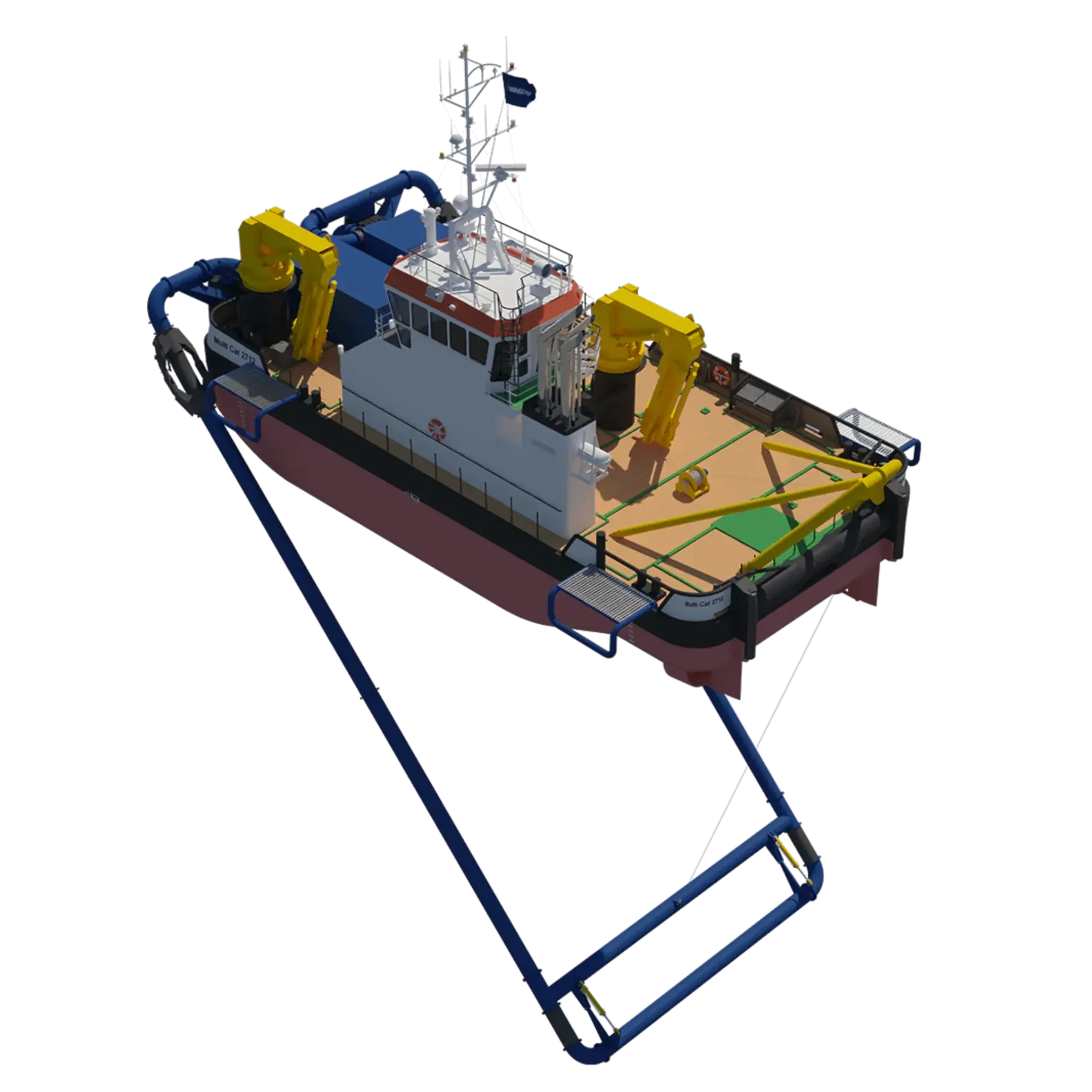

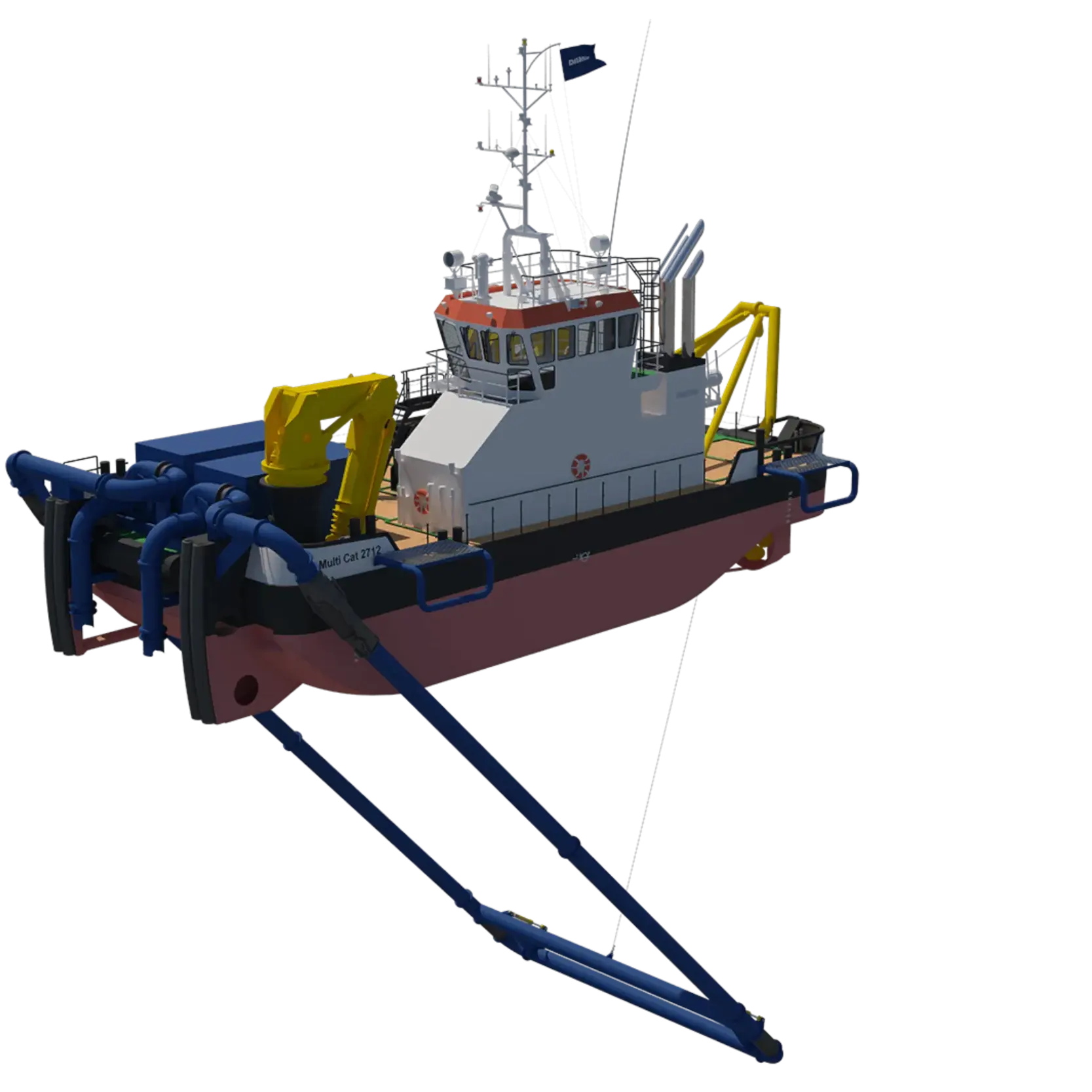

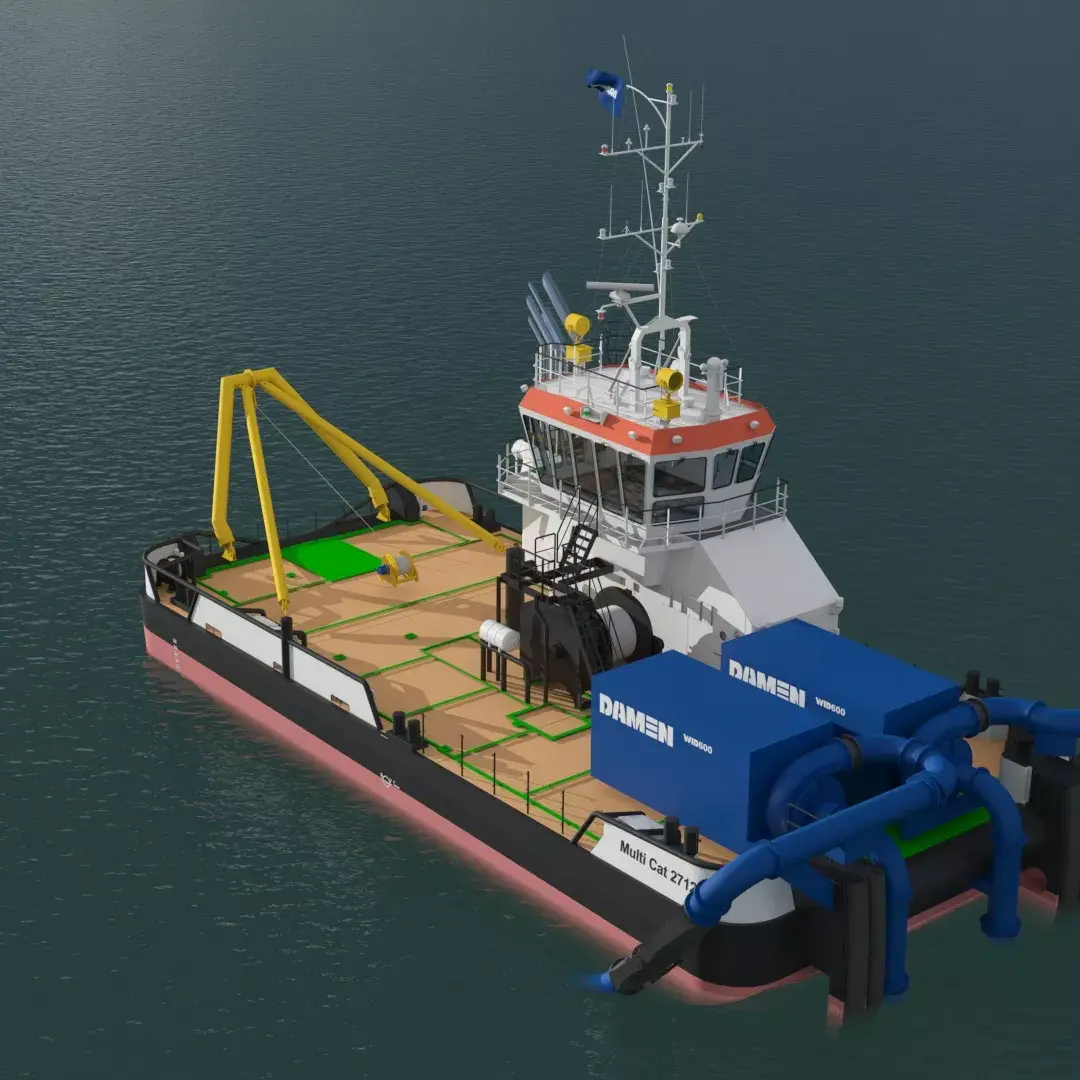

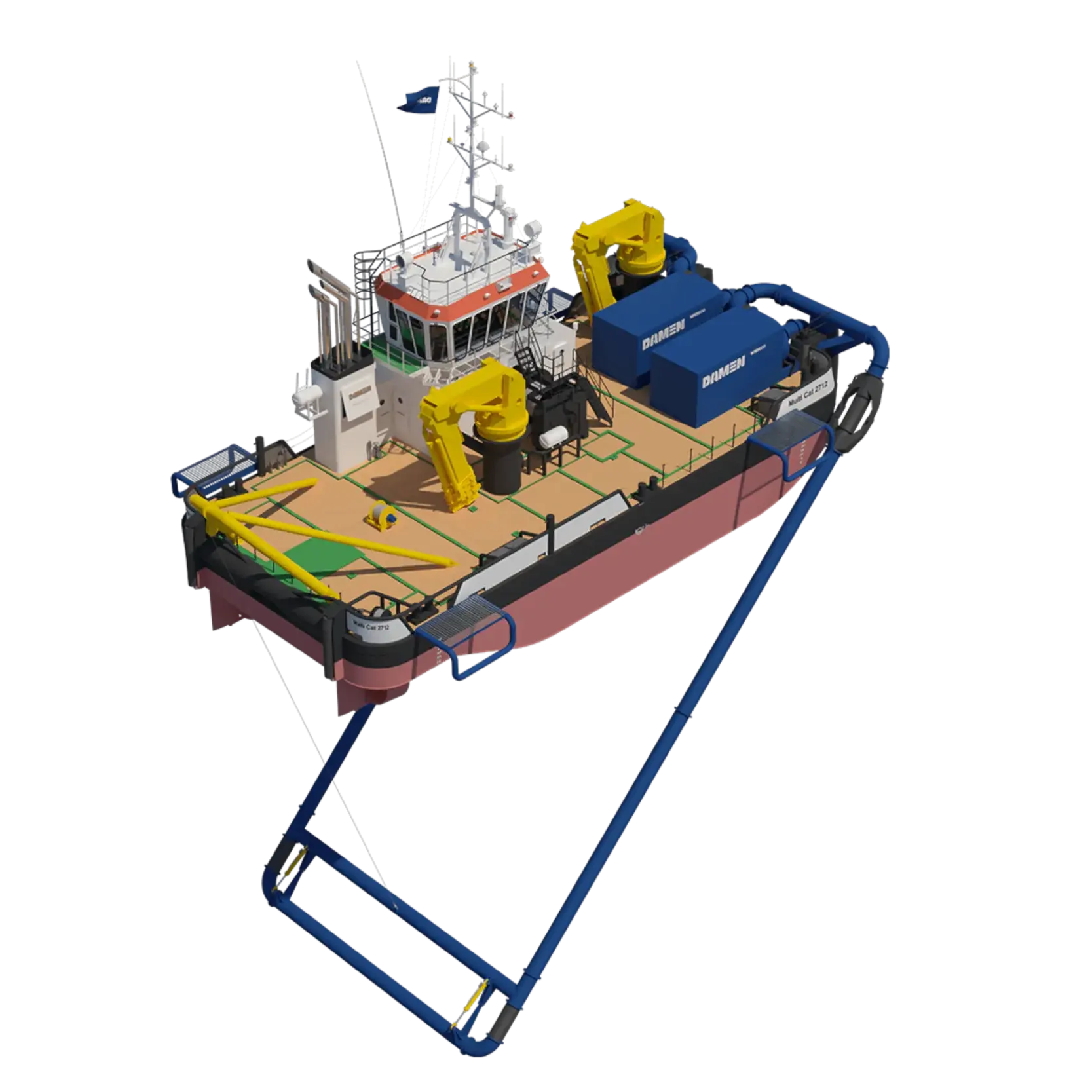

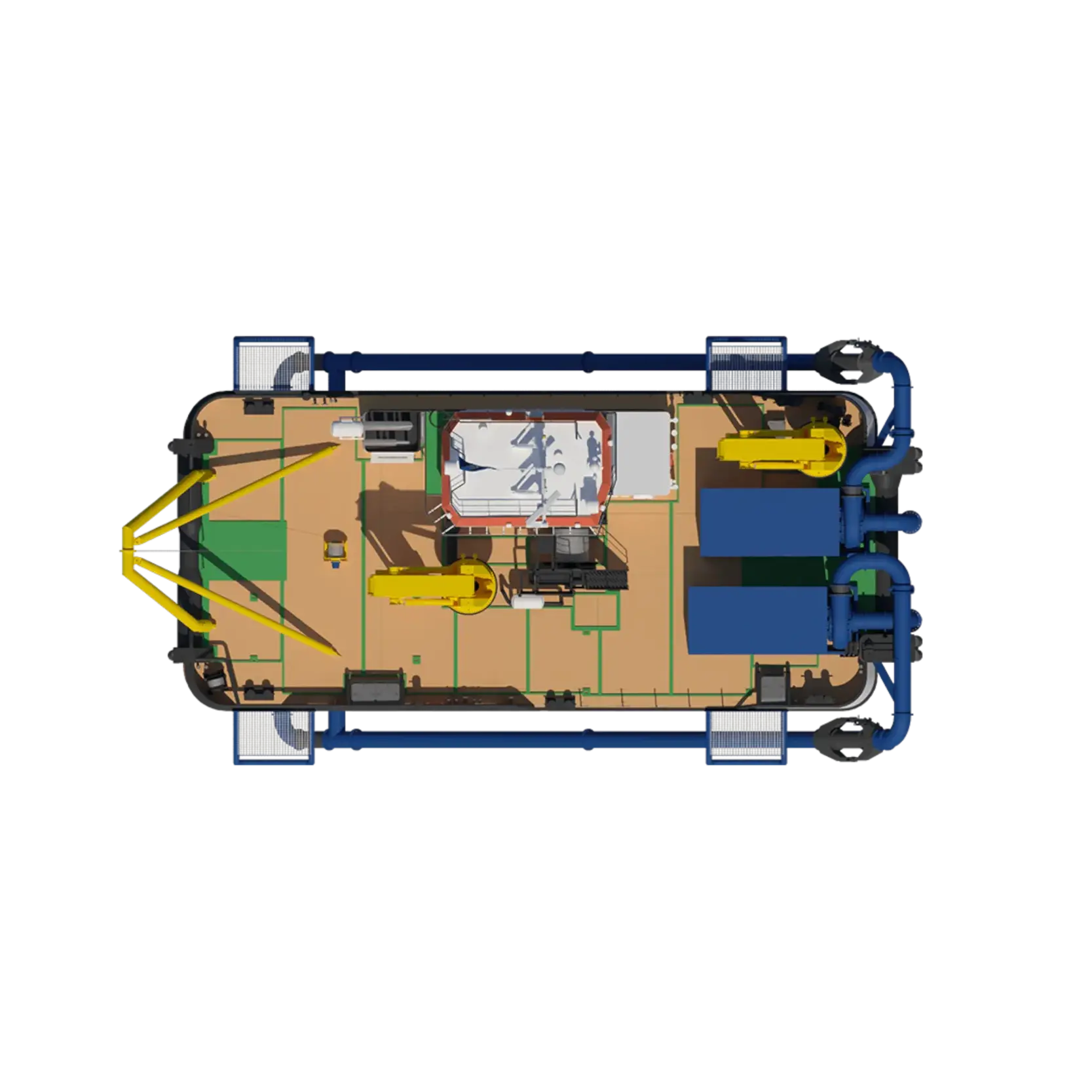

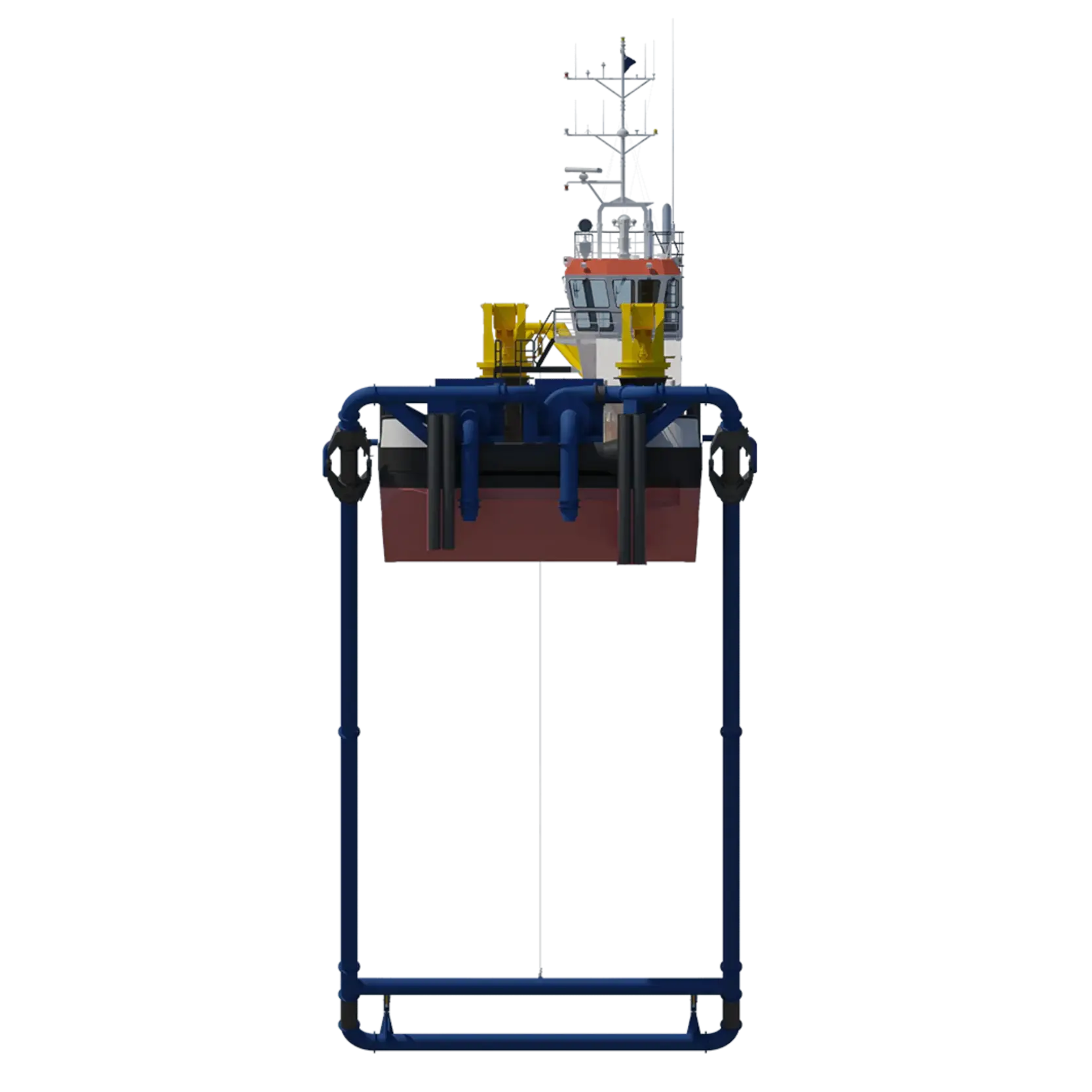

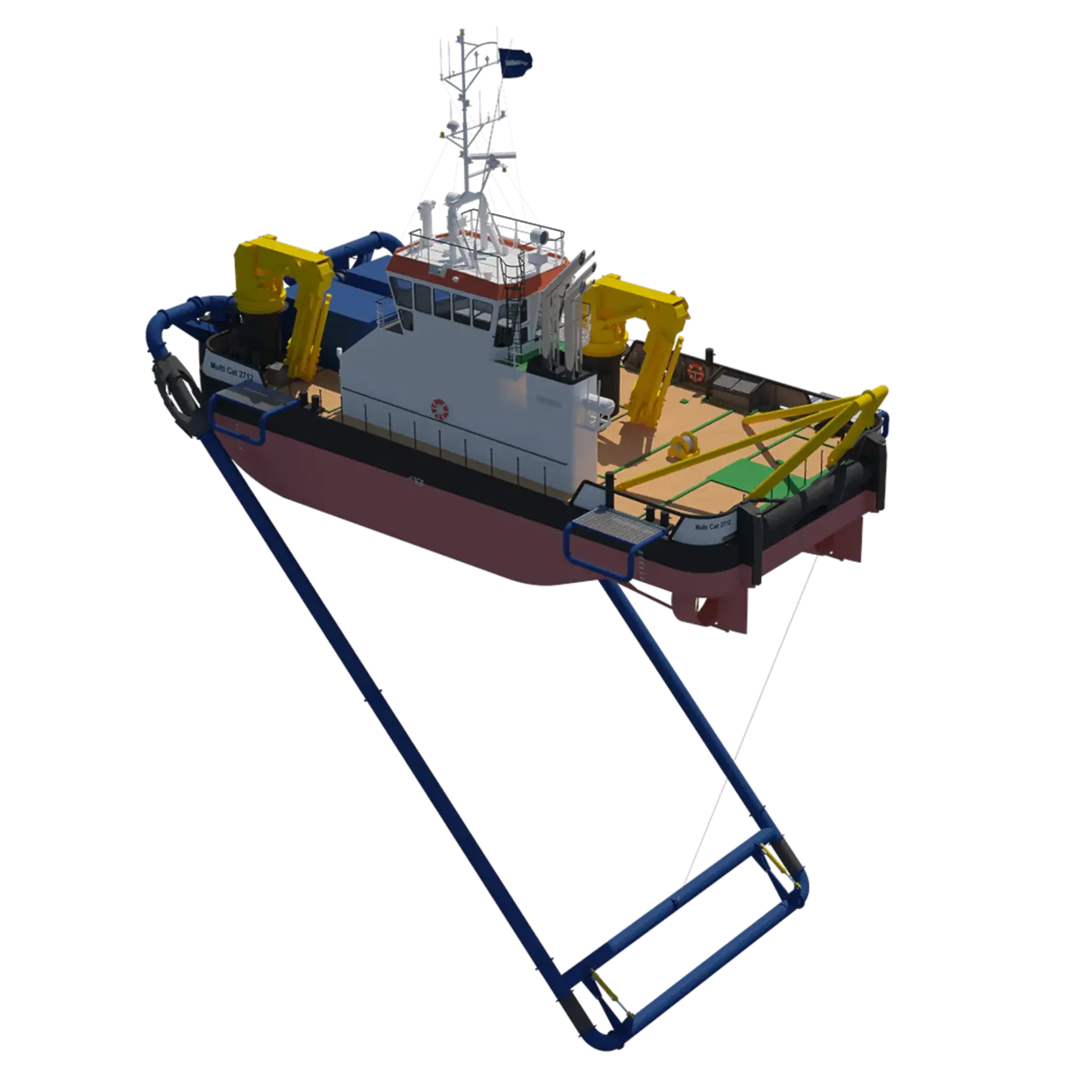

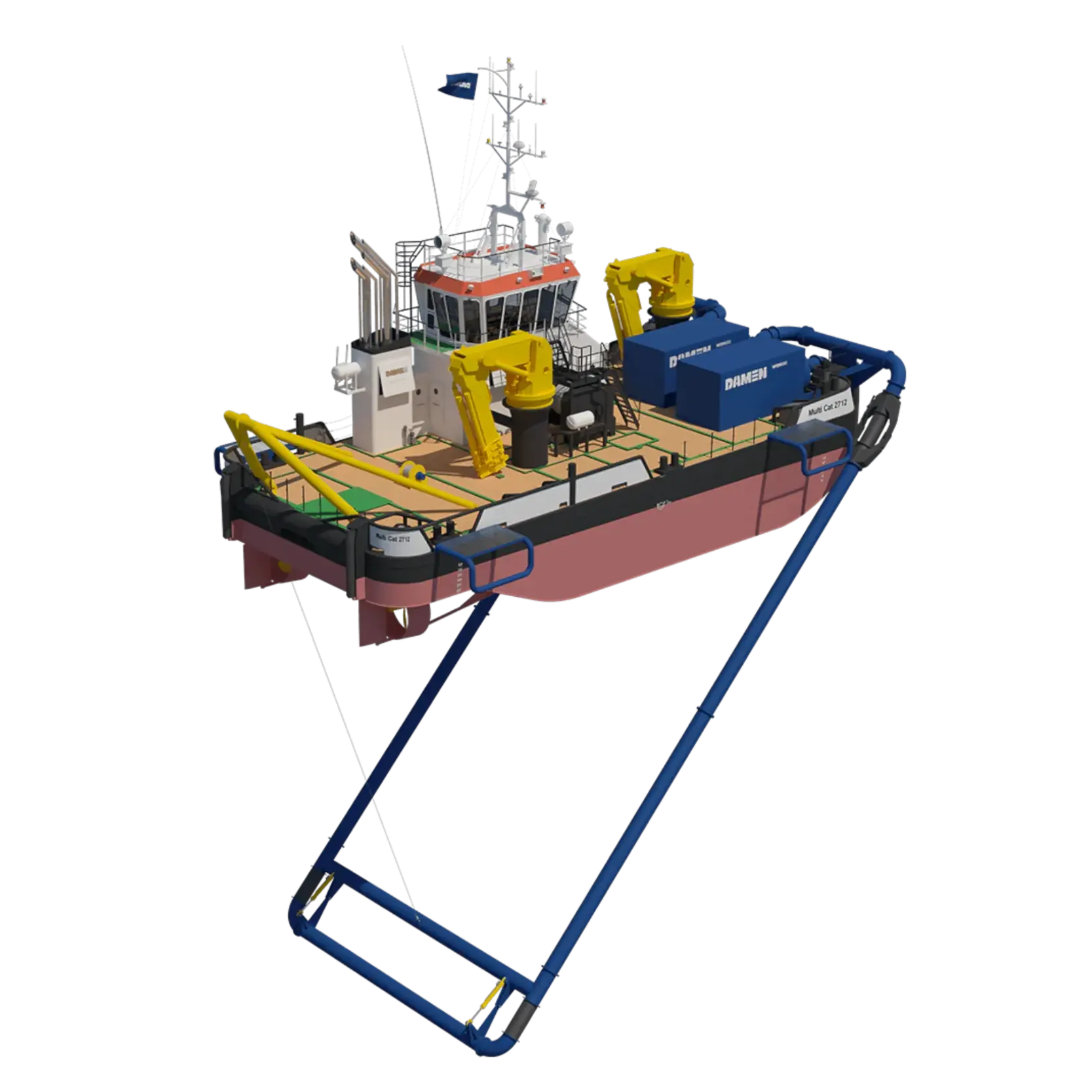

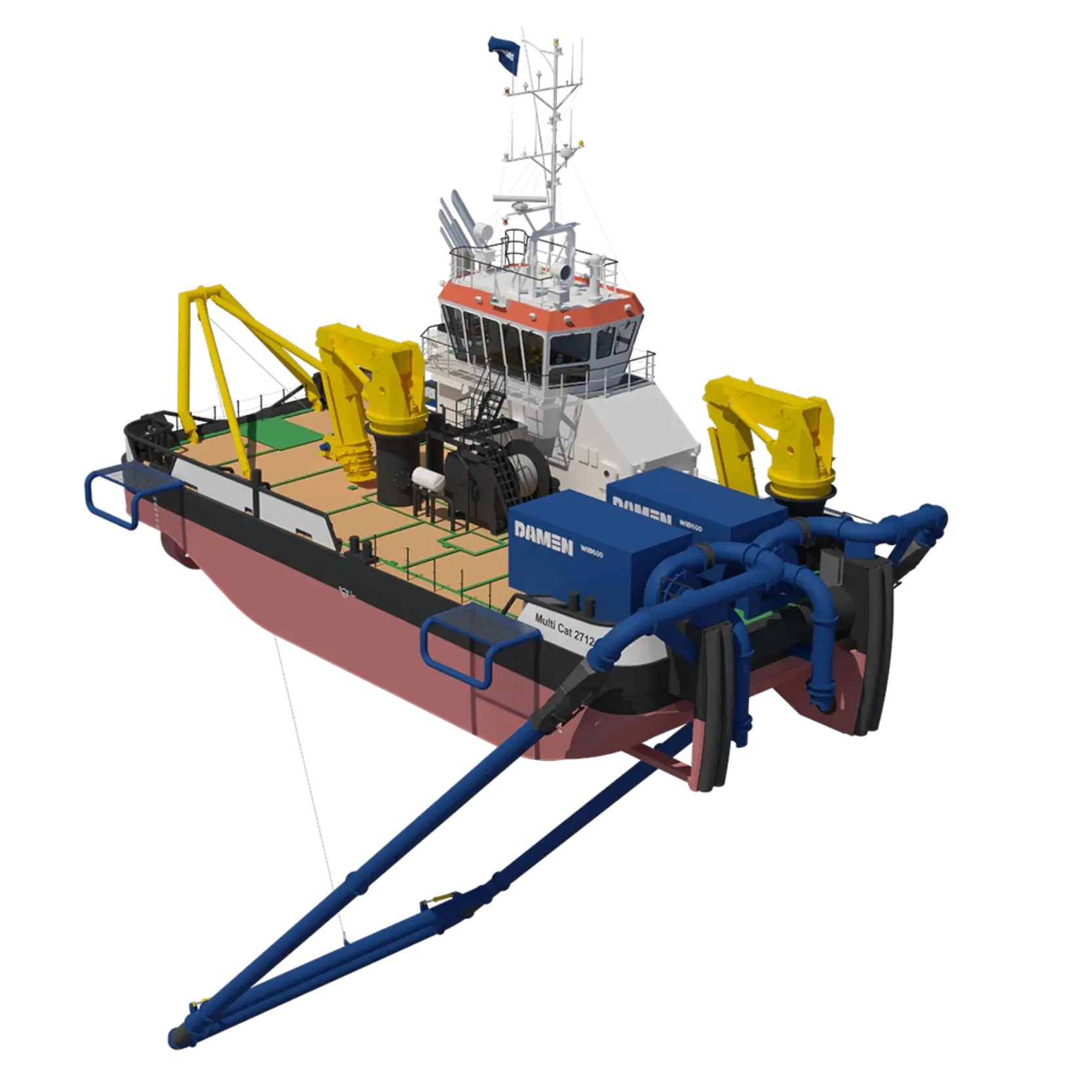

Rethink your resources by turning your workboat into a dredger. Any compact work vessel with a suitable work deck, such as a Multi Cat 2712, can be transformed into a versatile dredger. The container sized components of the WID system are transported easily. Fast mobilisation is assured as the plug and play system does not require dry docking of the vessel. Water injection dredging is an effective and efficient dredge method making use of the natural power of tides and currents. Sedimented silt is relocated without the need for a disposal area. The adaptable WID system is easy to deploy and cost efficient.
  • Flow measurement
  • Position visualisation
  • DOP submersible dredge pump
  • Plough
  • The WID system is of a modular plug and play design
  • Your work boat does not need structural changes nor drydocking
  • Water Injection Dredging system ready for immediate start up
  • Controlled from the bridge

Key figures

-20

10500

60

28

14.5

Dimensions

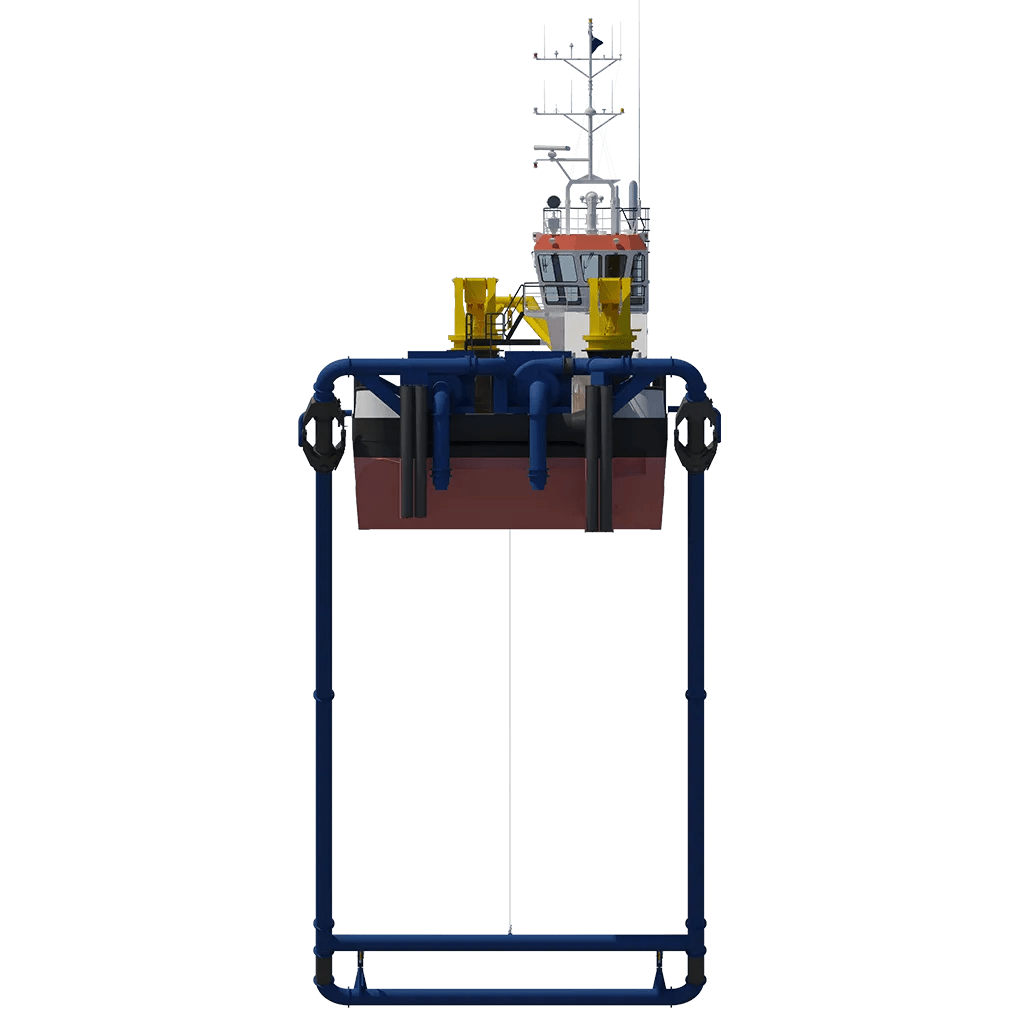

Width jet beam
14.5 m
Length jet arm
26.5 m
Footprint jet station
28
Total weight
60 t

Engine installation

Pump power
2 x 342 kW
Pump engine
Volvo TAD
Start up system
priming unit

Dredge installation

Max dredging depth
-20 m
Max flow
10500 m³/h
Jet nozzles
70 pcs
Side hinges
2 x heavy duty
Do you want to know more?

Compare similar WID system

Dredging depth (m)Max flow (m³/h)Weight (t)Footprint (m²)Width jet beam (m)
WID 600-2010500602814.5
WID 500-124200251410
WID 600
Dredging depth (m)
-20
Max flow (m³/h)
10500
Weight (t)
60
Footprint (m²)
28
Width jet beam (m)
14.5
Dredging depth (m)
-12
Max flow (m³/h)
4200
Weight (t)
25
Footprint (m²)
14
Width jet beam (m)
10
