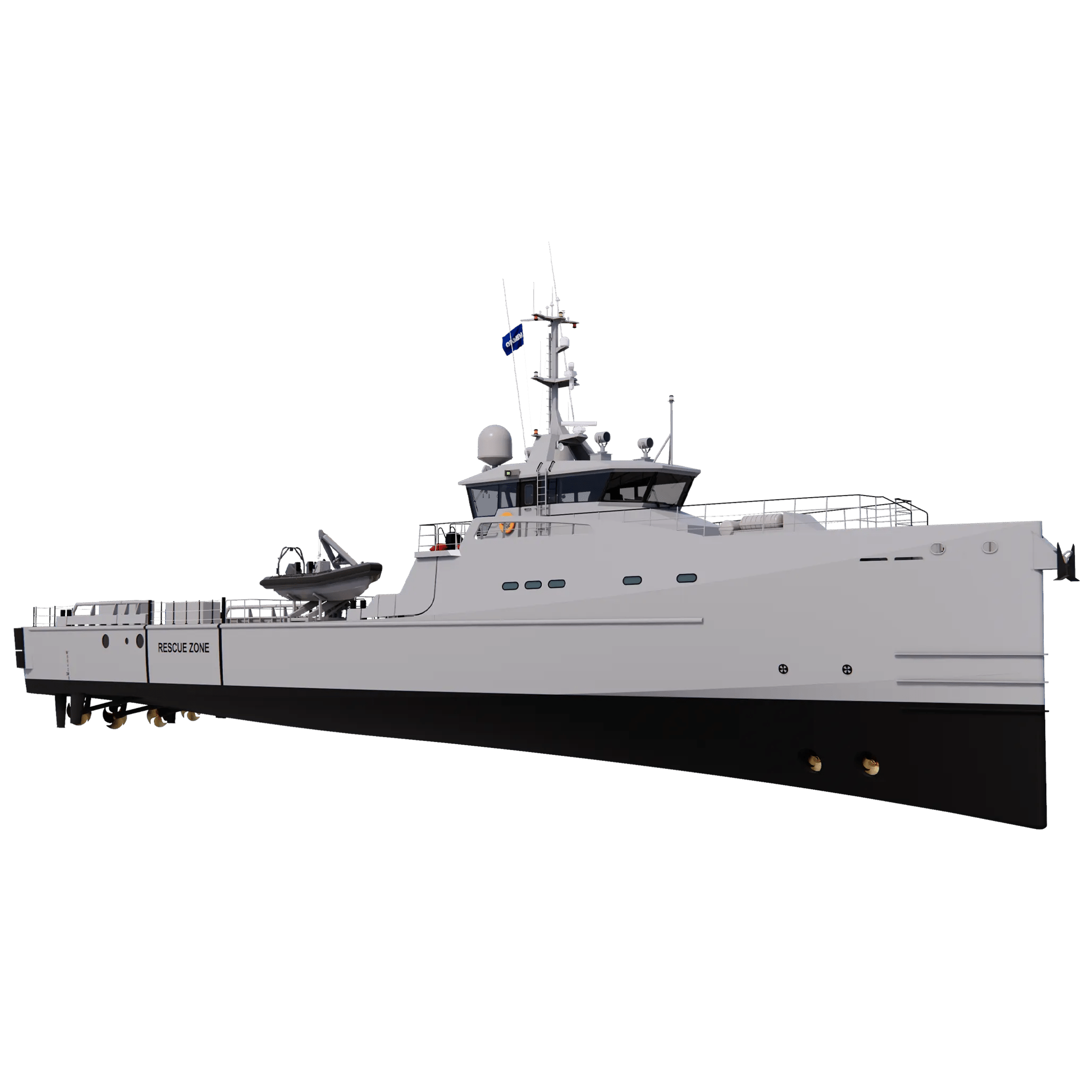

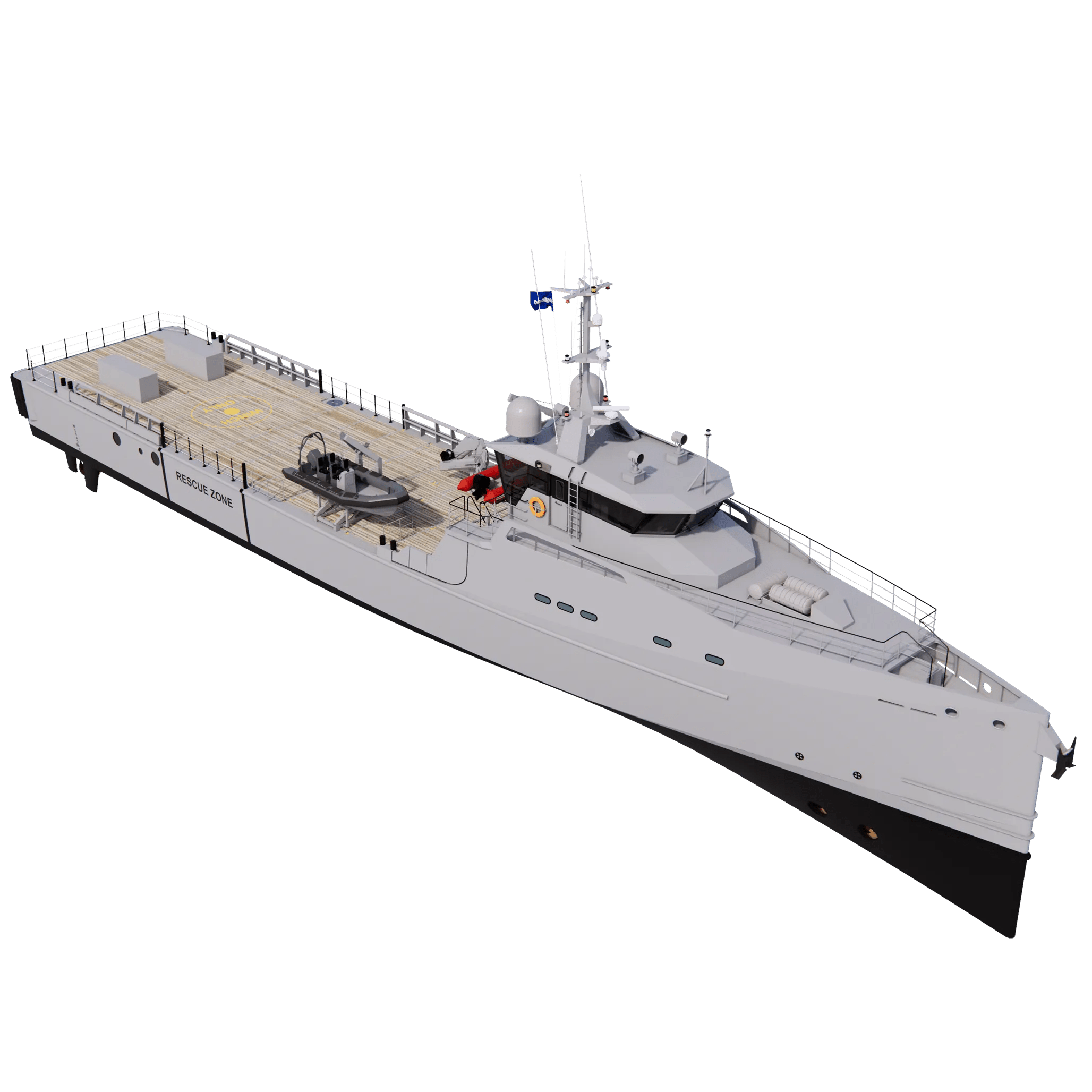

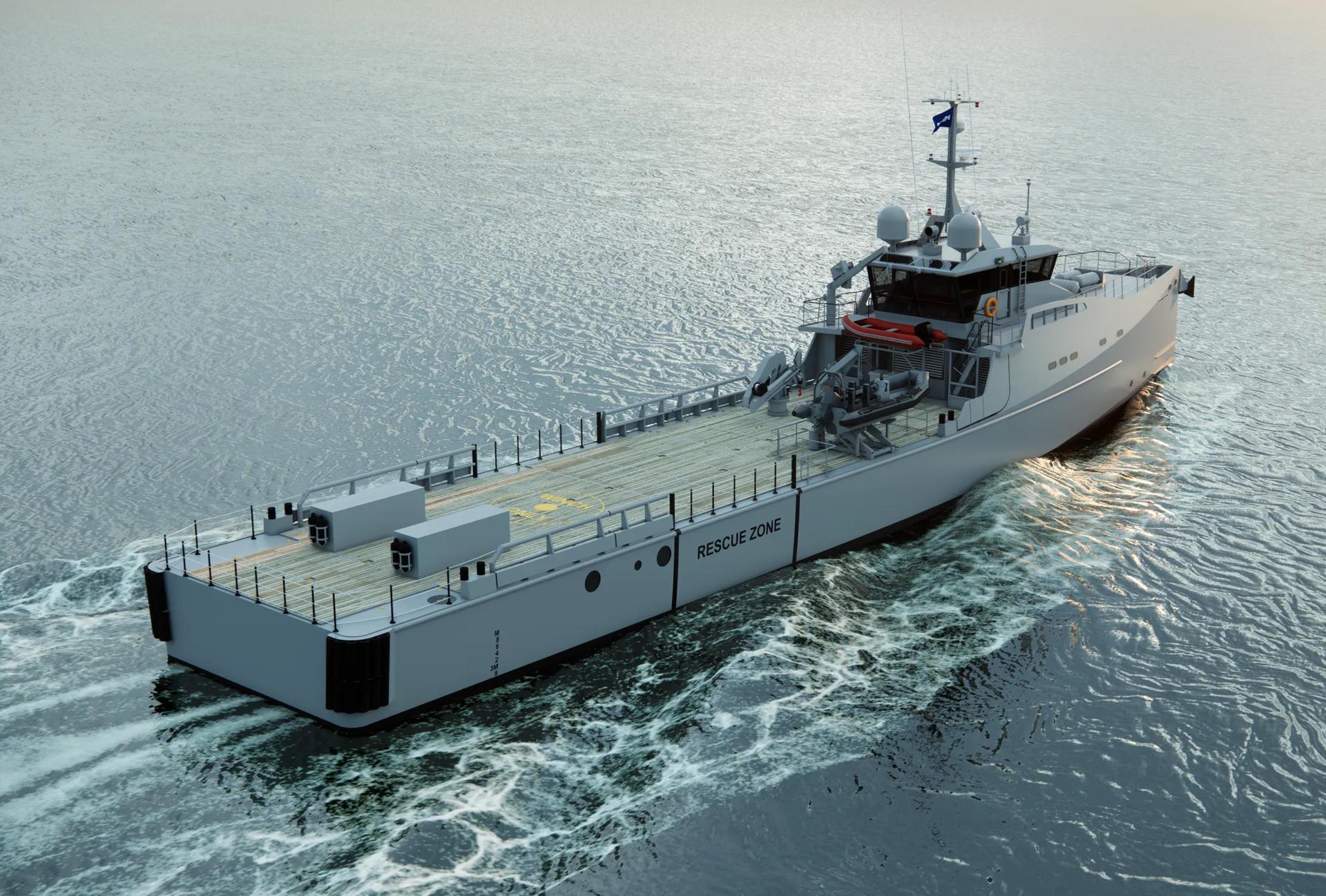

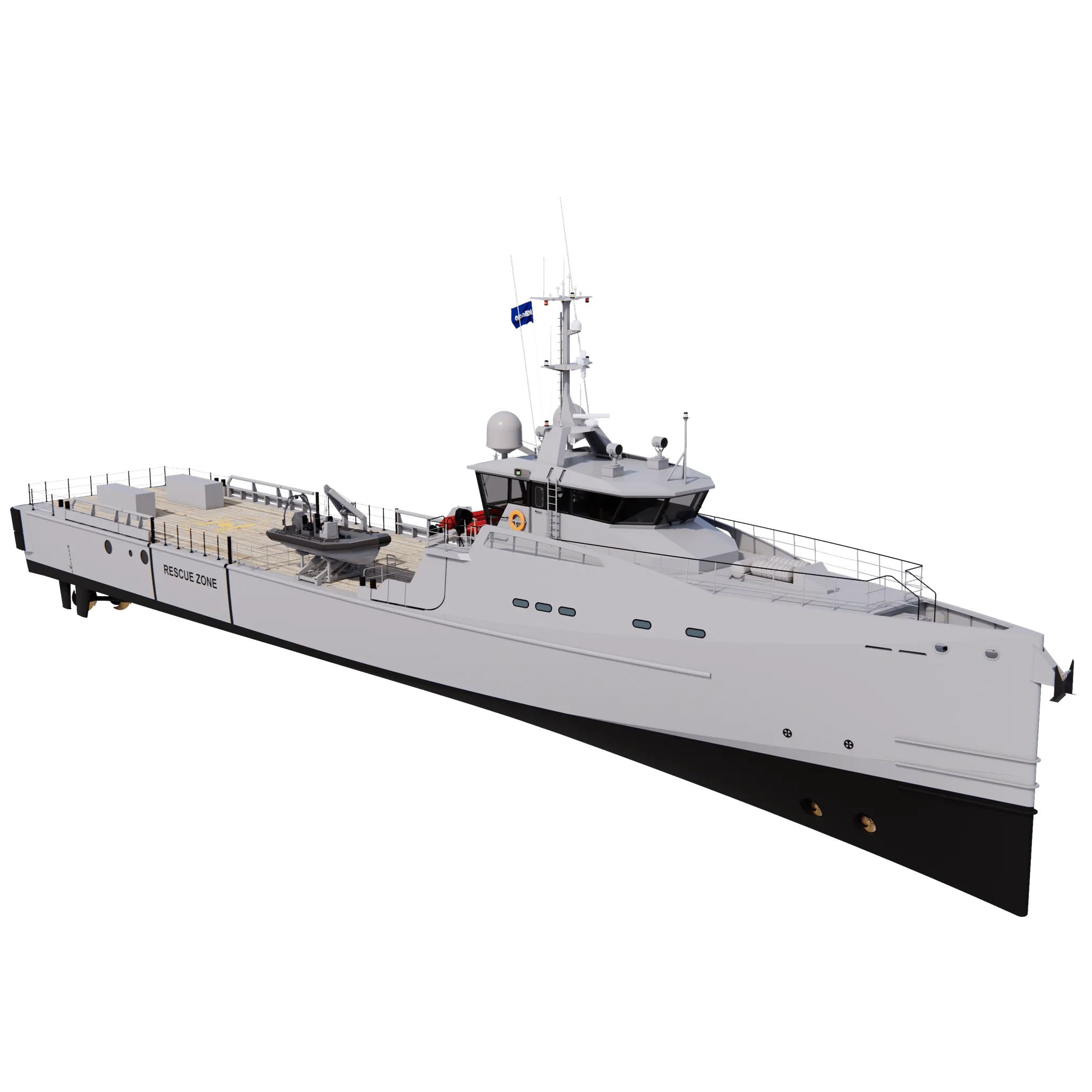

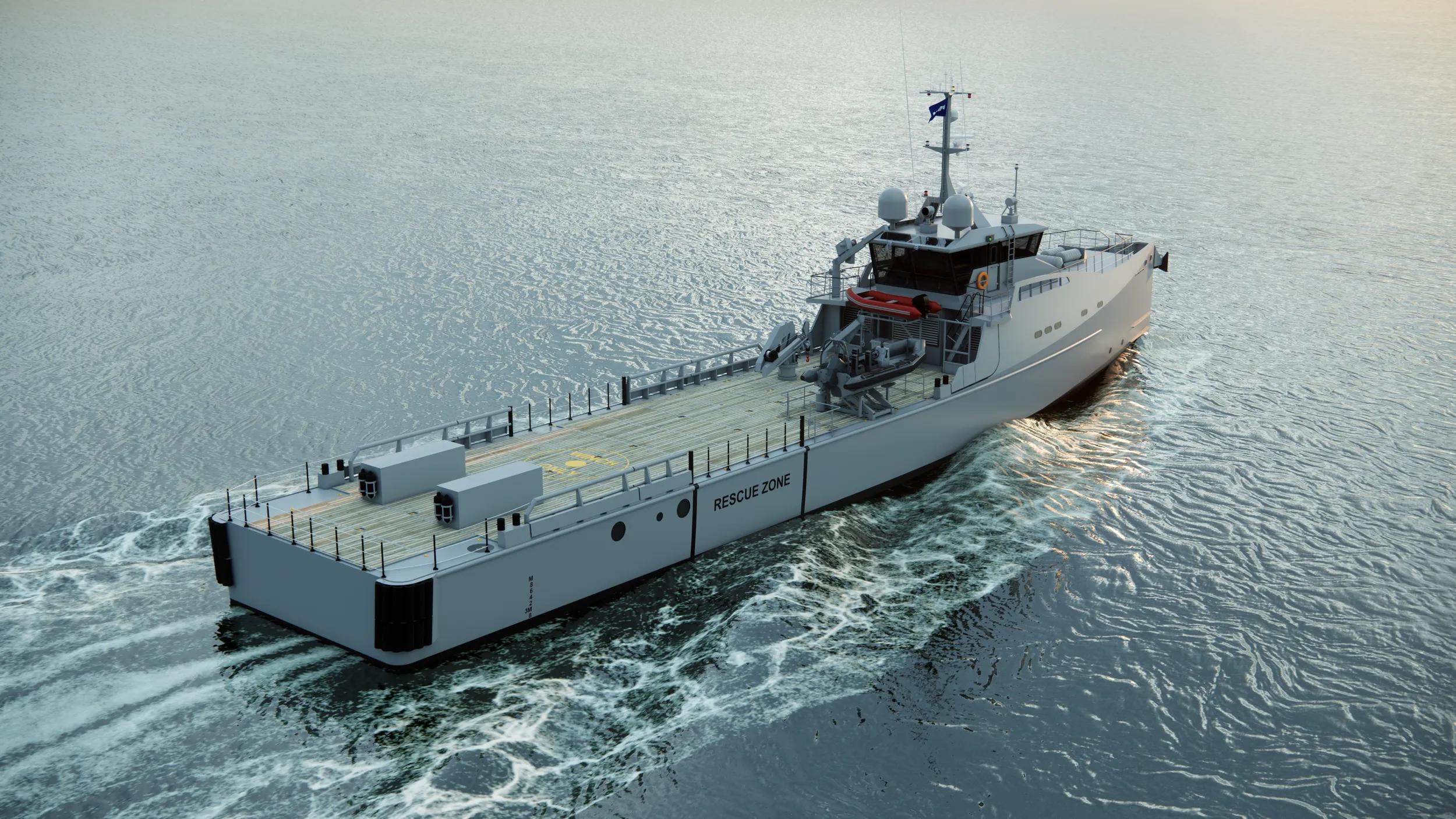

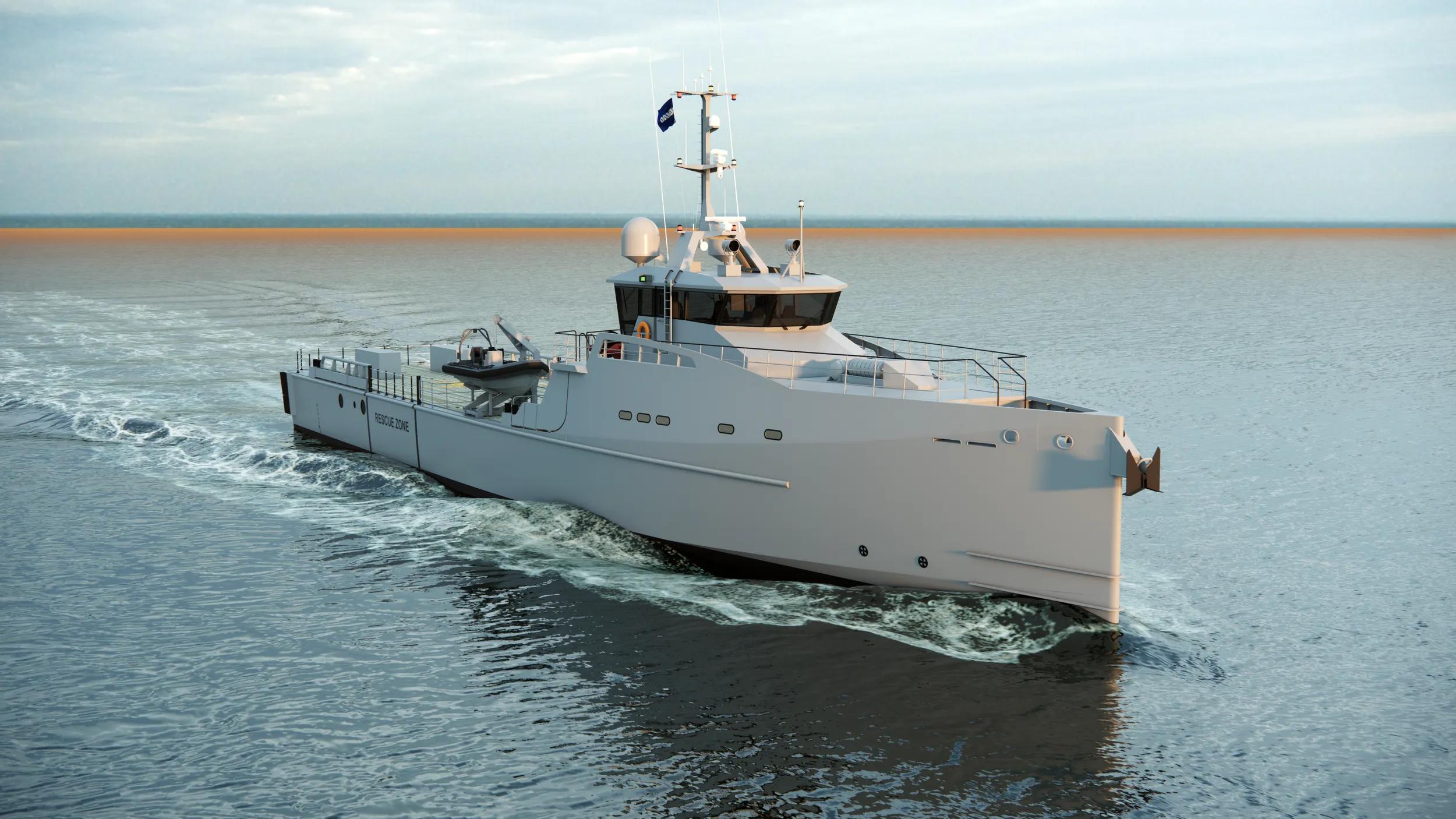

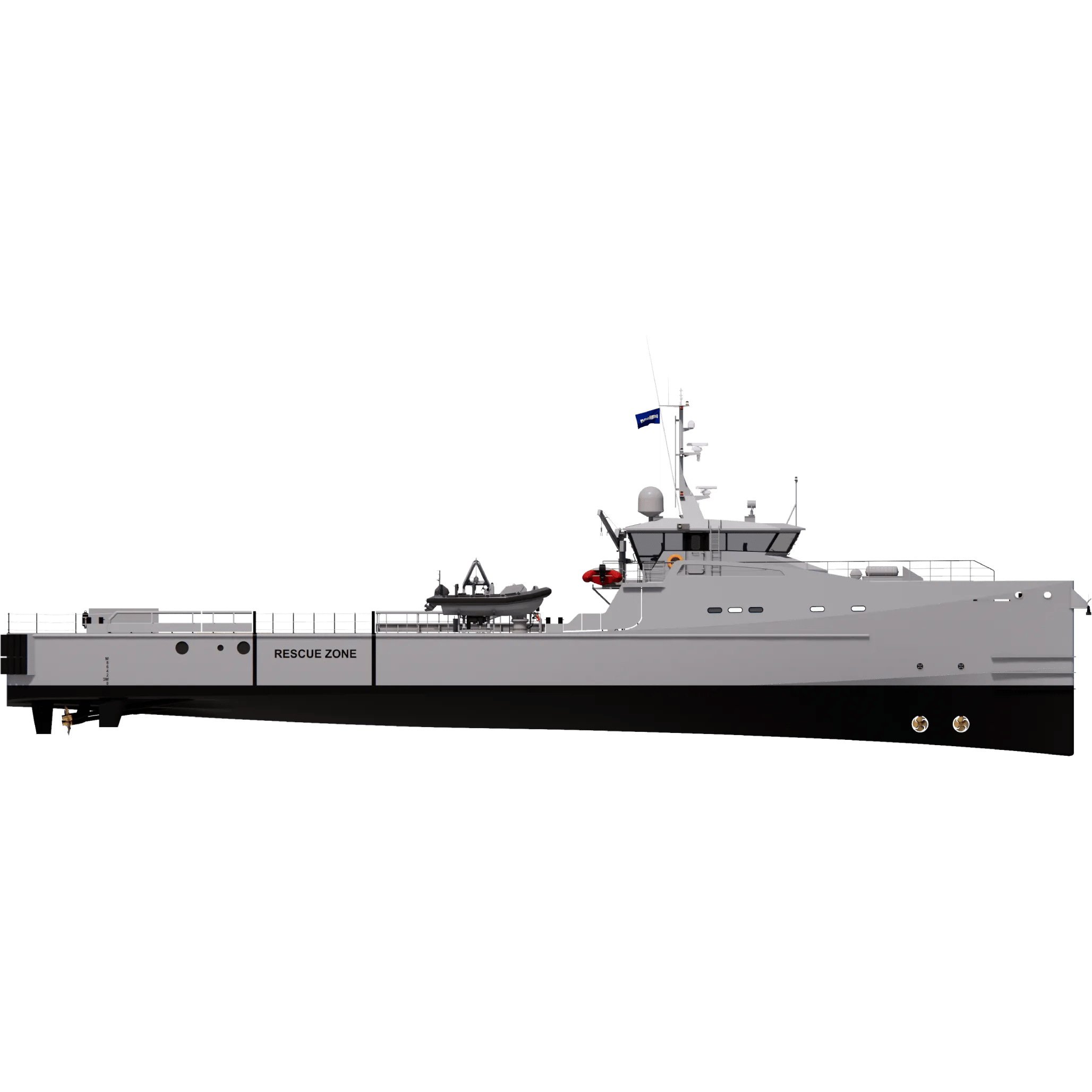

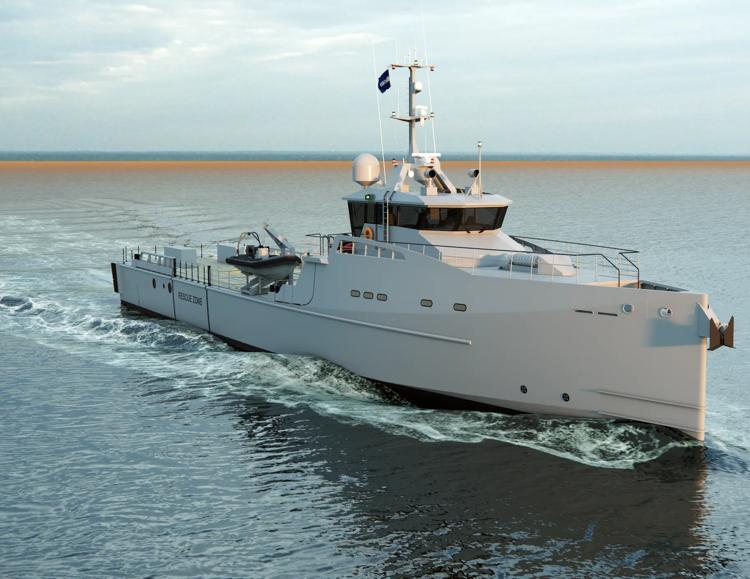

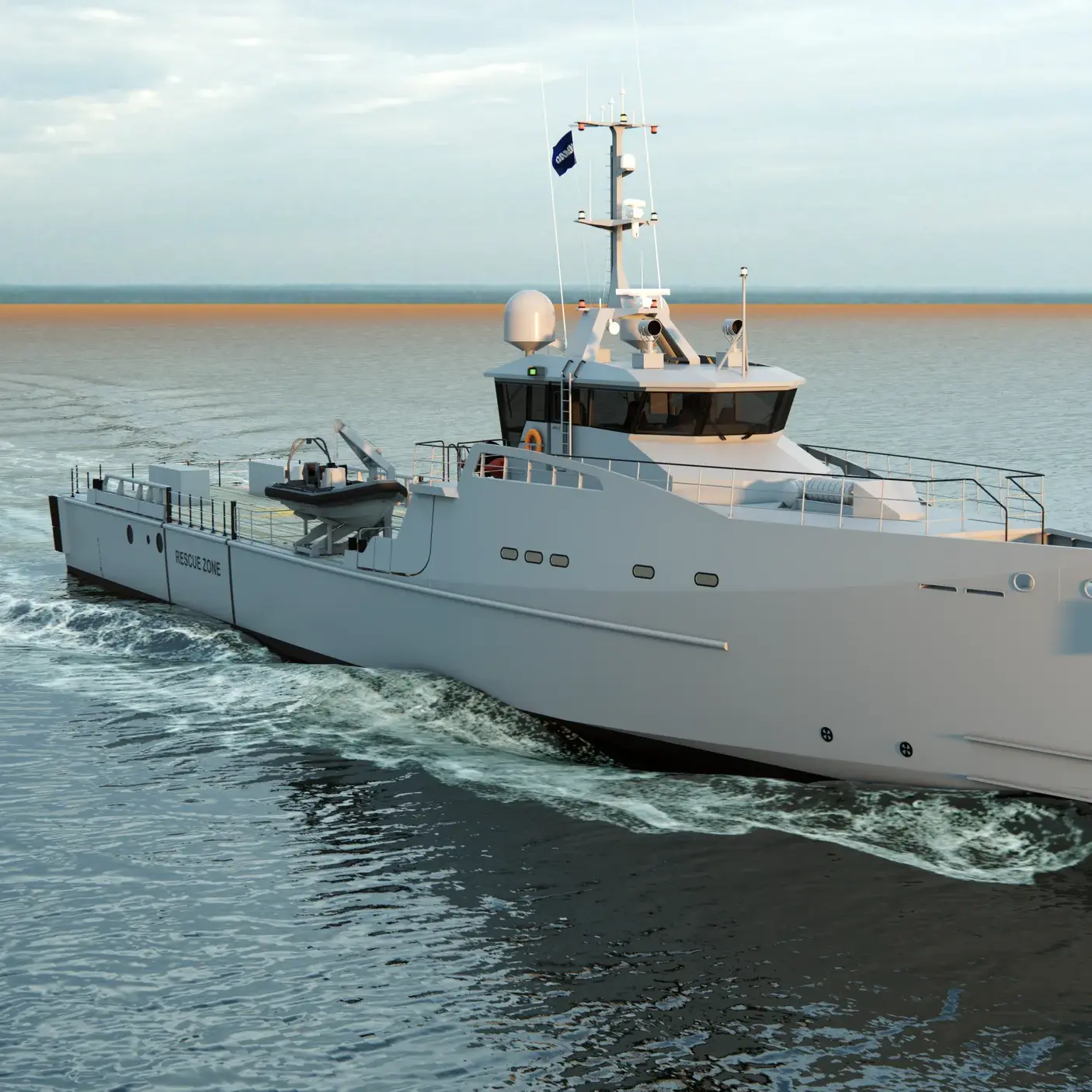

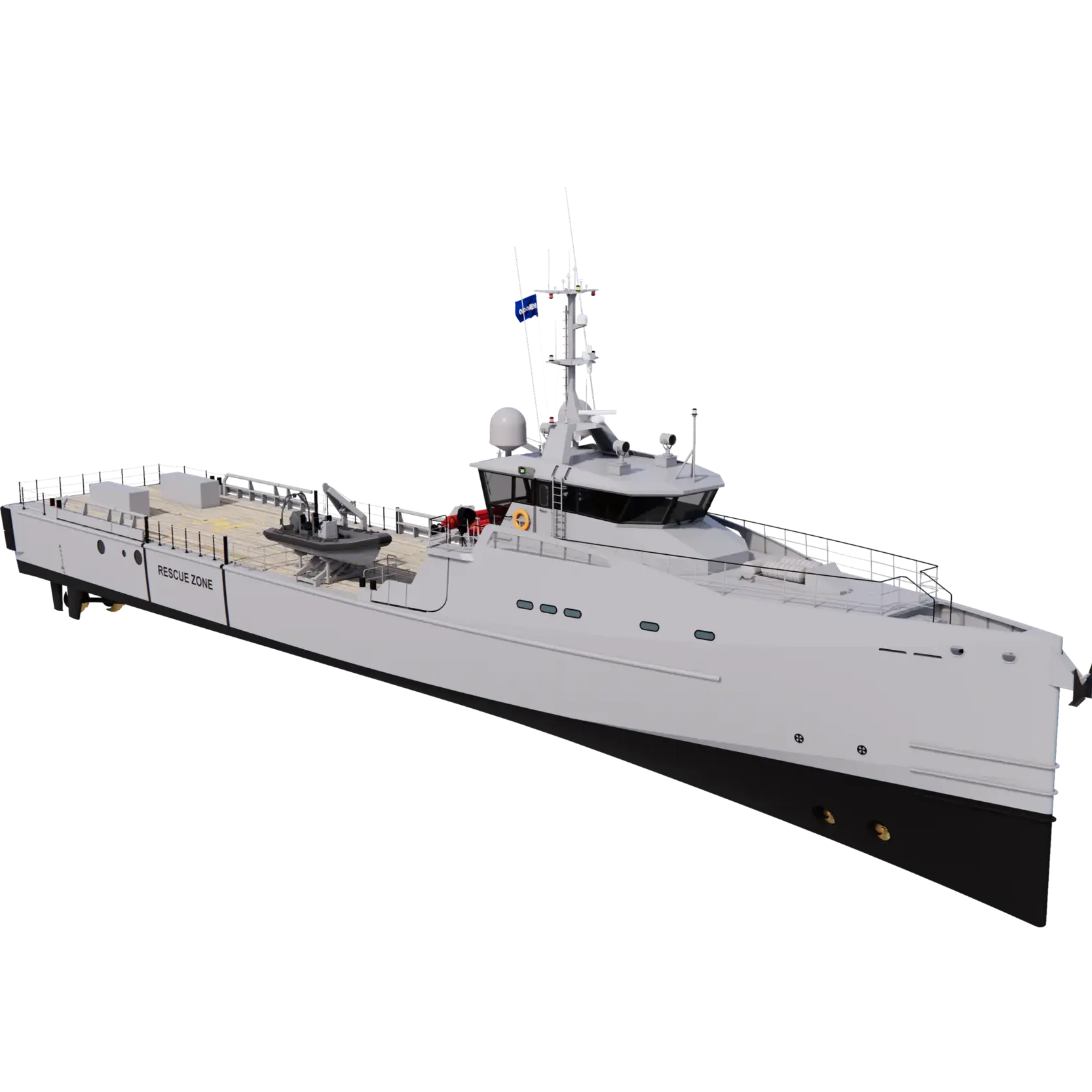

VSX 5209 Patrol
The VSX 5209 Patrol is a highly efficient and flexible vessel for patrol tasks in any waters. The Sea Axe hull shape guarantees the best seakeeping performance at high speeds. The combination of superior seakeeping and the position of the wheelhouse results in the highest possible level op operability. The long and slender Sea Axe hull offers exceptionally low resistance, delivering excellent fuel efficiency at all speeds.

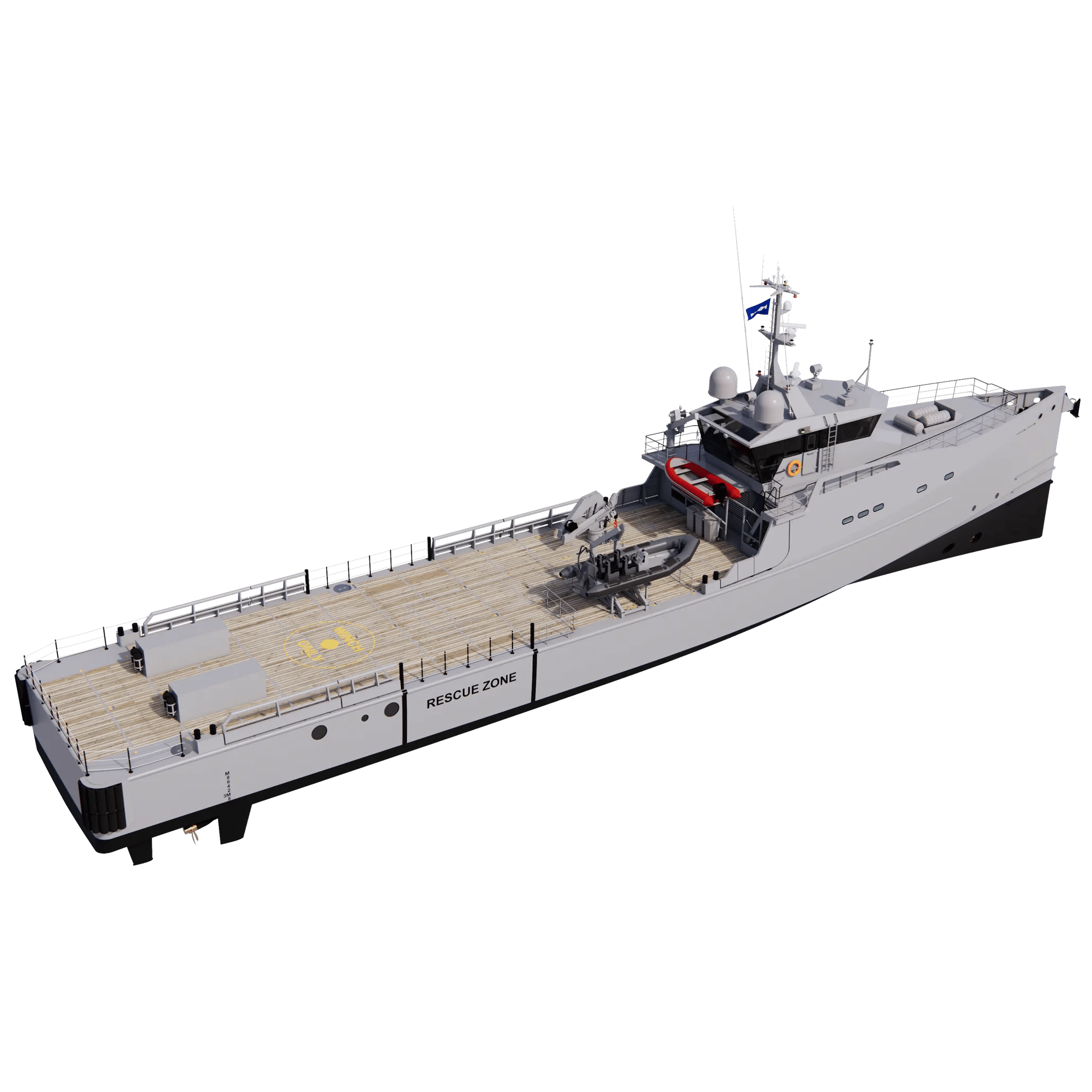

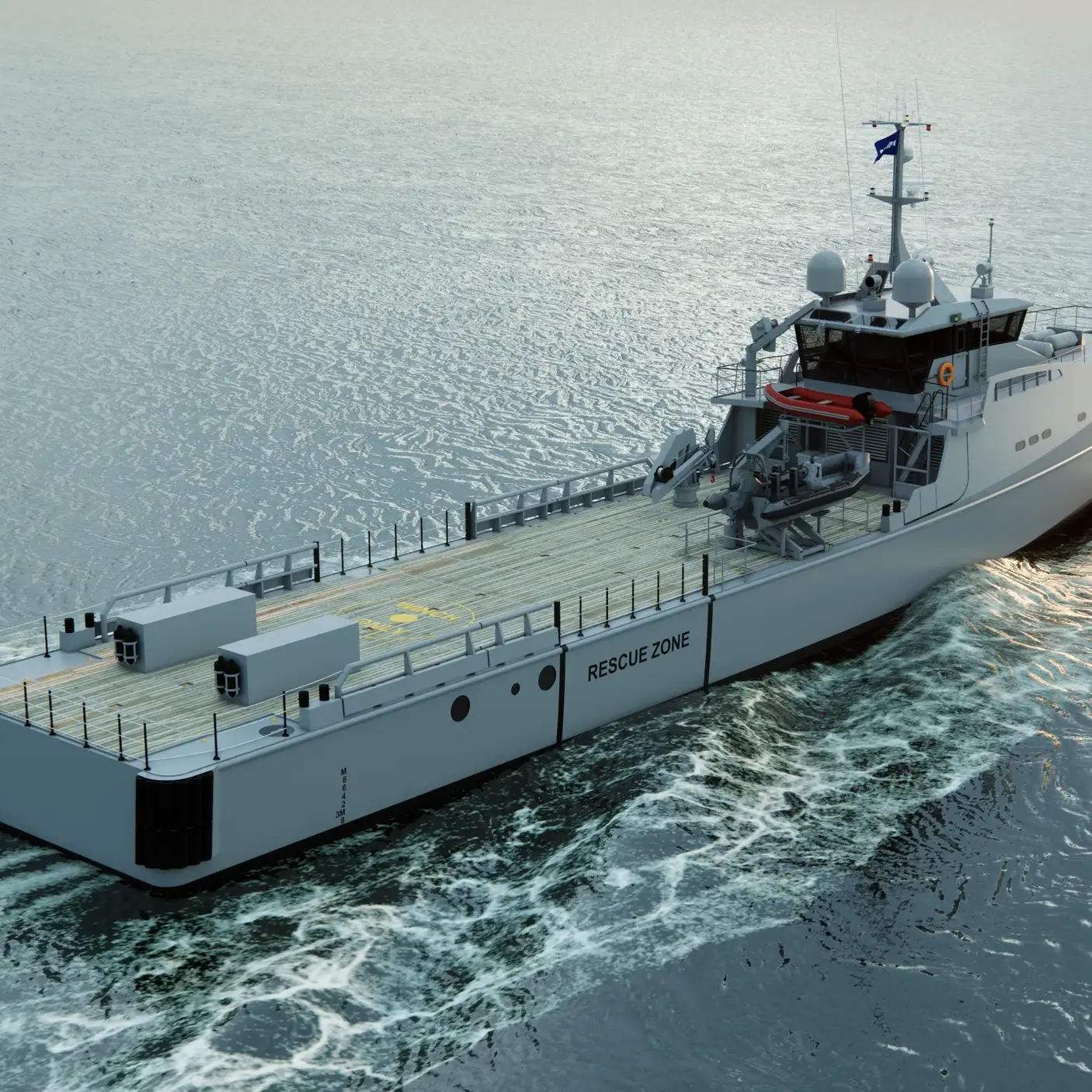

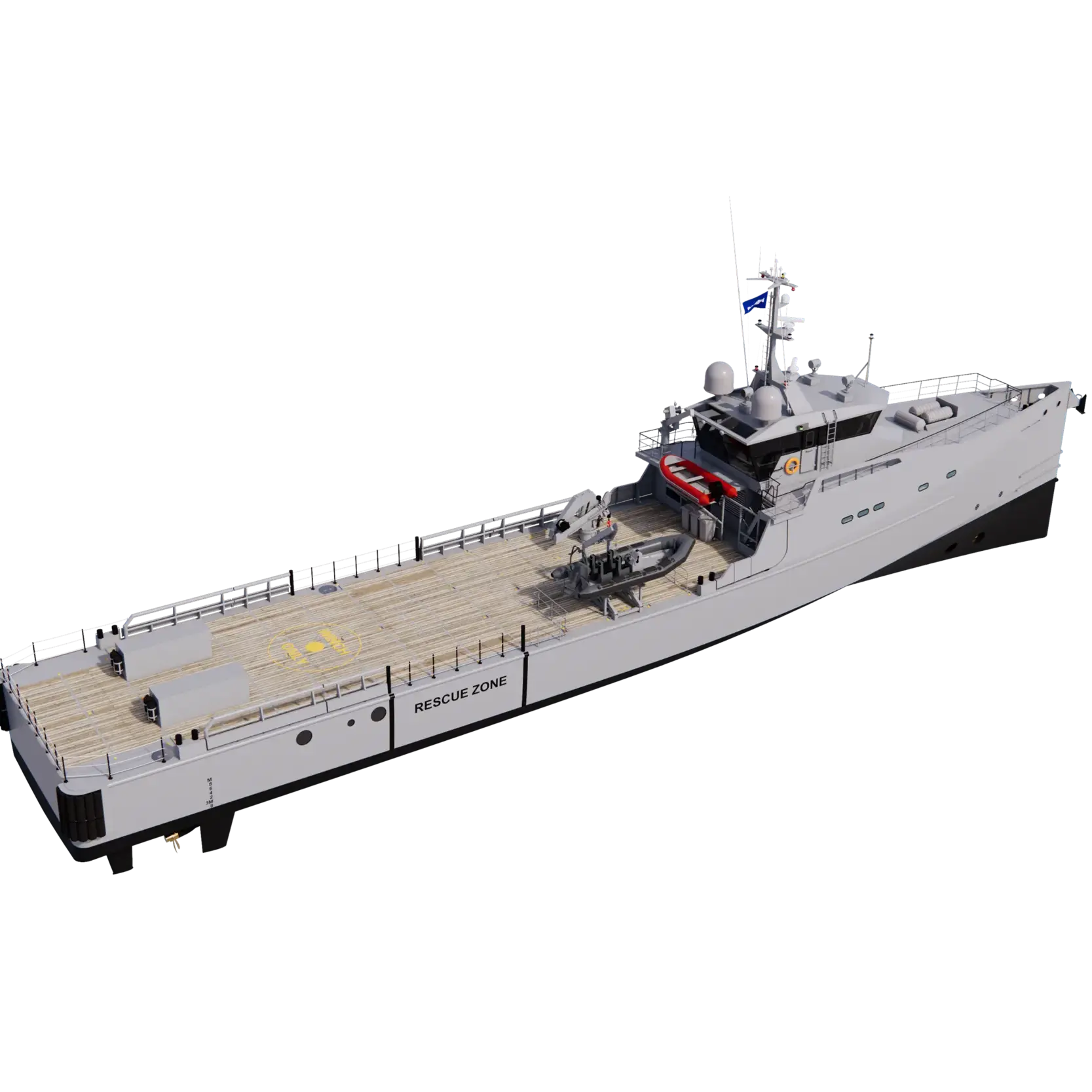

- Wooden aft deck
- IMO Tier III compliant
- Deck crane
- Davit system and daughter craft
- 2x 1200 m³ fire fighting
- Suitable for patrol duties, maritime safety, securing economical waters & coastal boundaries and search and rescue
- The aft deck can be configured to meet multiple mission requirements
- Exceptional fuel efficiency in every sea condition
- More than 1000 patrol vessels delivered to police forces, coast guards and navies
Key figures
53.2
24
240
18
Steel
Dimensions
- Length o.a.
- 53.2 m
- Beam o.a.
- 9.8 m
- Depth at sides
- 4.7 m
- Draught max
- 3.5 m
- Hull material
- Steel
- Superstructure
- Aluminium
Capacities
- Crew
- Up to 8 persons
- Bunks
- Up to 18
- Fuel oil
- 169.9 m³
- Fresh water
- 28.6 m³
- Liquid cargo
- 134 m³
- Sewage
- 7.1 m³
Performance
- Speed
- Up to 24 knots
- Range at 22 knots
- Up to 3,100 nm
Do you want to know more?
Compare similar patrol vessels
| Length (m) | Speed max (kn) | Deck area (m²) | Patrol personnel | Hull construction | ||
|---|---|---|---|---|---|---|
| VSX 5209 Patrol | 53.2 | 24 | 240 | 18 | Steel | |
| FCS 4208 Patrol | 43.2 | 30 | 115 | 20 | Aluminium | |
| FCS 3307 Patrol | 34.2 | 30 | 75 | 14 | Aluminium |
VSX 5209 Patrol
- Length (m)
- 53.2
- Speed max (kn)
- 24
- Deck area (m²)
- 240
- Patrol personnel
- 18
- Hull construction
- Steel
- Length (m)
- 43.2
- Speed max (kn)
- 30
- Deck area (m²)
- 115
- Patrol personnel
- 20
- Hull construction
- Aluminium
- Length (m)
- 34.2
- Speed max (kn)
- 30
- Deck area (m²)
- 75
- Patrol personnel
- 14
- Hull construction
- Aluminium
