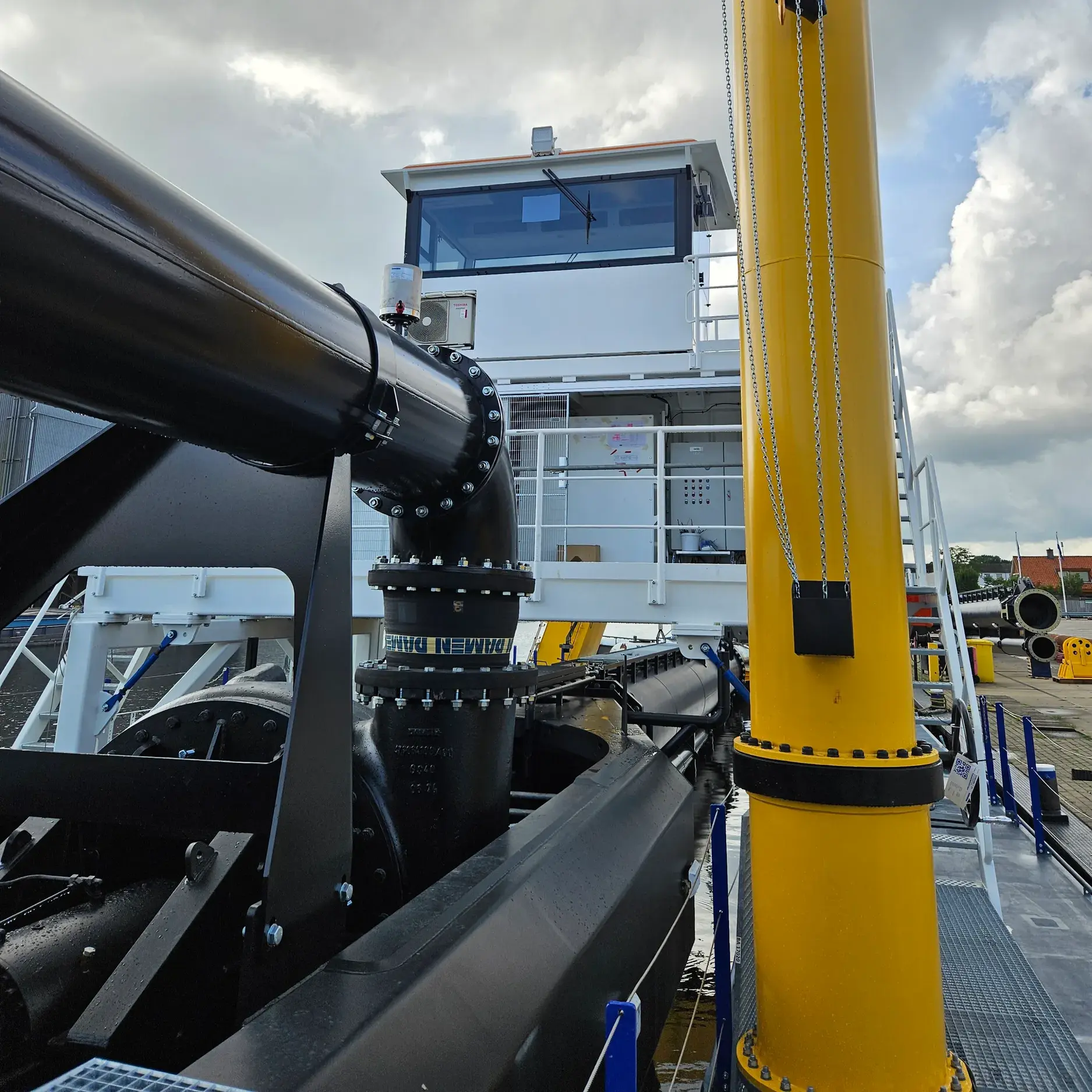

Electric Mining Dredger E-DCSD600
Electric Mining Dredger E-DCSD600

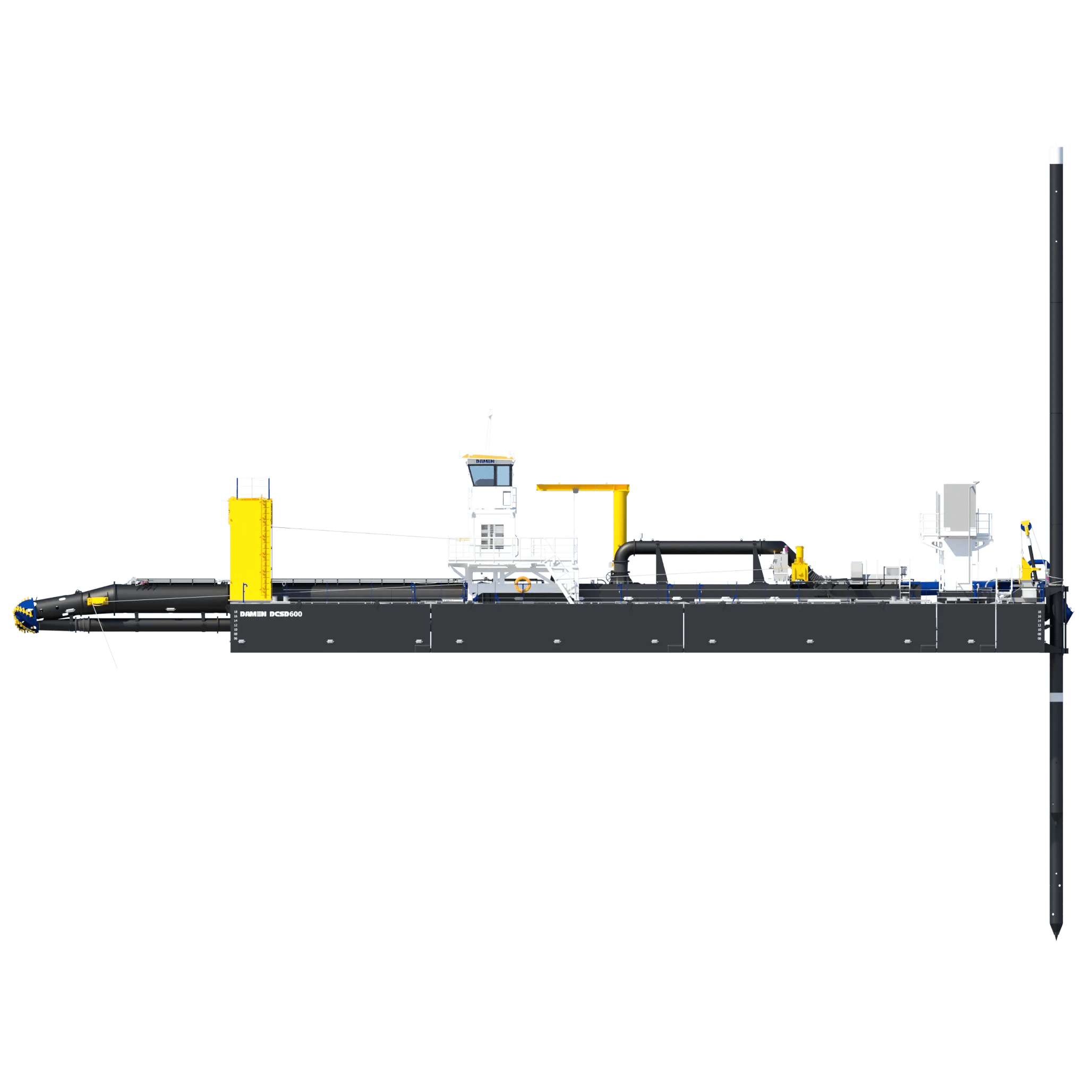

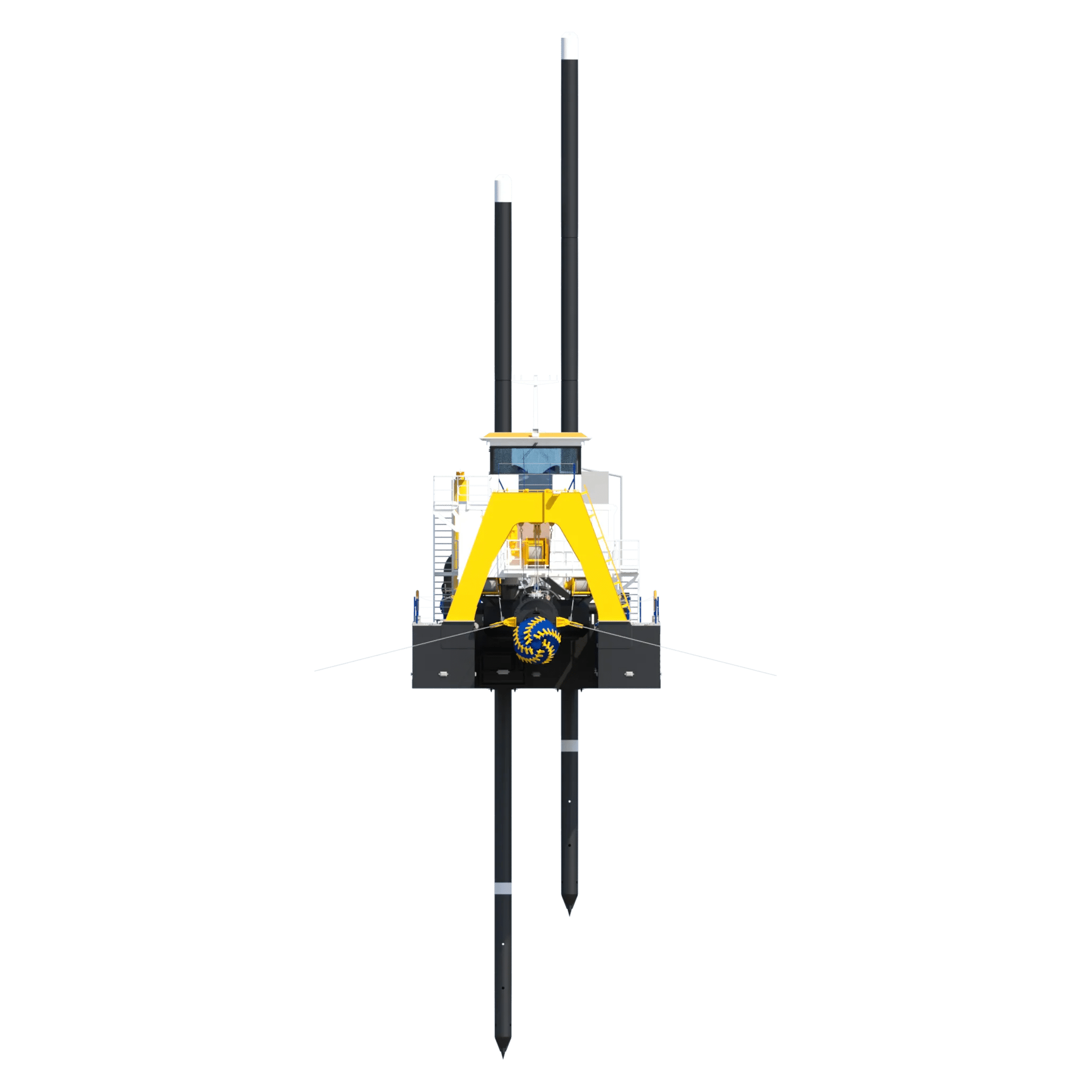

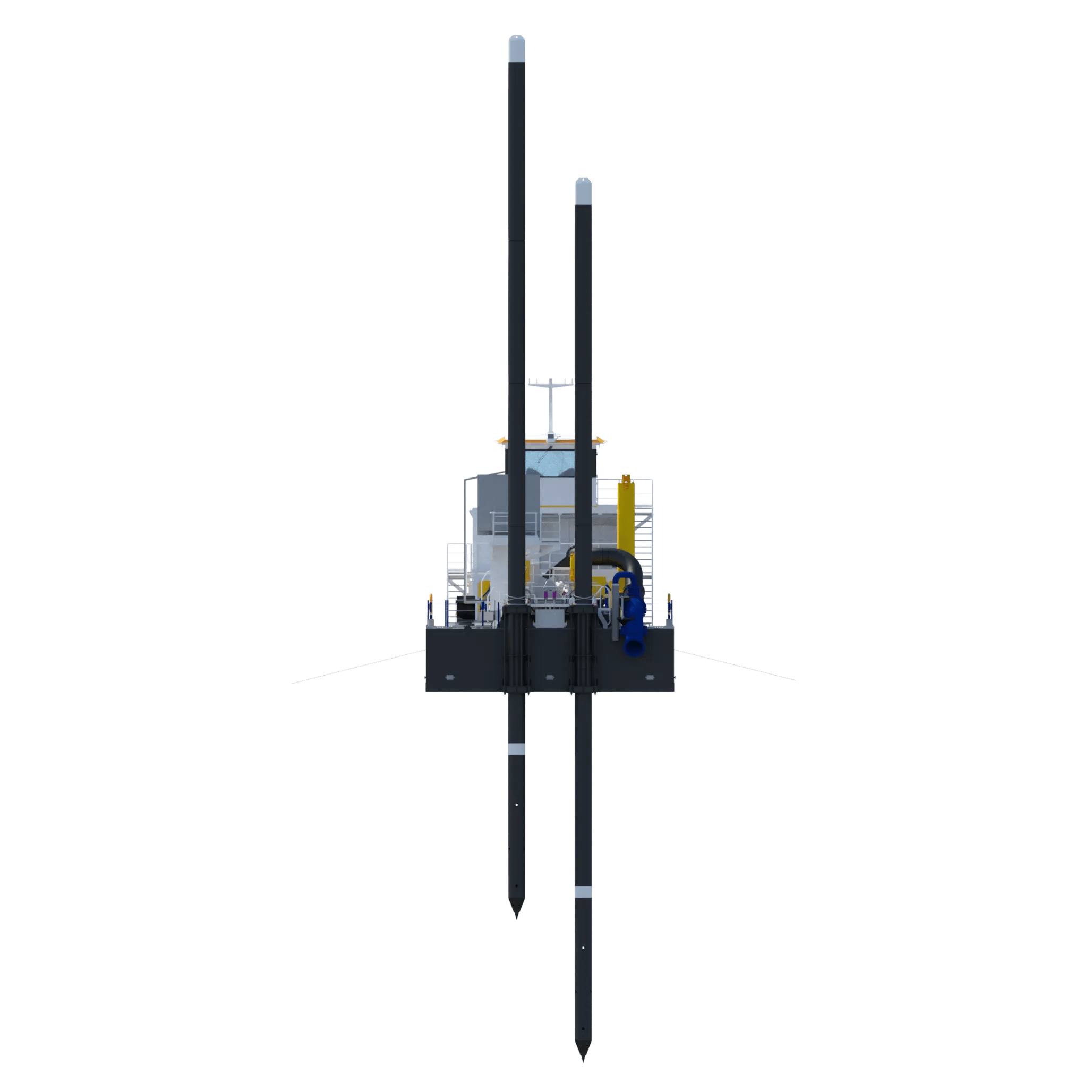

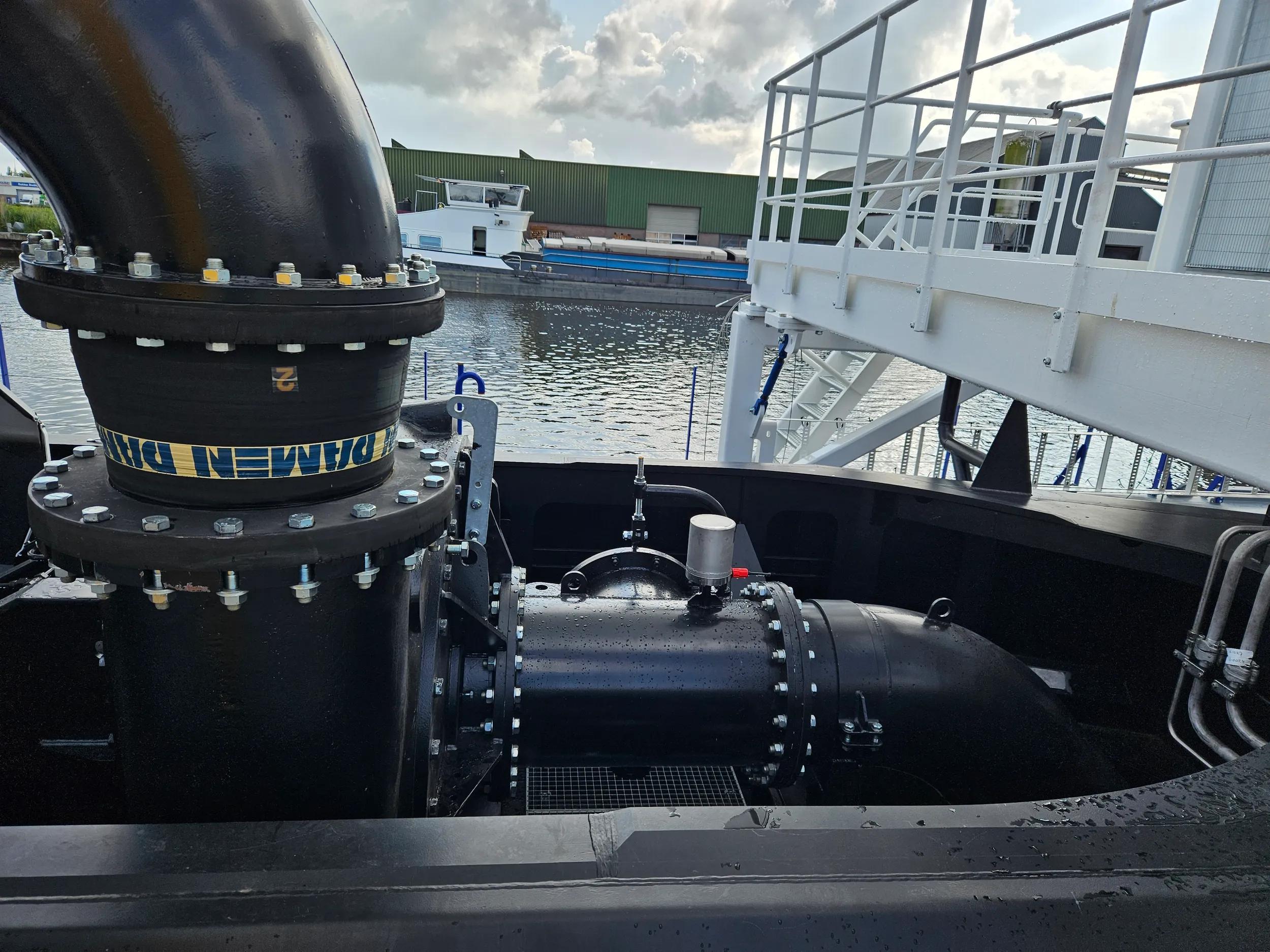

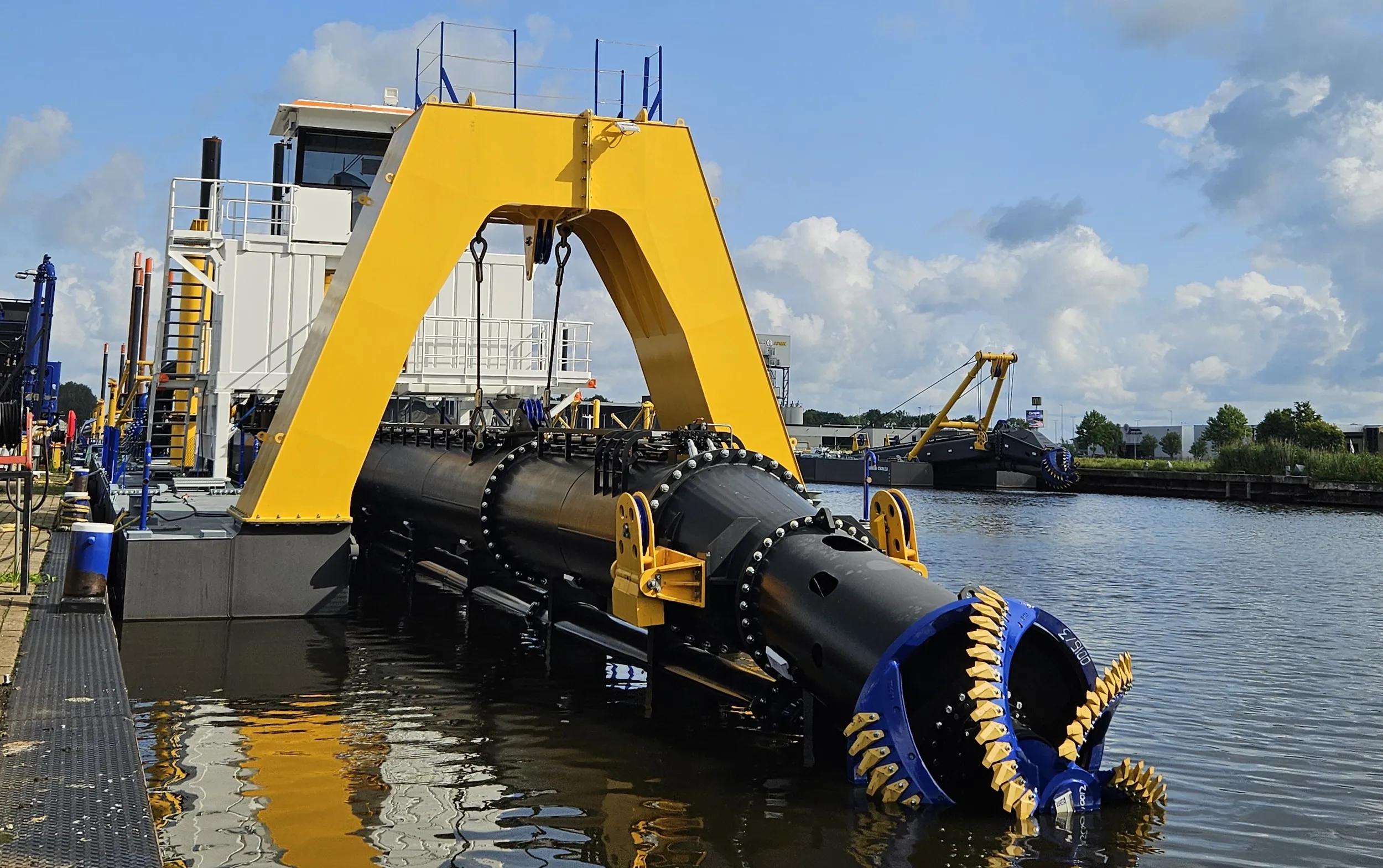

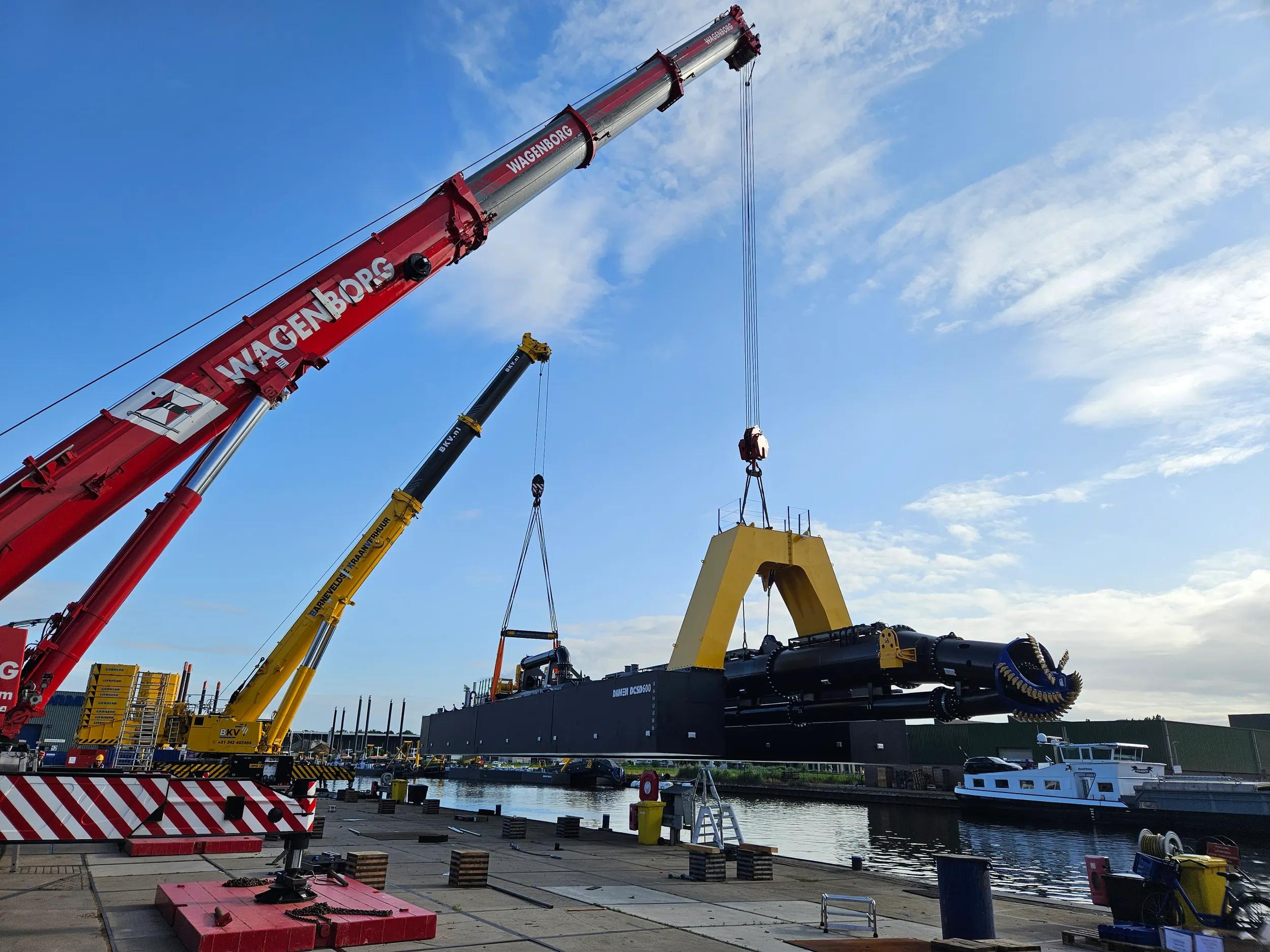

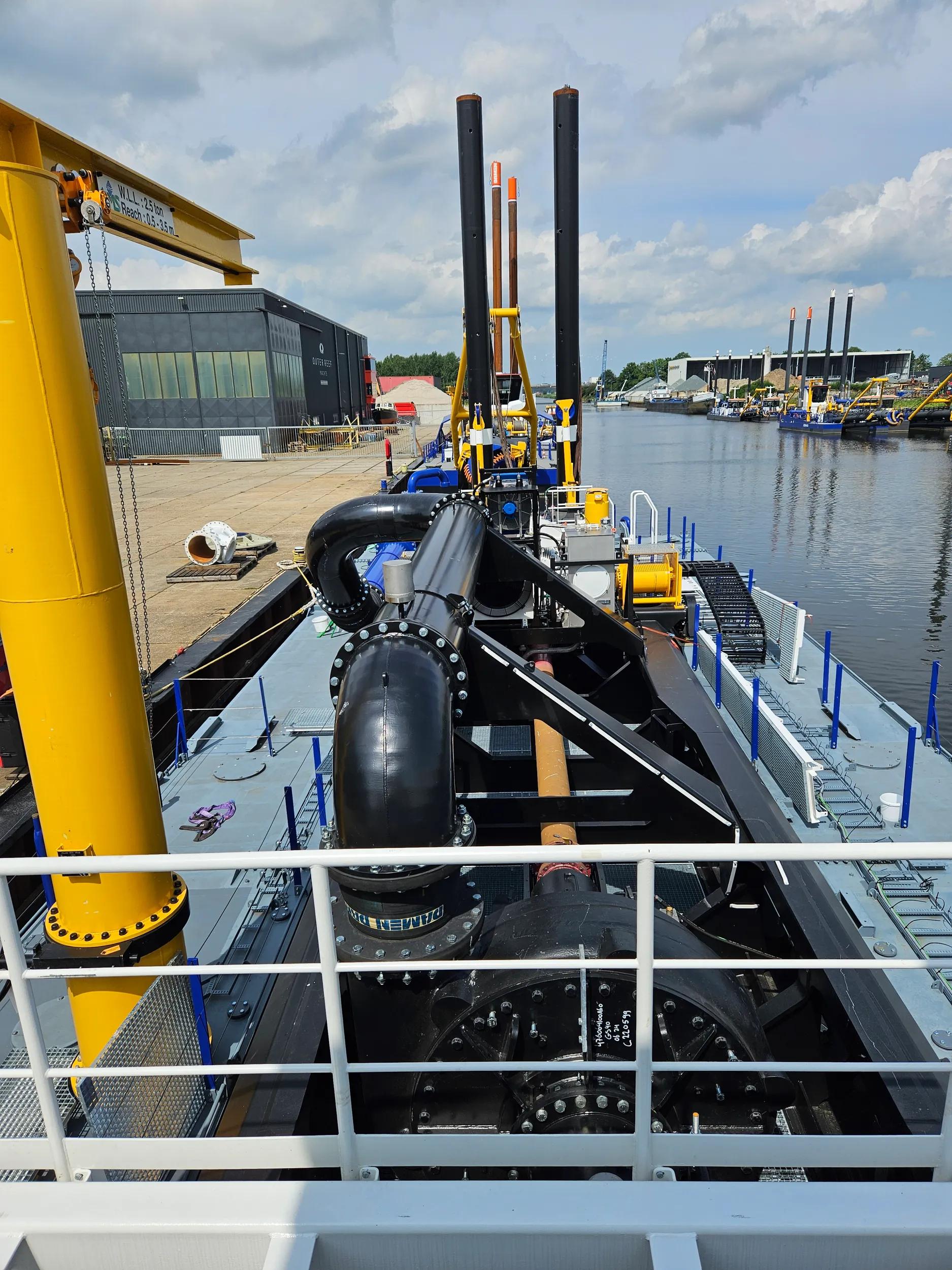

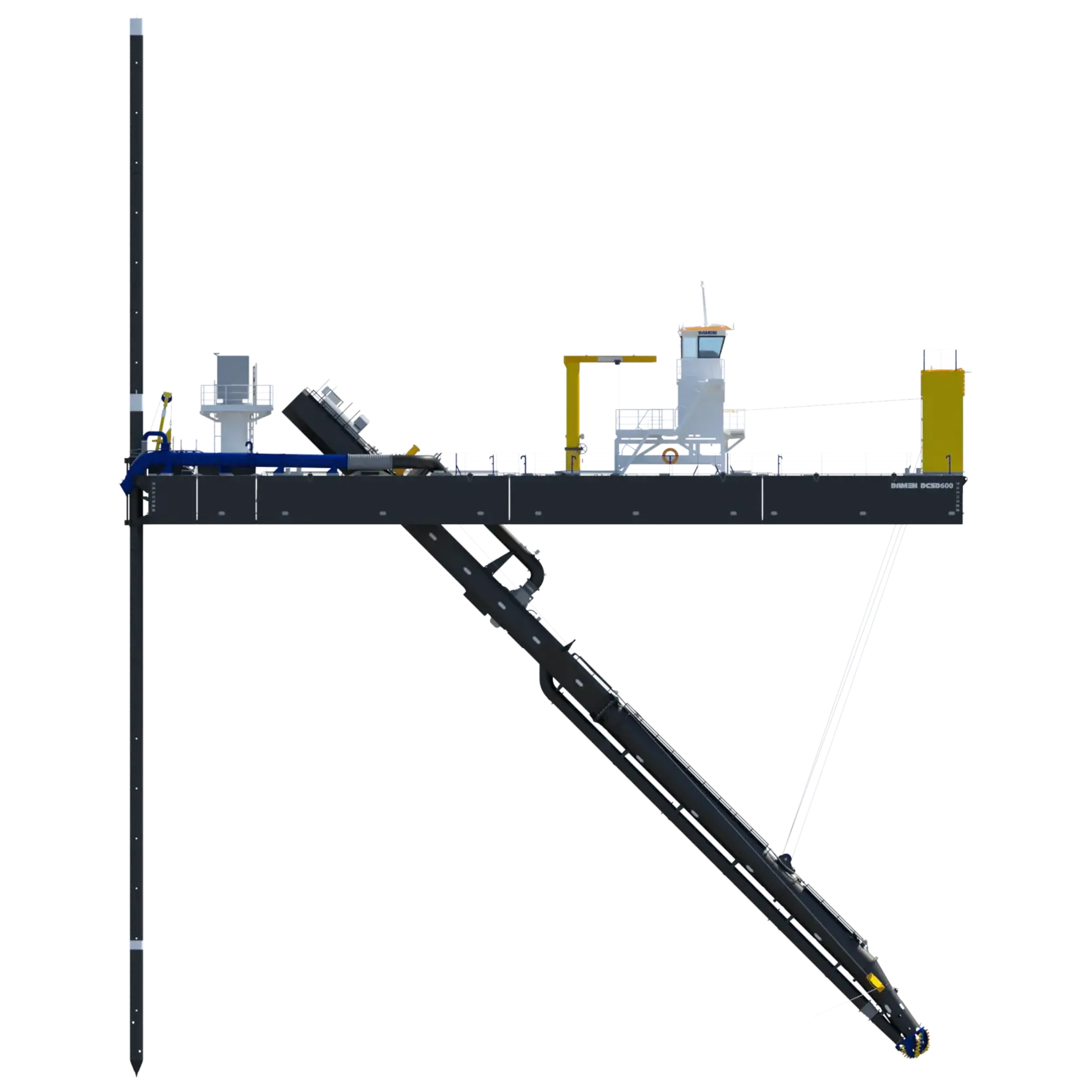

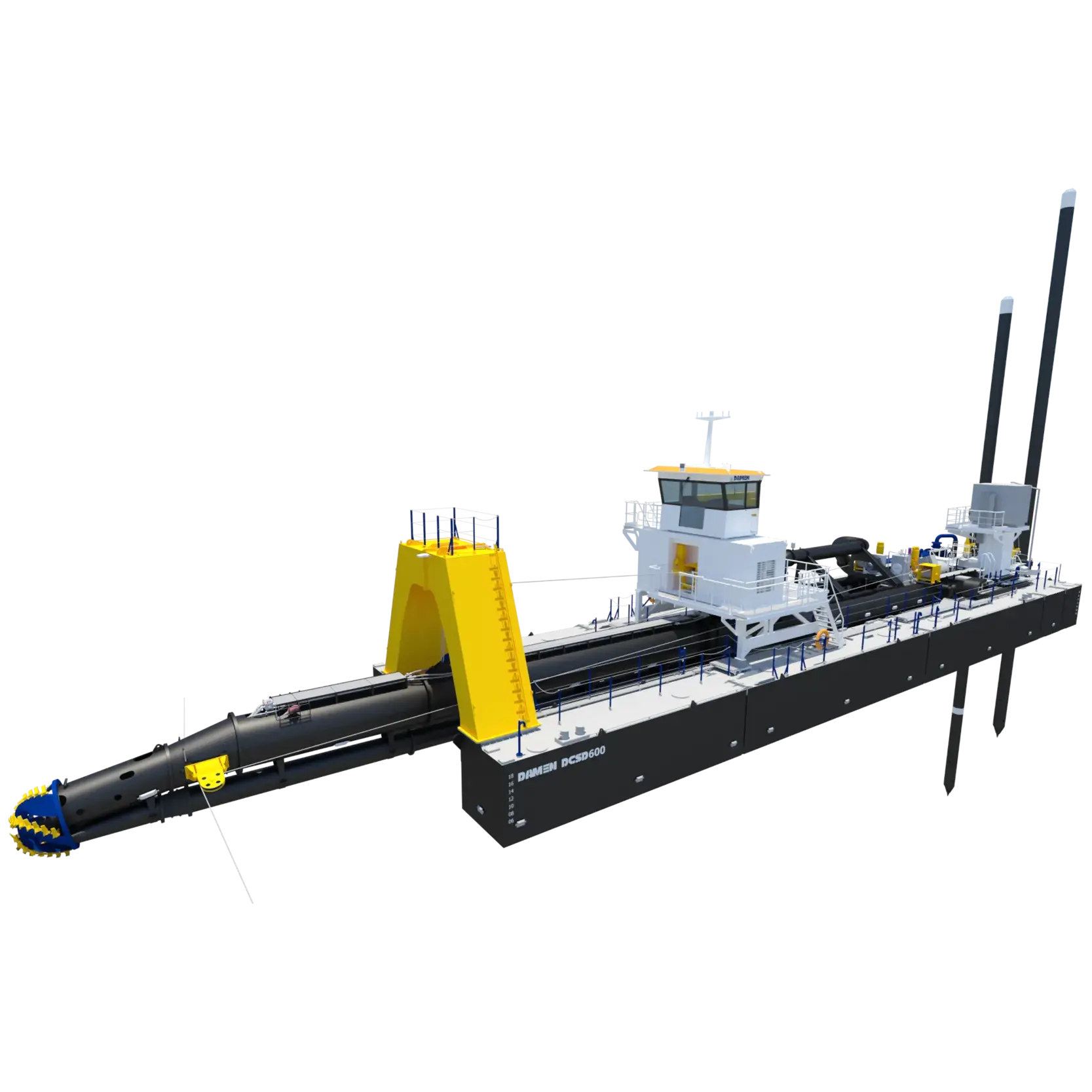

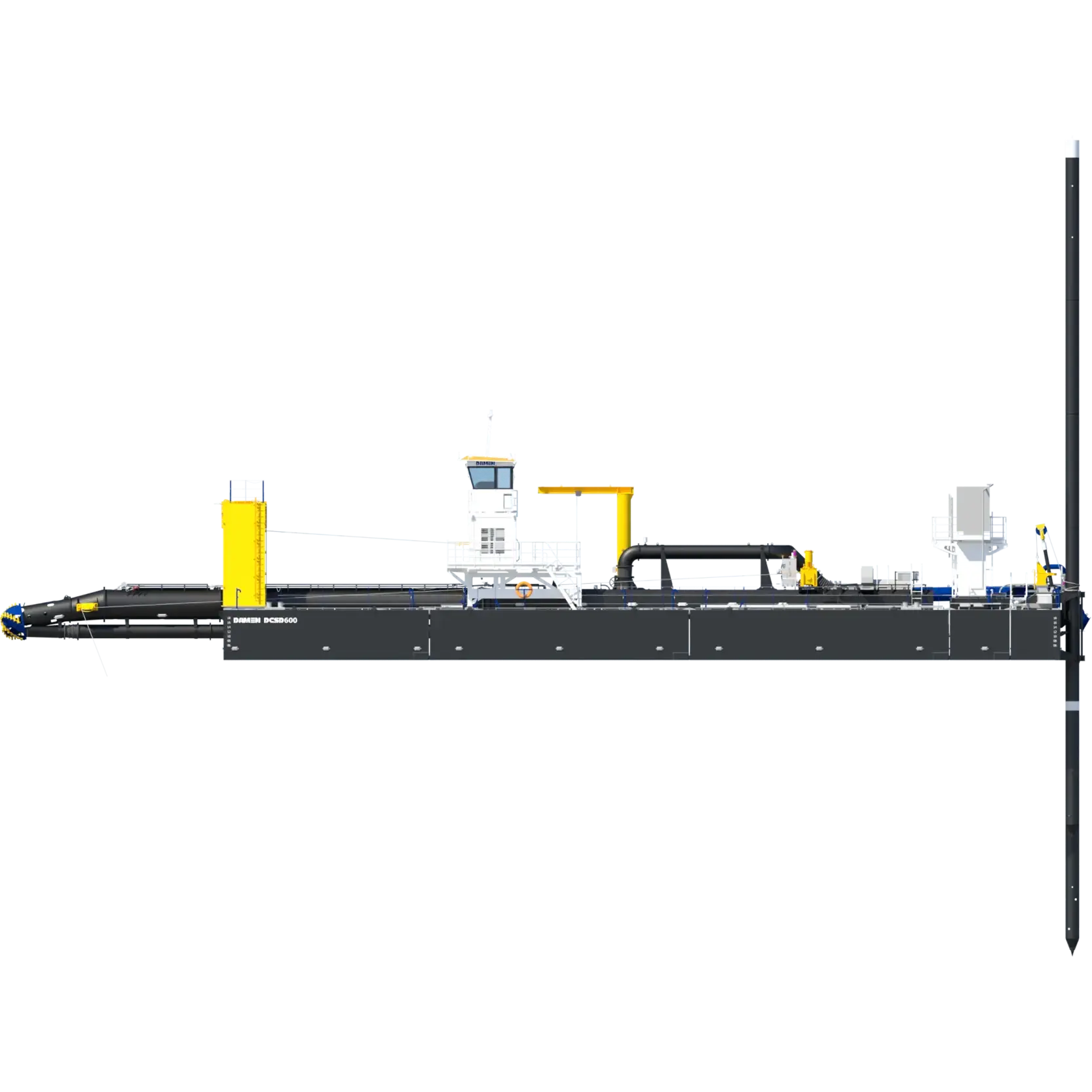

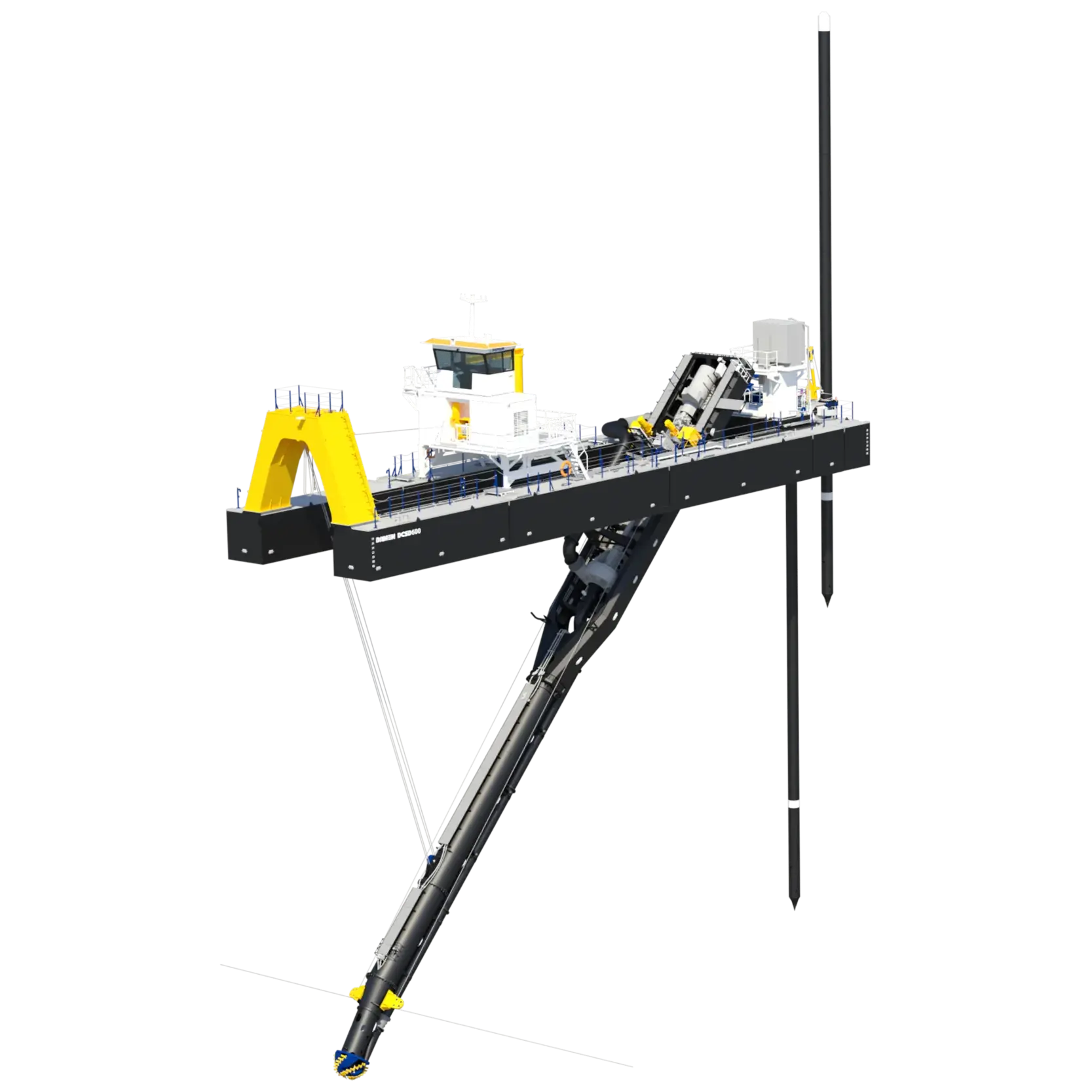

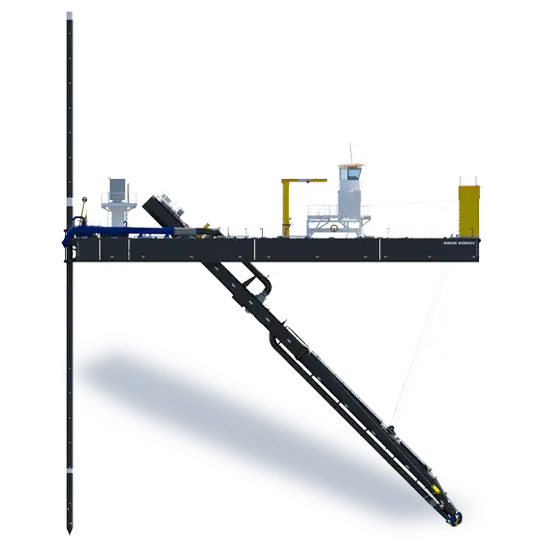

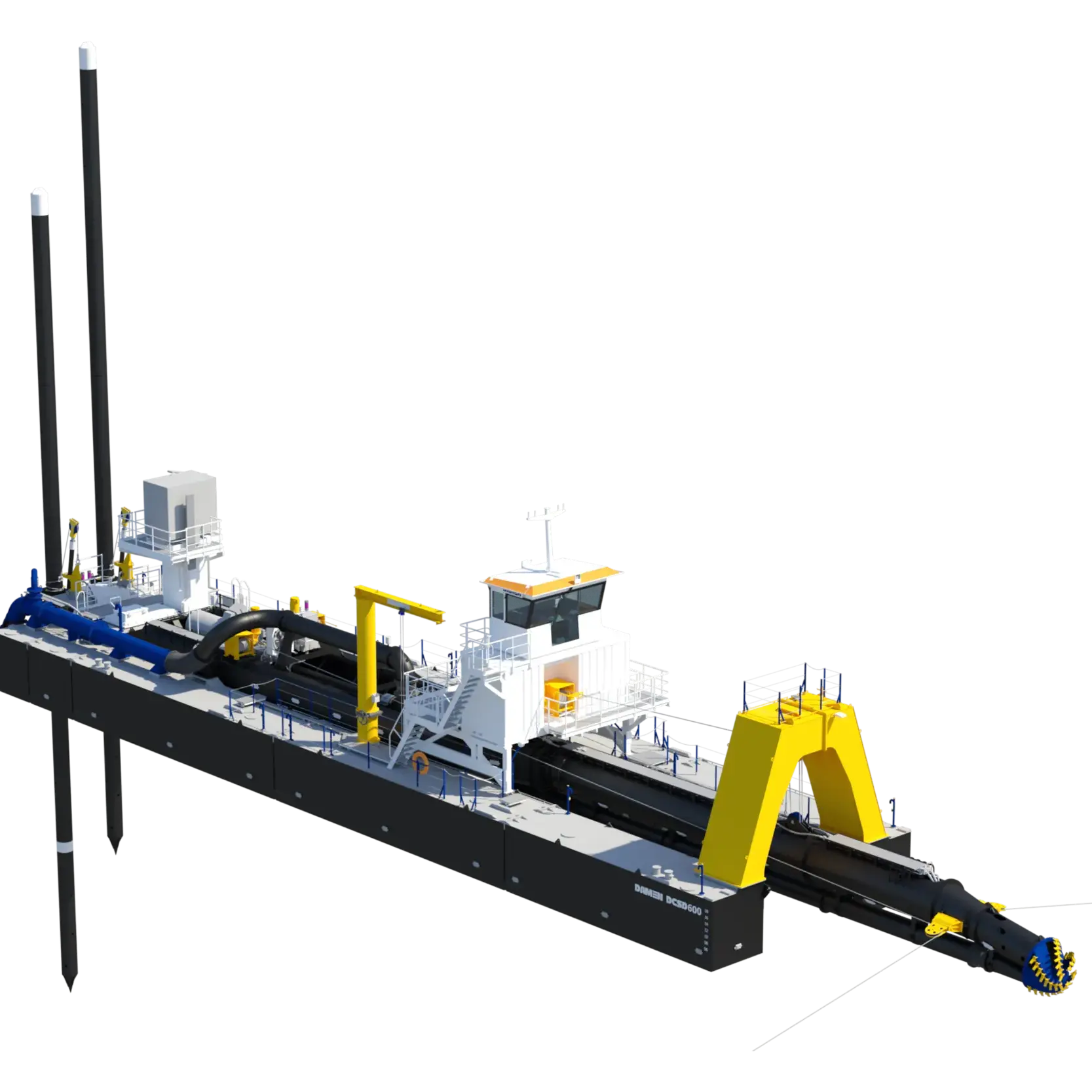

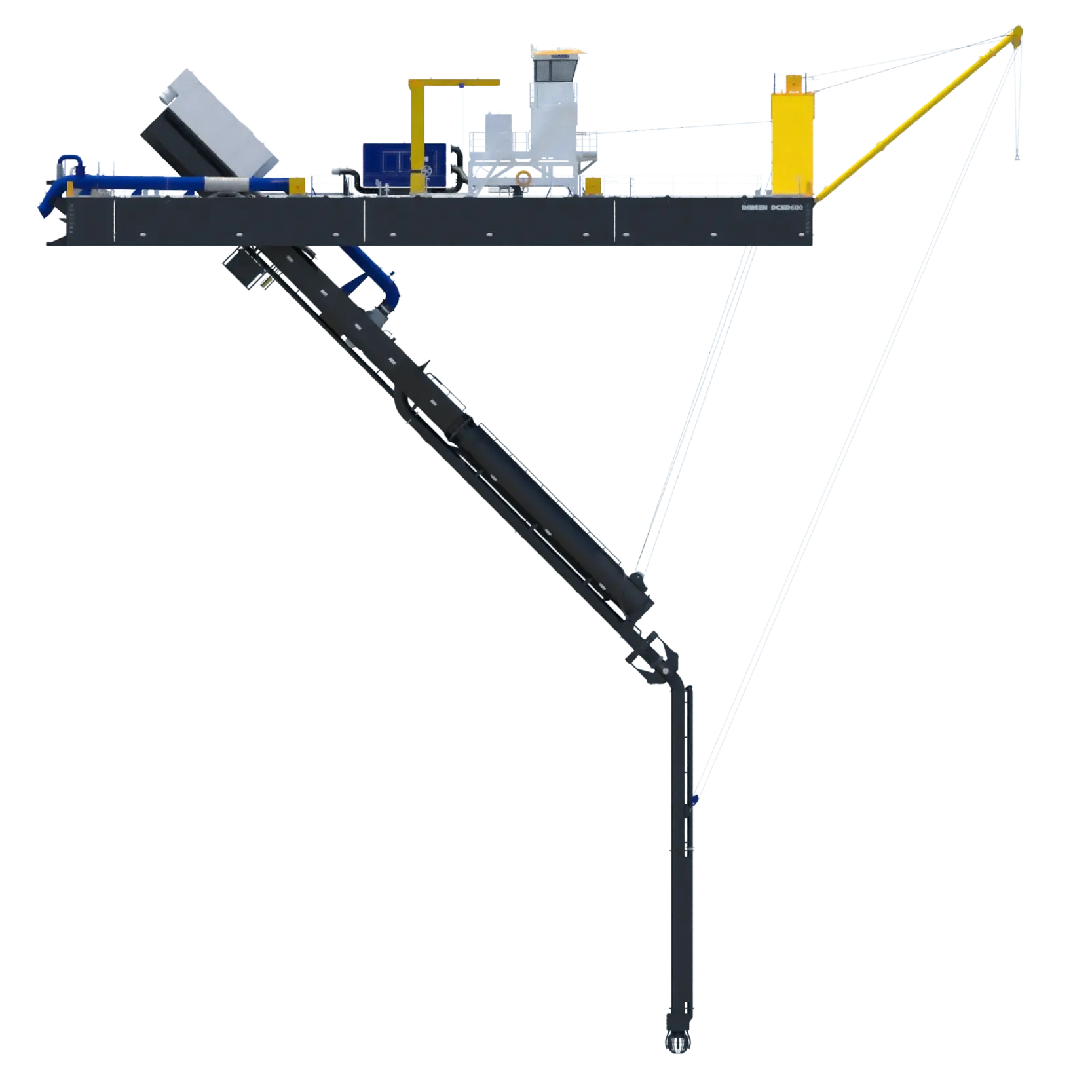

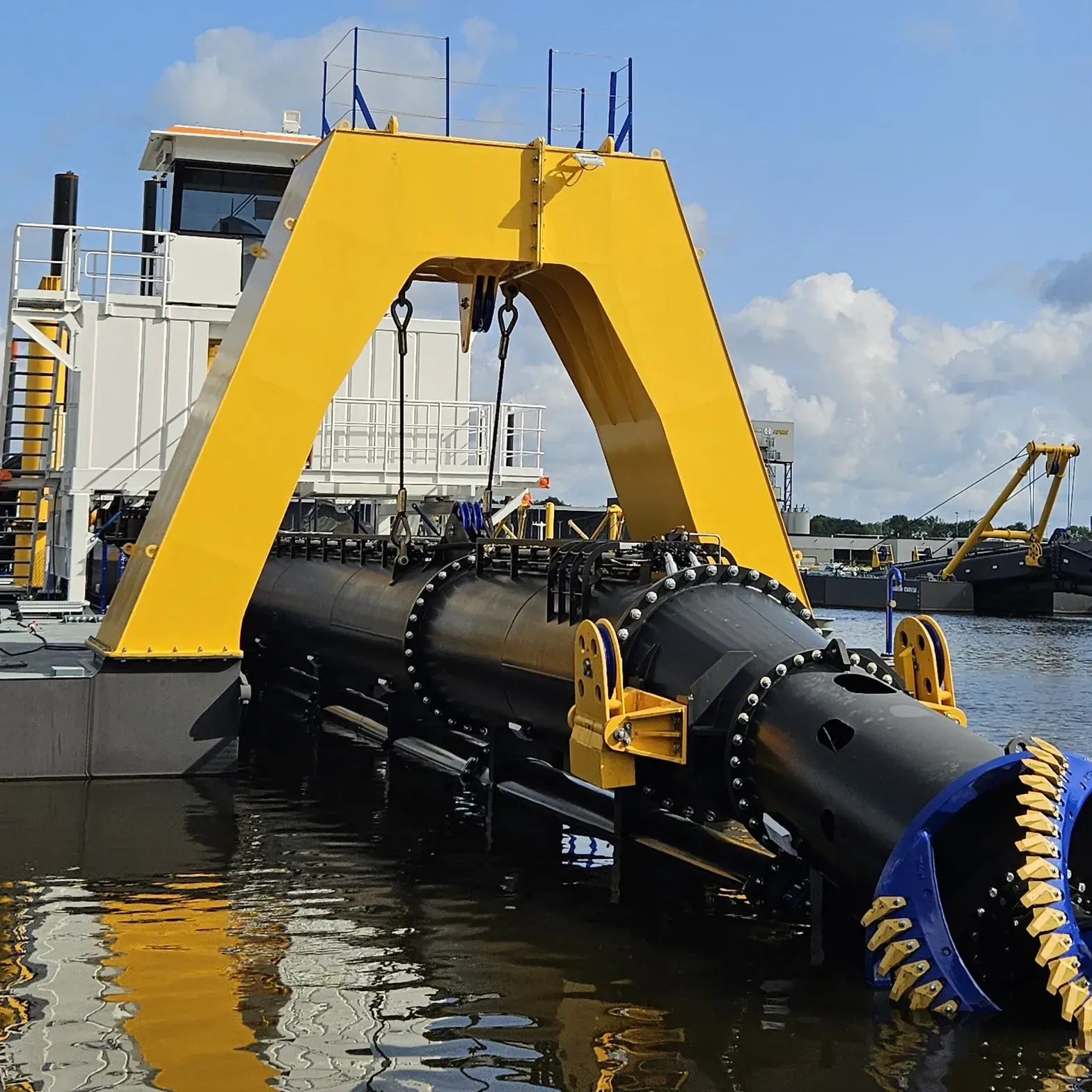

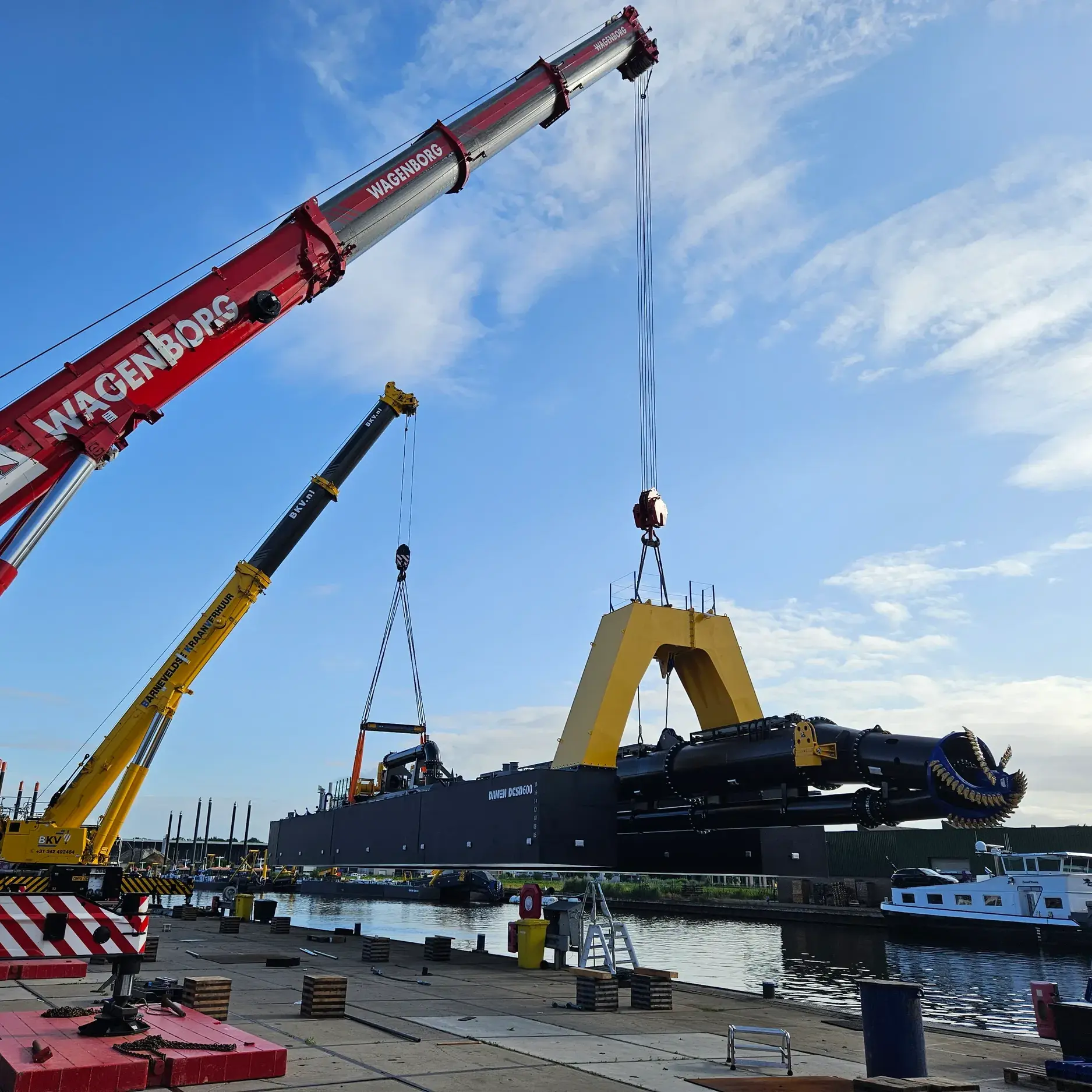

The E-DCSD600 is an electrically driven mining dredger with a submerged dredge pump and a catamaran design. The sand mining dredger, which is powered by an external power source, is available in cutter suction or plain suction configuration. The directly driven submersed dredge pump is integrated in the ladder ensuring high mixture productions. The dismountable design is easily transportable.
- Production measurement
- Position visualisation
- Communication package
- Discharge pipeline

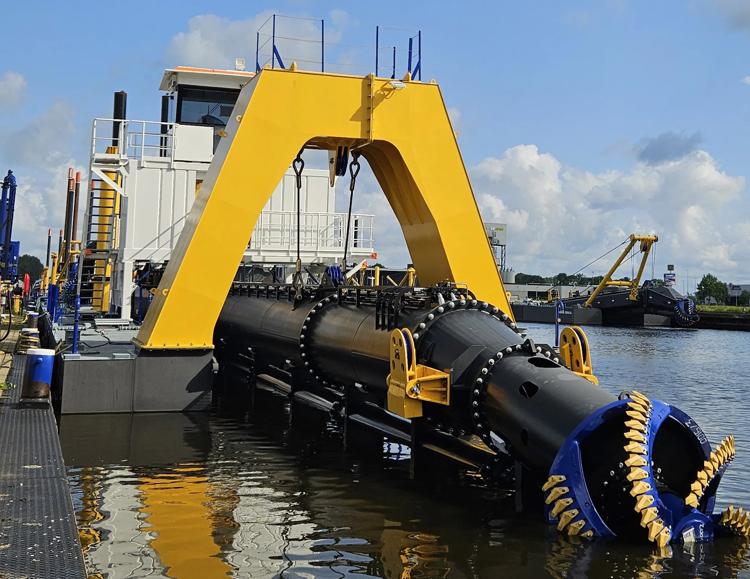

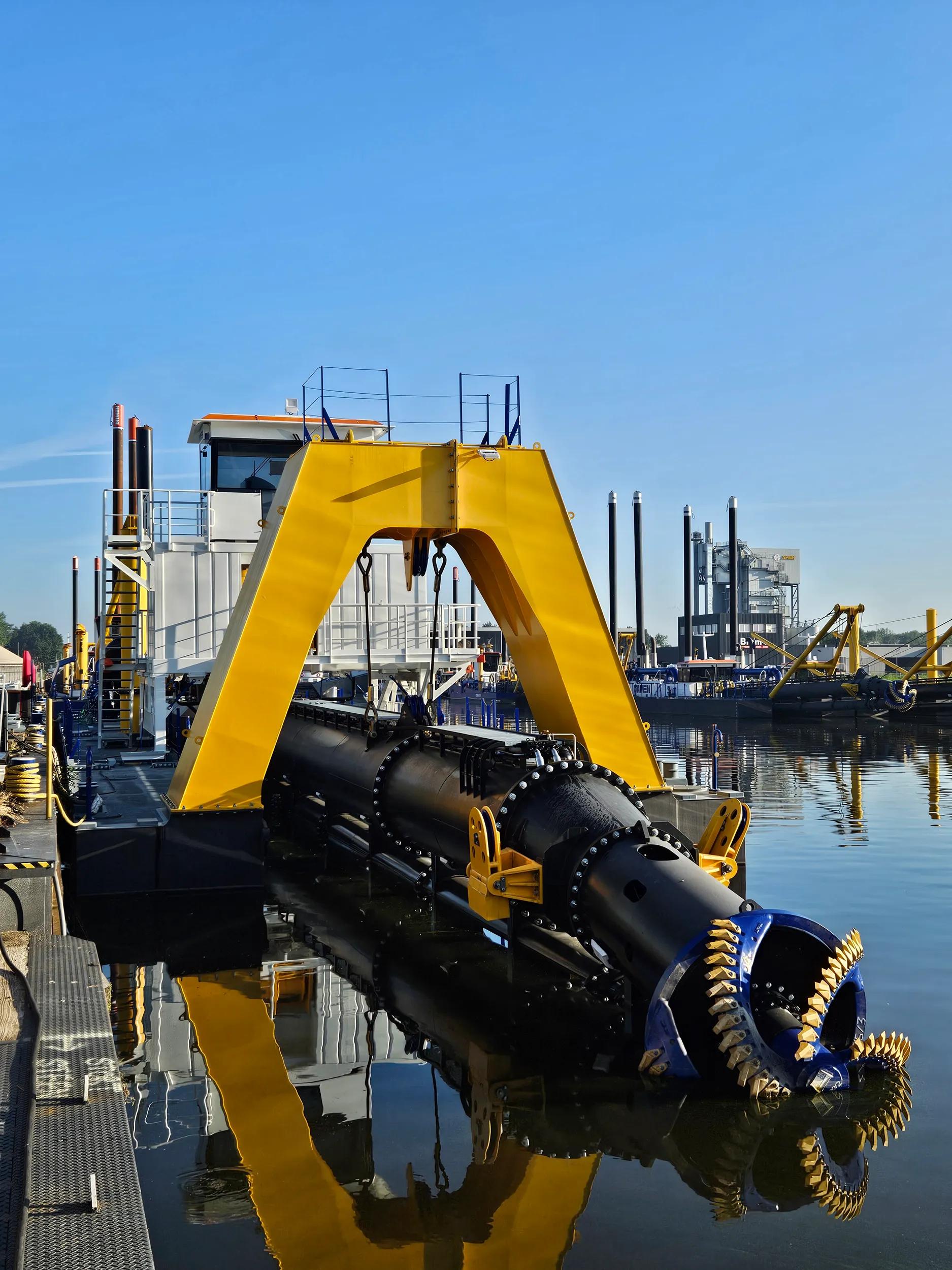

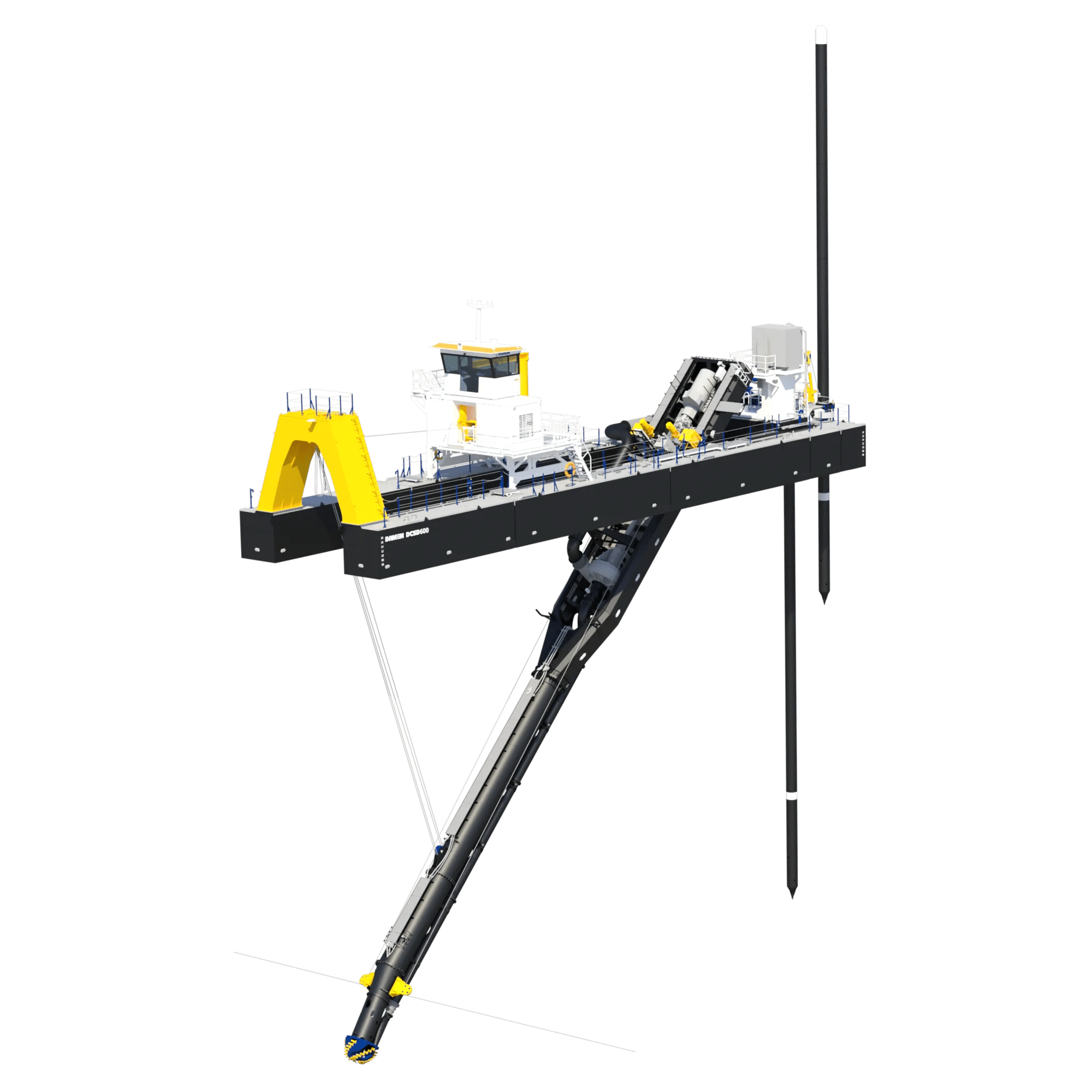

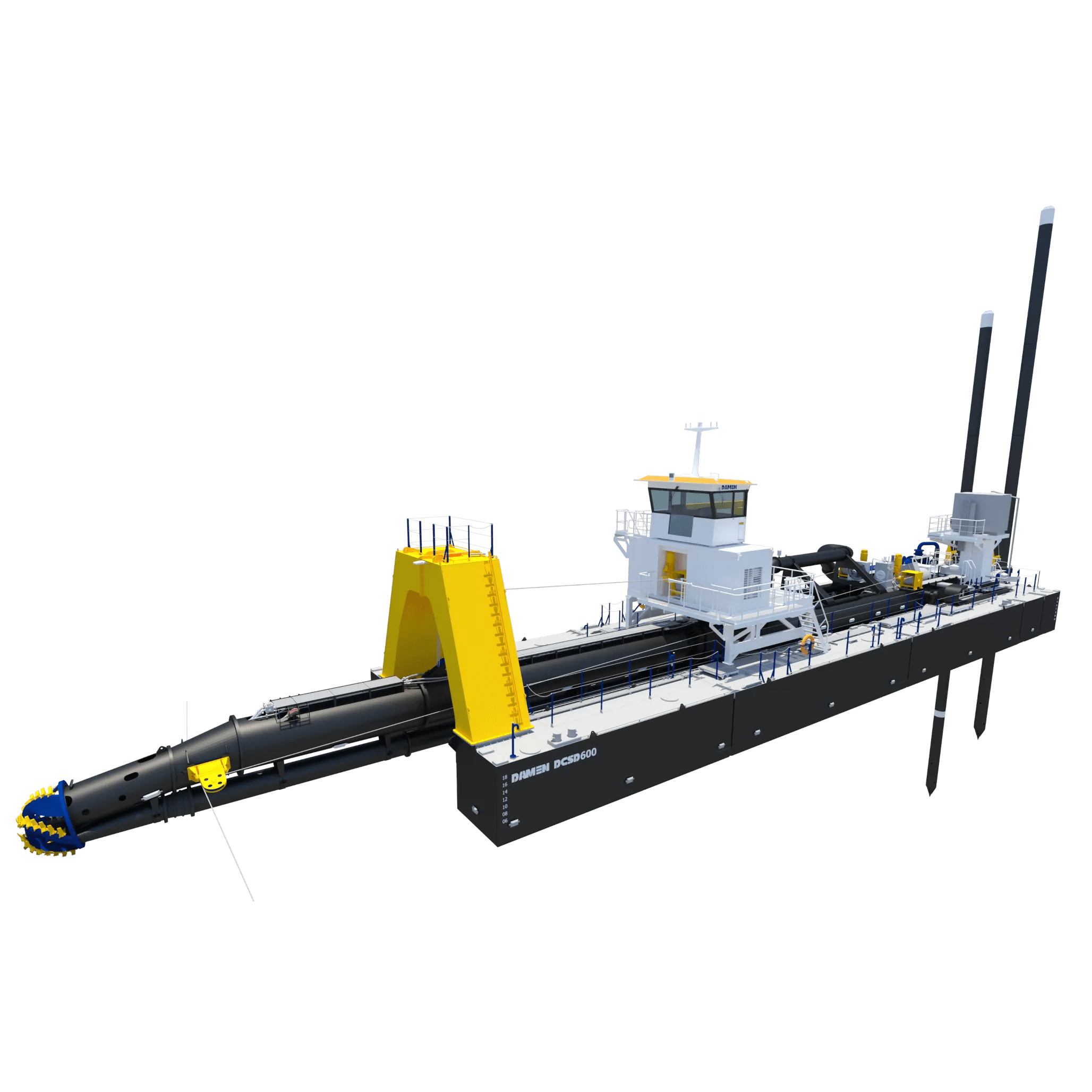

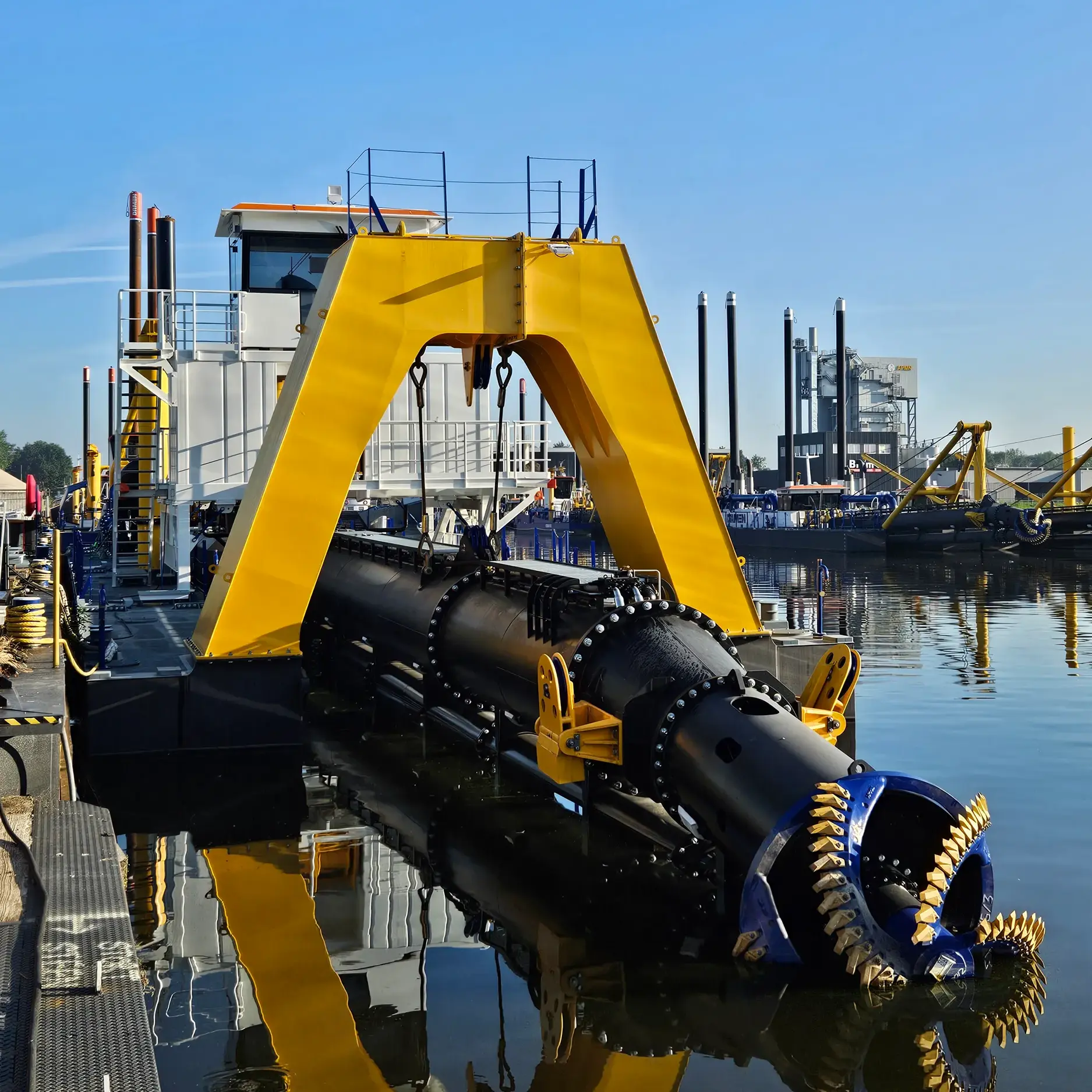

- Configurable as cutter or plain suction dredger

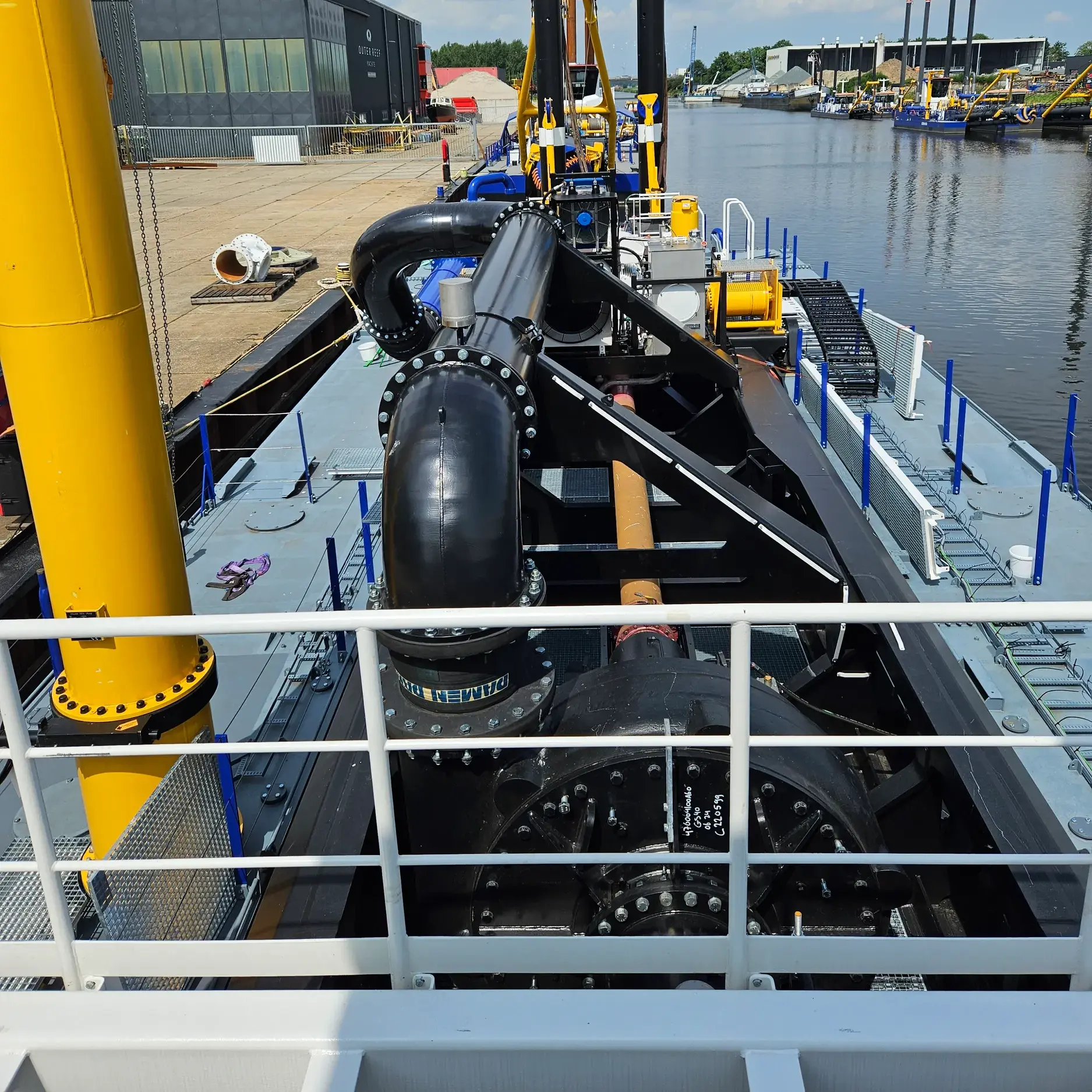

- Submersible dredge pump for high mixture density
- Fully electrically driven, power via external power source

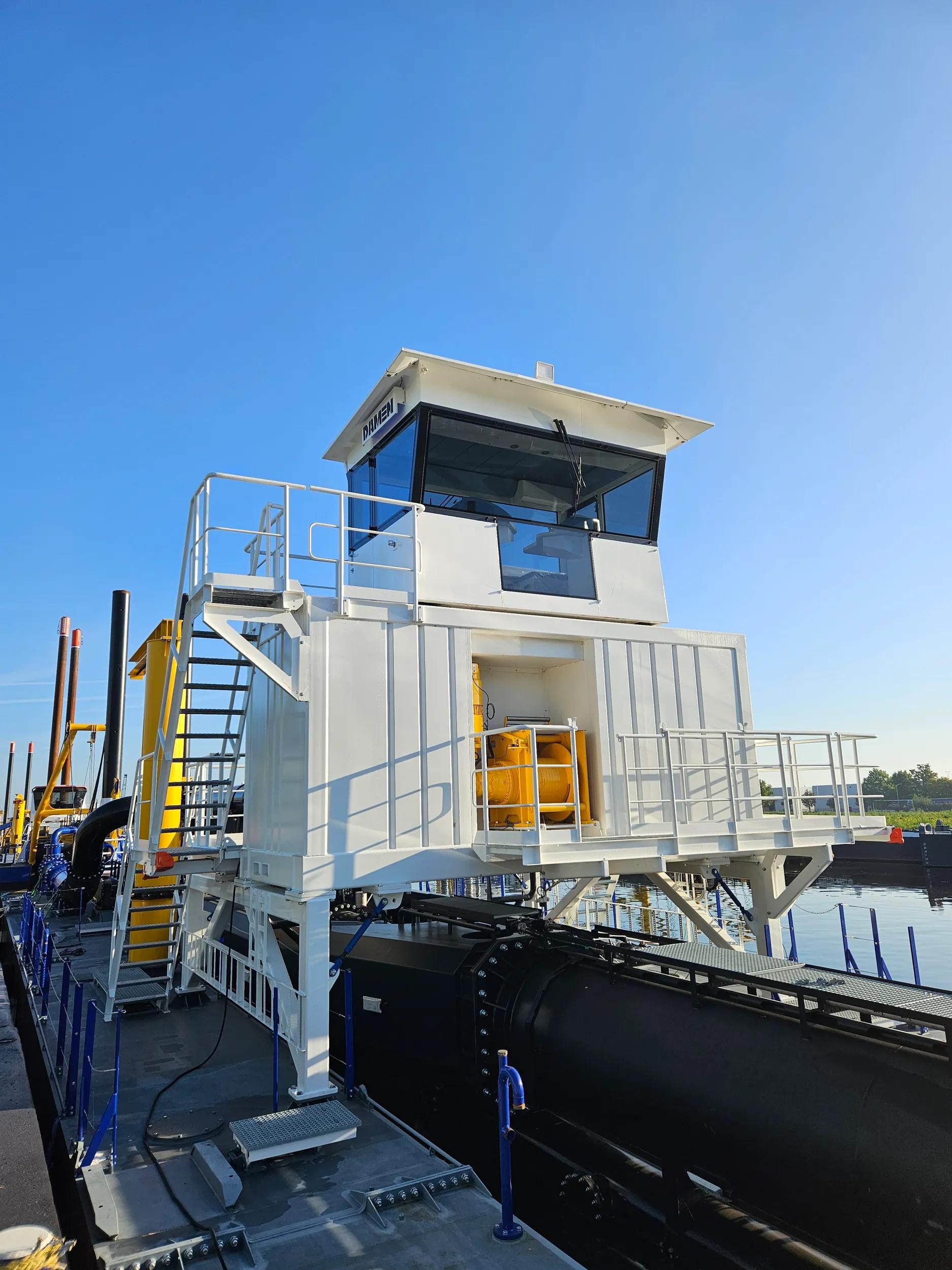

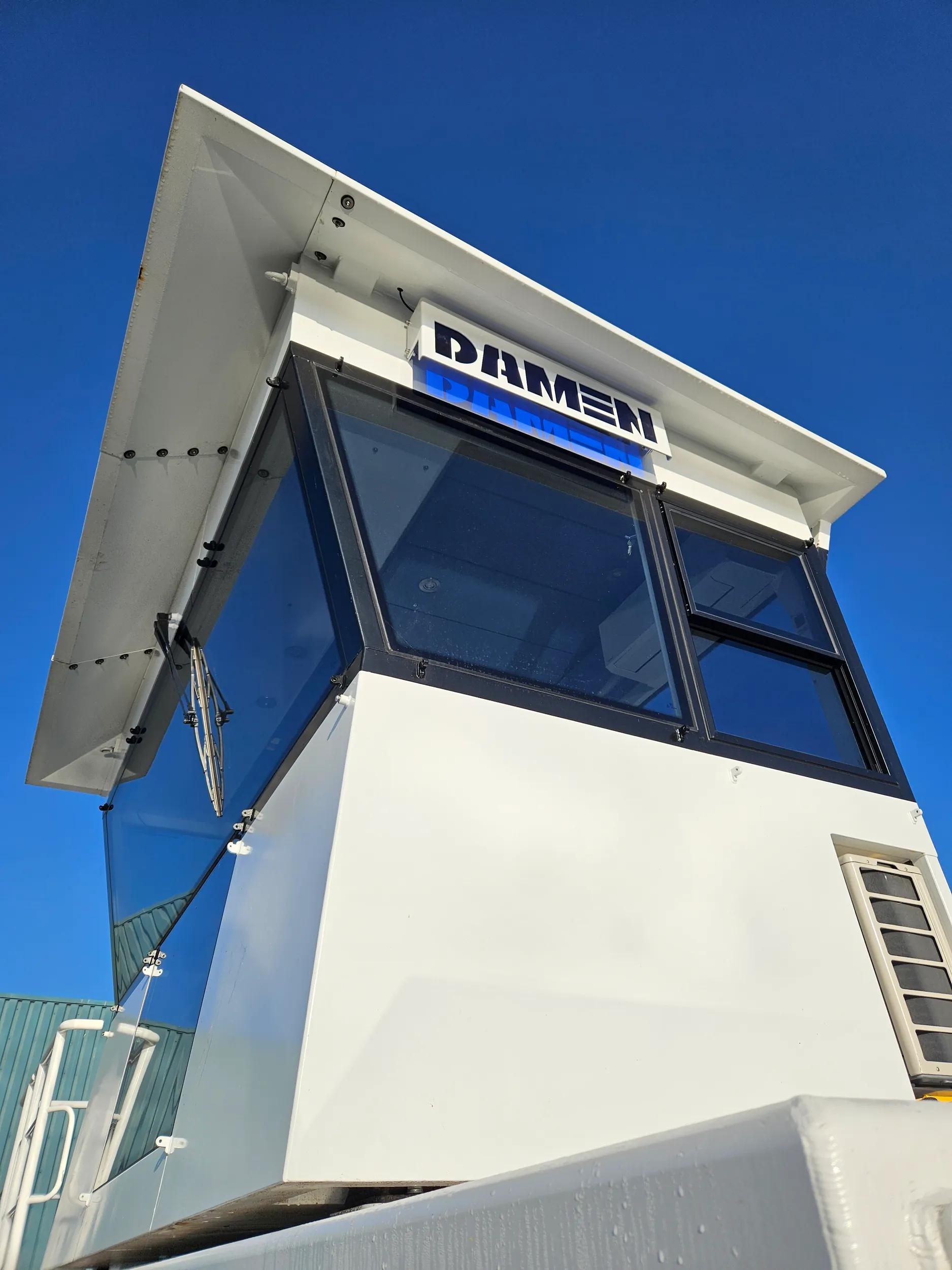

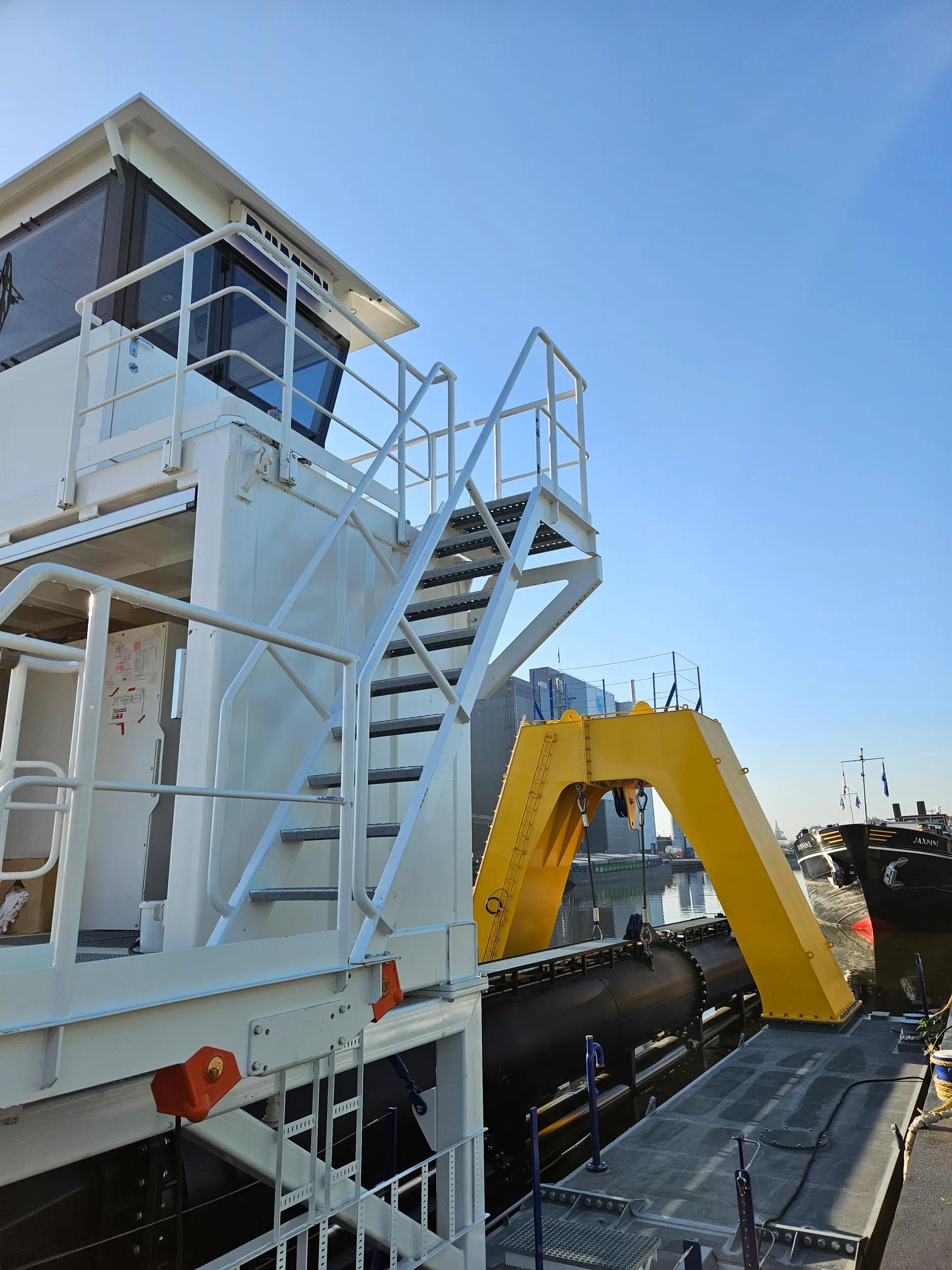

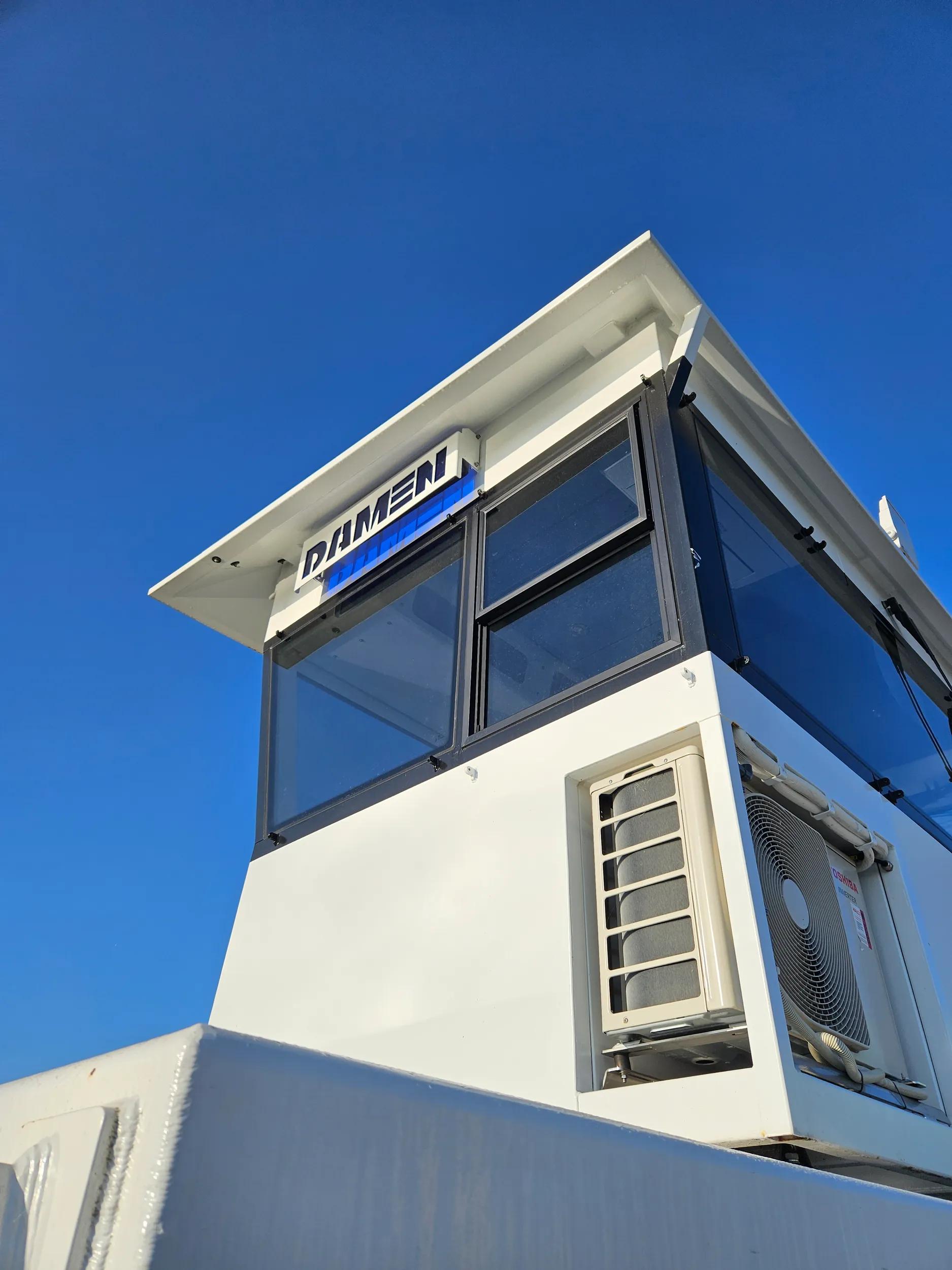

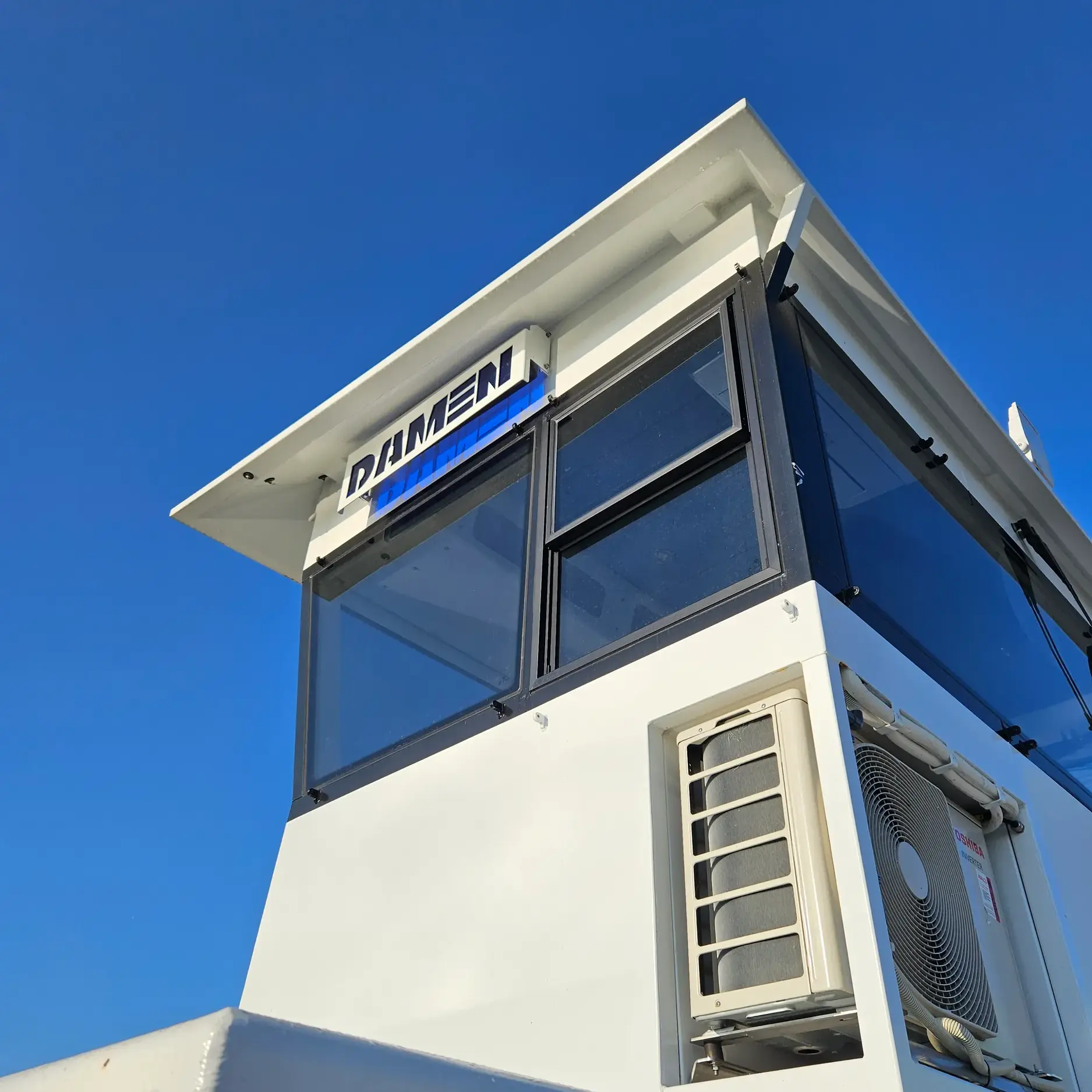

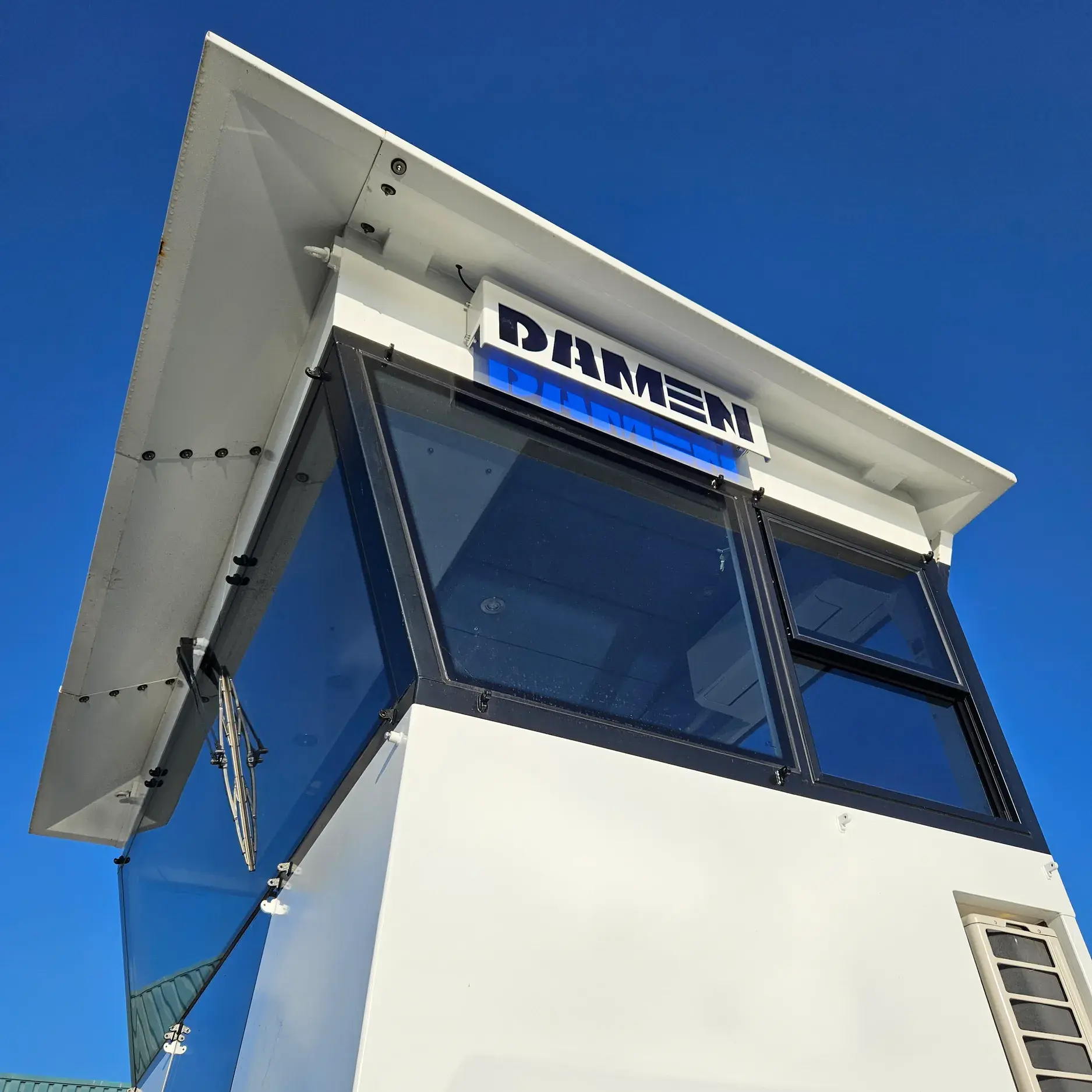

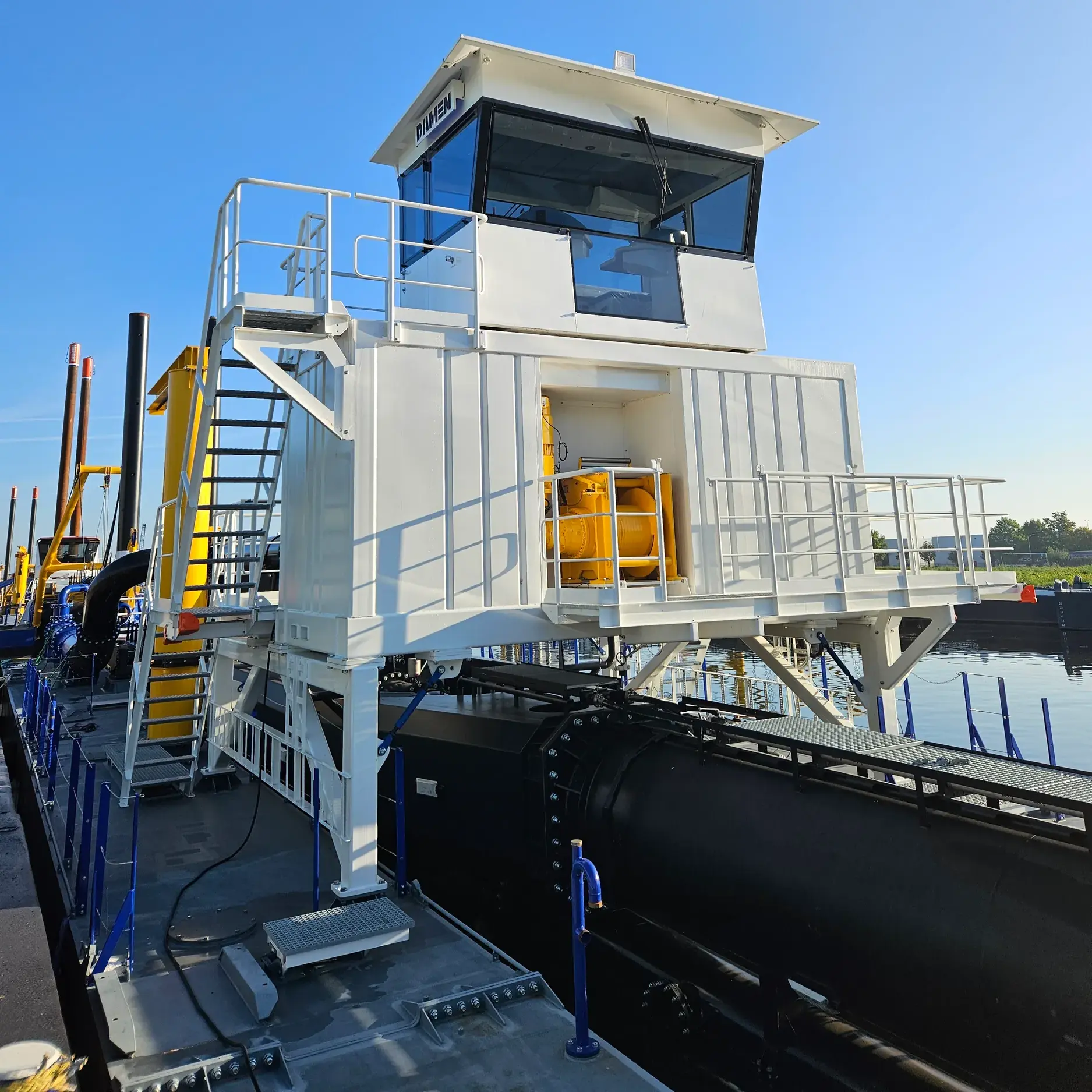

- One operator can control the entire dredger from the control cabin
Key figures
6000
40
1700
600
110
Dredge performance
- Dredging depth (cutter)
- -25 m

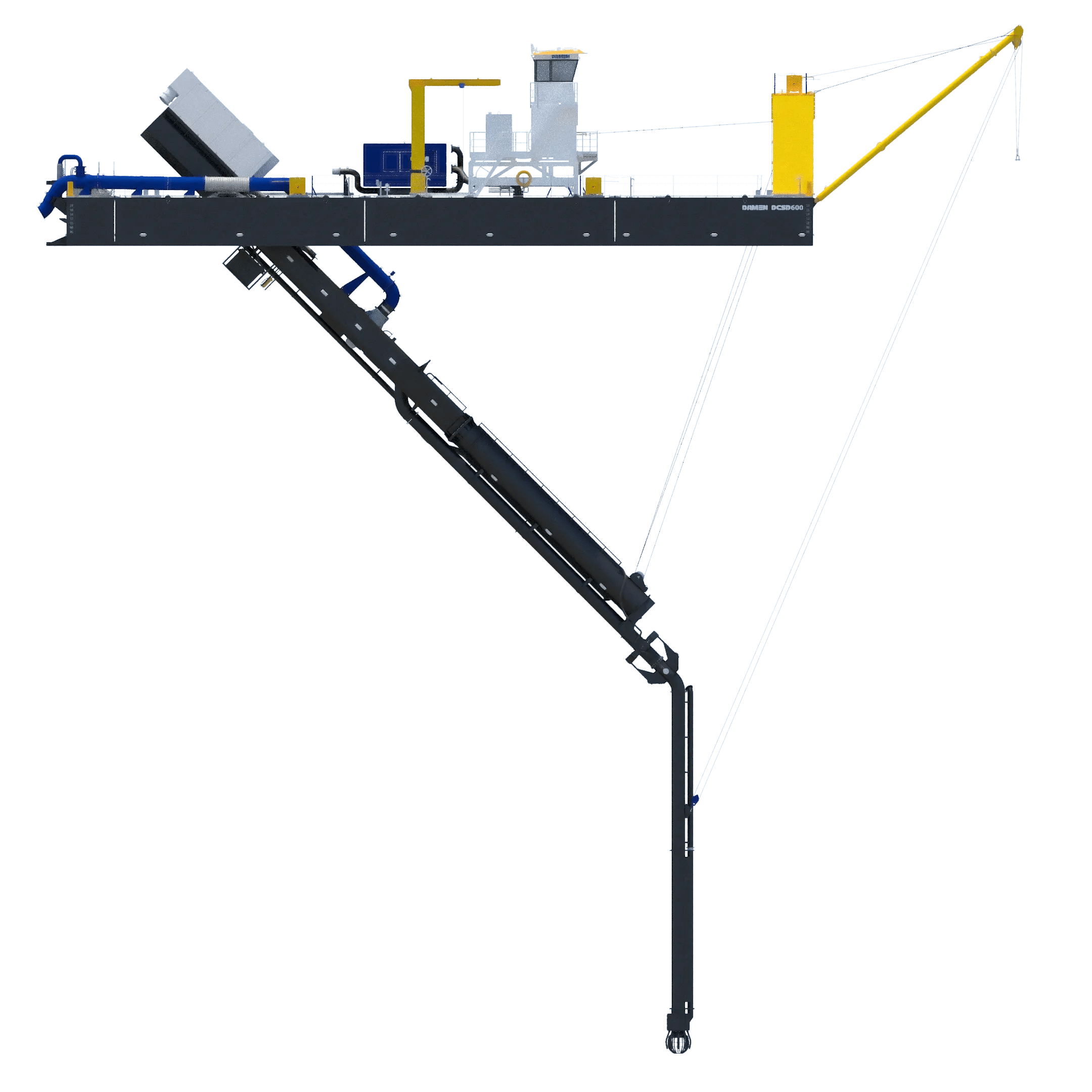

- Dredging depth (plain suction)
- -40 m
- Dredge pump production
- 6000 m³/h
- Dredge pipe diameter
- 600 mm
Equipment
- Cutter power
- 110 kW
- Jet water
- 1100 m³/h
- Total power (max)
- 1900 kW
- Side winches
- 80 kN
Dimensions
- Length (pontoons)
- 34 m
- Draught
- 1.6 m
- Air draught
- 8.1 m
- Total weight (max)
- 240 t
Do you want to know more?
Compare similar stationary dredgers
| Production (m³/h) | Dredging depth (m) | Power (kW) | Pipe diameter (mm) | Cutter power (kW) | ||
|---|---|---|---|---|---|---|
| Electric Mining Dredger E-DCSD600 | 6000 | 40 | 1700 | 600 | 110 | |
| CSD600 | 6000 | 16 | 1980 | 600 | 250 | |
| CSD650 -25m | 7000 | 25 | 3966 | 650 | 700 |
Electric Mining Dredger E-DCSD600
- Production (m³/h)
- 6000
- Dredging depth (m)
- 40
- Power (kW)
- 1700
- Pipe diameter (mm)
- 600
- Cutter power (kW)
- 110
- Production (m³/h)
- 6000
- Dredging depth (m)
- 16
- Power (kW)
- 1980
- Pipe diameter (mm)
- 600
- Cutter power (kW)
- 250
- Production (m³/h)
- 7000
- Dredging depth (m)
- 25
- Power (kW)
- 3966
- Pipe diameter (mm)
- 650
- Cutter power (kW)
- 700
