Plain Suction Dredger PSD350
  • In stock
  • Dismountable dredger

Plain Suction Dredger PSD350

Plain Suction Dredger PSD350

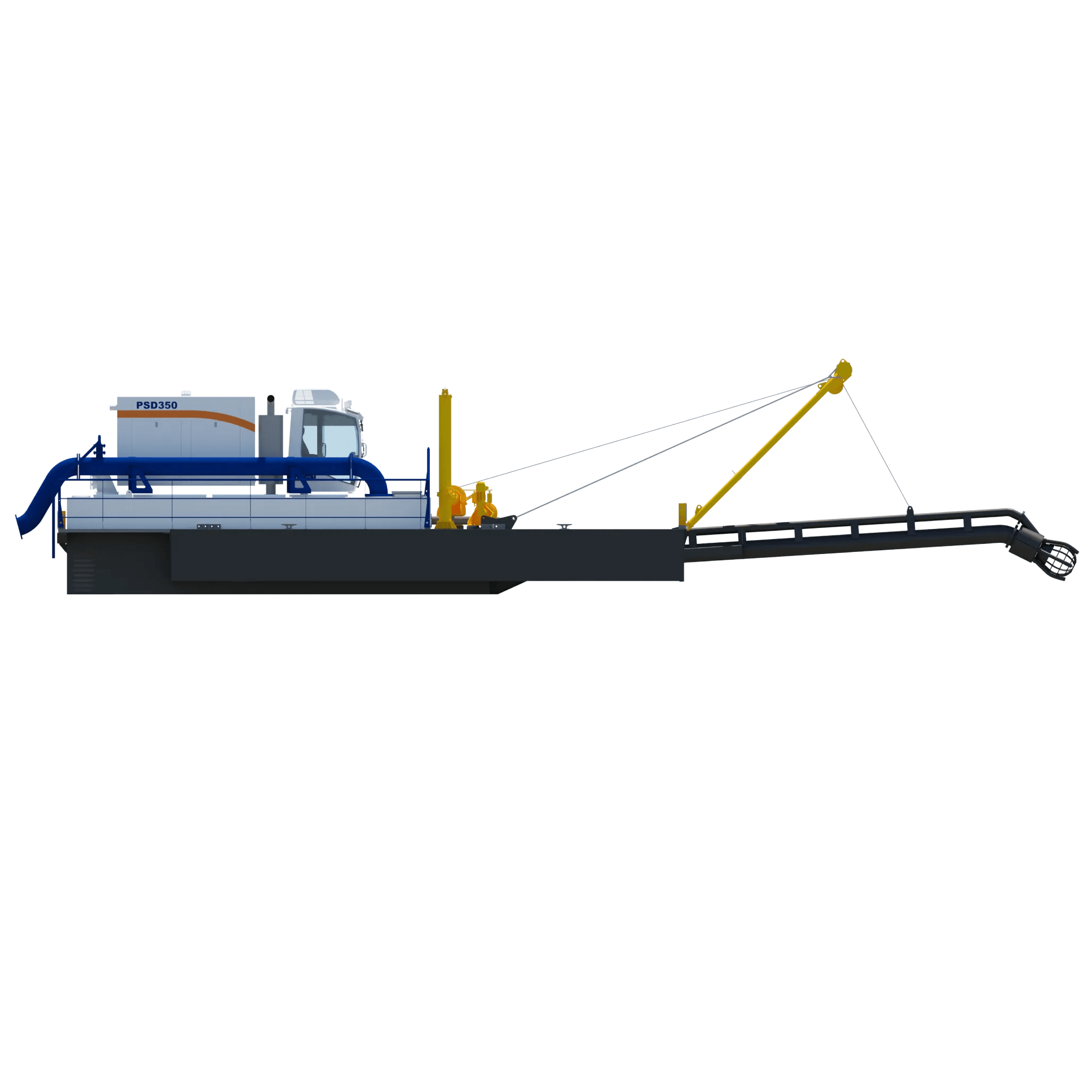

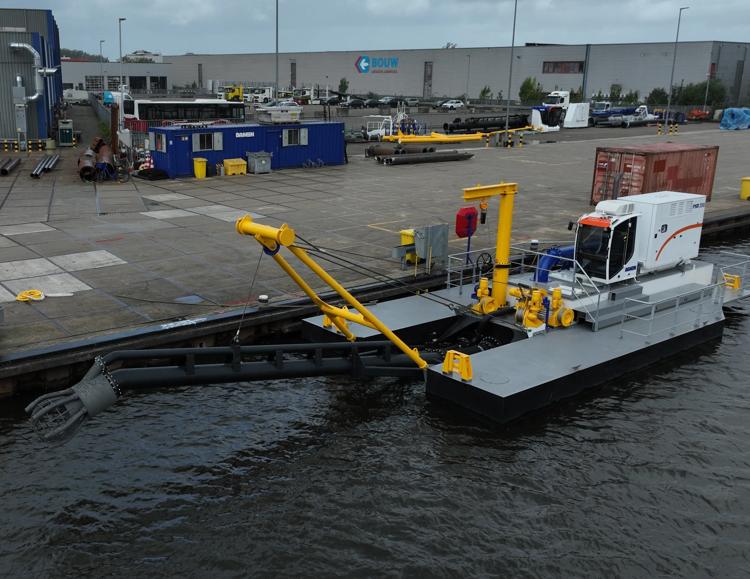

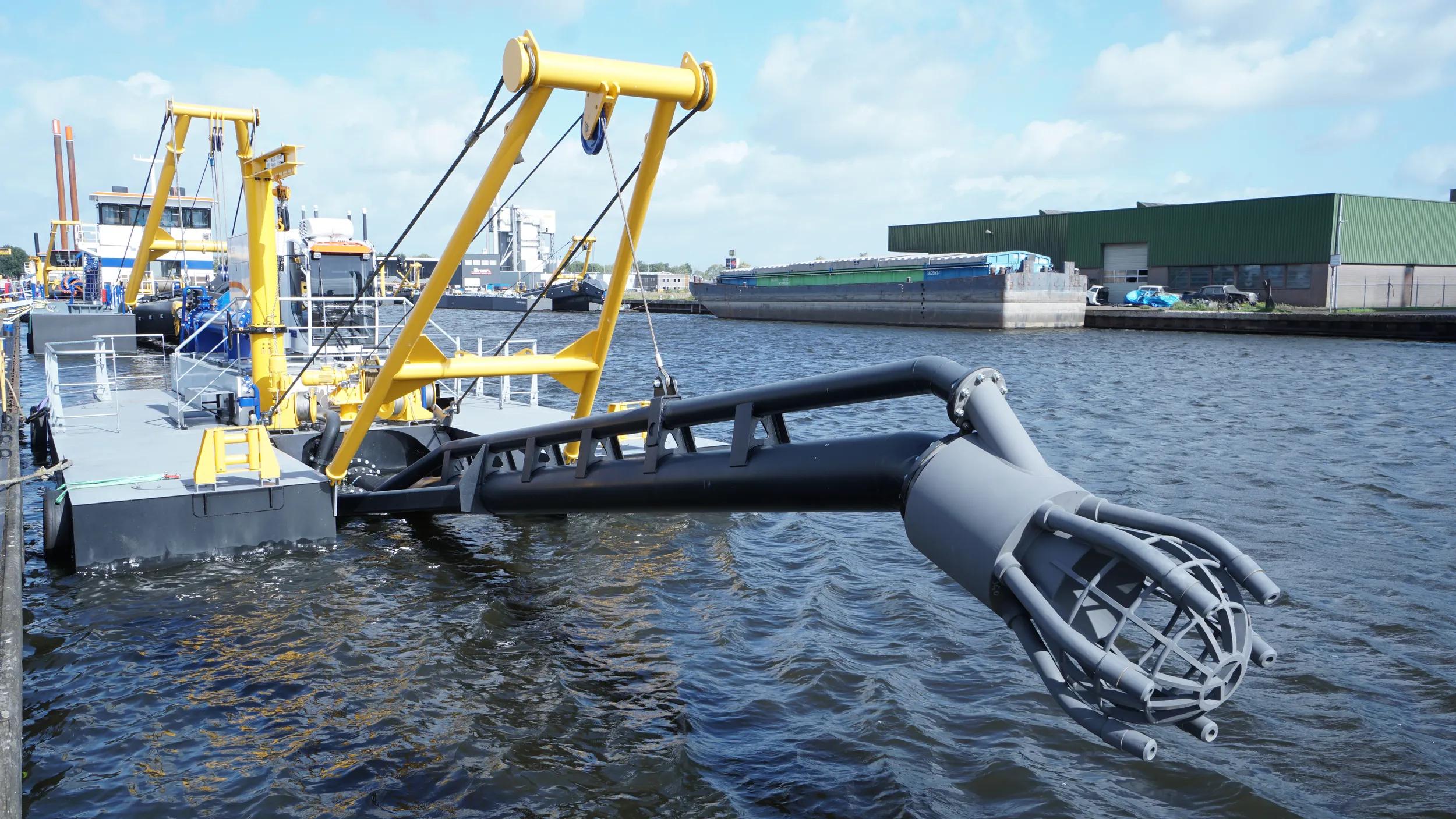

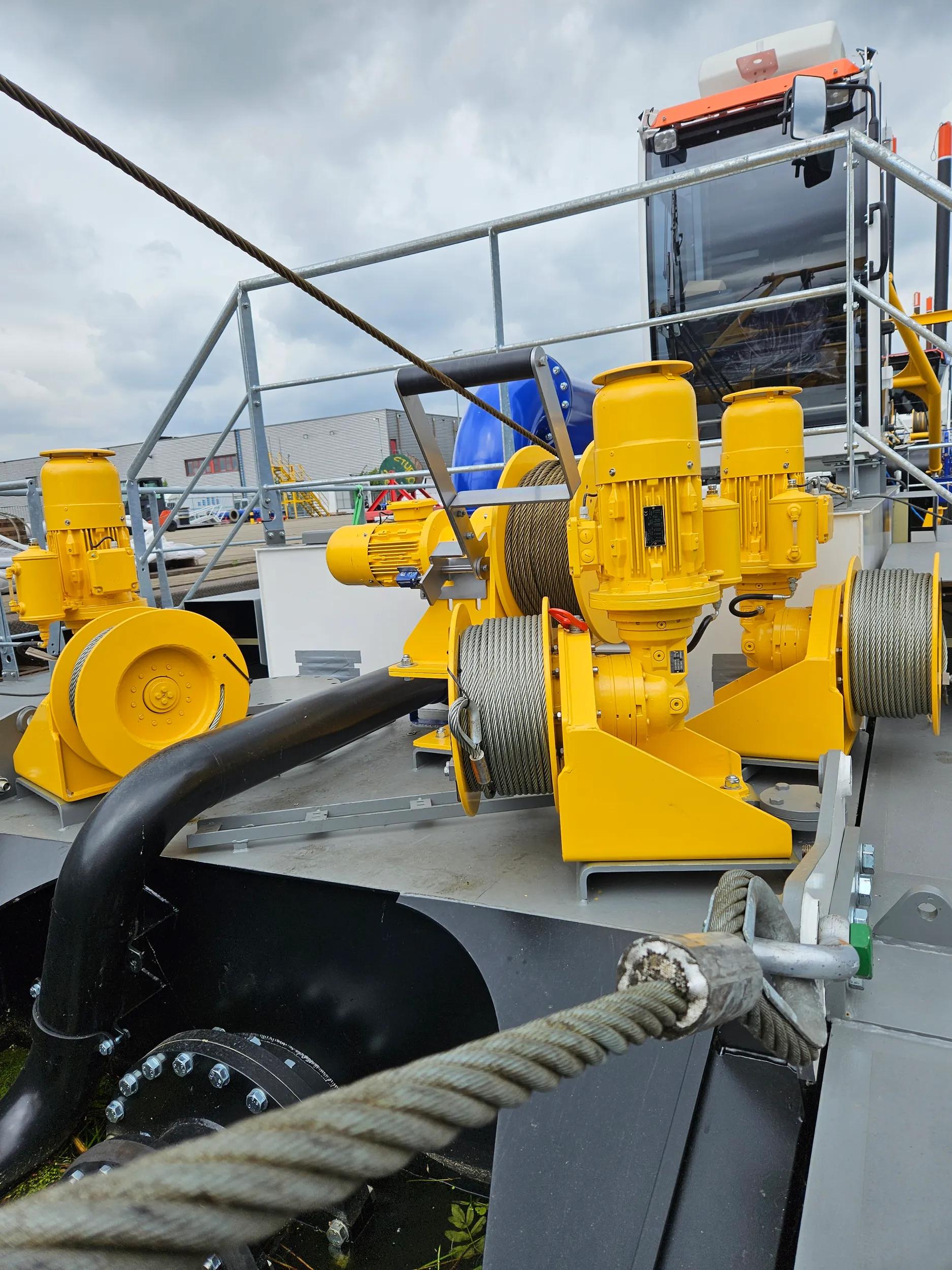

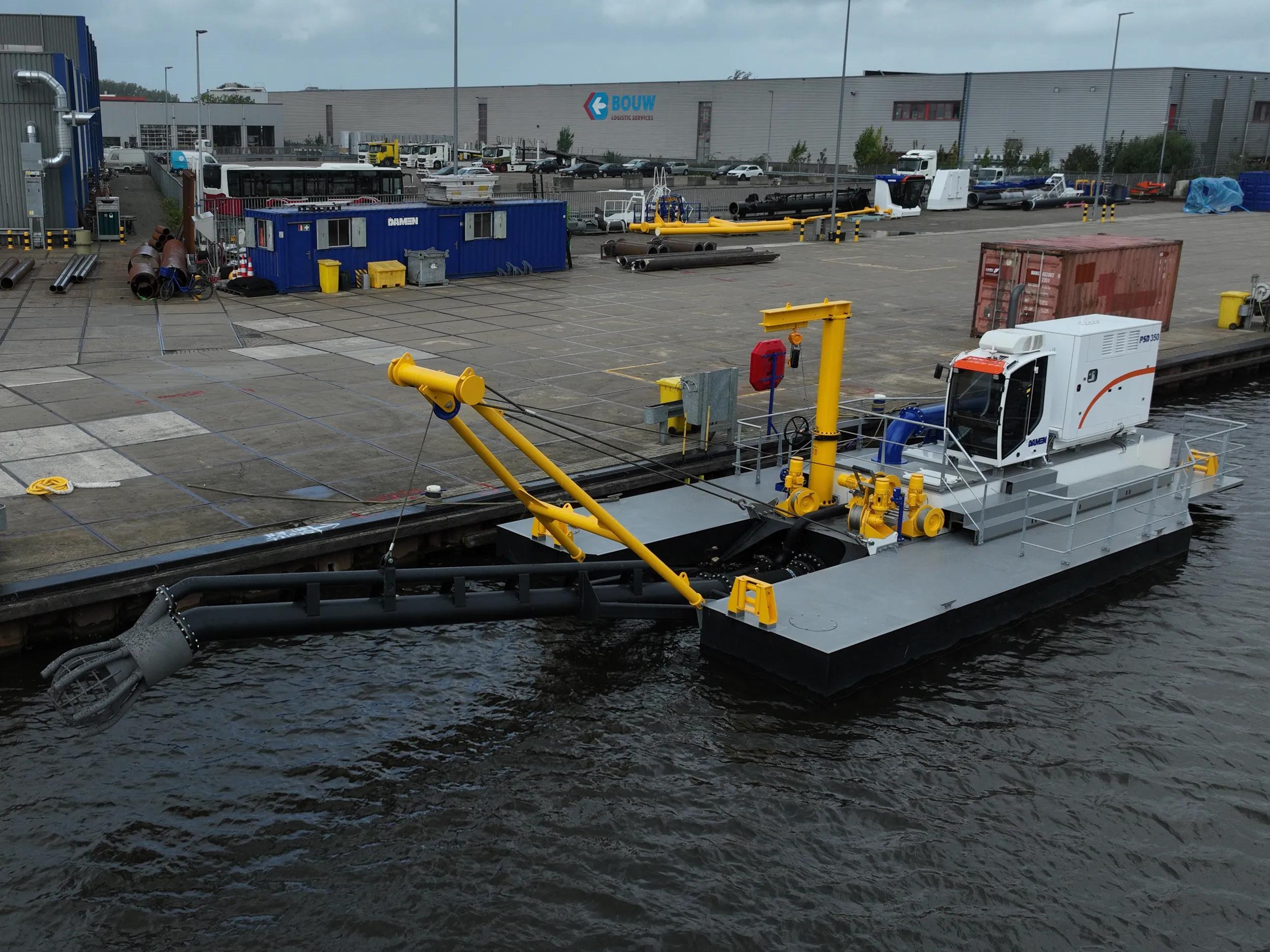

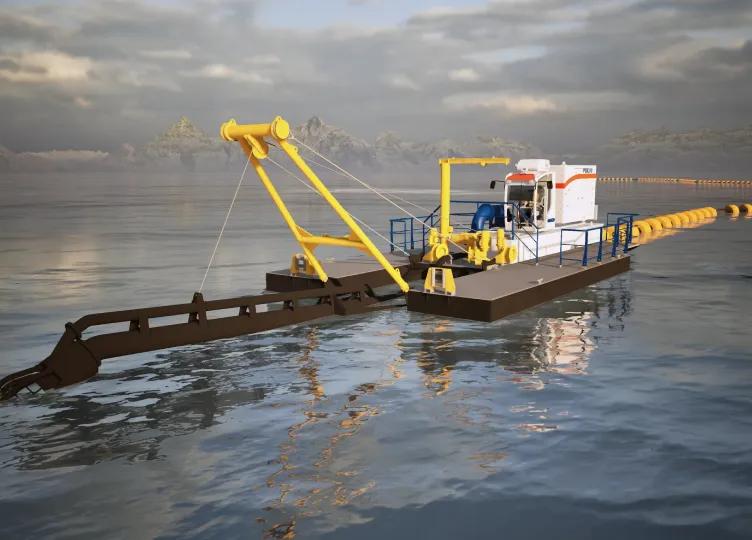

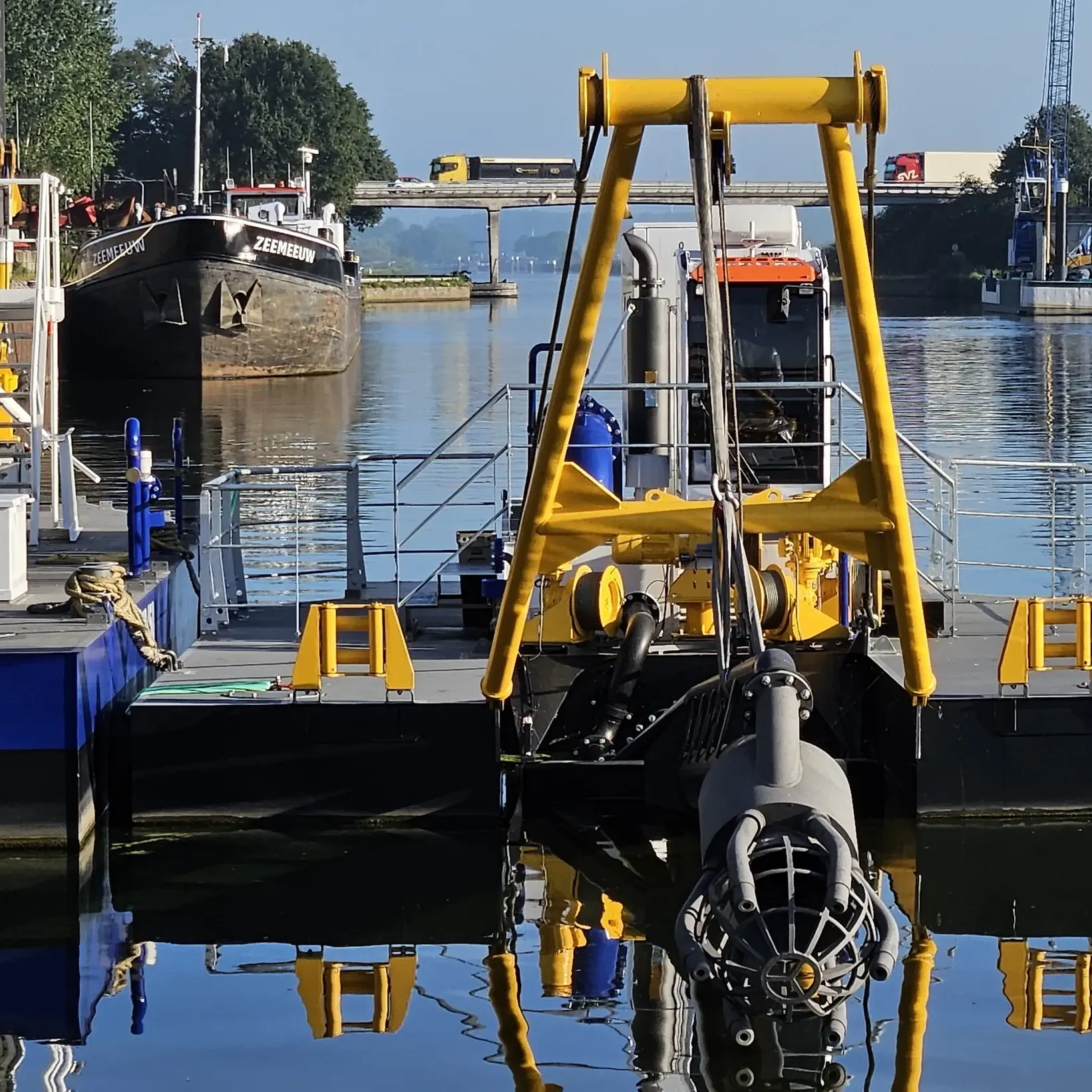

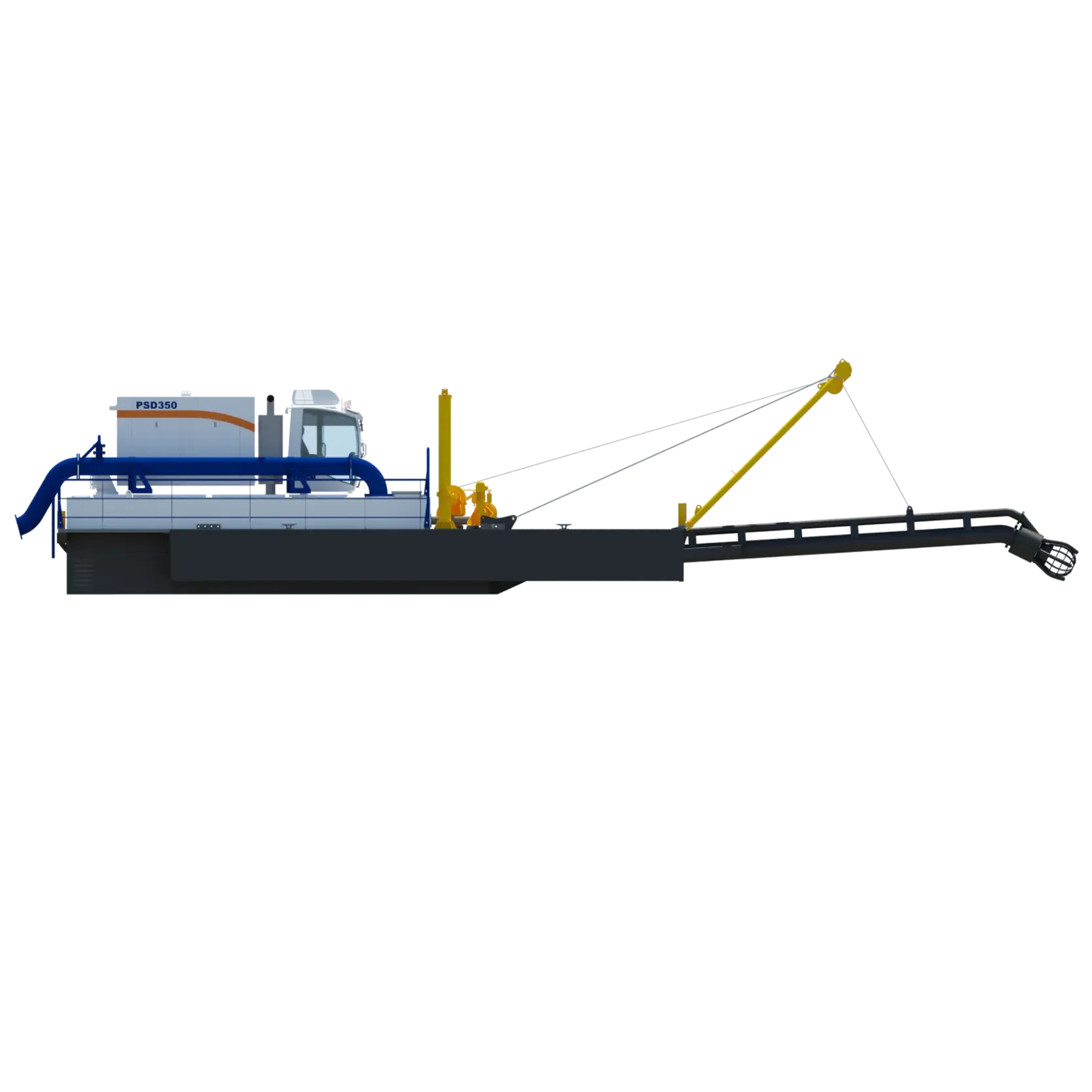

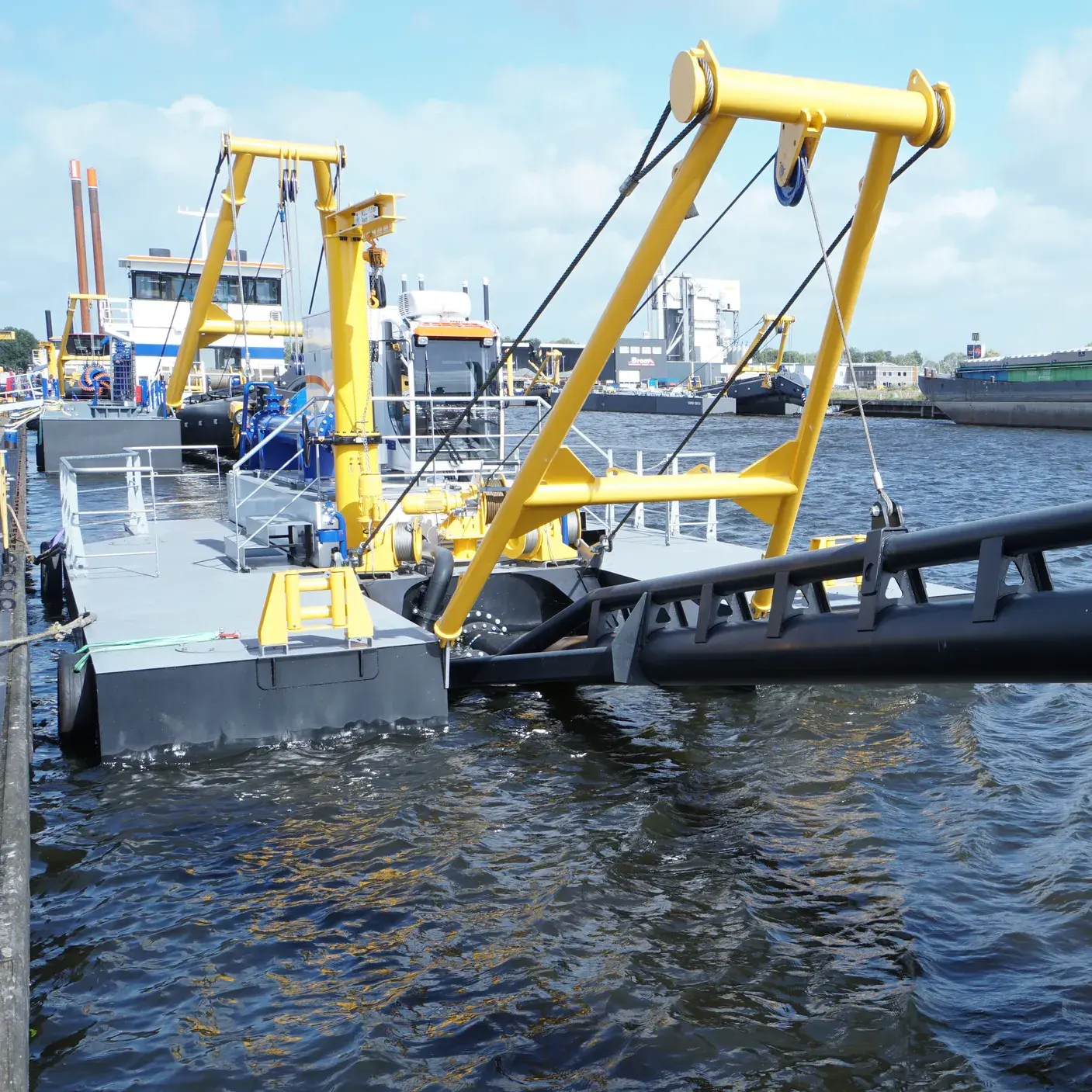

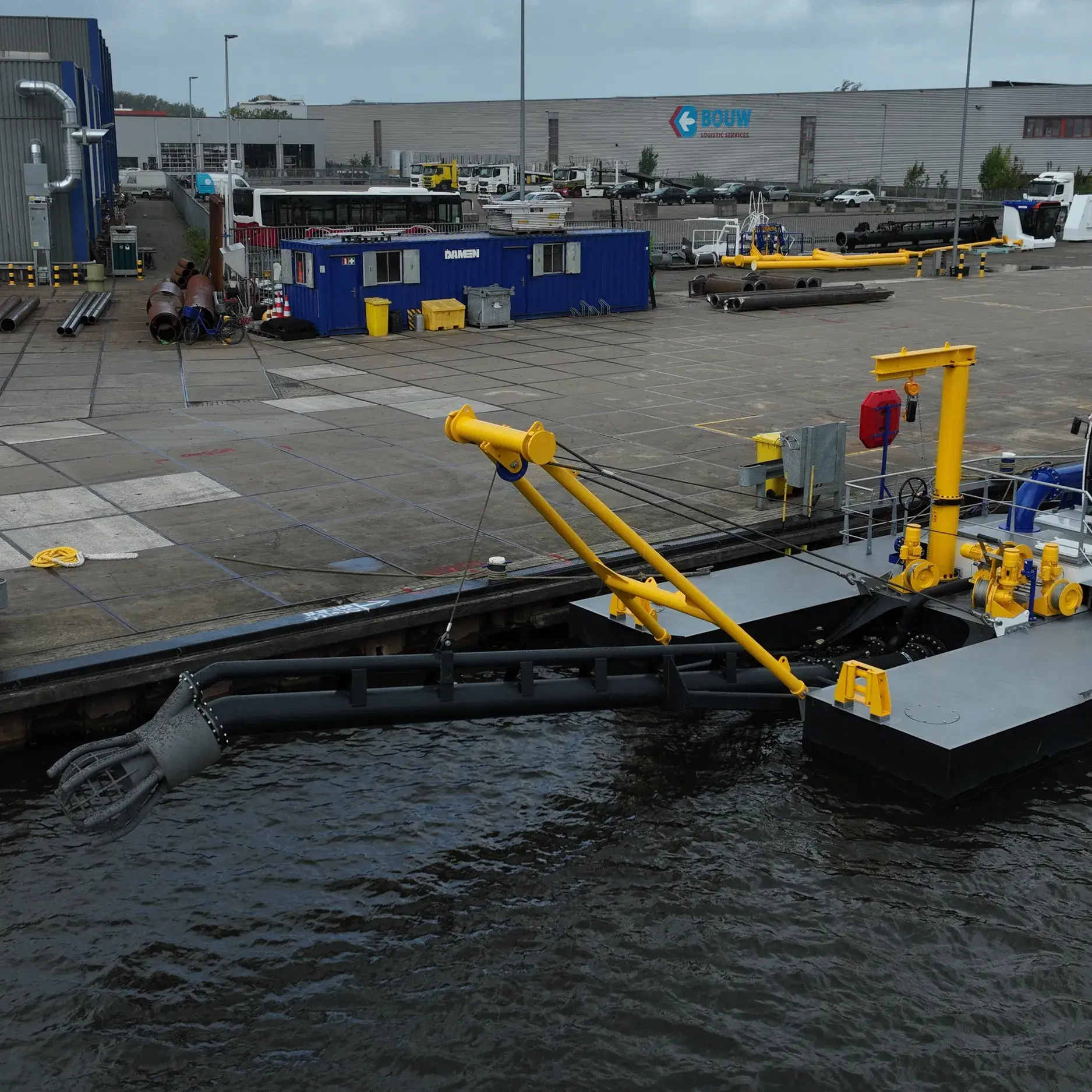

The PSD350 is a compact and straightforward plain suction dredger operated by one single operator. Its low-maintenance design features an in-board dredge pump and a high pressure jet water system for the specially designed plain suction head. The dismountable sand dredger is easily transportable in only three 40’ open top containers and reassembly is practical due to the limited unit weight and the easy coupling system. The mining dredger is anchored and repositioned using three electric manoeuvring winches.
  • Deck crane
  • Rainbow nozzle
  • Increased fuel capacity
  • Discharge pipeline
  • Compact, modular and easily transportable

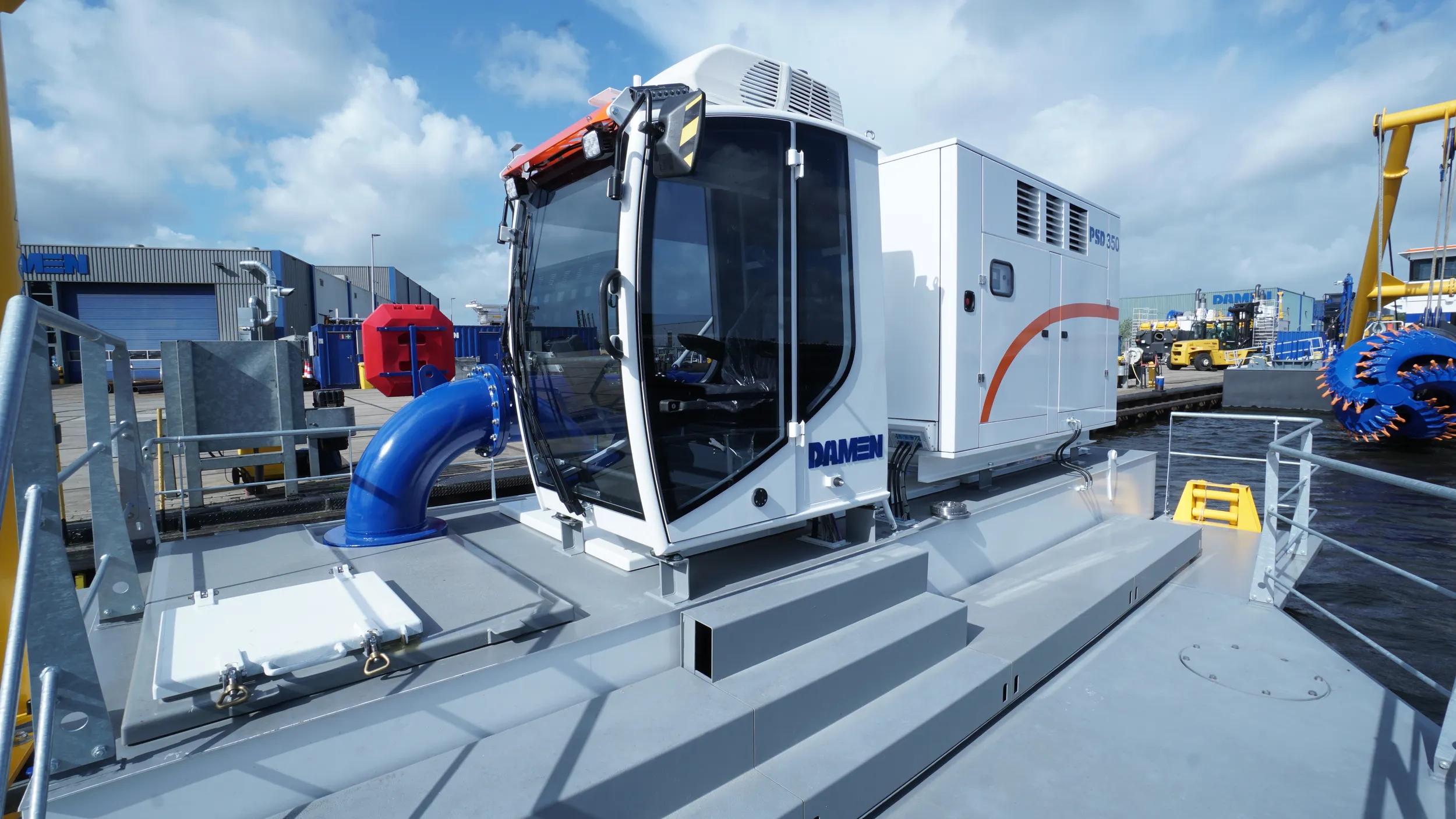

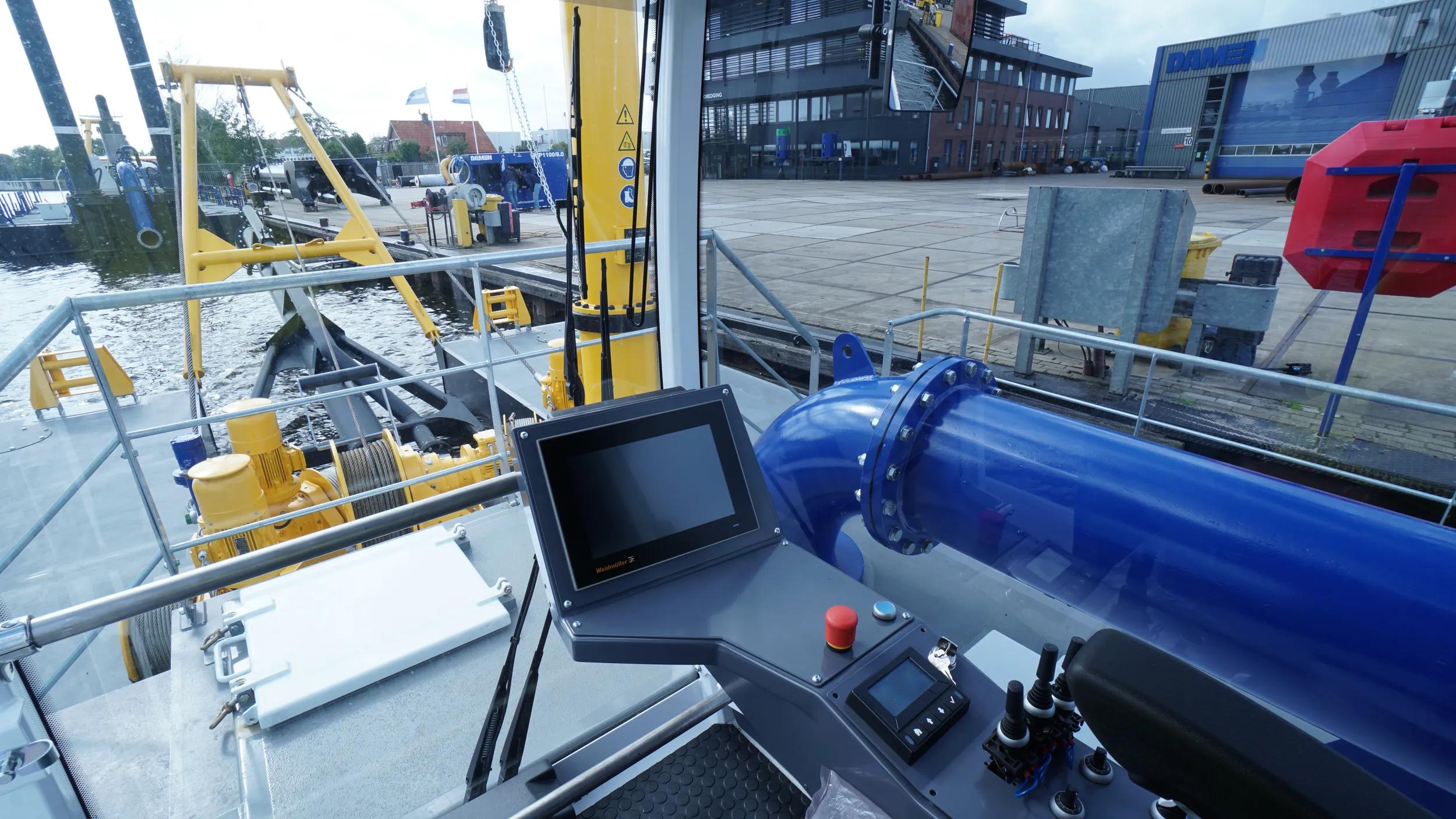

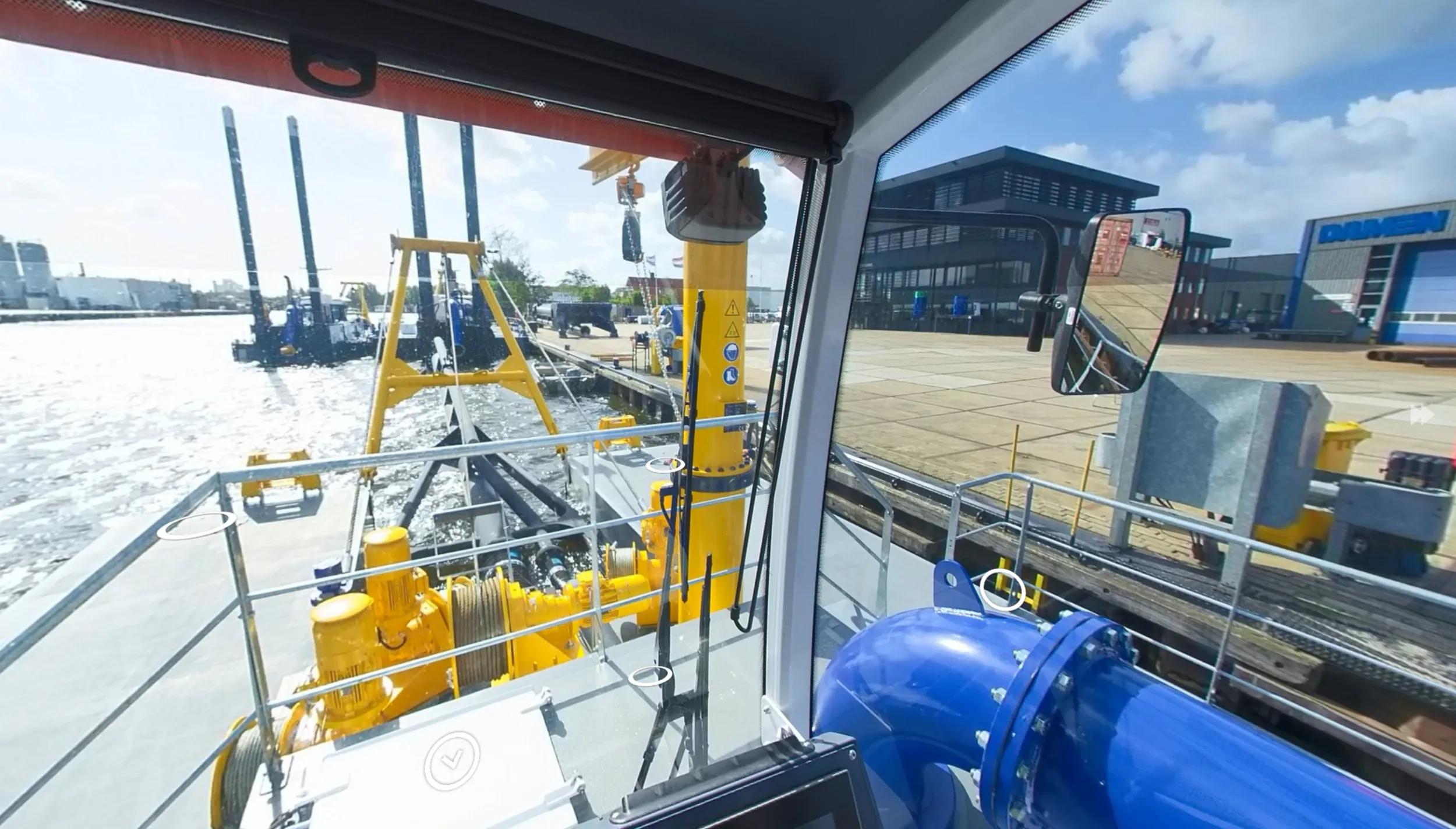

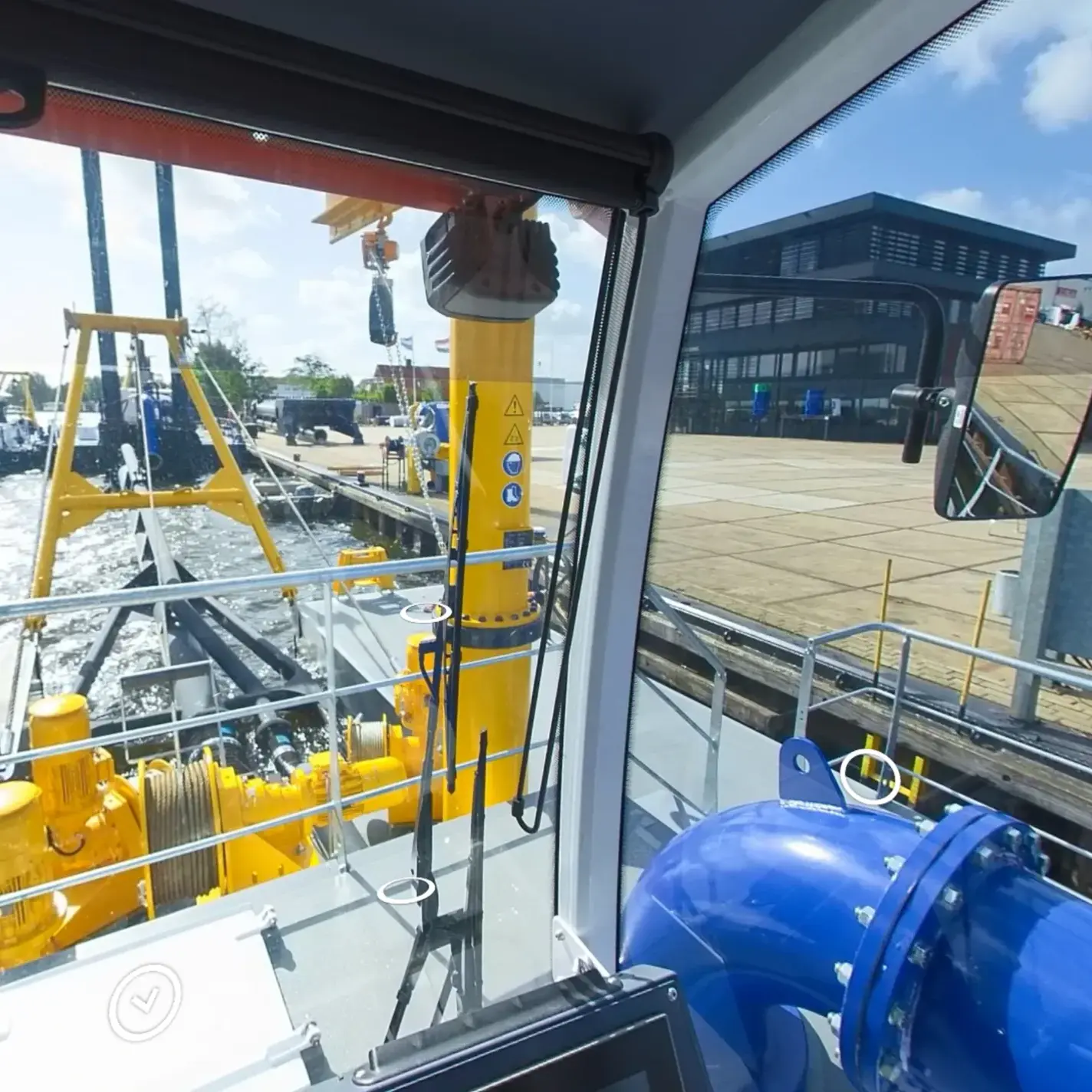

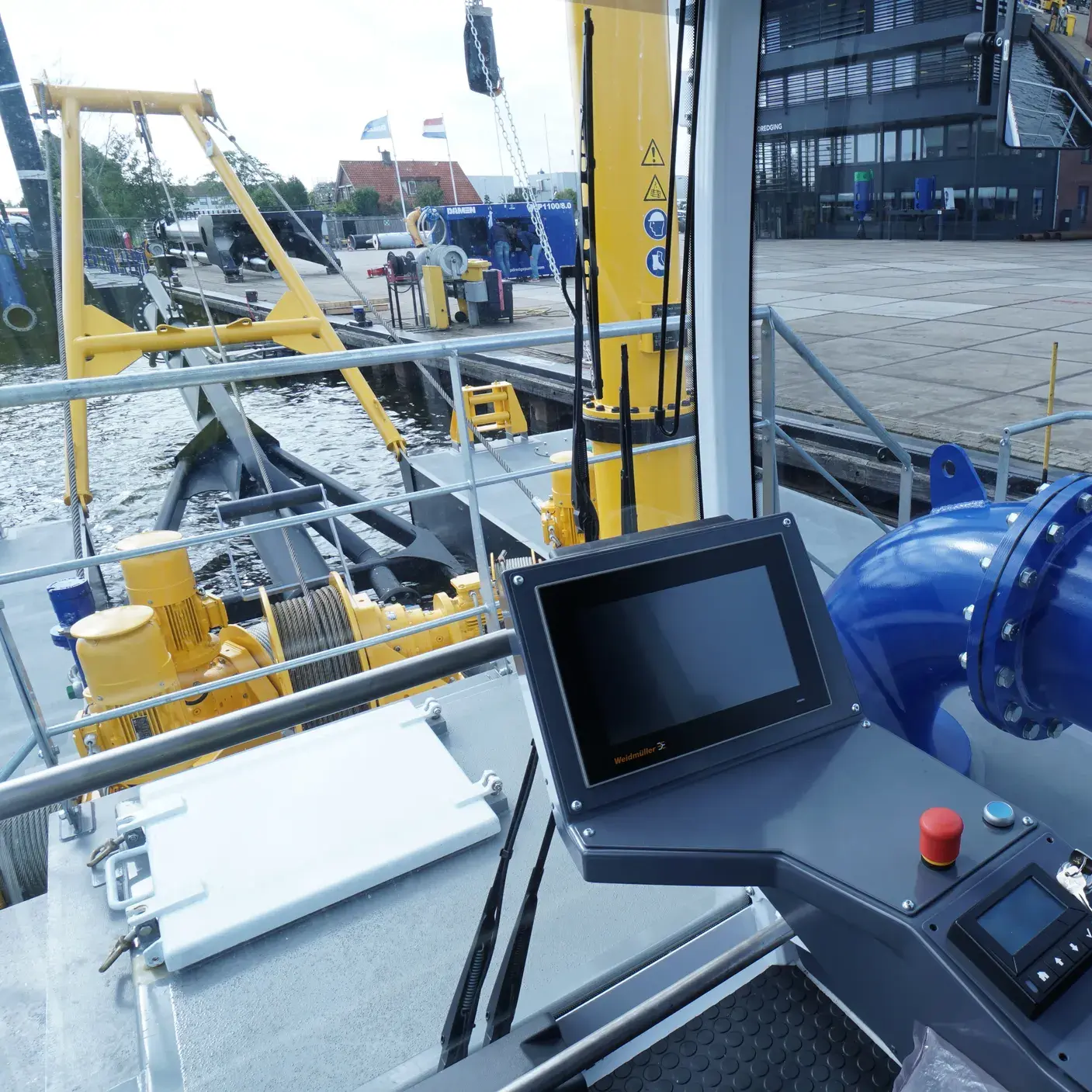

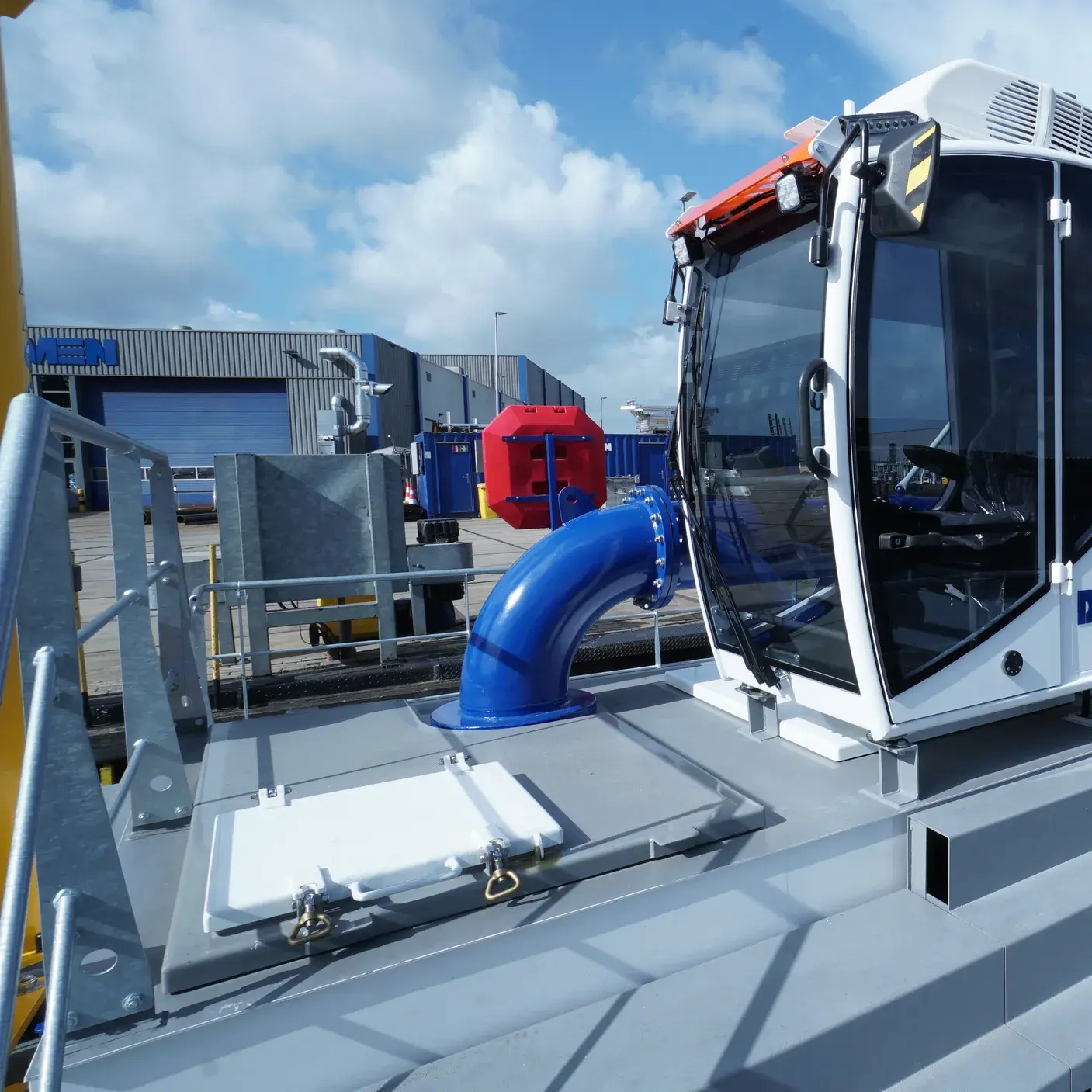

  • Single operator control from ergonomic cabin
  • Highly efficient in free-flowing sand
  • Sustainable choice due to reduced oil volumes

Key figures

2000

8

350

195

310

Dredge performance

Dredging depth
-8 m
Dredge pump production
2000 m³/h
Dredge pipe diameter
350 mm
Sphere passage dredge pump
200 mm

Equipment

Dredge pump power
195 kW
Jet water
350 m³/h
Total power (max)
310 kW

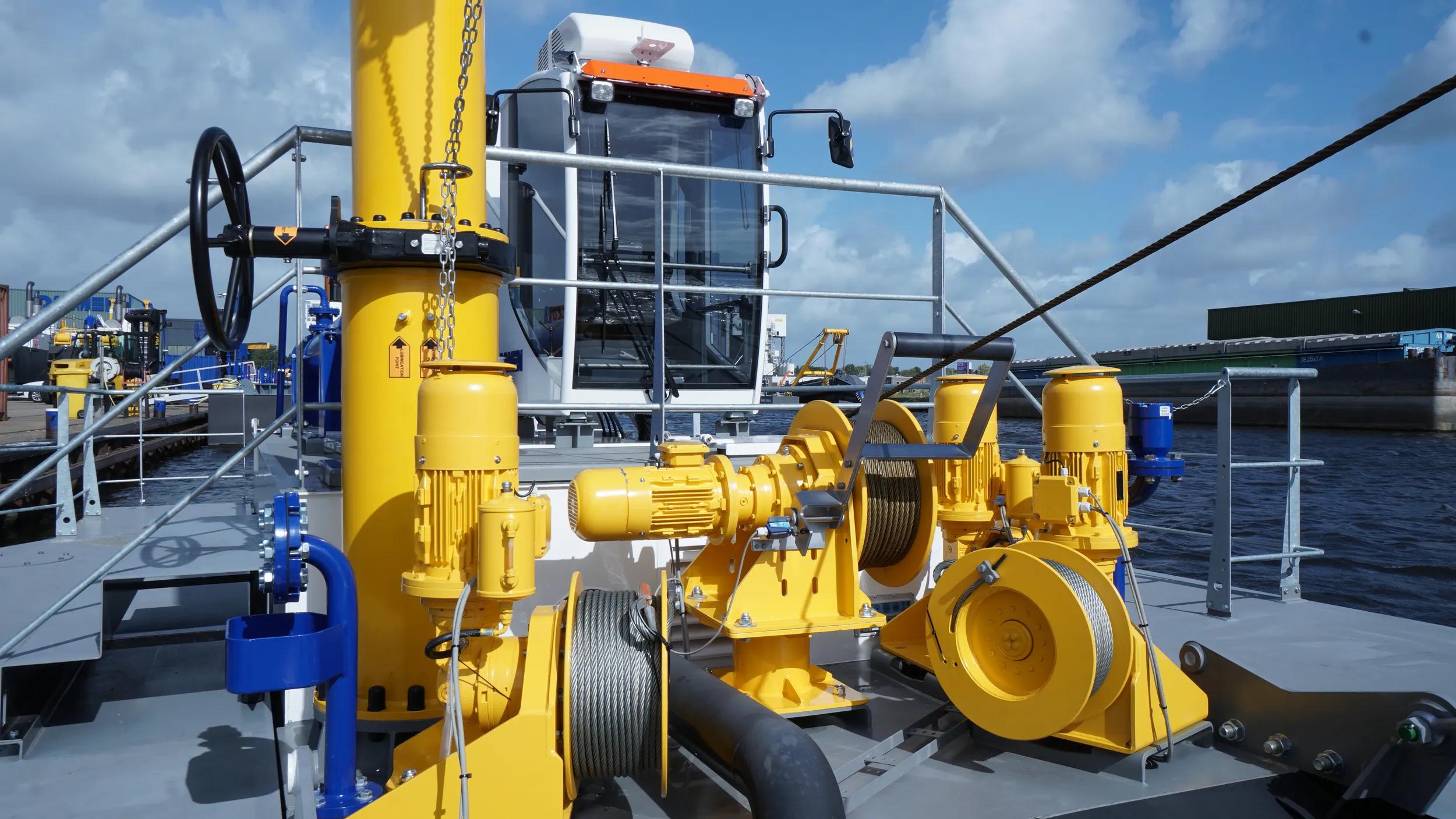

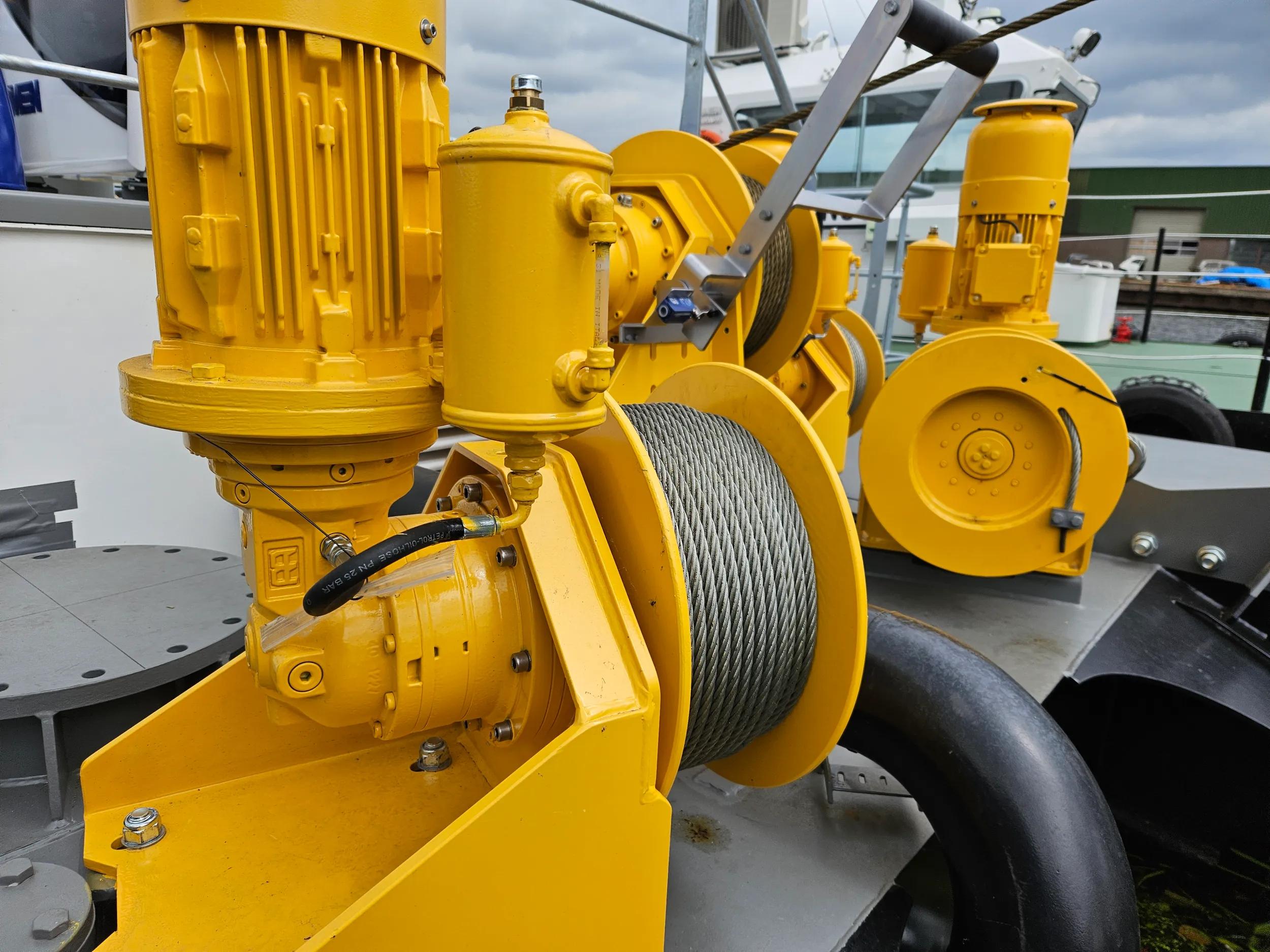

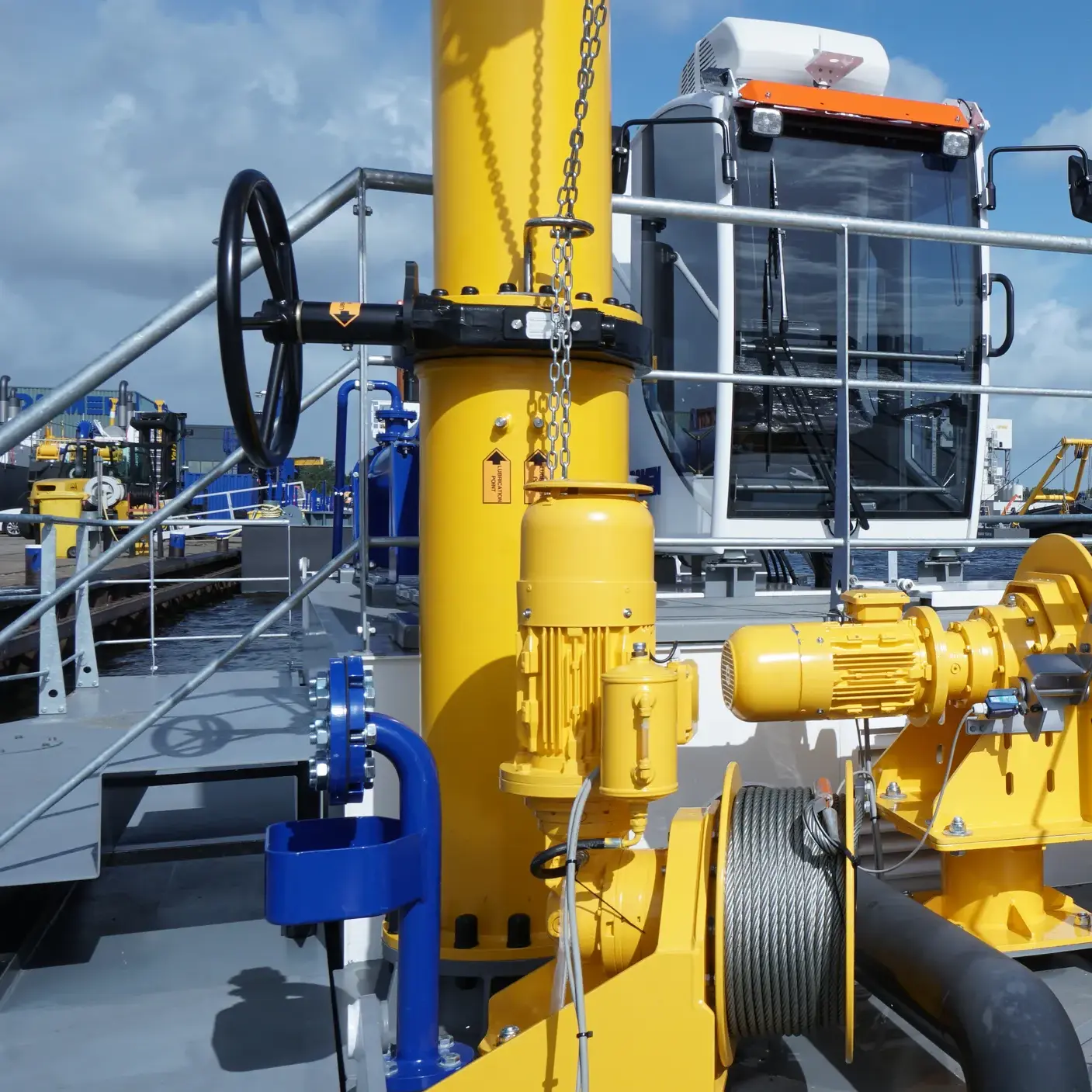

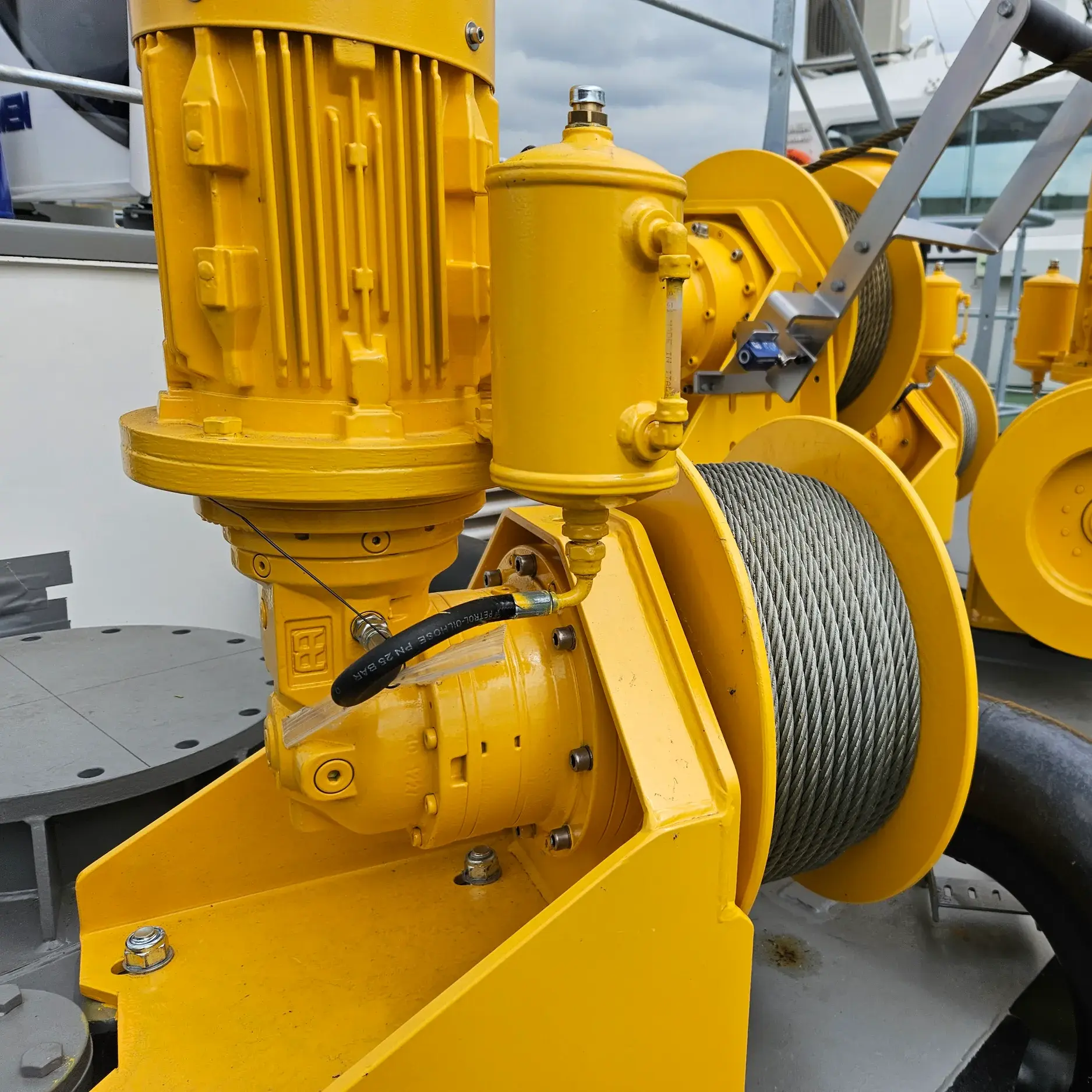

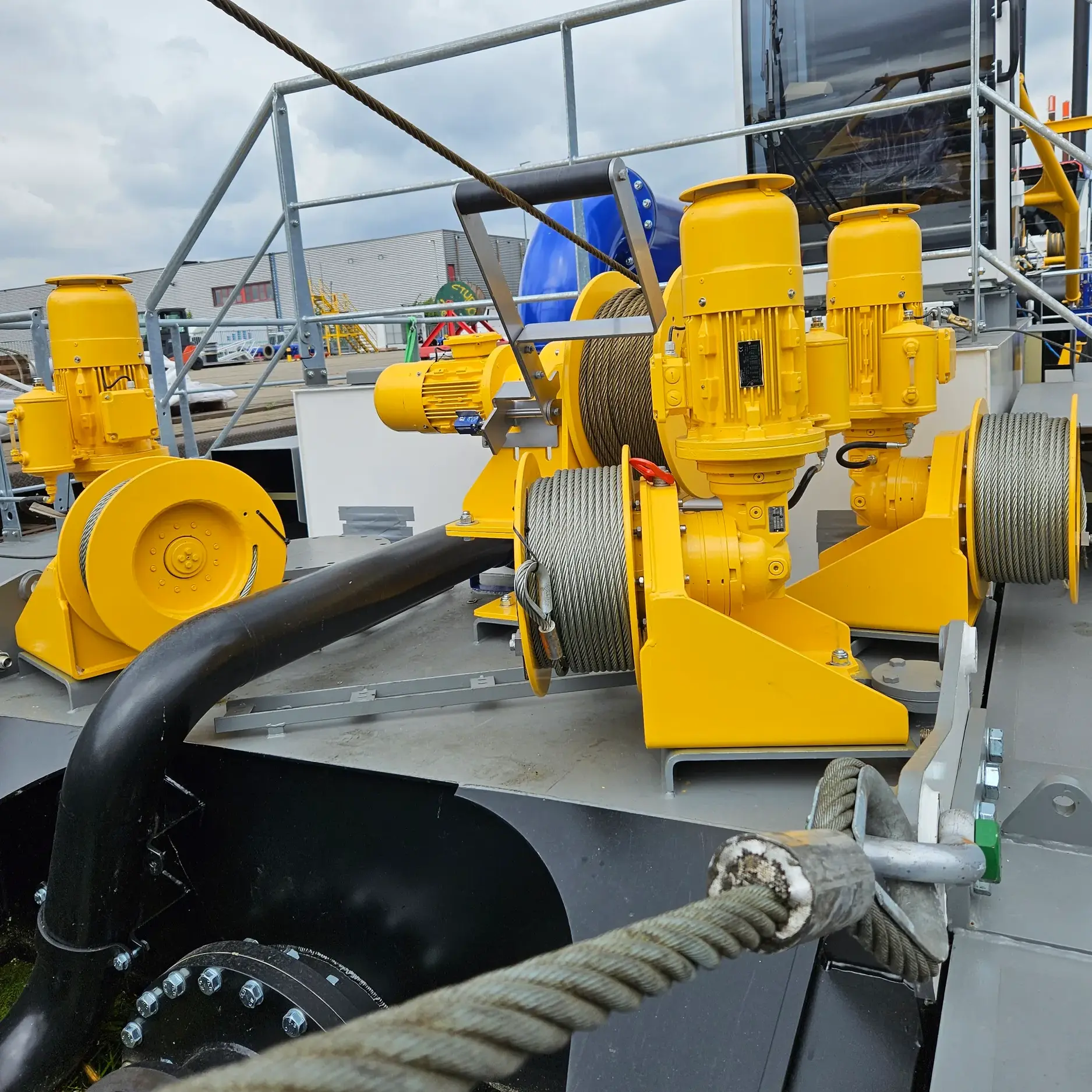

Manoeuvring winches
20 kN

Dimensions

Length (pontoons)
11 m
Draught
0.6 m
Beam
5.7 m
Total weight (max)
28 t
