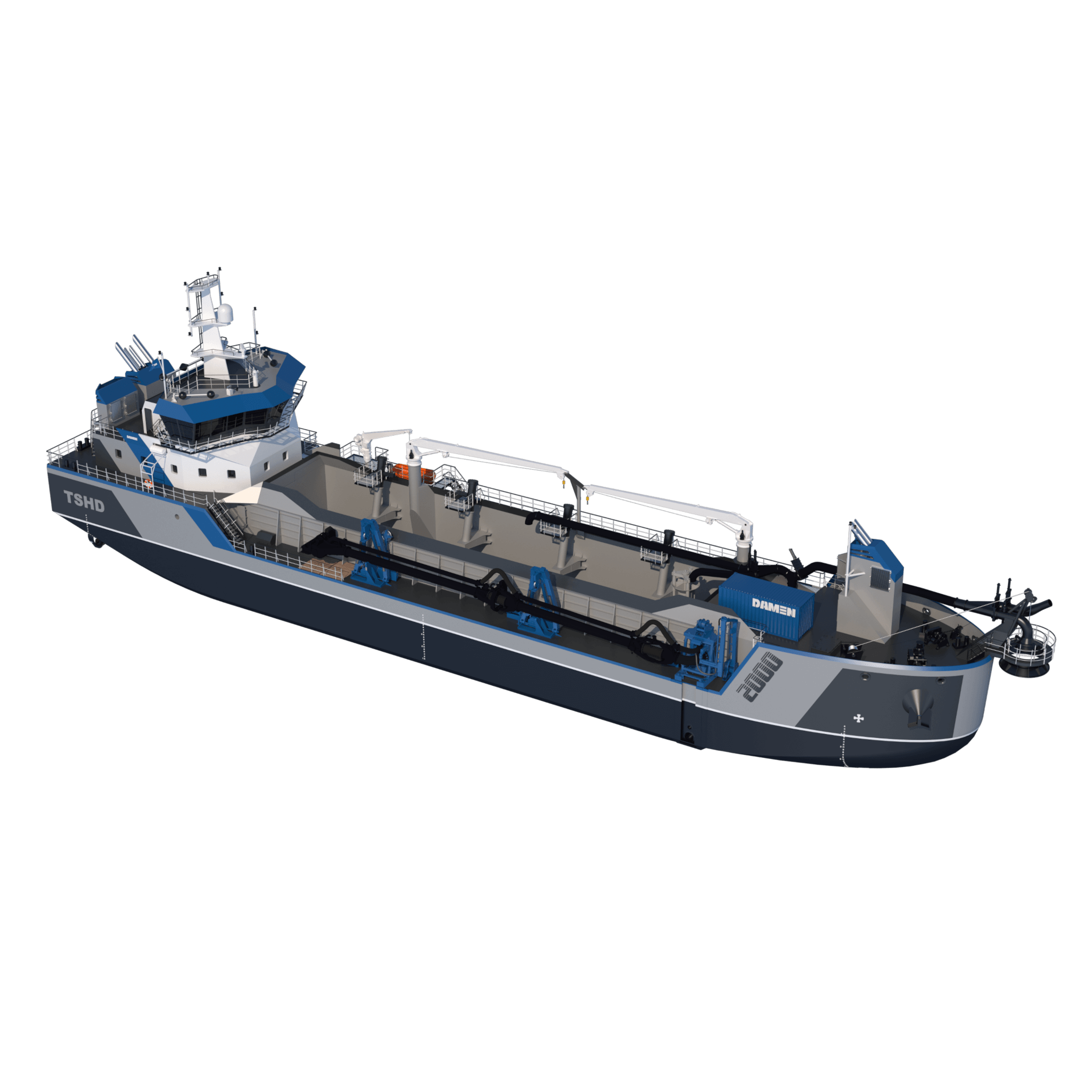

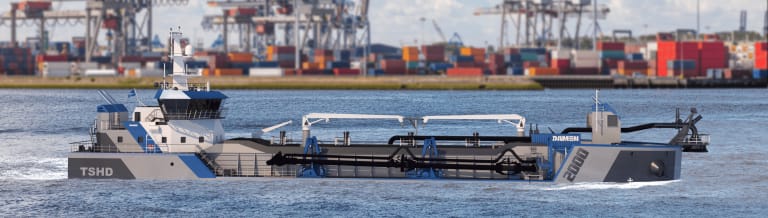

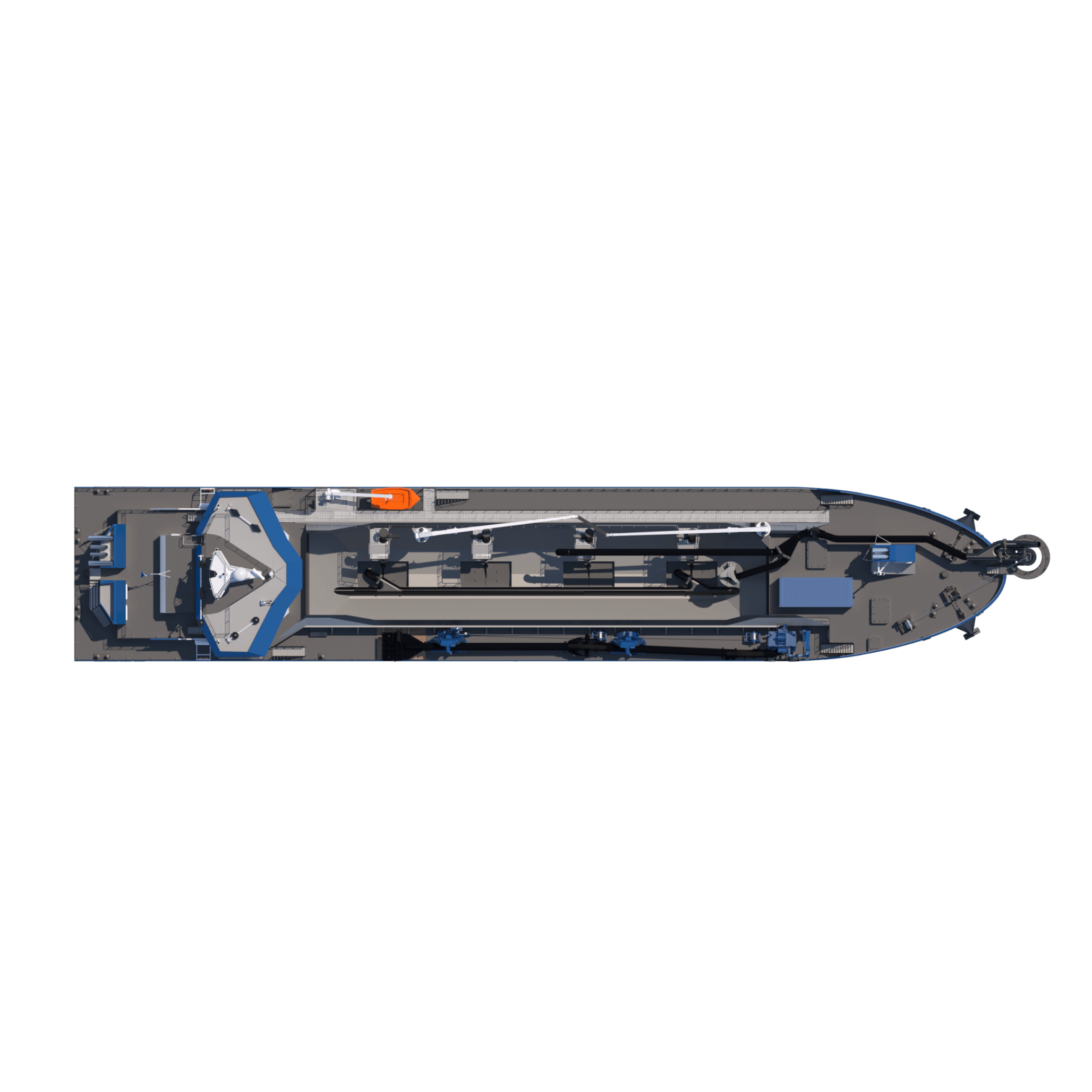

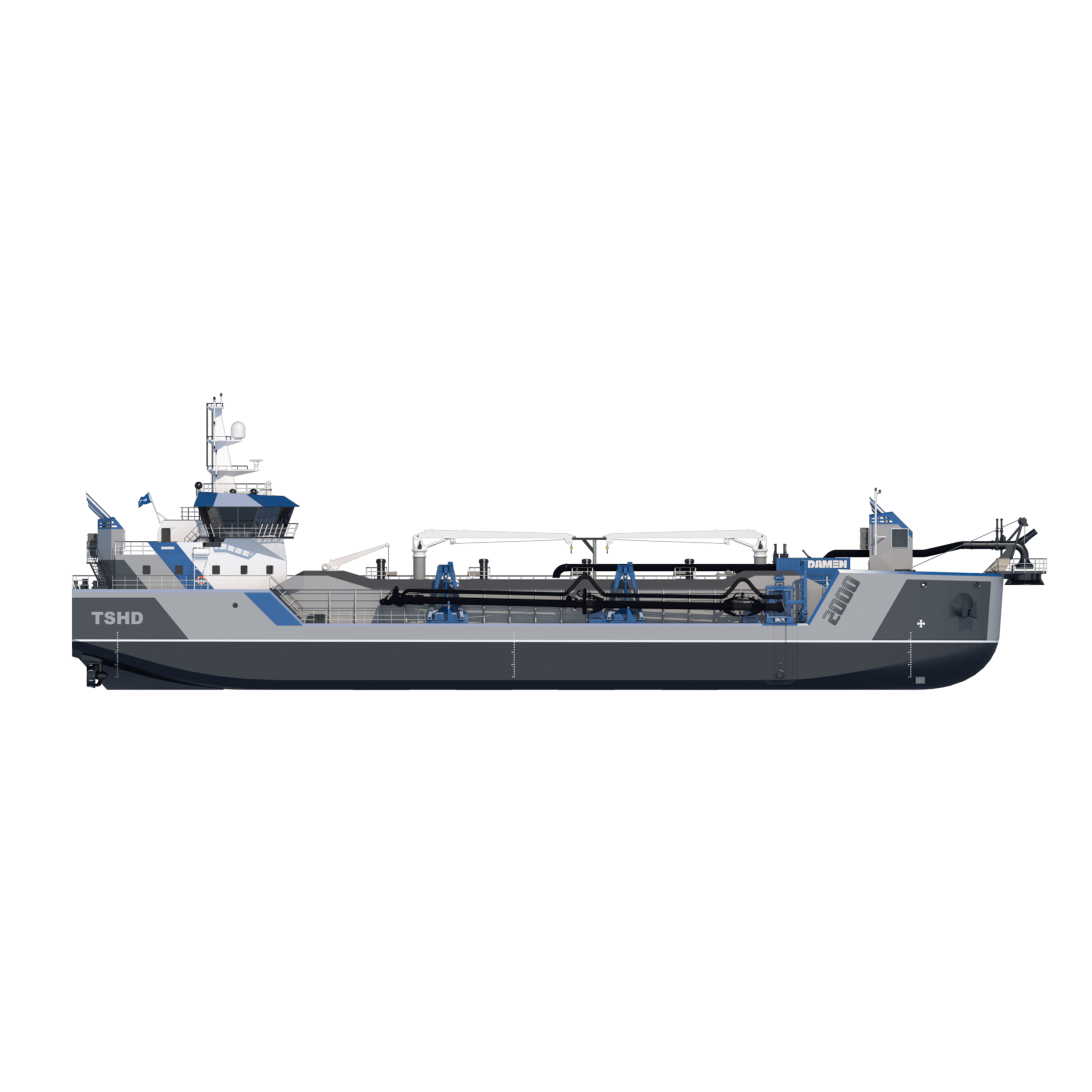

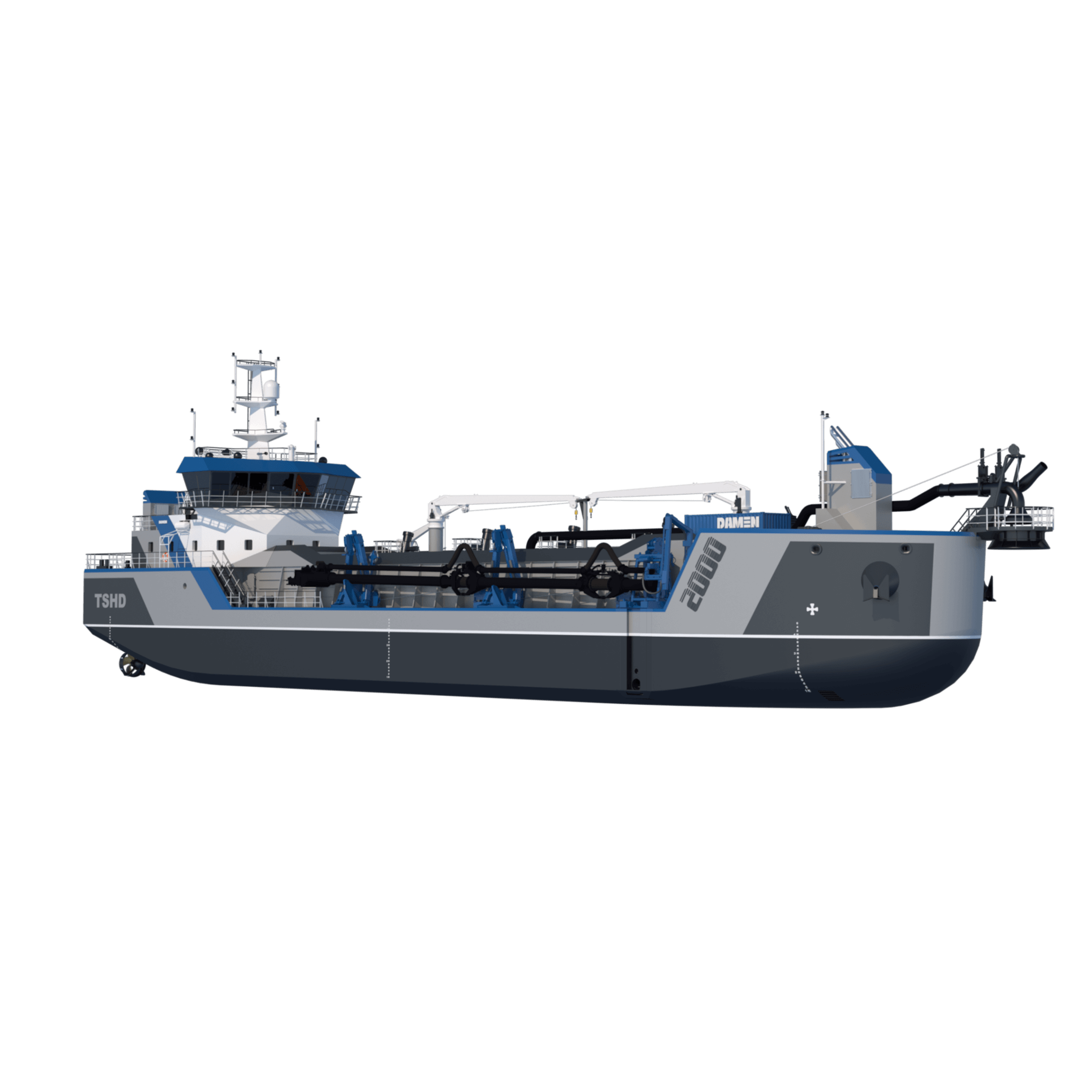

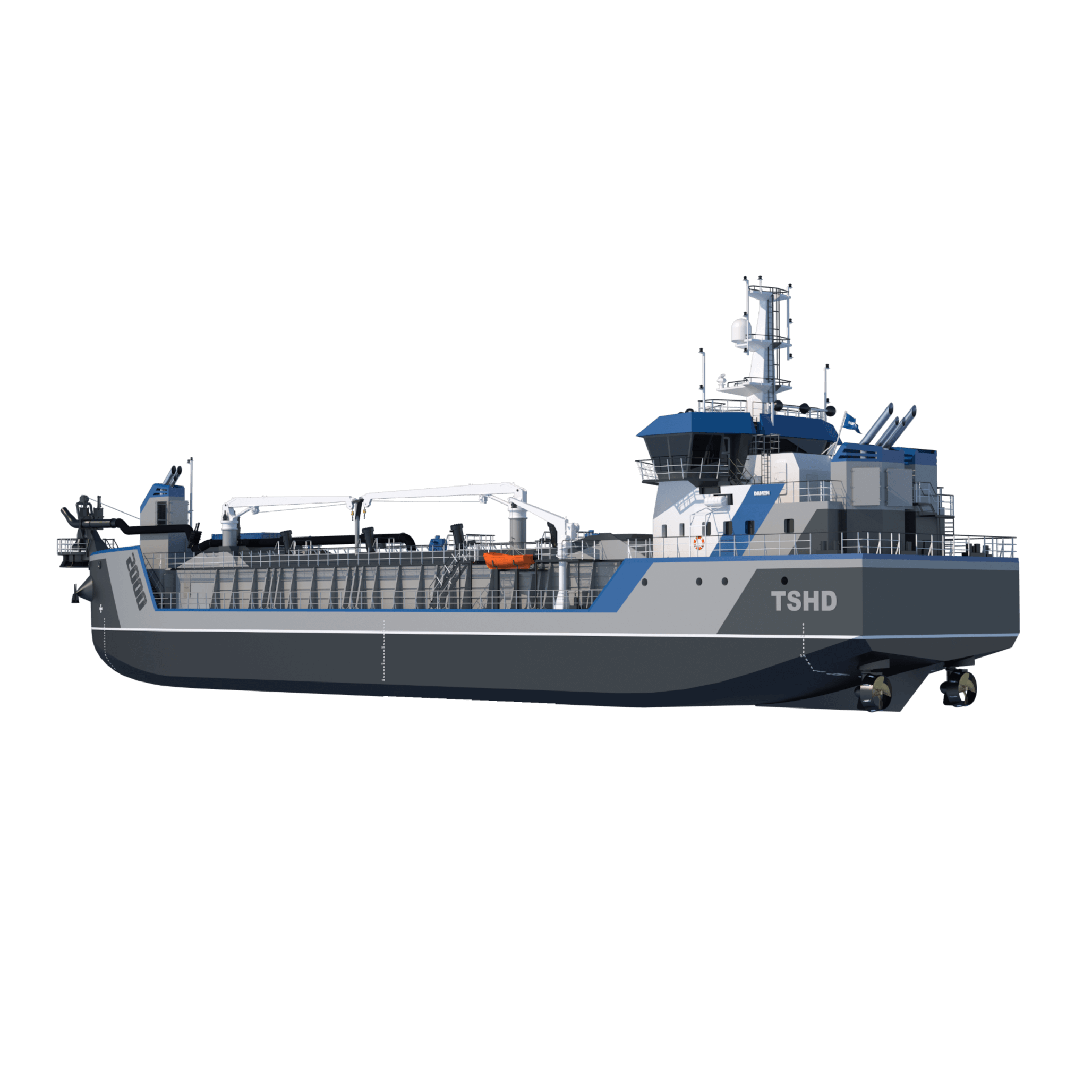

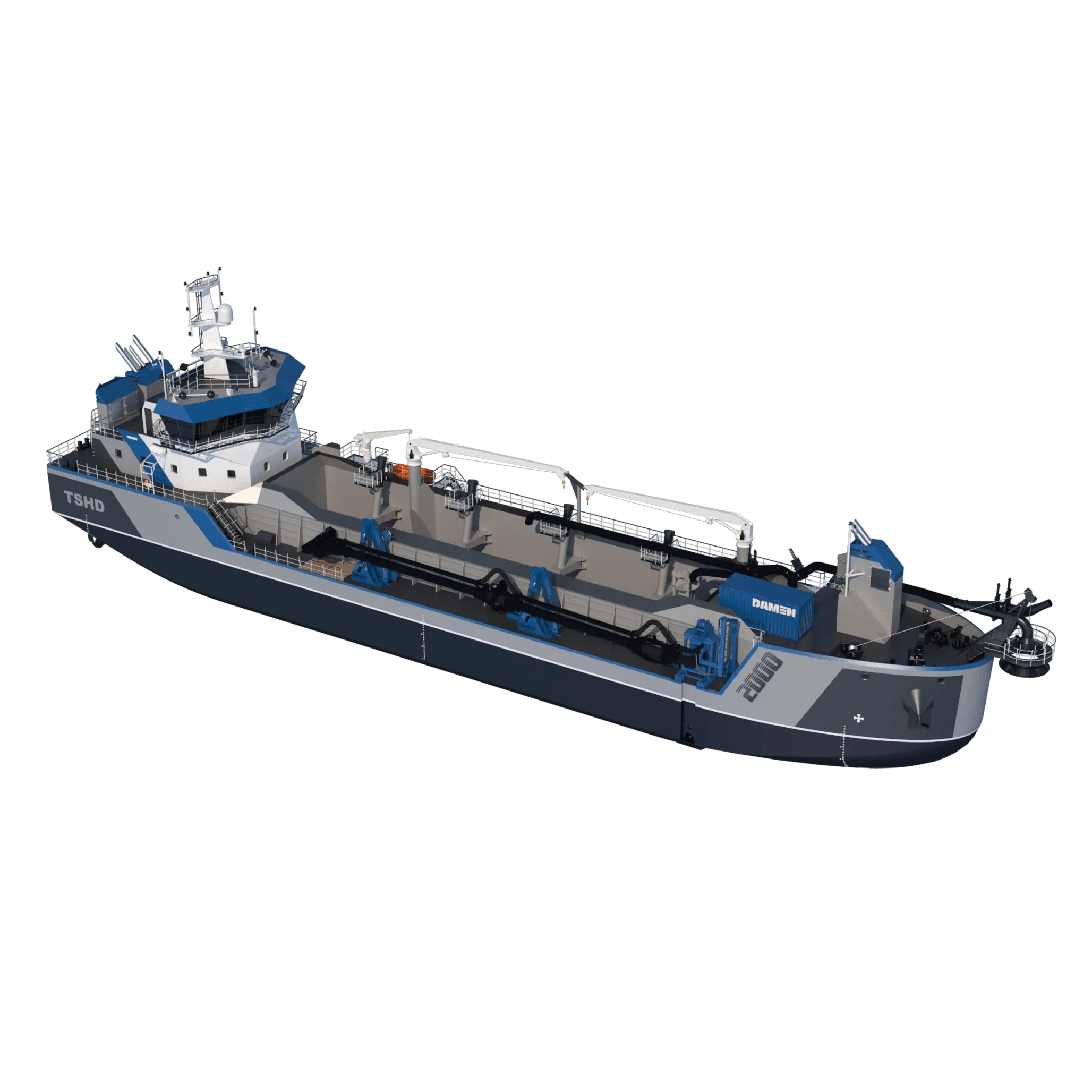

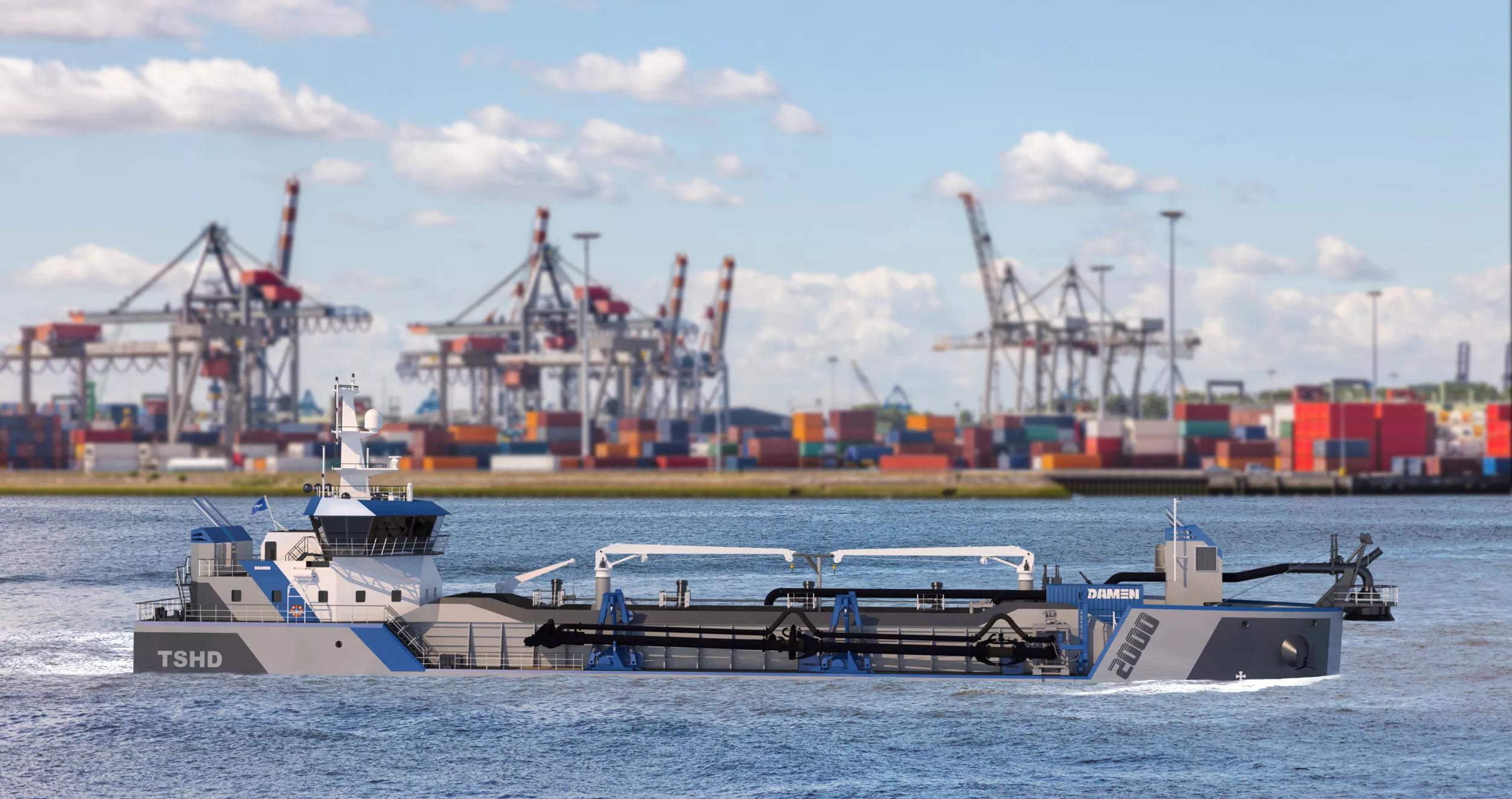

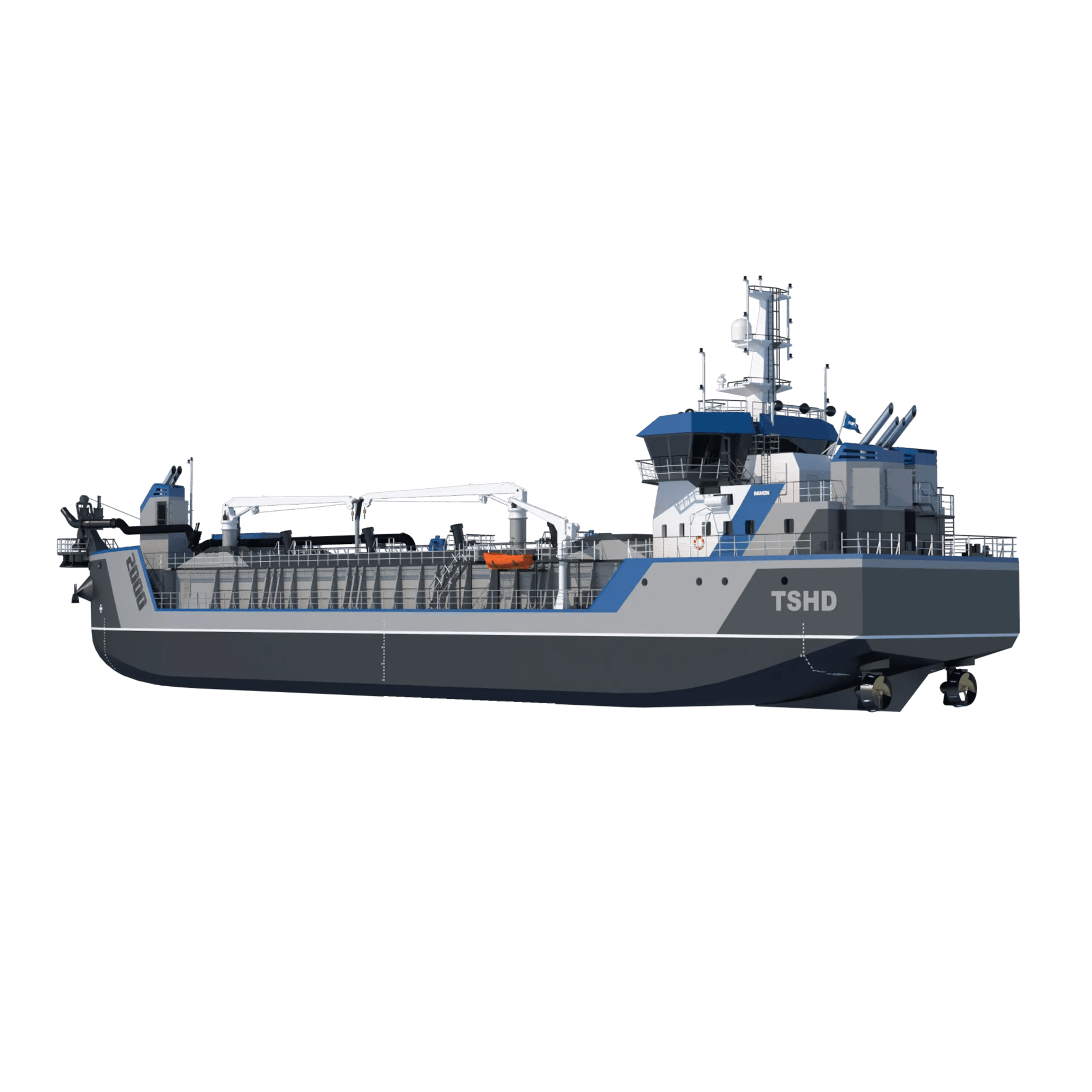

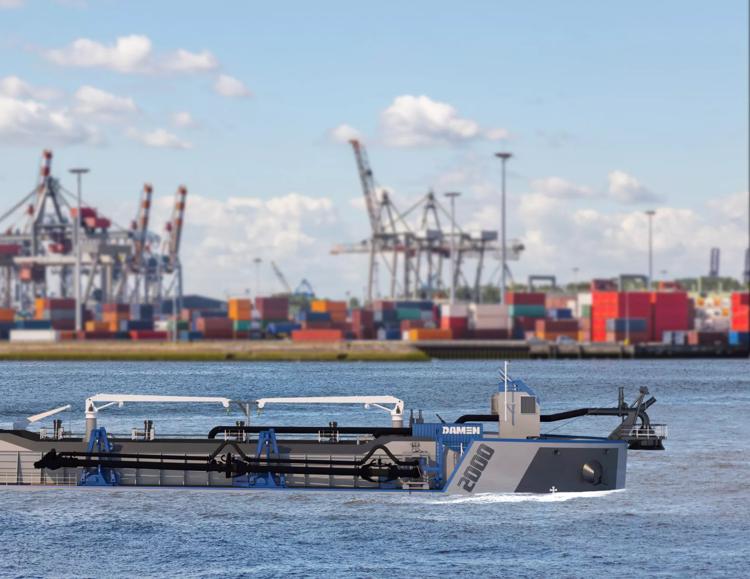

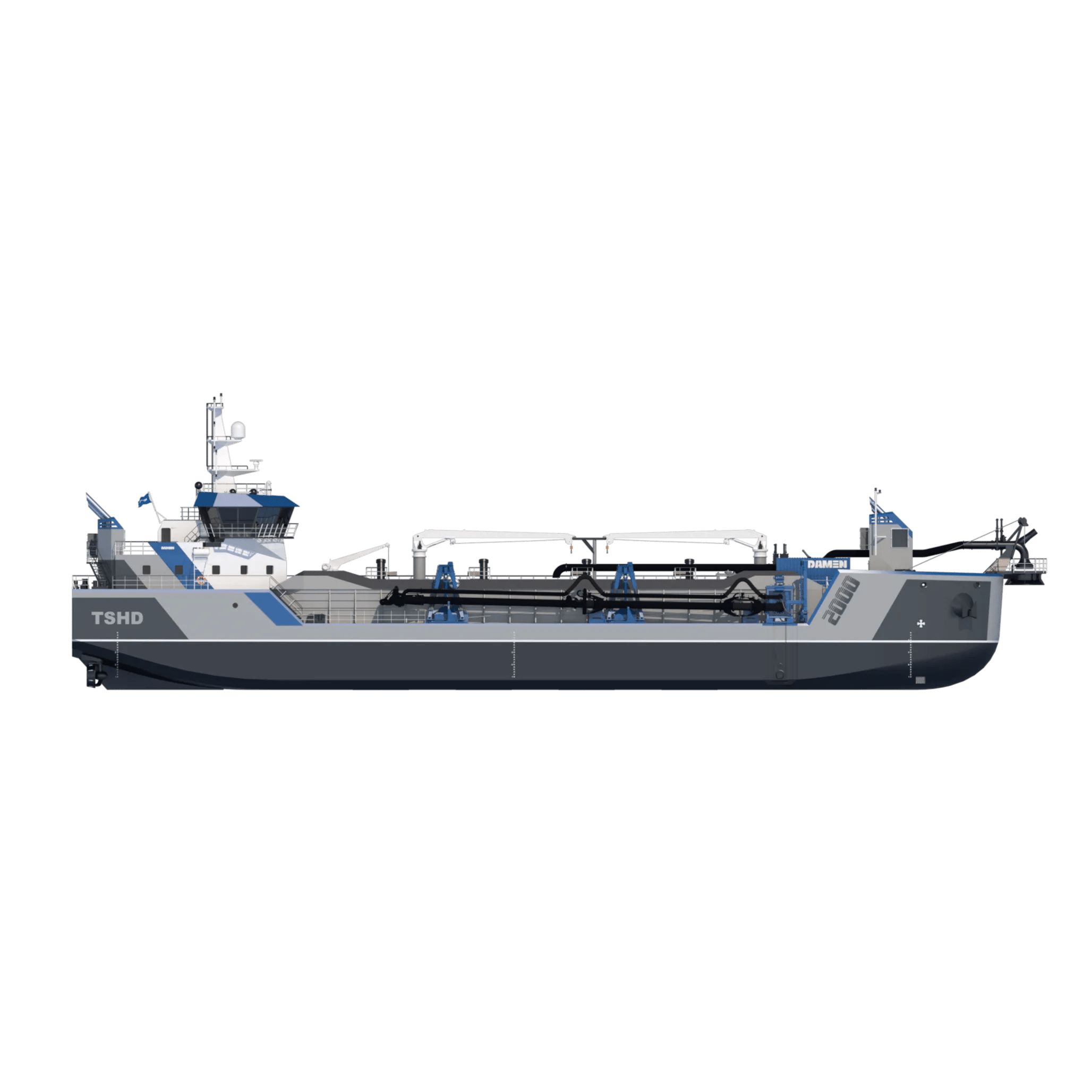

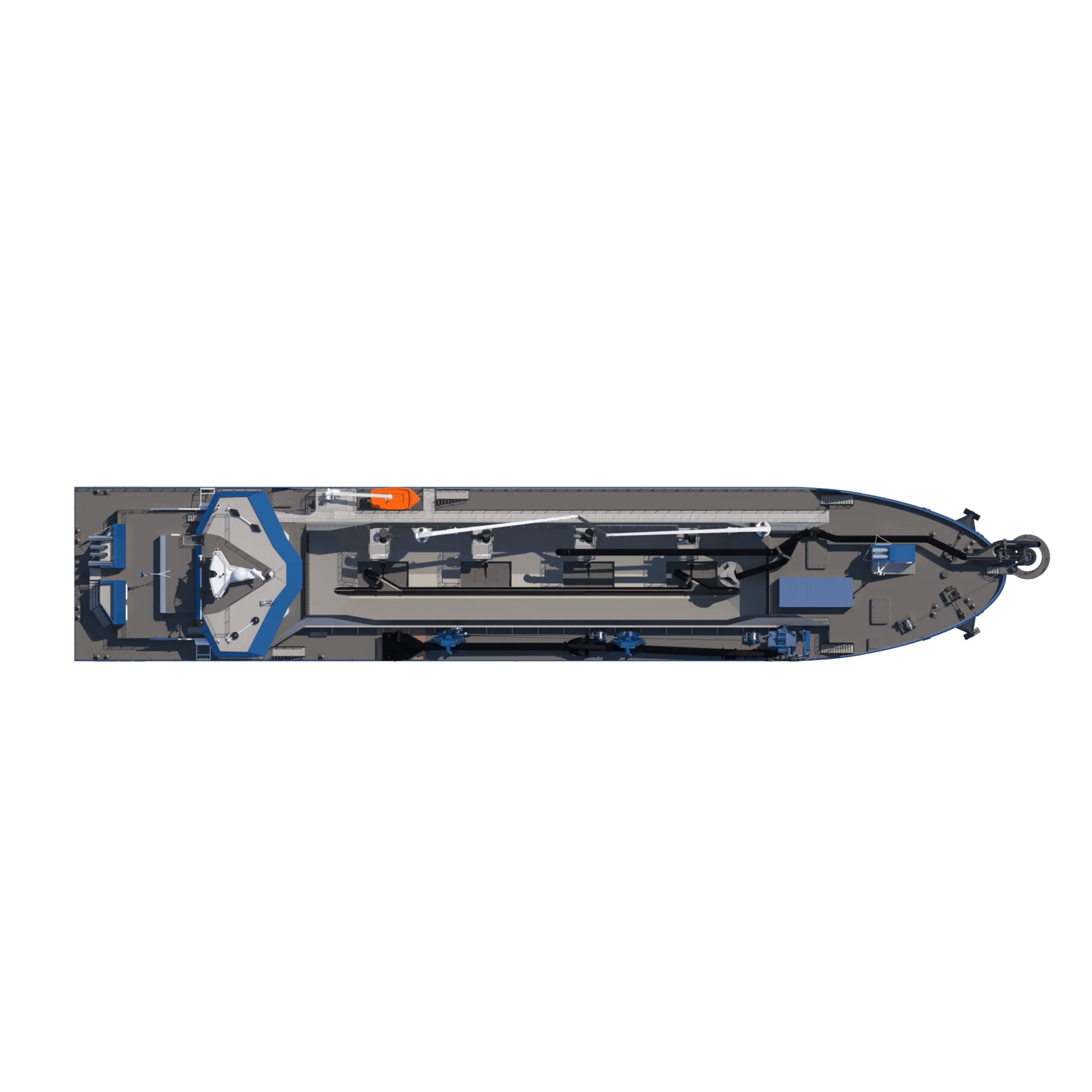

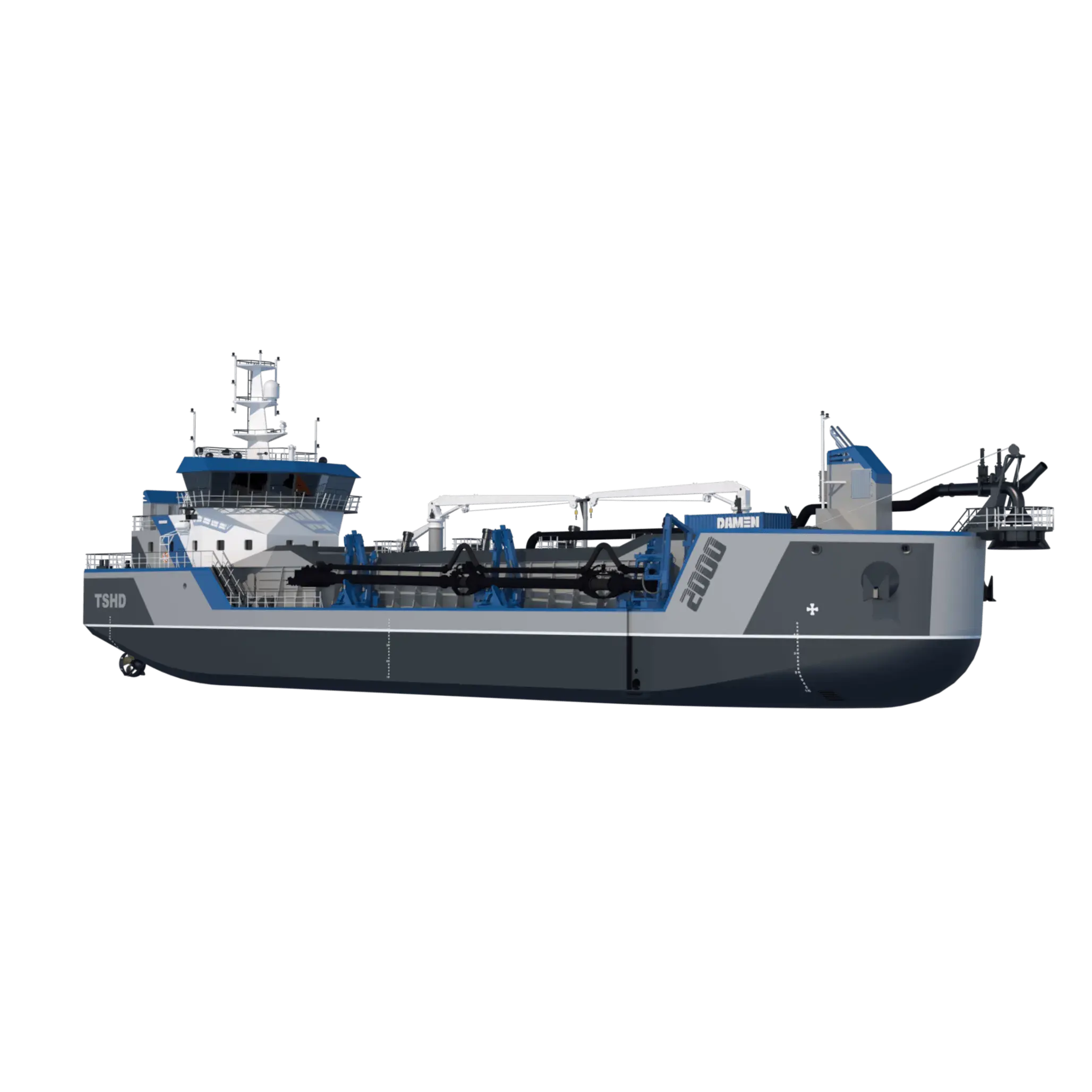

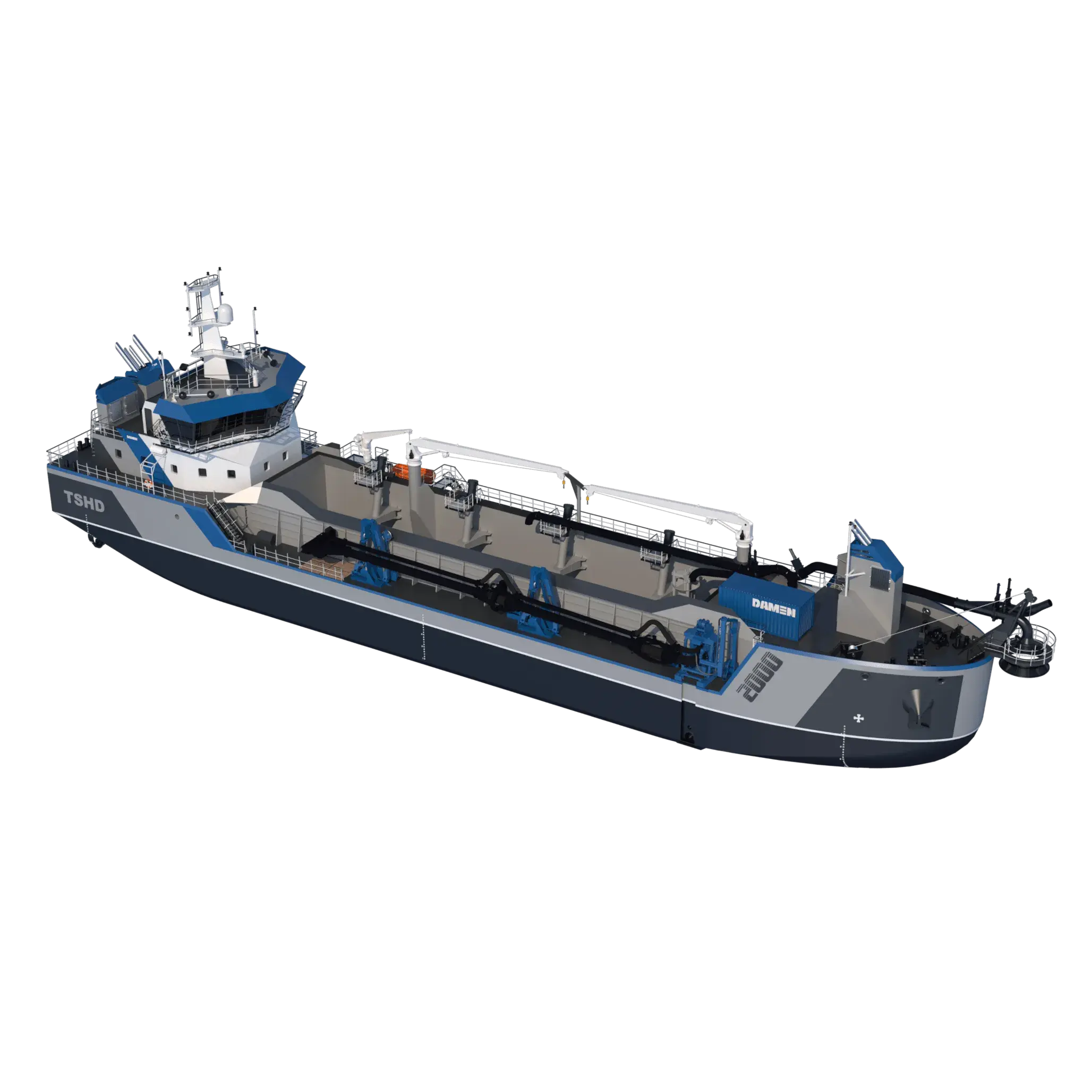

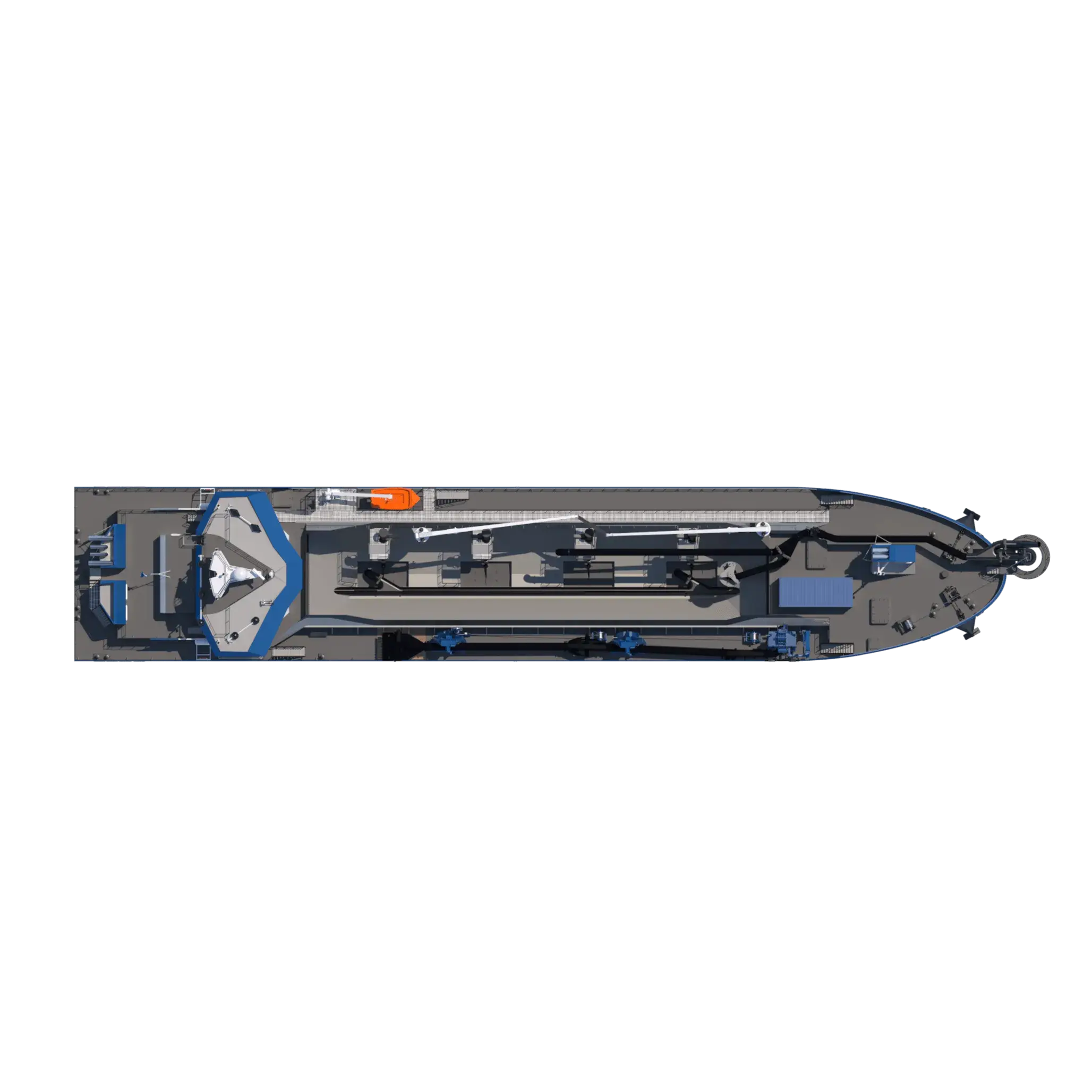

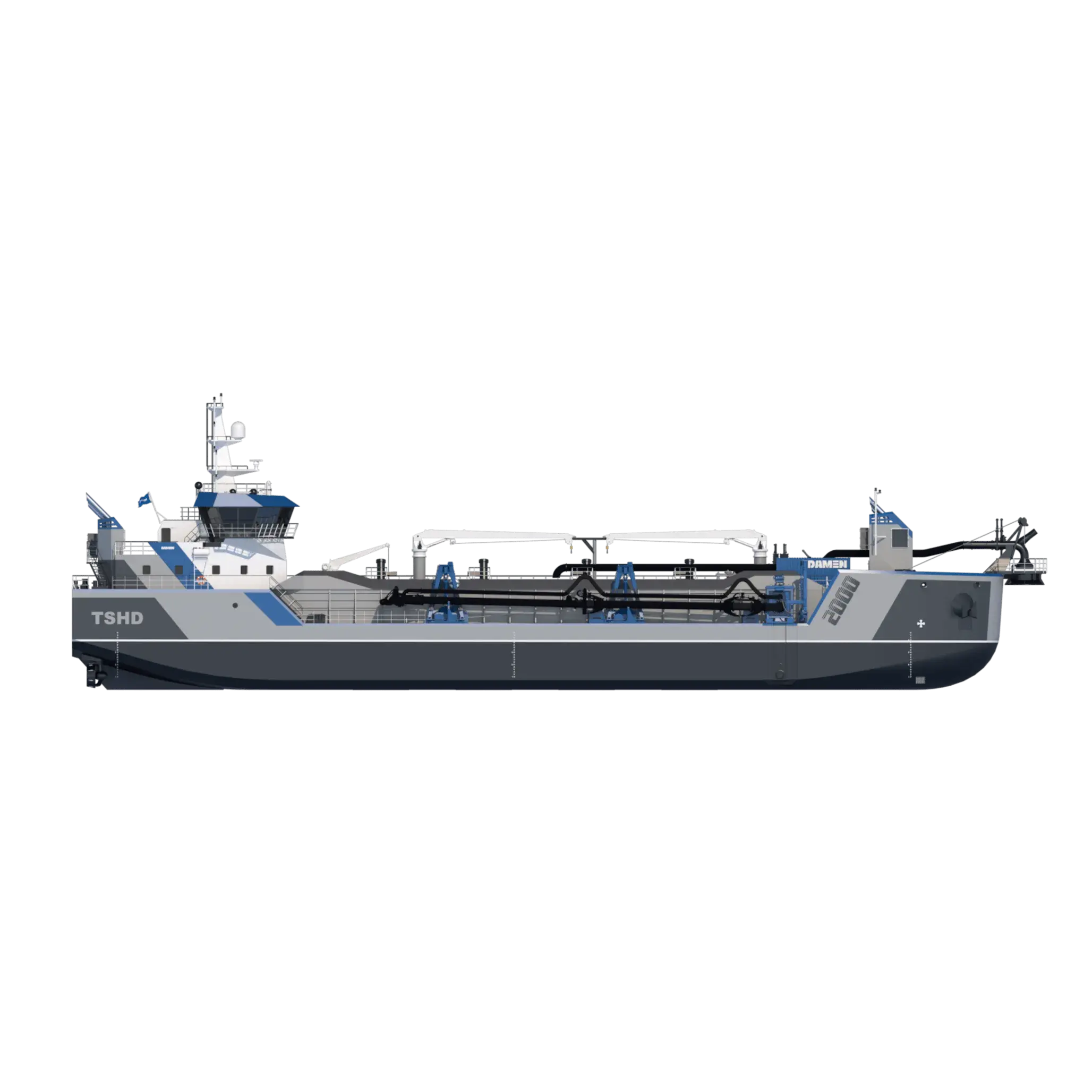

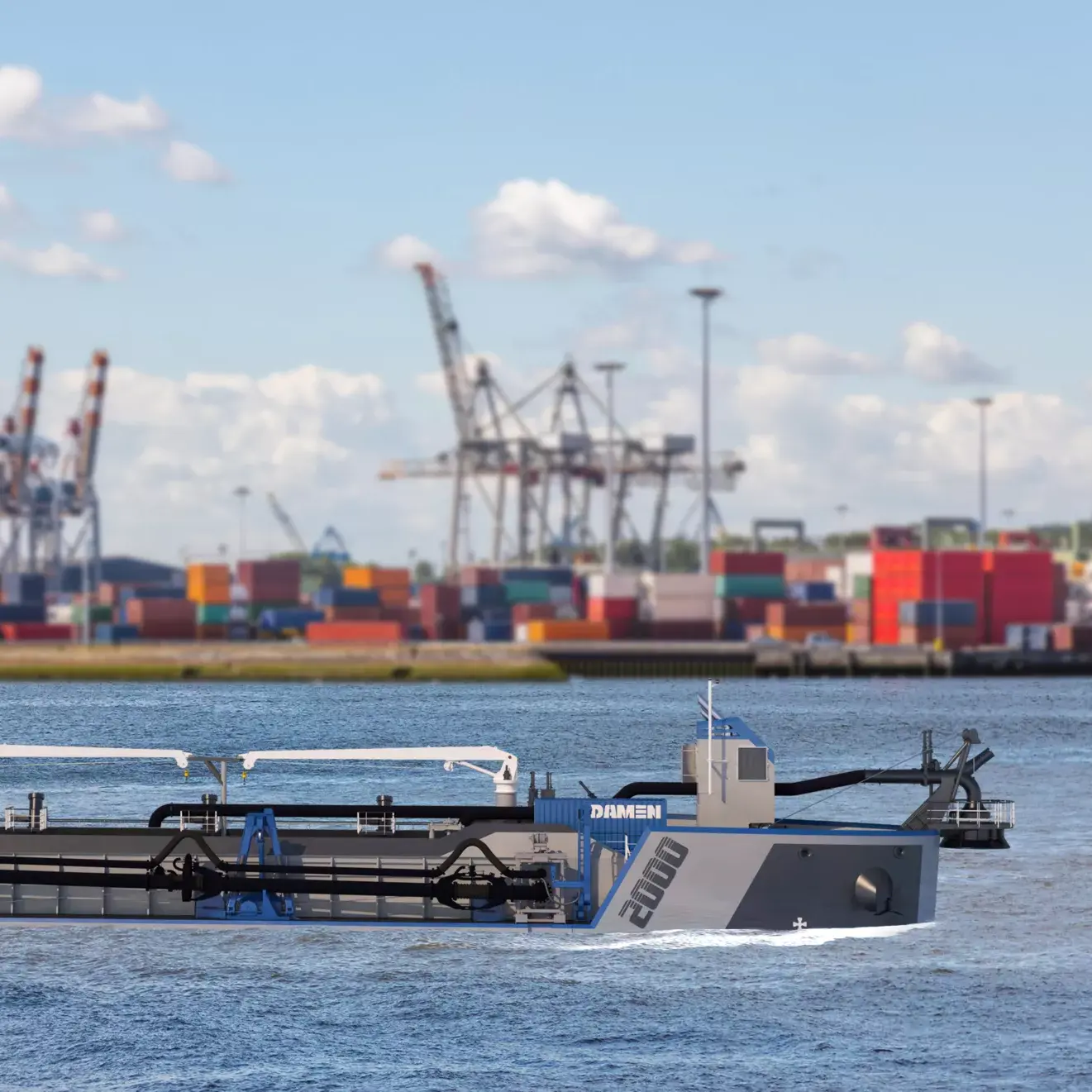

TSHD 2000 Port and Maintenance
TSHD 2000 Port and Maintenance
Dedicated maintenance Trailing Suction Hopper Dredger for ports and channels with maximised hopper volume for efficient operation. Sustainability in design through, for instance, ballast water free operation and no fuel tanks connected to the side shell. The versatile hopper dredger can be customised making use of practical optional packages.
- Bow coupling unit
- Degassing system
- IMO Tier III compliance
- Hybrid diesel-electric system
- Powerful bow thruster
- Bottom doors for quick dumping
- Spacious accommodation for 12 crew
- Green passport
Key figures
25
2000 - 2400
3350
600
11
Dimensions
- Length o.a. (excl. bow coupling)
- 76 m
- Beam moulded
- 14.2 m
- Draught (dredging)
- 5 m
- Deadweight
- 3350 t
Dredge performance
- Hopper capacity
- 2000 - 2400 m³
- Dredging depth
- 25 m
- Trailing pipe diameter
- 600 mm
- Speed loaded
- 11 kn
Equipment
- Propulsion power
- 2 x 970 kW
- Azimuth FPP propeller
- 2 x 1700 mm
- Bow thruster power
- 280 kW
- Fuel oil
- 190 m³
Do you want to know more?
Compare similar TSHDs
Dredging depth (m) | Hopper capacity (m³) | Deadweight (t) | Trailing pipe diameter (mm) | Speed loaded (kn) | ||
---|---|---|---|---|---|---|
TSHD 2000 Port and Maintenance | 25 | 2000 - 2400 | 3350 | 600 | 11 | |
TSHD 2500 Port and Maintenance | 25 | 2500 - 3000 | 4200 | 700 | 11.8 | |
TSHD 1500 Port and Maintenance | 20 | 1500 - 1800 | 2550 | 500 | 10.2 |
TSHD 2000 Port and Maintenance
- Dredging depth (m)
- 25
- Hopper capacity (m³)
- 2000 - 2400
- Deadweight (t)
- 3350
- Trailing pipe diameter (mm)
- 600
- Speed loaded (kn)
- 11
- Dredging depth (m)
- 25
- Hopper capacity (m³)
- 2500 - 3000
- Deadweight (t)
- 4200
- Trailing pipe diameter (mm)
- 700
- Speed loaded (kn)
- 11.8
- Dredging depth (m)
- 20
- Hopper capacity (m³)
- 1500 - 1800
- Deadweight (t)
- 2550
- Trailing pipe diameter (mm)
- 500
- Speed loaded (kn)
- 10.2
