TSHD 2500 Port and Maintenance
TSHD 2500 Port and Maintenance

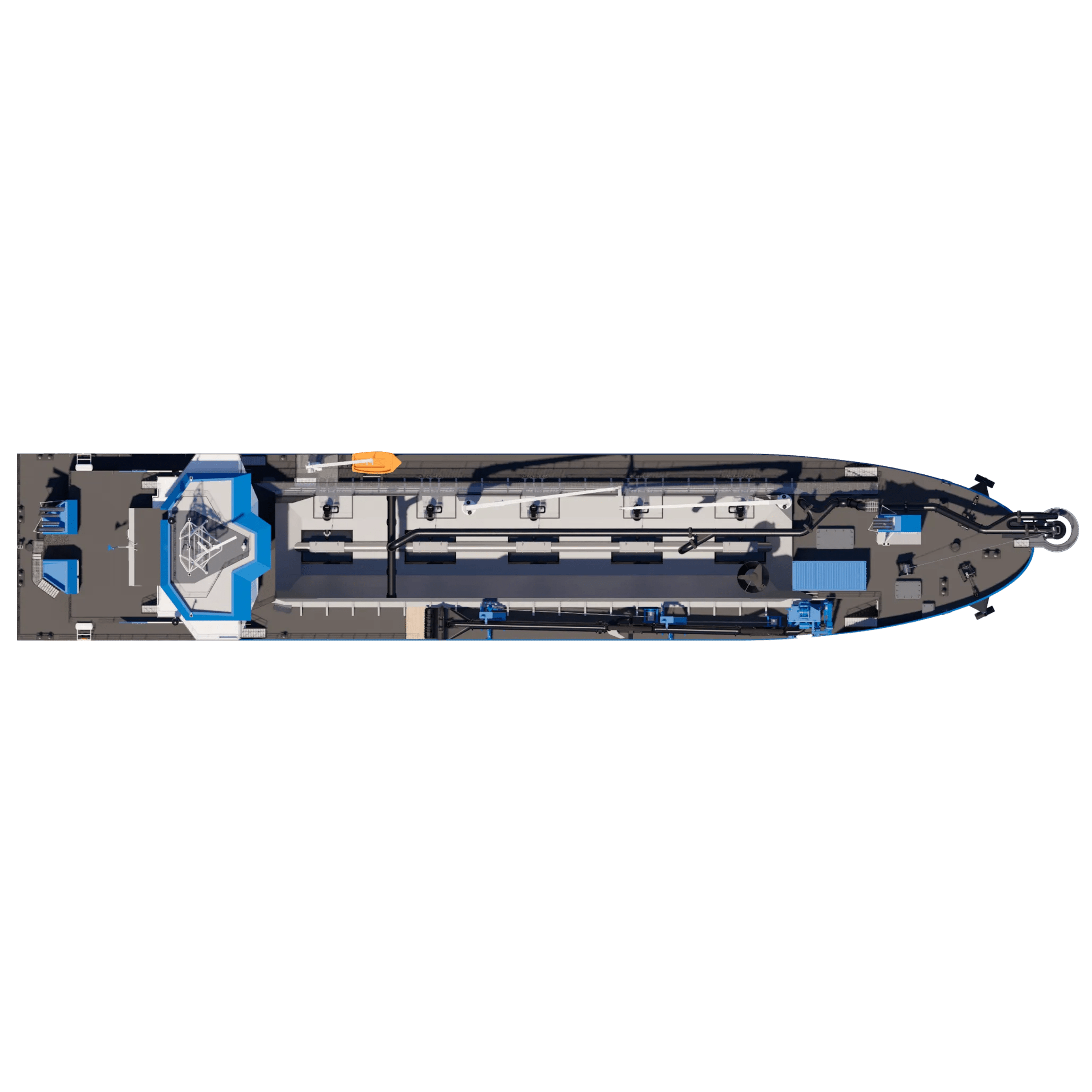

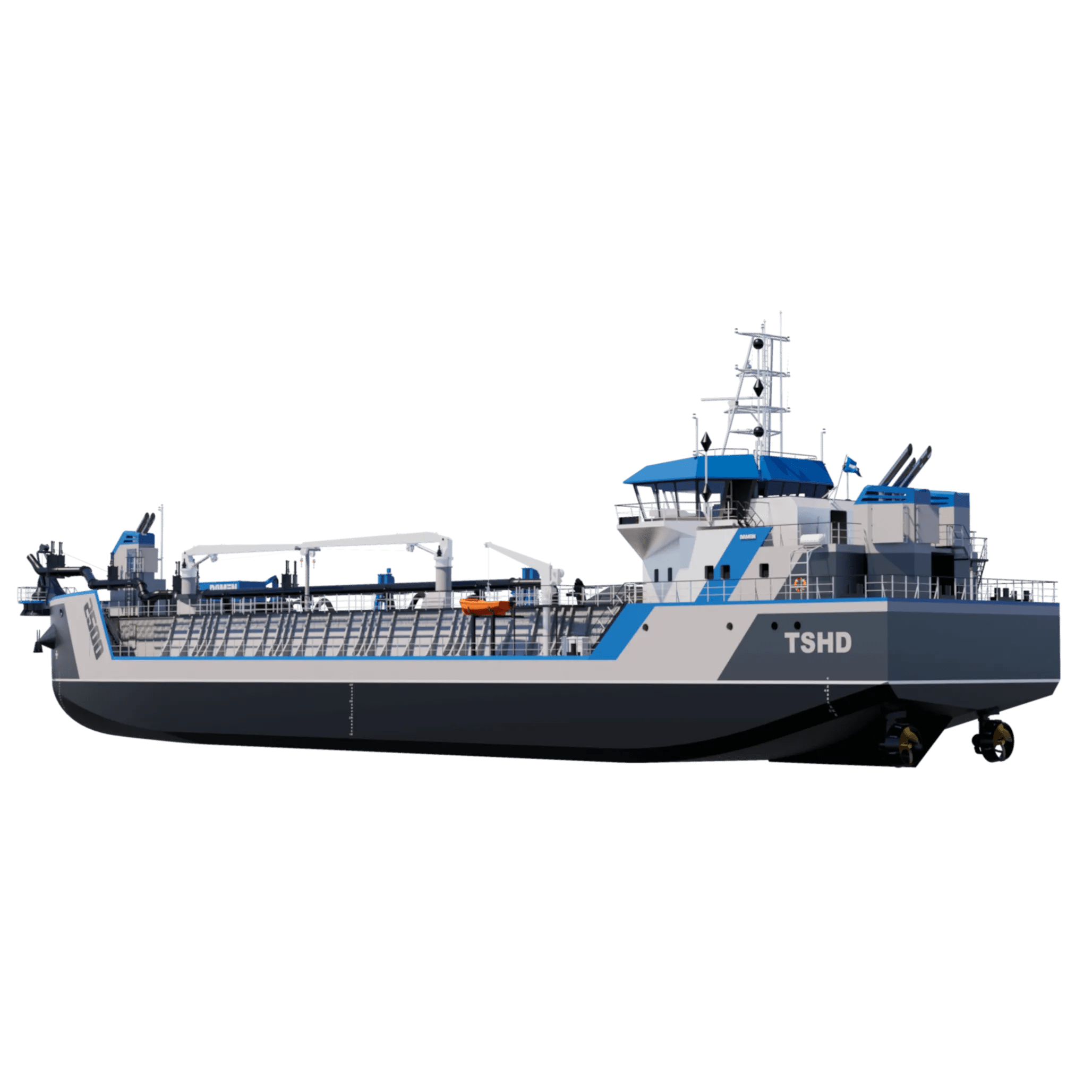

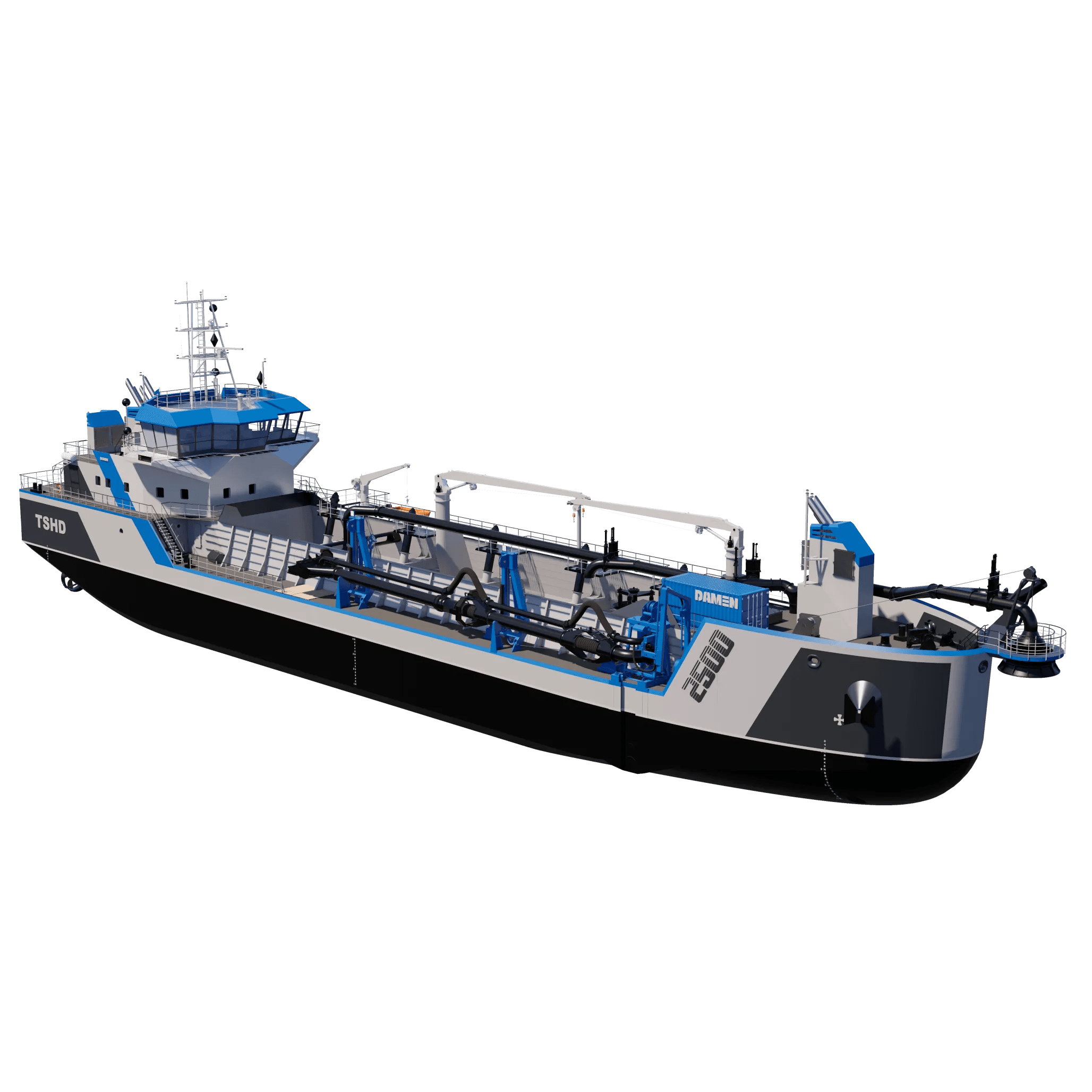

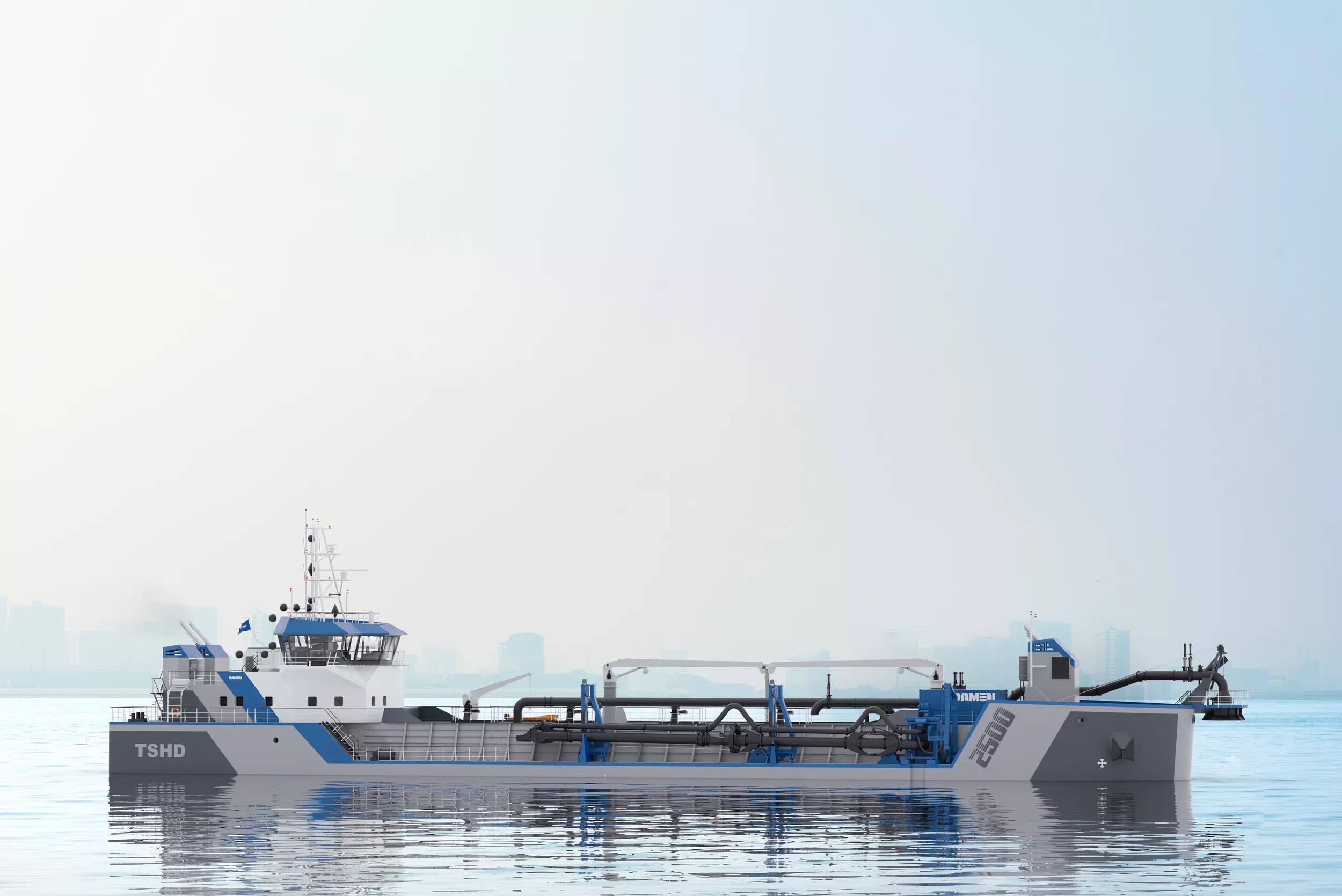

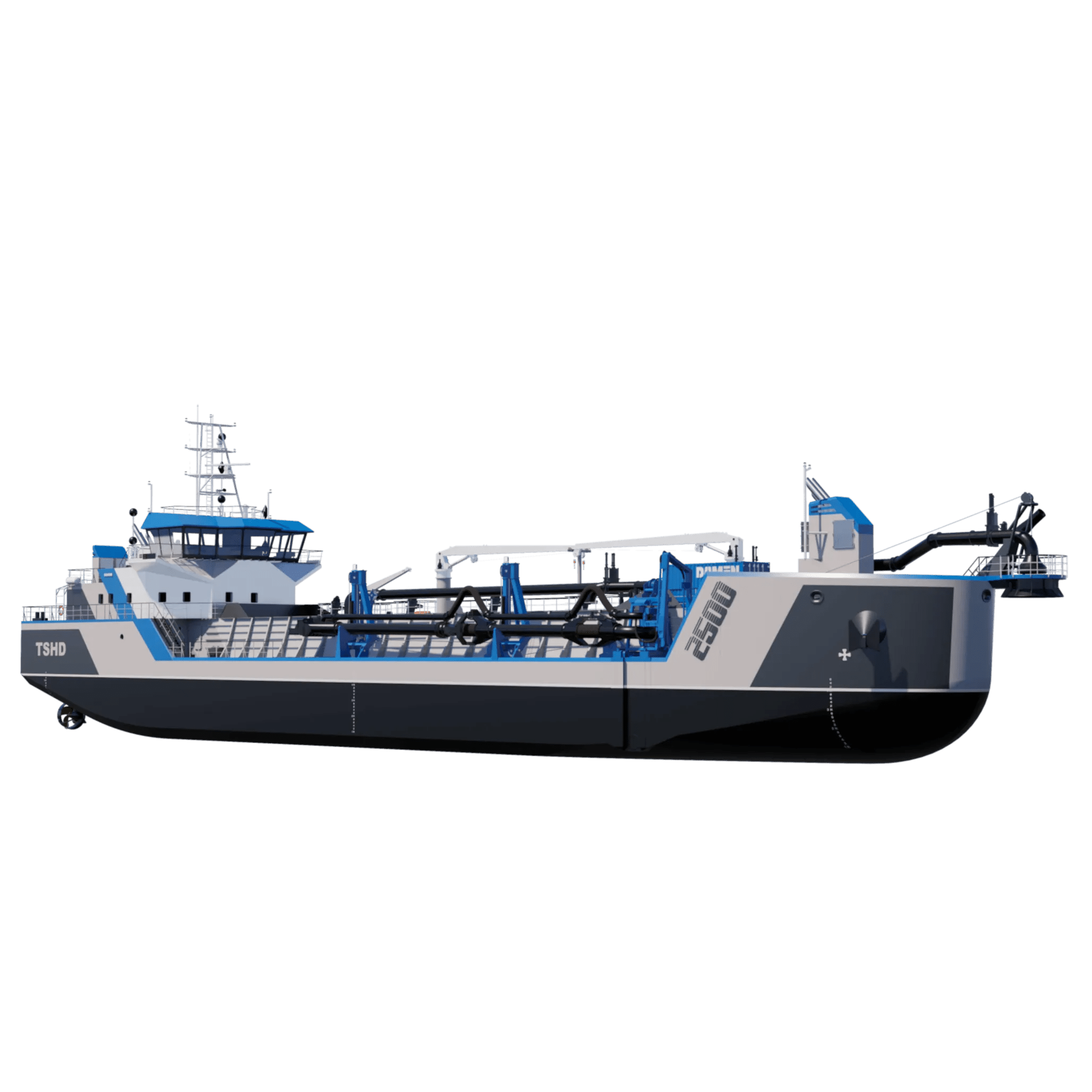

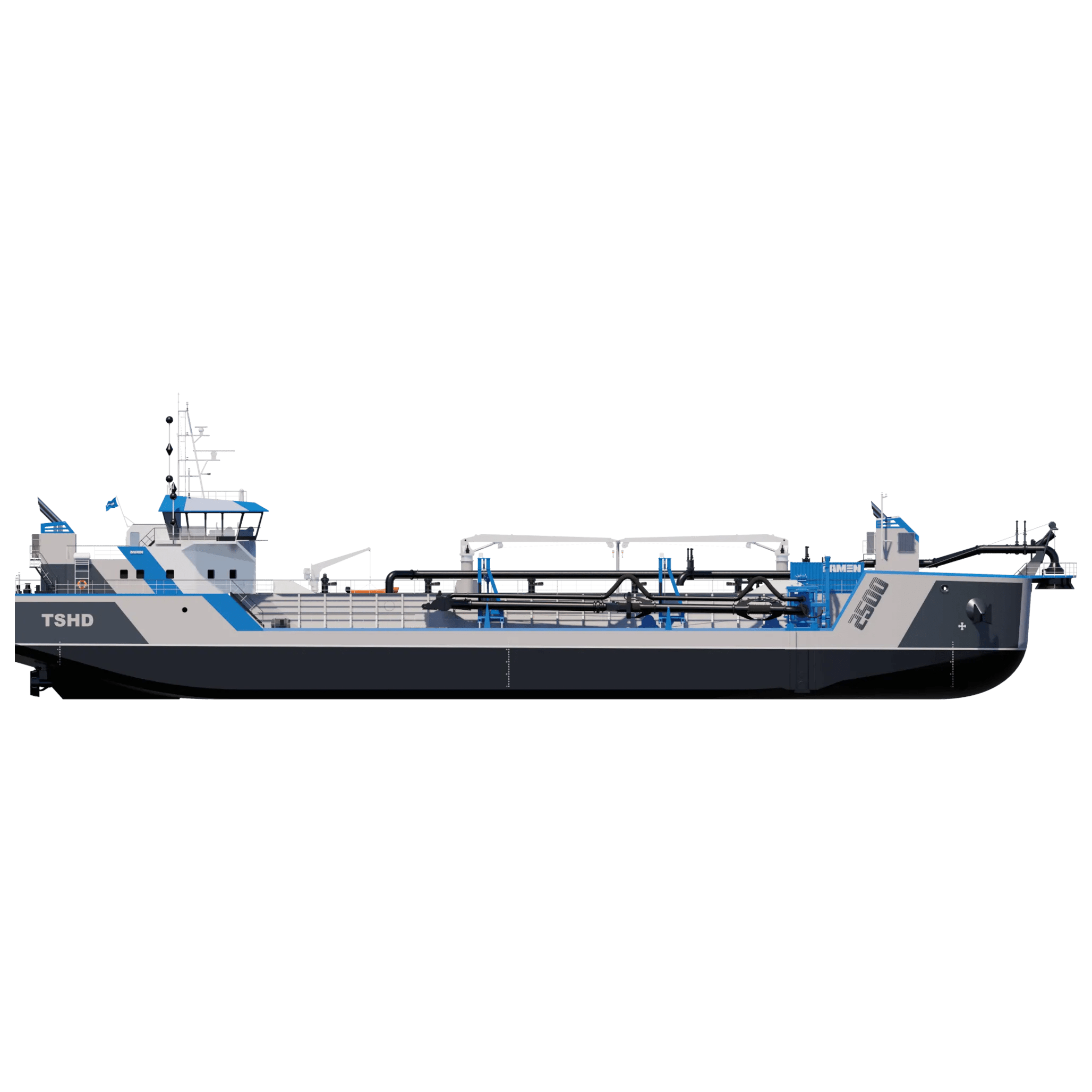

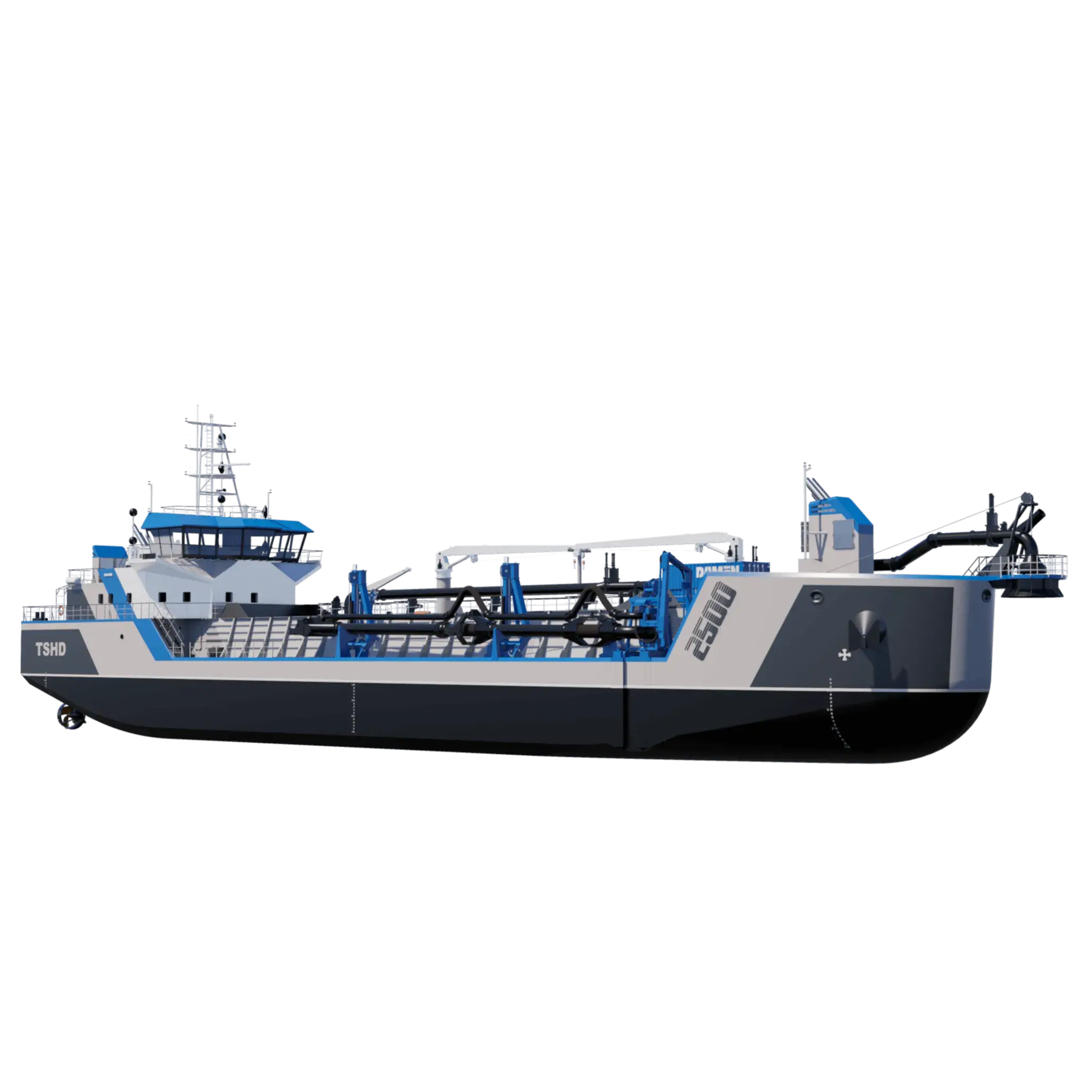

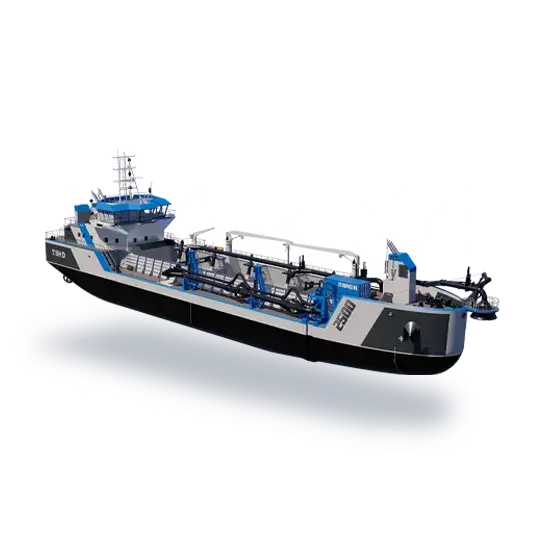

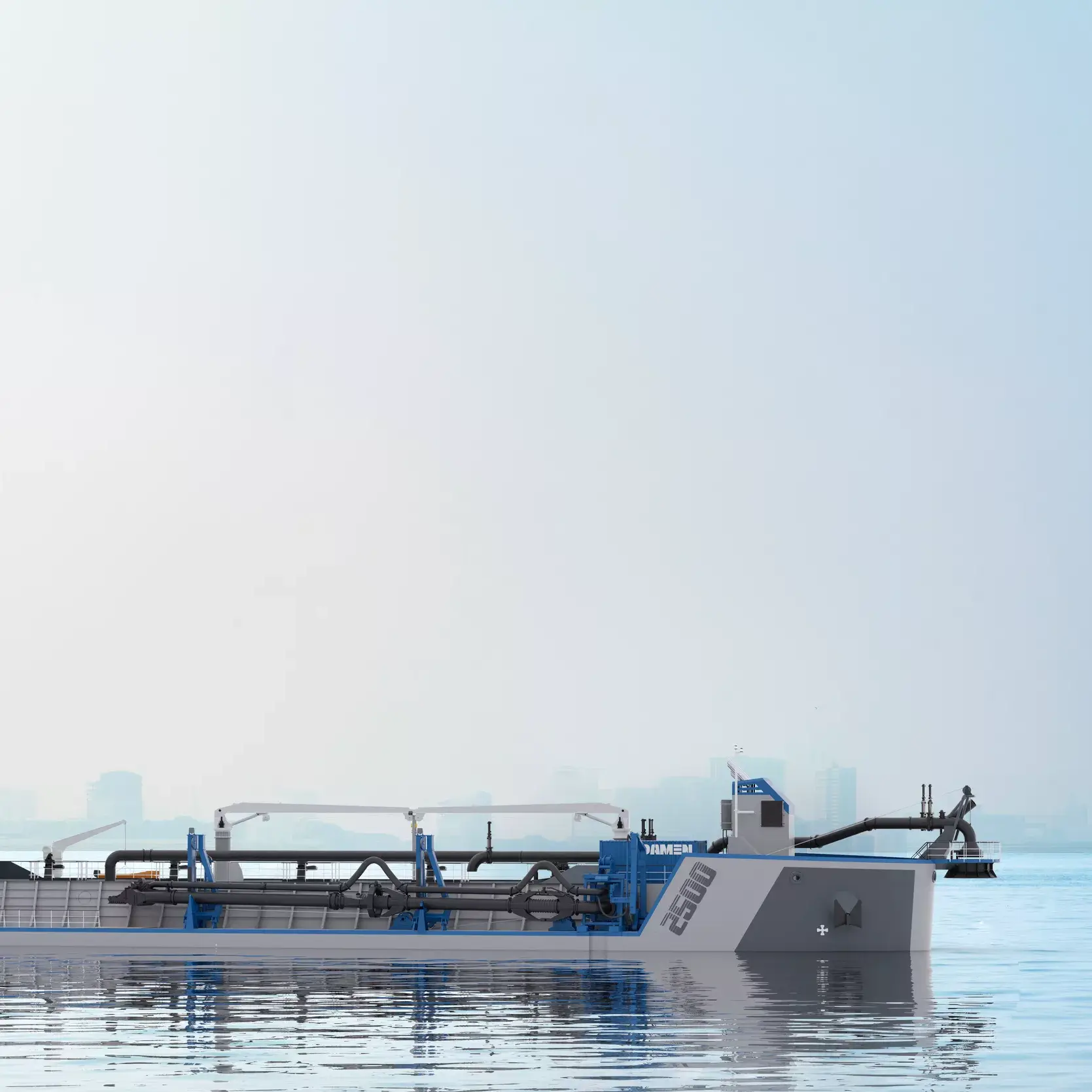

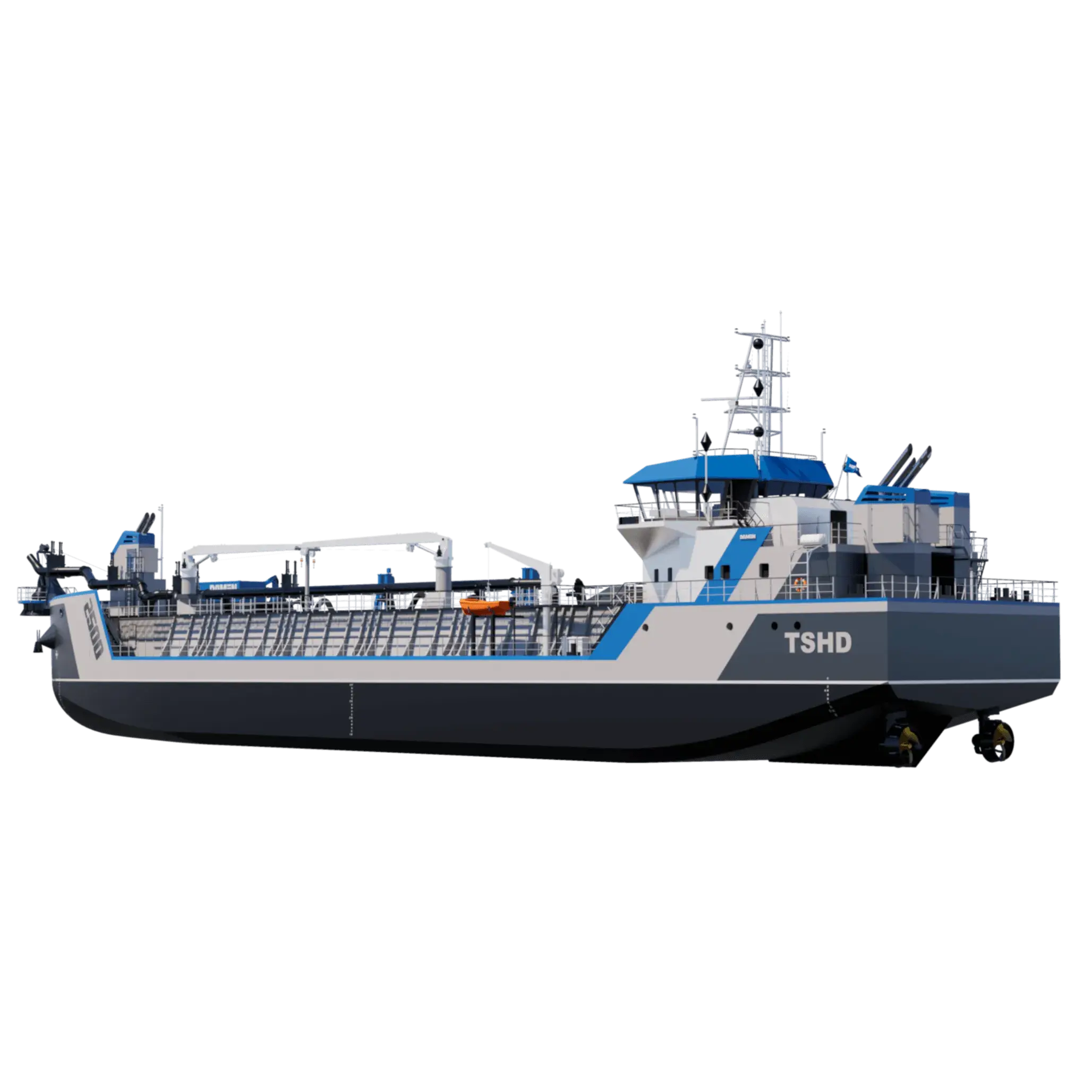

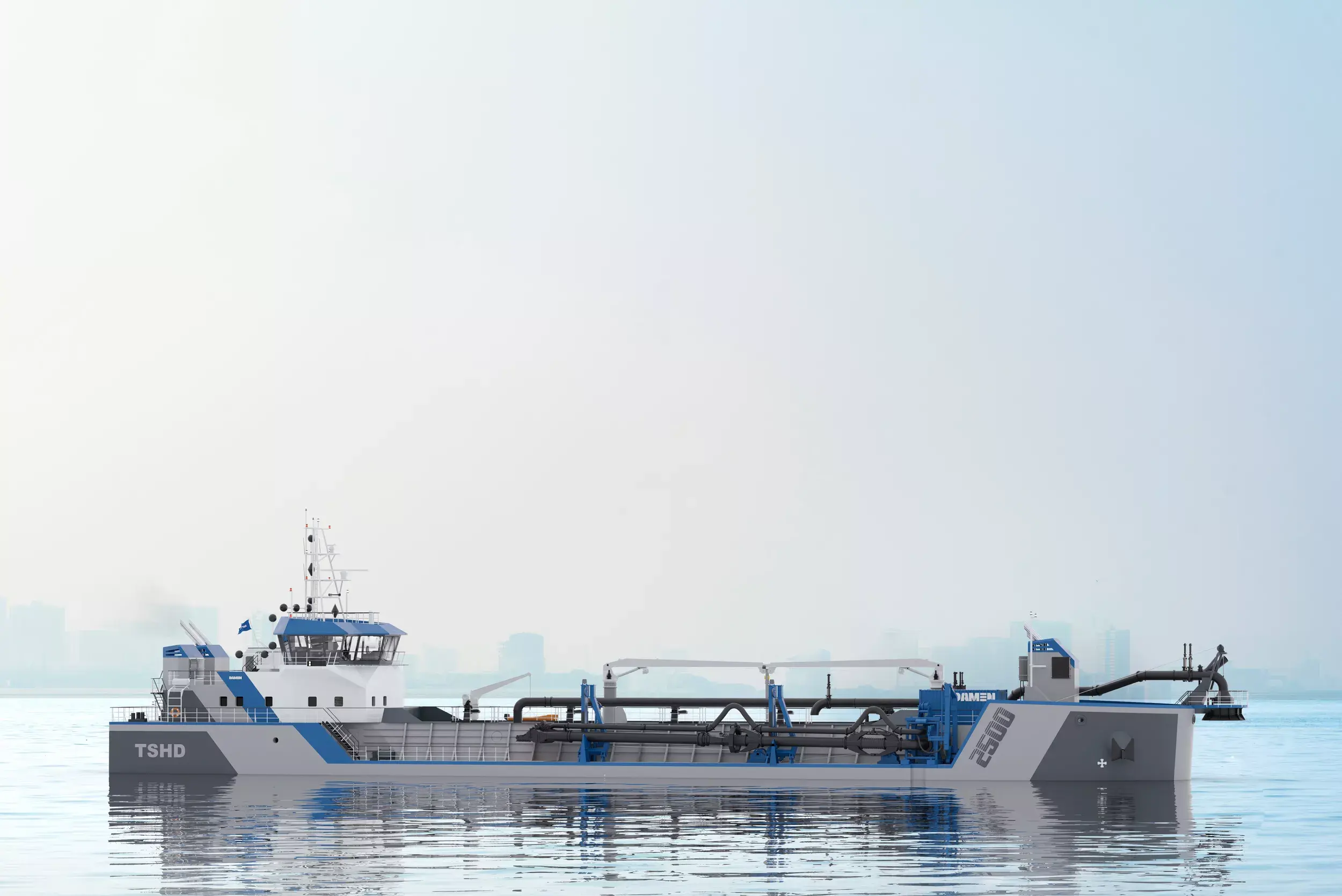

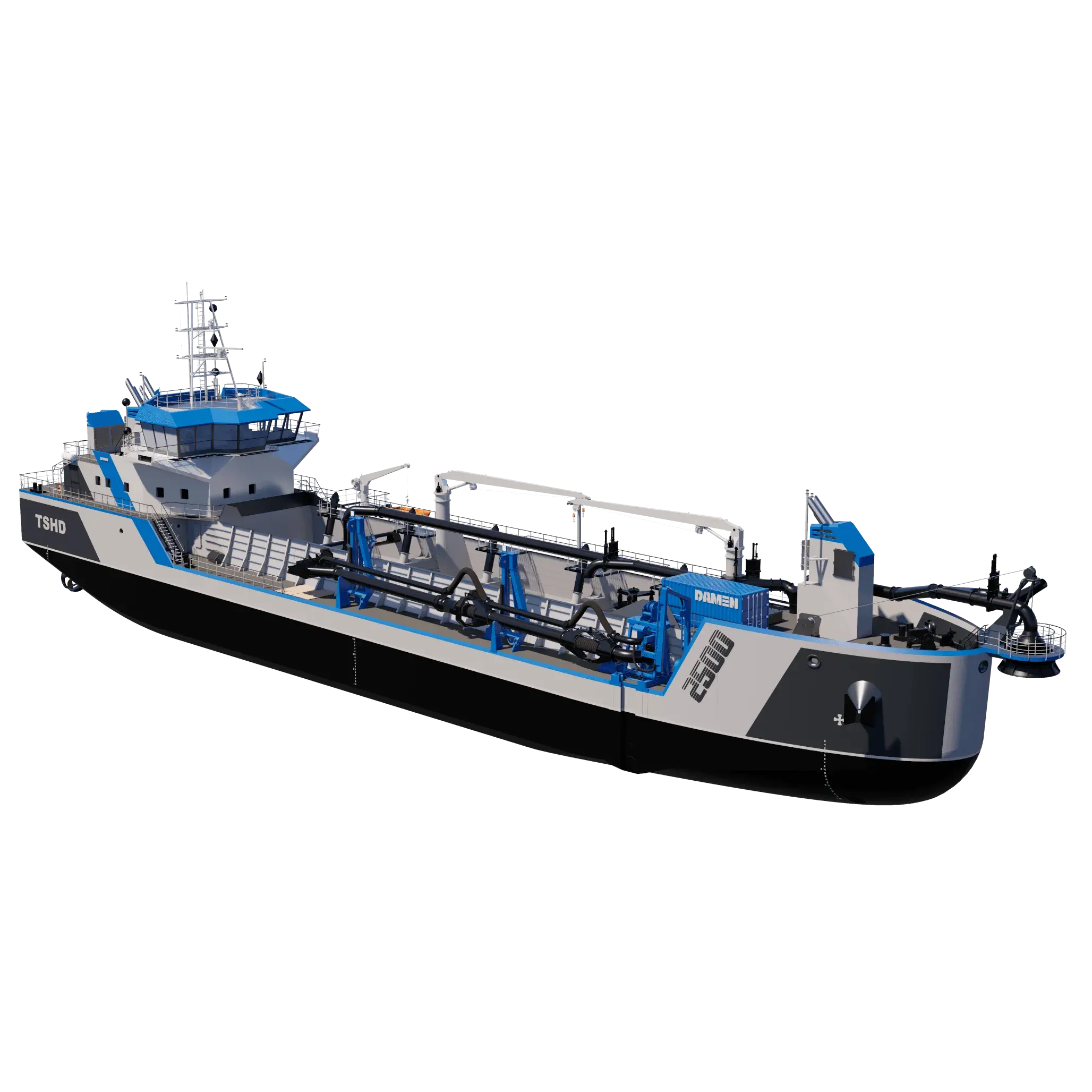

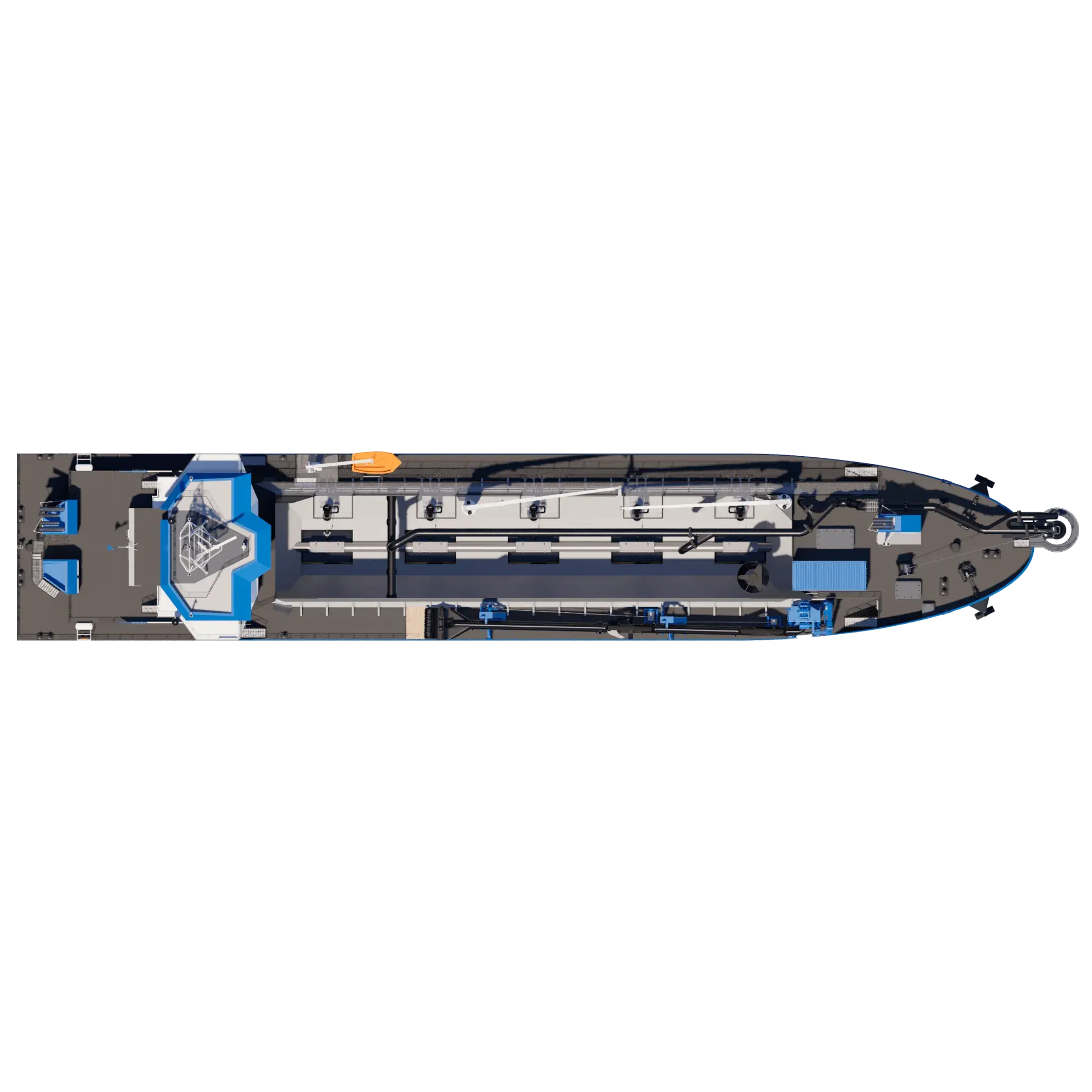

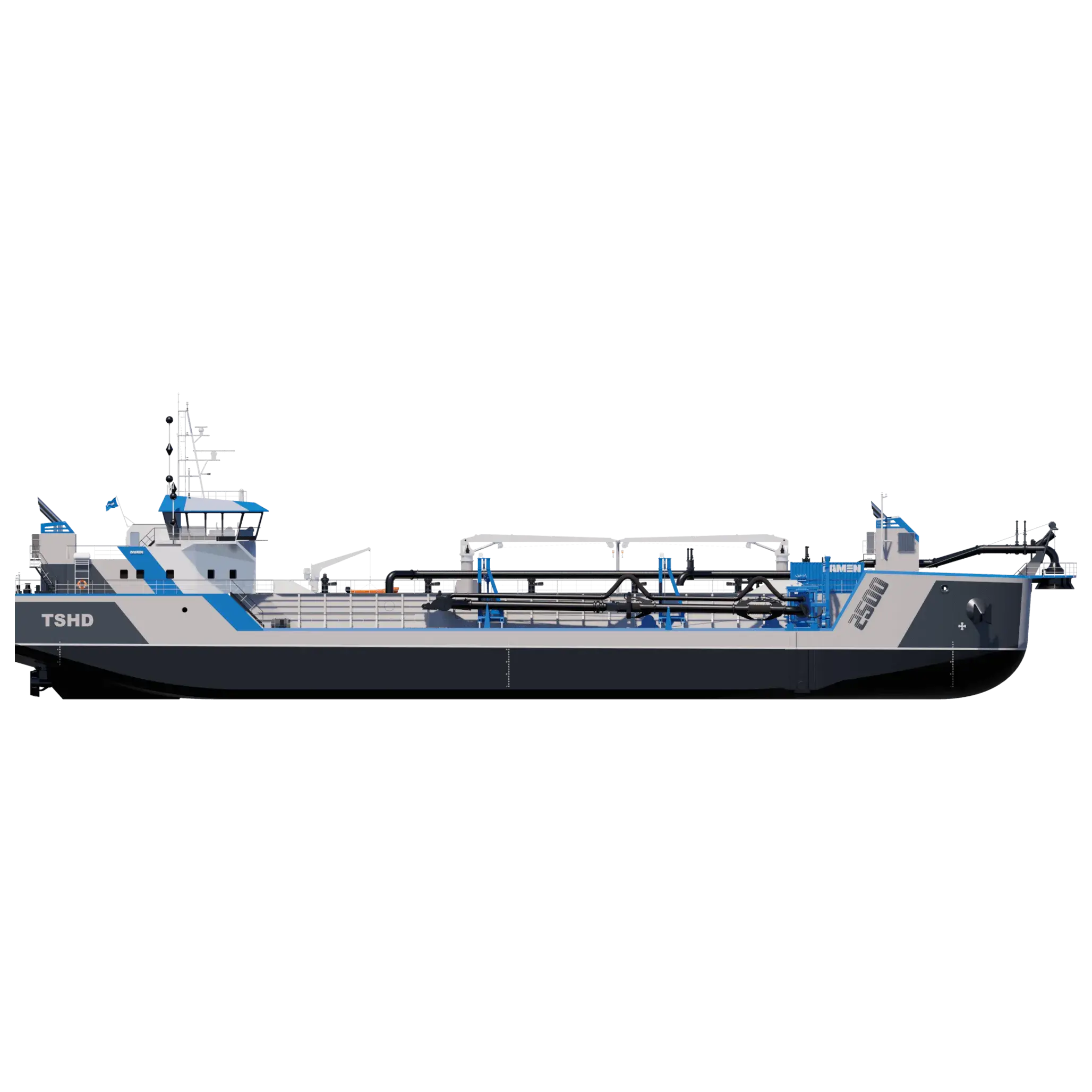

The TSHD2500 Trailing Suction Hopper Dredger is an agile self-propelled dredger for independent continuous port dredging duties. The highly manouvrable dredger is easy to operate and maintain. Its design includes fuel efficiency, sustainable choices as no ballast water is needed and no fuel oil is adjacent to the hull. The highly efficient dredging equipment includes a single trailing pipe and a dedicated inboard dredge pump.
- Bow coupling unit
- Degassing system
- IMO Tier III compliance
- Accommodation for up to 28 crew
- Powerful bow thruster
- Bottom doors for quick dumping
- Spacious accommodation for 14 crew
- Green passport
Key figures
25
2500 - 3000
4200
700
11.8
Dimensions
- Length o.a. (excl. bow coupling)
- 82.4 m
- Beam moulded
- 15.2 m
- Draught (dredging)
- 5.4 m
- Deadweight
- 4200 t
Dredge performance
- Hopper capacity
- 2500 - 3000 m³
- Dredging depth
- 25 m
- Trailing pipe diameter
- 700 mm
- Speed loaded
- 11.8 kn
Equipment
- Propulsion power
- 2 x 1300 kW
- Azimuth FPP propeller
- 2 x 1900 mm
- Bow thruster power
- 280 kW
- Fuel oil
- 300 m³
Do you want to know more?
Compare similar TSHDs
Dredging depth (m) | Hopper capacity (m³) | Deadweight (t) | Trailing pipe diameter (mm) | Speed loaded (kn) | ||
---|---|---|---|---|---|---|
TSHD 2500 Port and Maintenance | 25 | 2500 - 3000 | 4200 | 700 | 11.8 | |
TSHD 3000 Multi Purpose | 25 | 3300 - 3600 | 5050 | 700 | 12.2 | |
TSHD 2000 Port and Maintenance | 25 | 2000 - 2400 | 3350 | 600 | 11 |
TSHD 2500 Port and Maintenance
- Dredging depth (m)
- 25
- Hopper capacity (m³)
- 2500 - 3000
- Deadweight (t)
- 4200
- Trailing pipe diameter (mm)
- 700
- Speed loaded (kn)
- 11.8
- Dredging depth (m)
- 25
- Hopper capacity (m³)
- 3300 - 3600
- Deadweight (t)
- 5050
- Trailing pipe diameter (mm)
- 700
- Speed loaded (kn)
- 12.2
- Dredging depth (m)
- 25
- Hopper capacity (m³)
- 2000 - 2400
- Deadweight (t)
- 3350
- Trailing pipe diameter (mm)
- 600
- Speed loaded (kn)
- 11
