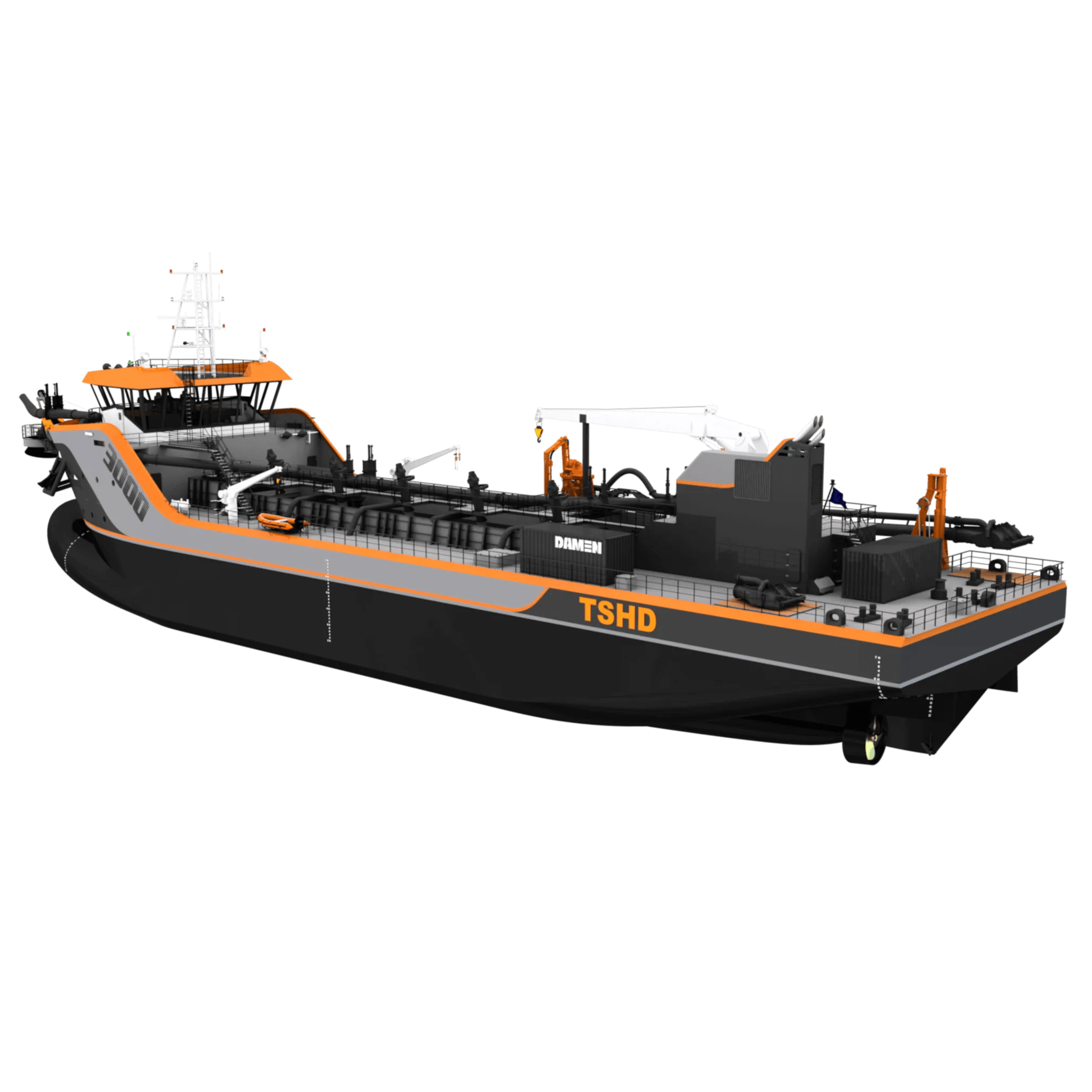

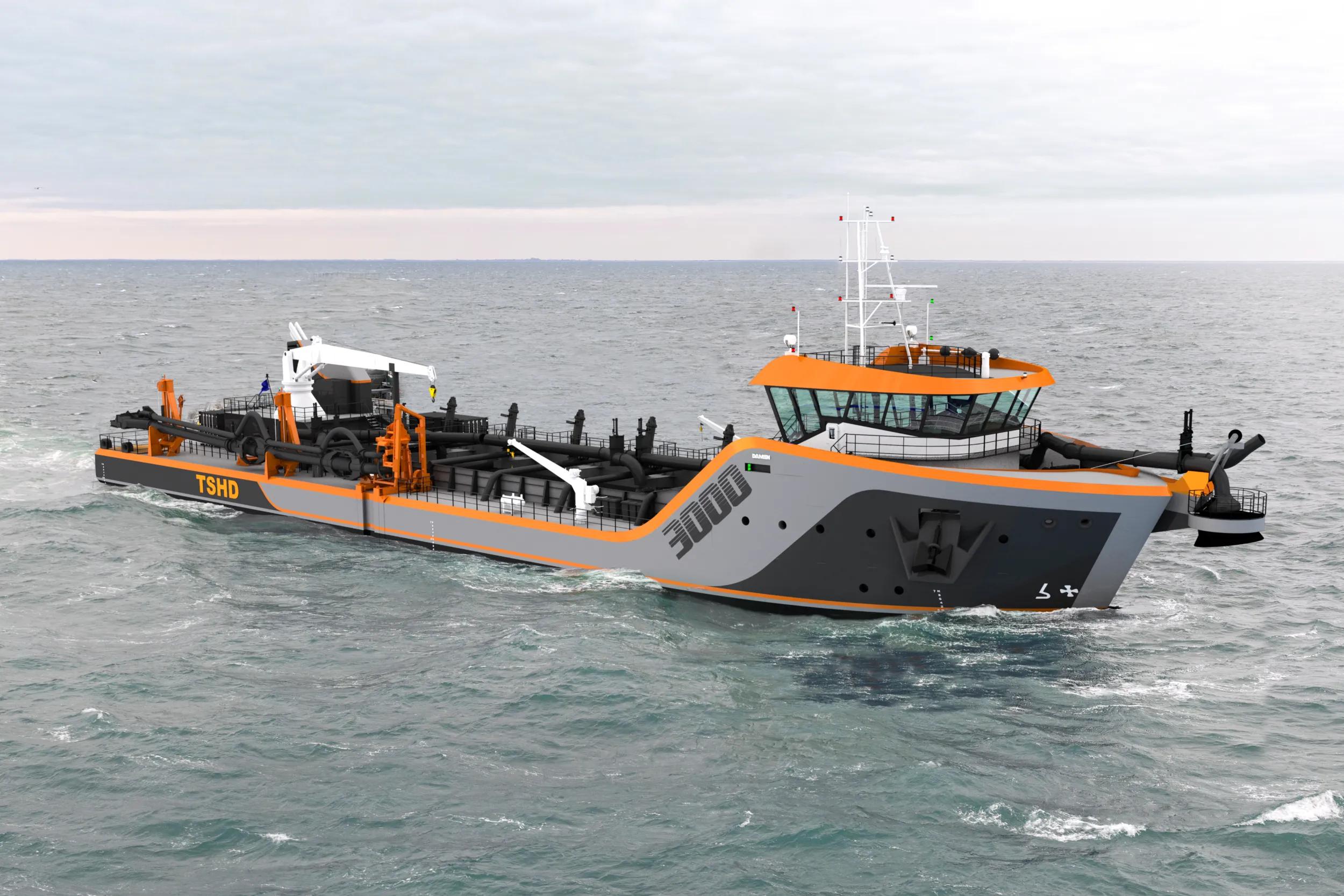

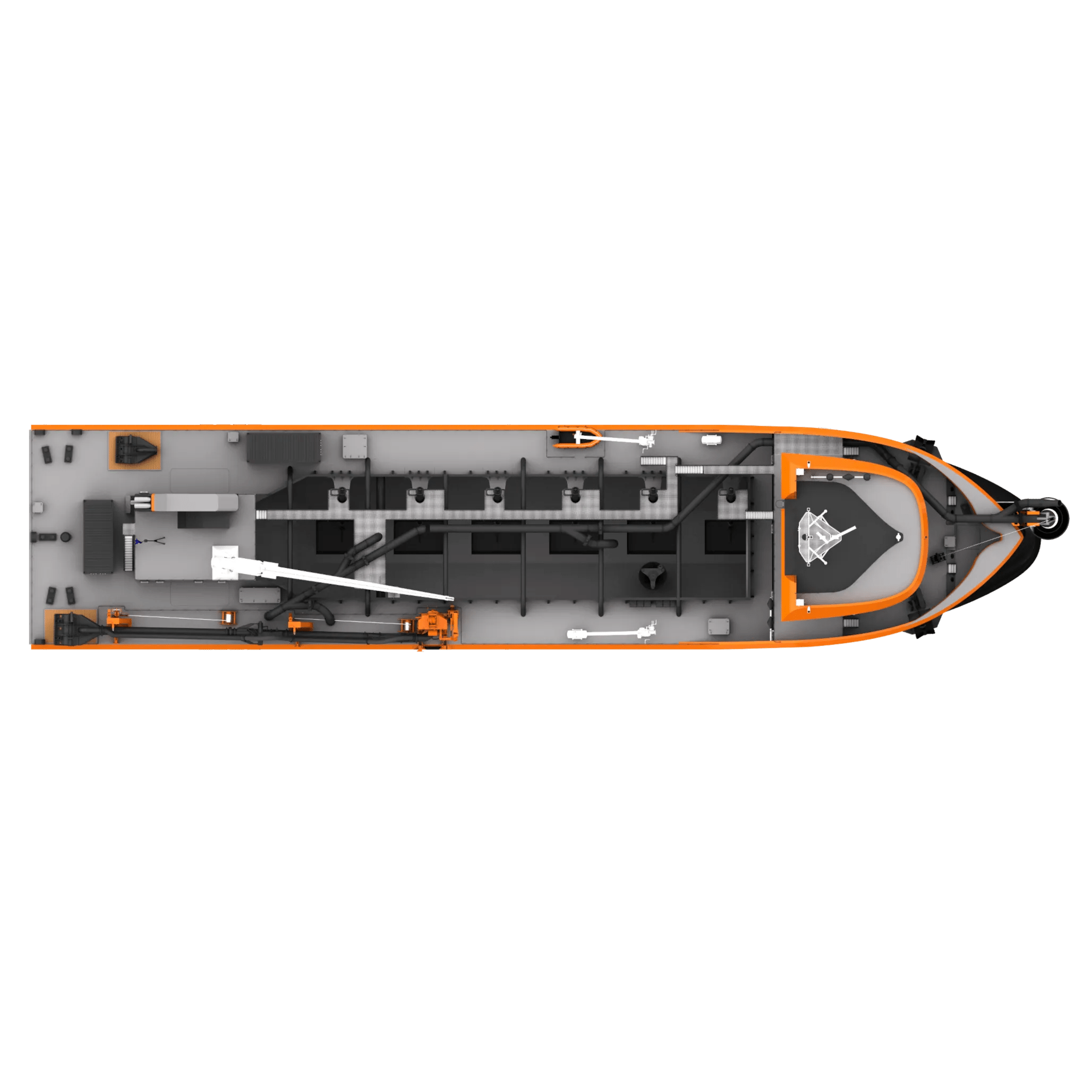

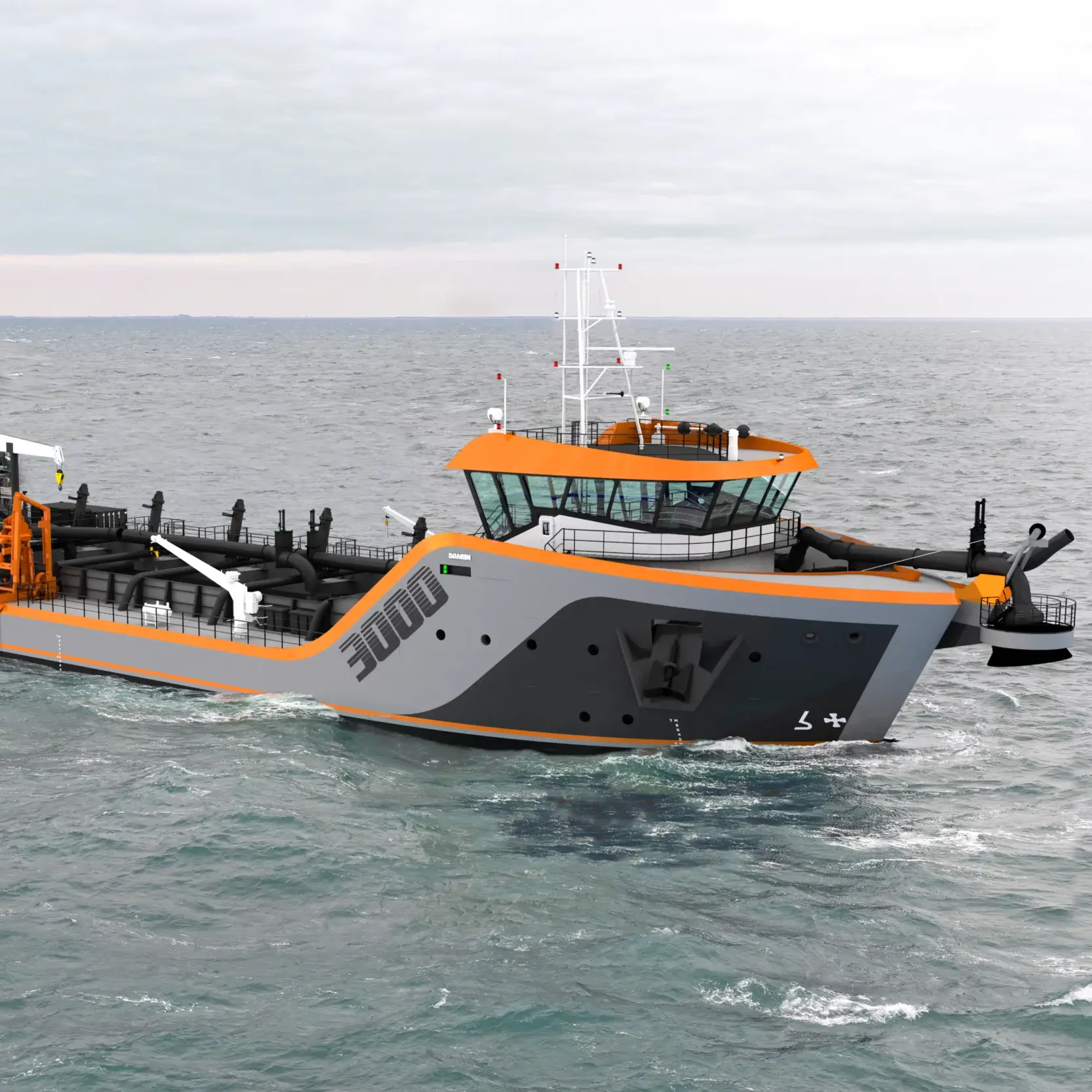

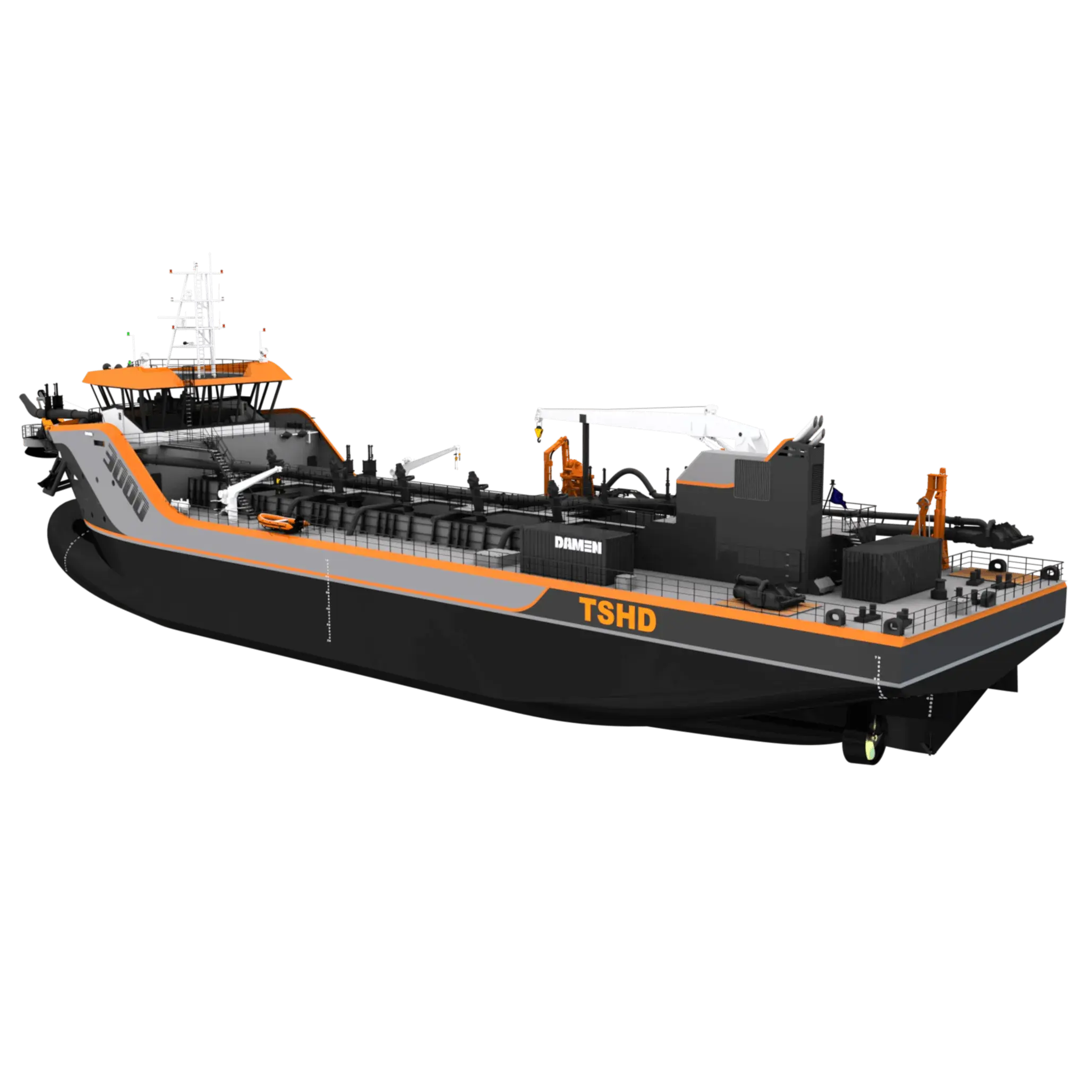

TSHD 3000 Multi Purpose
TSHD 3000 Multi Purpose

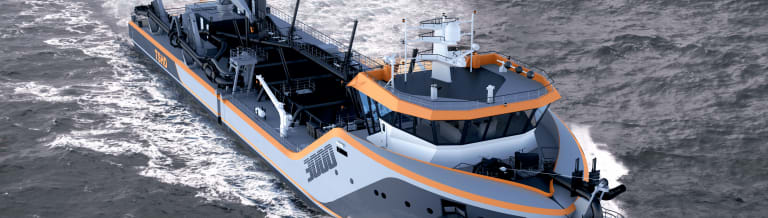

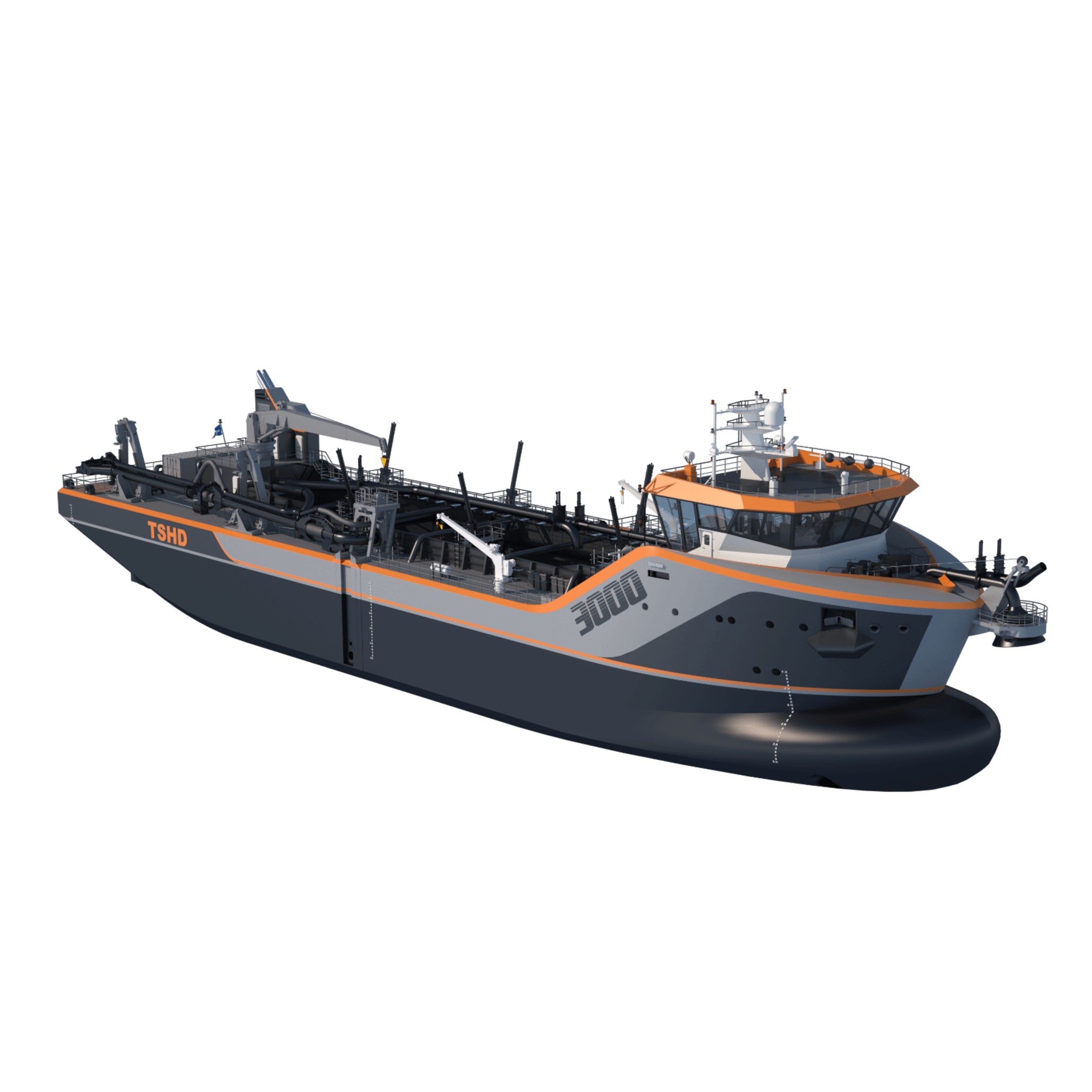

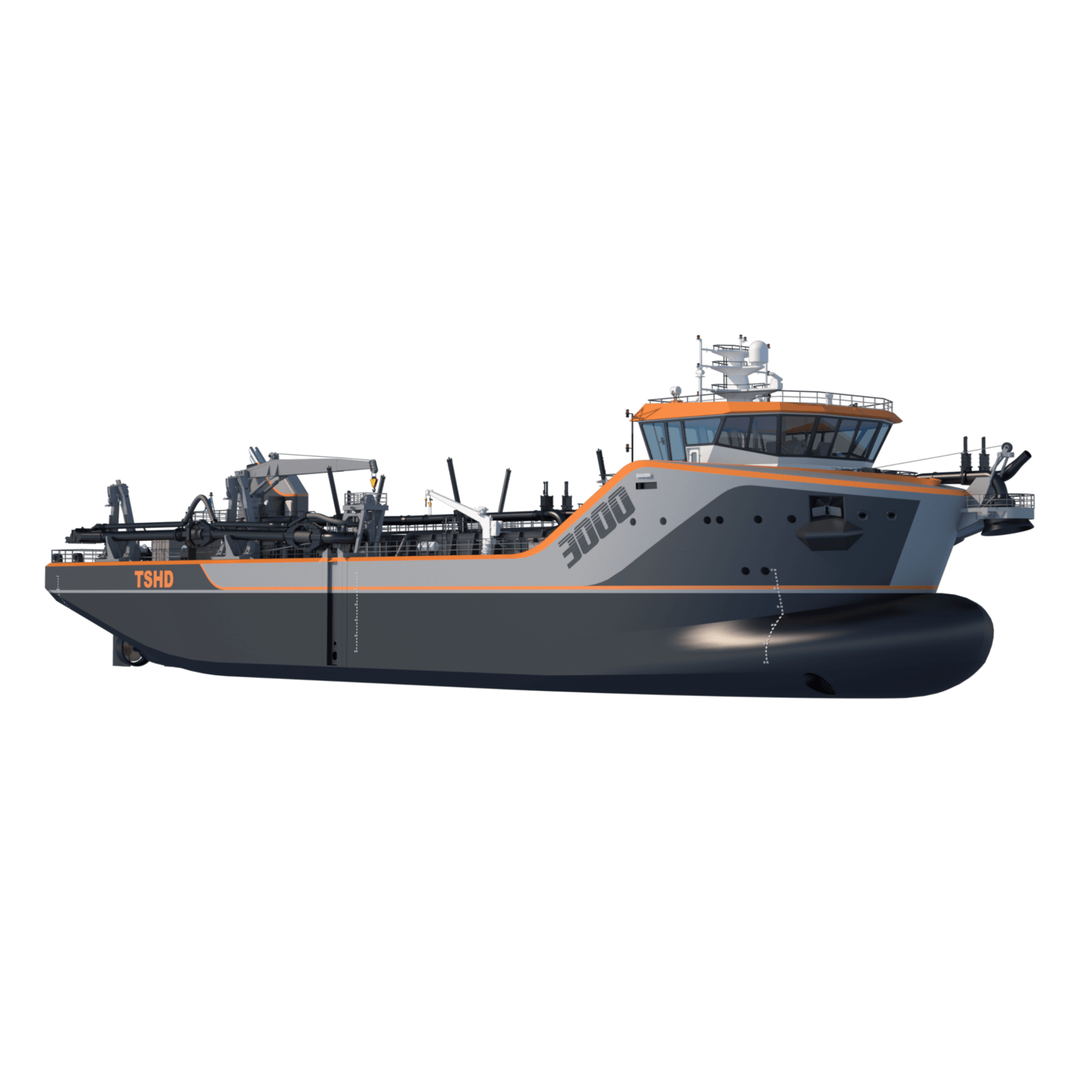

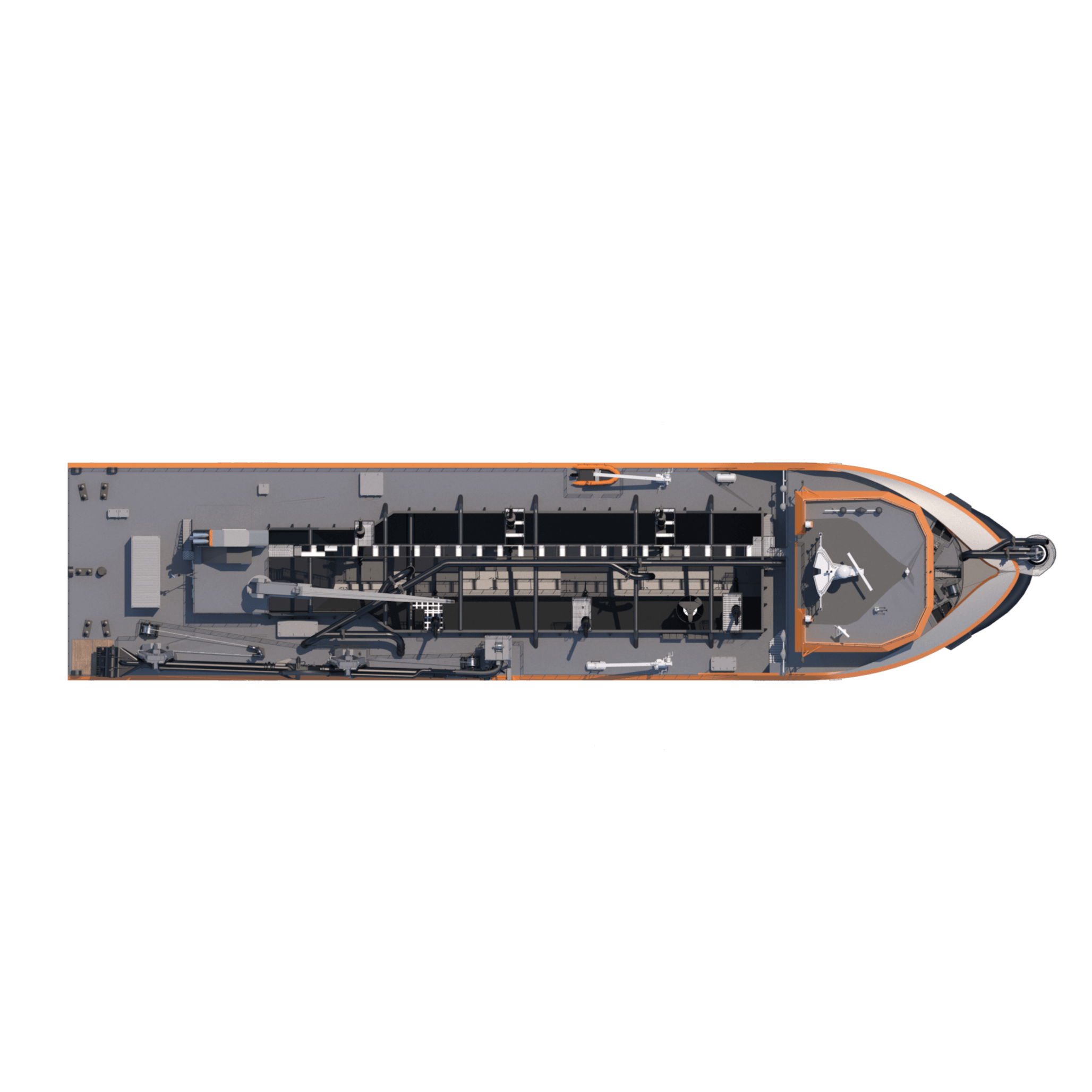

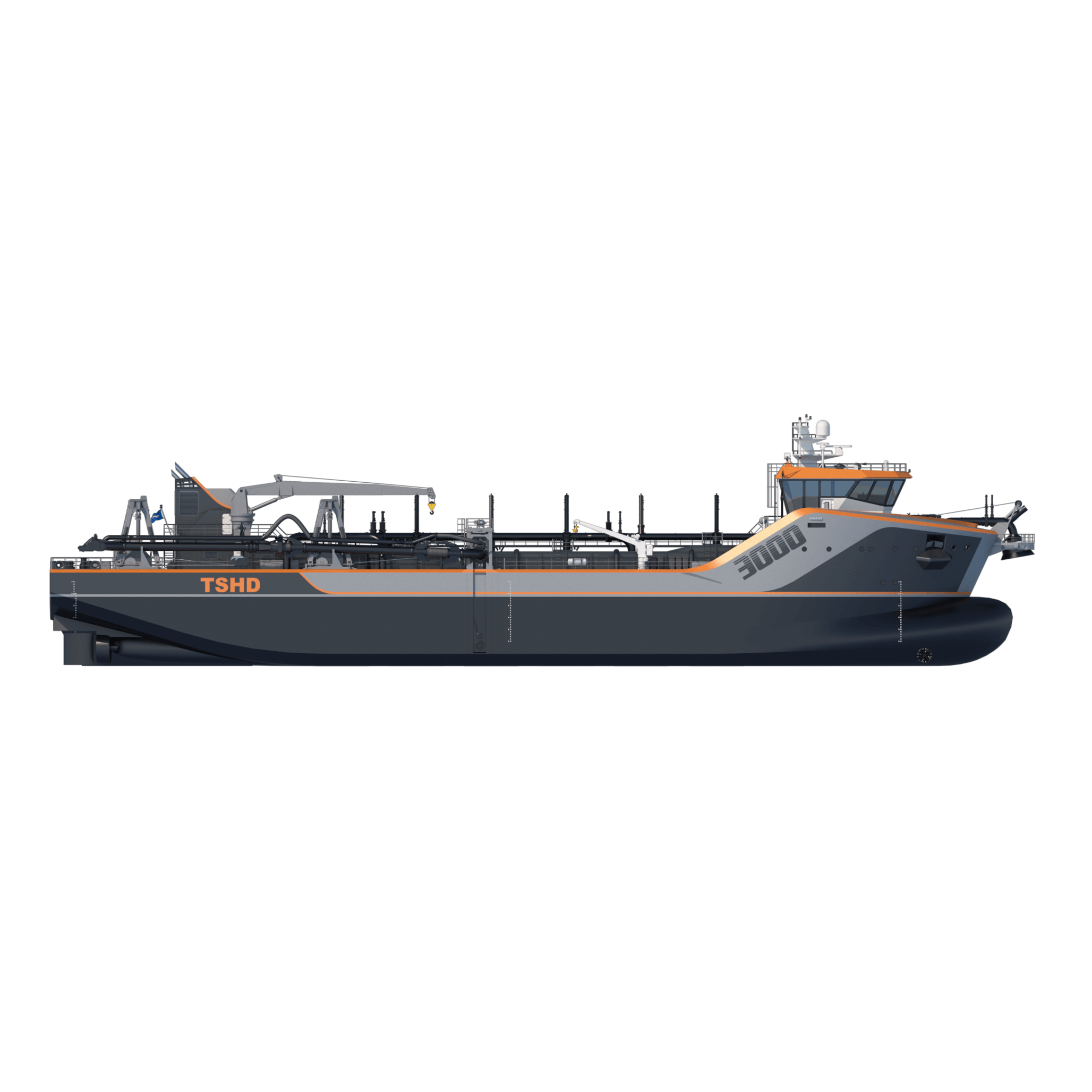

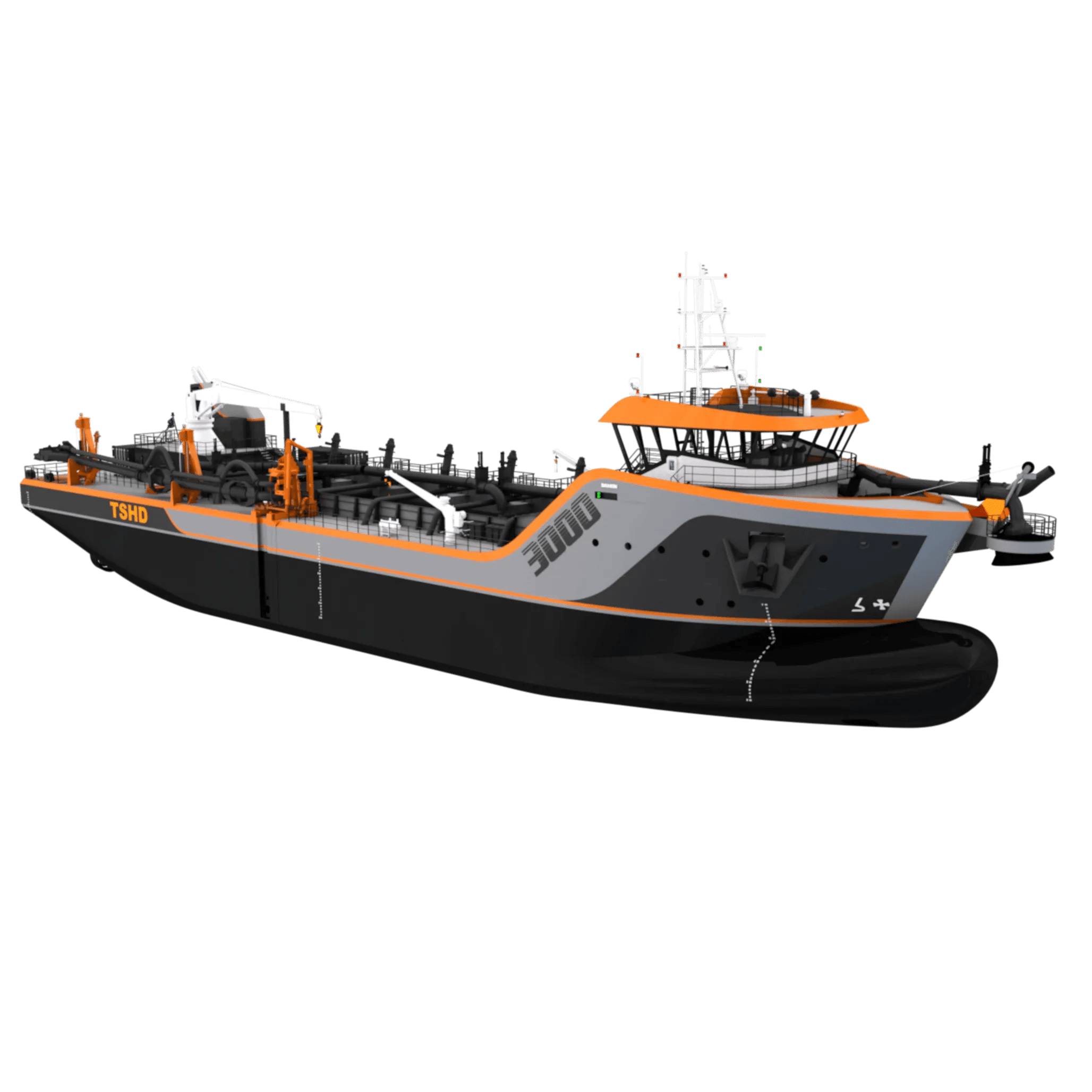

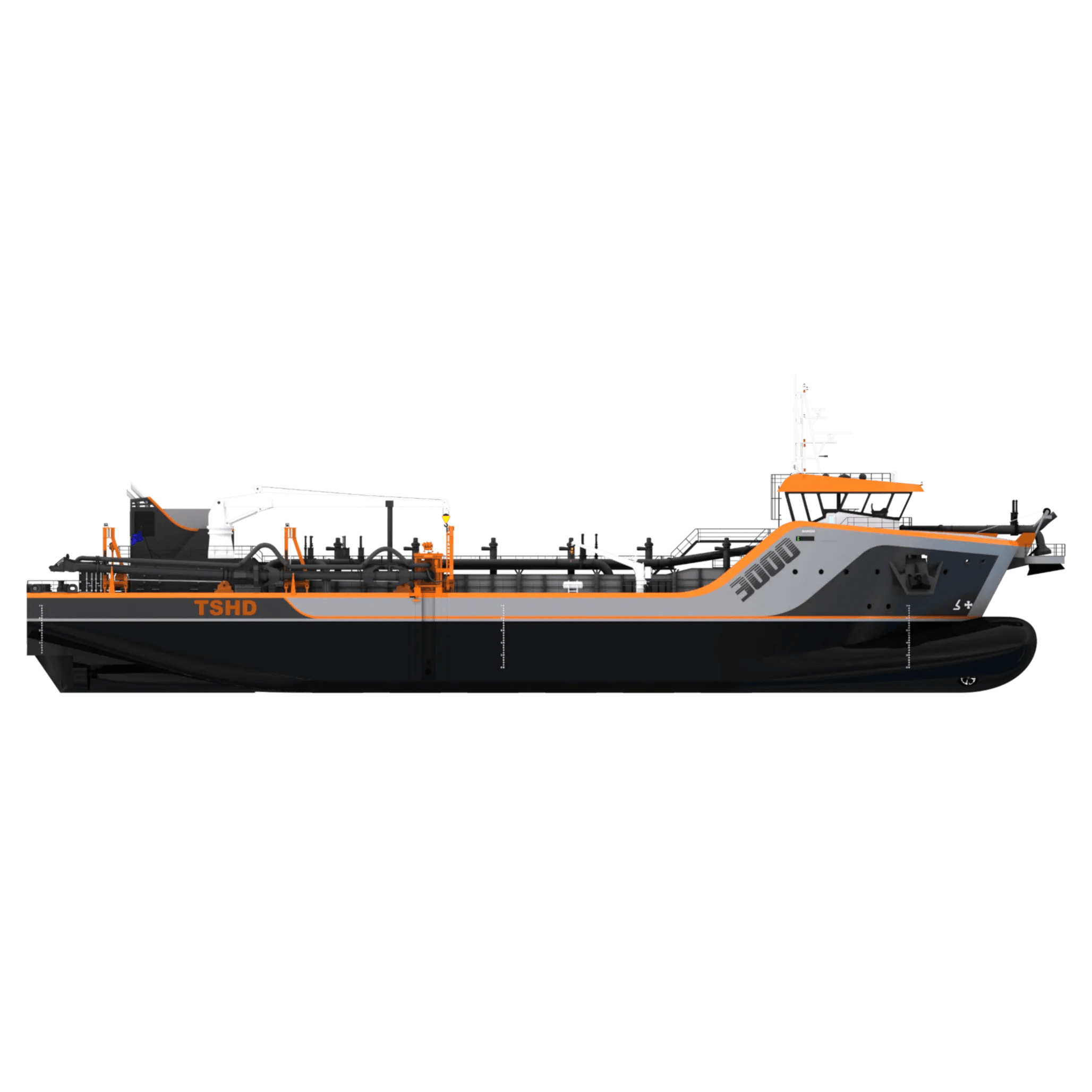

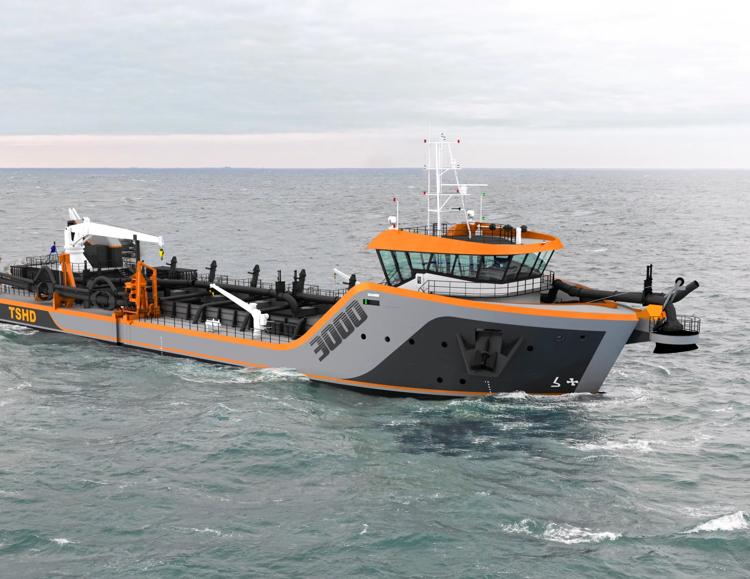

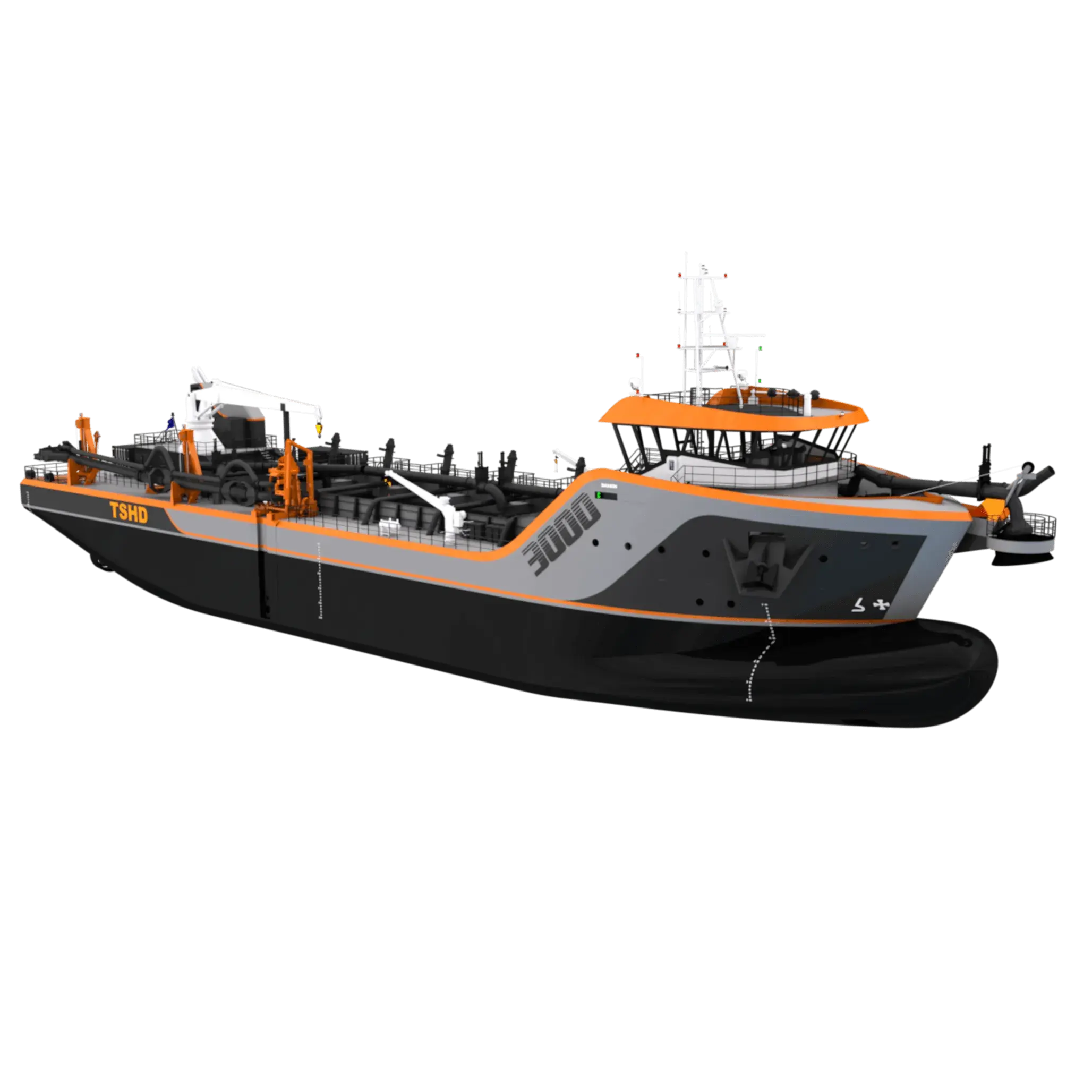

A Trailing Suction Hopper Dredger (TSHD) with many talents: designed for both maintenance duties and capital dredging projects, the Multi-Purpose dredger TSHD3000 fits any job. Its clean V-shaped hopper allows for effortless discharging and the controllable pitch propellors ensure efficient operation. The TSHD platform design can be easily adapted to your particular dredging requirements.
- Bow coupling unit
- Additional accommodation
- Deck crane
- Dynamic positioning
- Single trailing pipe with highly efficient inboard dredge pump
- 6 bottom doors
- 2 jet water pumps
- Green passport
Key figures
25
3300 - 3600
5050
700
12.2
Dimensions
- Length o.a. (excl. bow coupling)
- 80.95 m
- Beam moulded
- 18.2 m
- Draught (dredging)
- 5.8 m
- Deadweight
- 5050 t
Dredge performance
- Hopper capacity
- 3300 - 3600 m³
- Dredging depth
- 25 m
- Trailing pipe diameter
- 700 mm
- Speed loaded
- 12.2 kn
Equipment
- Propulsion power
- 2 x 1650 kW
- Azimuth FPP propeller
- 2 x 2200 mm
- Bow thruster power
- 400 kW
- Fuel oil
- 345 m³
Do you want to know more?
Compare similar TSHDs
Dredging depth (m) | Hopper capacity (m³) | Deadweight (t) | Trailing pipe diameter (mm) | Speed loaded (kn) | ||
---|---|---|---|---|---|---|
TSHD 3000 Multi Purpose | 25 | 3300 - 3600 | 5050 | 700 | 12.2 | |
TSHD 4000 Multi Purpose | 30 | 4200 - 4600 | 6700 | 800 | 12.23 | |
TSHD 2500 Port and Maintenance | 25 | 2500 - 3000 | 4200 | 700 | 11.8 |
TSHD 3000 Multi Purpose
- Dredging depth (m)
- 25
- Hopper capacity (m³)
- 3300 - 3600
- Deadweight (t)
- 5050
- Trailing pipe diameter (mm)
- 700
- Speed loaded (kn)
- 12.2
- Dredging depth (m)
- 30
- Hopper capacity (m³)
- 4200 - 4600
- Deadweight (t)
- 6700
- Trailing pipe diameter (mm)
- 800
- Speed loaded (kn)
- 12.23
- Dredging depth (m)
- 25
- Hopper capacity (m³)
- 2500 - 3000
- Deadweight (t)
- 4200
- Trailing pipe diameter (mm)
- 700
- Speed loaded (kn)
- 11.8
