TSHD 4000 Multi Purpose
TSHD 4000 Multi Purpose

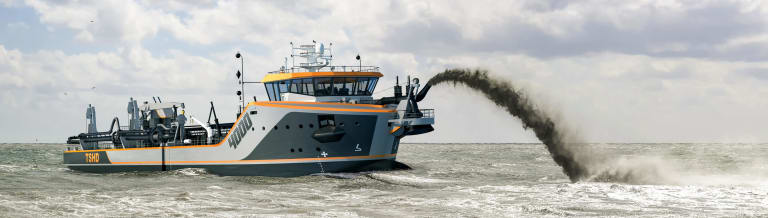

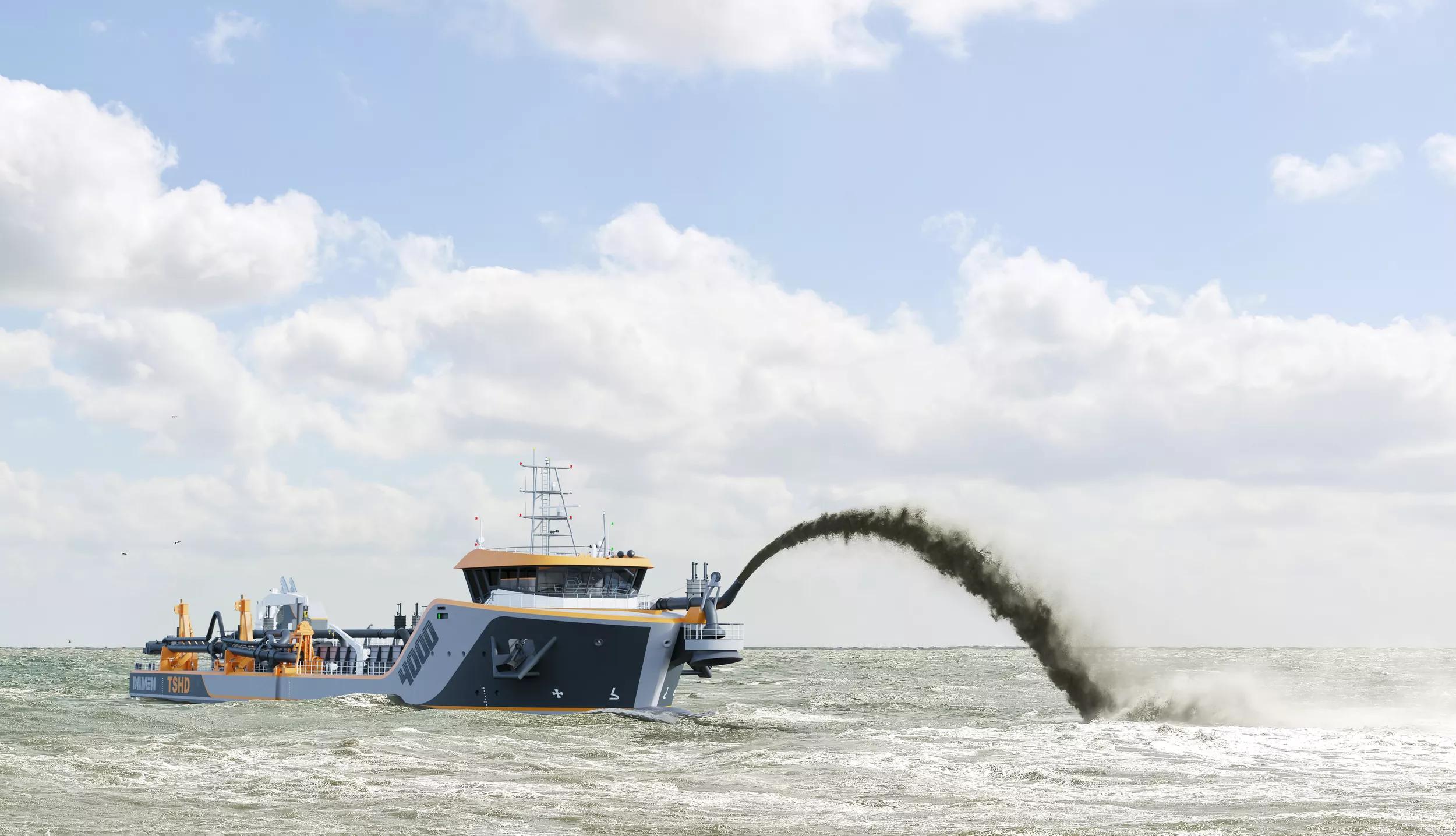

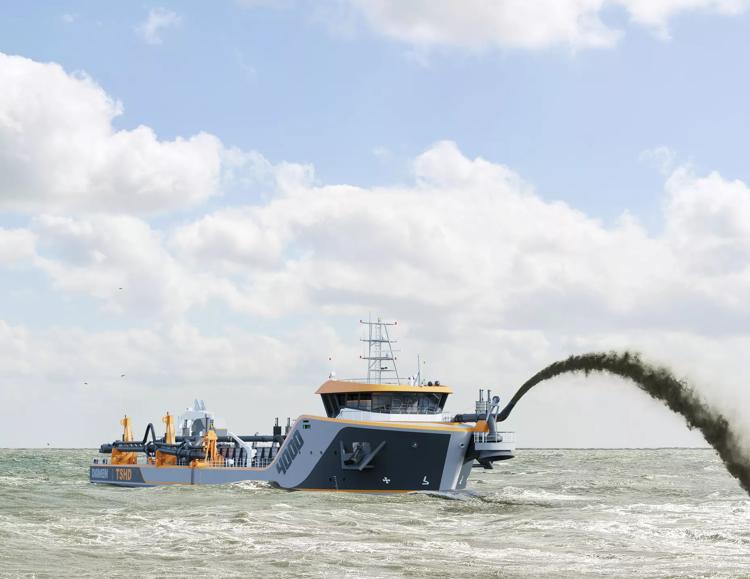

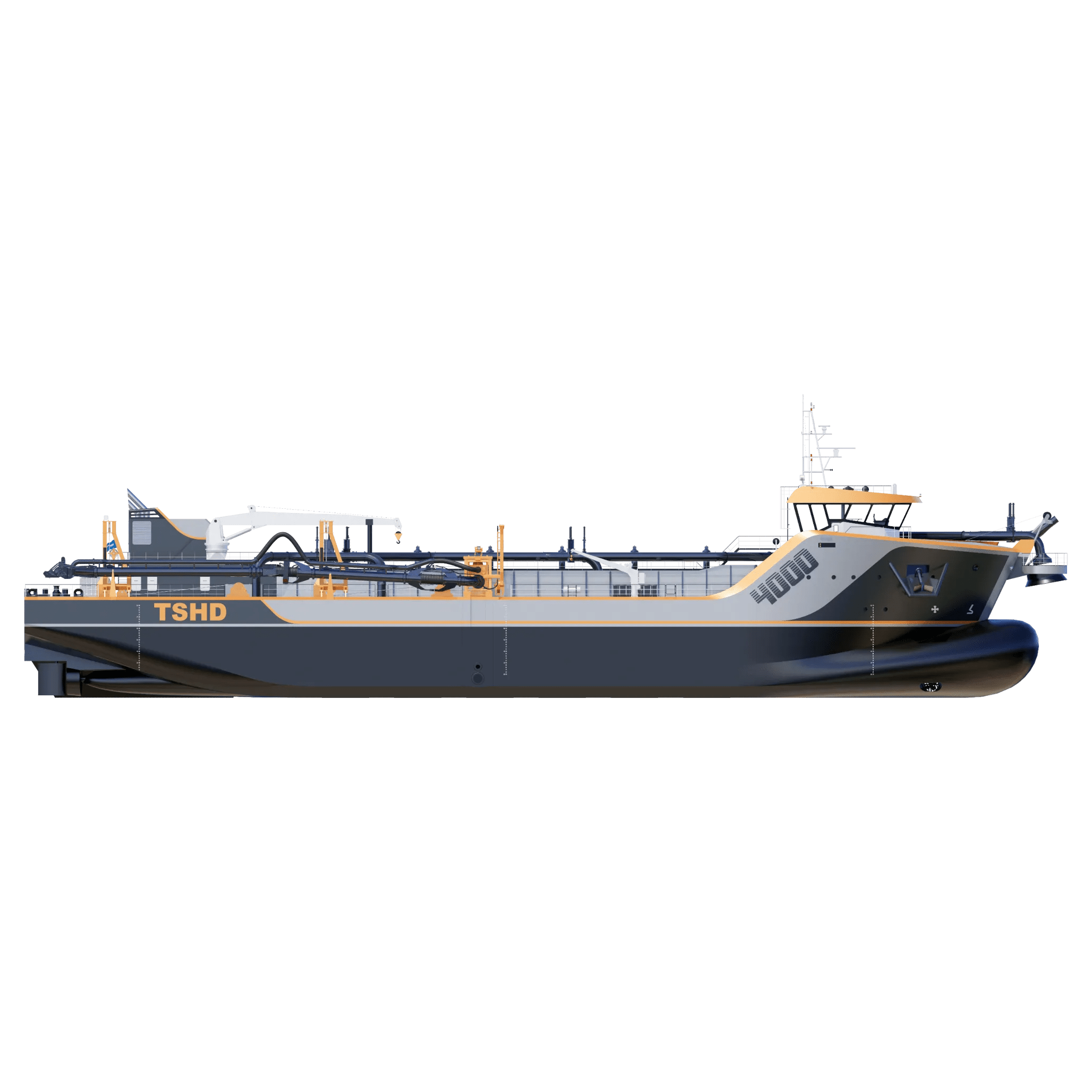

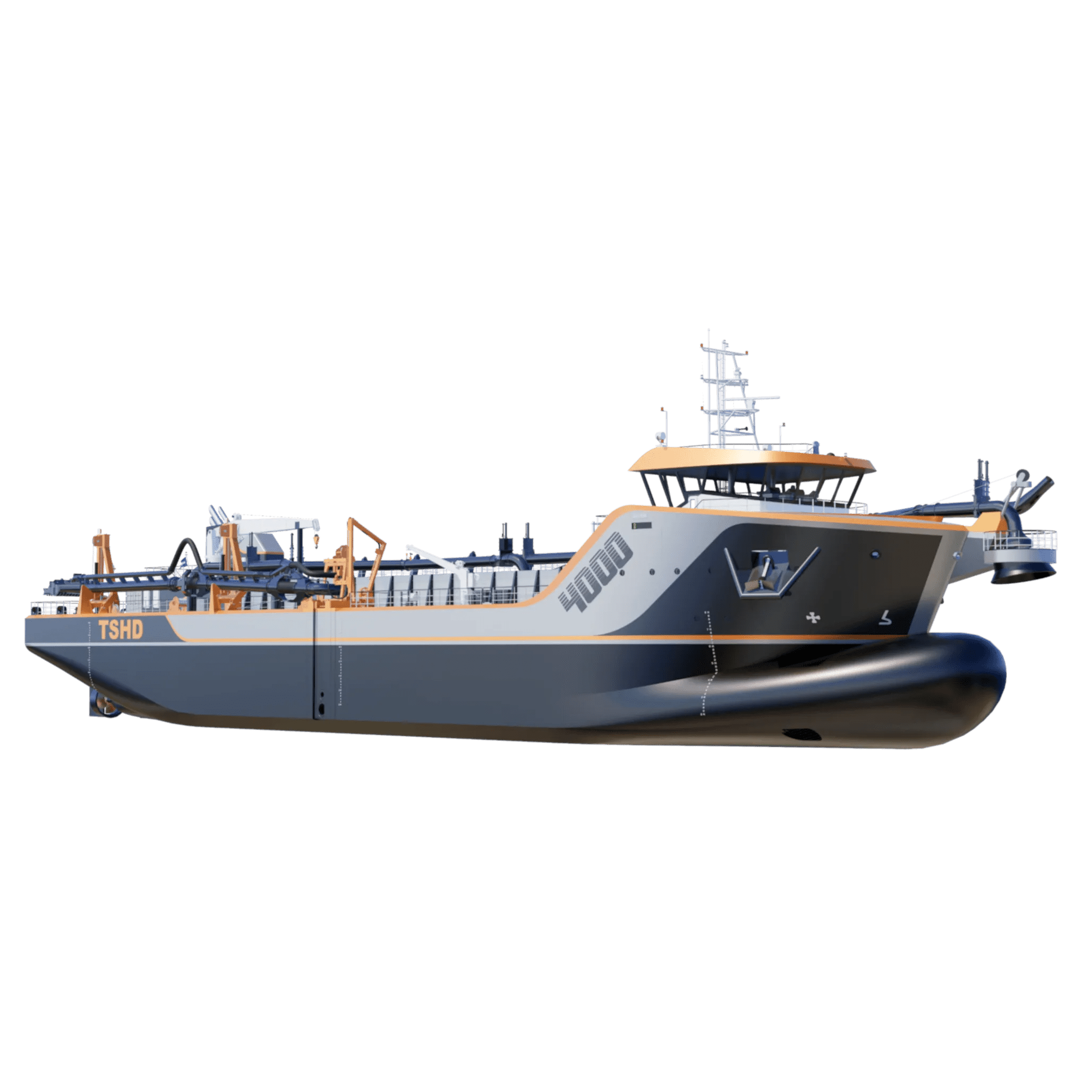

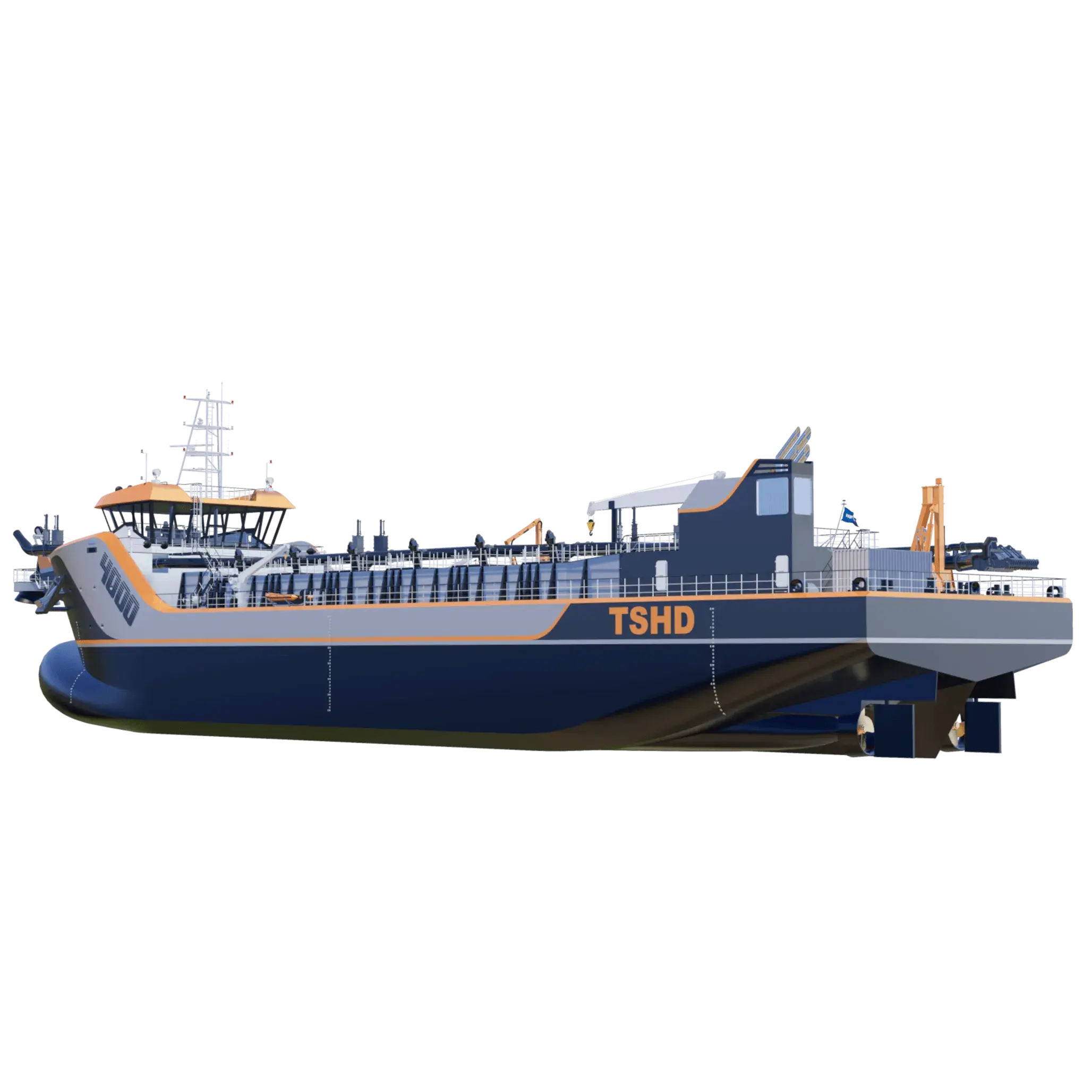

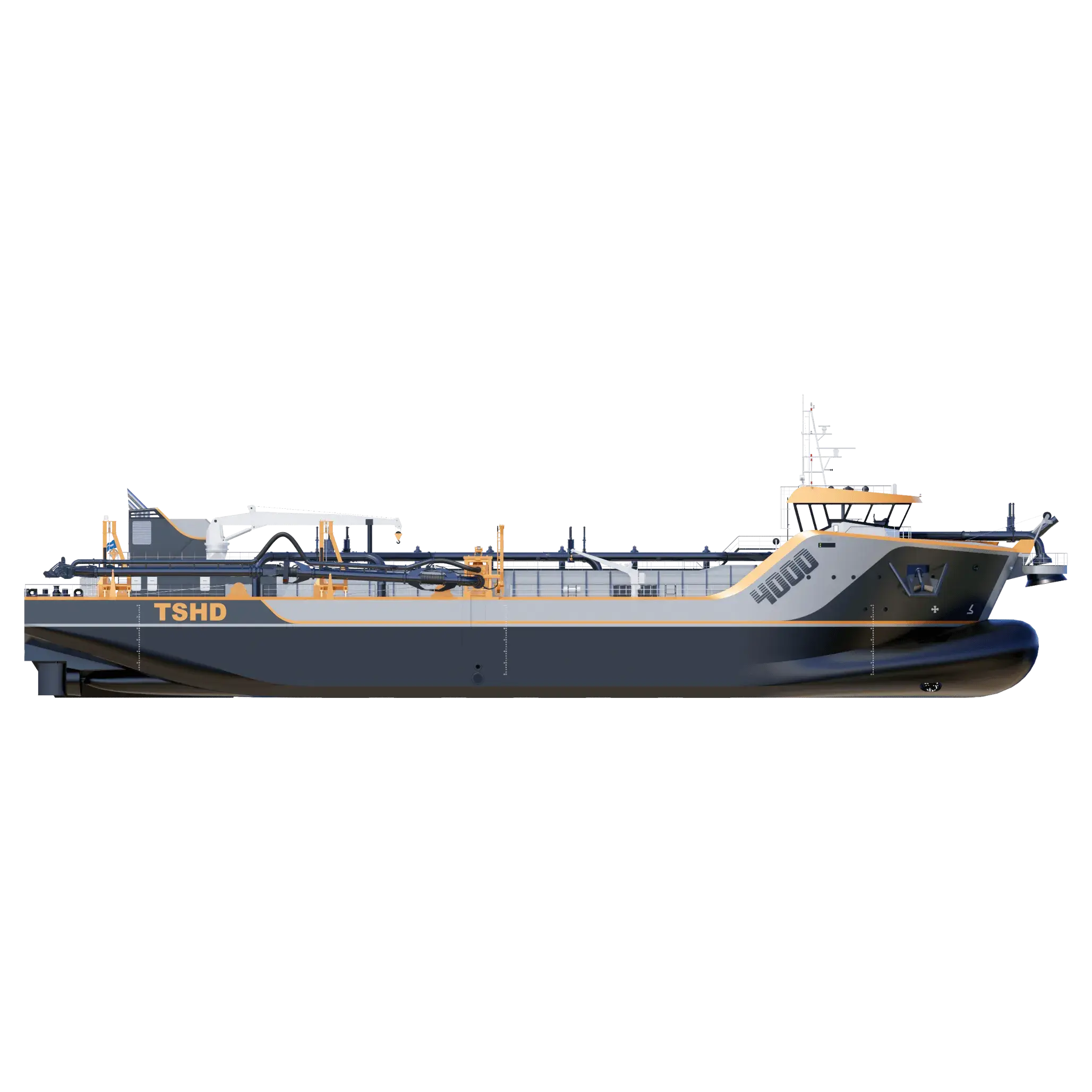

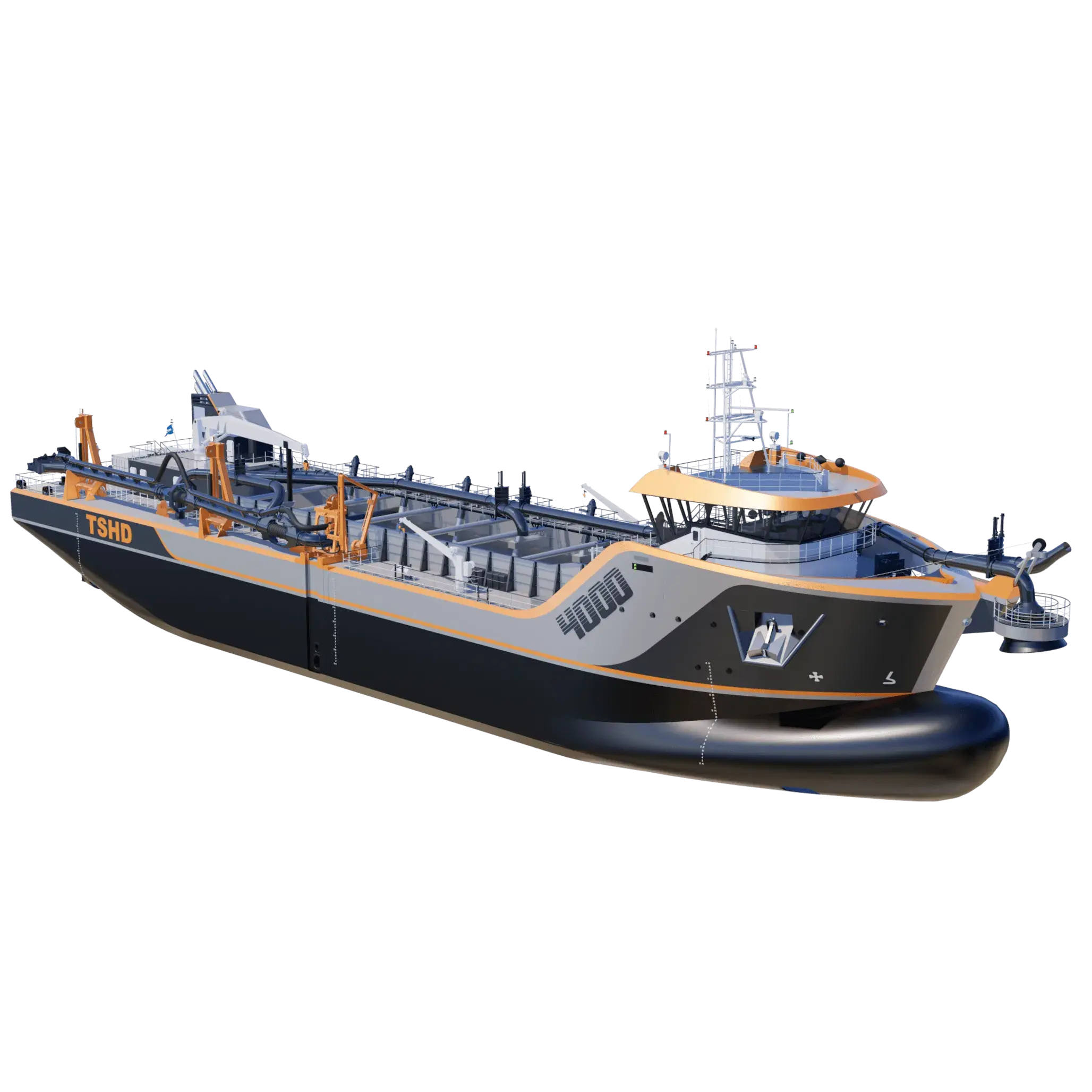

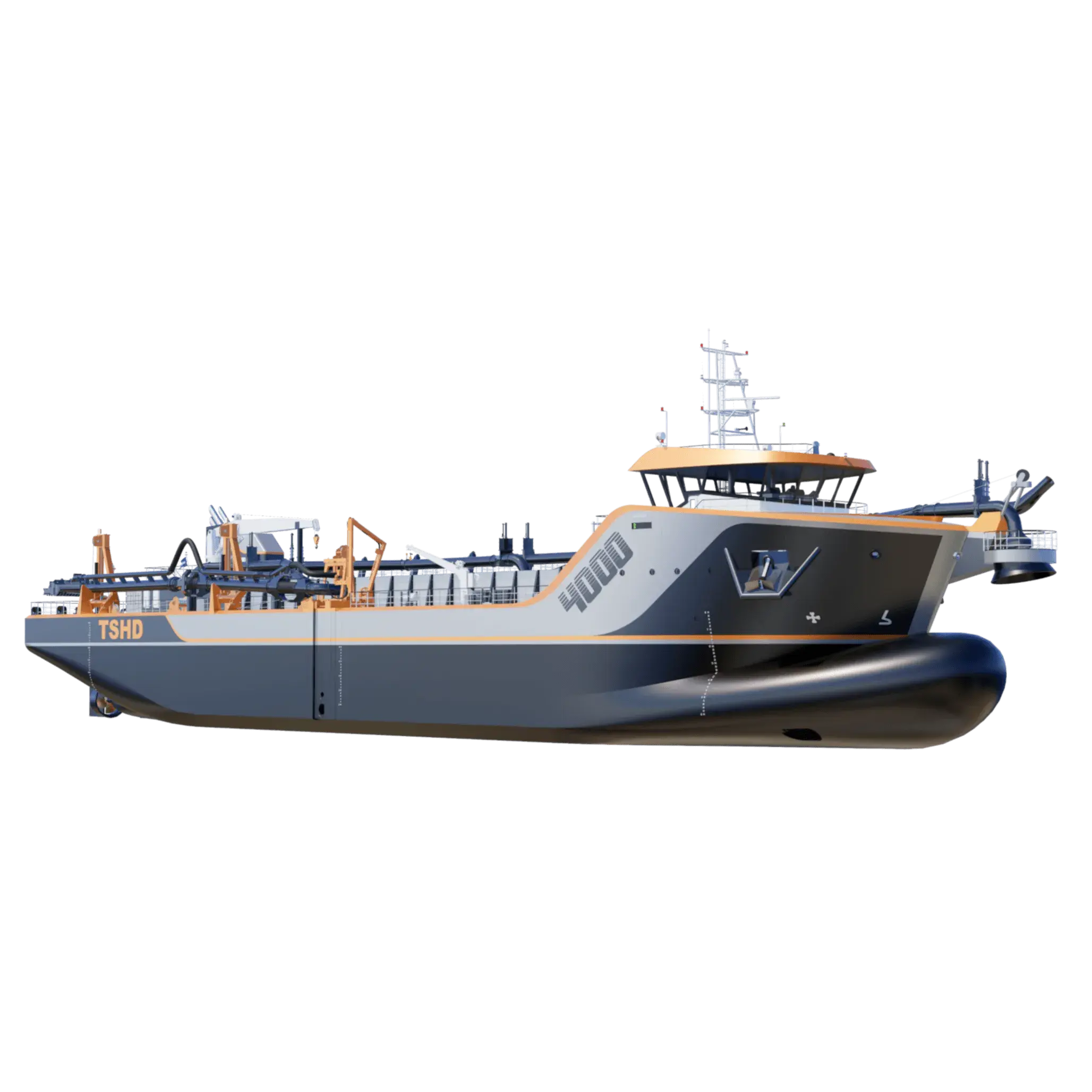

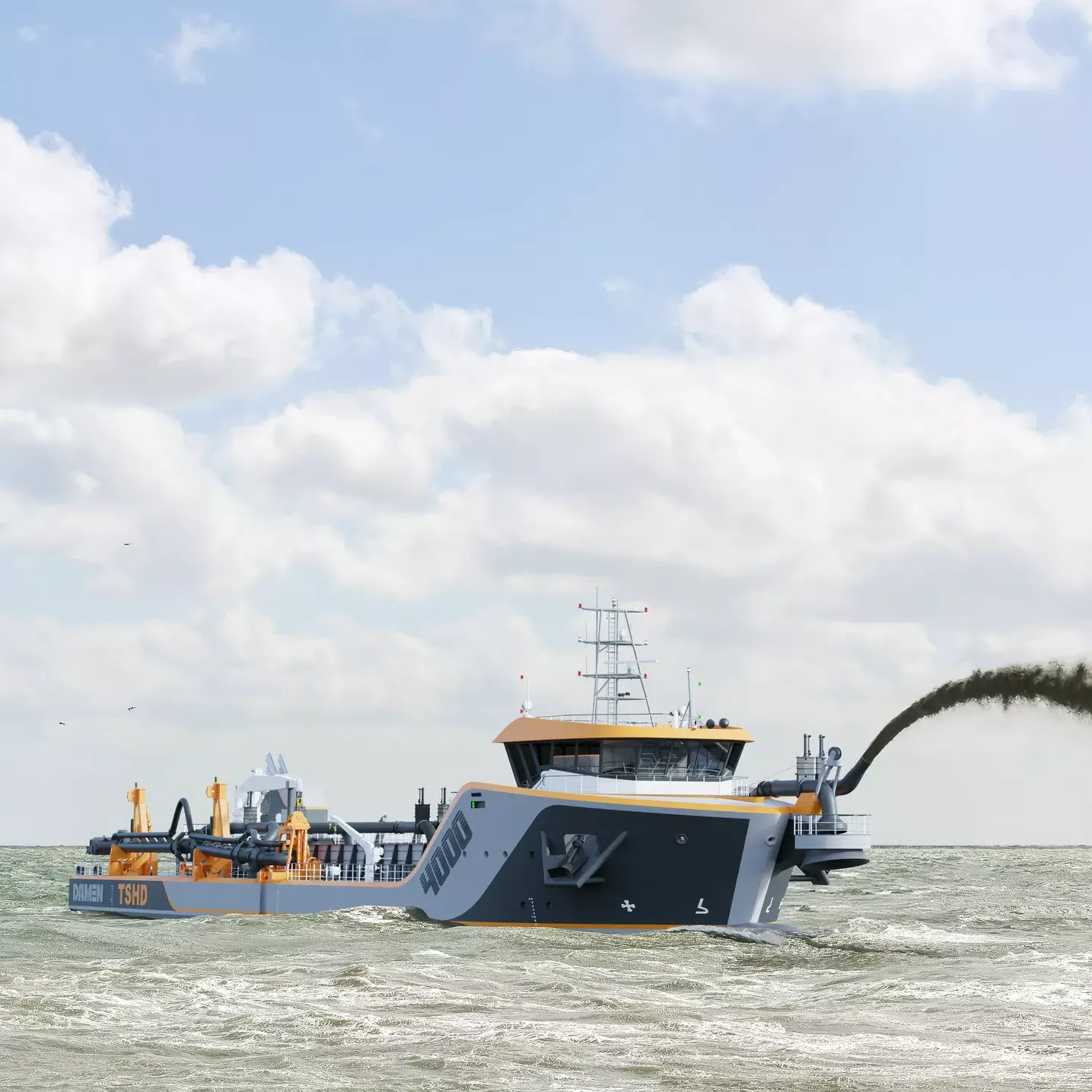

The THSD4000 Trailing Suction Hopper Dredger is the middle size of the Multi Purpose TSHD series. Designed as a workhorse with excellent views from the wheelhouse, separate raised walkways, only three diesel engines are required for normal operations; all are grouped in one centralised engine room. The optimised hull shape combined with the high performance dredging system has resulted in excellent dredging performances.
- Bow coupling
- Dredge tracking
- Diesel-electric propulsion
- Clean Ship Classification
- Full deck design
- Fore wheelhouse
- Optimised hull shape
- Enhanced deadweight
Key figures
30
4200 - 4600
6700
800
12.23
Dimensions
- Length o.a. (excl. bow coupling)
- 88.5 m
- Beam moulded
- 19.6 m
- Draught (dredging)
- 6.3 m
- Deadweight
- 6700 t
Dredge performance
- Hopper capacity
- 4200 - 4600 m³
- Dredging depth
- 30 m
- Trailing pipe diameter
- 800 mm
- Speed loaded
- 12.3 kn
Equipment
- Propulsion power
- 2 x 1750 kW
- Azimuth FPP propeller
- 2 x 2400 mm
- Bow thruster power
- 450 kW
- Fuel oil
- 370 m³
Do you want to know more?
Compare similar TSHDs
| Dredging depth (m) | Hopper capacity (m³) | Deadweight (t) | Trailing pipe diameter (mm) | Speed loaded (kn) | ||
|---|---|---|---|---|---|---|
| TSHD 4000 Multi Purpose | 30 | 4200 - 4600 | 6700 | 800 | 12.23 | |
| TSHD 5000 Multi Purpose | 30 | 5100 | 8250 | 900 | 13.1 | |
| TSHD 3000 Multi Purpose | 25 | 3300 - 3600 | 5050 | 700 | 12.2 |
TSHD 4000 Multi Purpose
- Dredging depth (m)
- 30
- Hopper capacity (m³)
- 4200 - 4600
- Deadweight (t)
- 6700
- Trailing pipe diameter (mm)
- 800
- Speed loaded (kn)
- 12.23
- Dredging depth (m)
- 30
- Hopper capacity (m³)
- 5100
- Deadweight (t)
- 8250
- Trailing pipe diameter (mm)
- 900
- Speed loaded (kn)
- 13.1
- Dredging depth (m)
- 25
- Hopper capacity (m³)
- 3300 - 3600
- Deadweight (t)
- 5050
- Trailing pipe diameter (mm)
- 700
- Speed loaded (kn)
- 12.2
