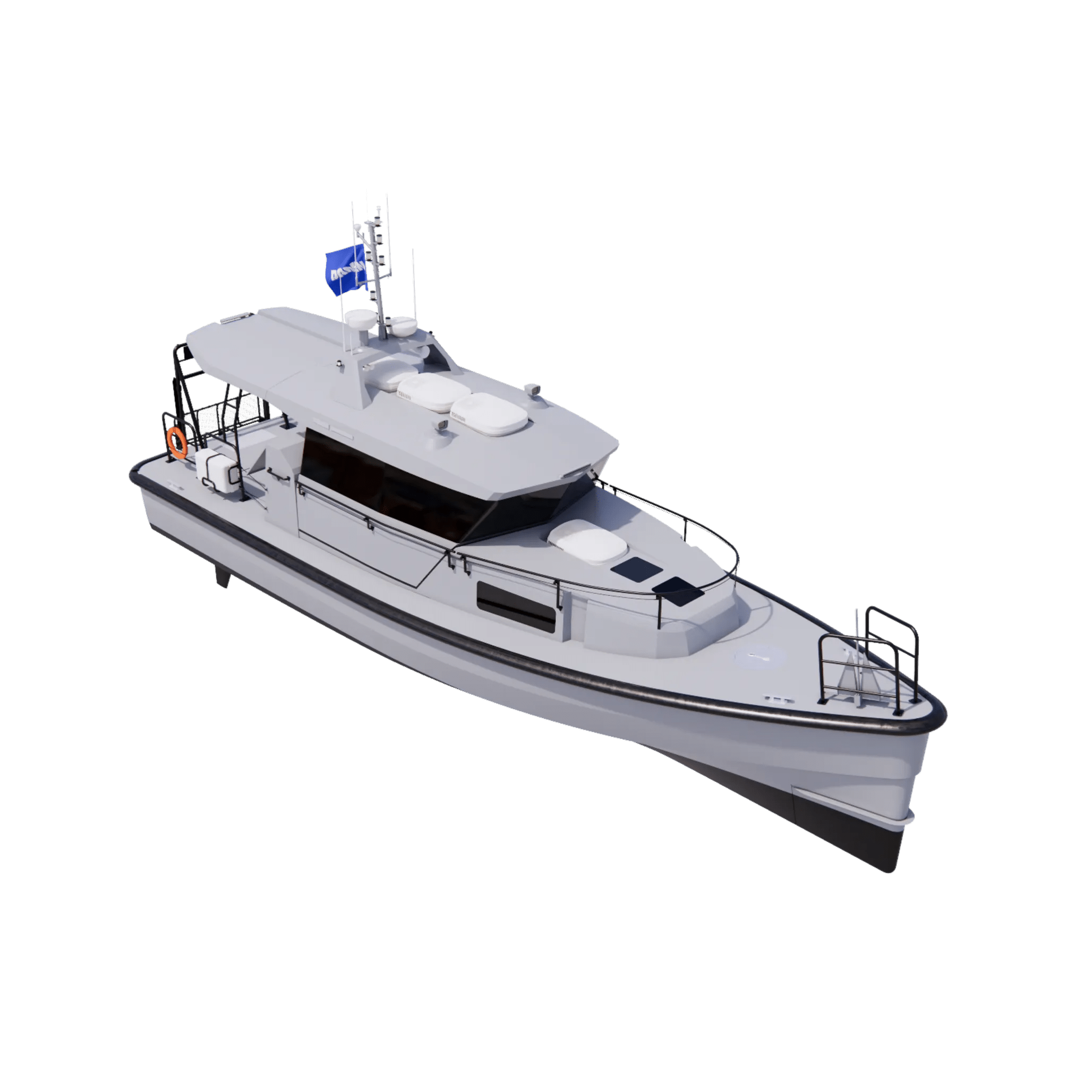

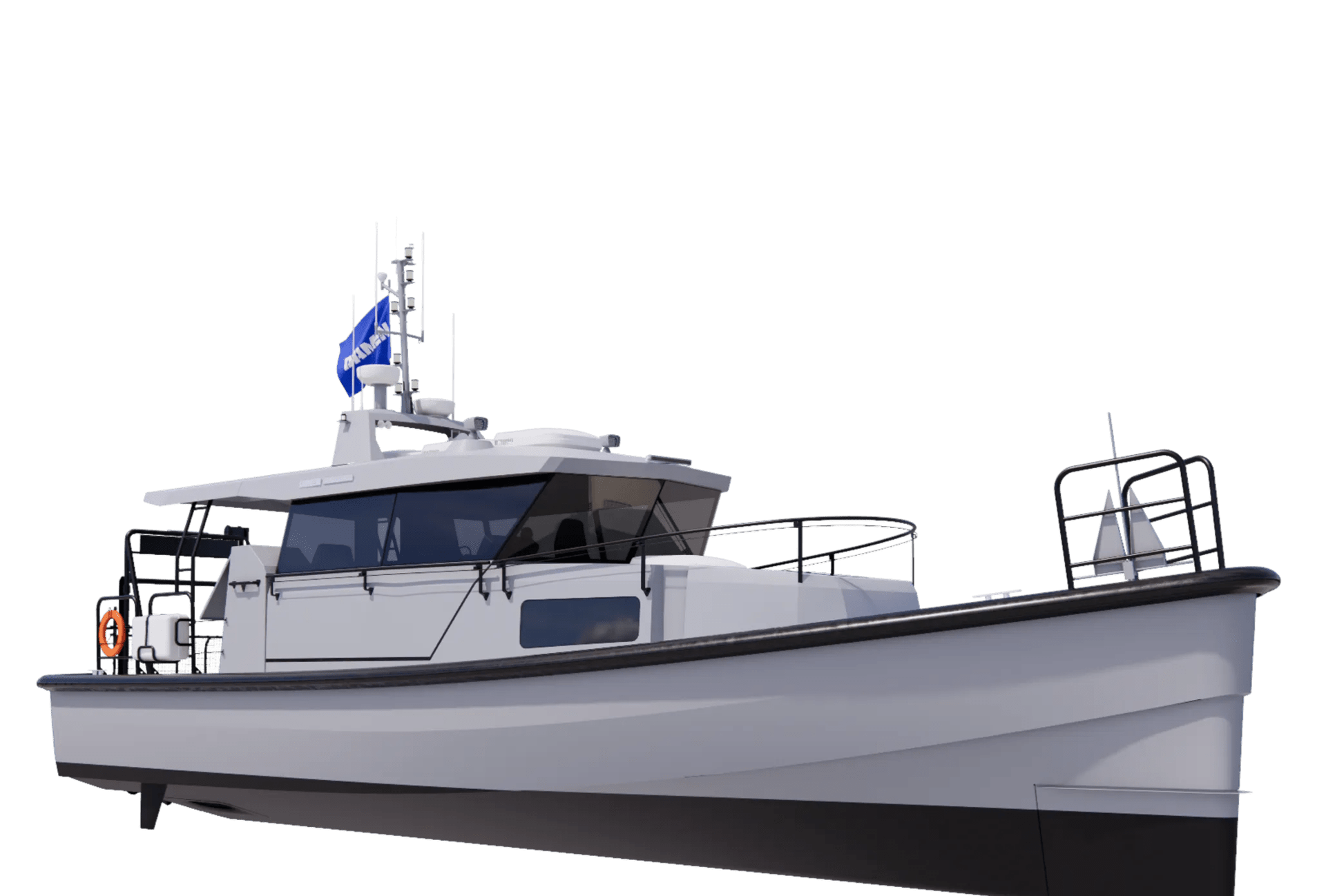

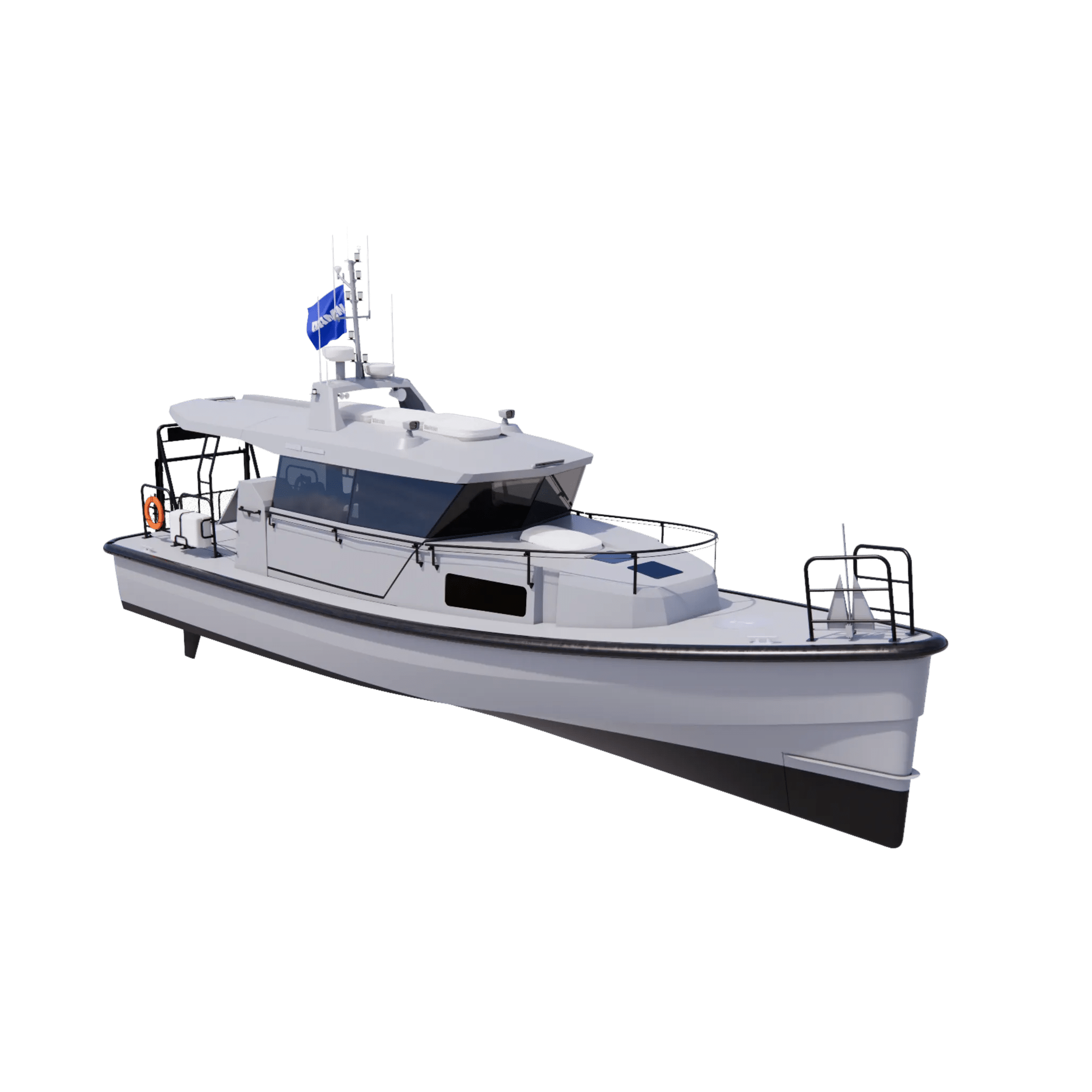

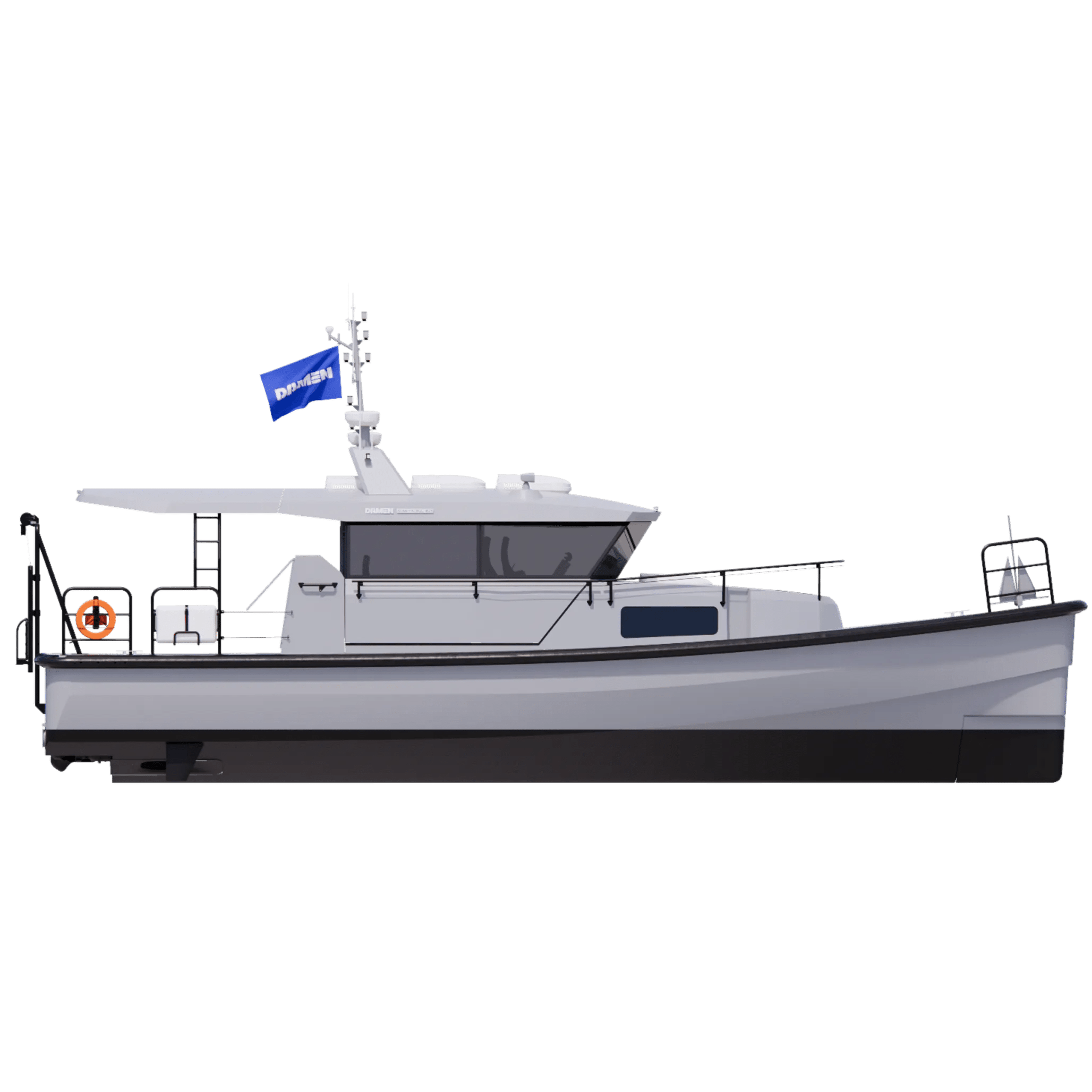

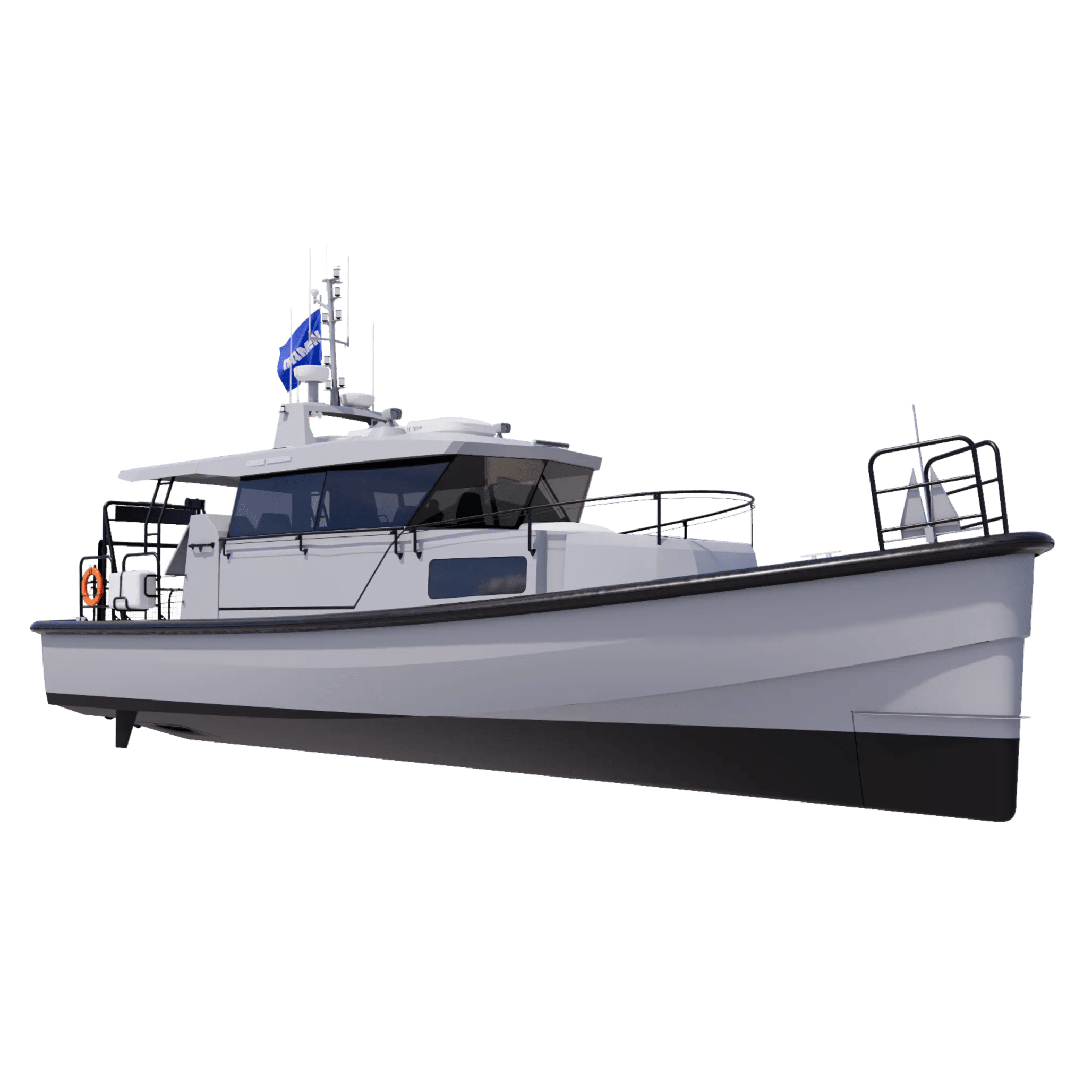

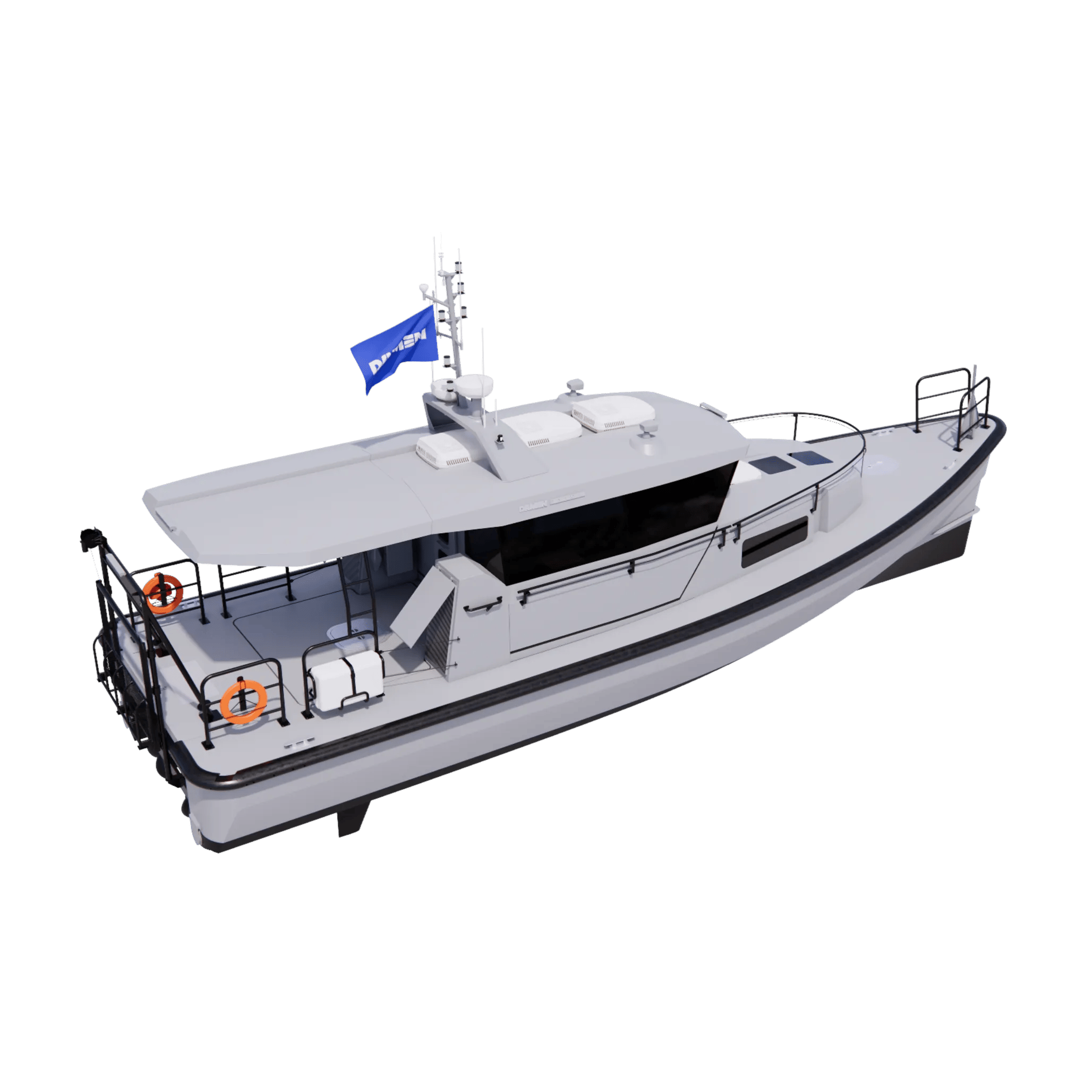

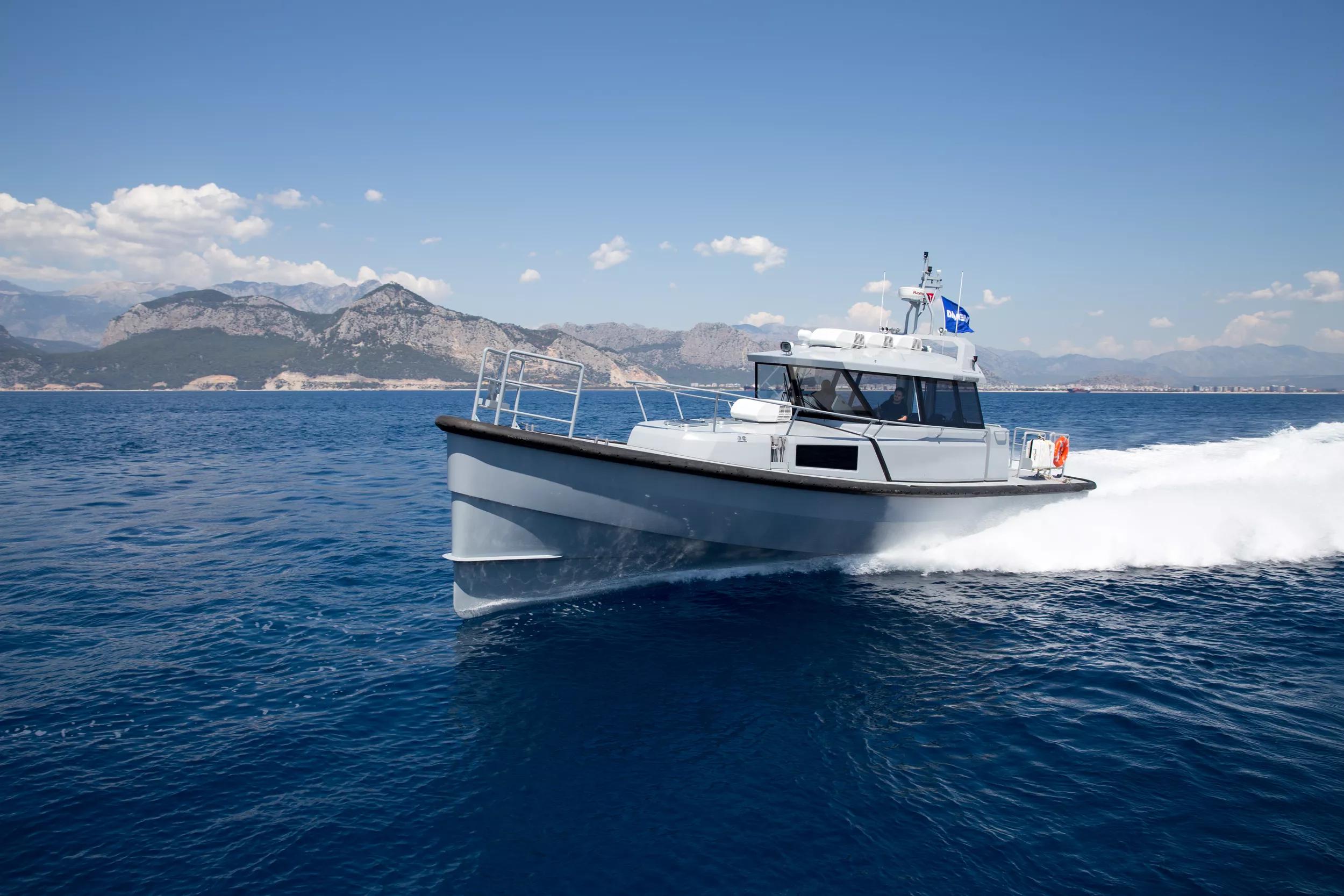

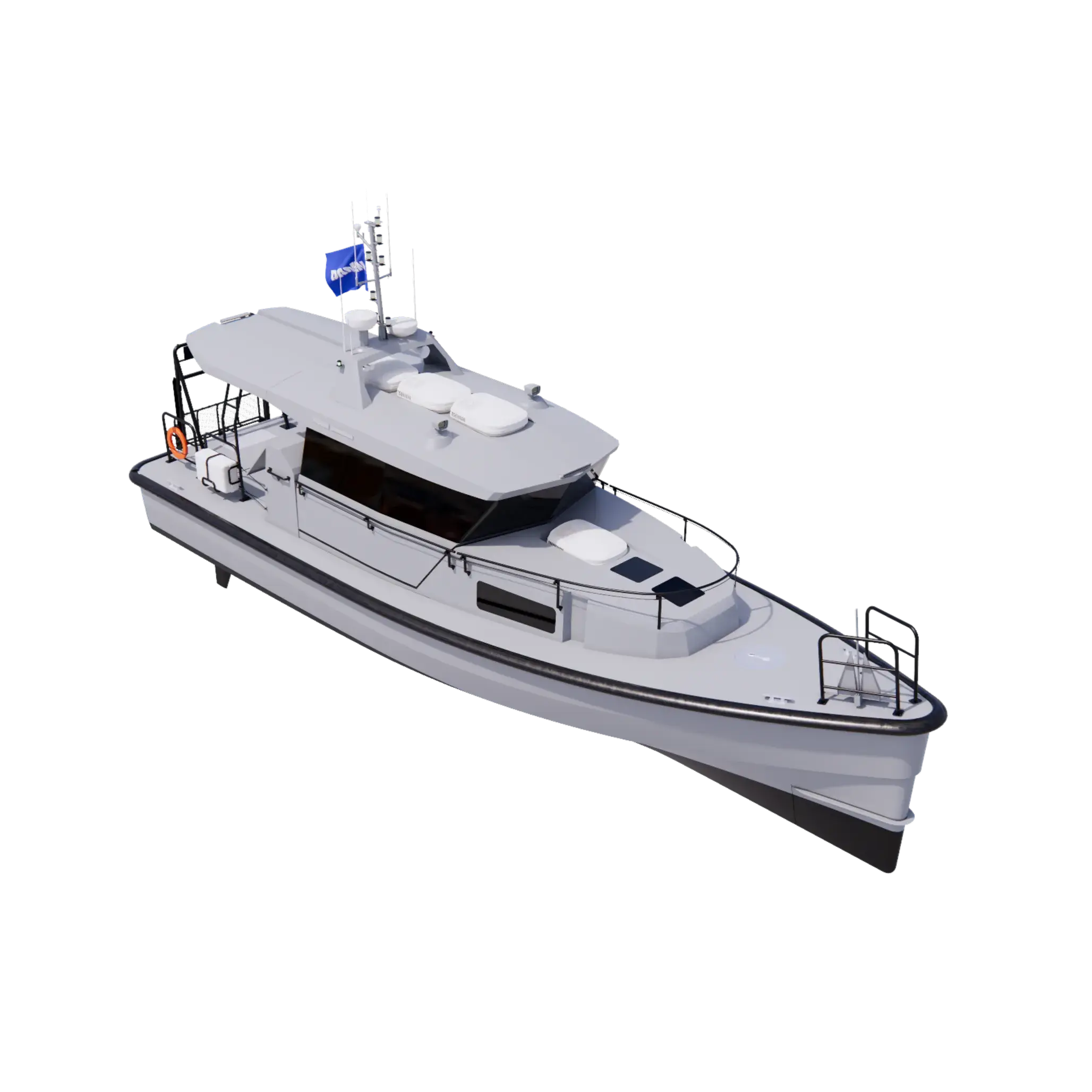

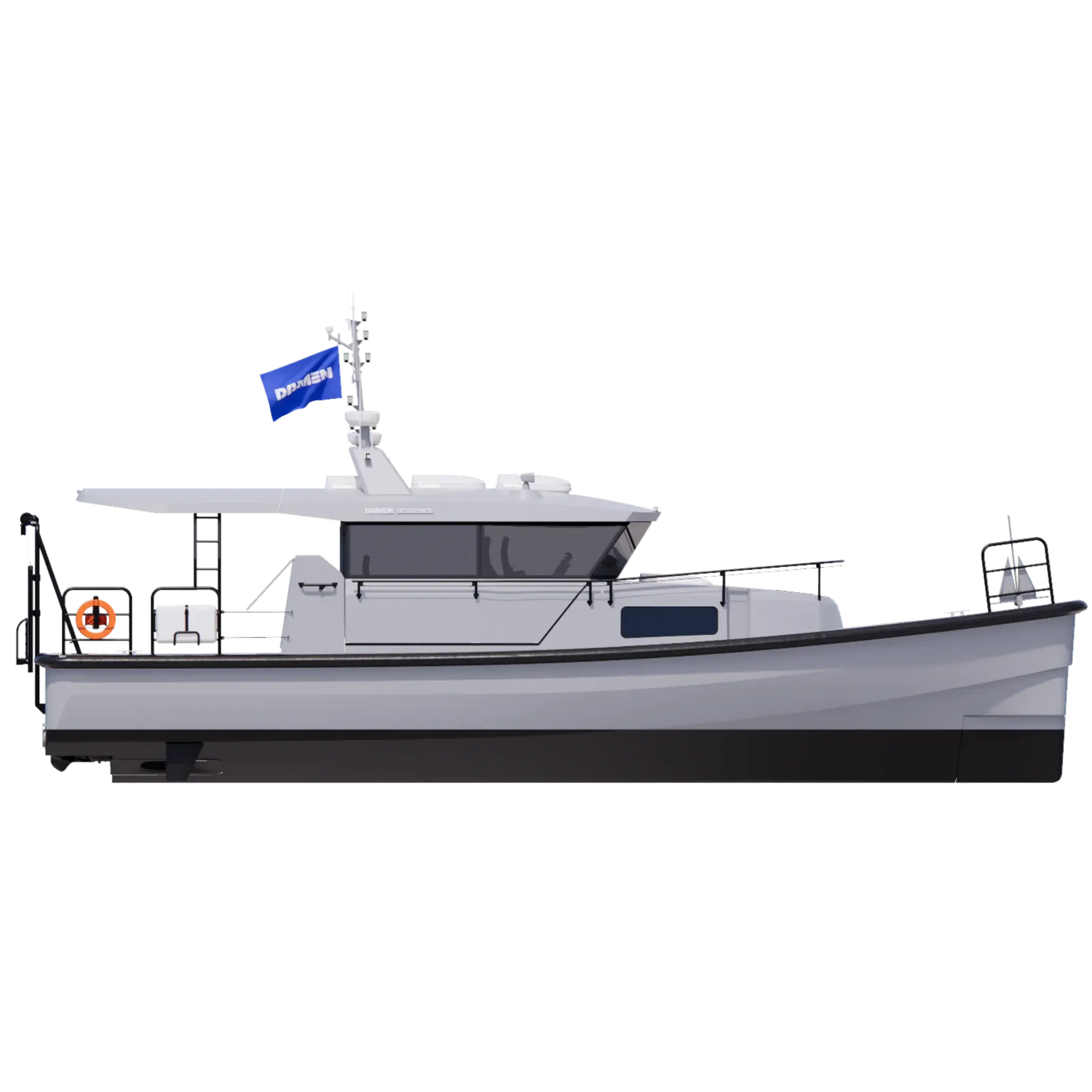

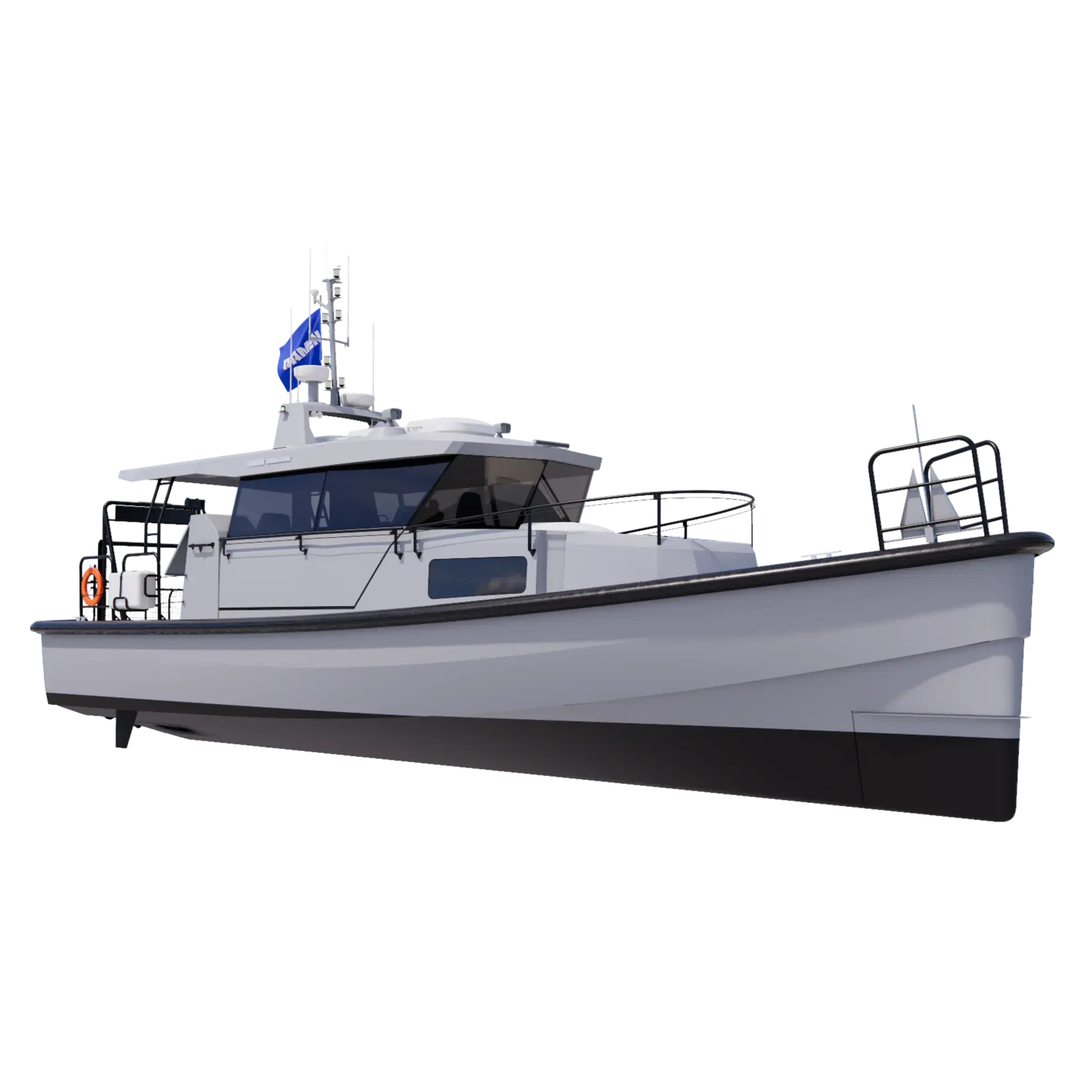

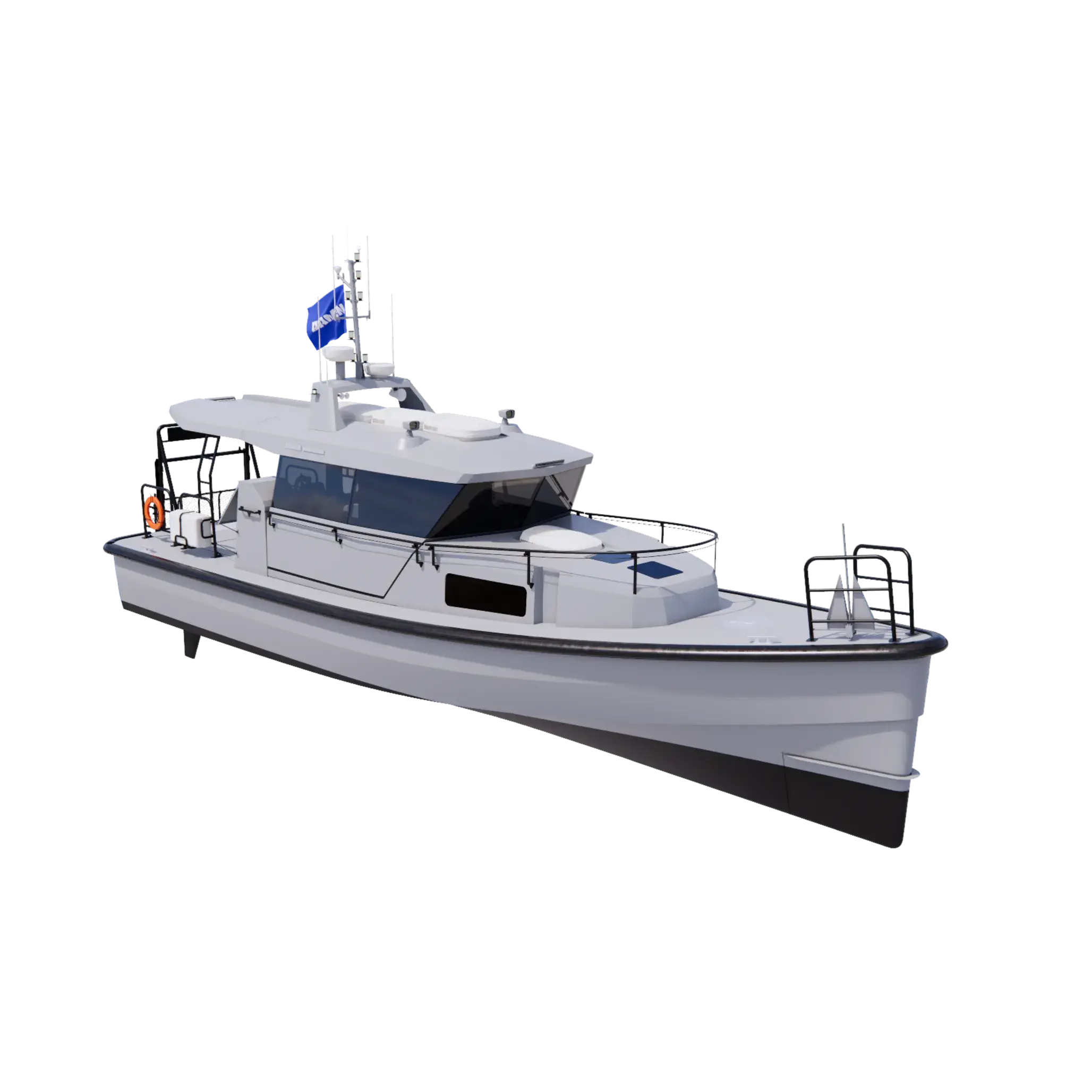

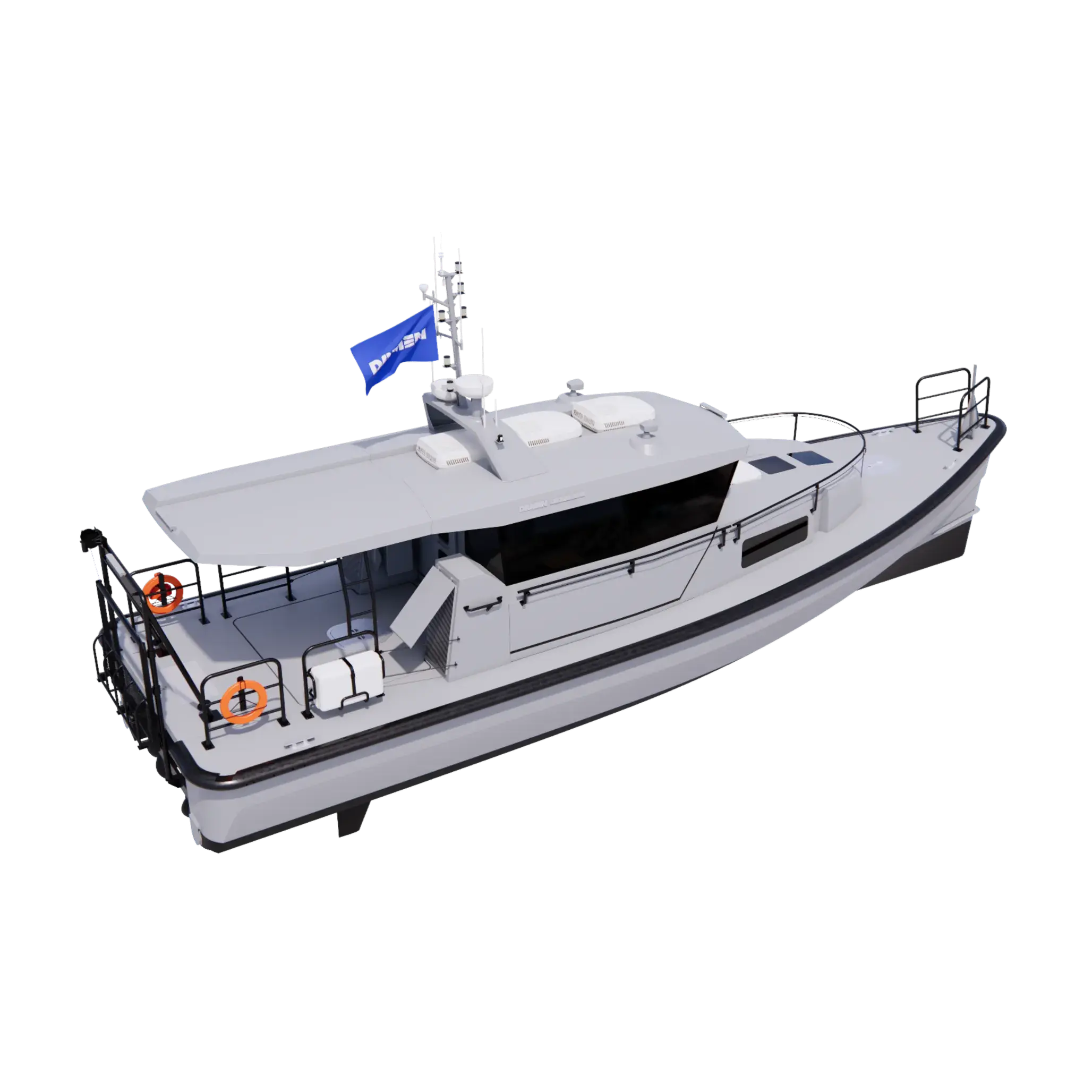

Stan Patrol 1605 FRP

    Stan Patrol 1605 FRP

    The Sea Axe hull shape guarantees the best seakeeping performance at high speeds. The combination of superior seakeeping and the position of the wheelhouse results in the highest possible level op operability. The long and slender Sea Axe hull offers exceptionally low resistance, delivering excellent fuel efficiency at all speeds.
    • IMO Tier III compliant
    • MOB recovery system
    • Propeller propulsion
    • GMDSS A1
    • Main deck interior arrangement

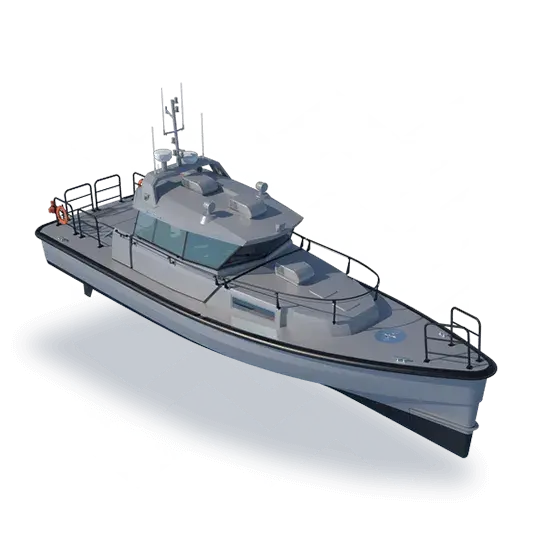

    More options? Configure your own patrol vessel. Configure your own
    • Composite patrol boat
    • Suited for patrol, surveillance and safety duties
    • Large uncluttered fore and aft deck
    • More than 1000 patrol vessels delivered to police forces, coast guards and navies

    Key figures

    15.7

    25

    2

    FRP

    2x Waterjets

    Dimensions

    Length o.a.
    15.7 m
    Beam o.a.
    4.8 m
    Depth at sides
    2 m
    Draught max
    0.8 m
    Hull material
    FRP
    Superstructure
    FRP

    Capacities

    Crew
    Up to 8 persons
    Personnel (Industrial)
    Up to 6 persons
    Fuel oil
    1.8 m³
    Fresh water
    0.3 m³
    Sewage
    0.3 m³

    Performance

    Speed
    Up to 25 knots
    Range at max speed
    200 nm
    Do you want to know more?

    Compare similar patrol vessels

    Length (m)Speed max (kn)CrewHull constructionPropulsion
    Stan Patrol 1605 FRP15.7252FRP2x Waterjets
    Stan Patrol 190519.330Up to 2 personsAluminium2x Waterjets
    Stan Patrol 2205 FRP22.7308FRP2x Fixed pitch propellers
    Stan Patrol 1605 FRP
    Length (m)
    15.7
    Speed max (kn)
    25
    Crew
    2
    Hull construction
    FRP
    Propulsion
    2x Waterjets
    Stan Patrol 1905
    Length (m)
    19.3
    Speed max (kn)
    30
    Crew
    Up to 2 persons
    Hull construction
    Aluminium
    Propulsion
    2x Waterjets
    Stan Patrol 2205 FRP
    Length (m)
    22.7
    Speed max (kn)
    30
    Crew
    8
    Hull construction
    FRP
    Propulsion
    2x Fixed pitch propellers

    Damen solutions

    Finance your vesselA reliable partner from start to finish. Explore solutions of Damen Financial Services.Learn more
    Lifecycle supportFrom delivery onwards, Damen Services supports you, every step of the way.Learn more
    Build your vessel locallyBuild a proven Damen design, at a location of your choice.Learn more
    Trade-in your current vesselExplore our options for vessel trade-in at Damen Trading. Our in-house shipbroker.Learn more
    Related products

    Full package

    1 / 7

    Referrals

    25 Sep 2024

    Jawar Al Khaleej L.L.C. takes delivery of three Damen Search and Rescue vessels

    22 Feb 2024

    Damen Shipyards maintains its lead in short to medium range security and law enforcement vessels

    14 Jul 2022

    Damen Shipyards builds seven Carbon Fibre Patrol Vessels for Swedish Coast Guard

    2 Nov 2021

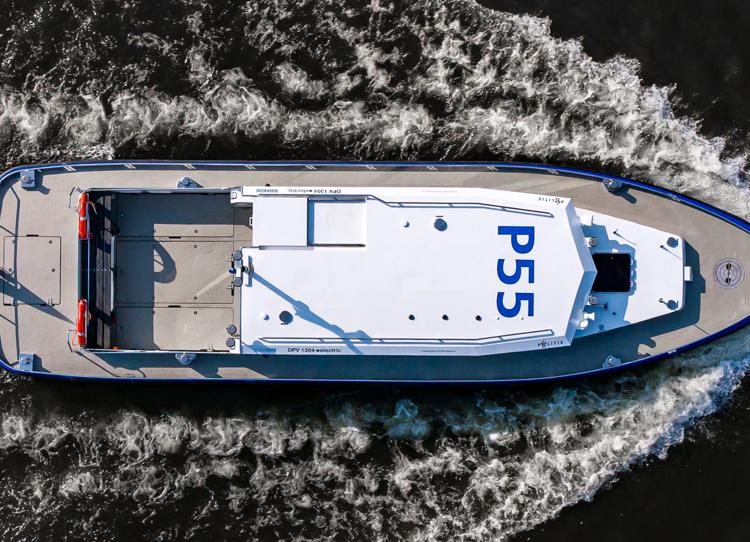

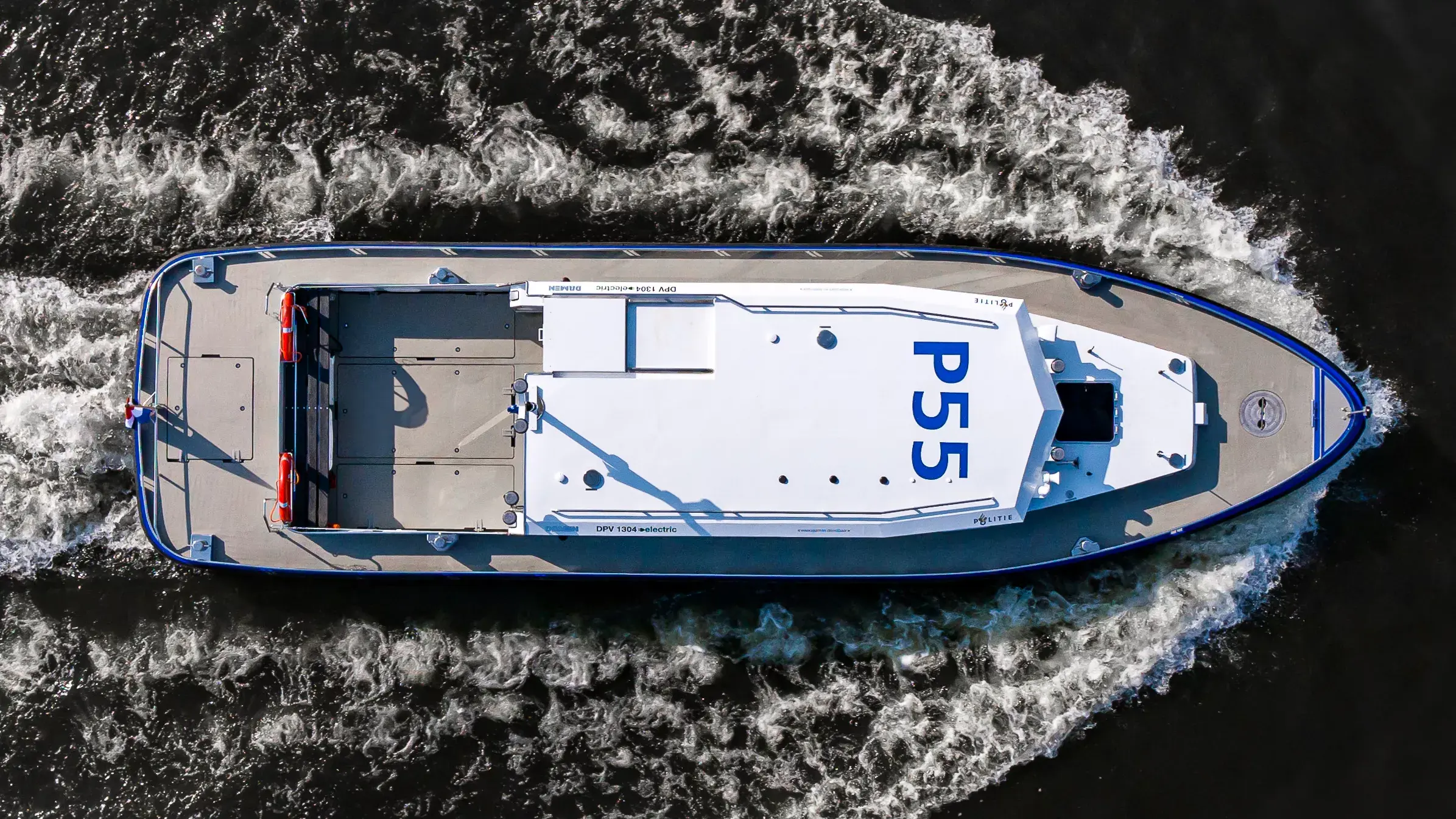

    Three new fully-electric Damen Patrol Vessels to contribute to the City of Amsterdam’s sustainability goals
