Deep dredging
Deep dredging

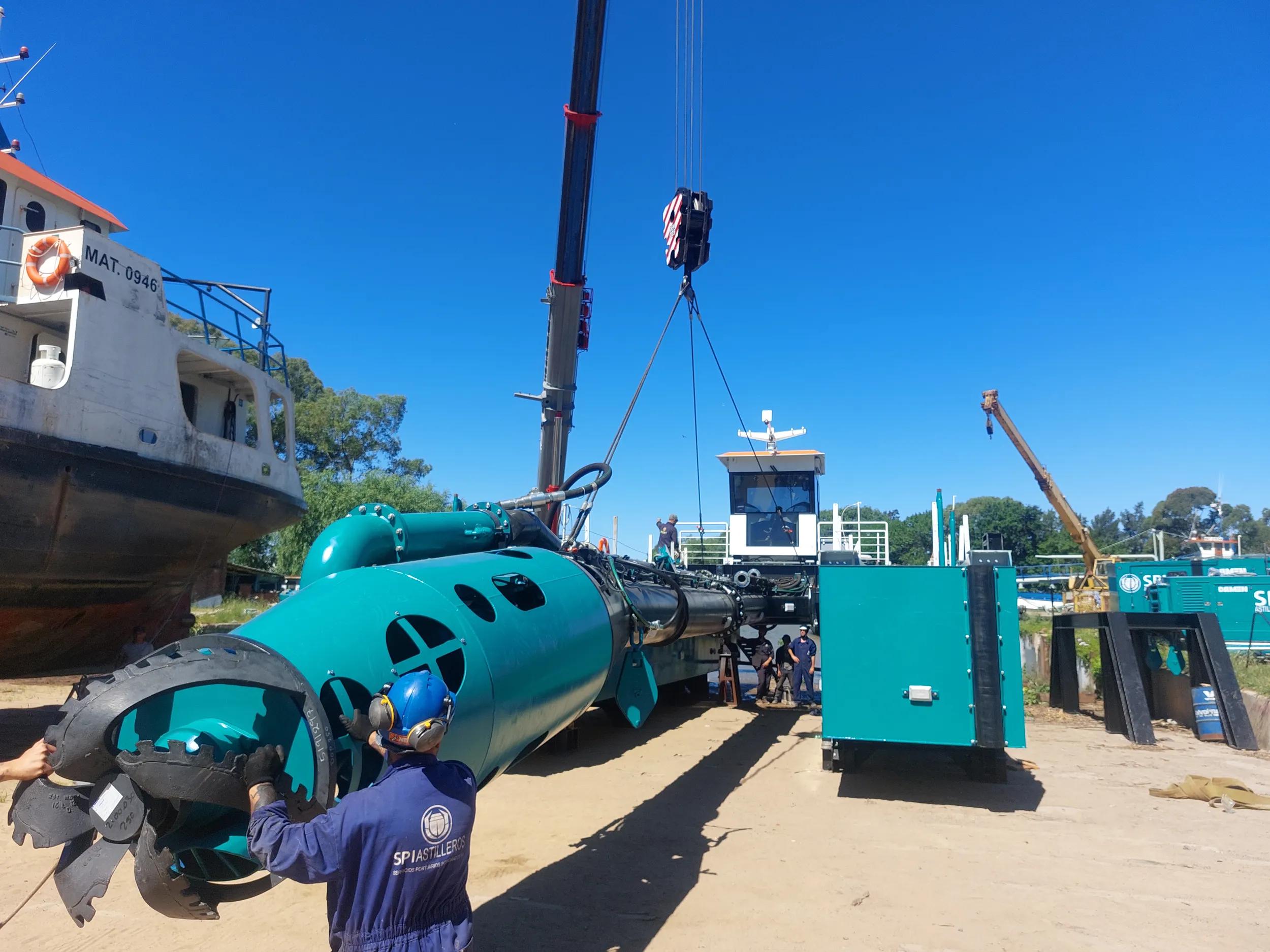

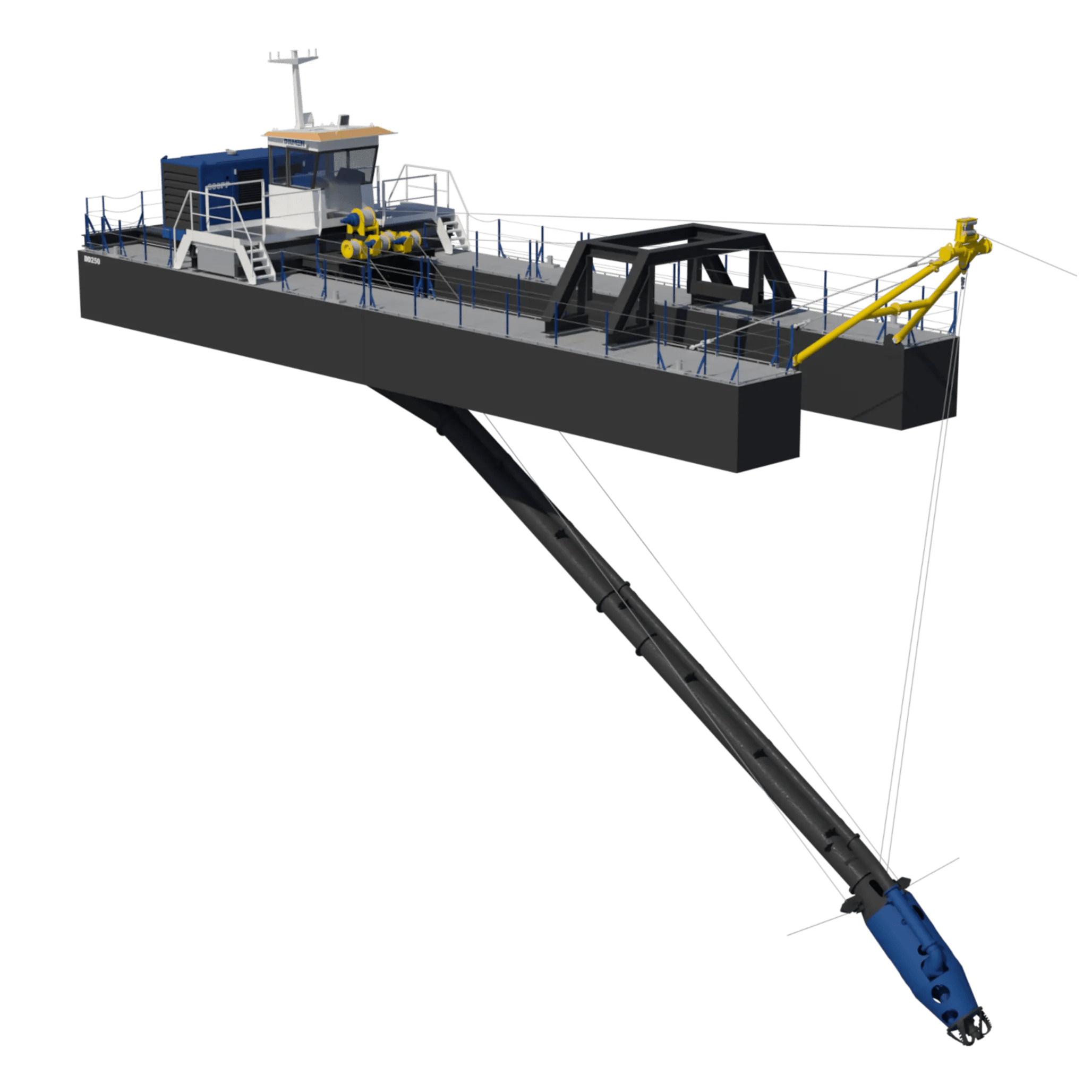

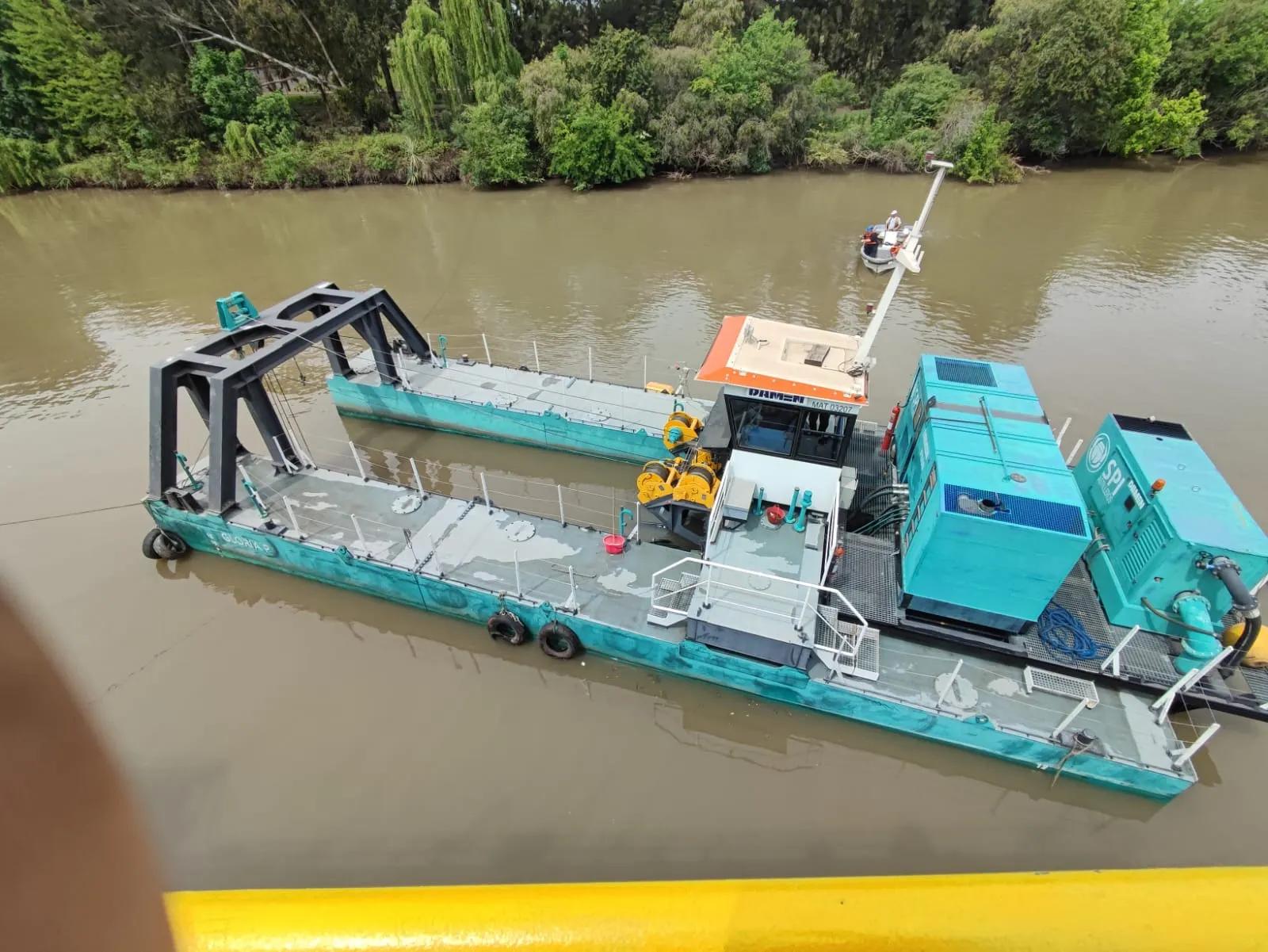

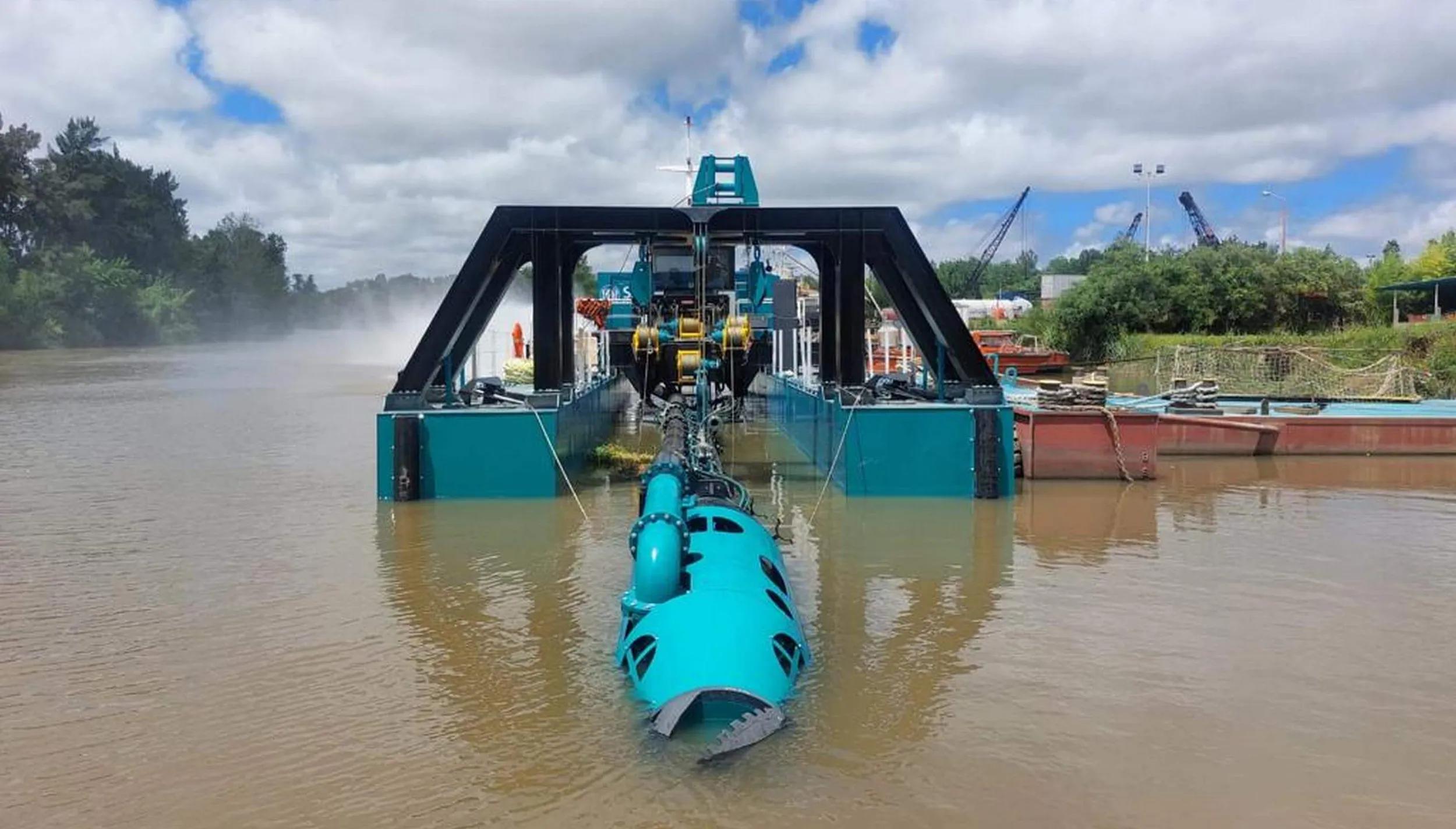

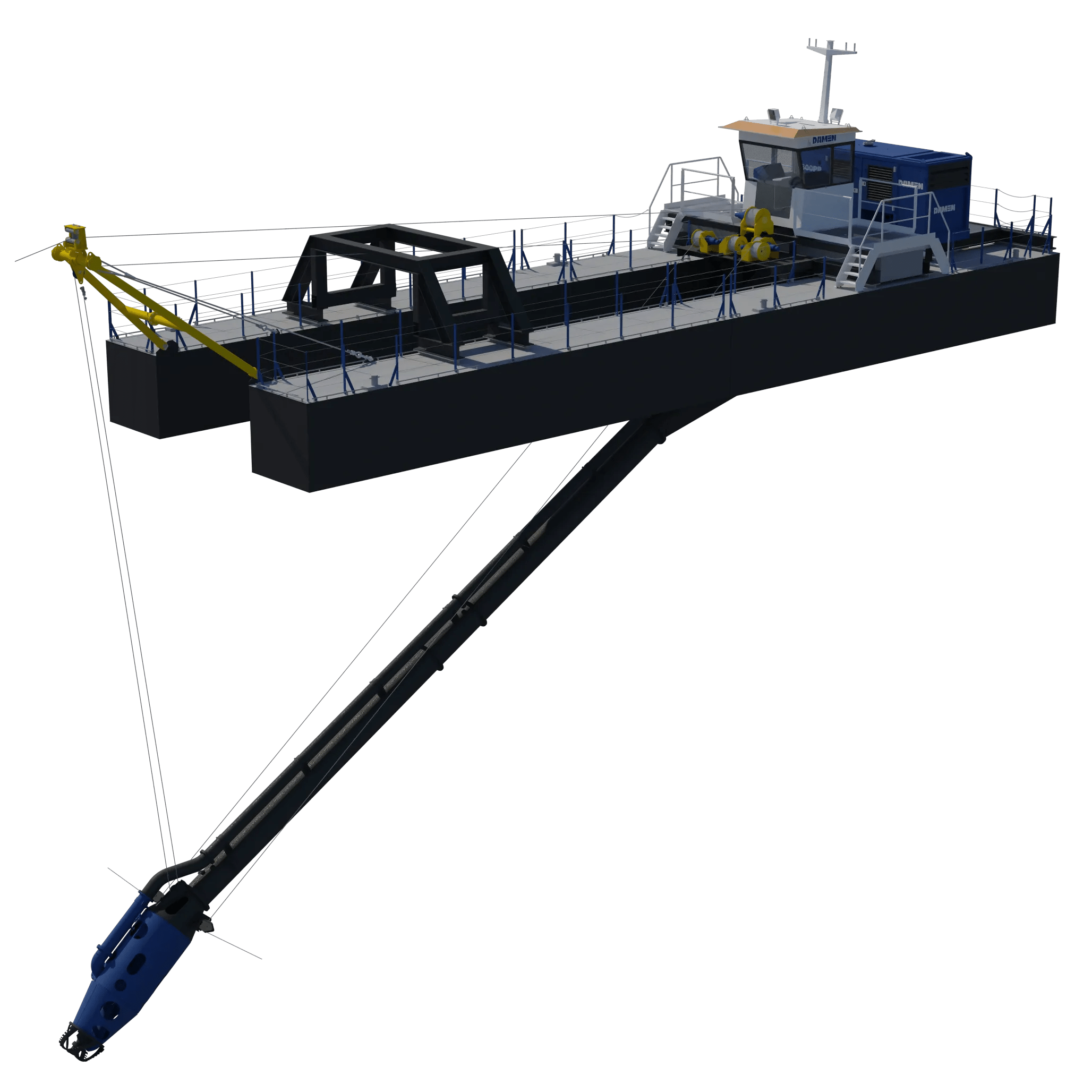

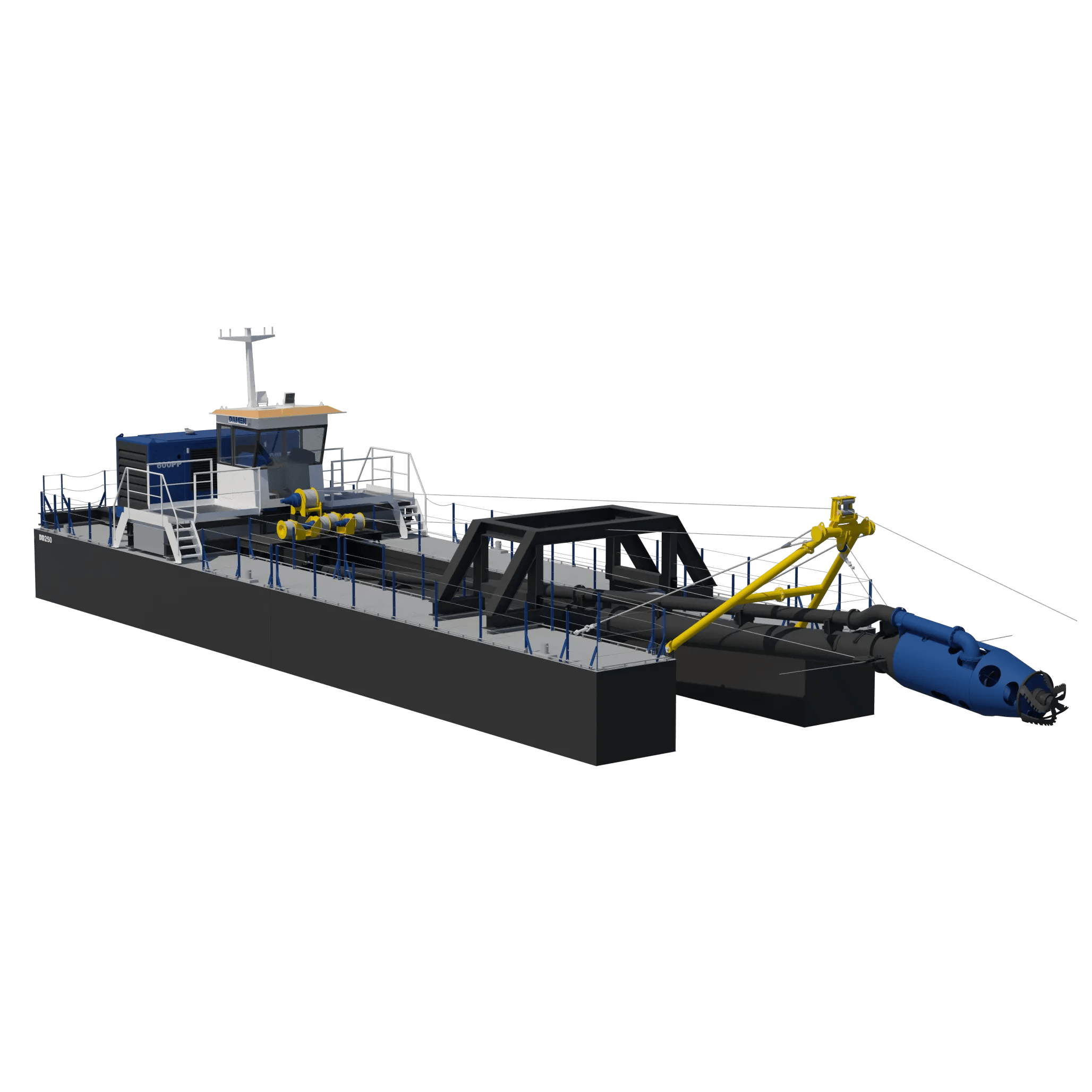

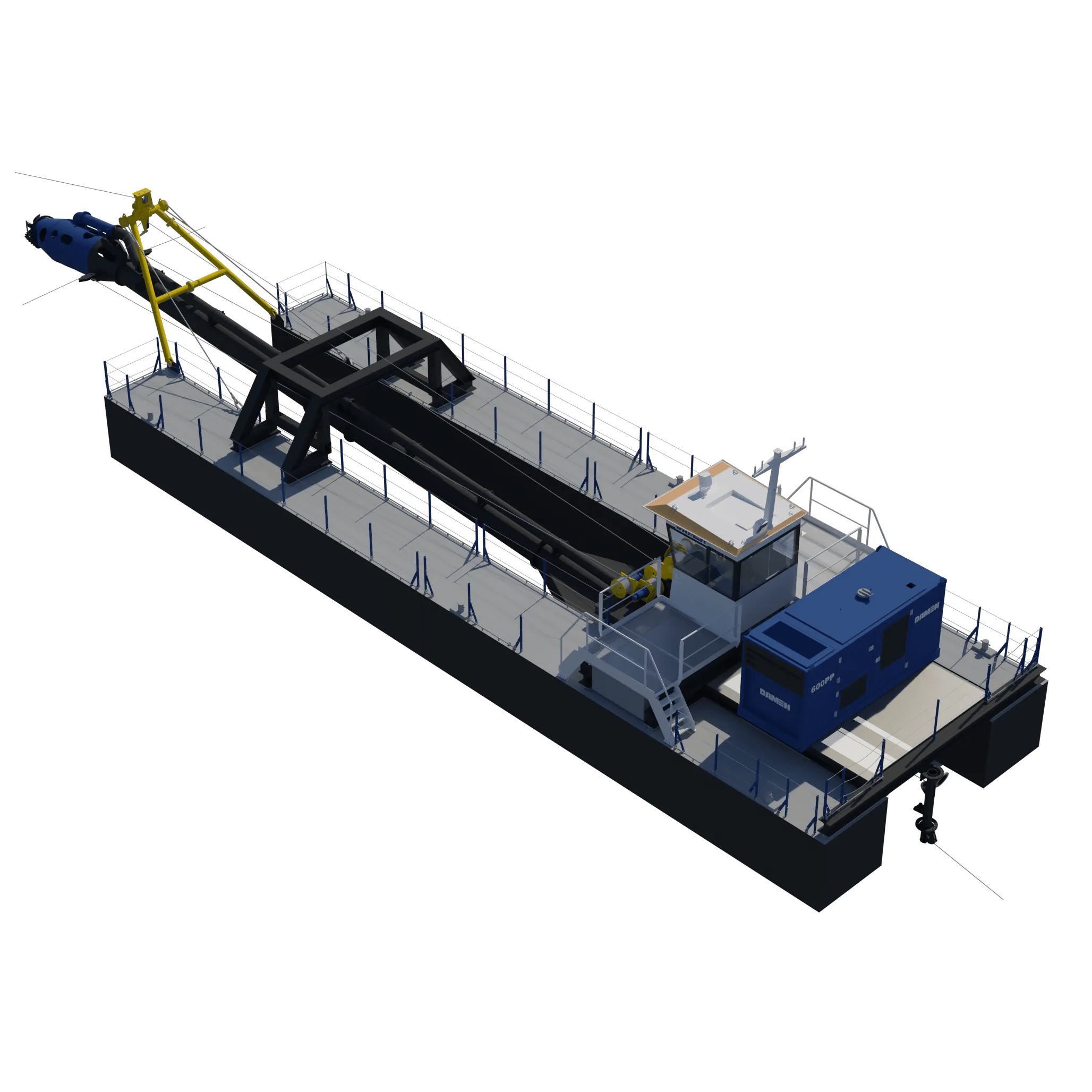

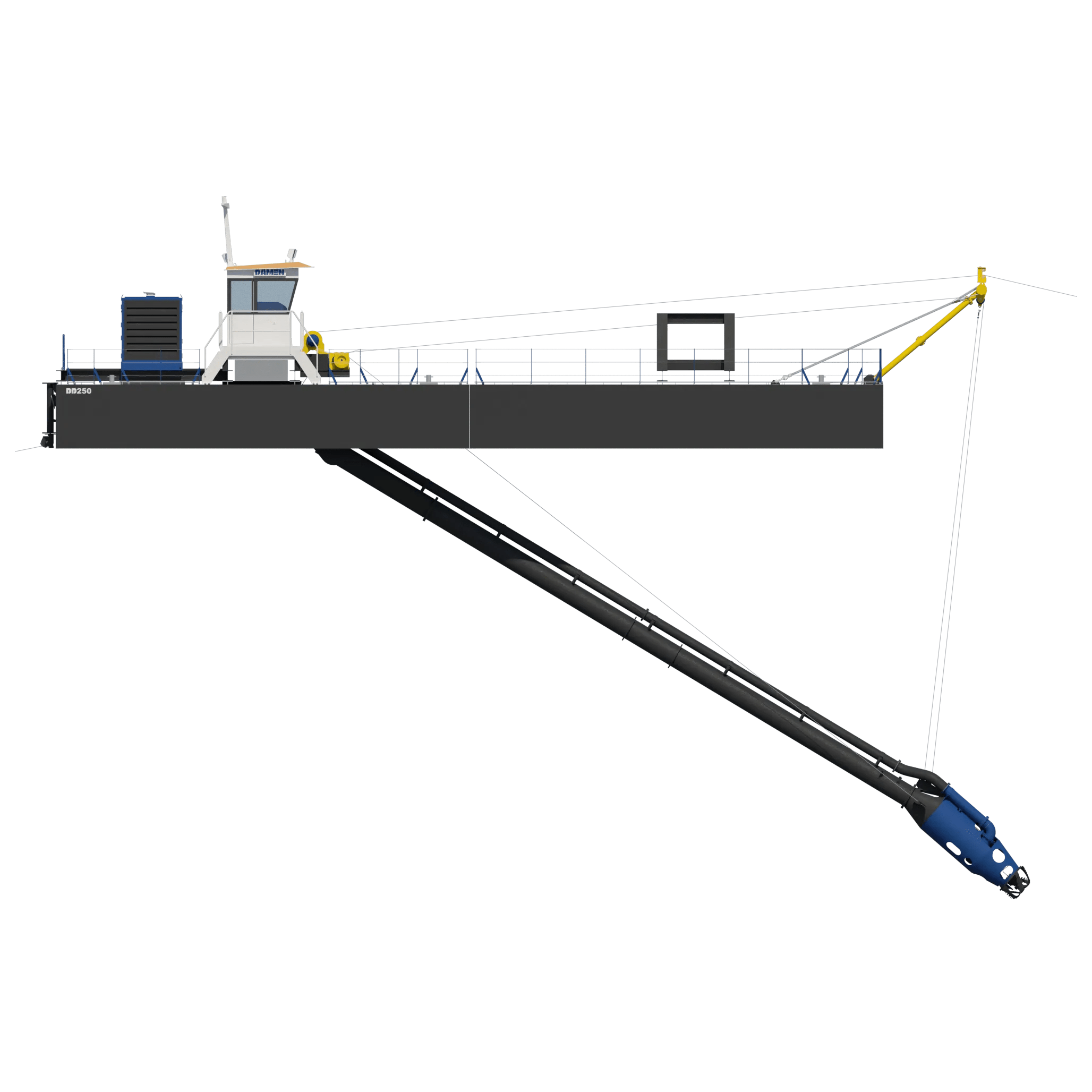

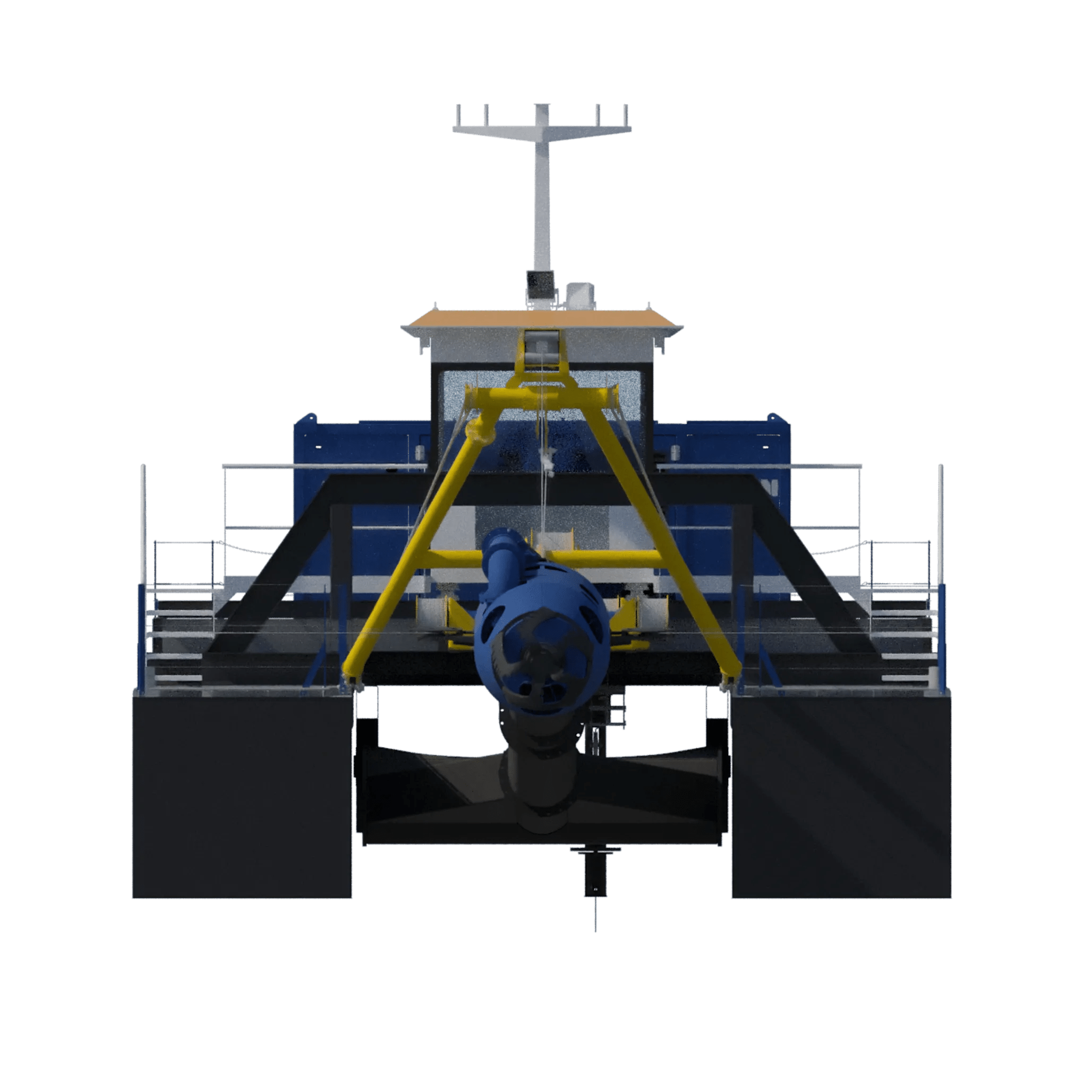

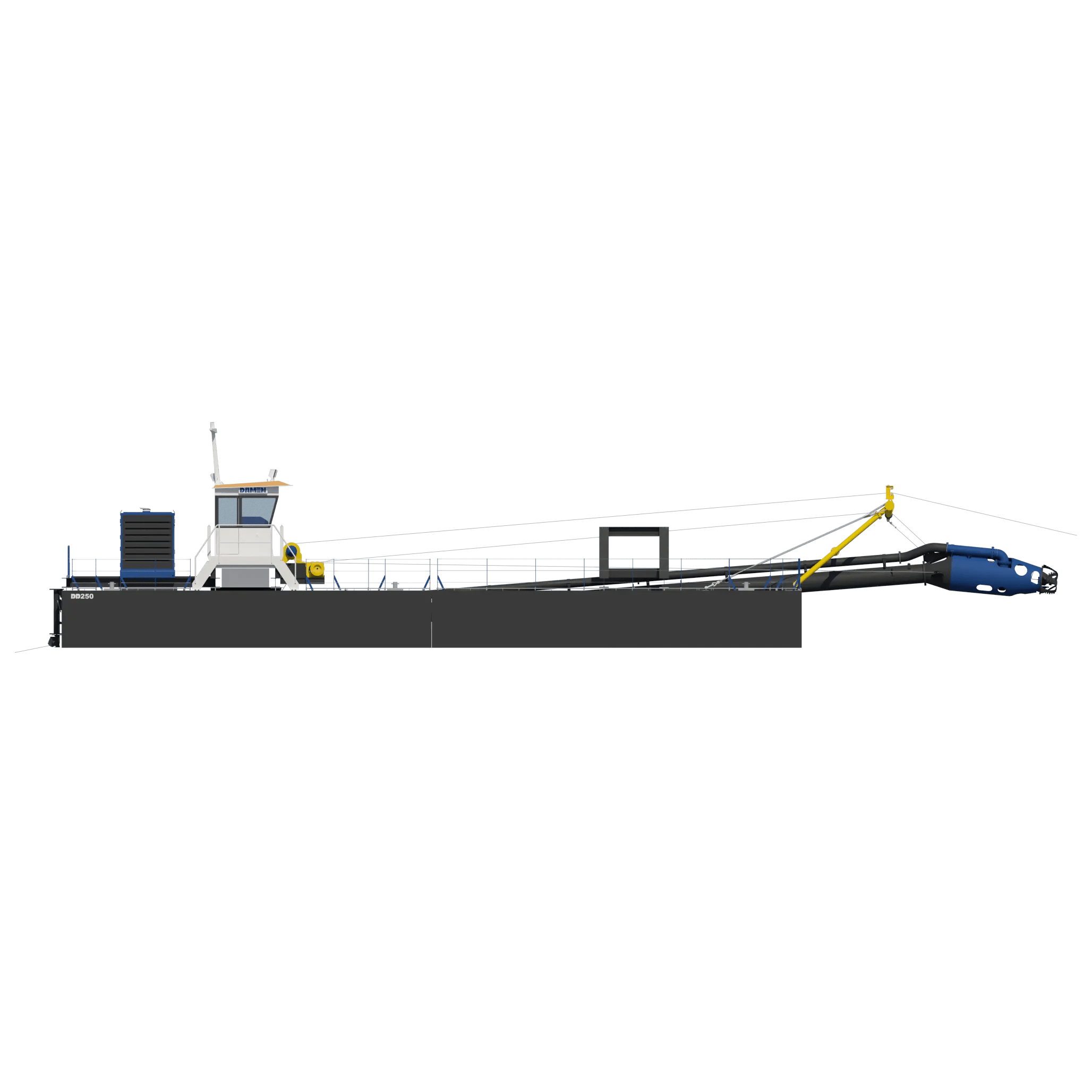

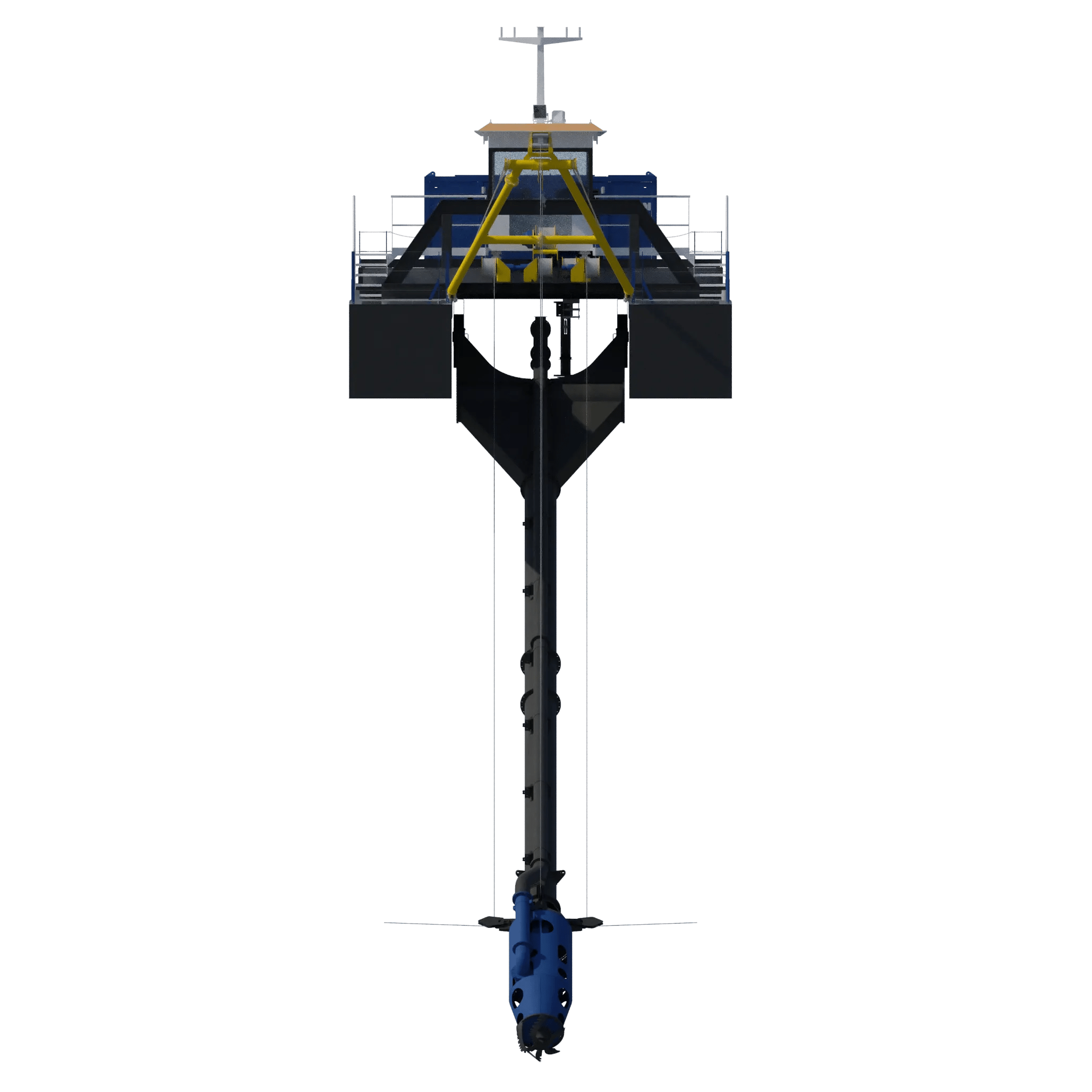

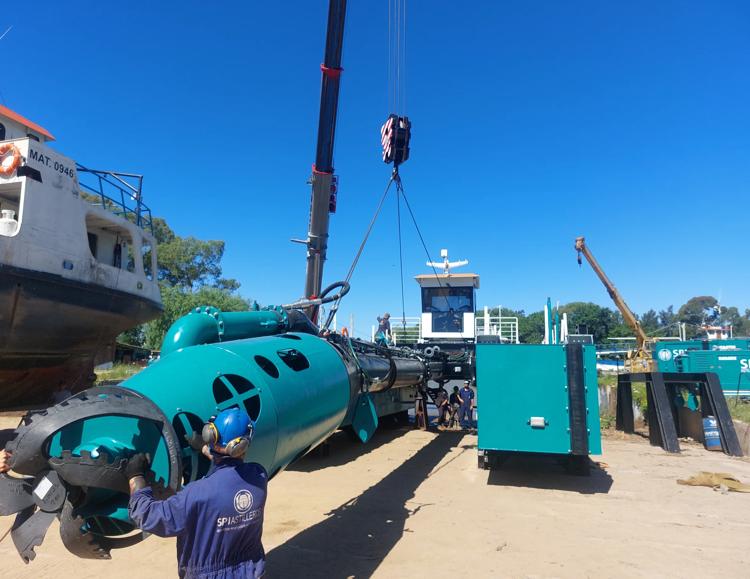

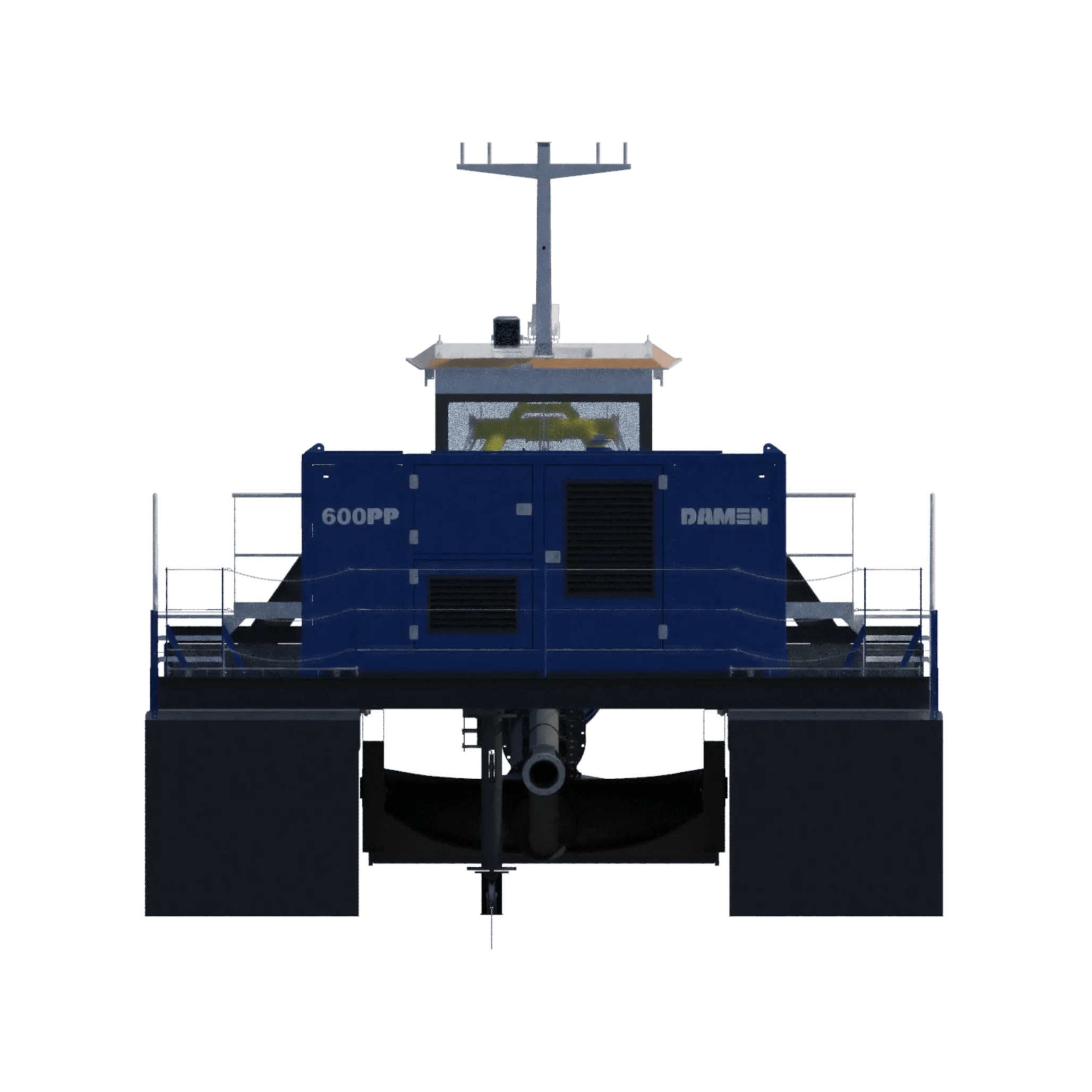

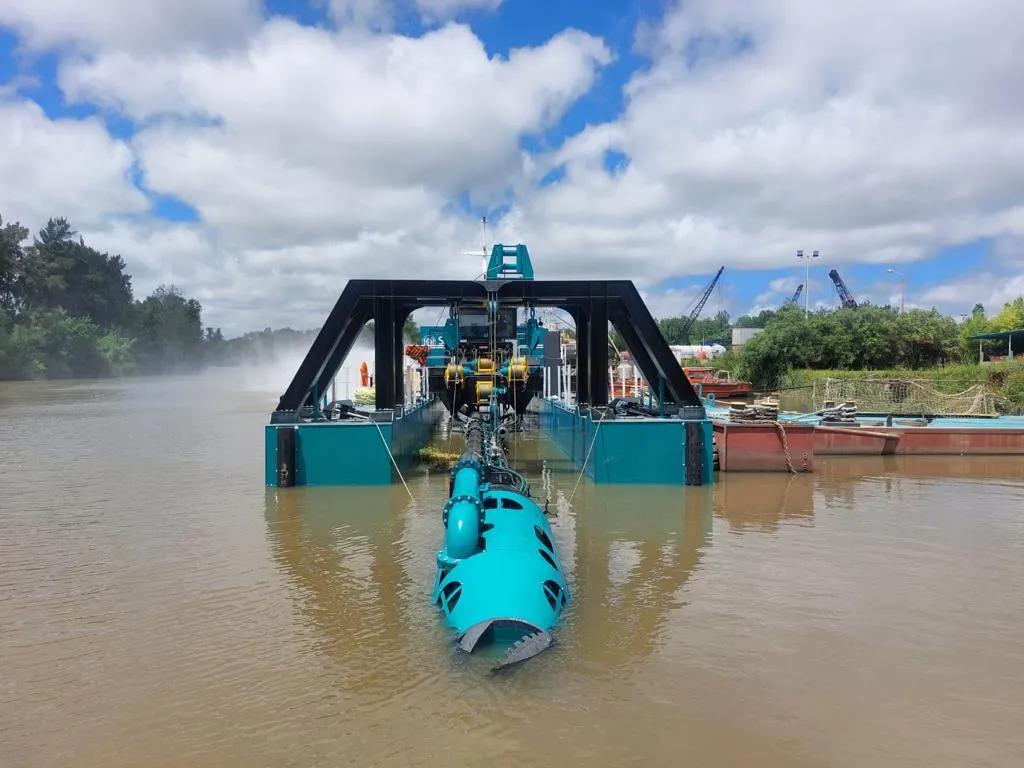

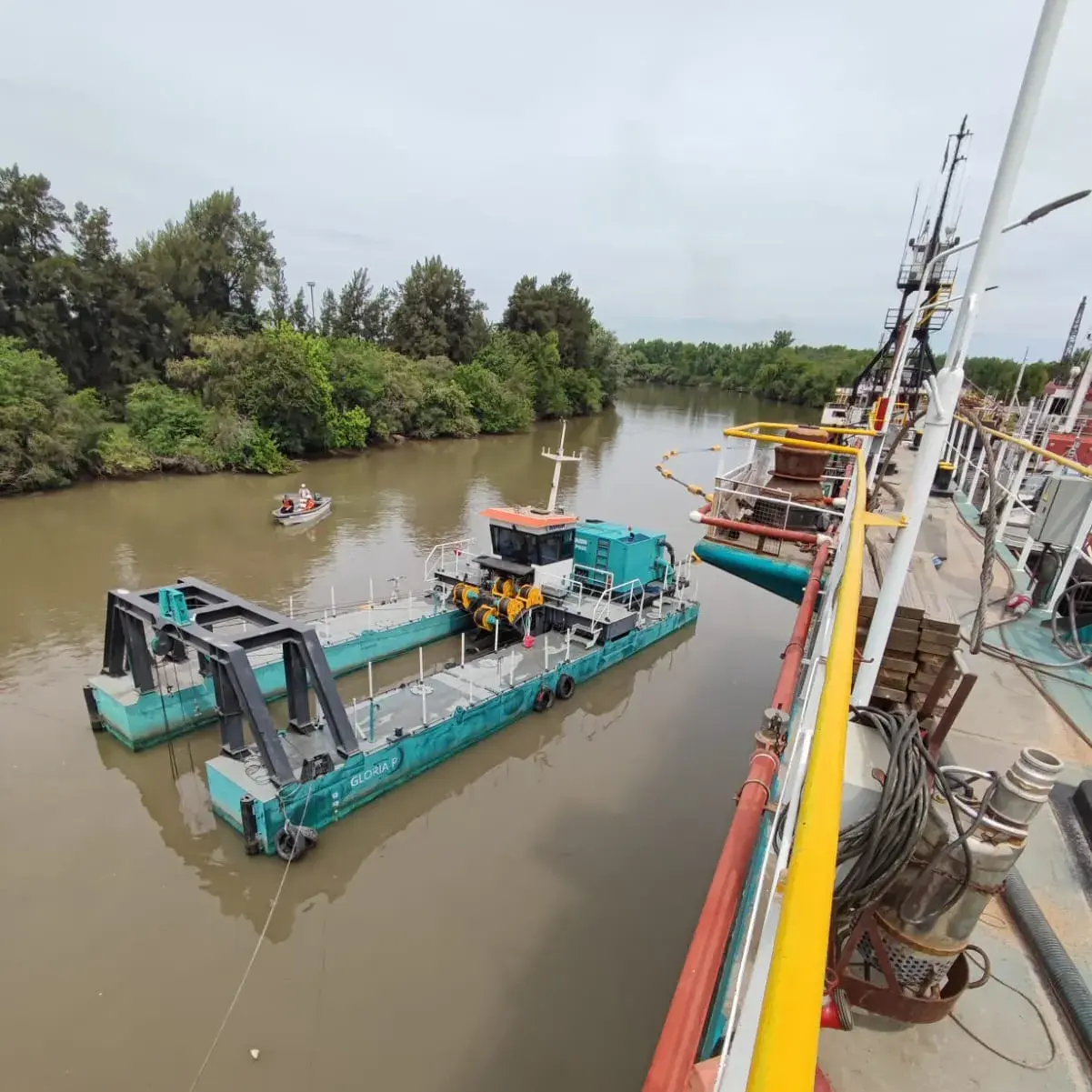

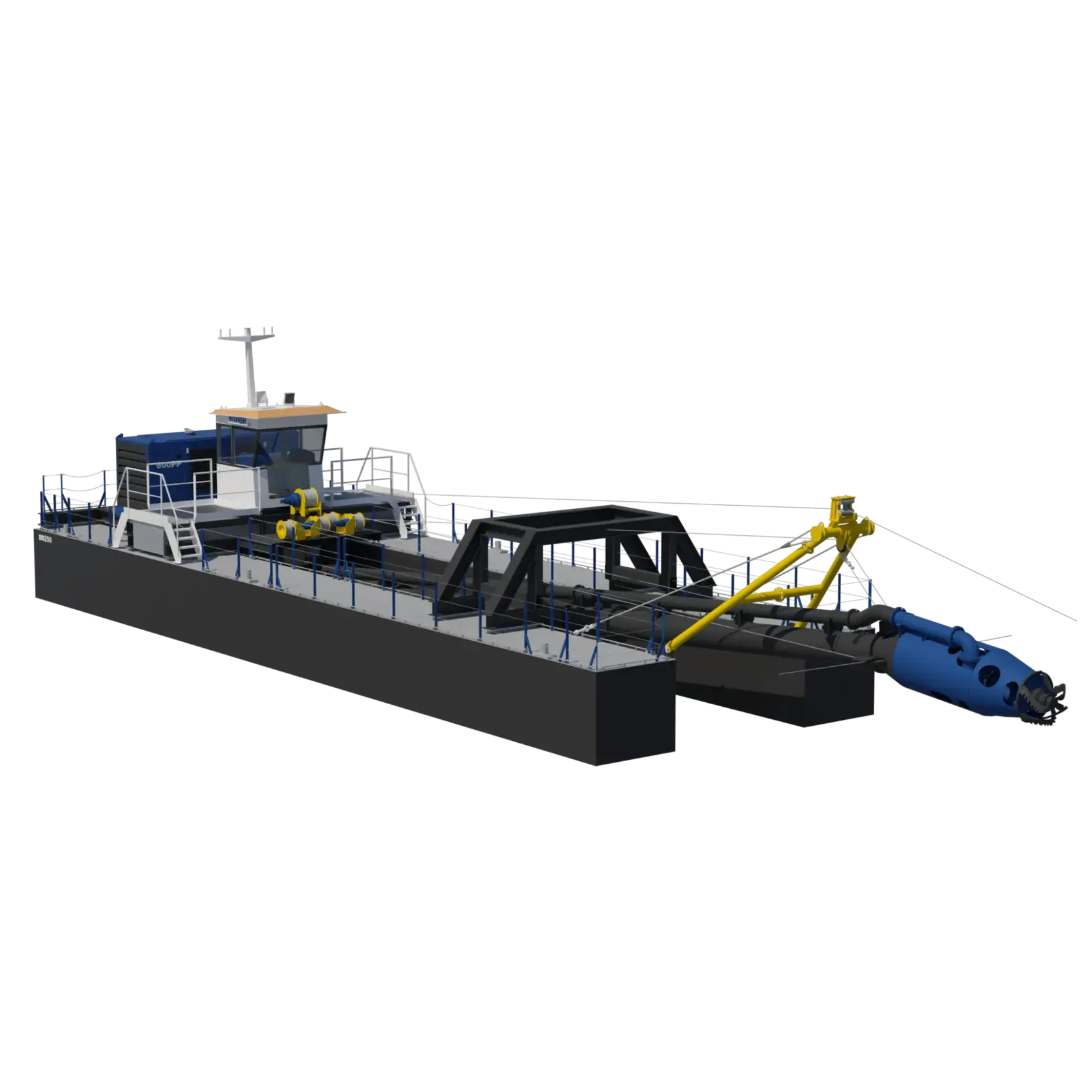

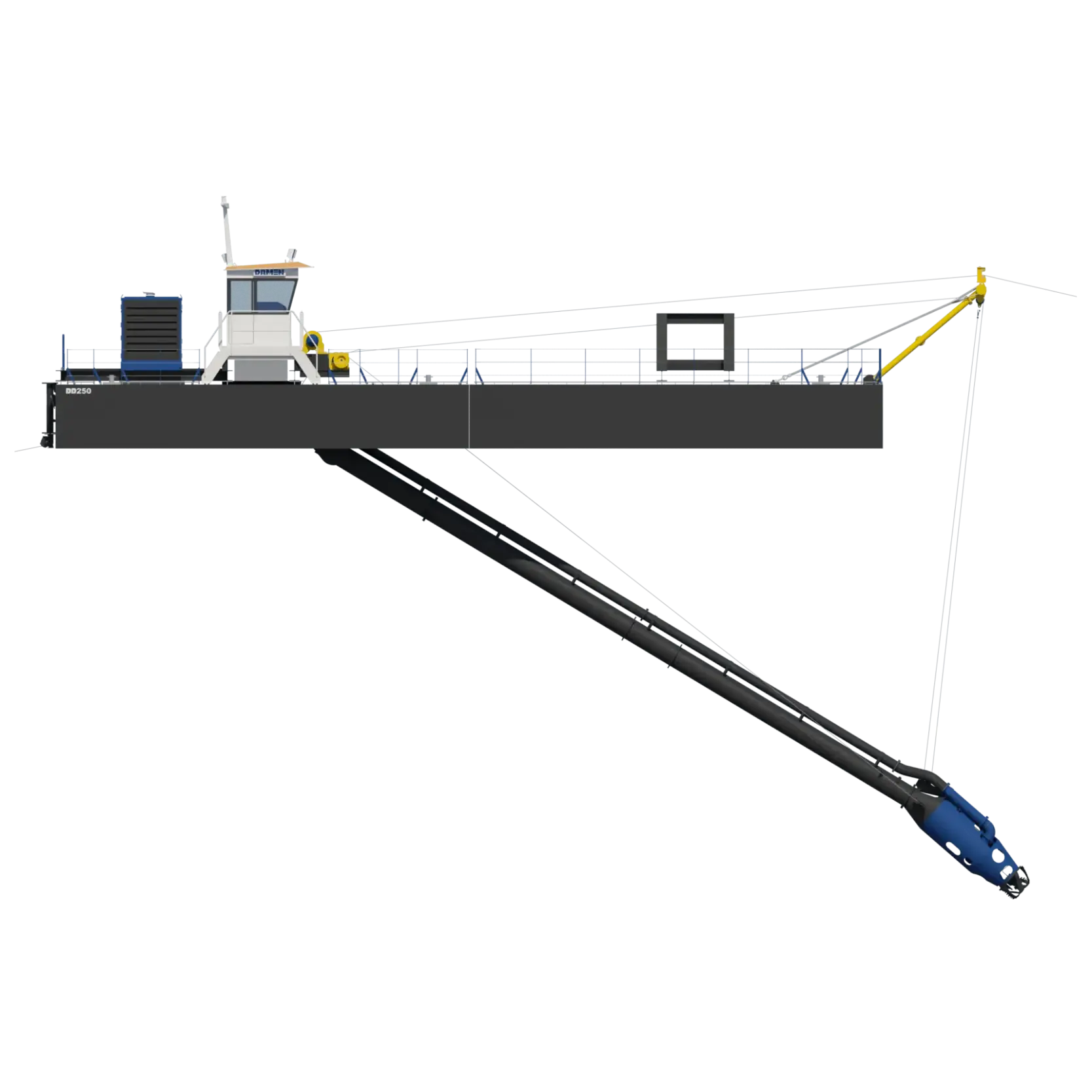

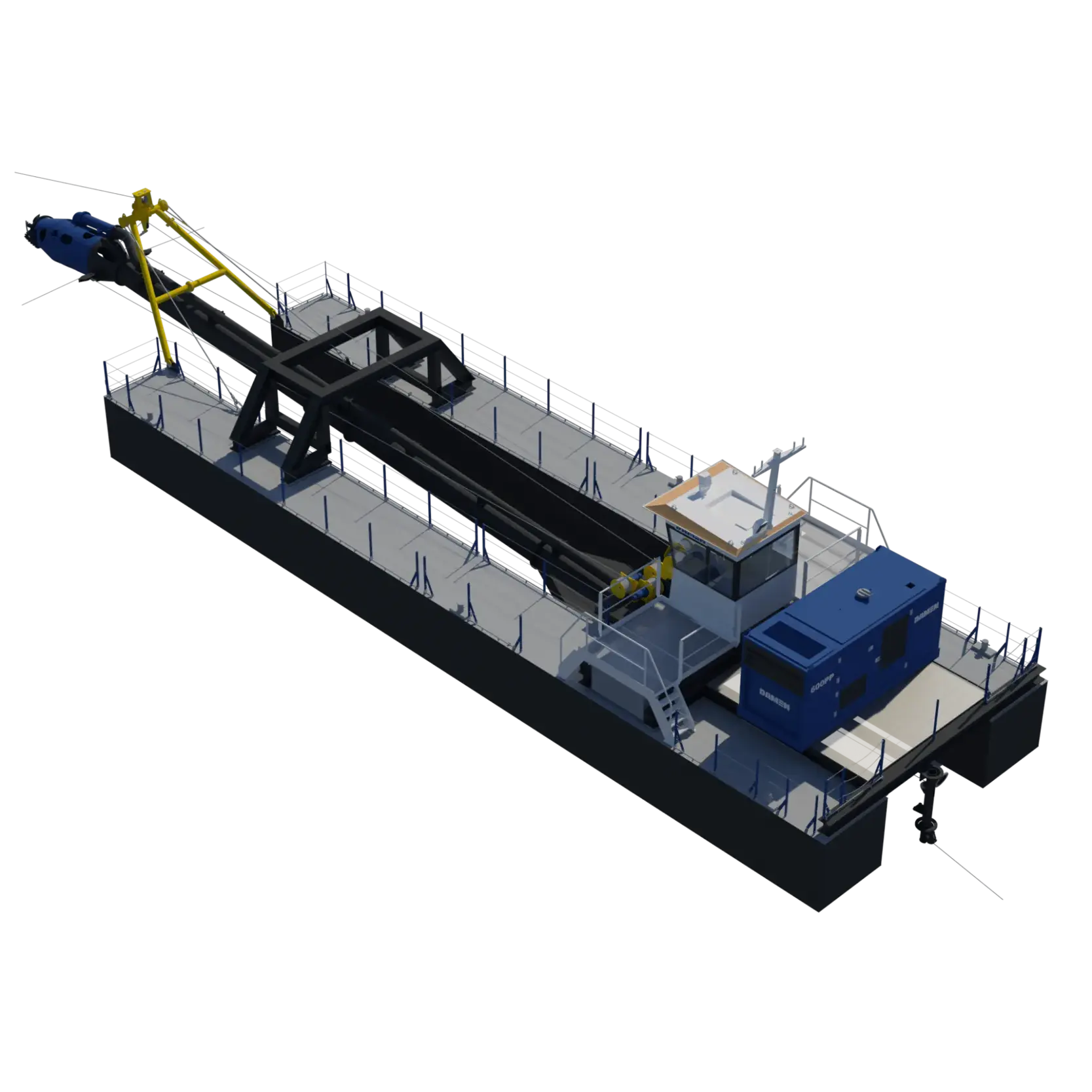

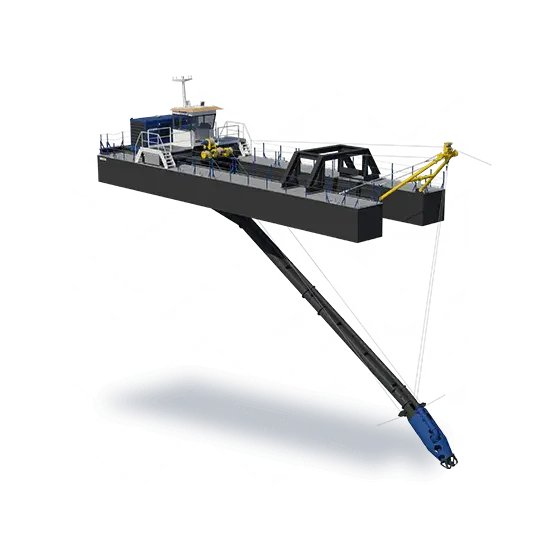

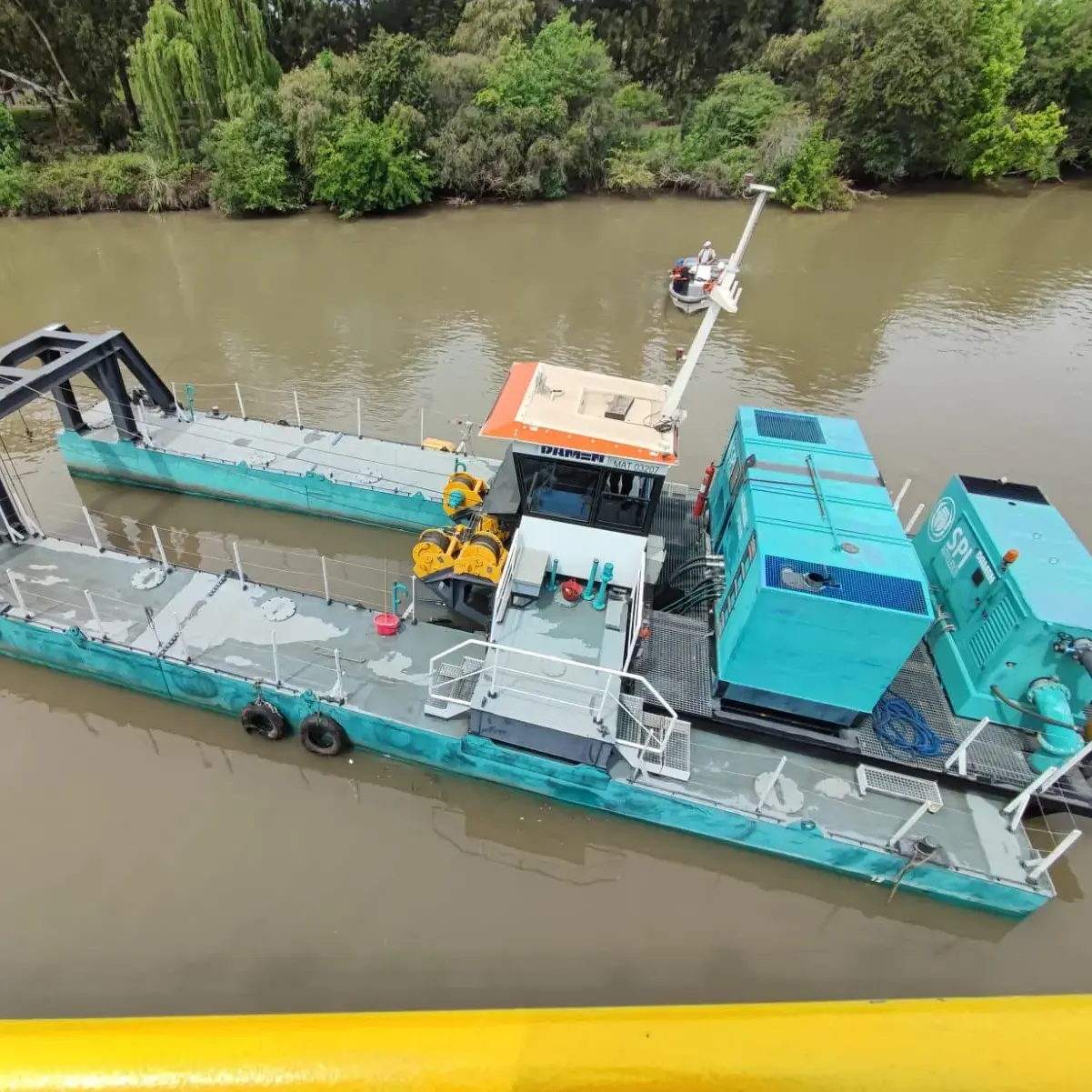

A DOP Dredger is a modular dredger which can be dismounted completely to ensure practical transport to remote areas. The flexible dredger is composed of elements which easily fit into containers. Side pontoons are provided with a separate winch platform, a comfortable operating cabin, a power pack and an A-frame for hoisting the suction ladder, as well as an integrated DOP pump and cutter unit. The dredger is perfect for cutting compacted soils in sand mining and maintenance dredging jobs.
- Production measurement
- Position visualisation
- Communication & navigation package
- Floating & land pipe line
- Submersed dredge pump
- Dismountable design
- Single operator

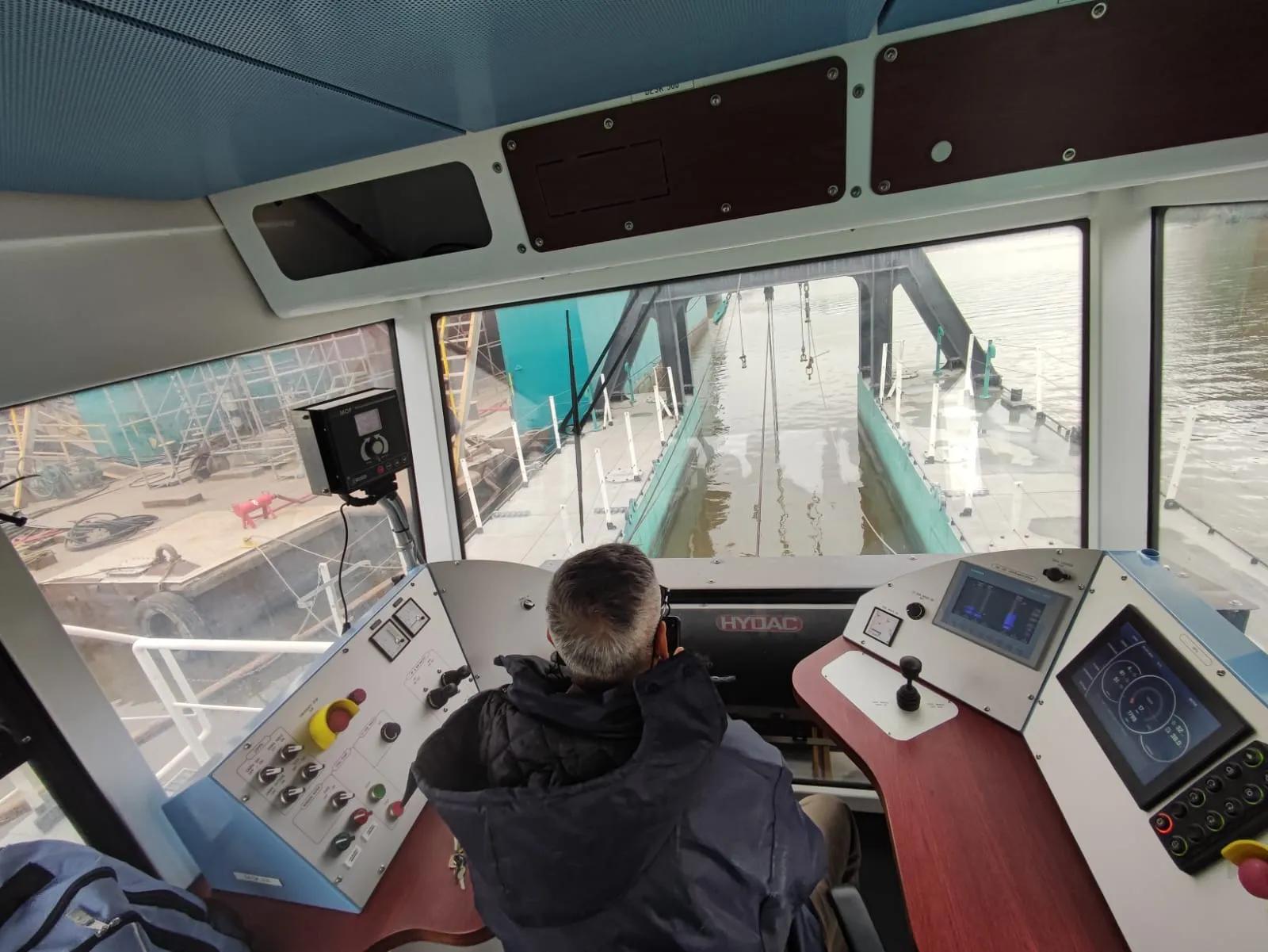

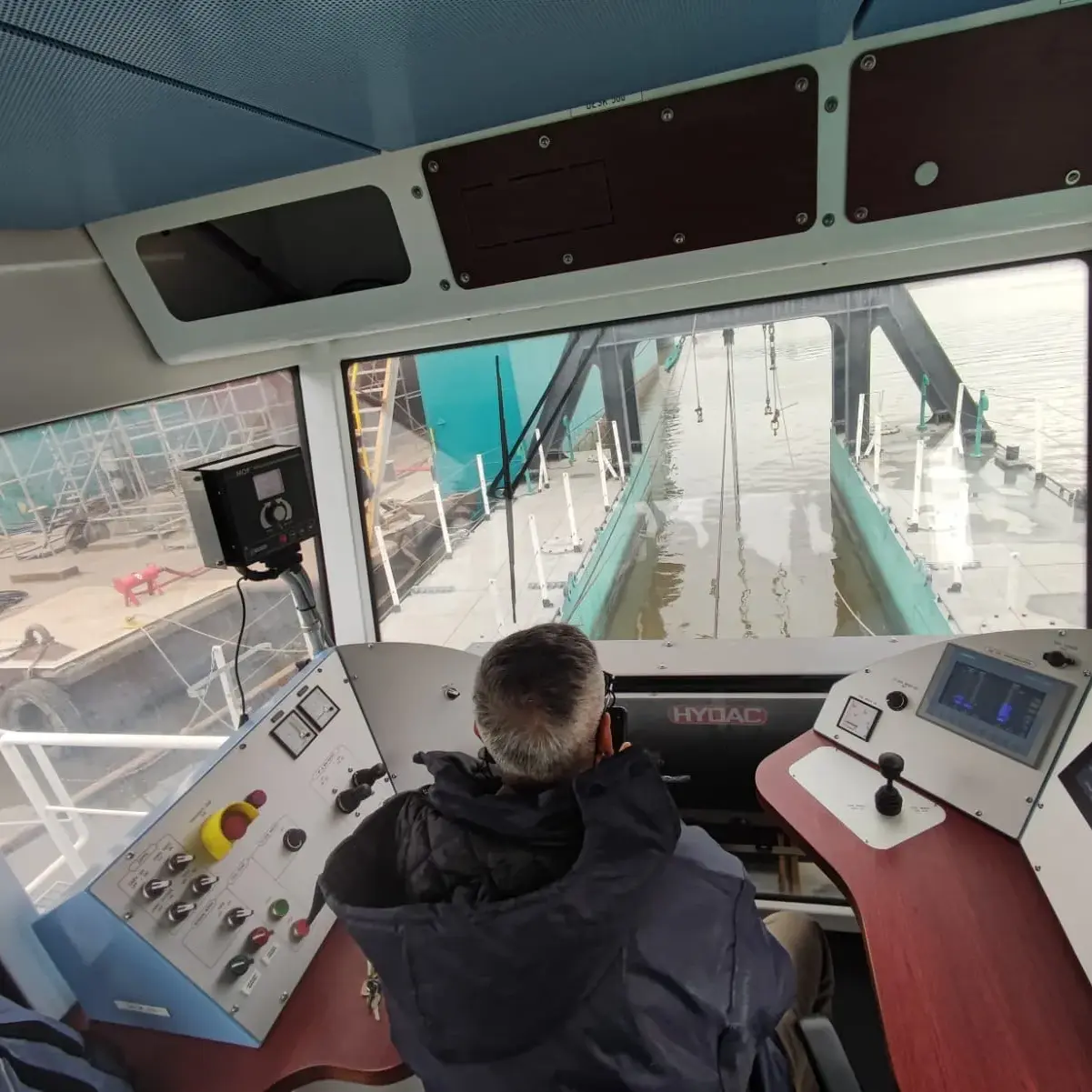

- Spacious ergonomic operator cabin
Key figures
600 - 2400
-20
150 - 350
175 - 565
30 - 32
Dimensions
- Overall length
- 30 - 32 m
- Beam
- 7.35 m
- Depth pontoons
- 1.8 m
- Total weight
- 63 - 74 t
Engine installation
- Power pumpshaft
- 80 - 360 kW max
- Total installed power
- 175 - 565 kW
- Hydraulic power pack
- 252 - 972 I/min
- Cutter power
- 13 - 47 kW
- Fuel tank
- 5 m³
Dredge installation
- Dredge production
- 600 - 2400 m³/h
- Dredge pipe diameter
- 150 - 350 mm
- Max head
- 3.2 - 5.3 bar
- Max dredging depth
- -20 m
Do you want to know more?
Compare similar vessels
Production (m³/h) | Max dredging depth (m) | Pipe diameter (mm) | Power (kW) | Length (m) | ||
---|---|---|---|---|---|---|
Deep dredging | 600 - 2400 | -20 | 150 - 350 | 175 - 565 | 30 - 32 | |
Deeper dredging | 600 - 2400 | -30 | 150 - 350 | 175 - 565 | 44 - 46 | |
Cutting compacted sand | 600 - 2400 | -15 | 150 - 350 | 175 - 565 | 24 - 26 |
Deep dredging
- Production (m³/h)
- 600 - 2400
- Max dredging depth (m)
- -20
- Pipe diameter (mm)
- 150 - 350
- Power (kW)
- 175 - 565
- Length (m)
- 30 - 32
- Production (m³/h)
- 600 - 2400
- Max dredging depth (m)
- -30
- Pipe diameter (mm)
- 150 - 350
- Power (kW)
- 175 - 565
- Length (m)
- 44 - 46
- Production (m³/h)
- 600 - 2400
- Max dredging depth (m)
- -15
- Pipe diameter (mm)
- 150 - 350
- Power (kW)
- 175 - 565
- Length (m)
- 24 - 26
