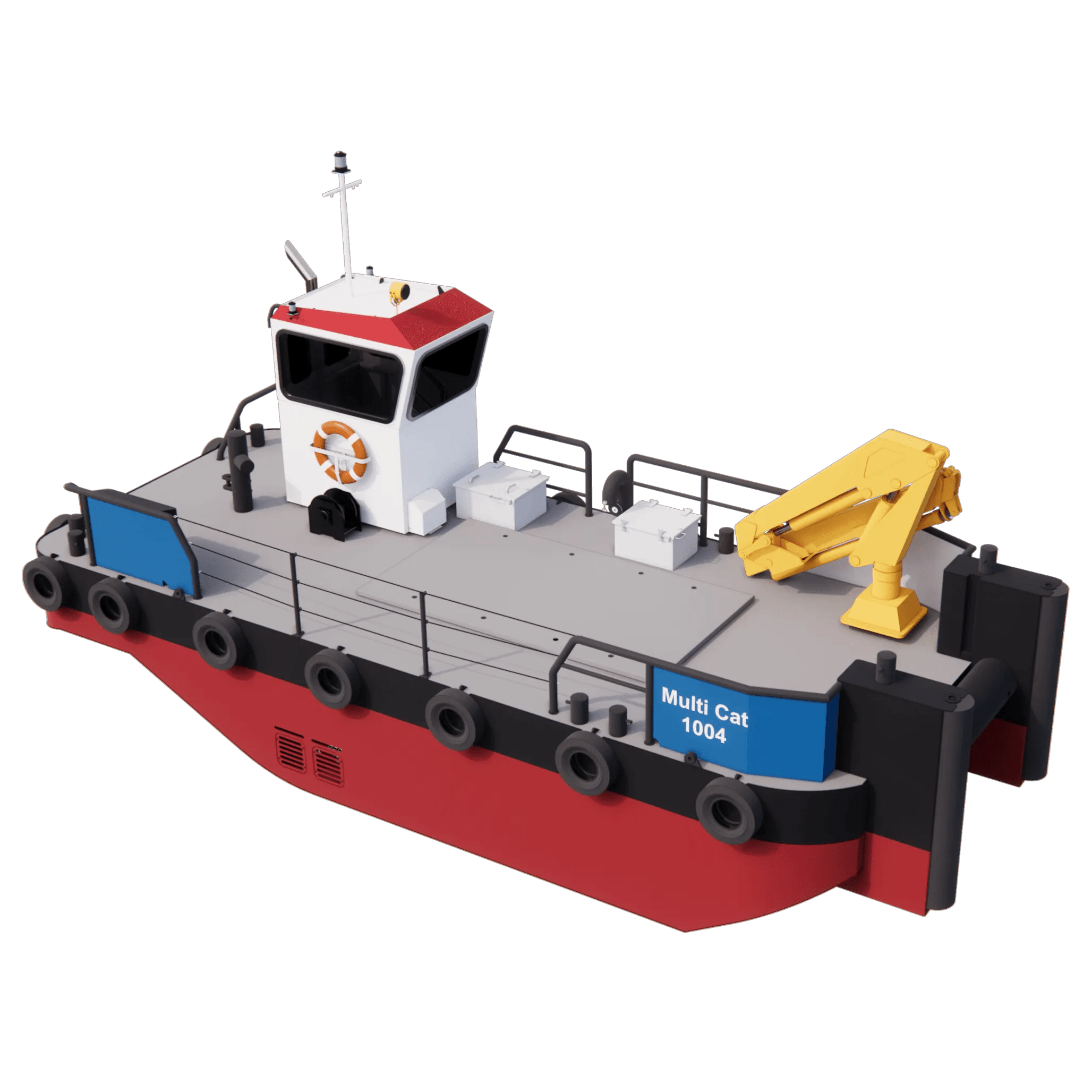

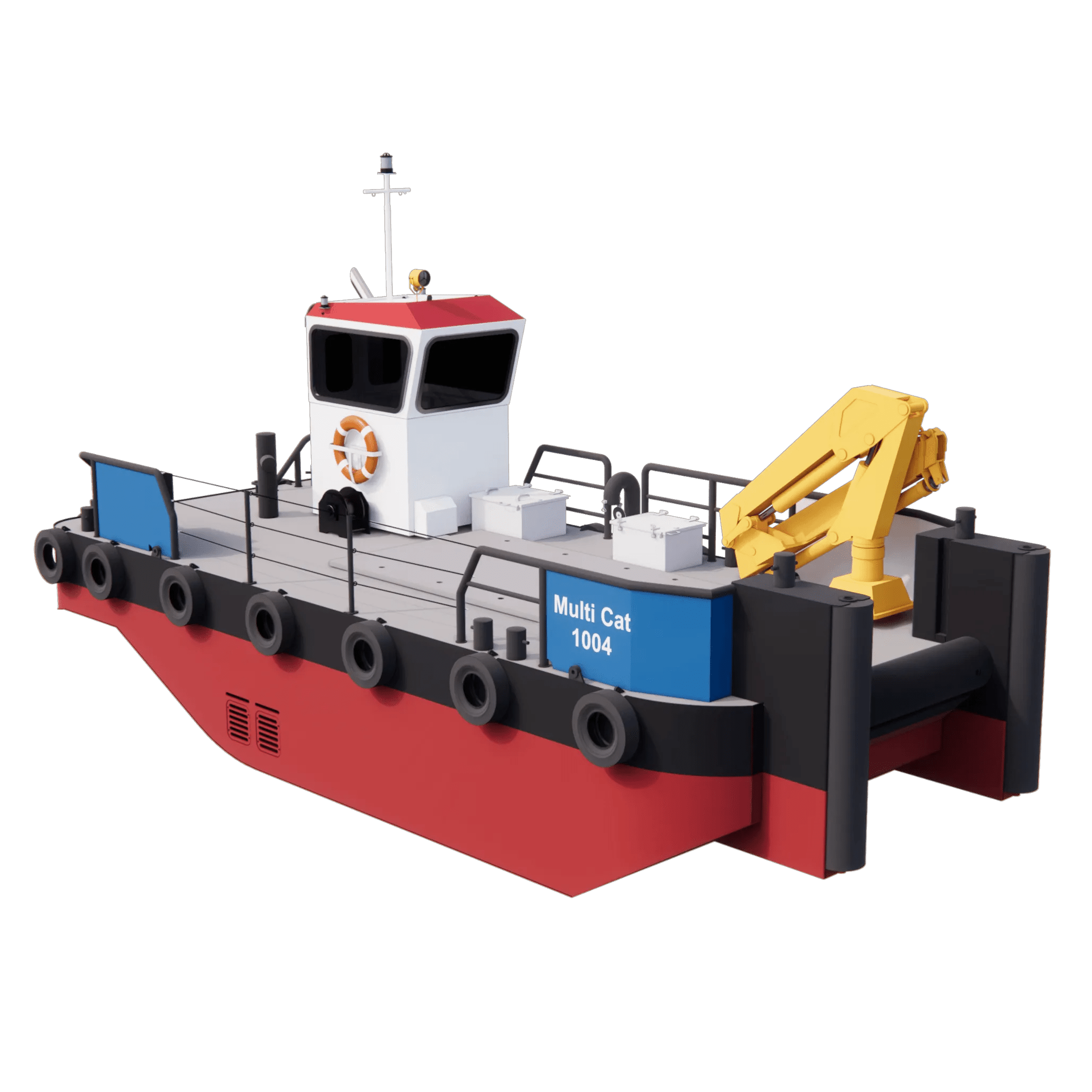

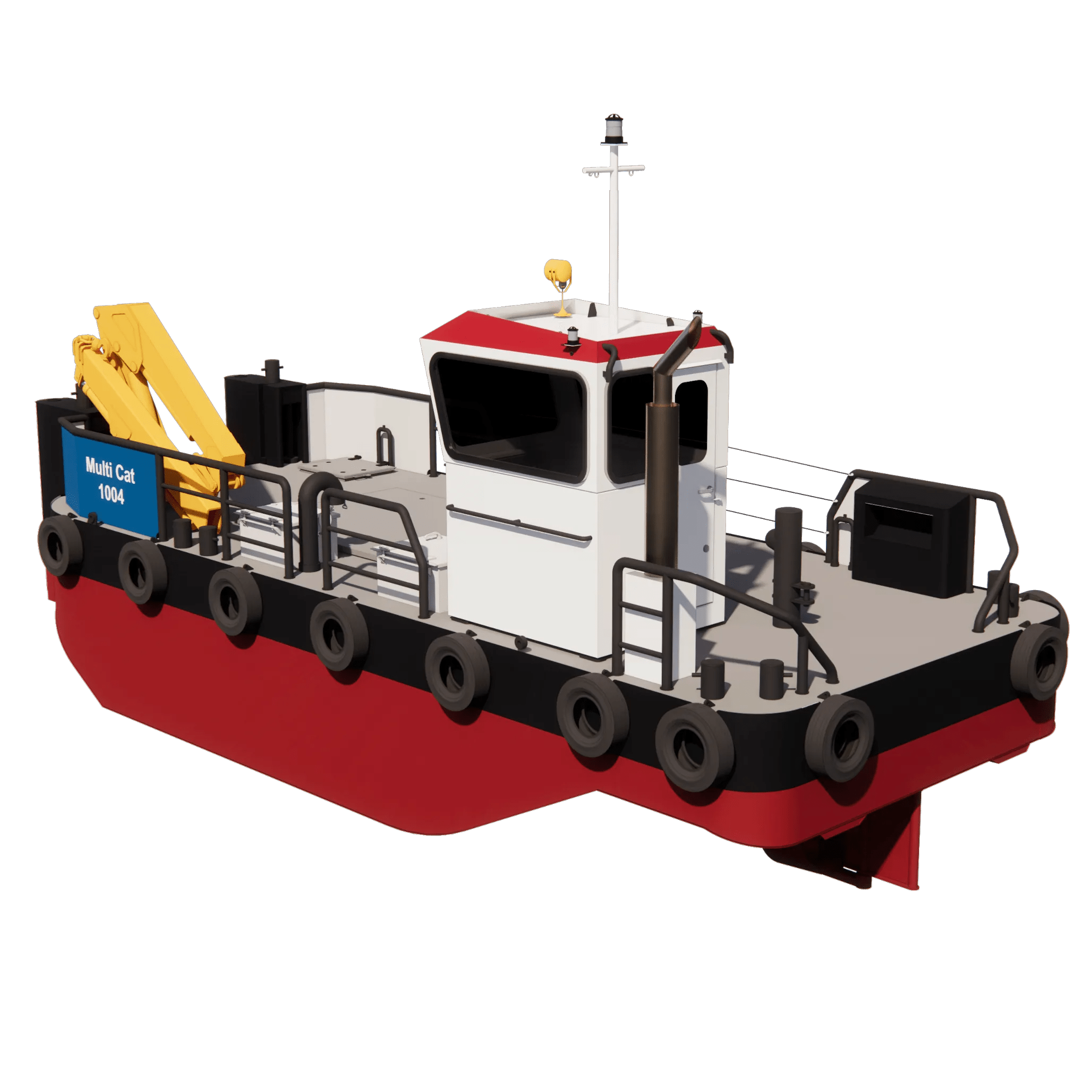

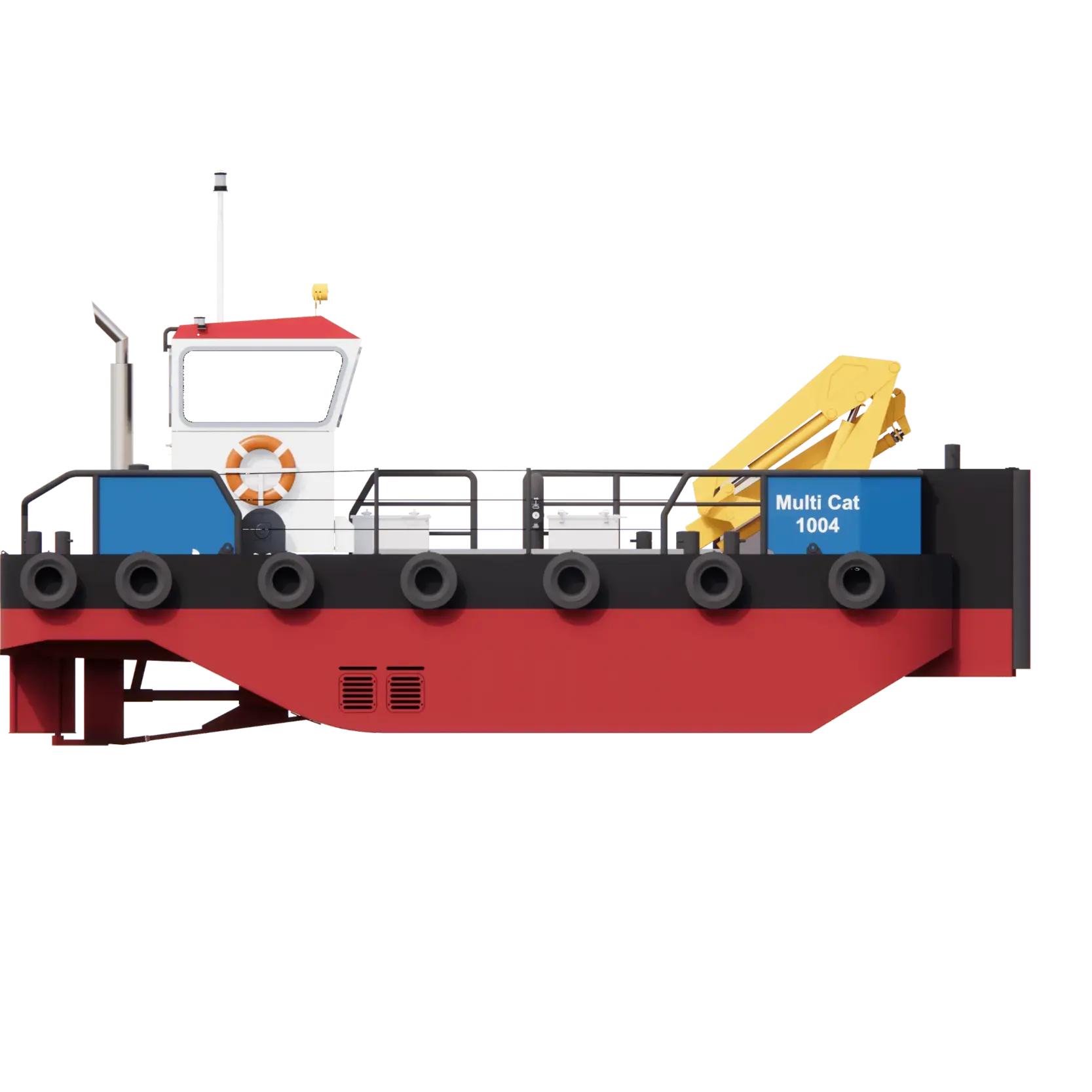

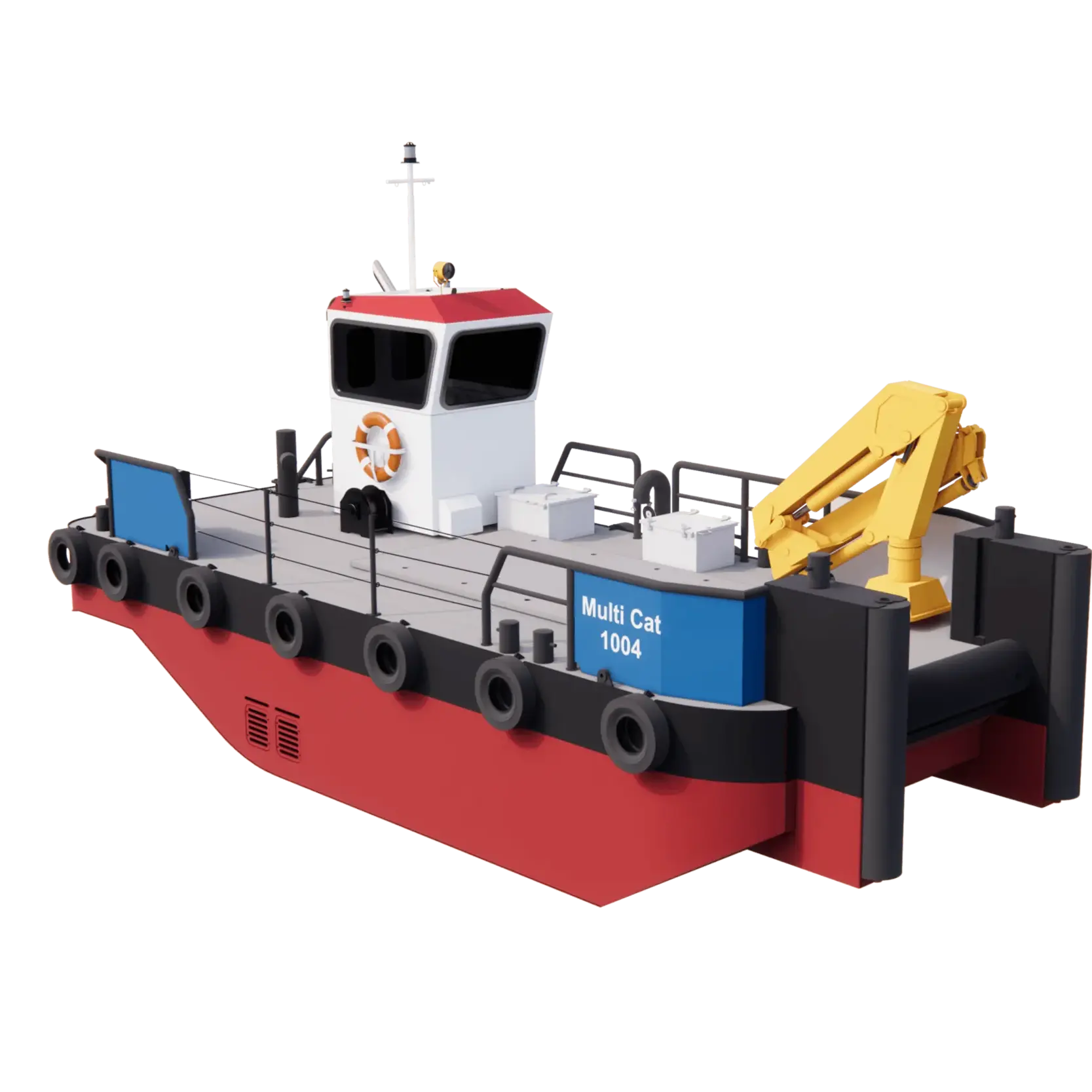

Multi Cat 1004
2
10.9
8.5
7
22

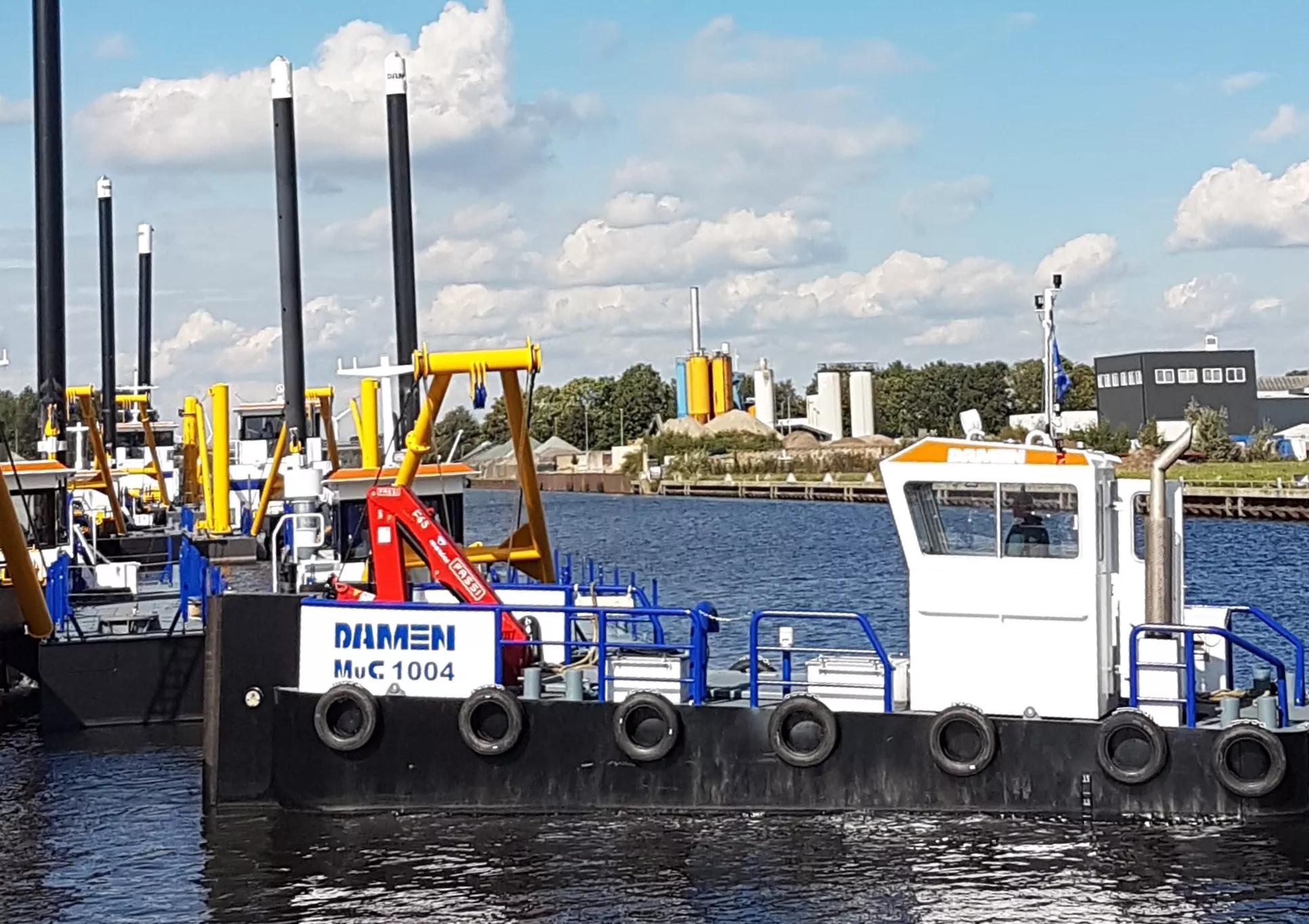

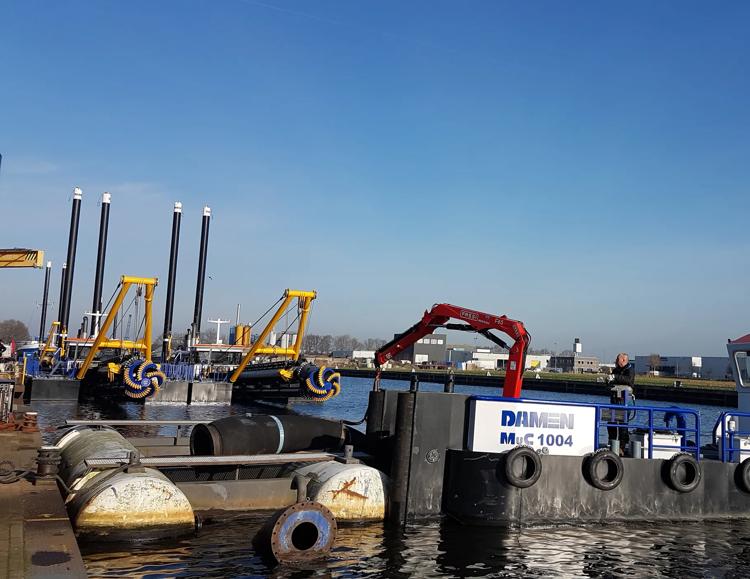

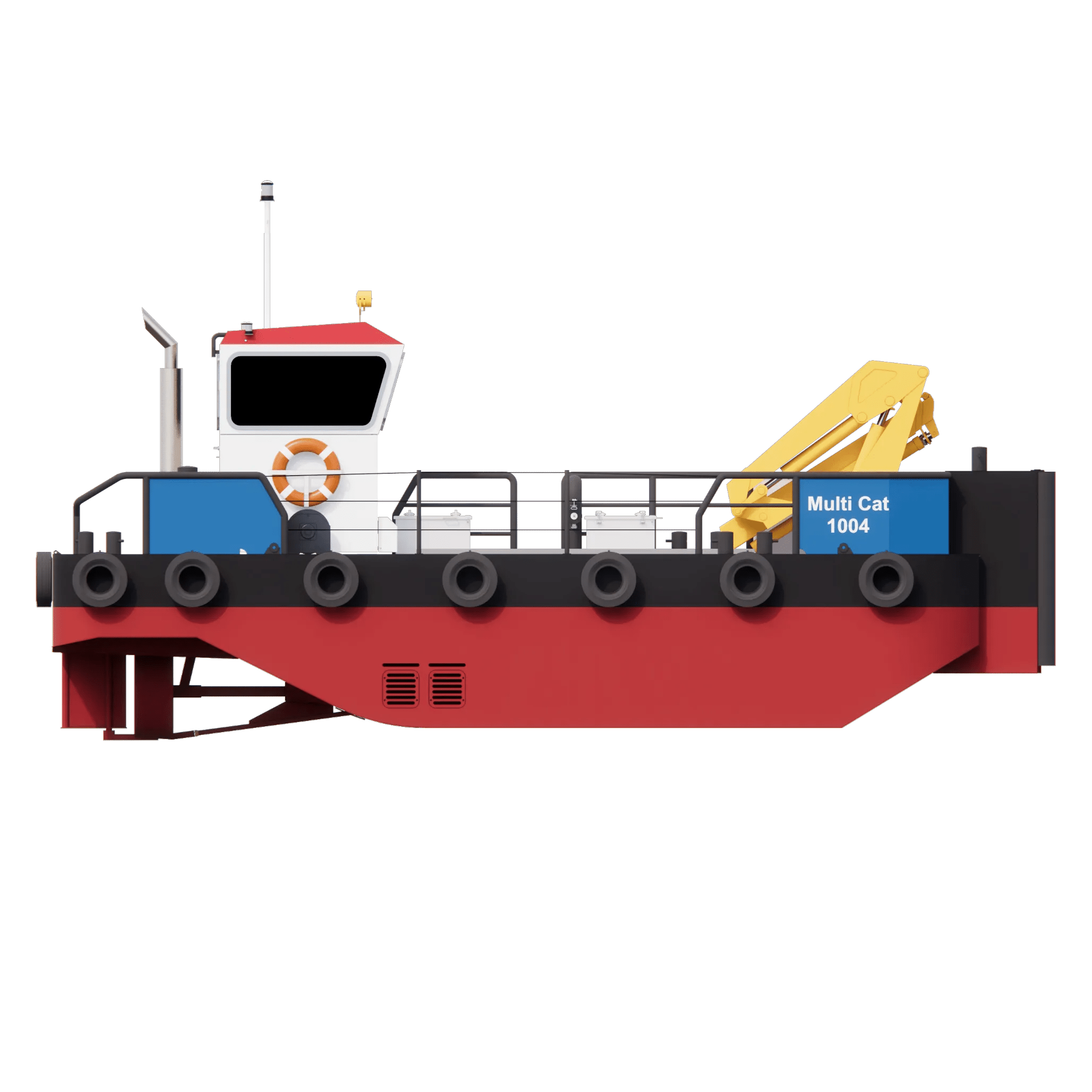

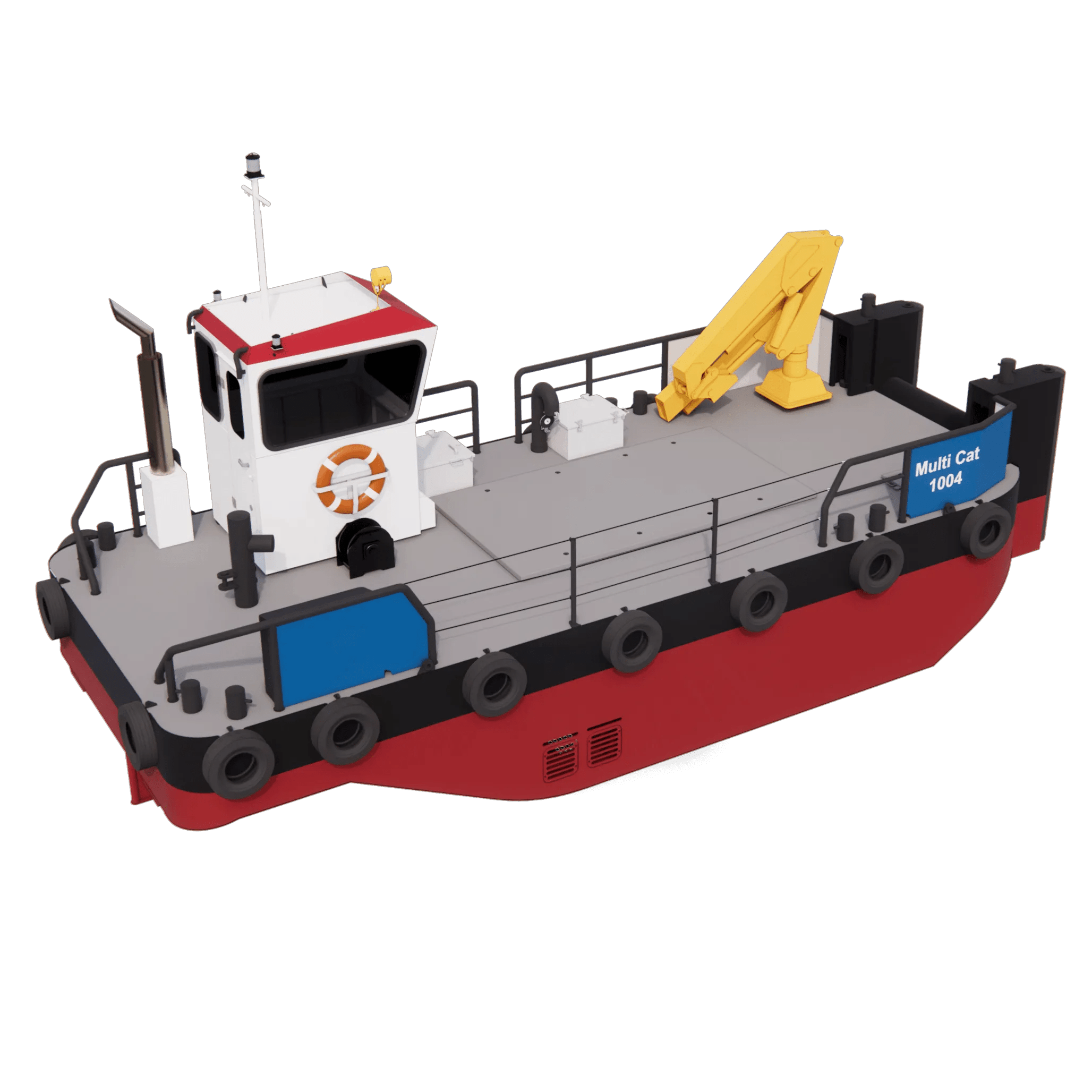

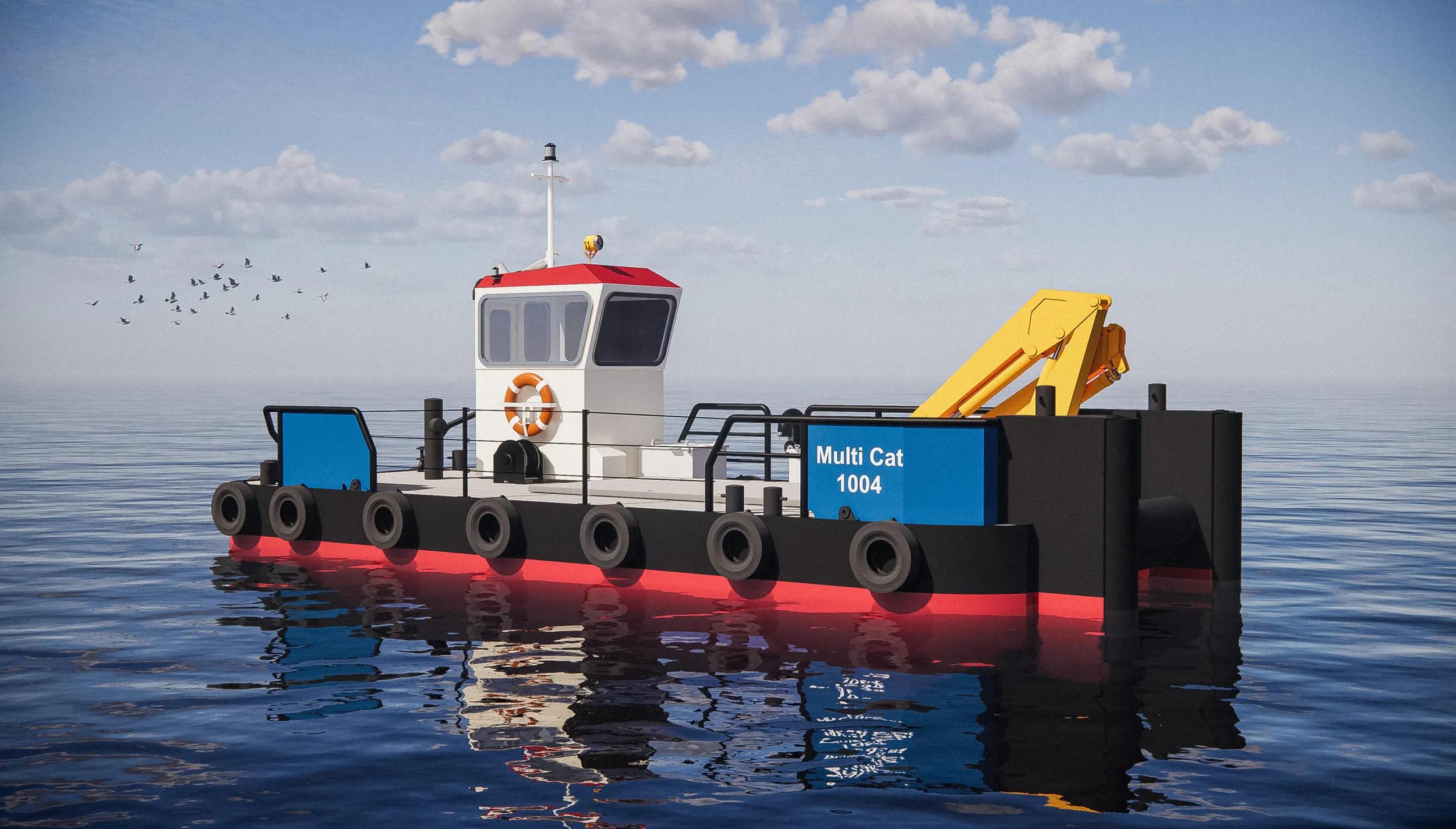

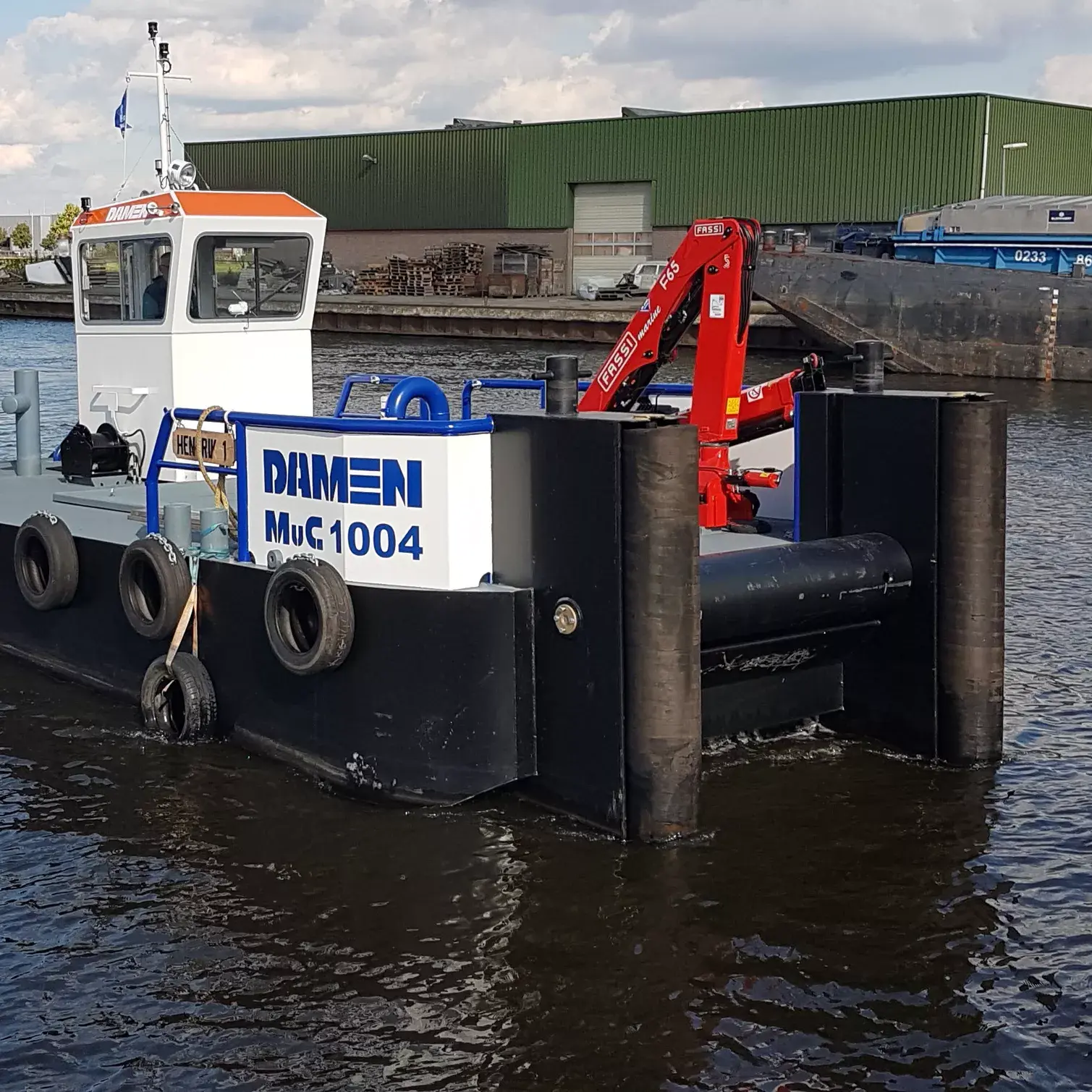

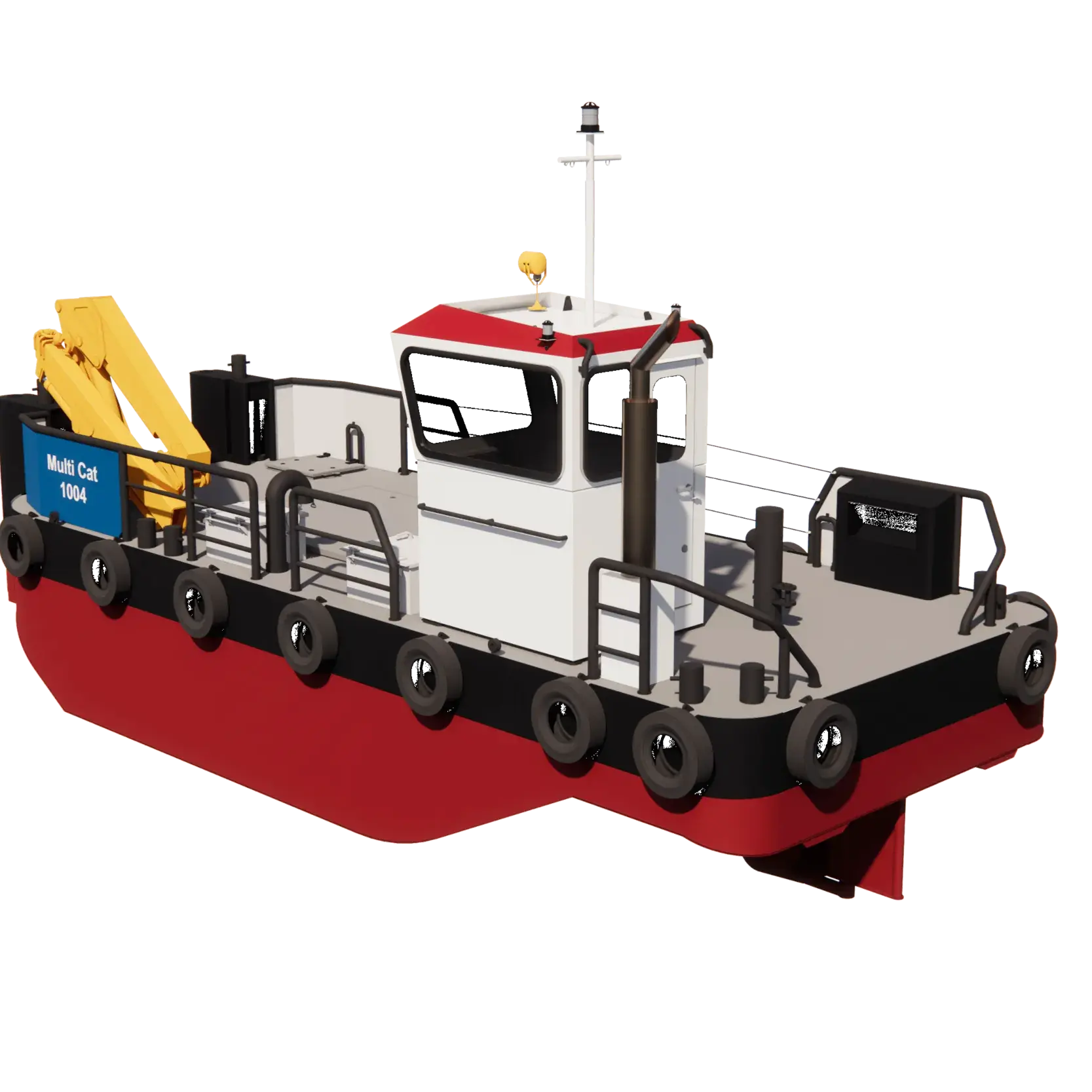

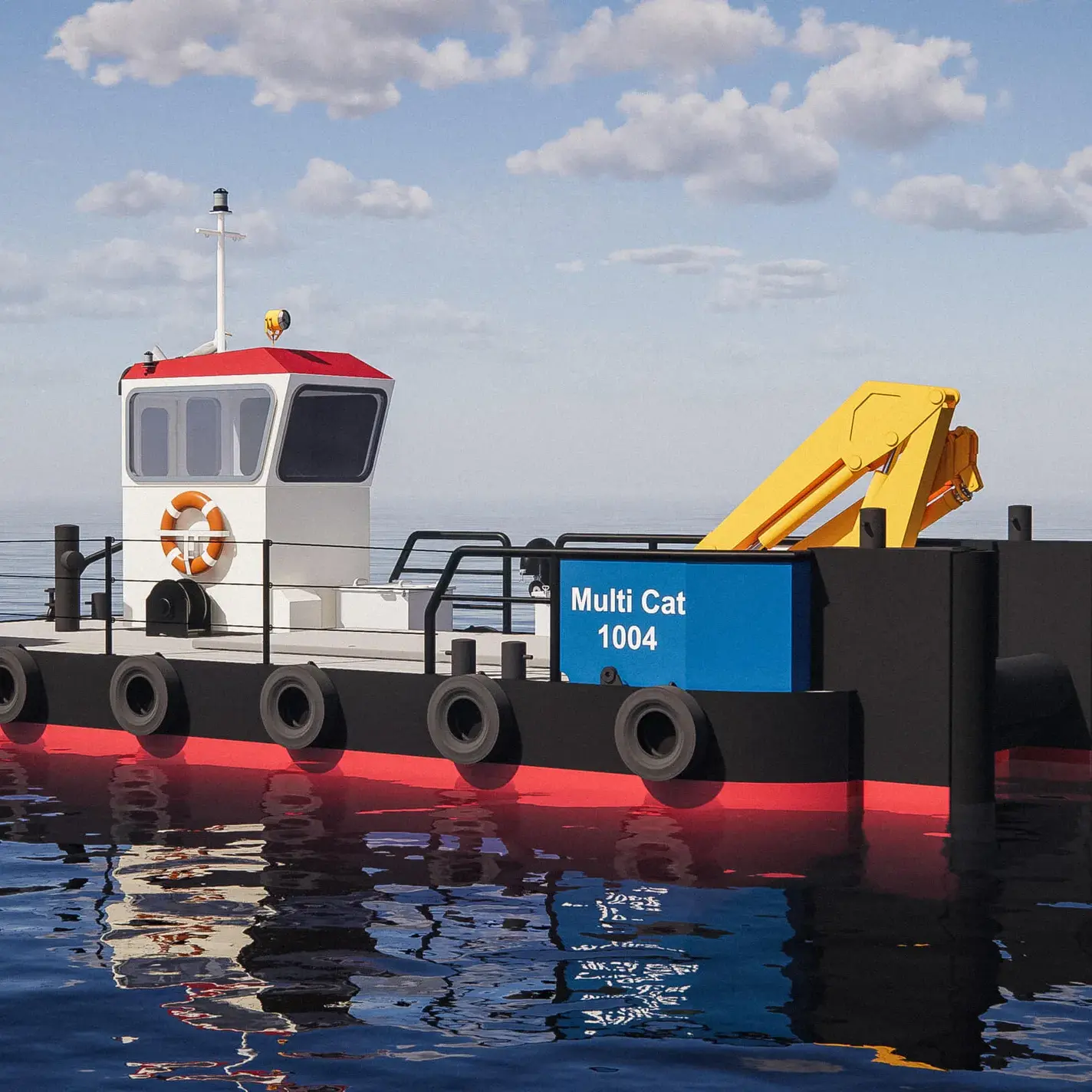

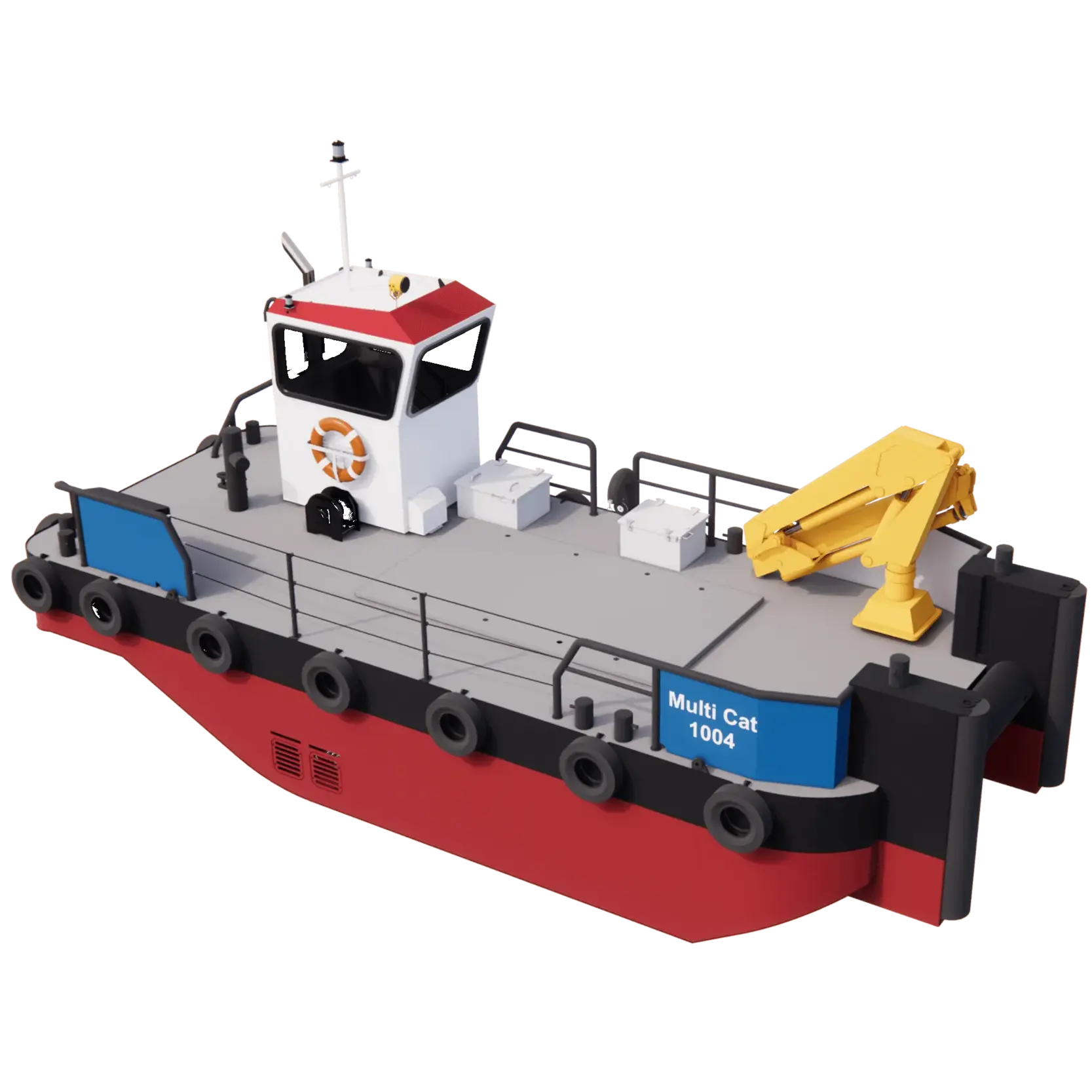

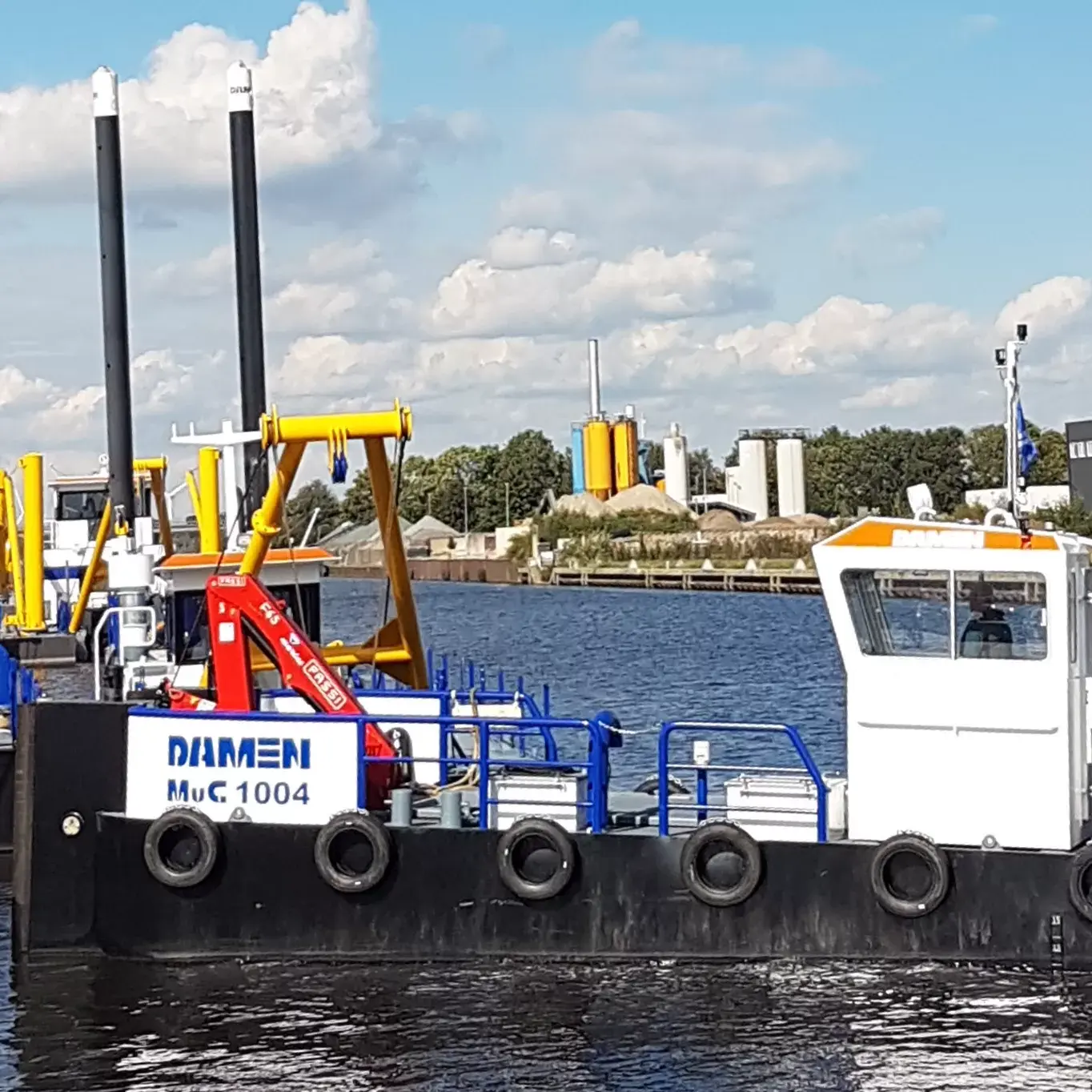

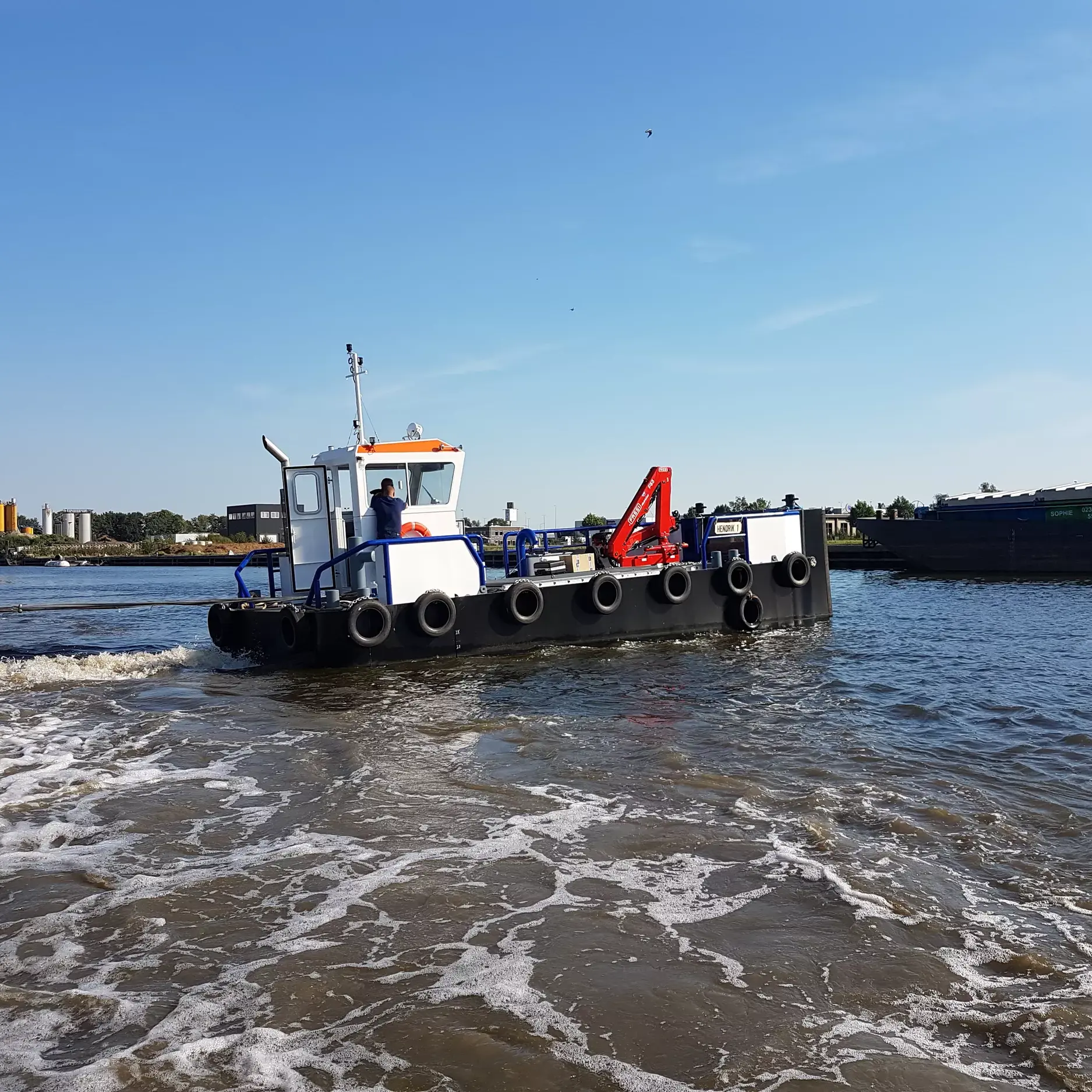

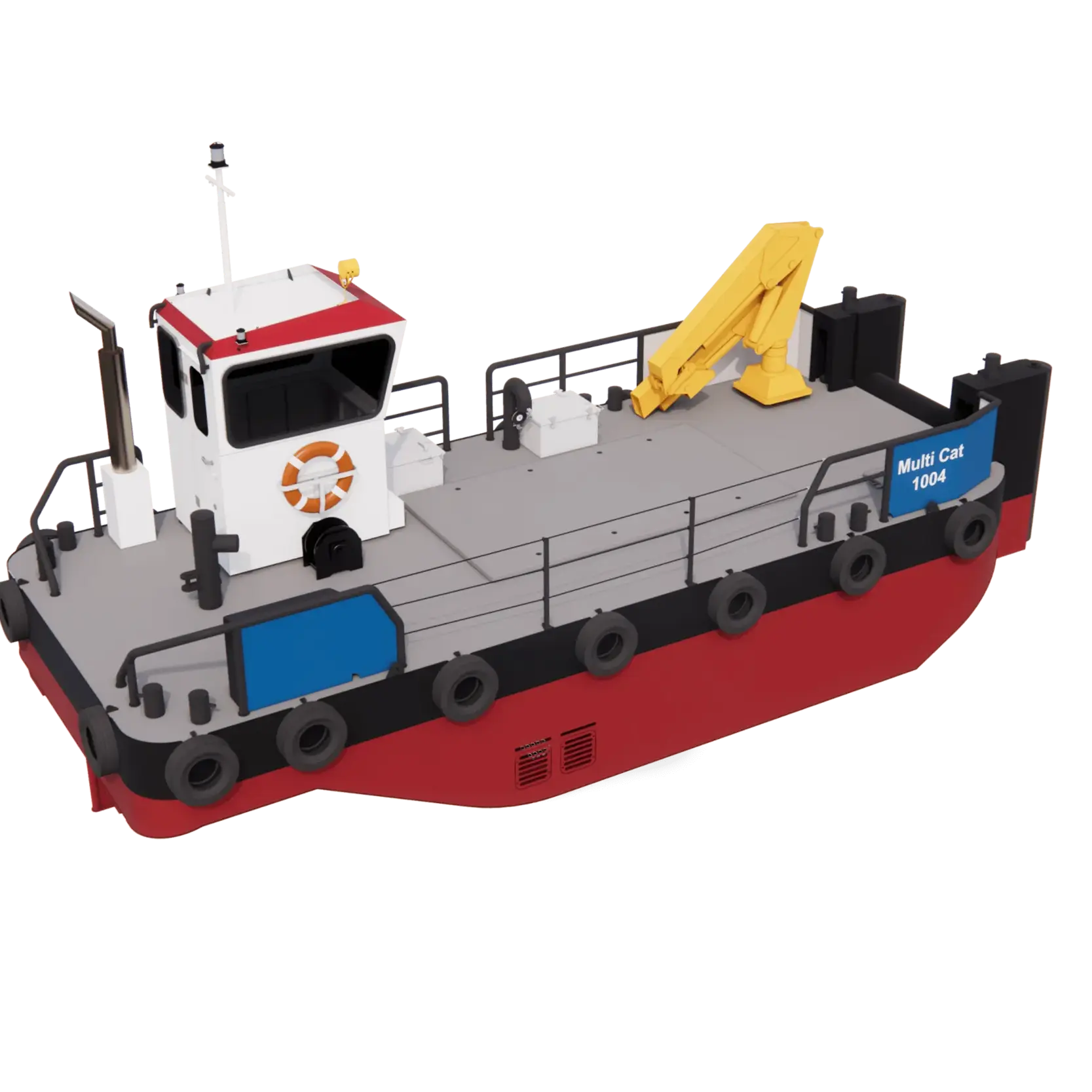

Compact workboat used in restricted waters for marine support operations. The fit for purpose design boasts a high bunker capacity, a single prop with nozzle, ample deck space with telescopic crane and a towing arrangement over the stern. The practical multi-purpose vessel is well suited as dredging support vessel
Available options:
Towing hook
Capstan
Radar
Echo sounder
VHF
Specifications
Key figures
Dimensions
- Length
- 10.9 m
- Beam
- 4.45 m
- Draught max
- 1.35 m
- Work deck area
- 22 m²
Performances
- Bollard pull
- 2 t
- Speed
- 7 kn
- Propeller
- 0.85 m in nozzle
- Deck load
- 1 t/m²

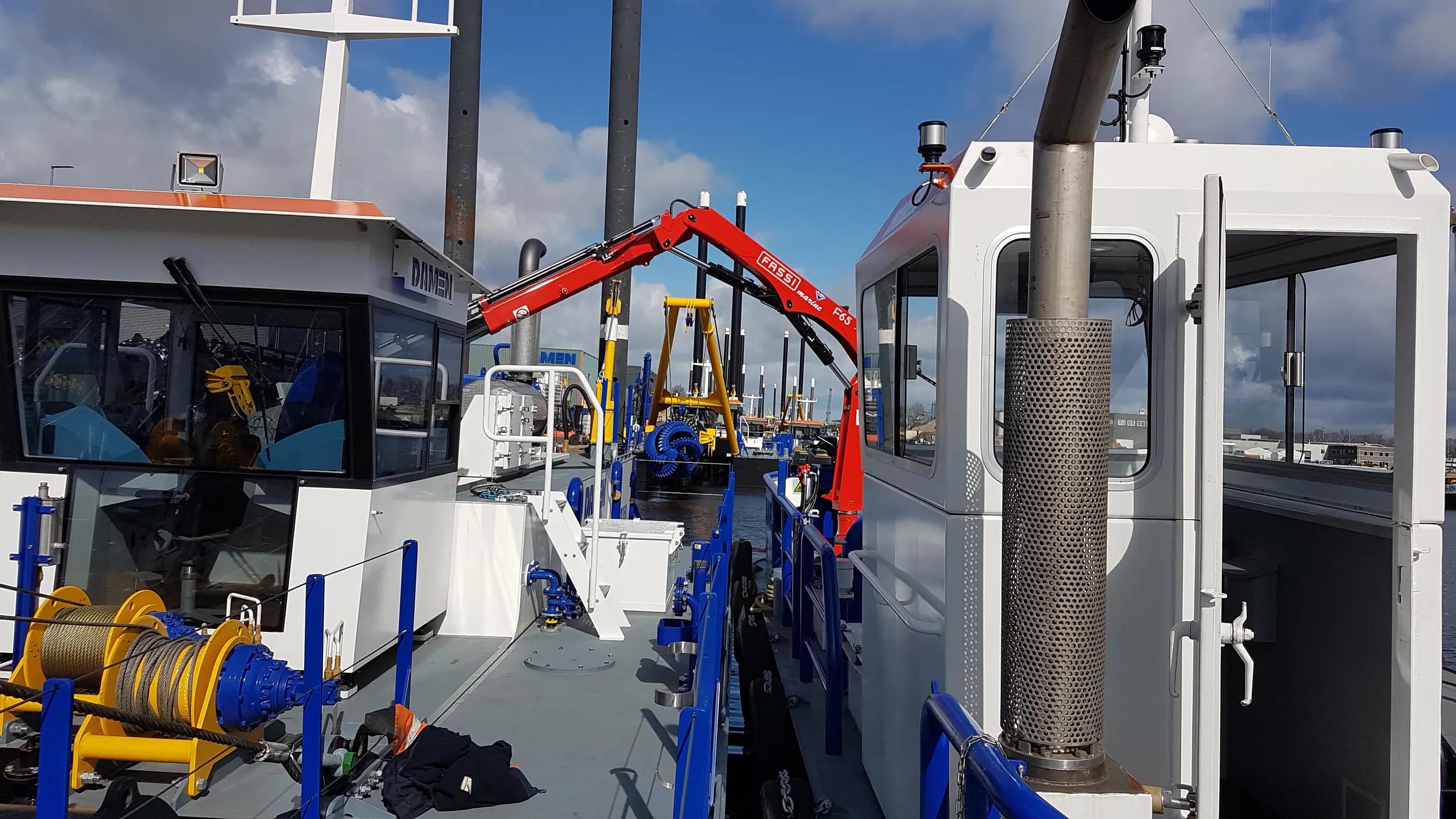

Deck equipment

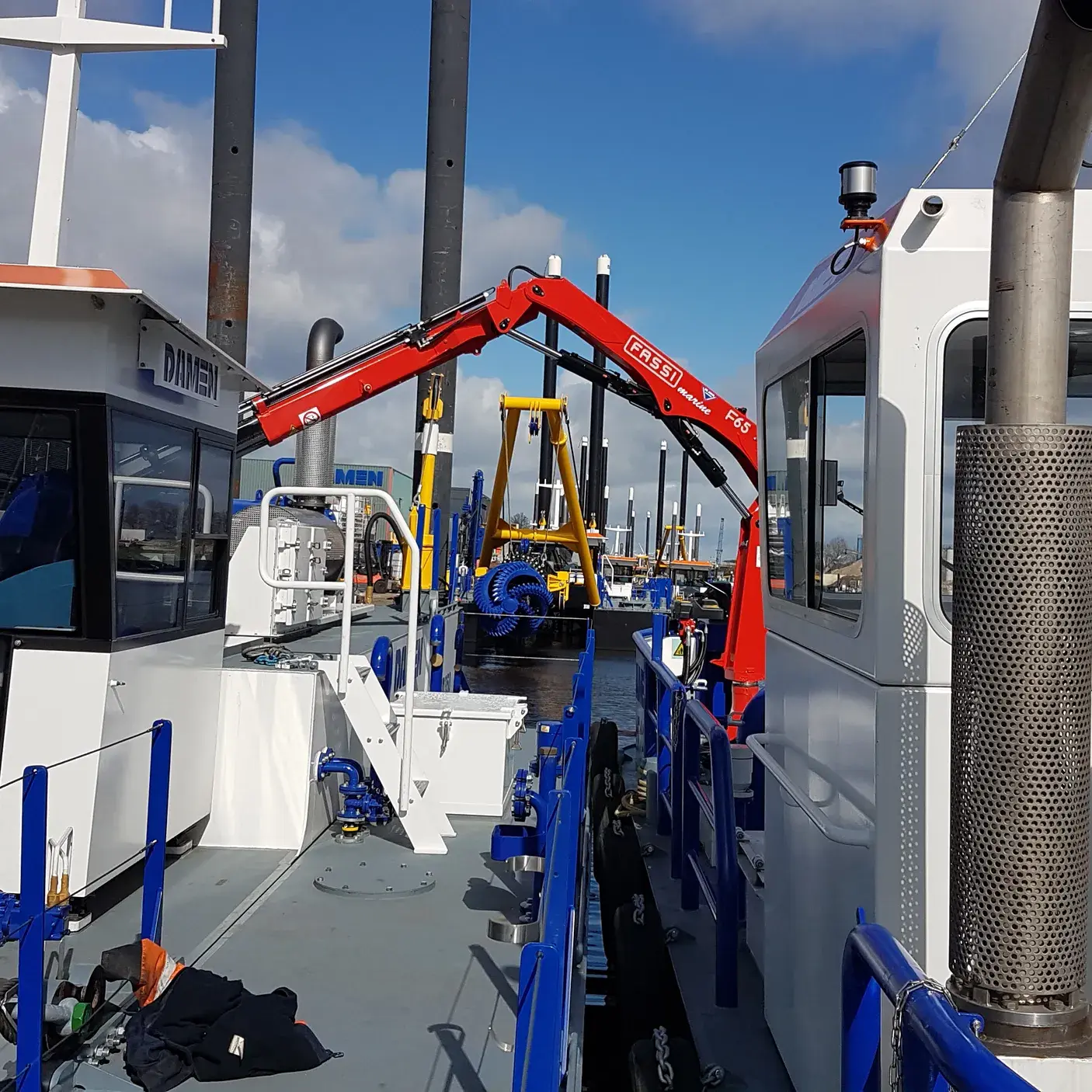

- Deck crane
- 3.2 t at 1.8 m
- Deck winch
- 5.5 t @ 6.5 m/min
- Bow roller
- SWL 3 t
- Towing bit
- single pole

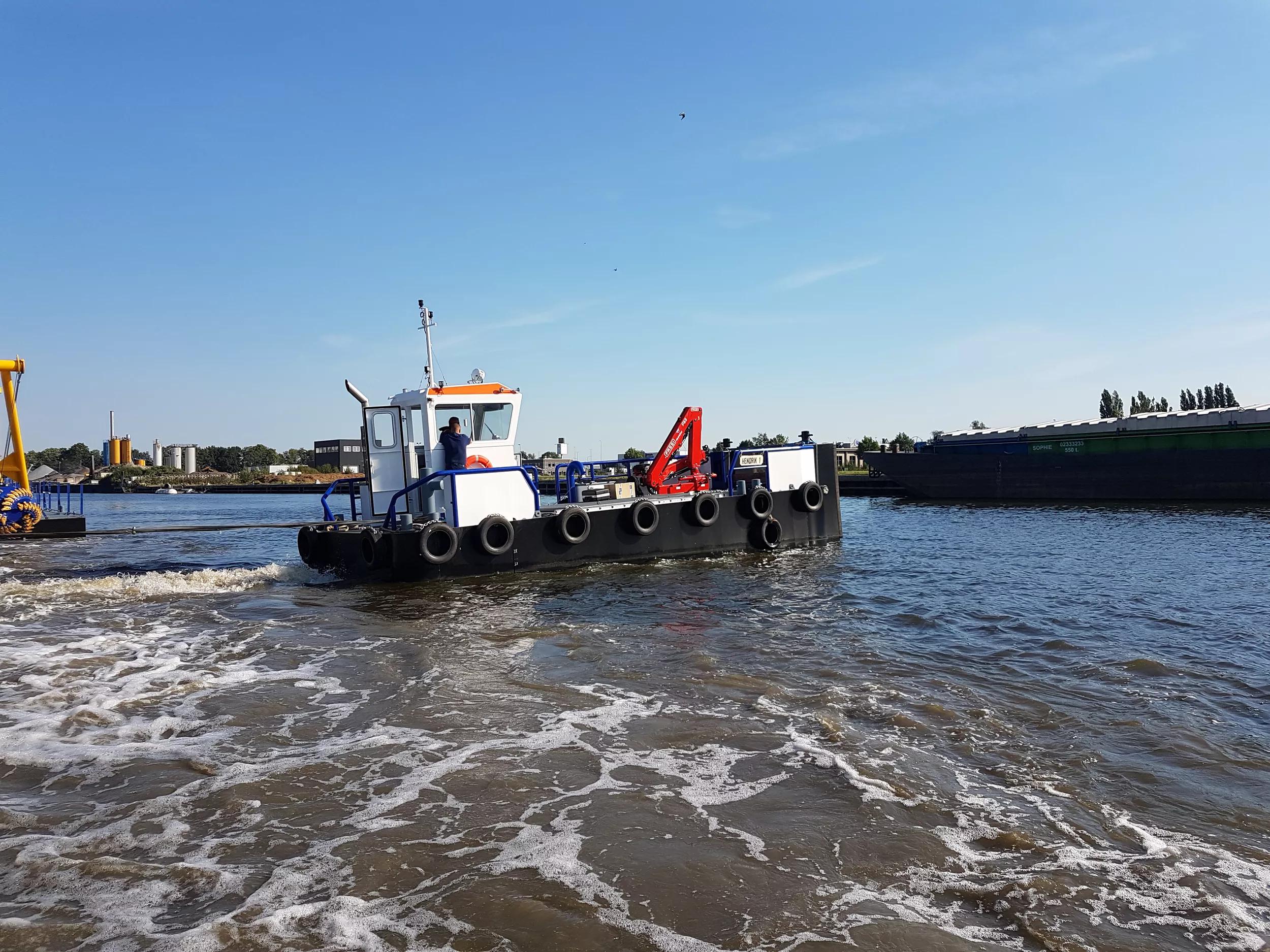

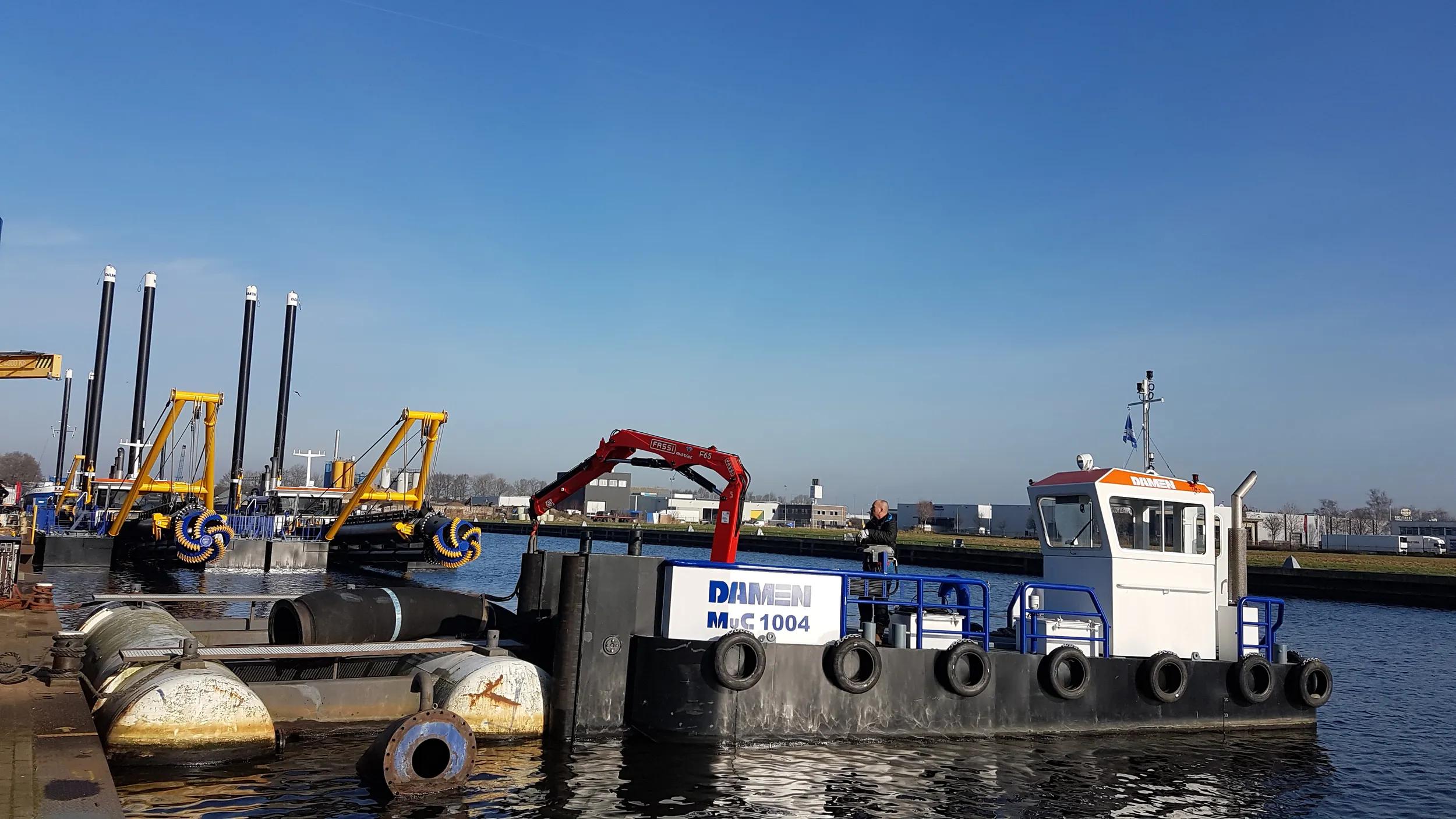

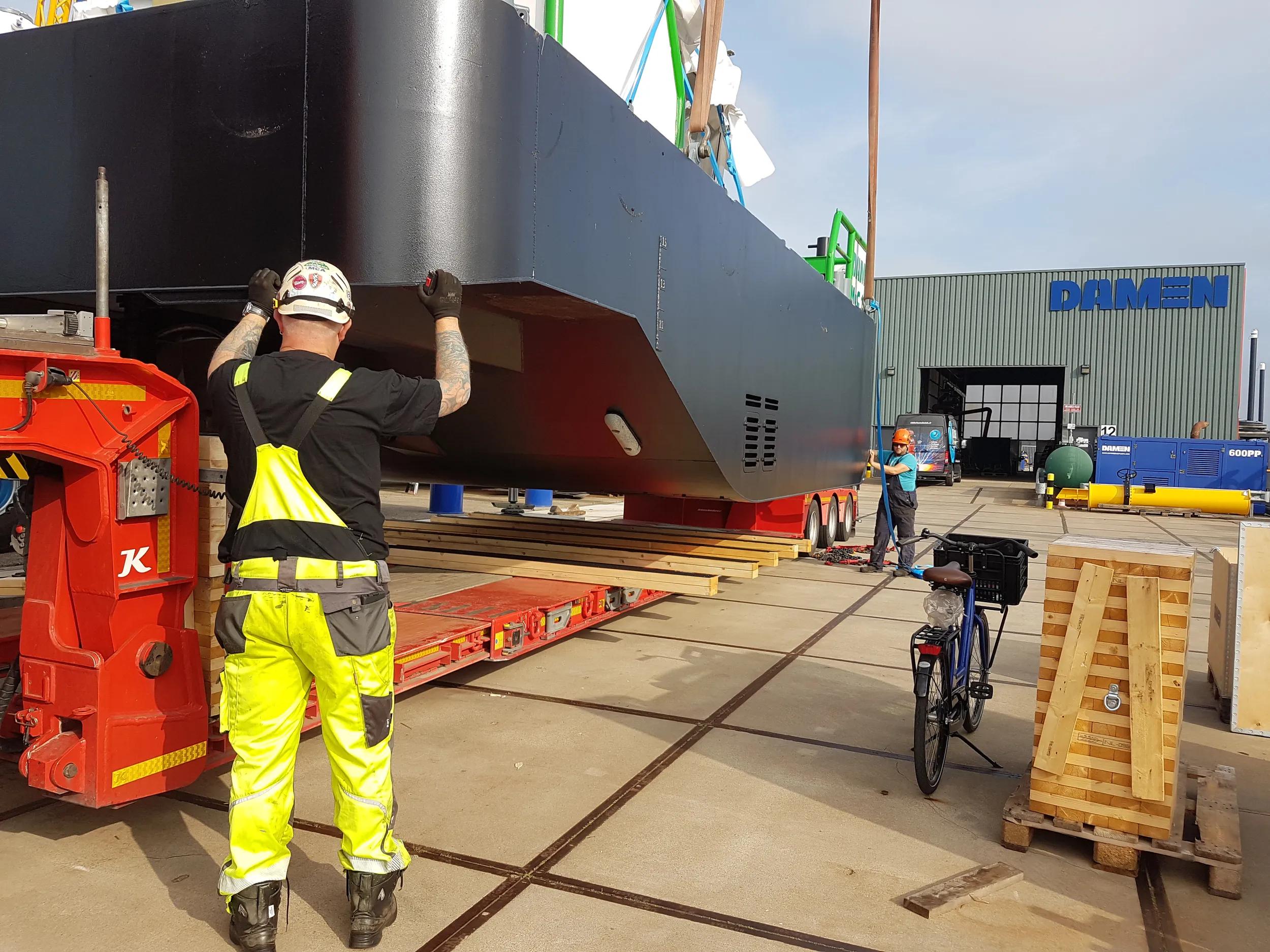

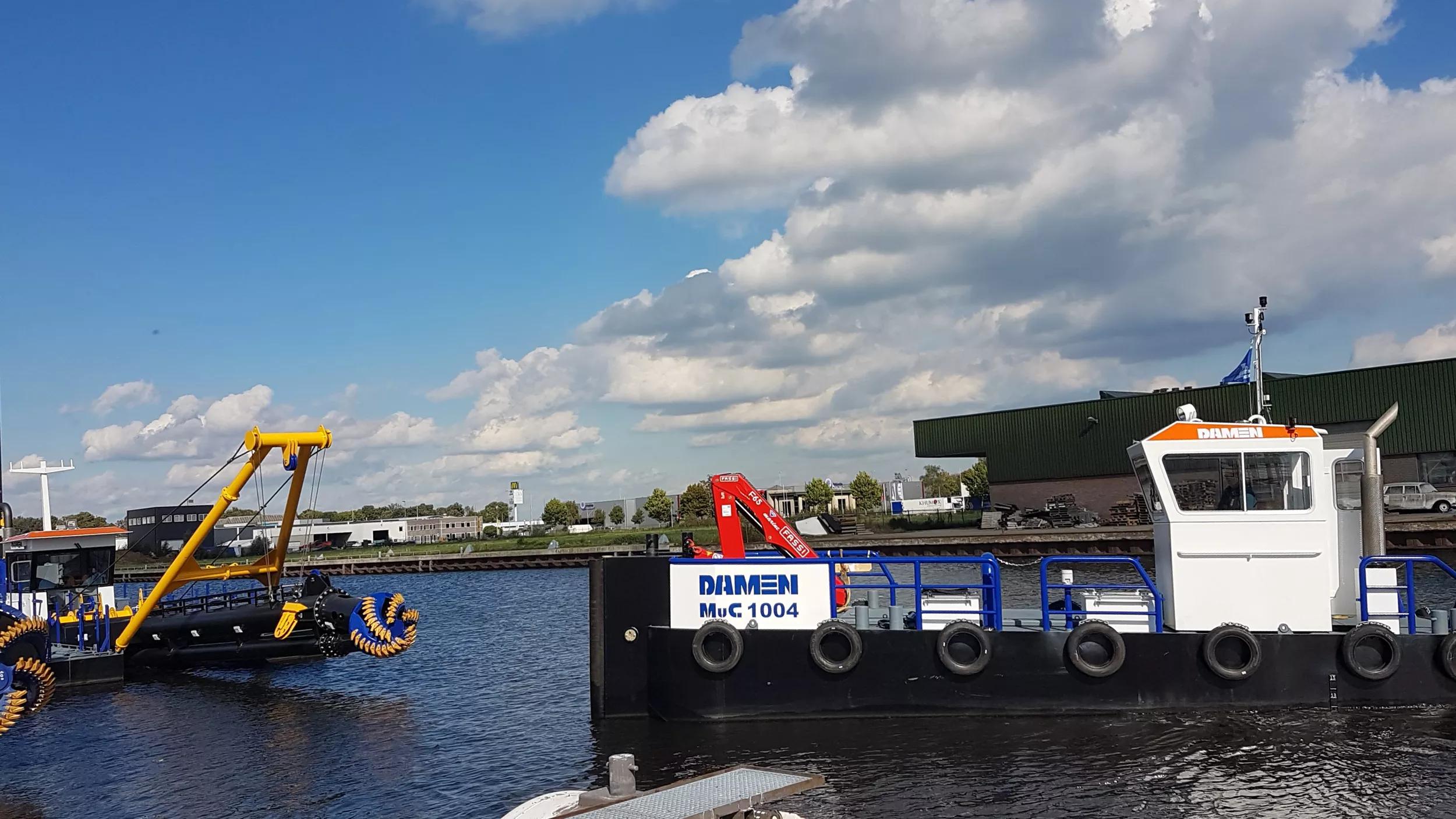

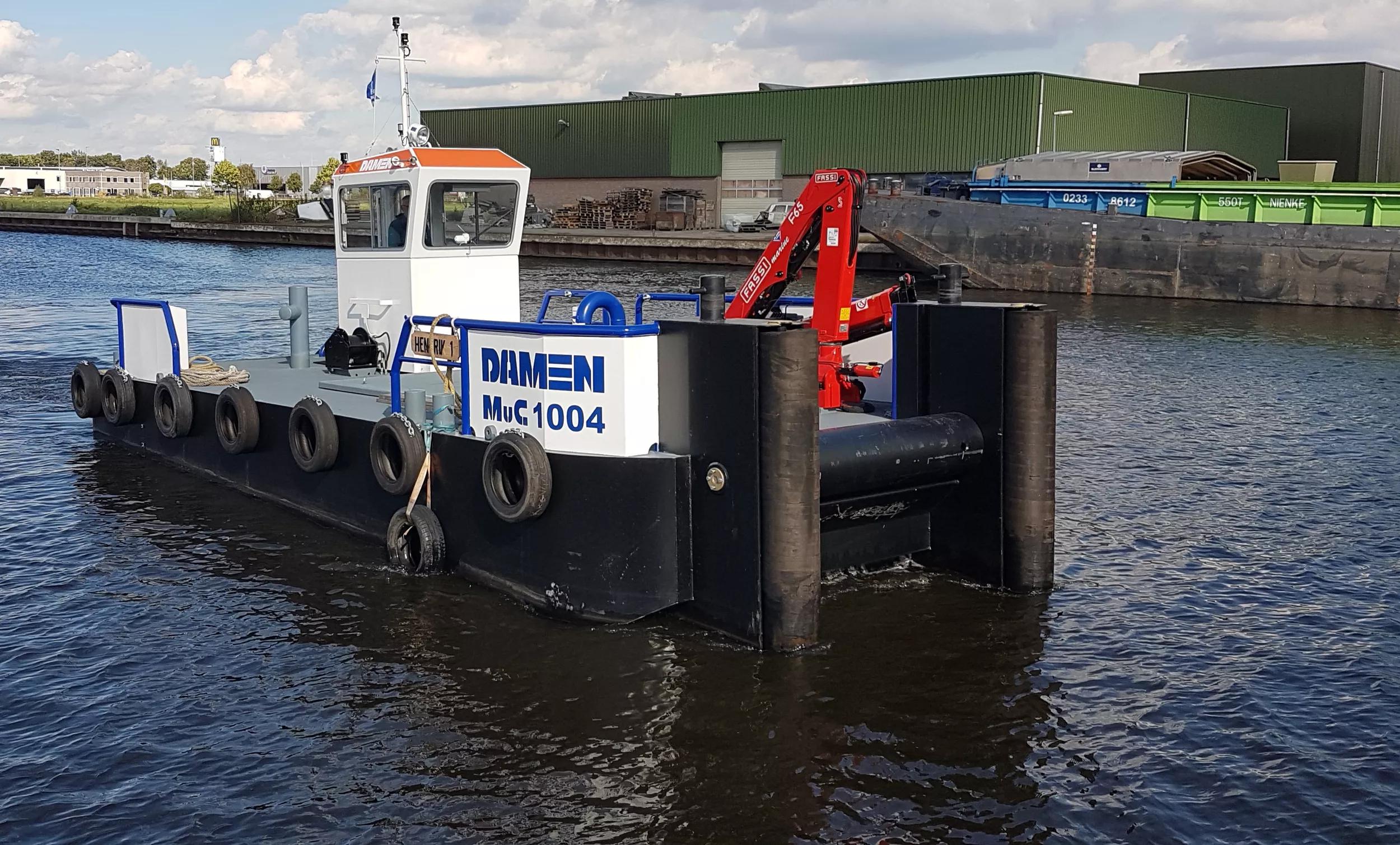

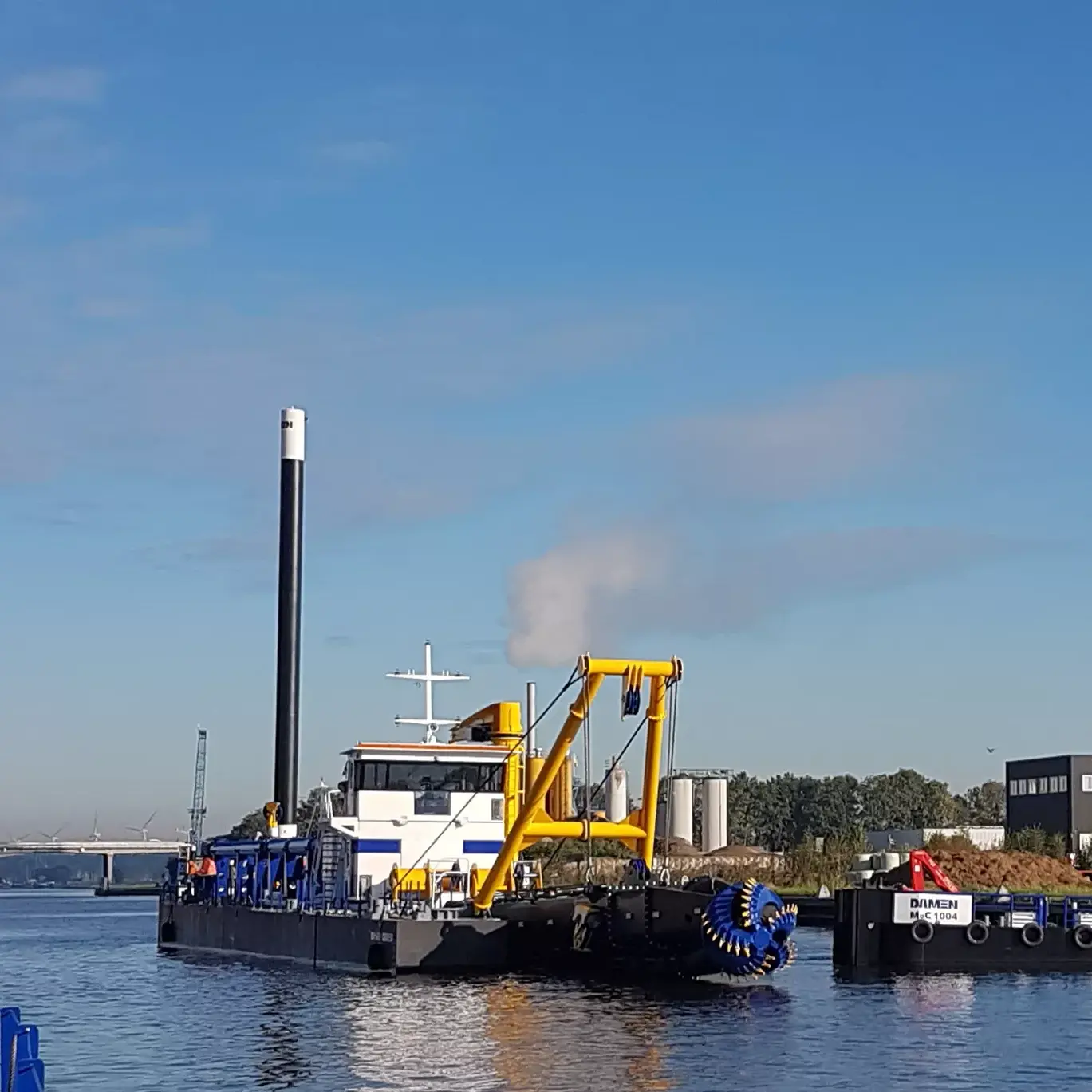

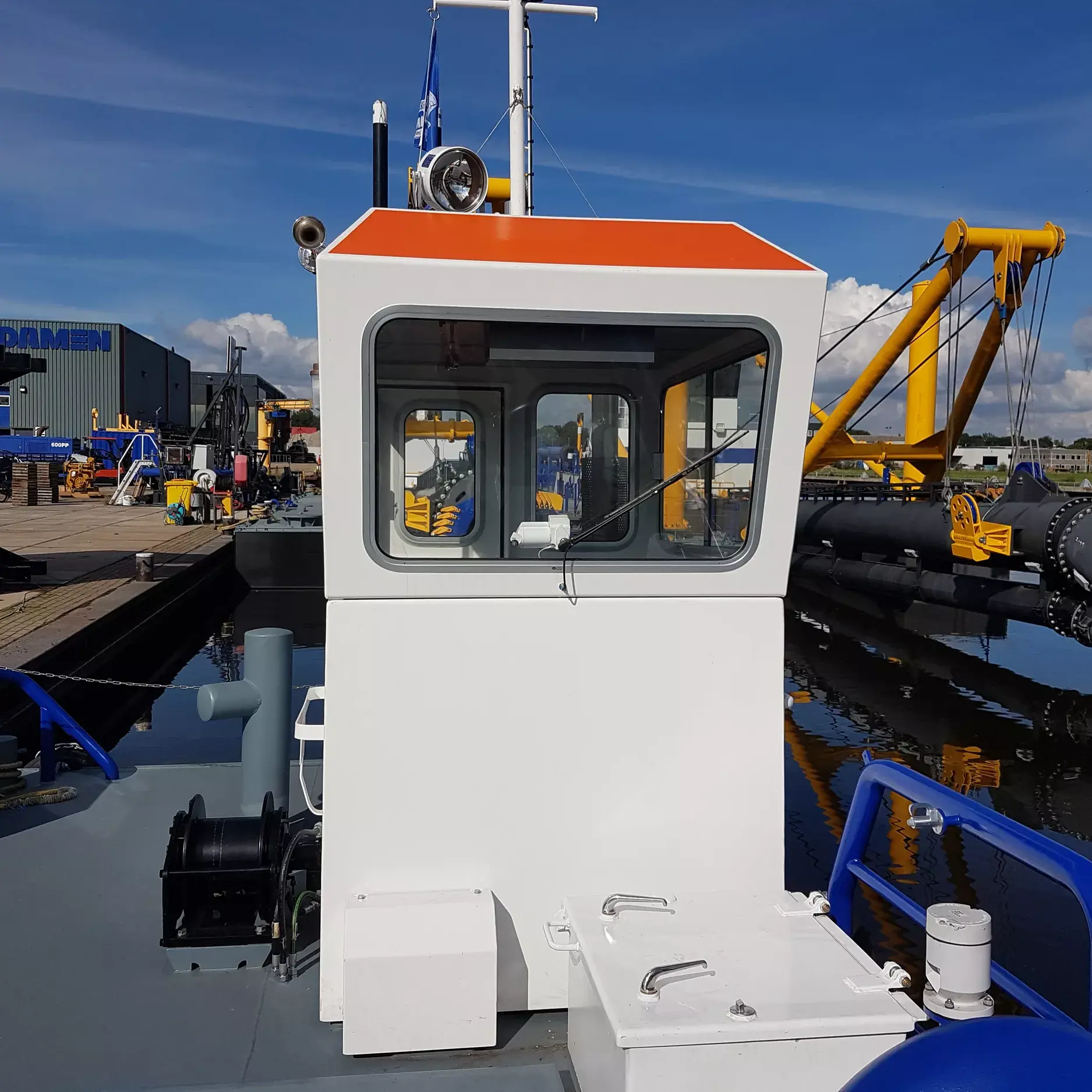

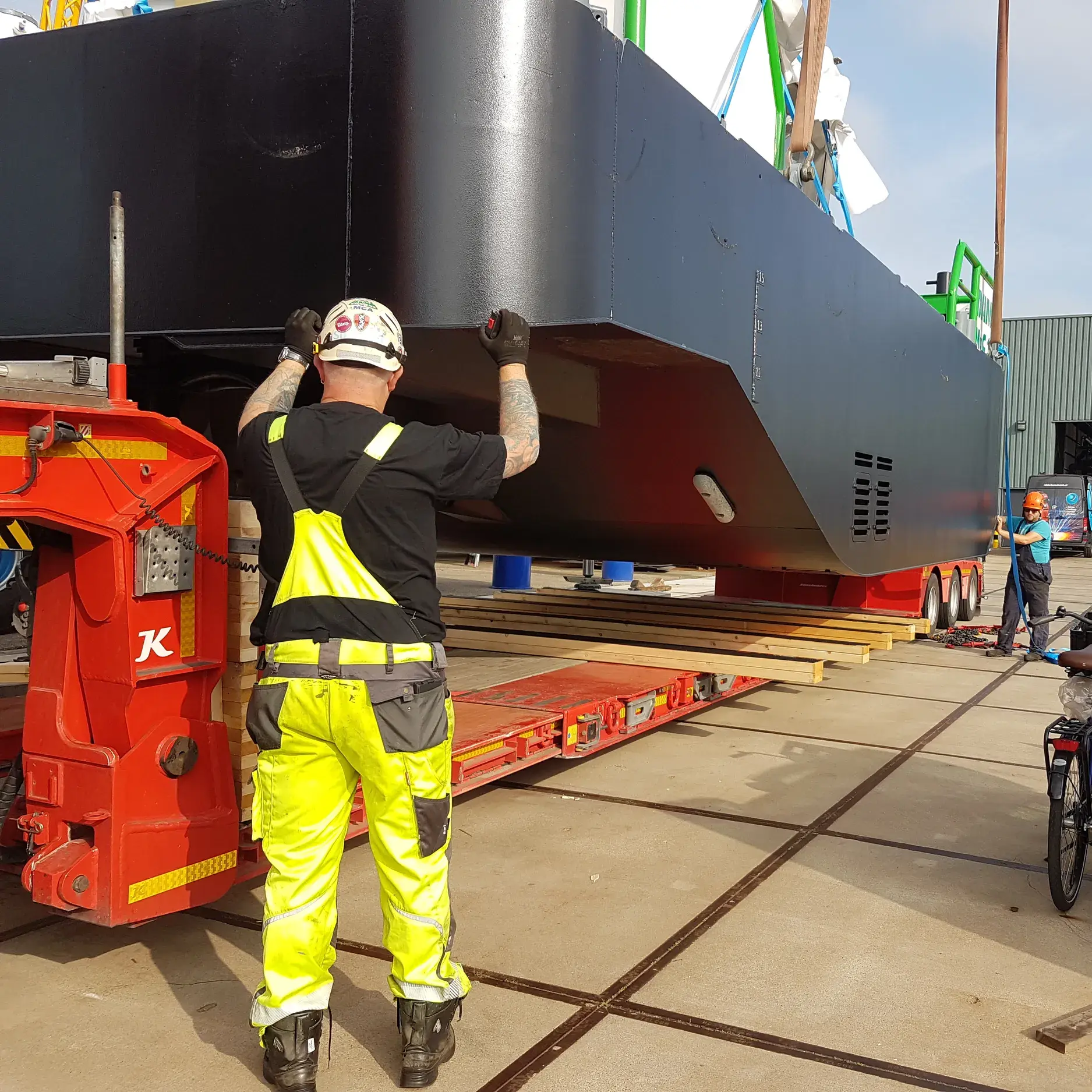

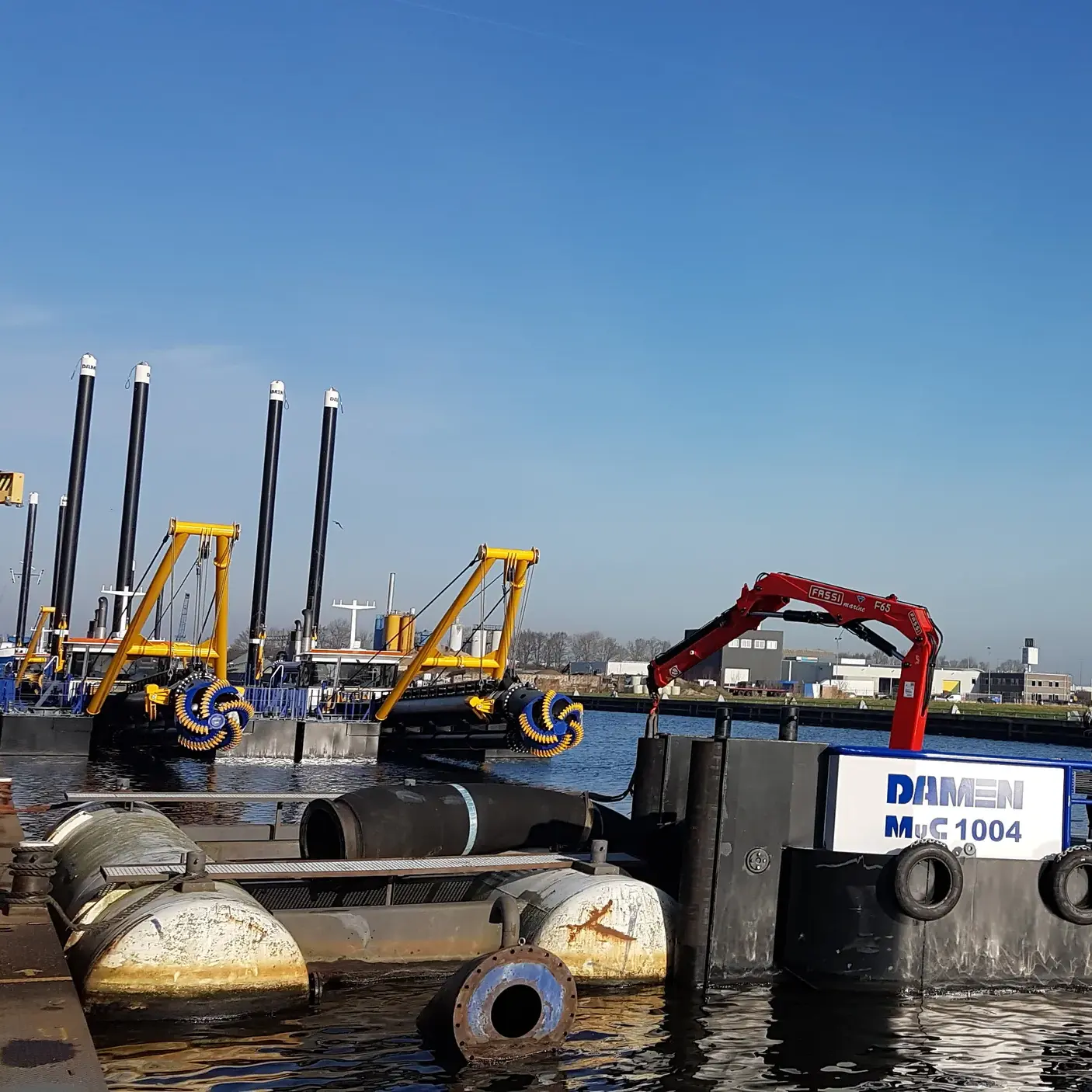

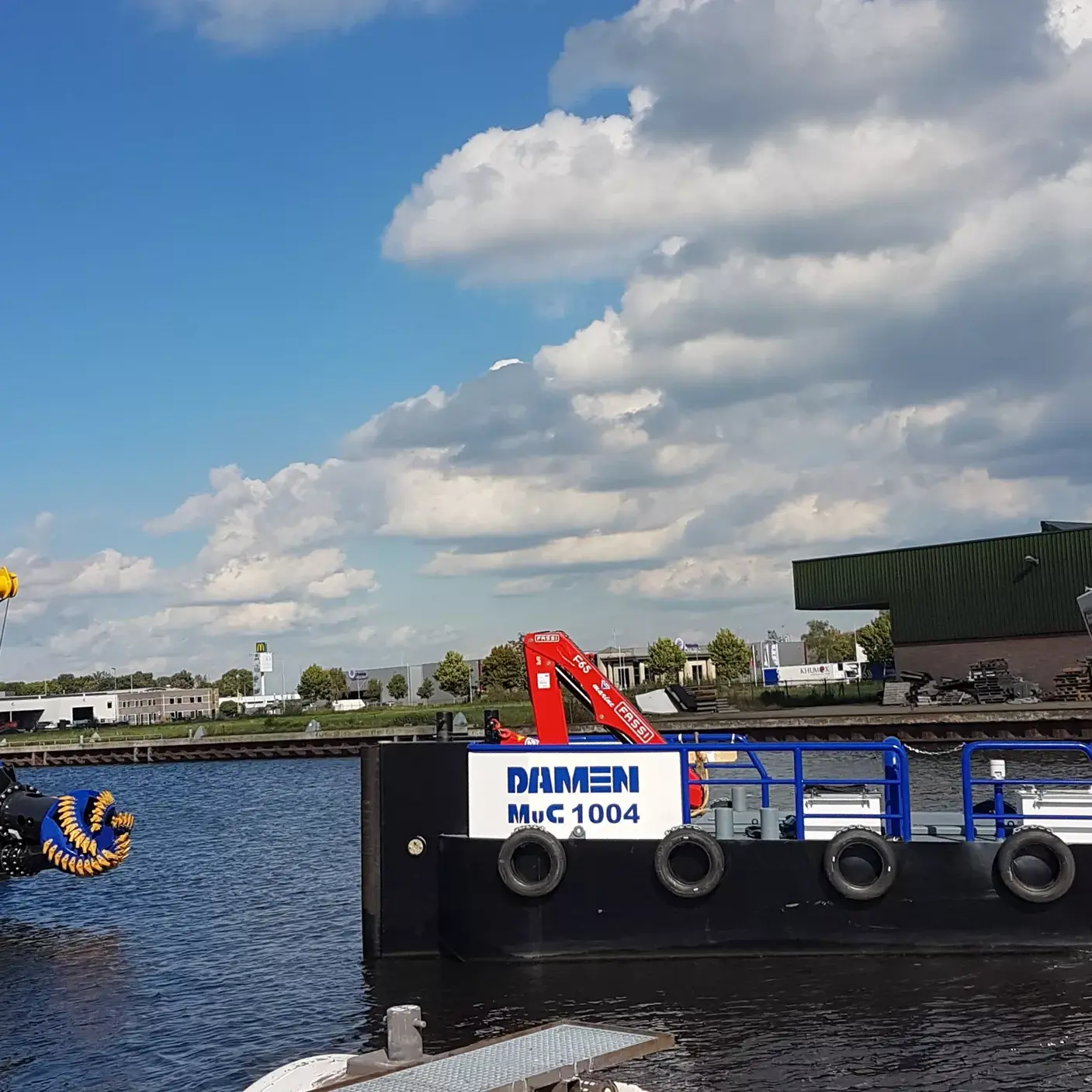

Gallery
Damen solutions
Finance your vesselA reliable partner from start to finish. Explore solutions of Damen Financial Services.
Lifecycle supportFrom delivery onwards, Damen Services supports you, every step of the way.
Build your vessel locallyBuild a proven Damen design, at a location of your choice.
Trade-in your current vesselExplore our options for vessel trade-in at Damen Trading. Our in-house shipbroker.

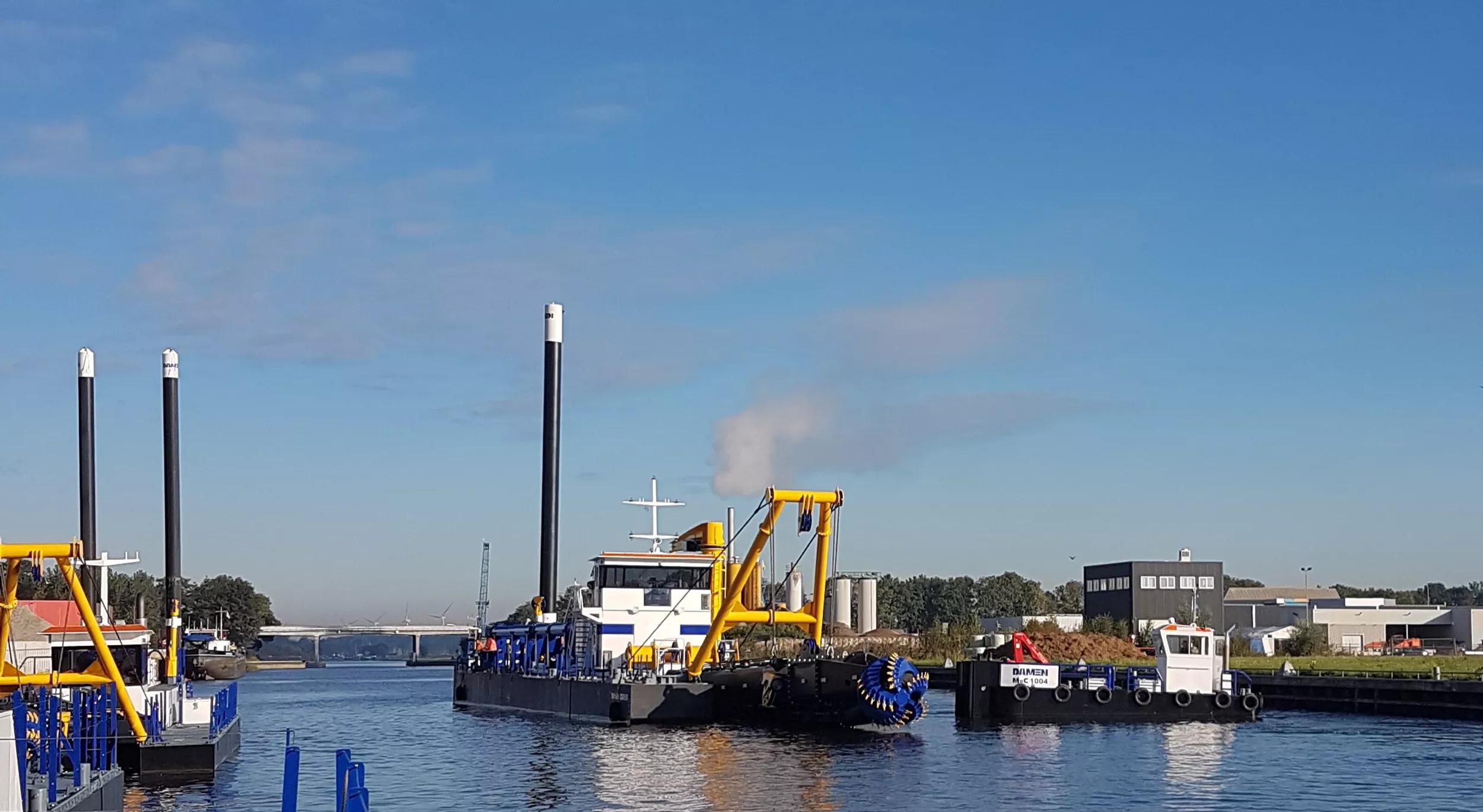

The practical dredge helper
