CSD450
CSD450

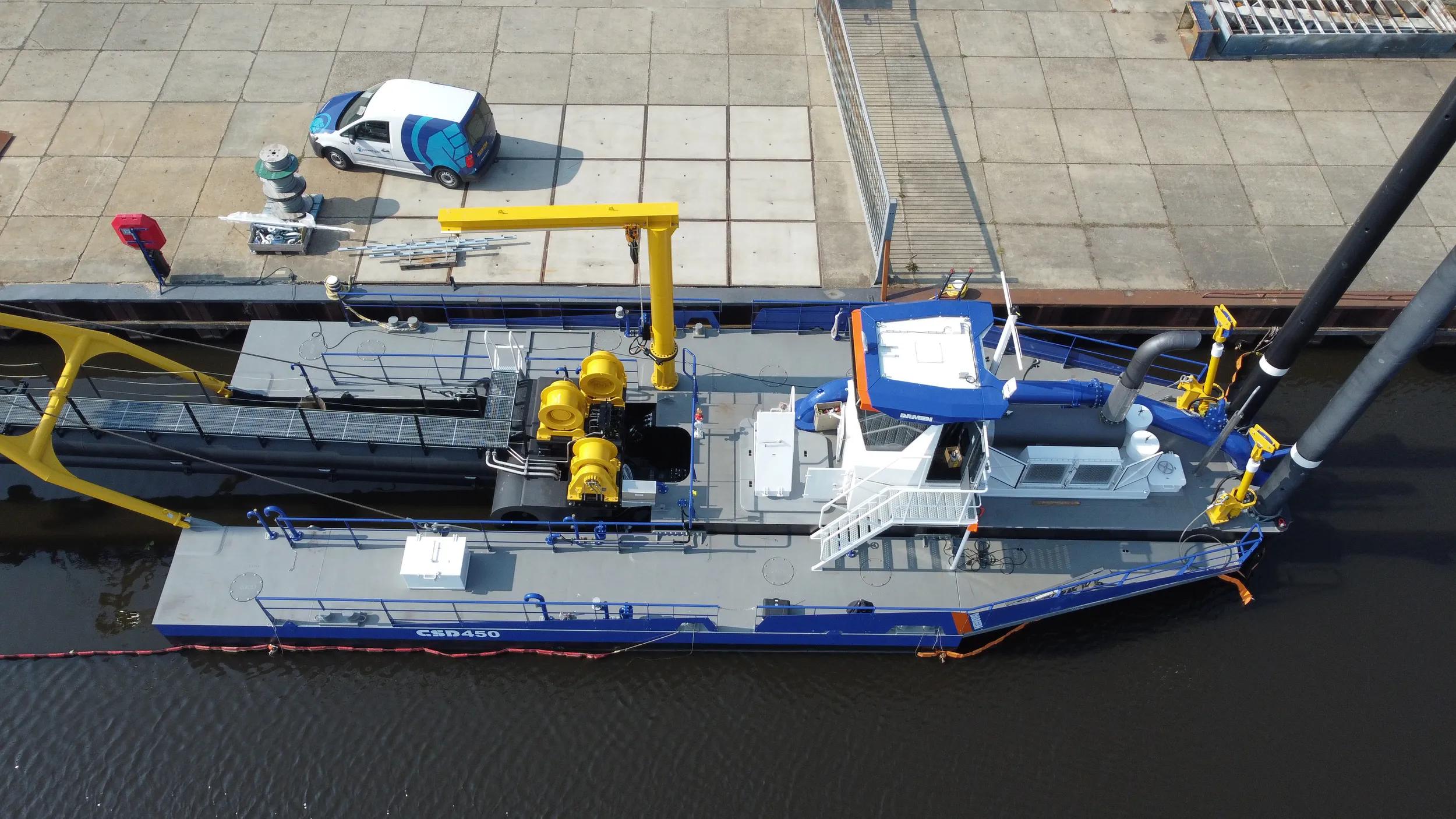

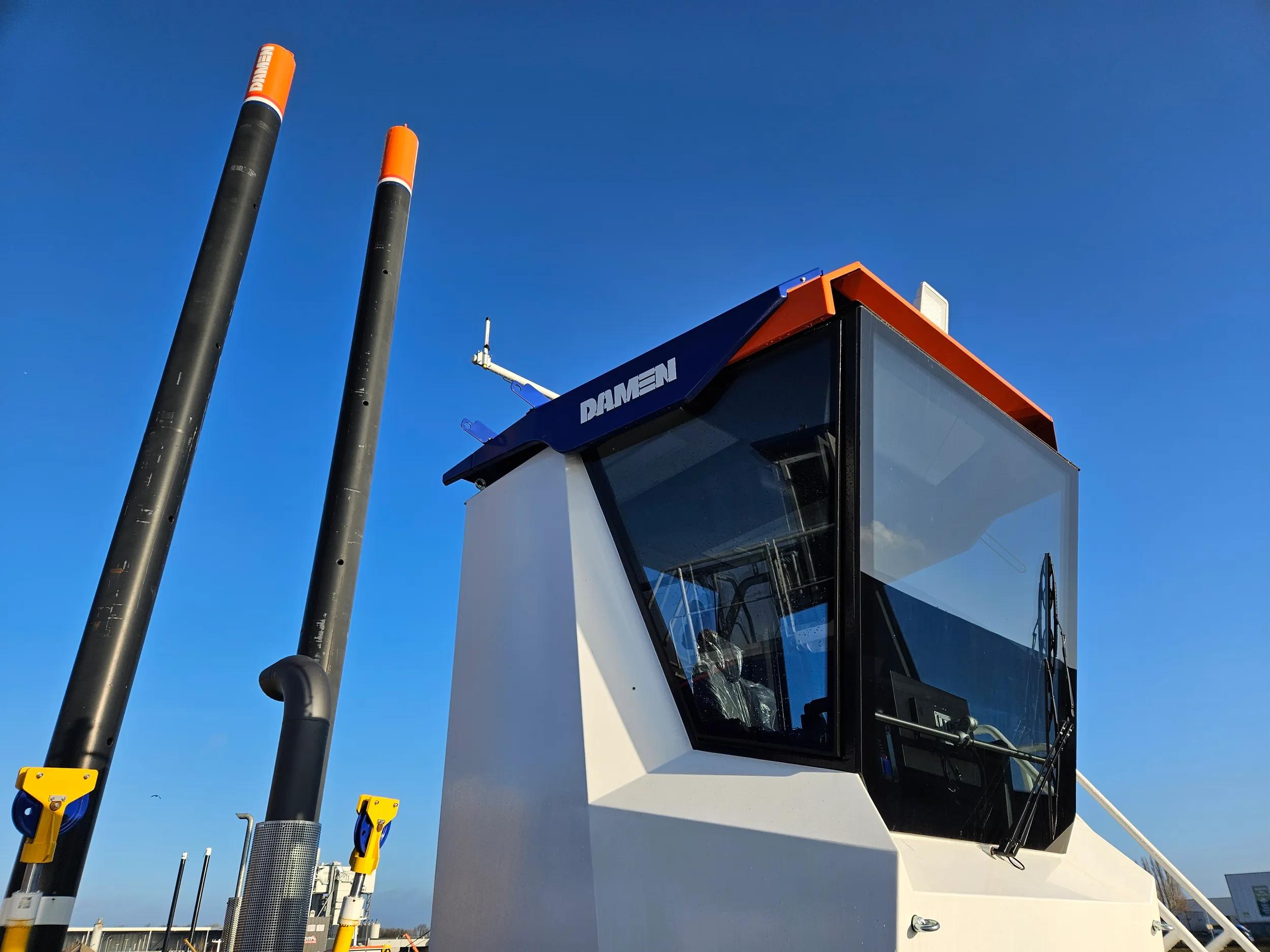

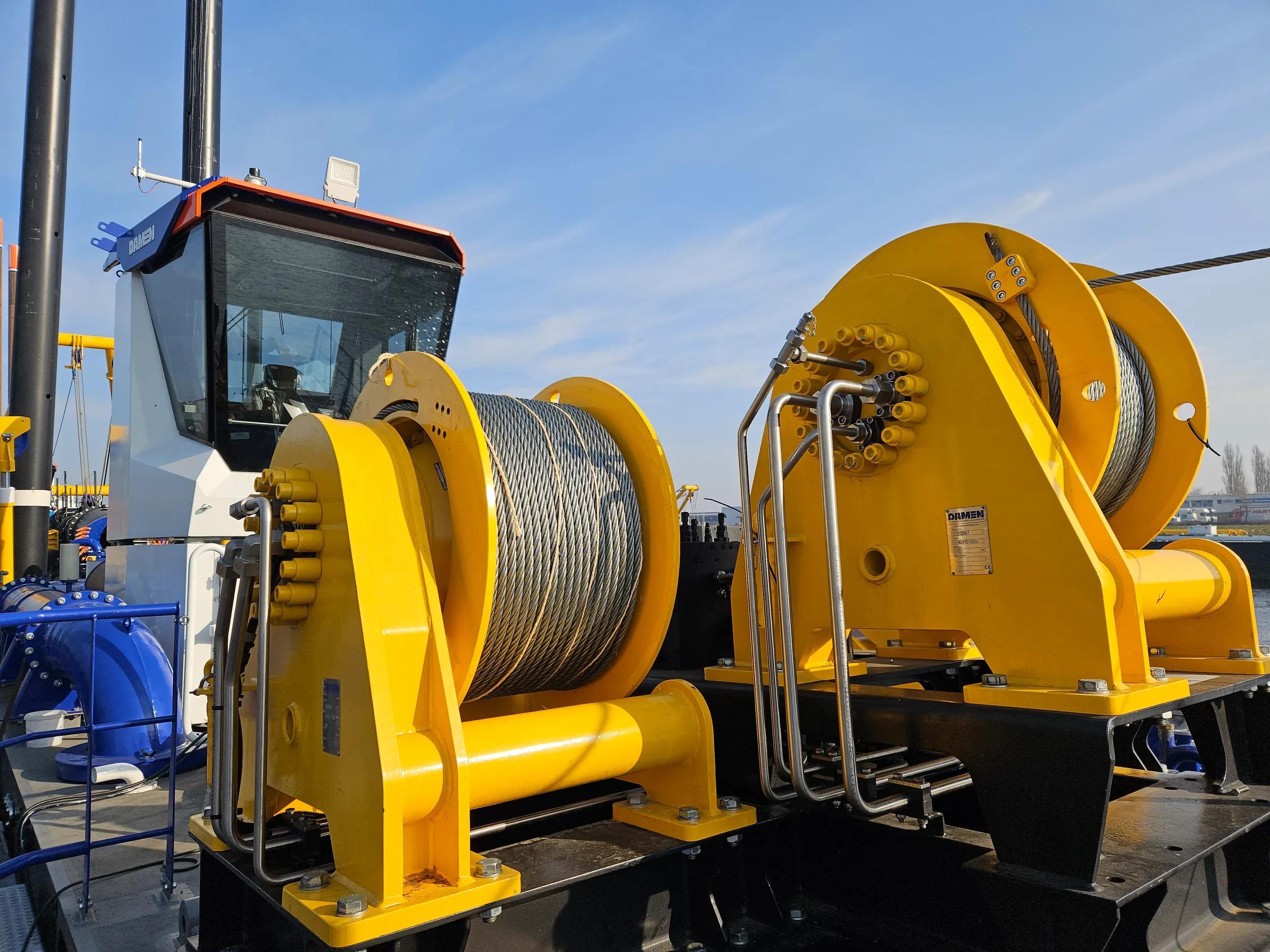

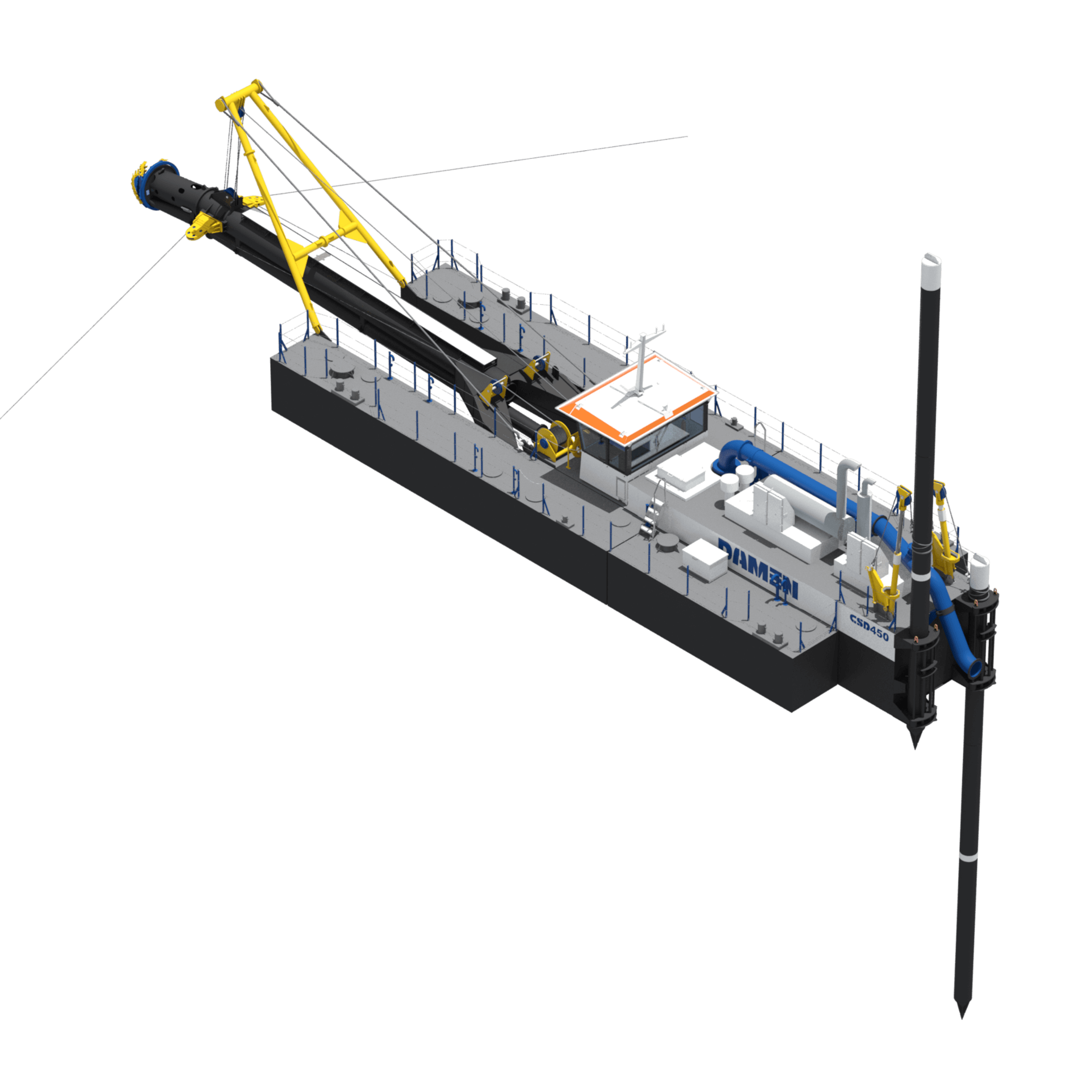

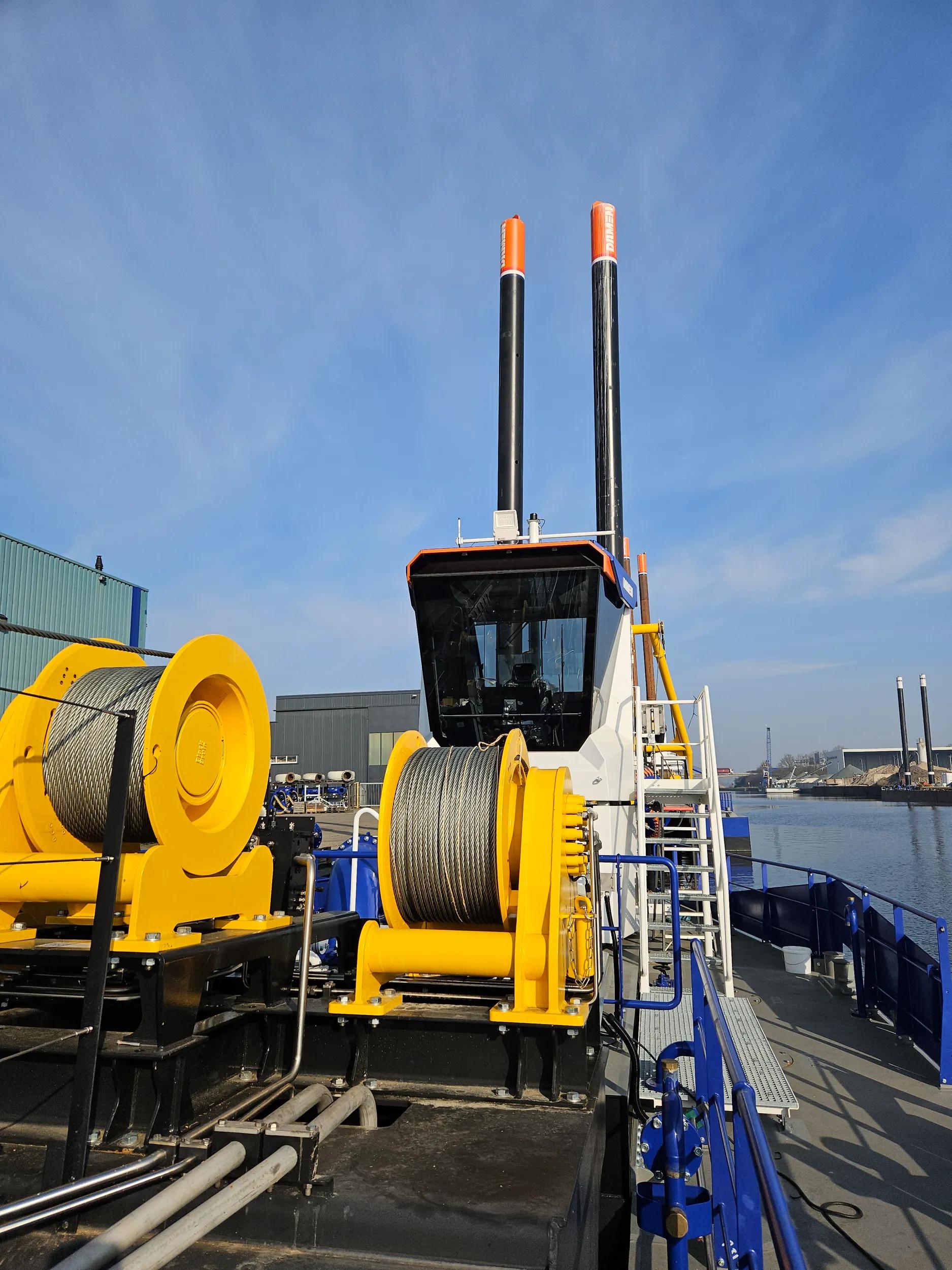

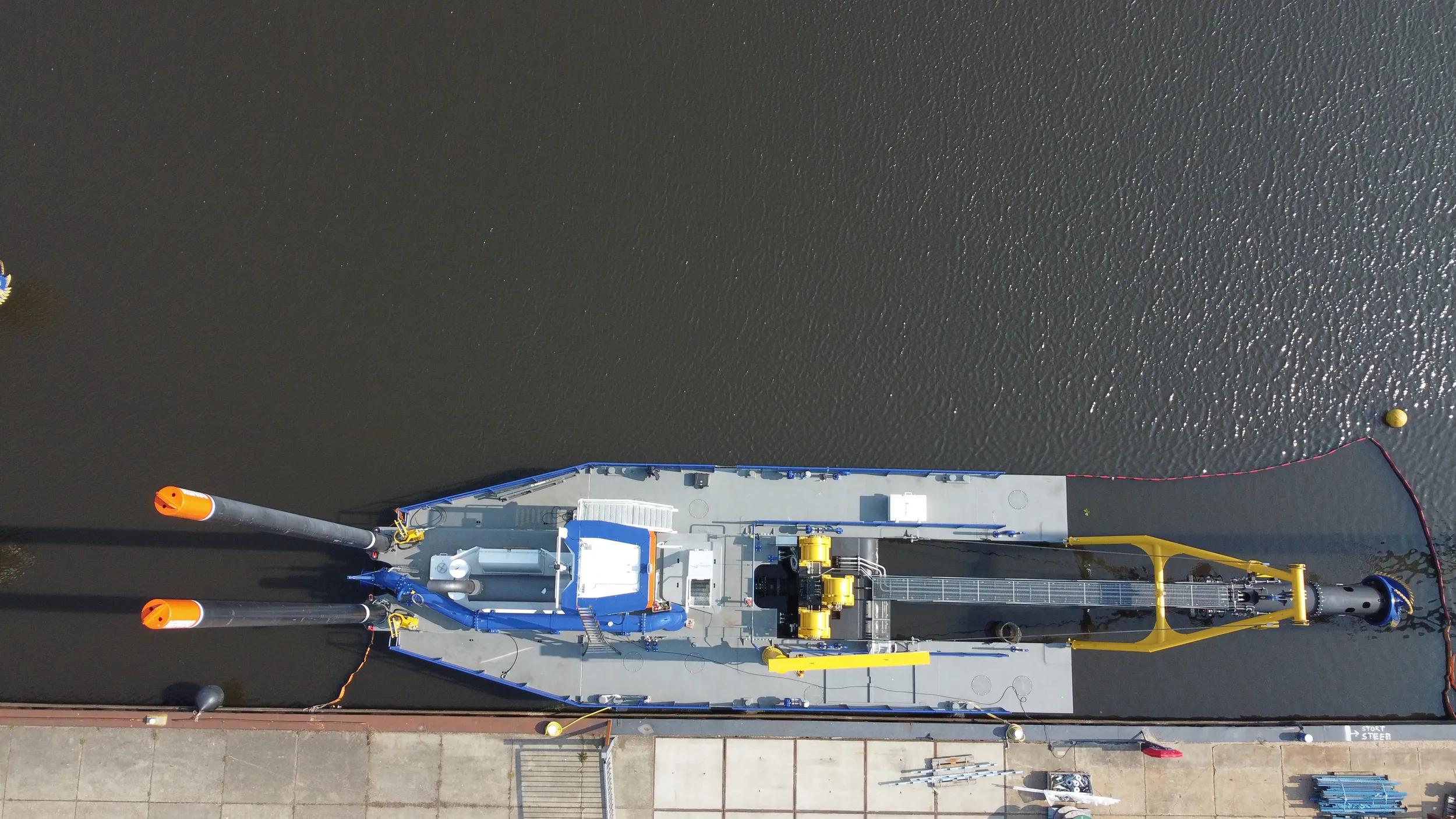

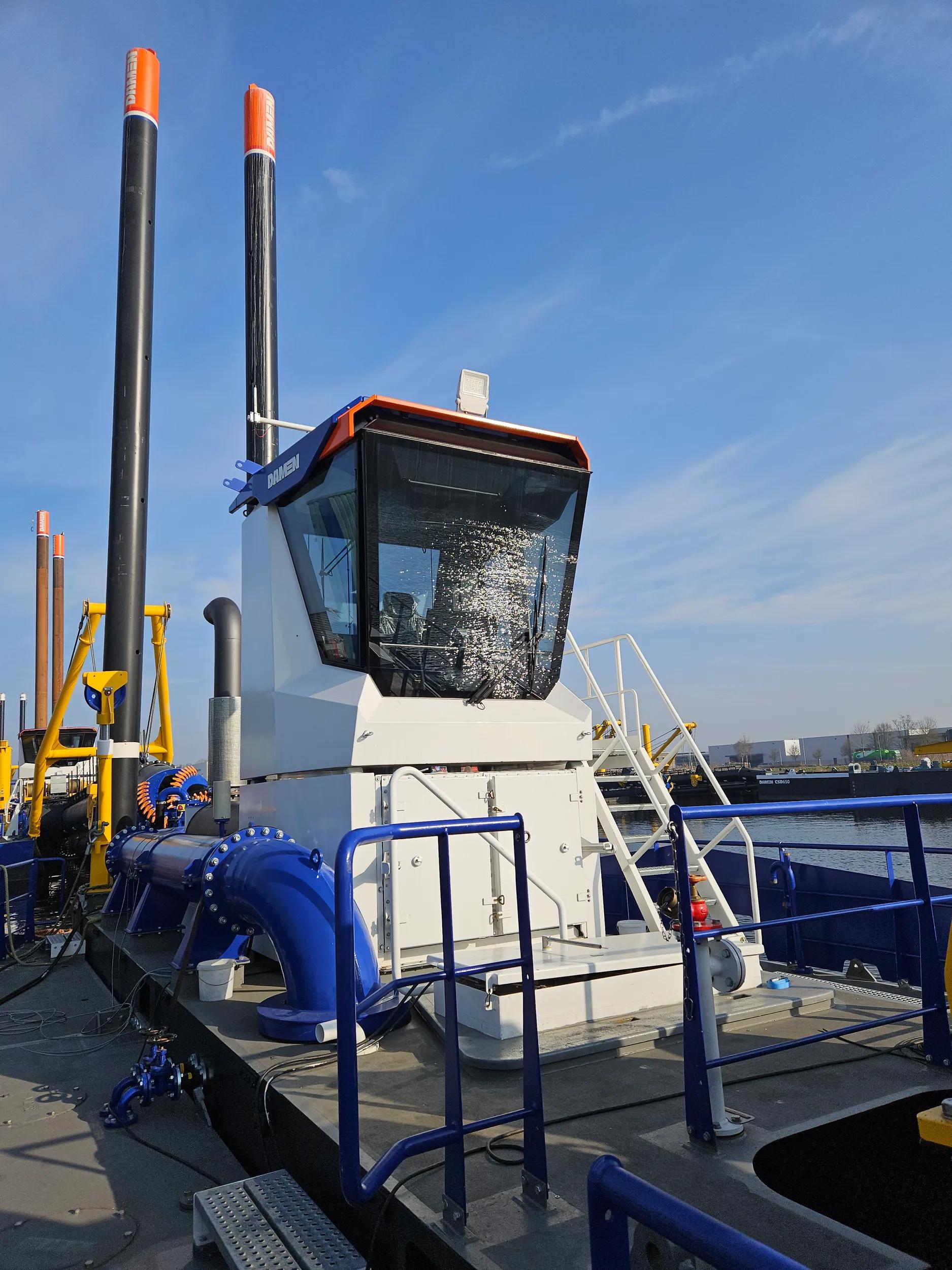

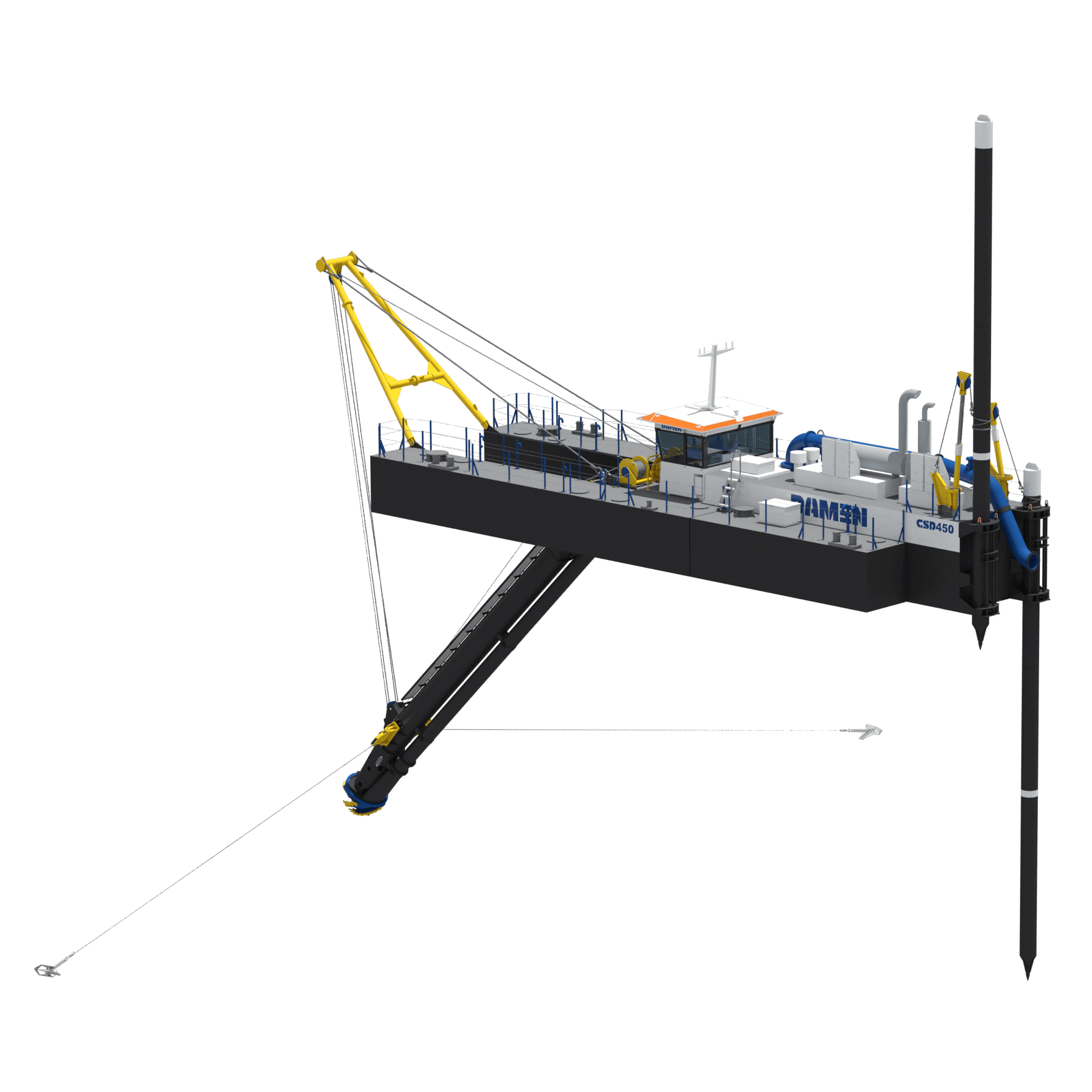

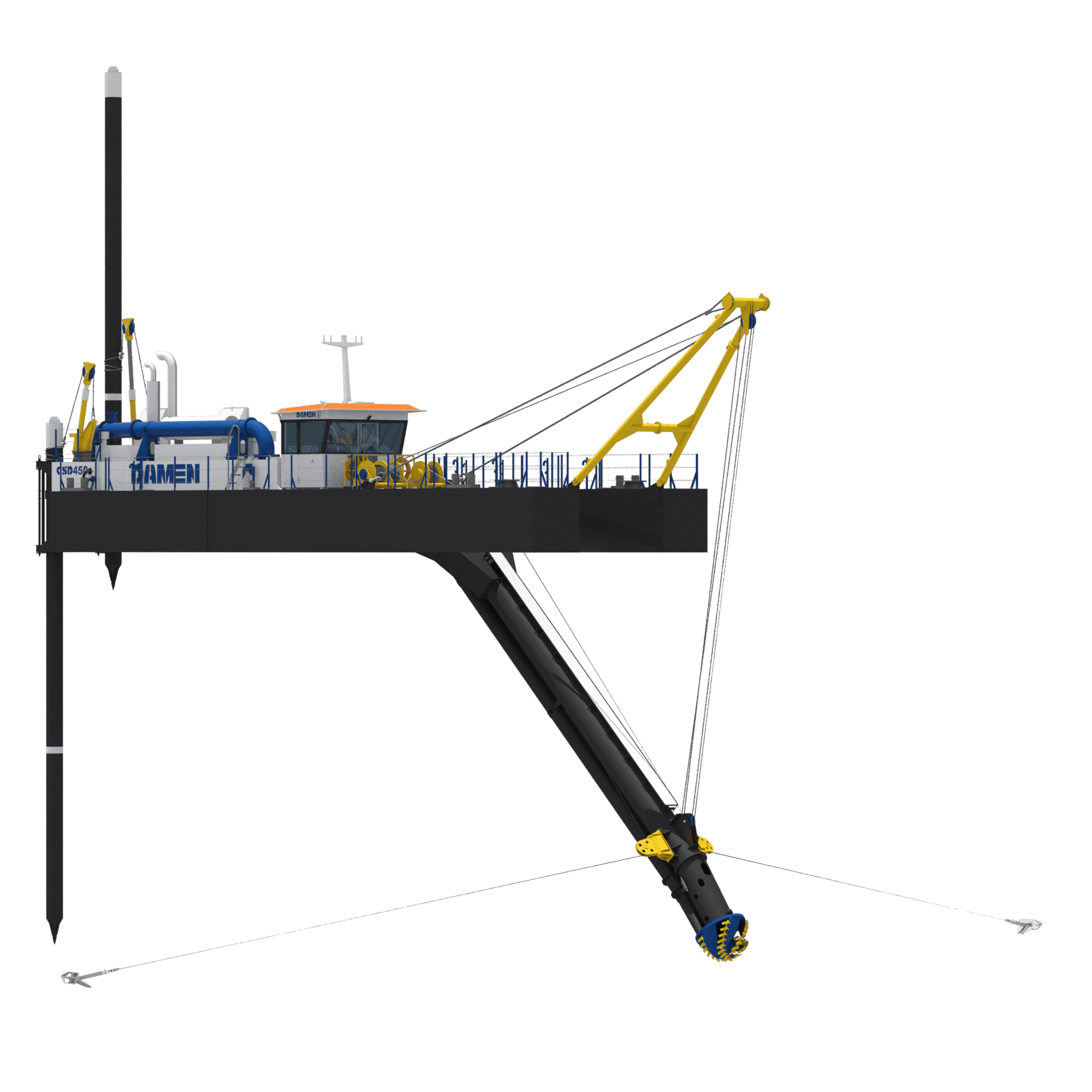

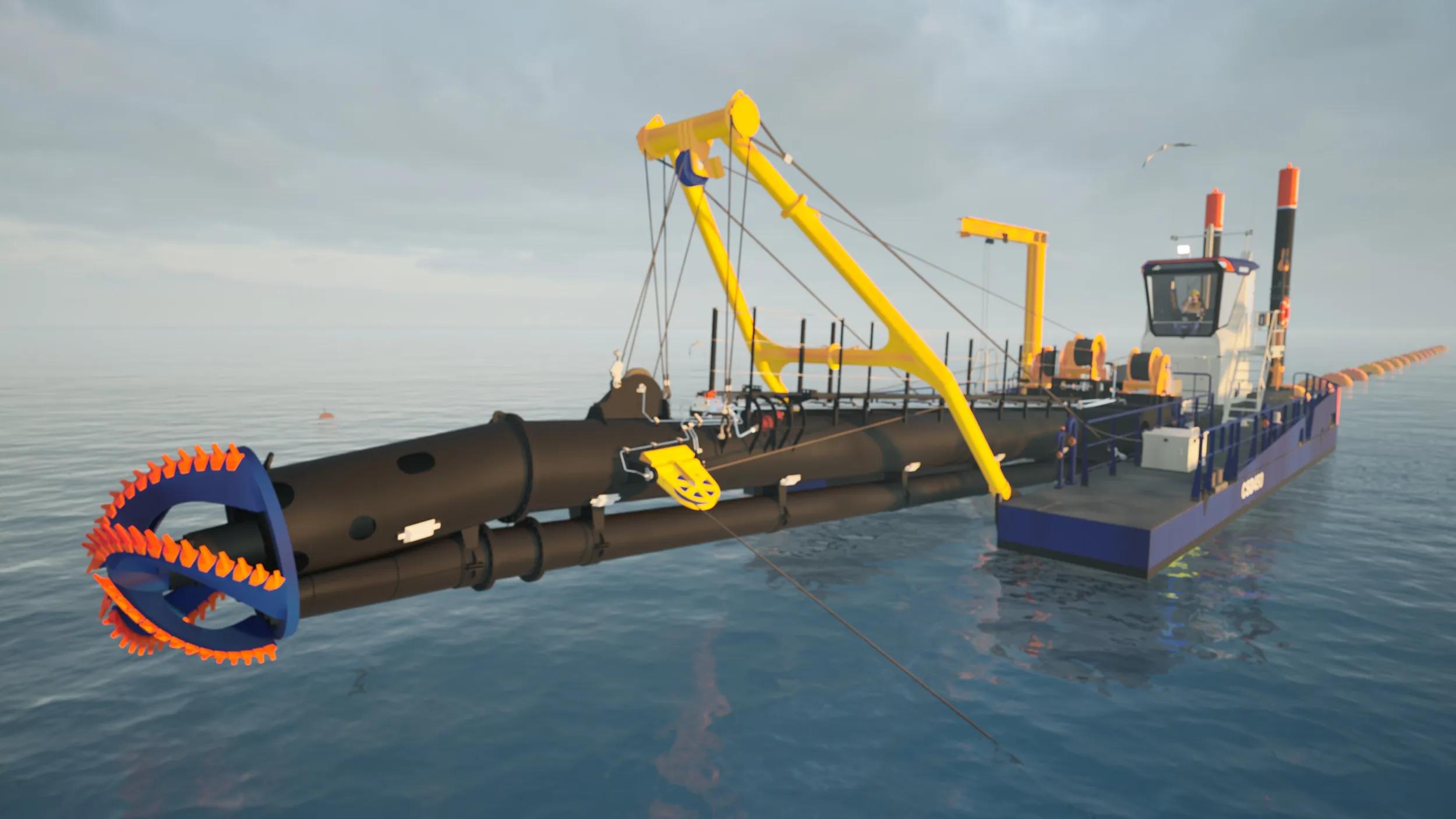

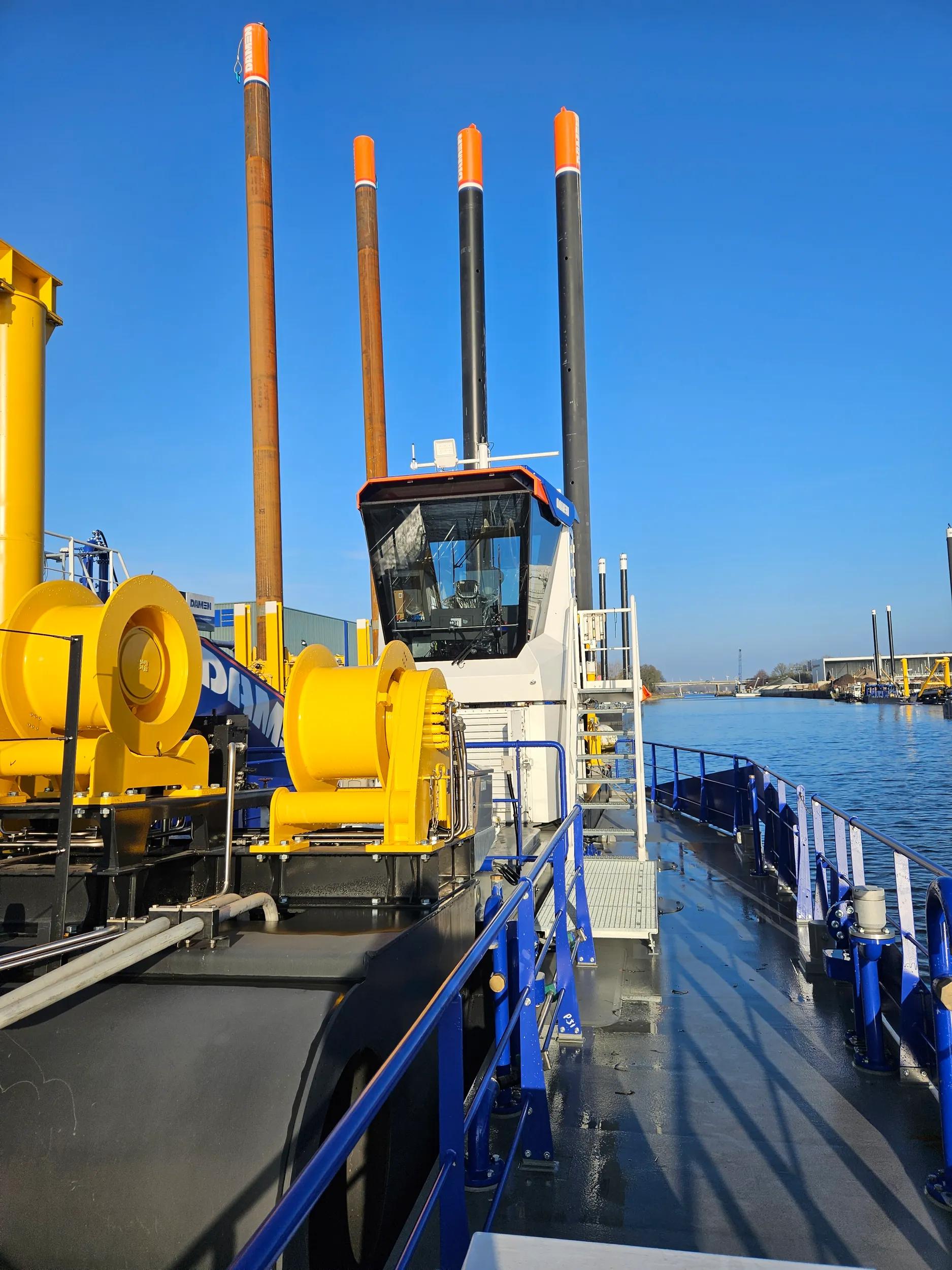

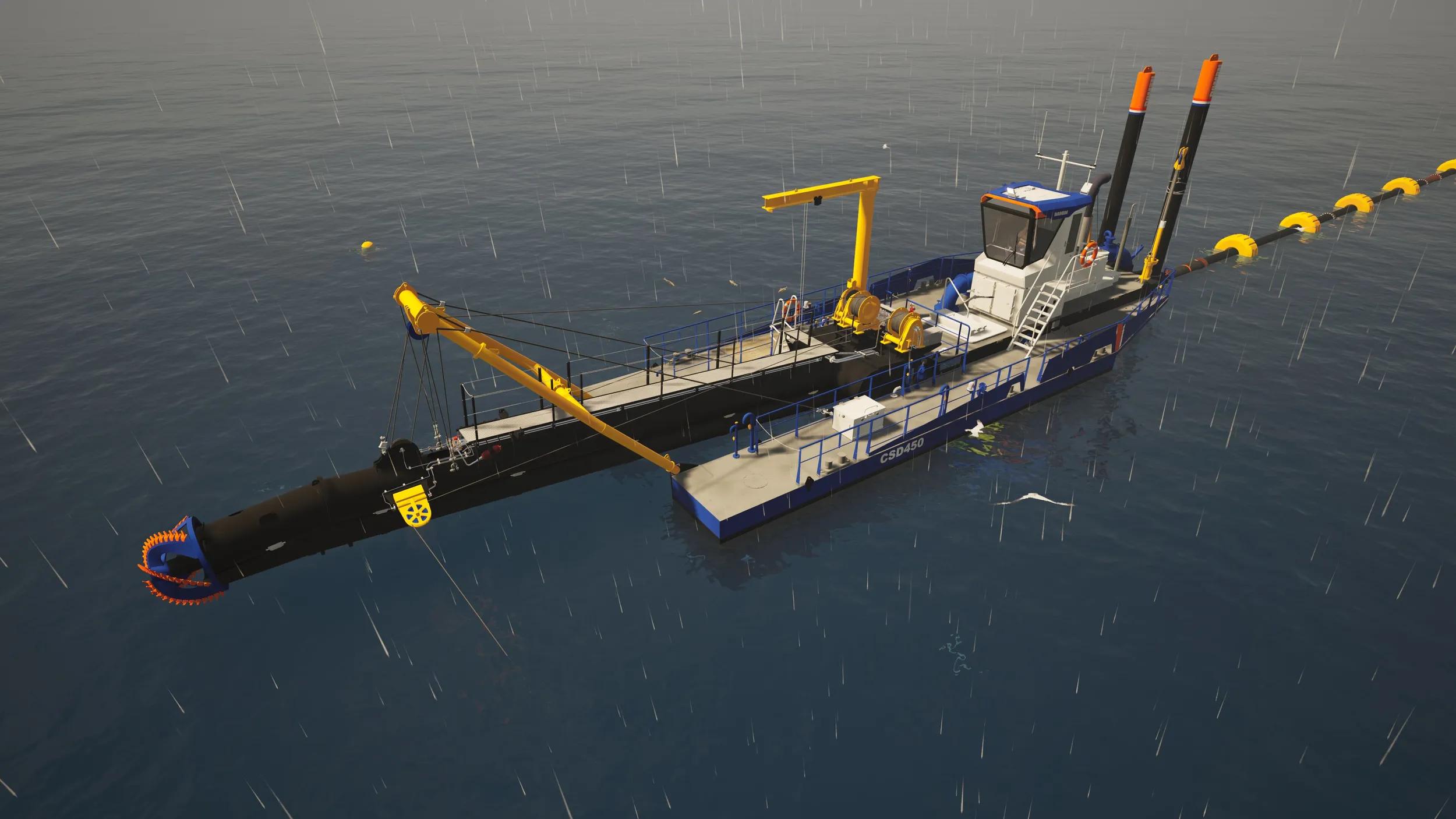

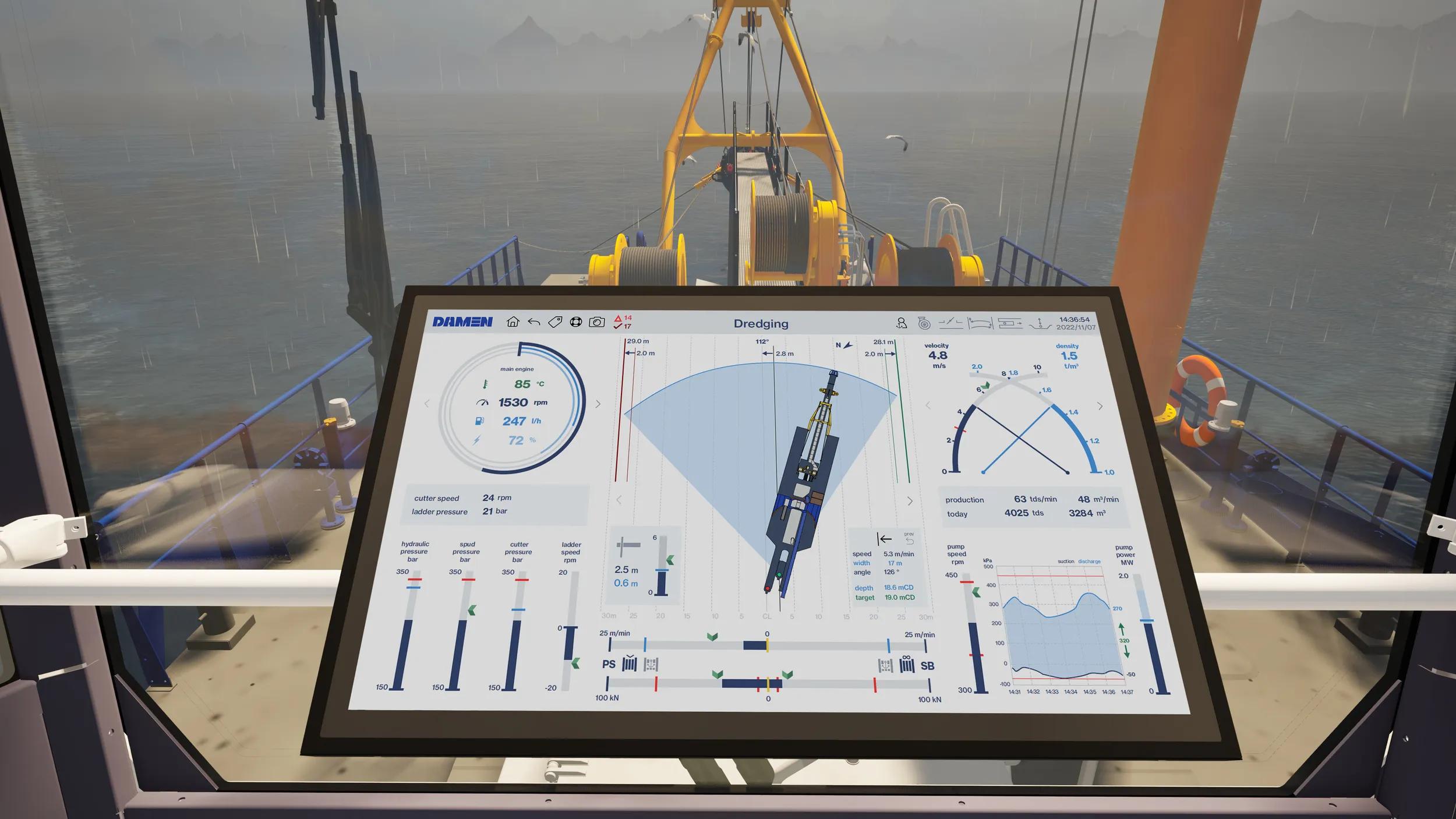

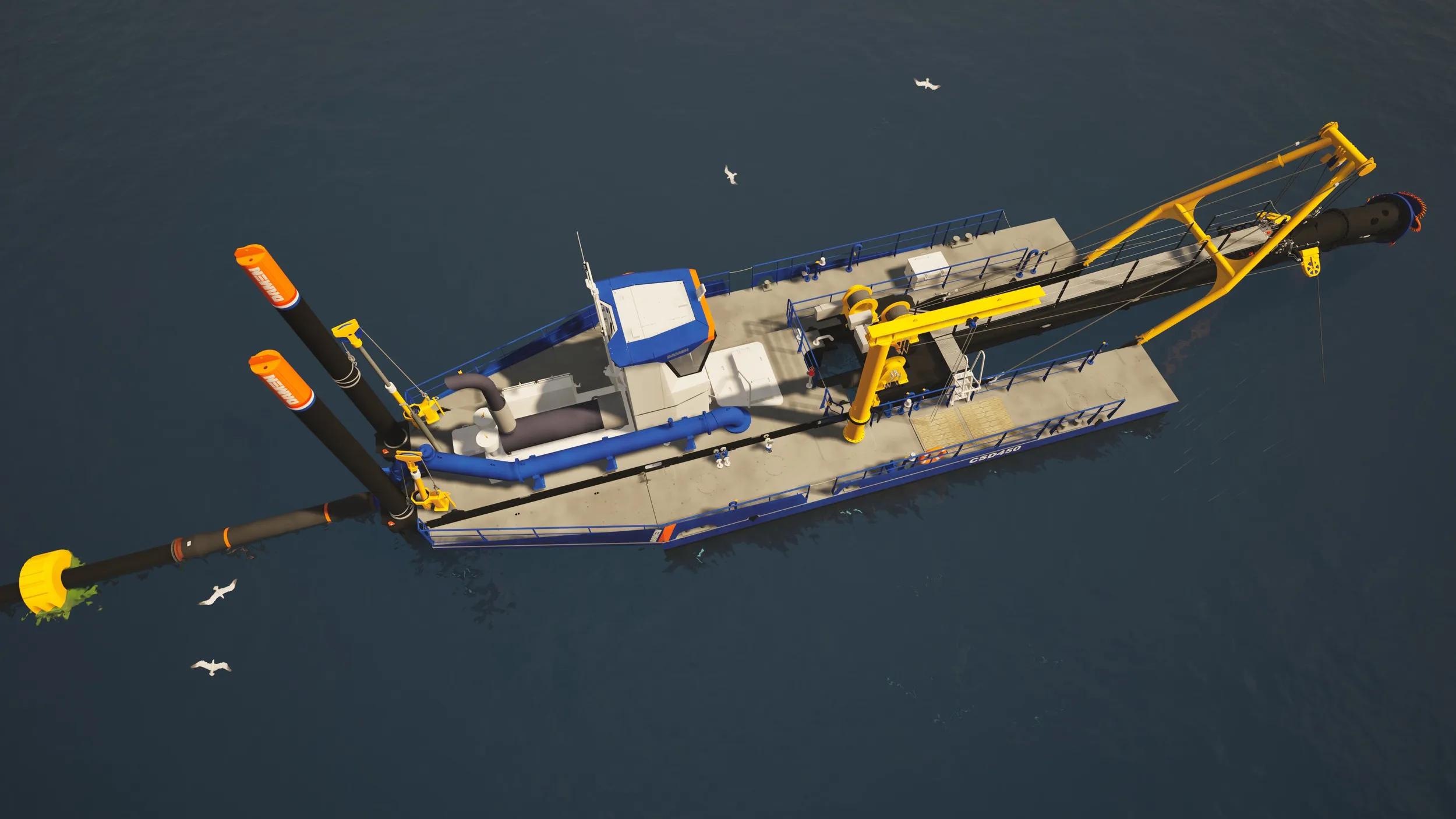

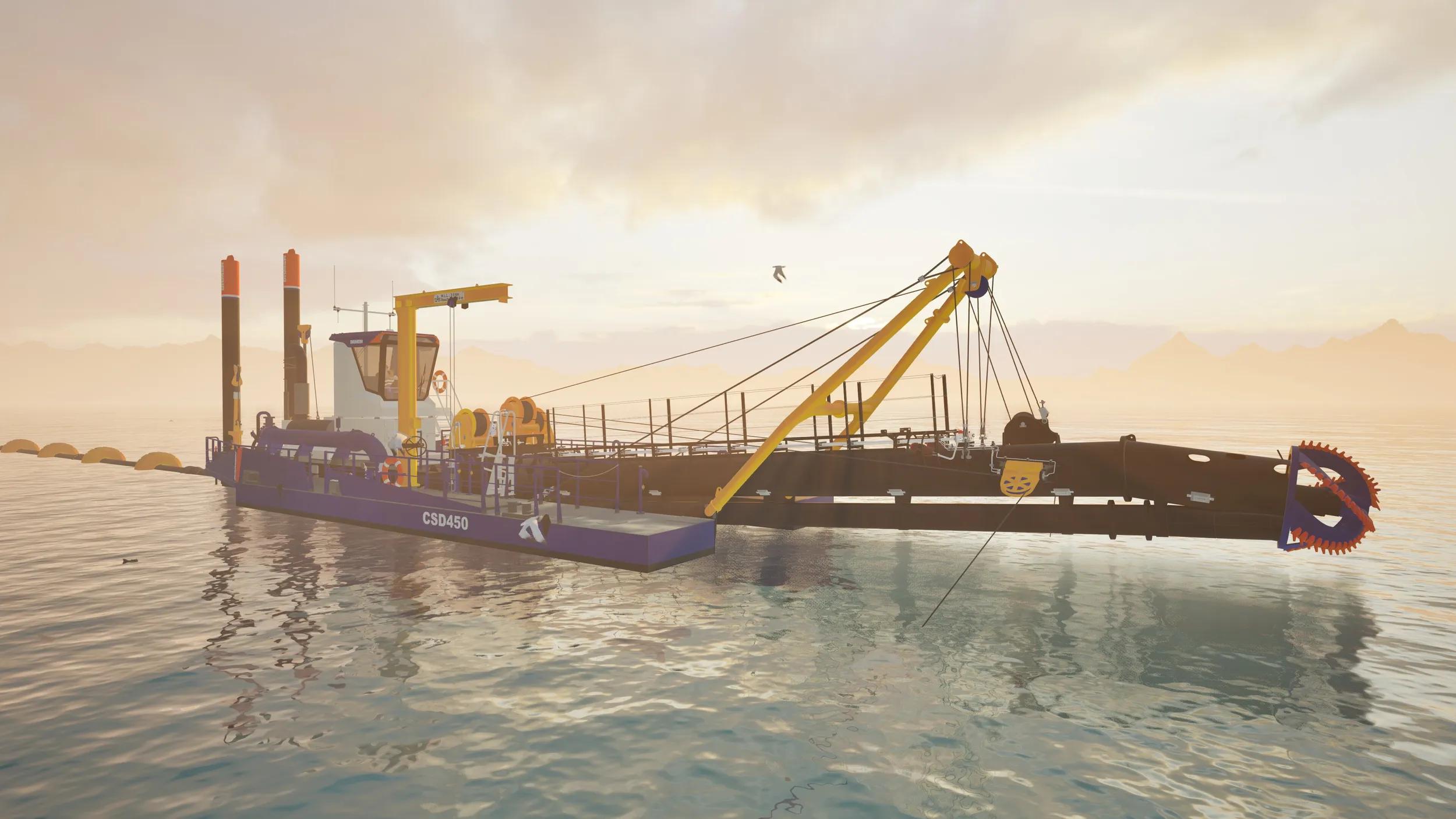

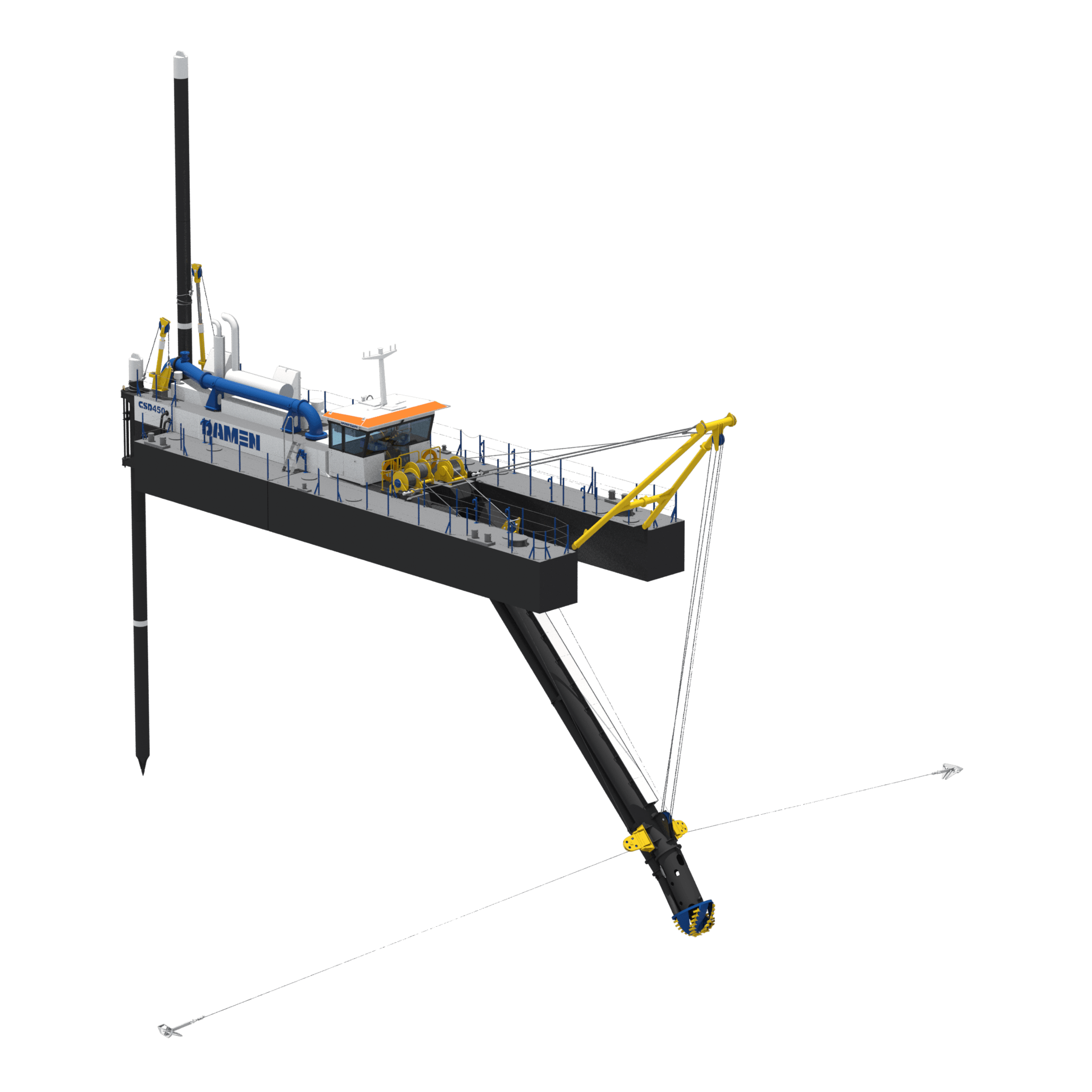

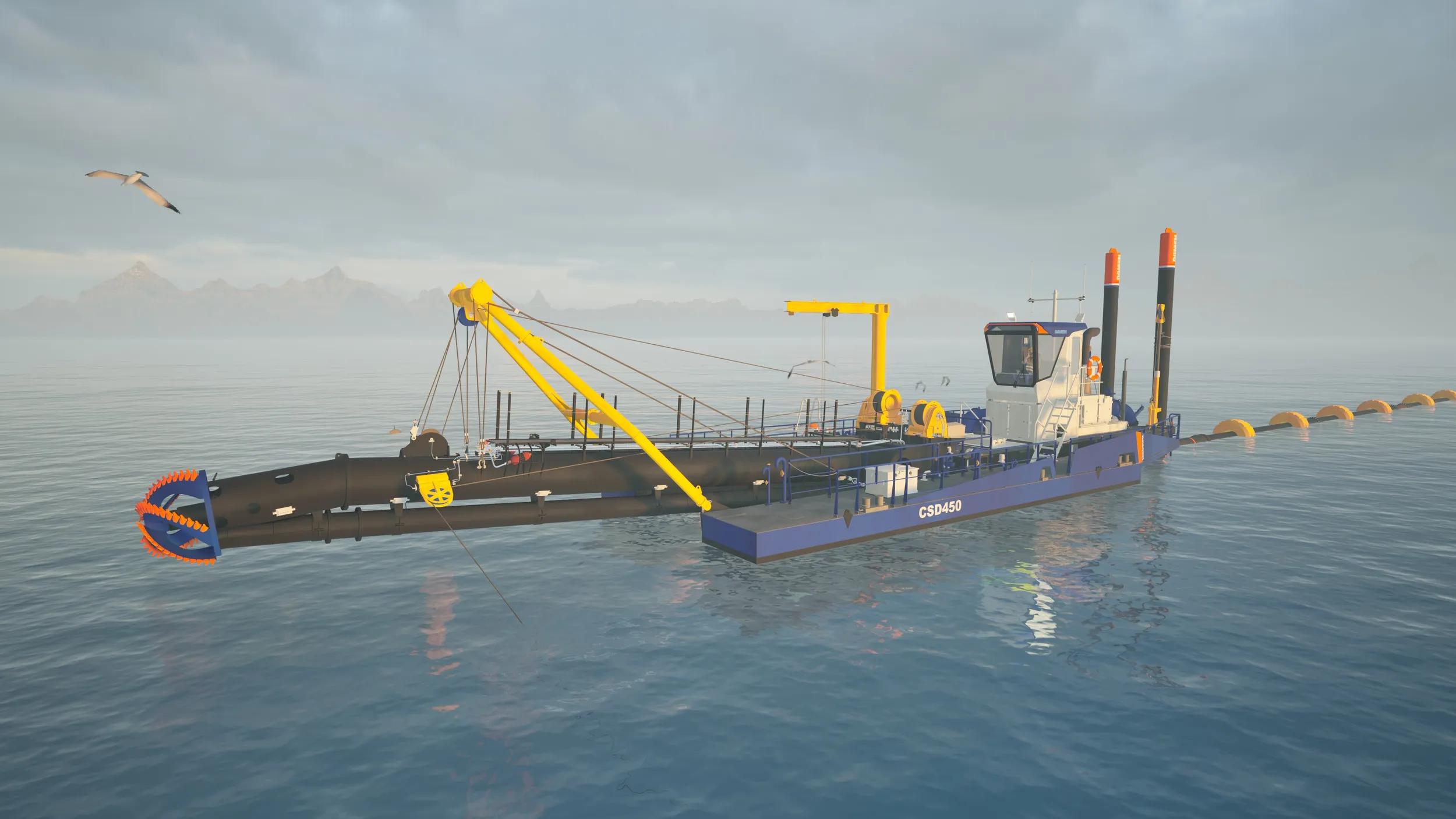

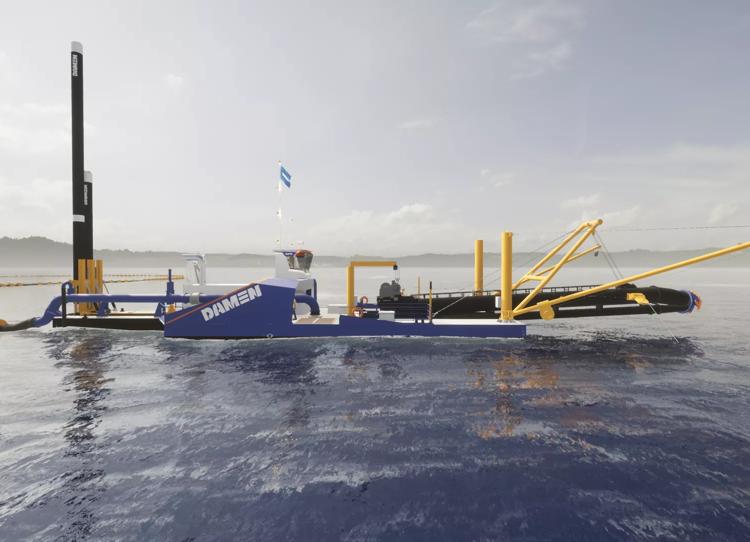

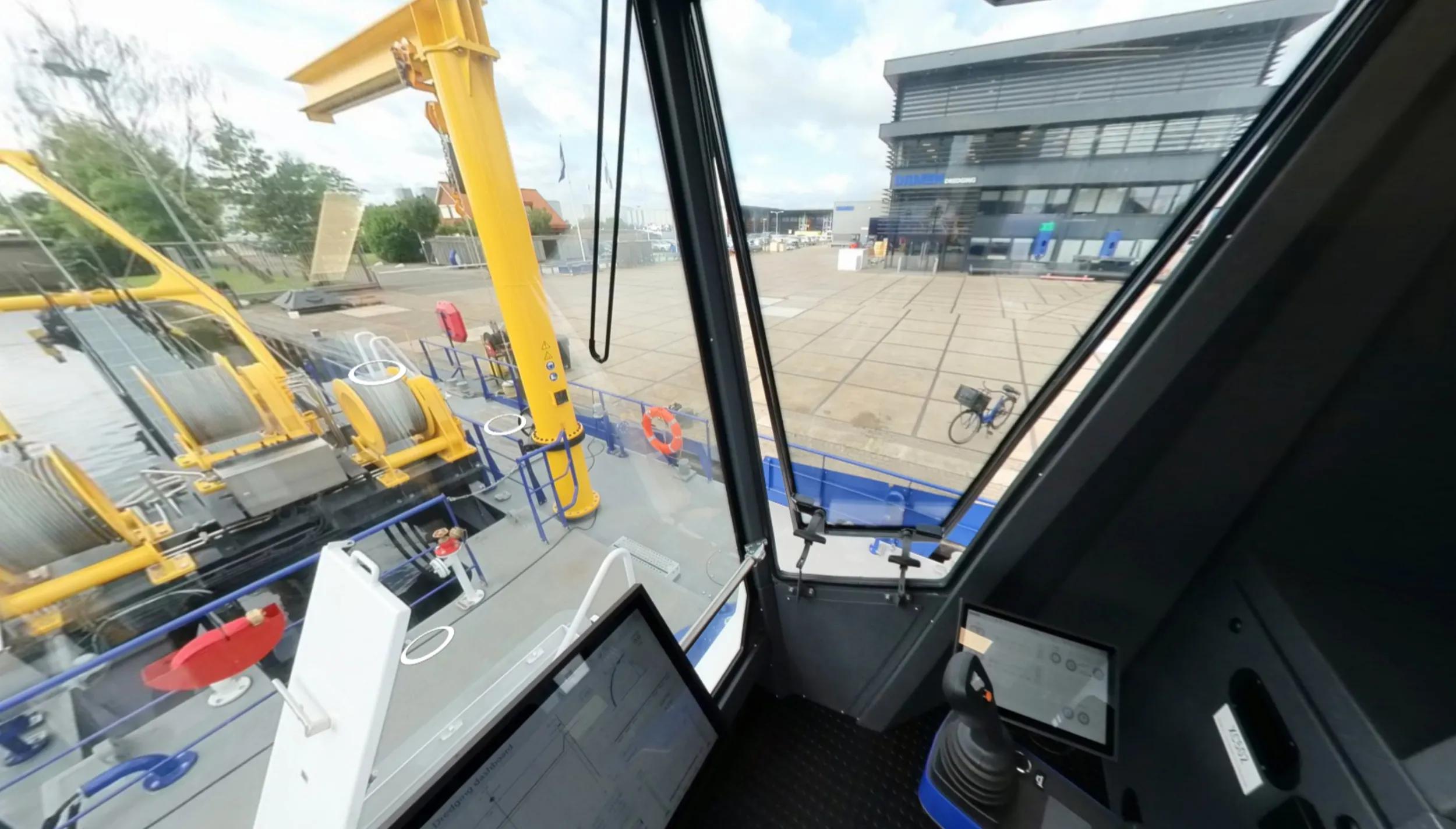

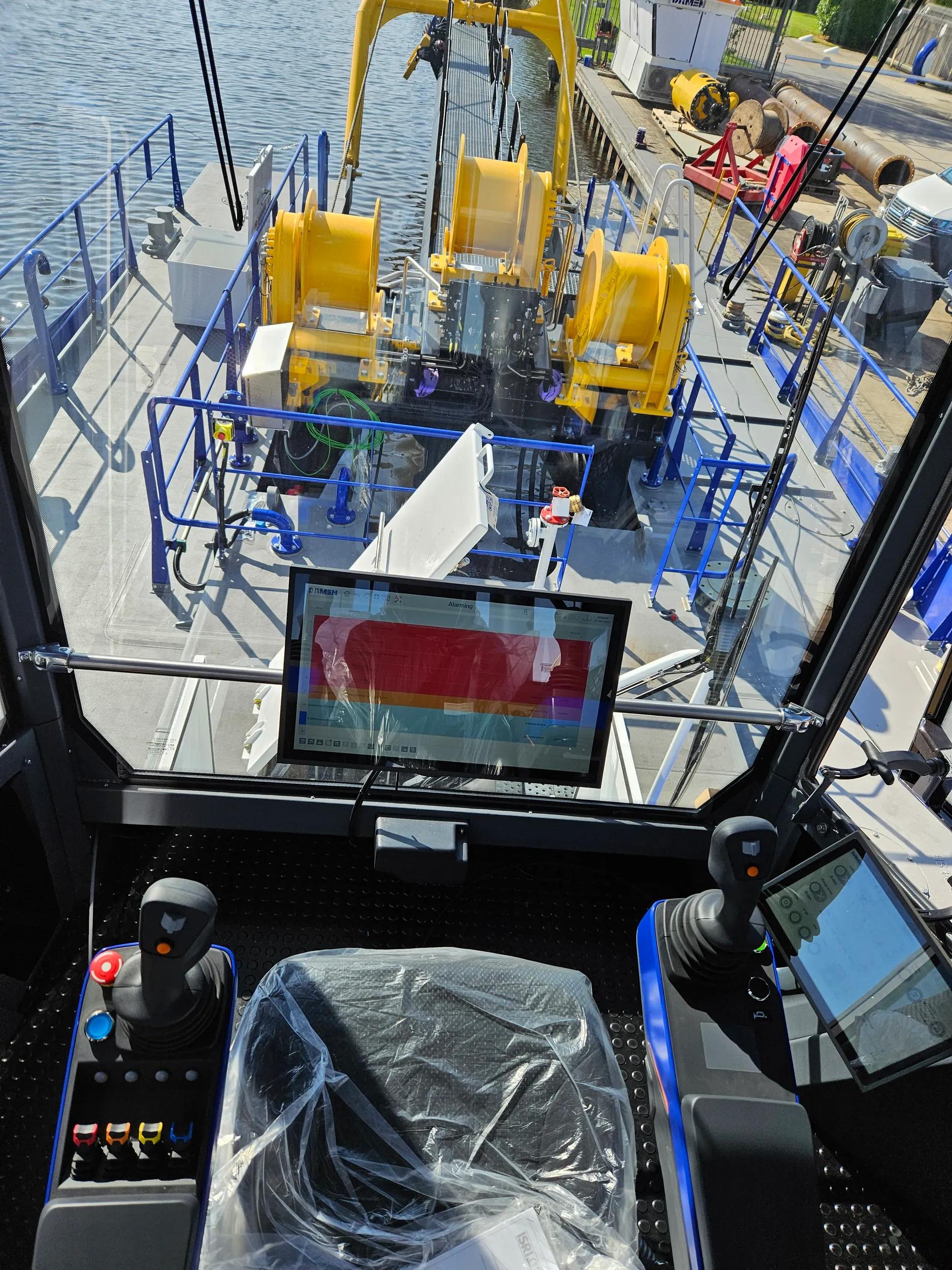

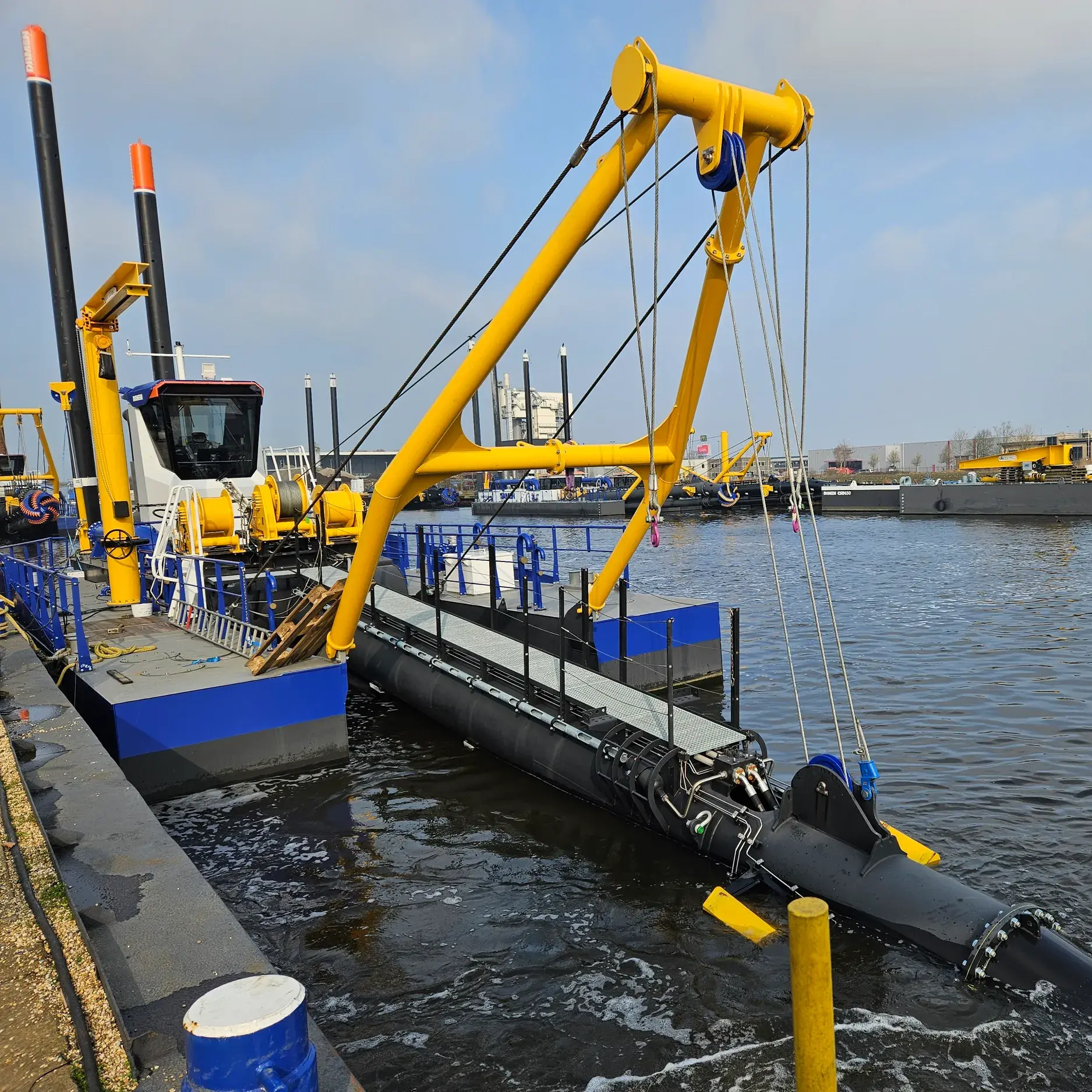

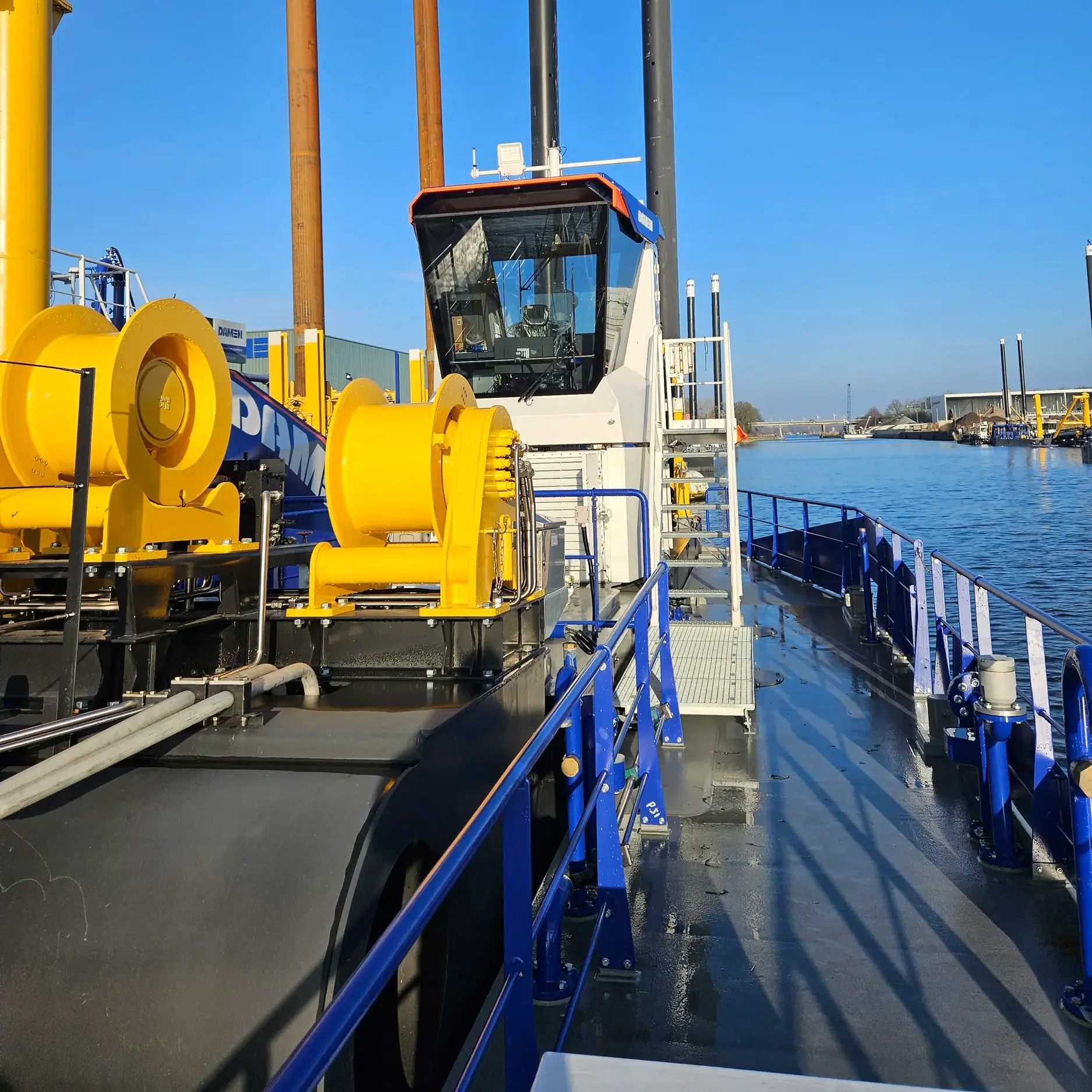

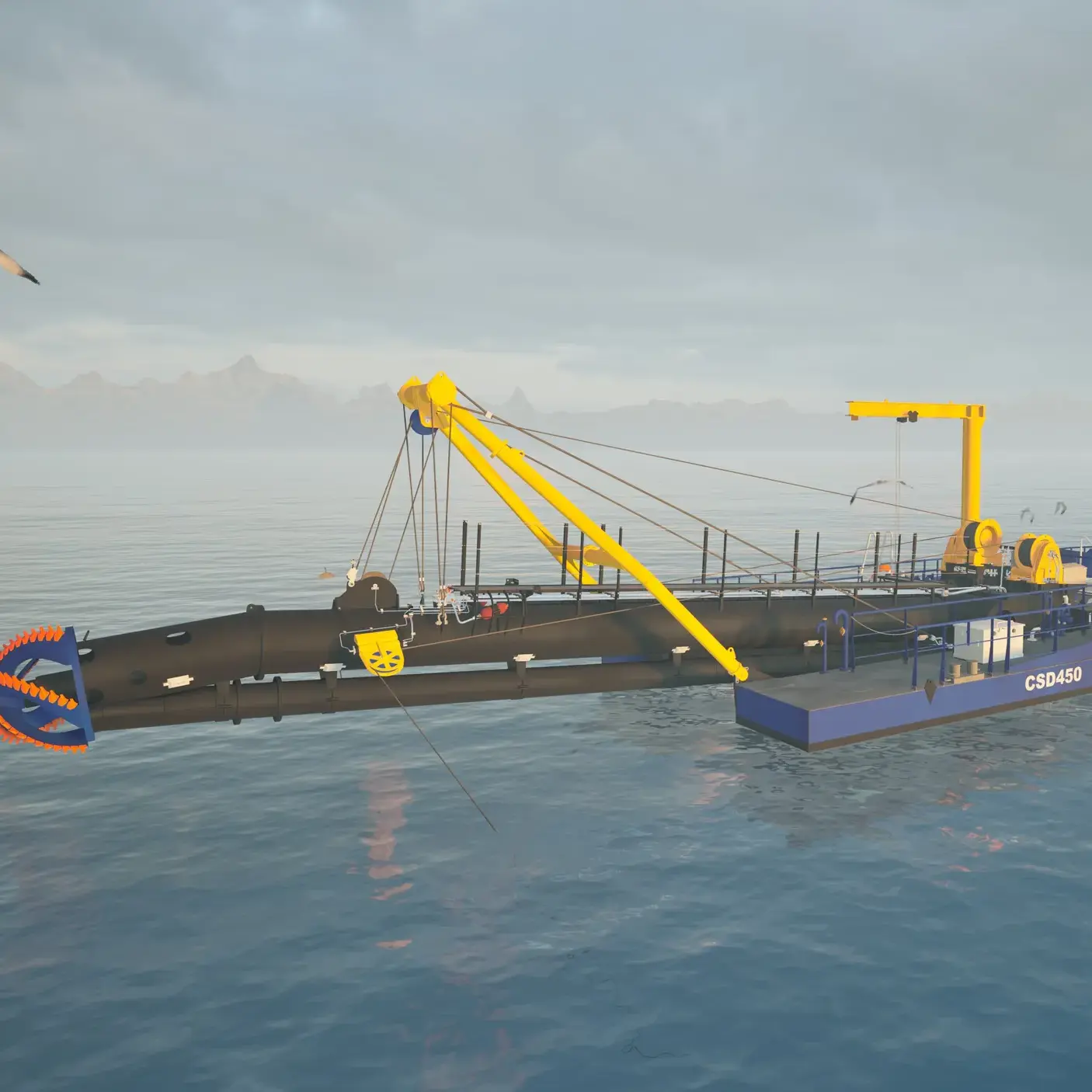

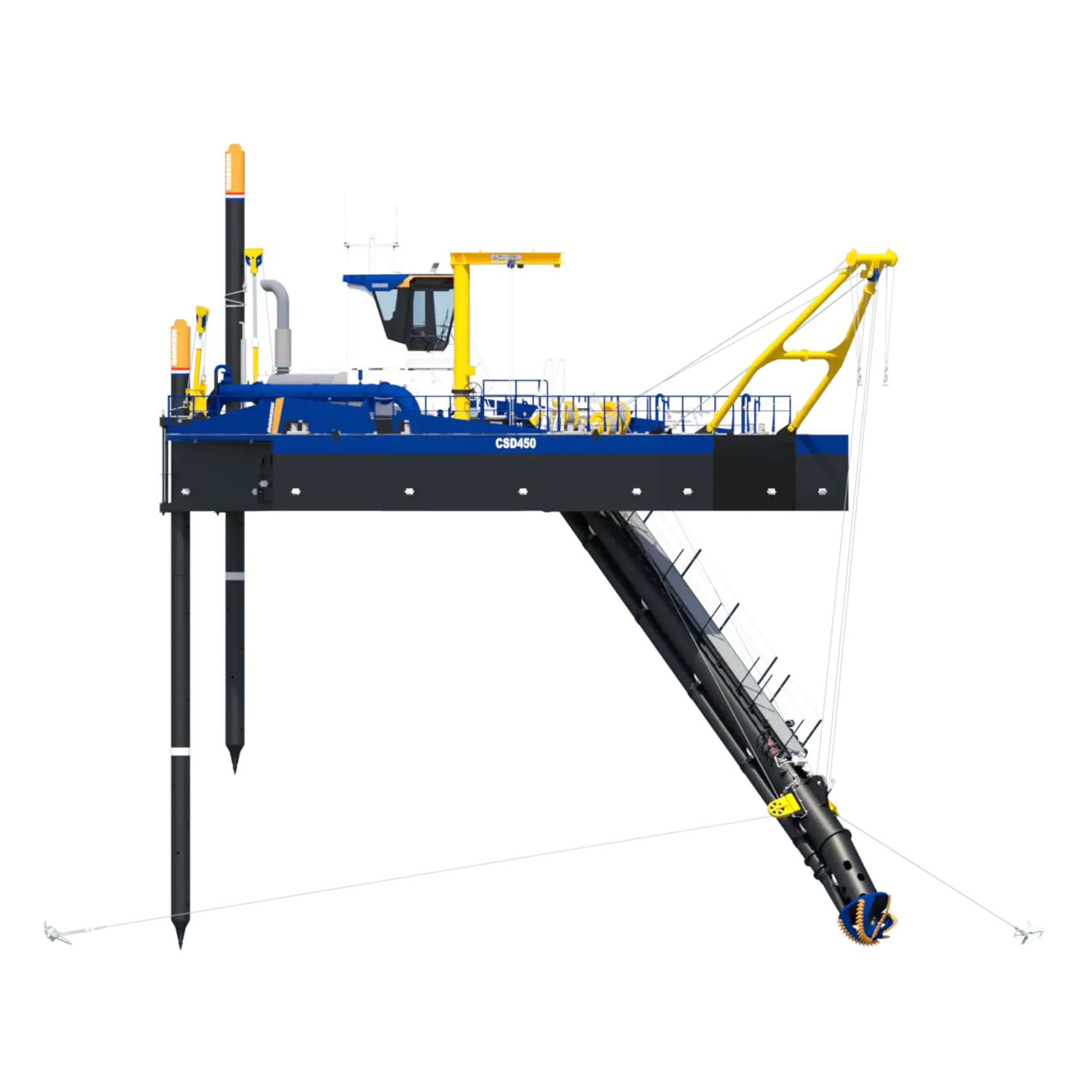

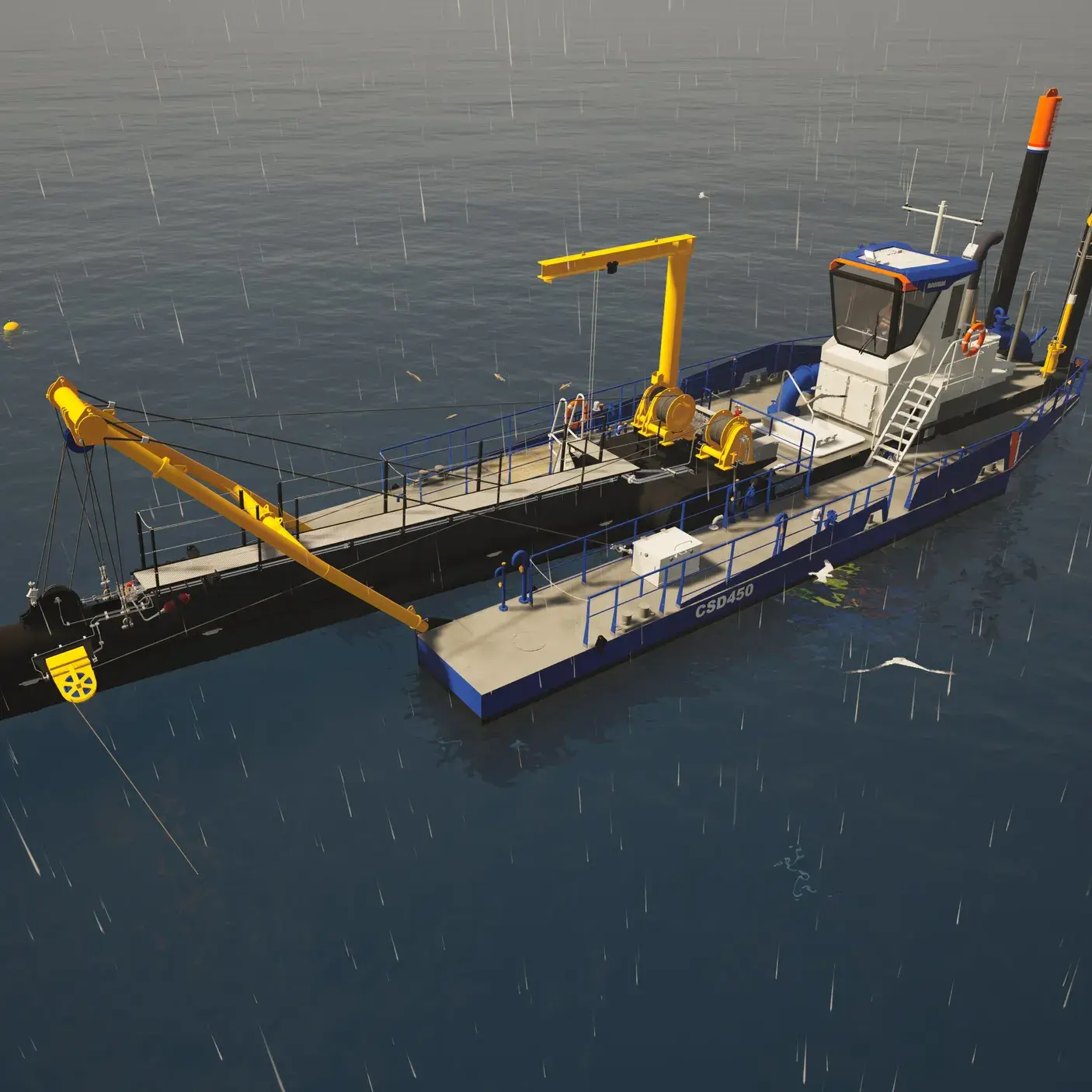

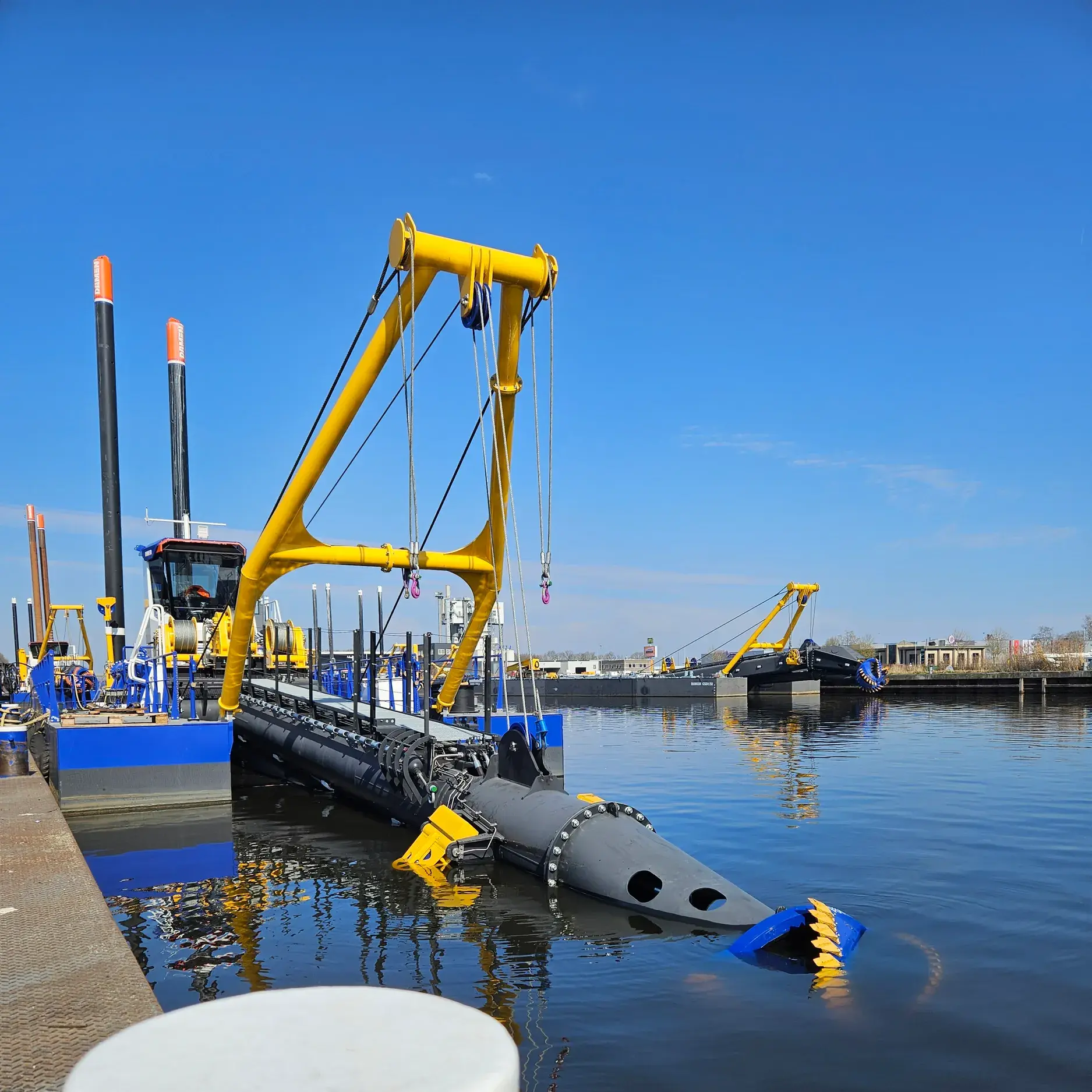

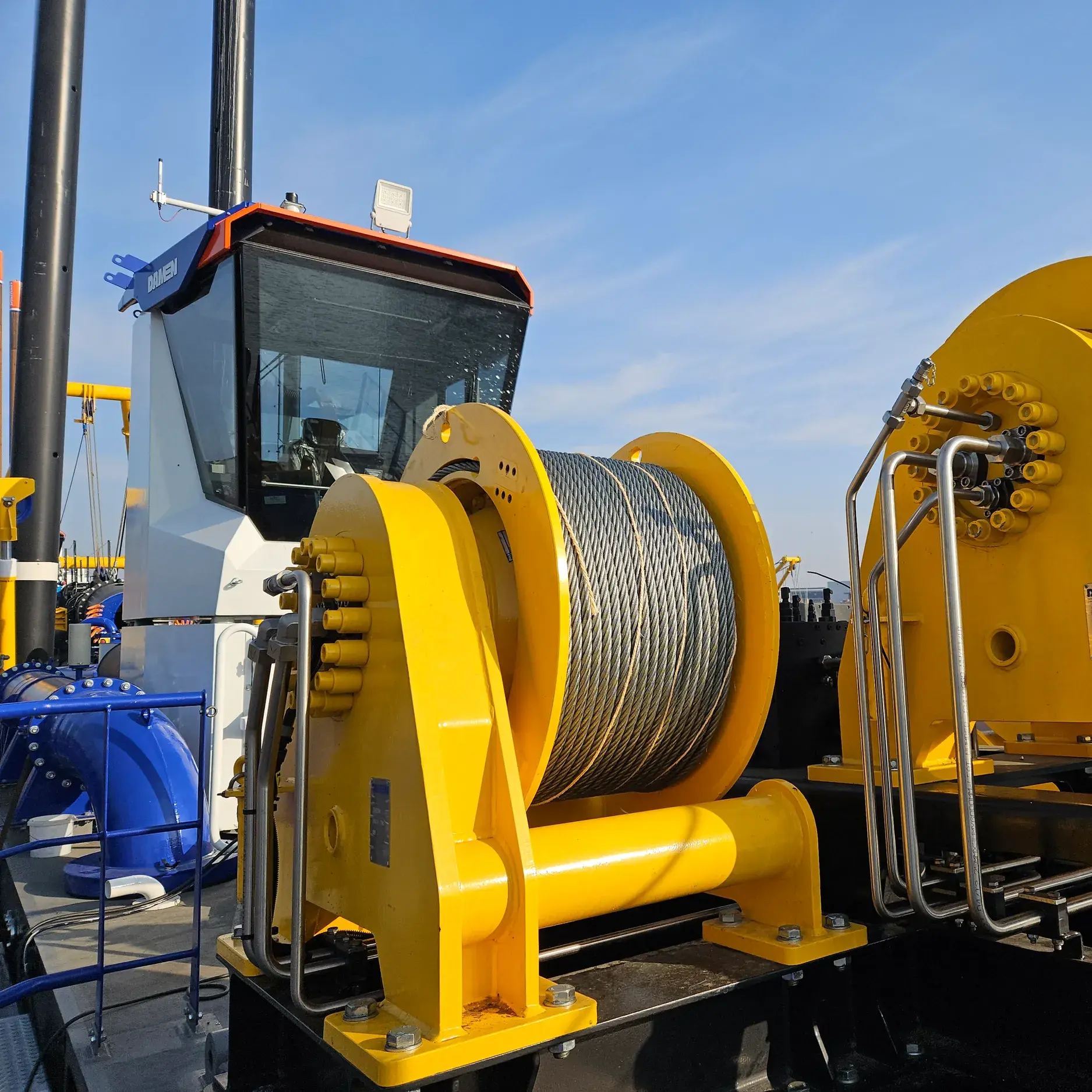

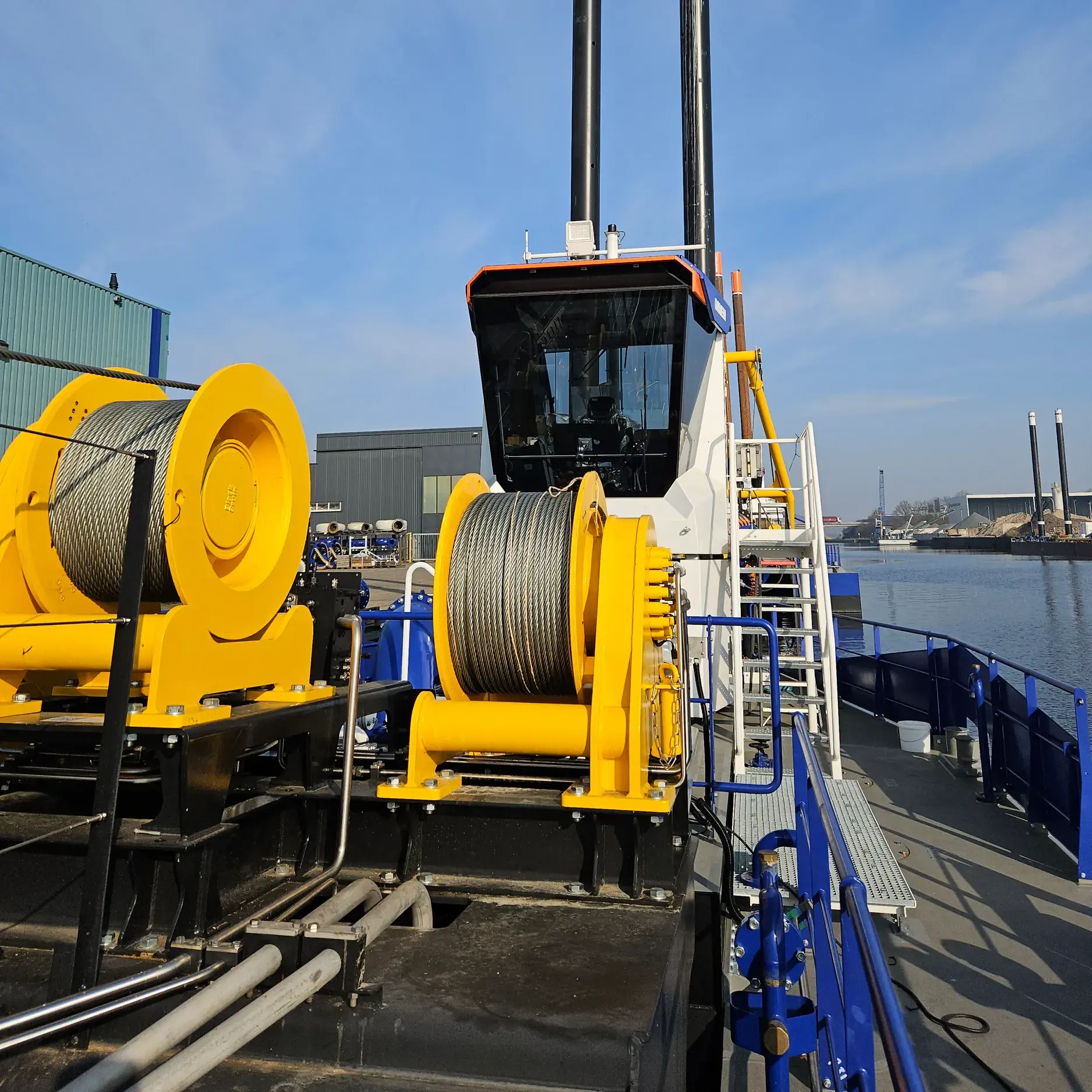

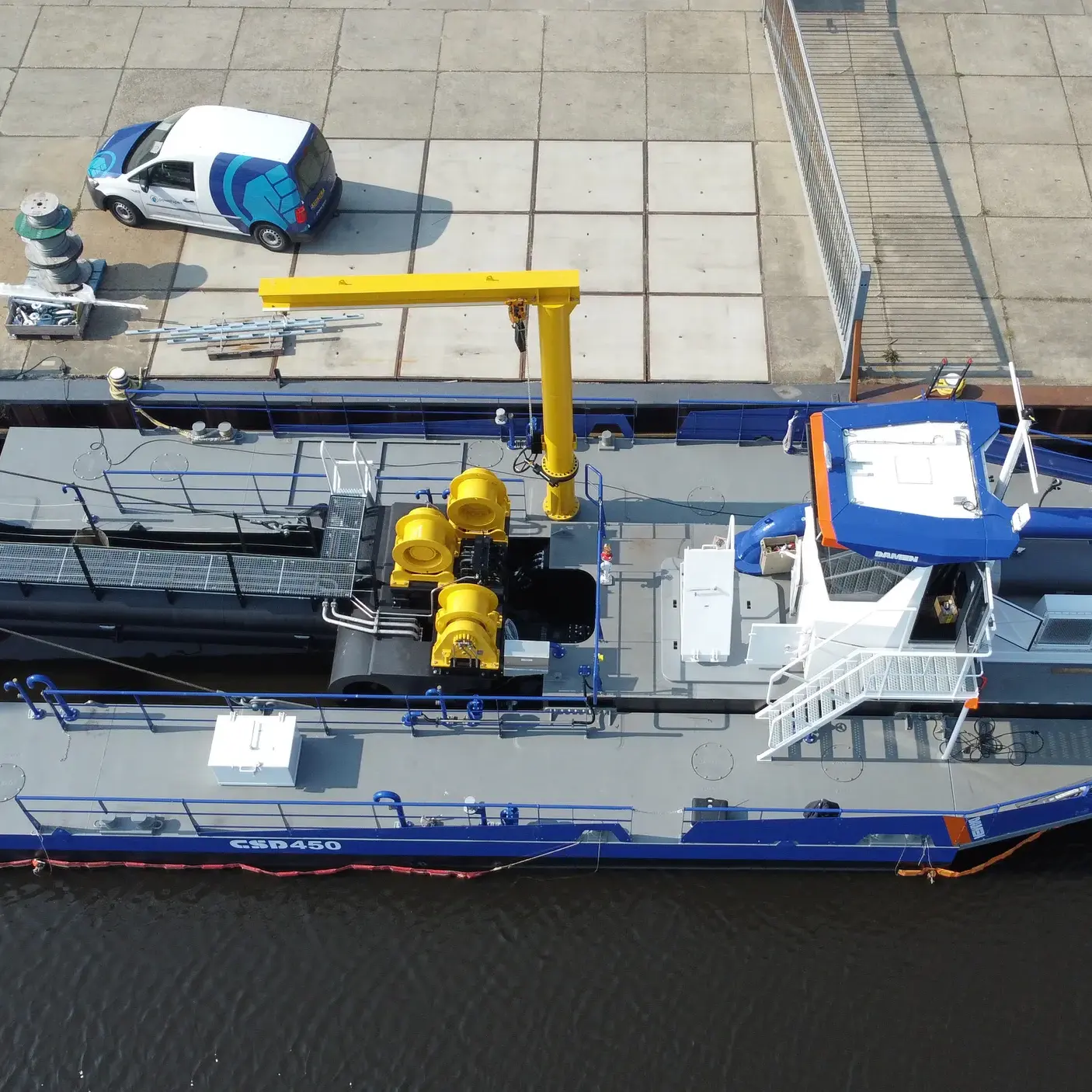

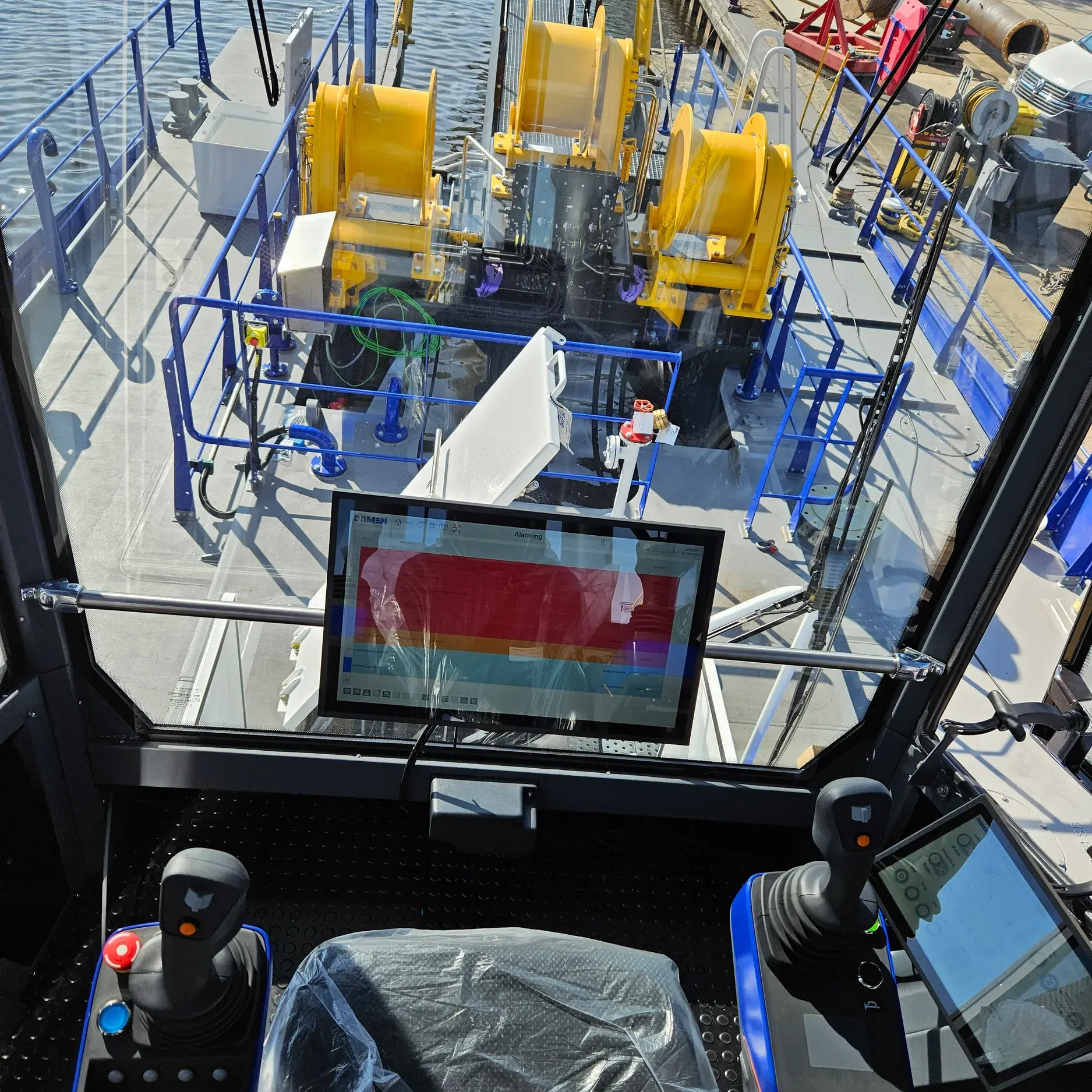

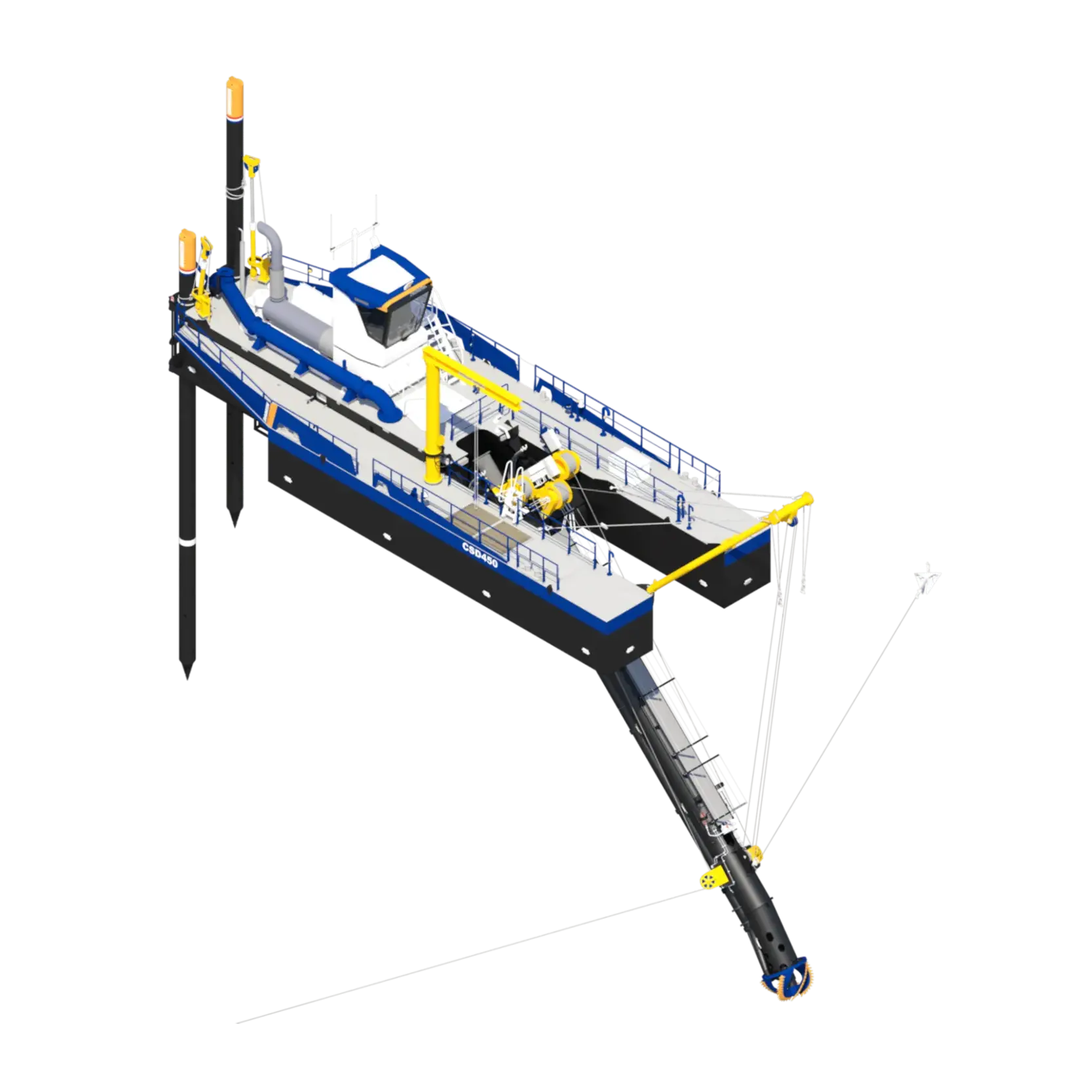

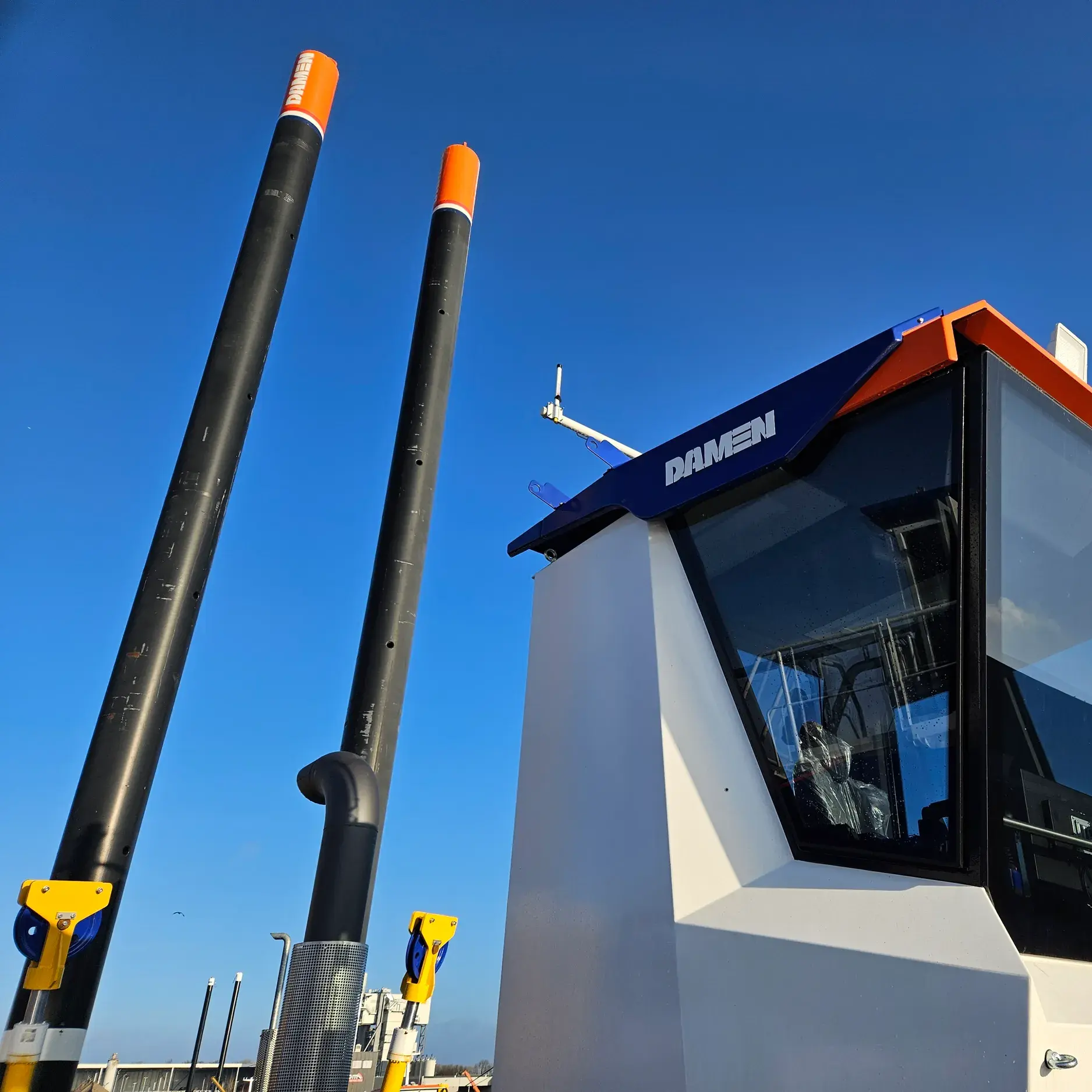

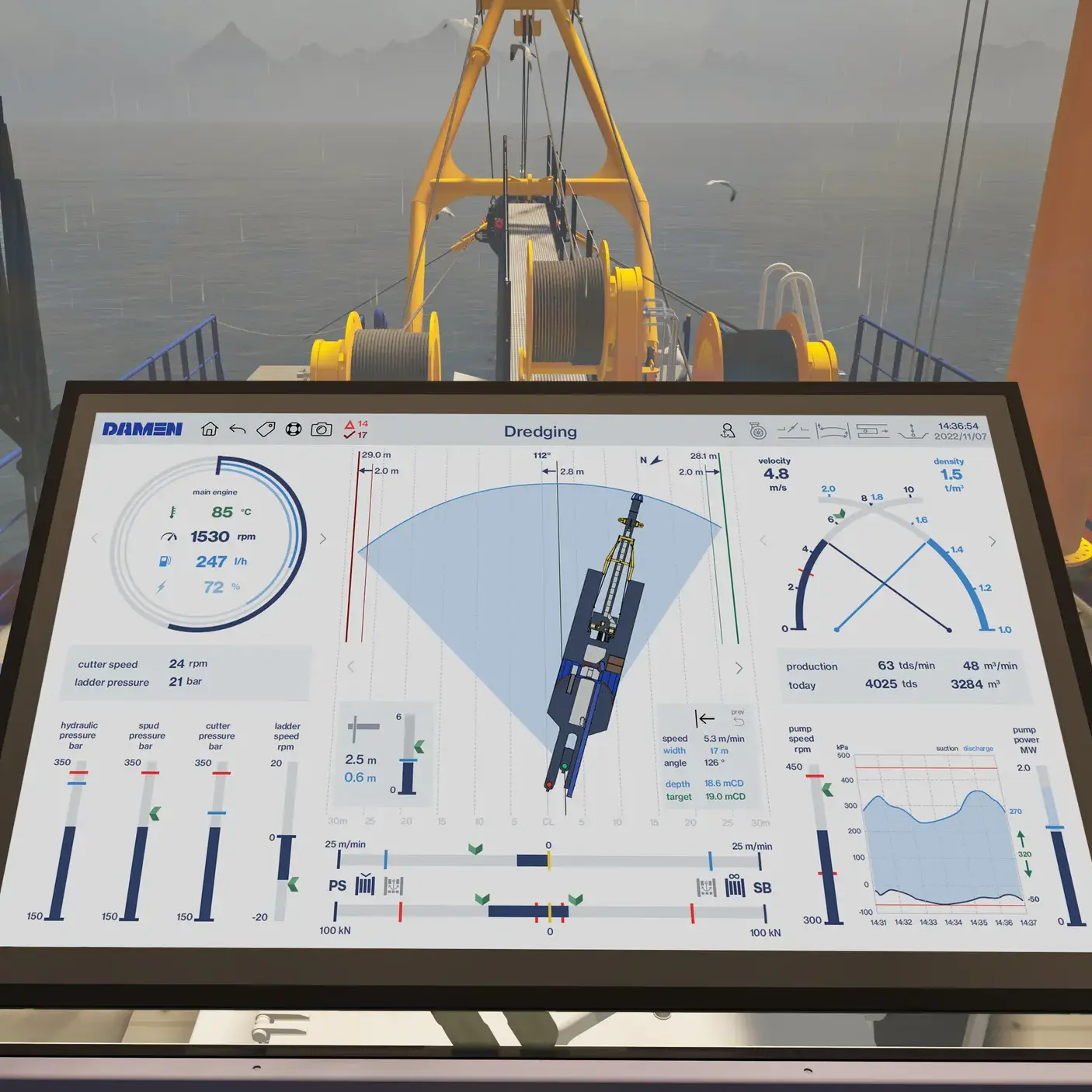

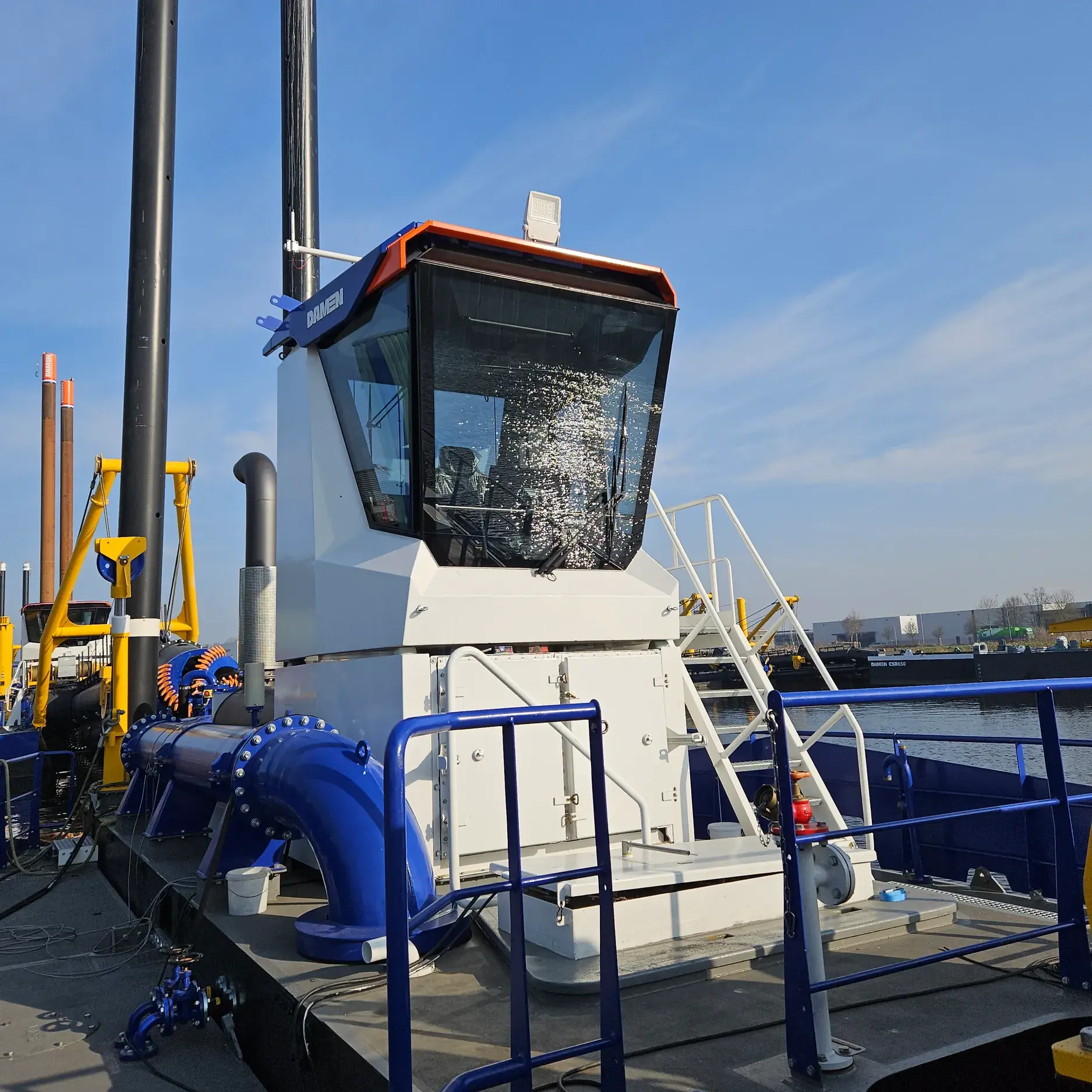

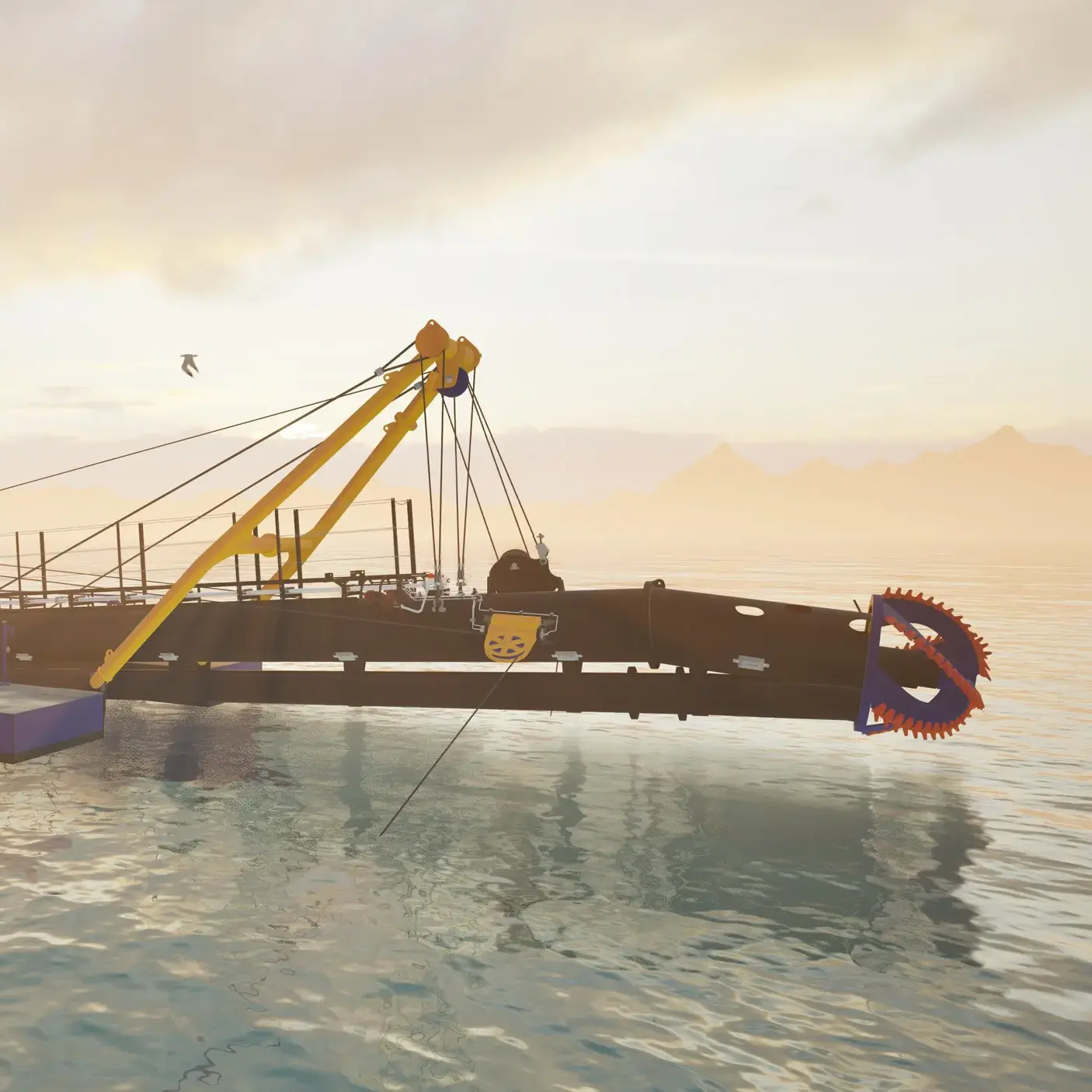

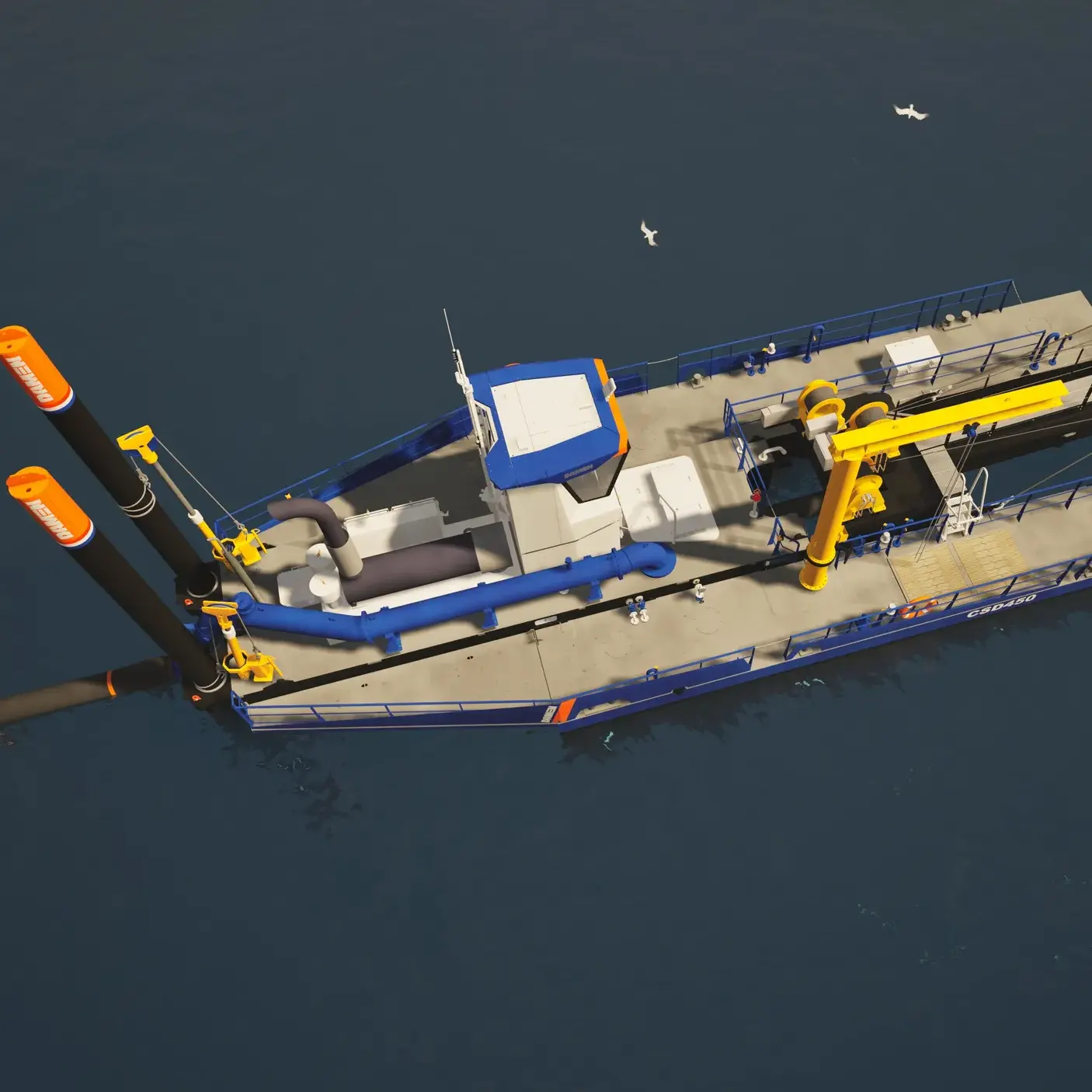

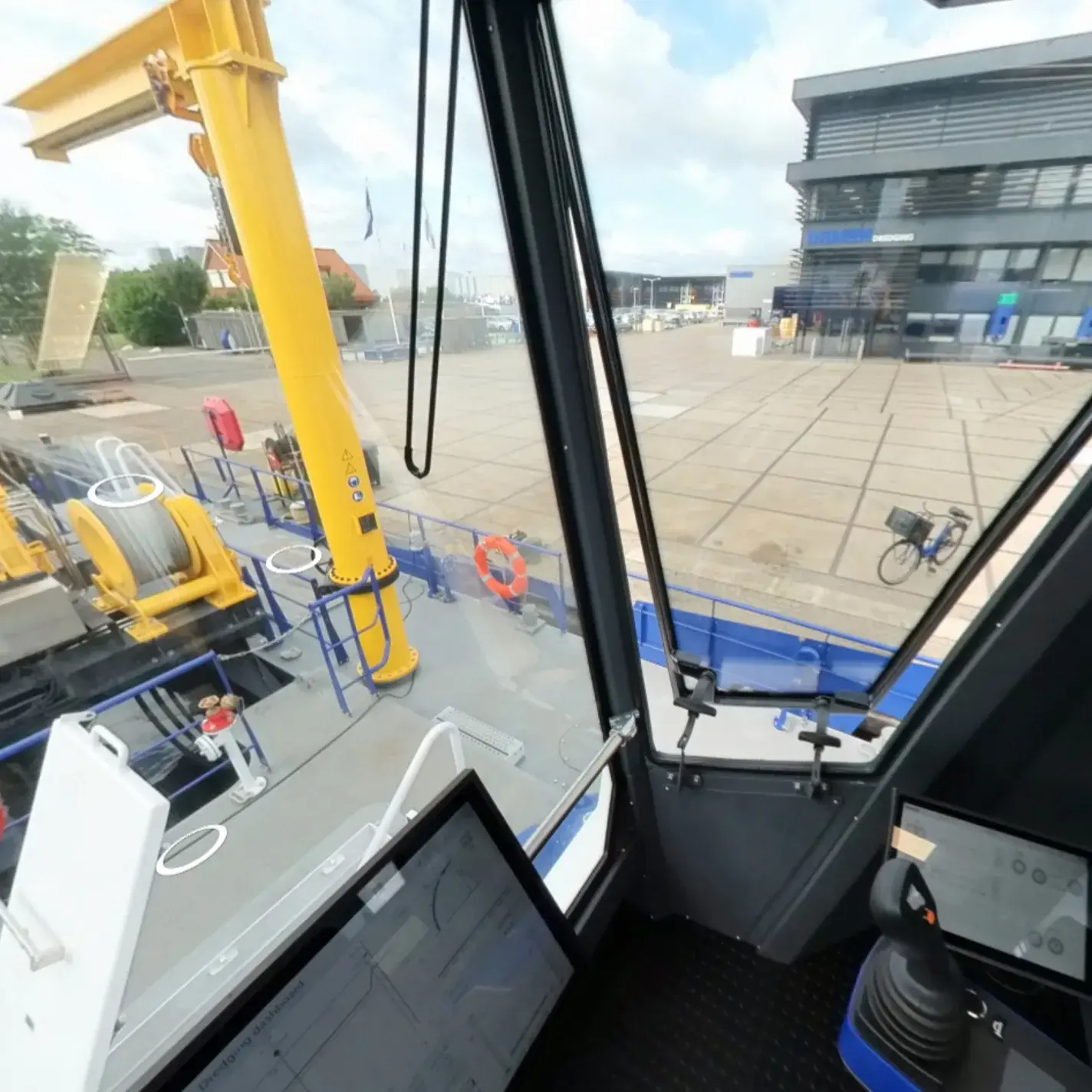

The second type of the brand-new cutter suction dredger series, the CSD450 boasts a complete redesign. Operational excellence is key in the design; hence the raised operating cabin, the flush decks and the raised winch platform well away from the crew. The fully dismountable dredger is equipped with a newly designed high efficiency dredge pump, which can be controlled by the intuitive controls integrated in the dredge masters chair.
- Spud carriage pontoon
- EU Stage V
- Increased dredging depth
- Navigation & communication package
What size of dredger perfectly matches your operation? Configure your own
- Dismountable dredger for practical transport
- Easily customised due to available options
- Large swing width maximising operational efficiency

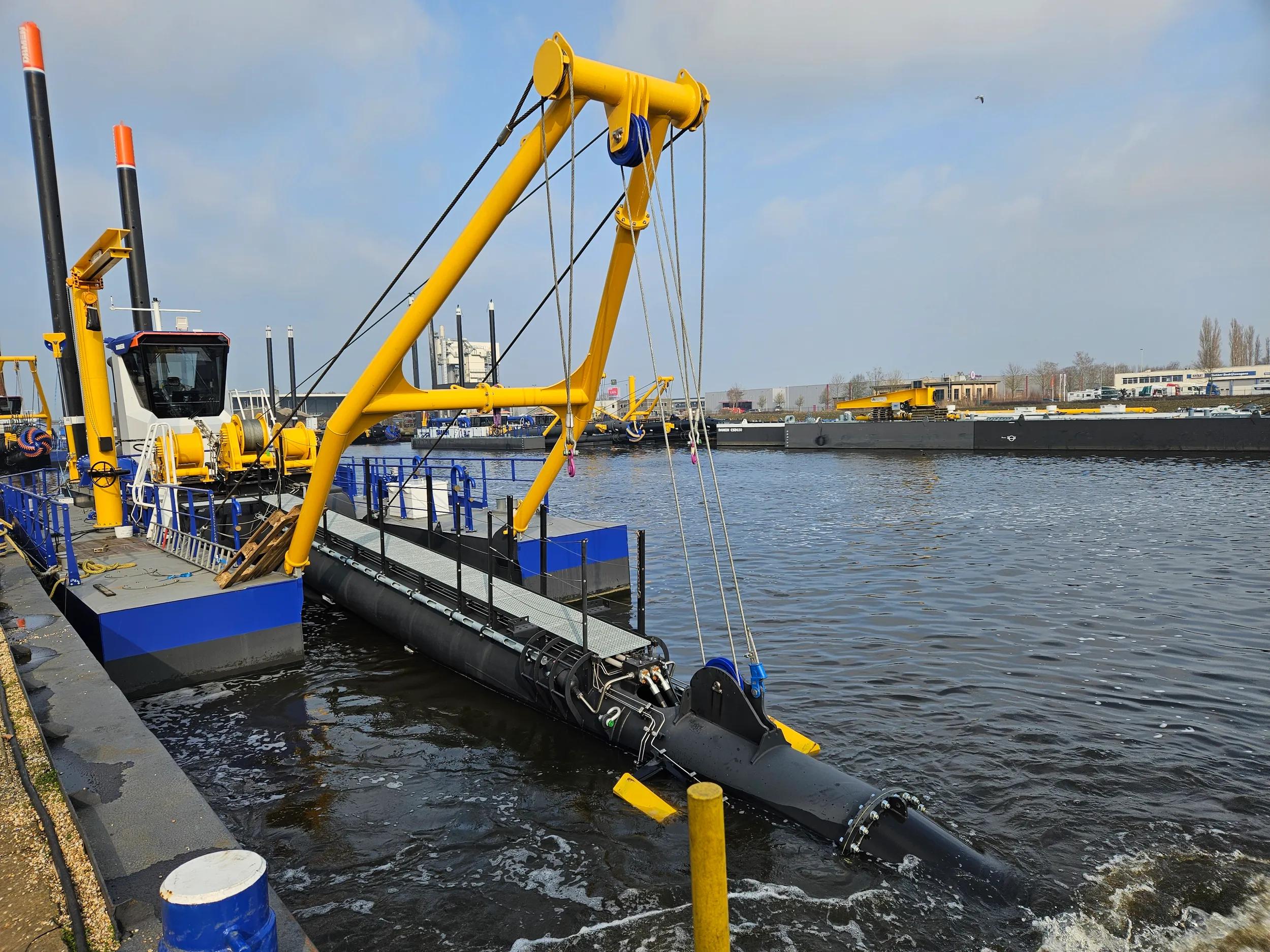

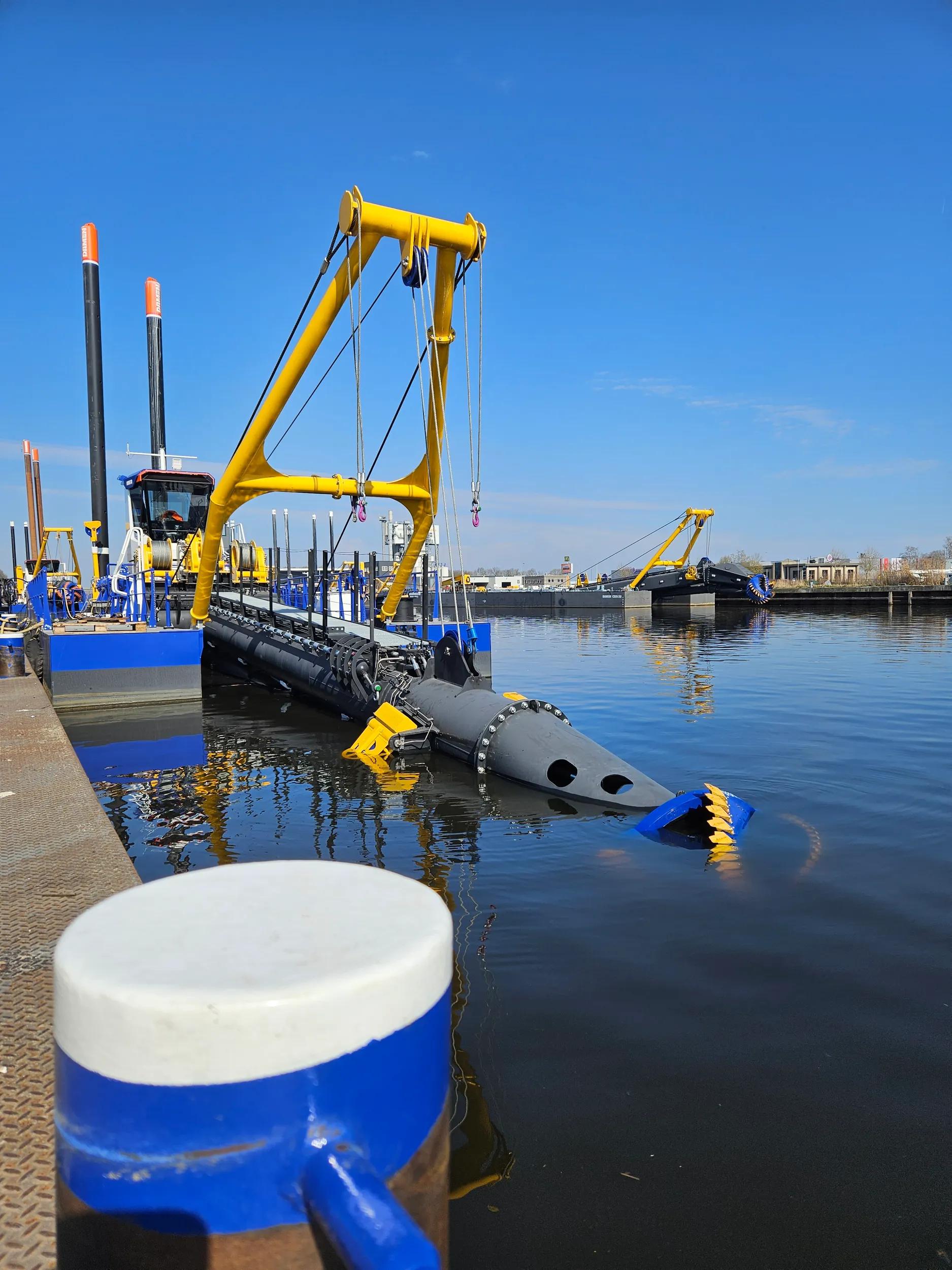

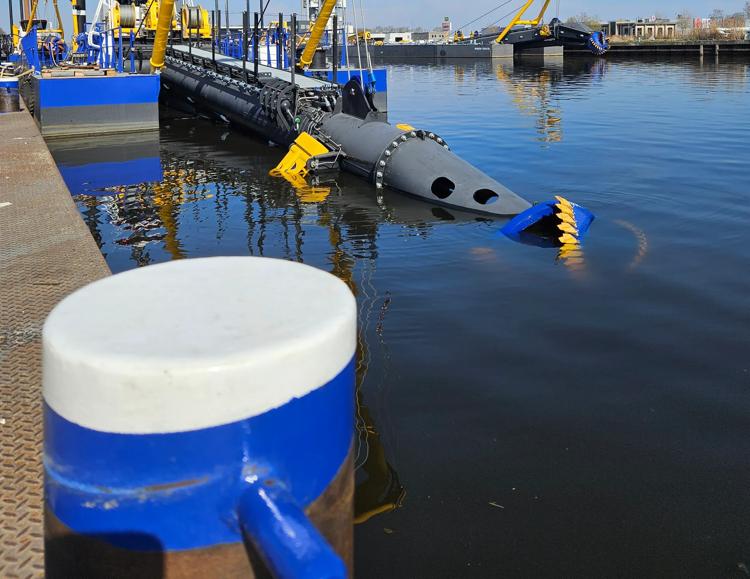

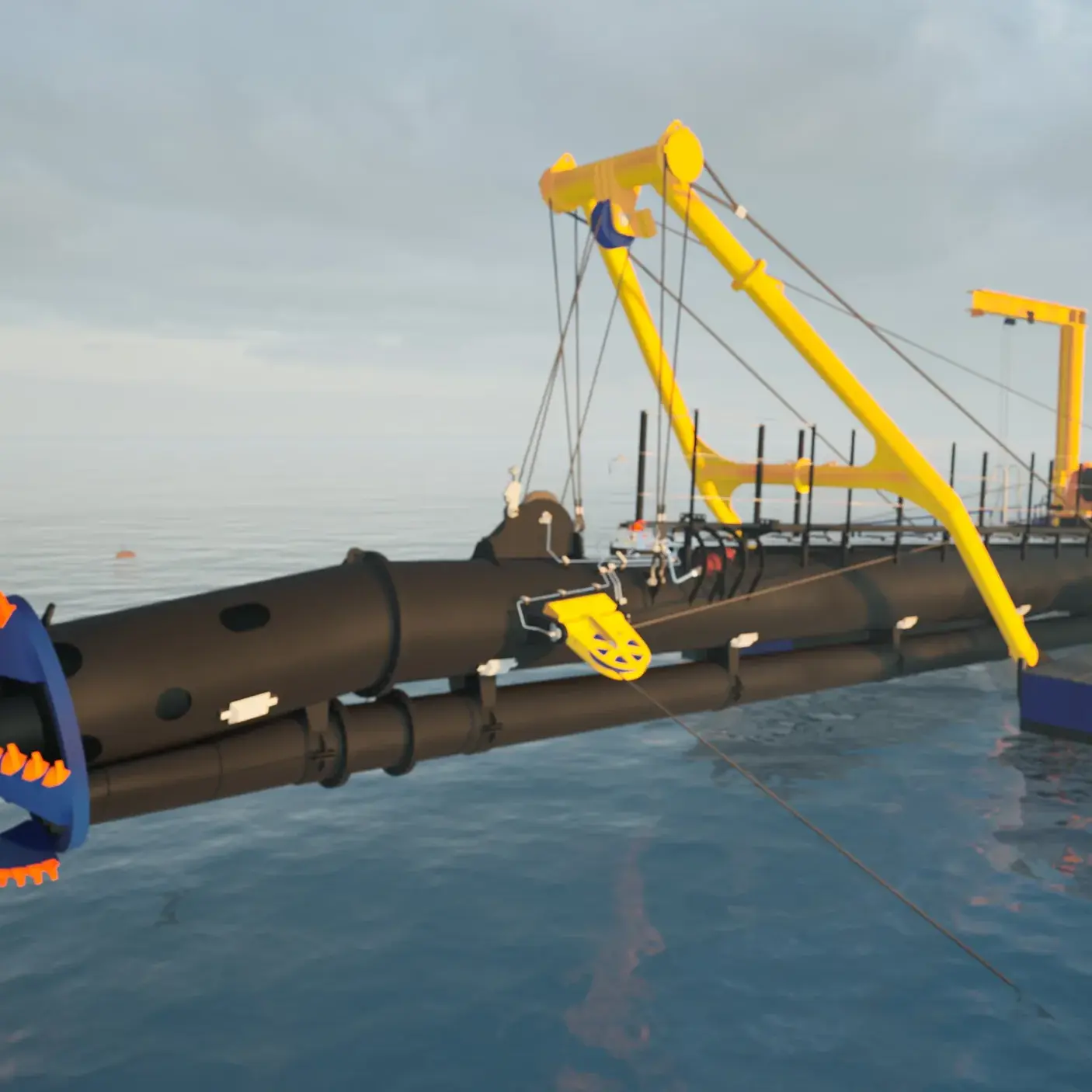

- Powerful cutter unit and wear resistant dredge pump
Key figures
3400
12
970
450
110
Dredge performance
- Pipe diameter
- 450 mm
- Dredge production
- 3400 m³/h
- Dredging depth
- 12 m
- Swing width
- 30 m
Equipment
- Cutter power
- 110 kW
- Cutter diameter
- 1450 mm
- Fuel capacity
- 28 m³
- Total installed power
- 970 kW
Dimensions
- Length
- 31 m
- Draught
- 1.2 m
- Air draught
- 5.7 m
- Total weight
- 95 t
Do you want to know more?
Compare the different CSD types
| Production (m³/h) | Dredging depth (m) | Power (kW) | Pipe diameter (mm) | Cutter power (kW) | ||
|---|---|---|---|---|---|---|
| CSD450 | 3400 | 12 | 970 | 450 | 110 | |
| CSD350 | 2000 | 9 | 447 | 350 | 55 | |
| CSD500 | 4000 | 14 | 954 | 500 | 180 |
CSD450
- Production (m³/h)
- 3400
- Dredging depth (m)
- 12
- Power (kW)
- 970
- Pipe diameter (mm)
- 450
- Cutter power (kW)
- 110
- Production (m³/h)
- 4000
- Dredging depth (m)
- 14
- Power (kW)
- 954
- Pipe diameter (mm)
- 500
- Cutter power (kW)
- 180
