Unlimited mining tool
Unlimited mining tool

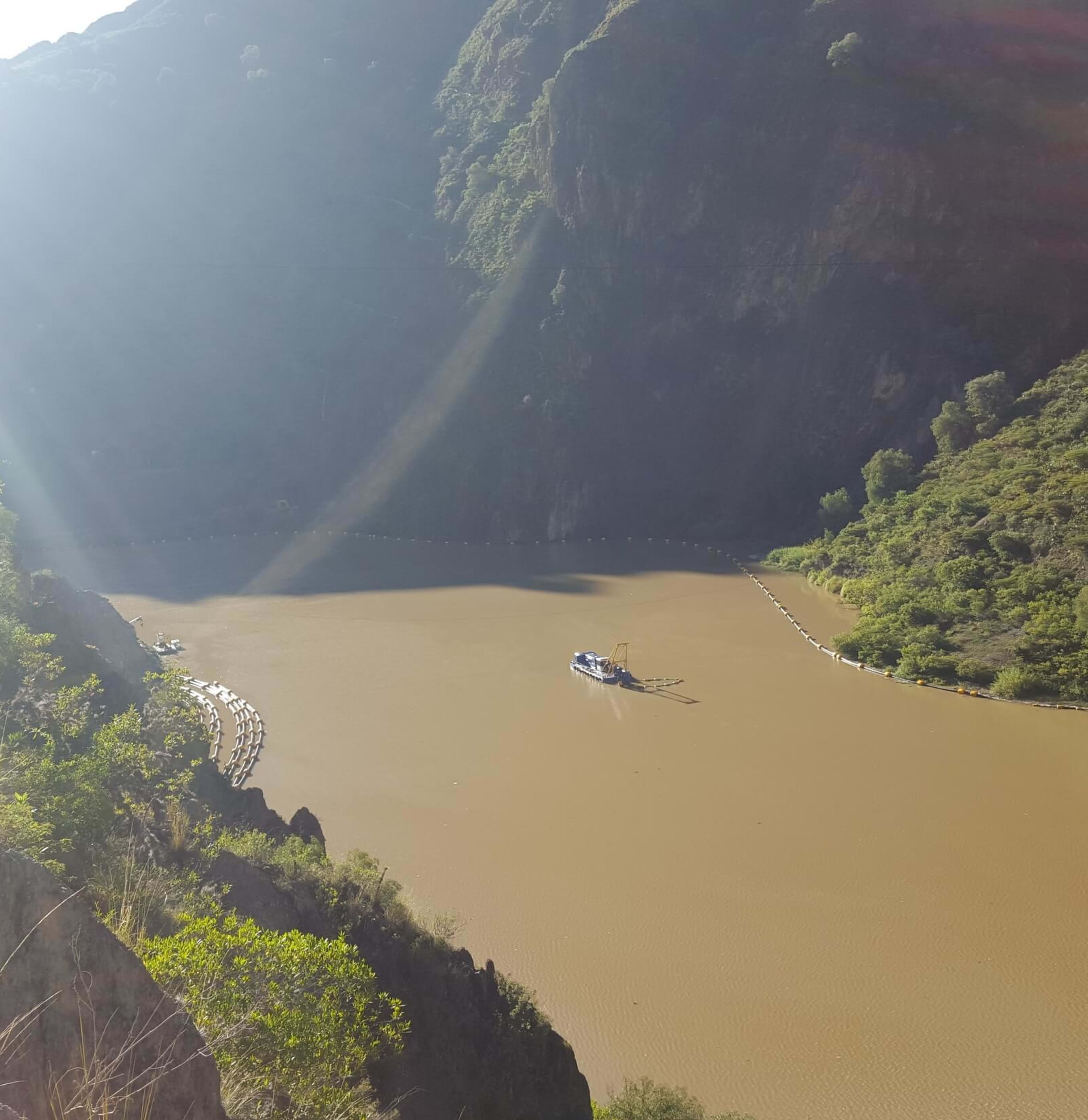

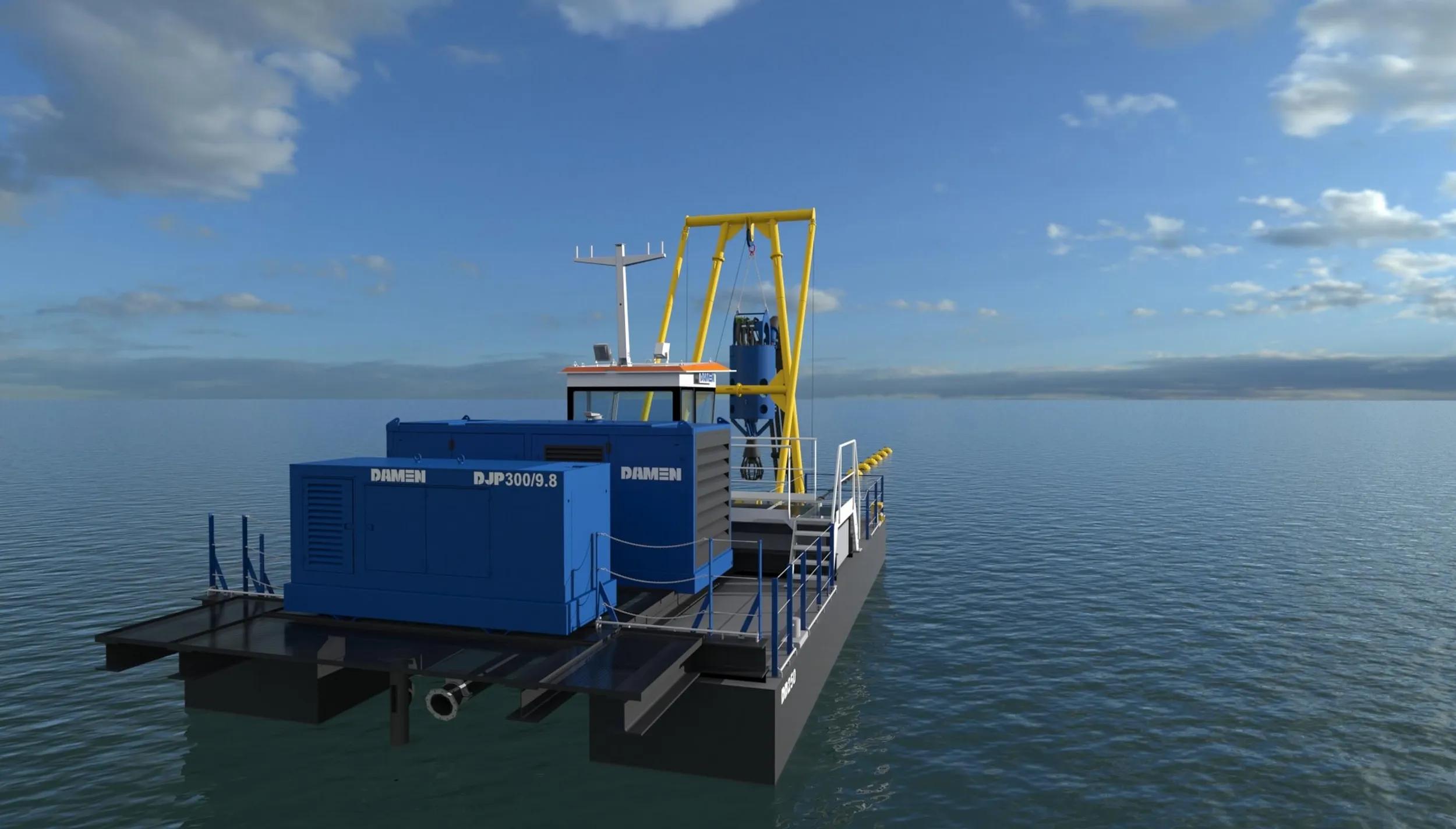

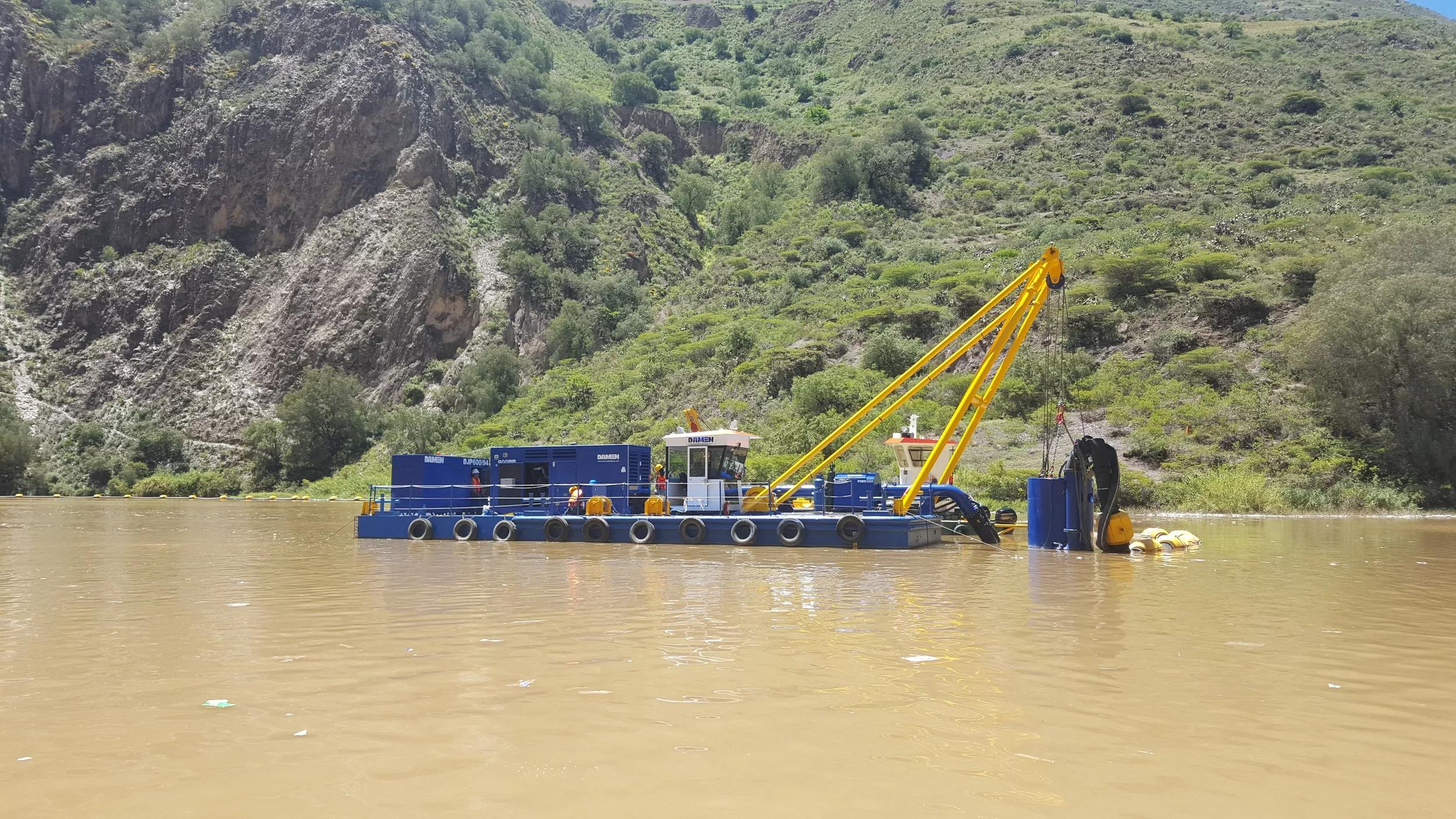

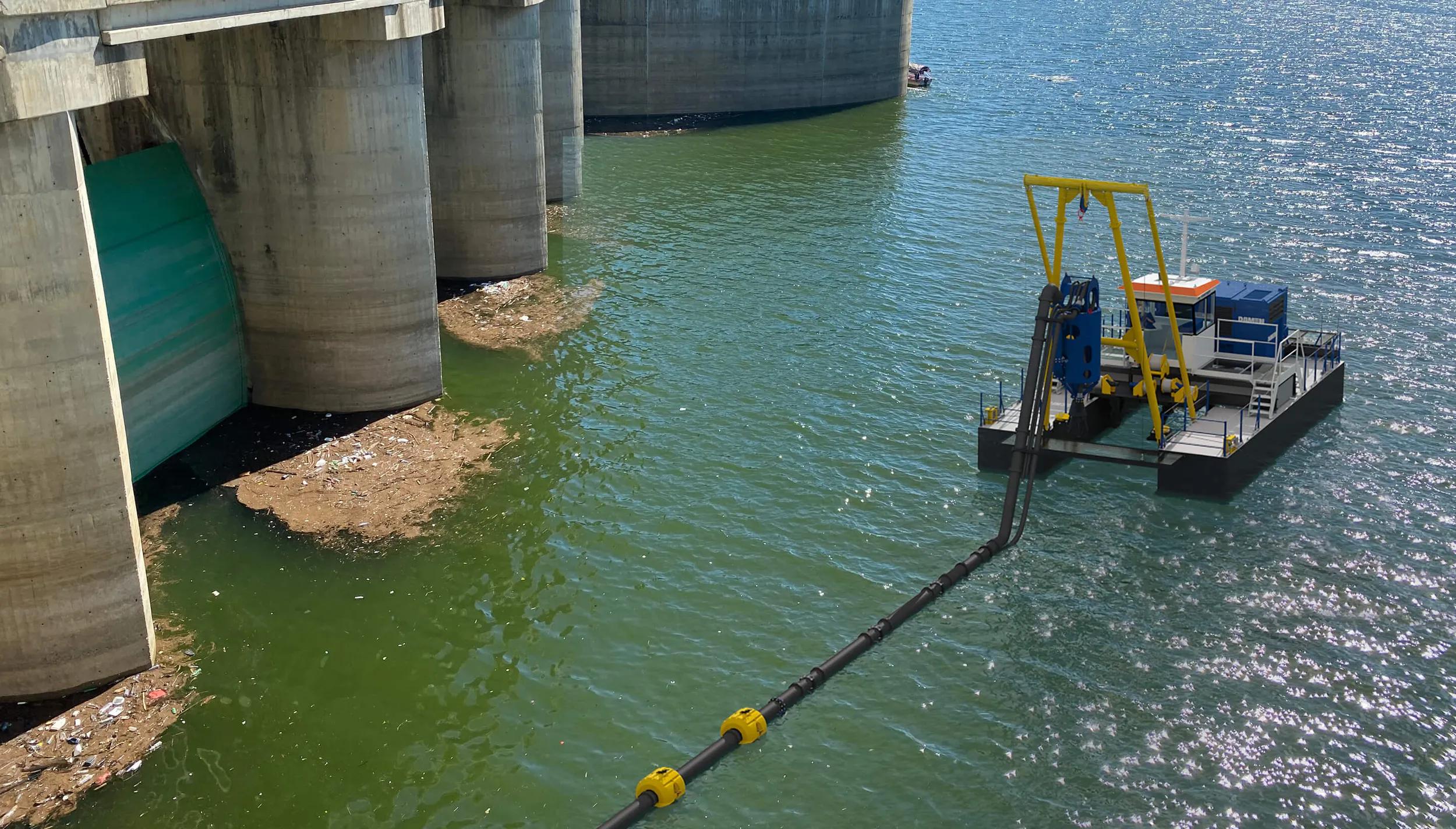

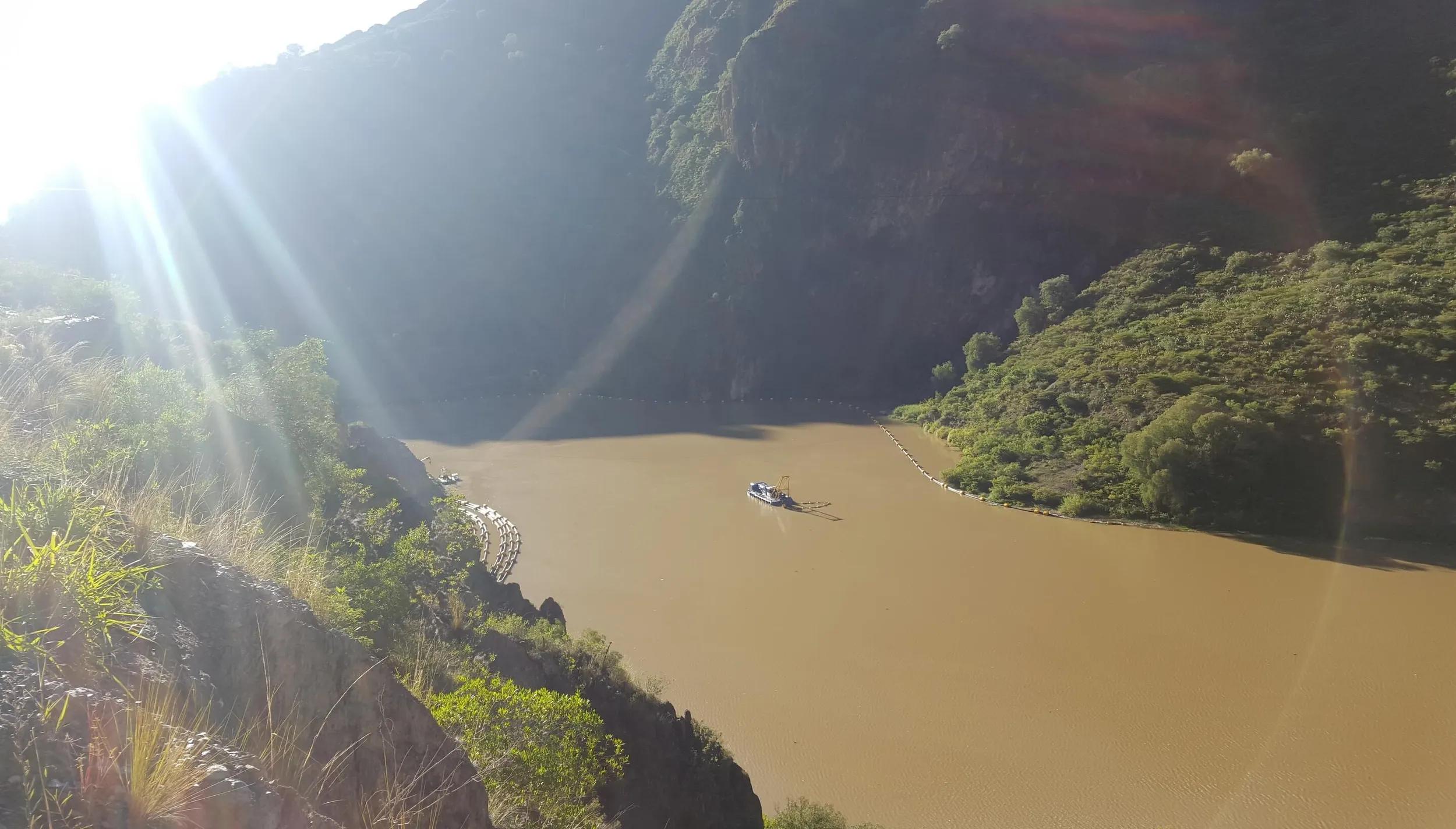

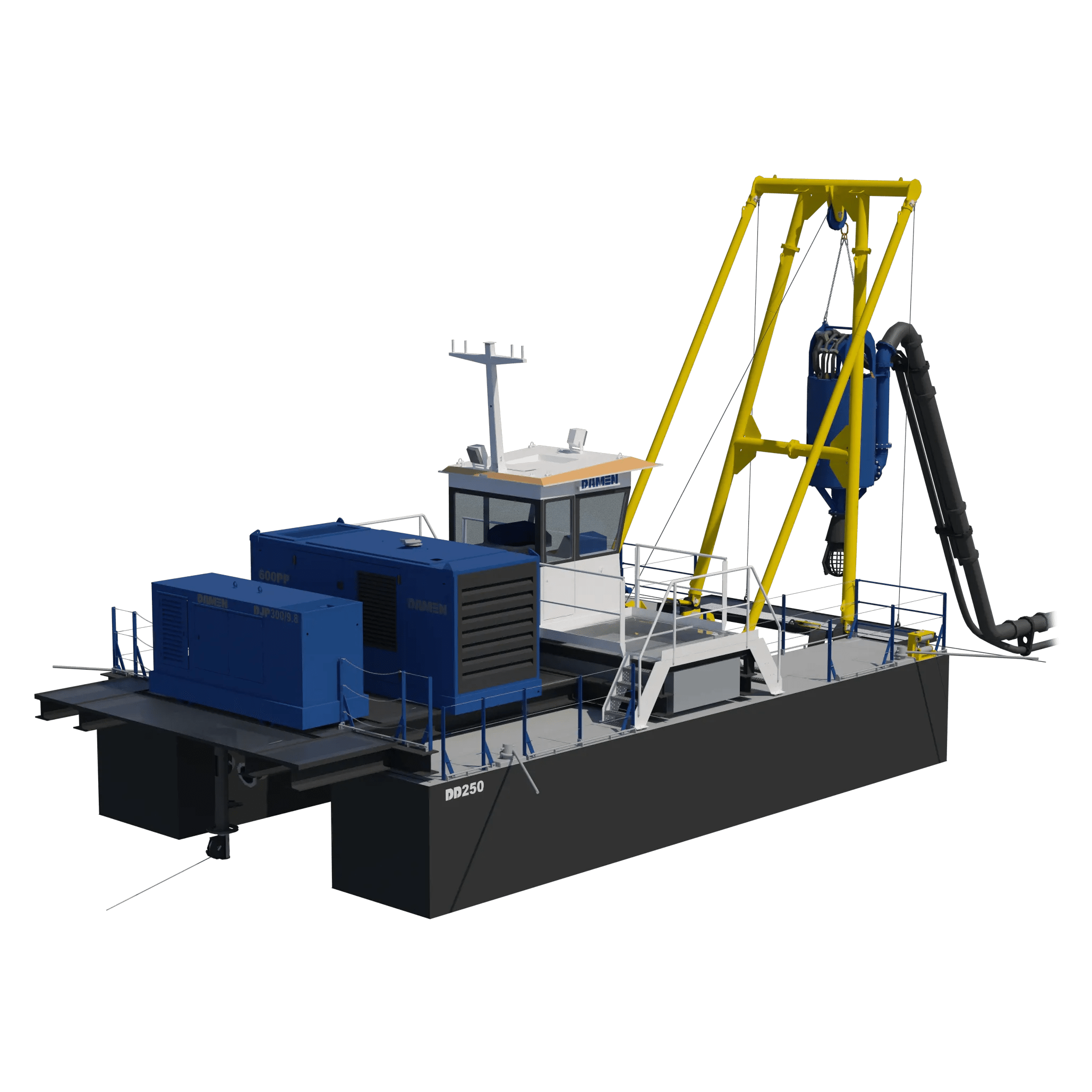

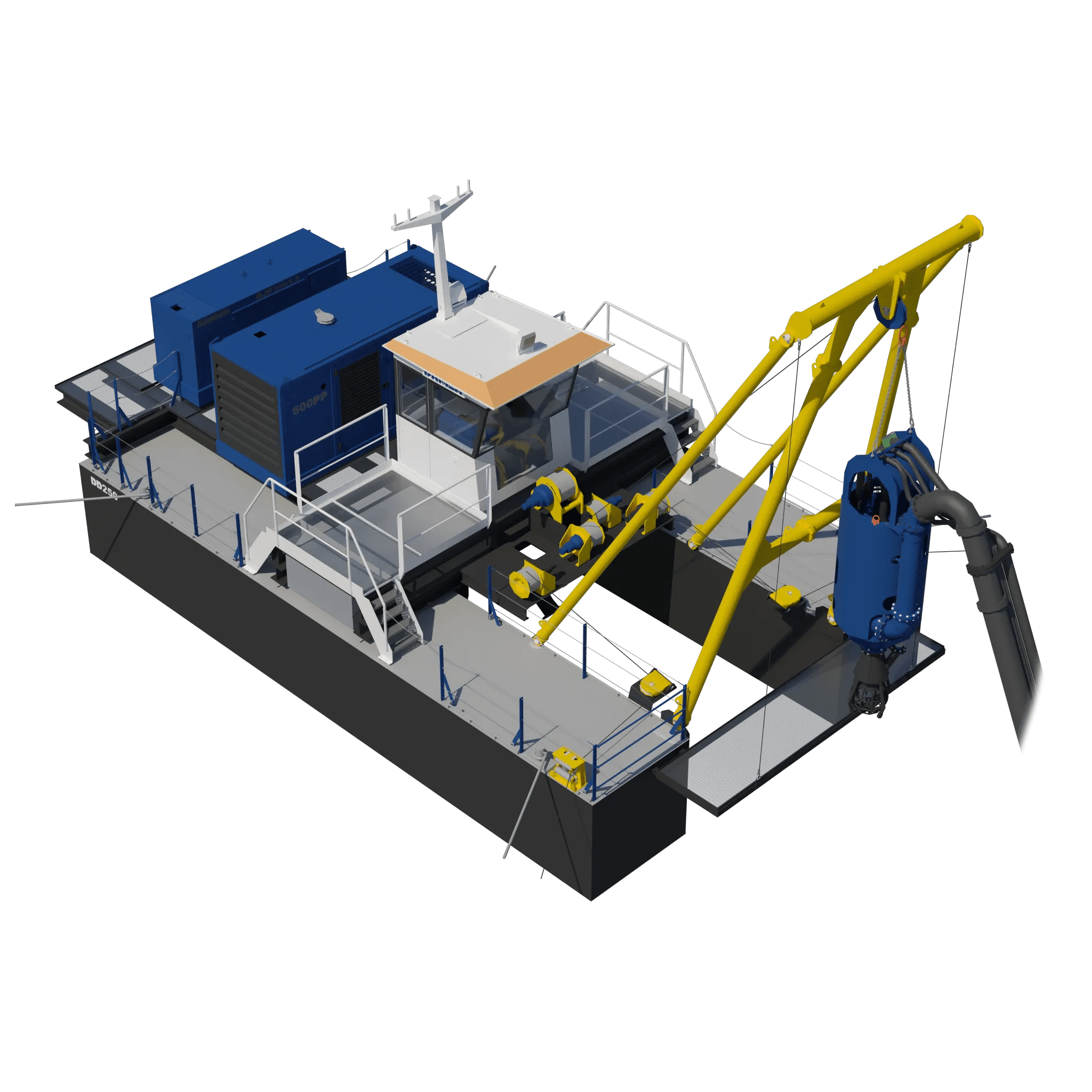

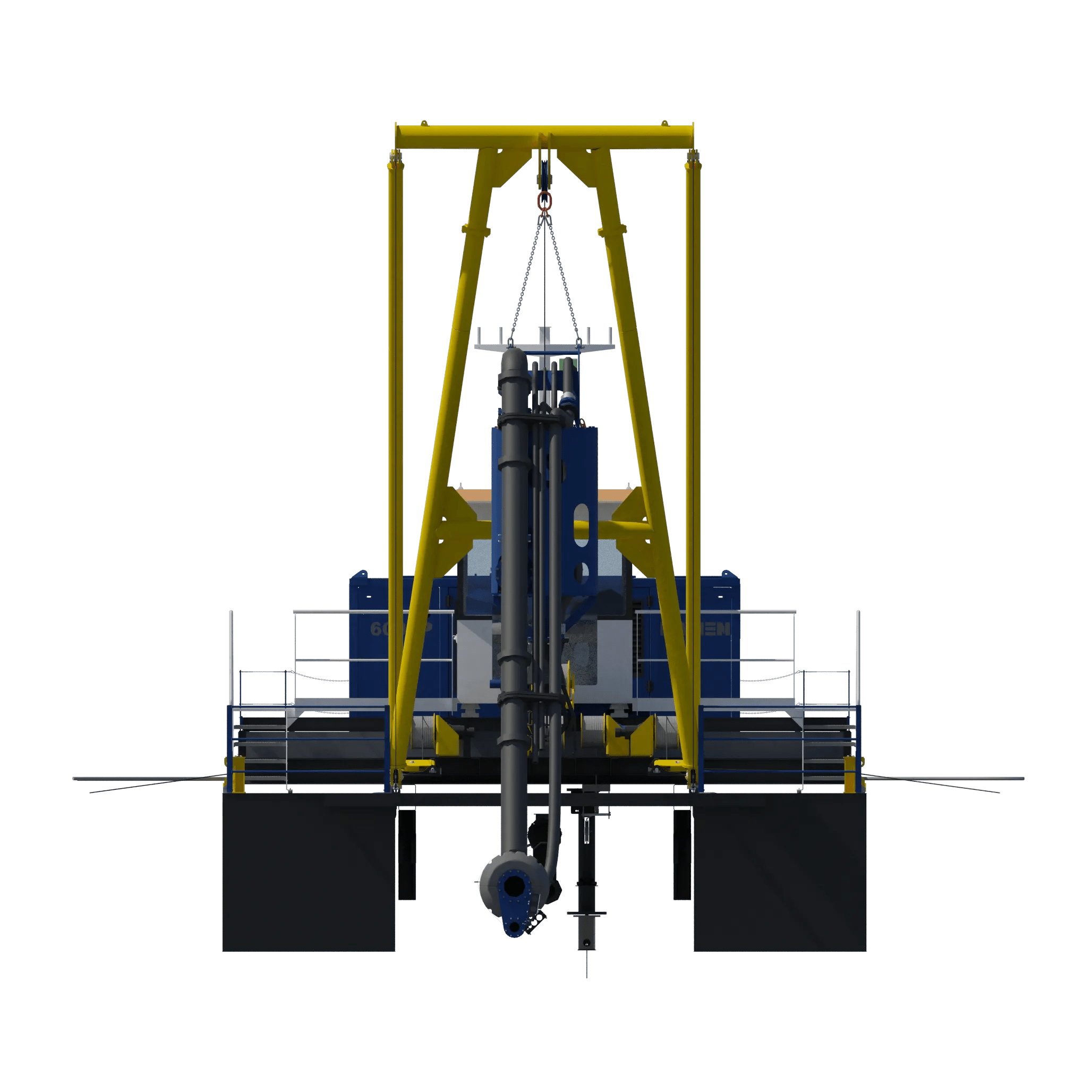

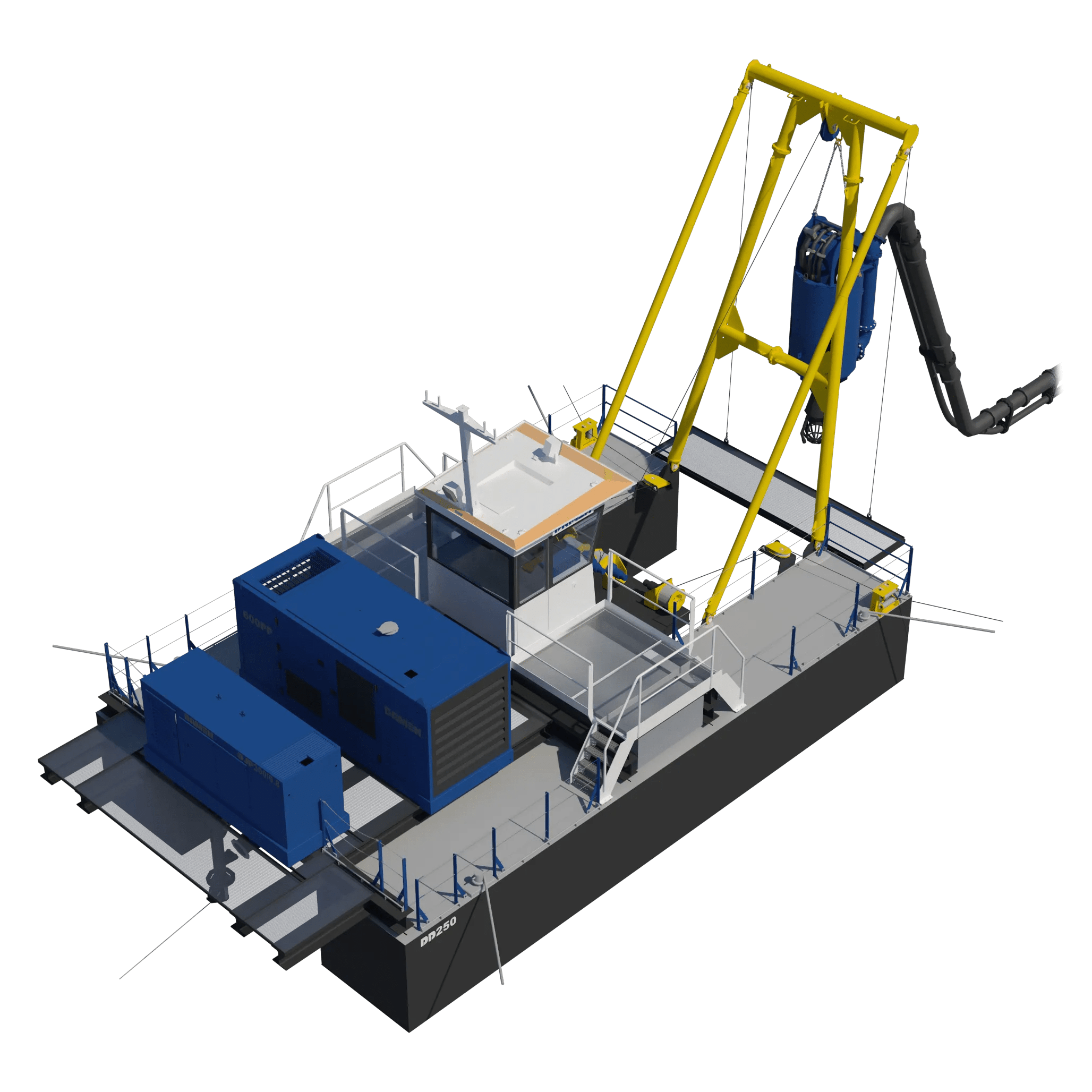

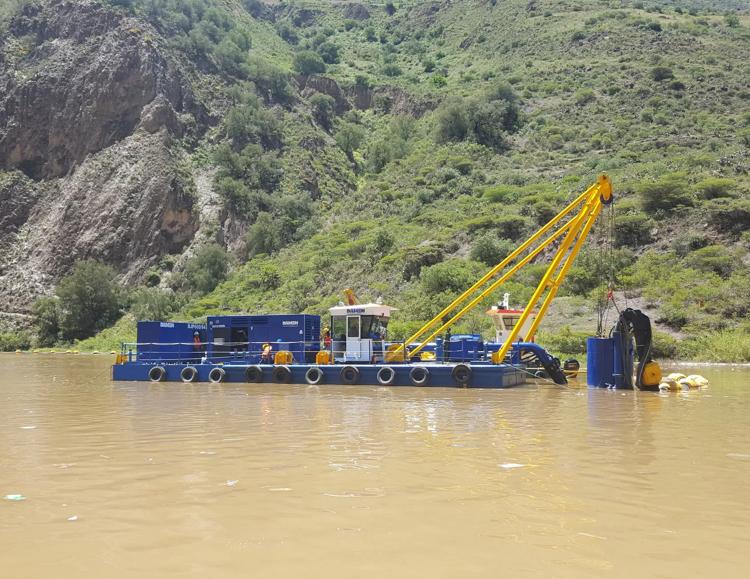

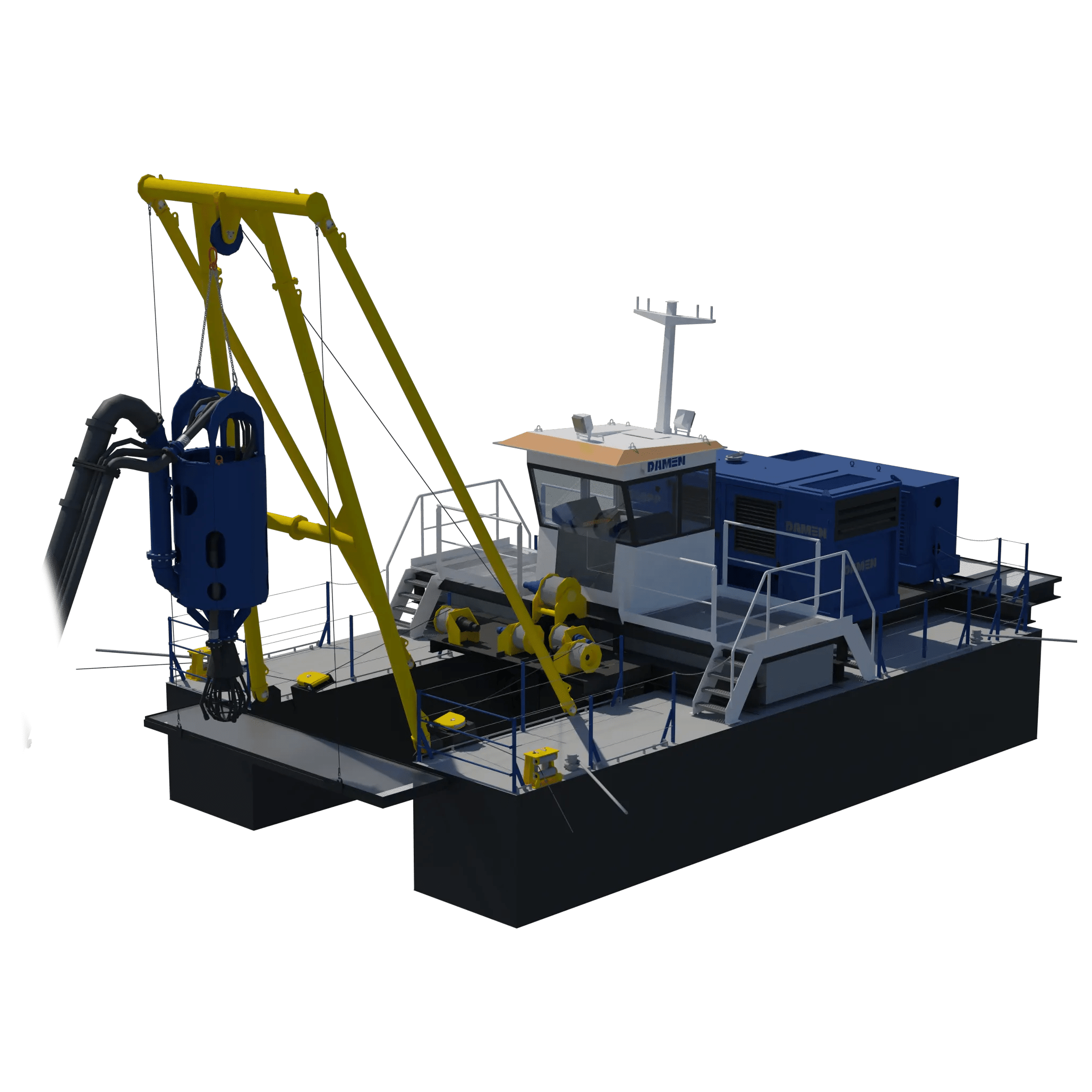

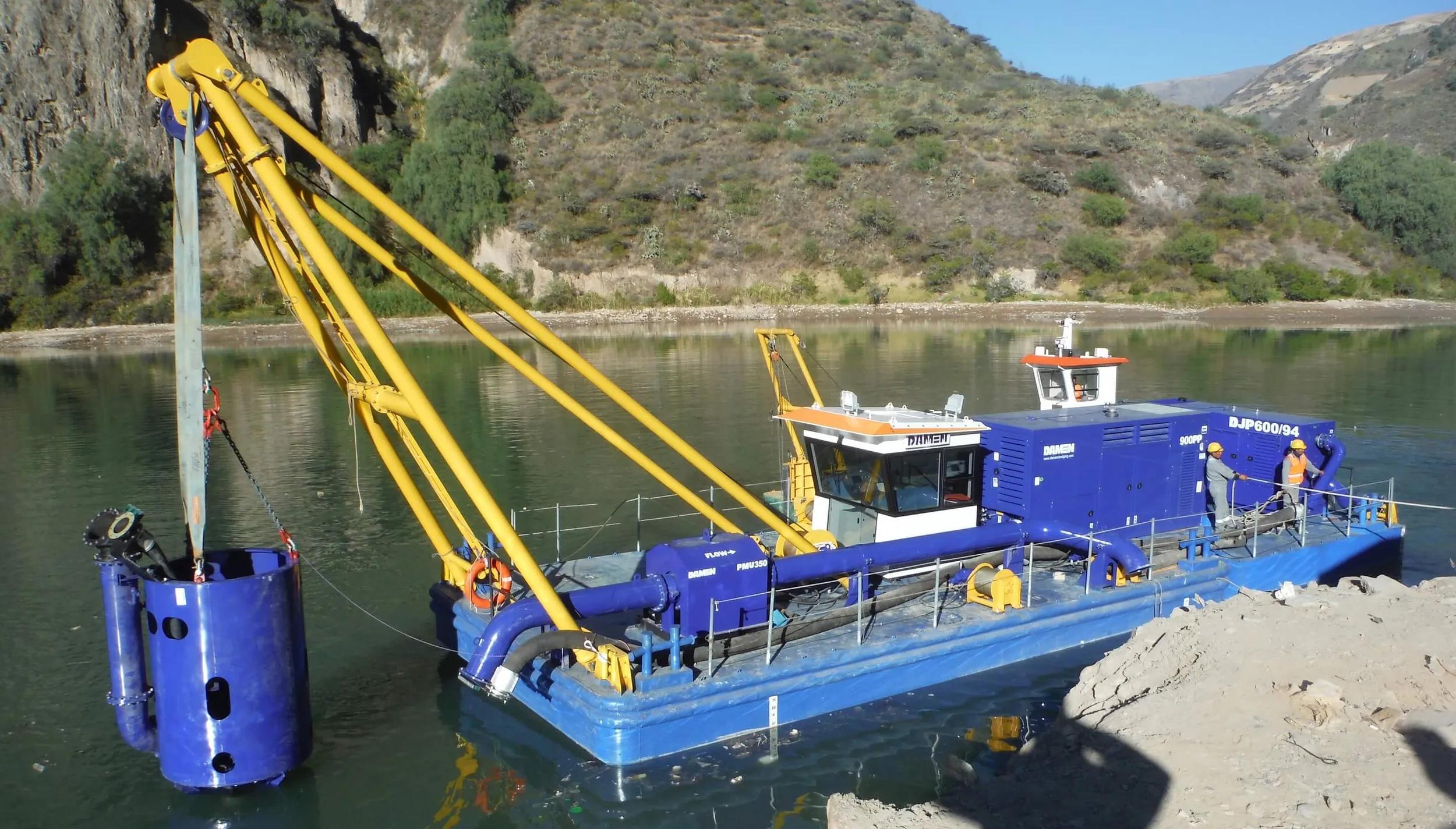

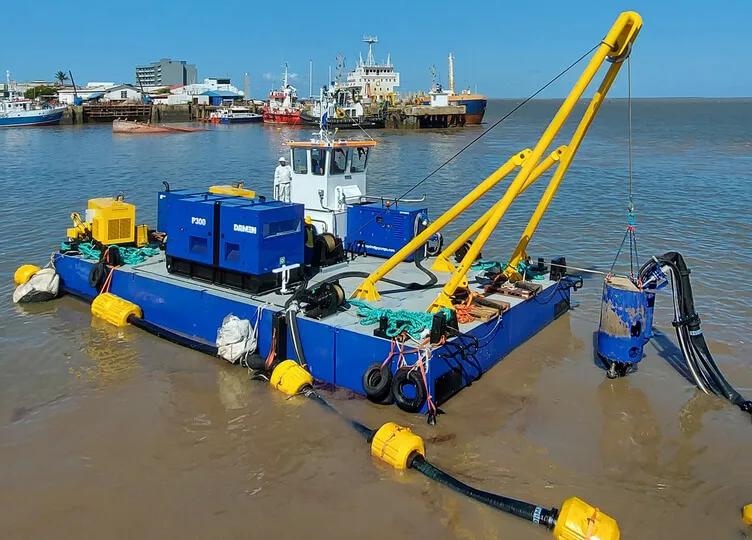

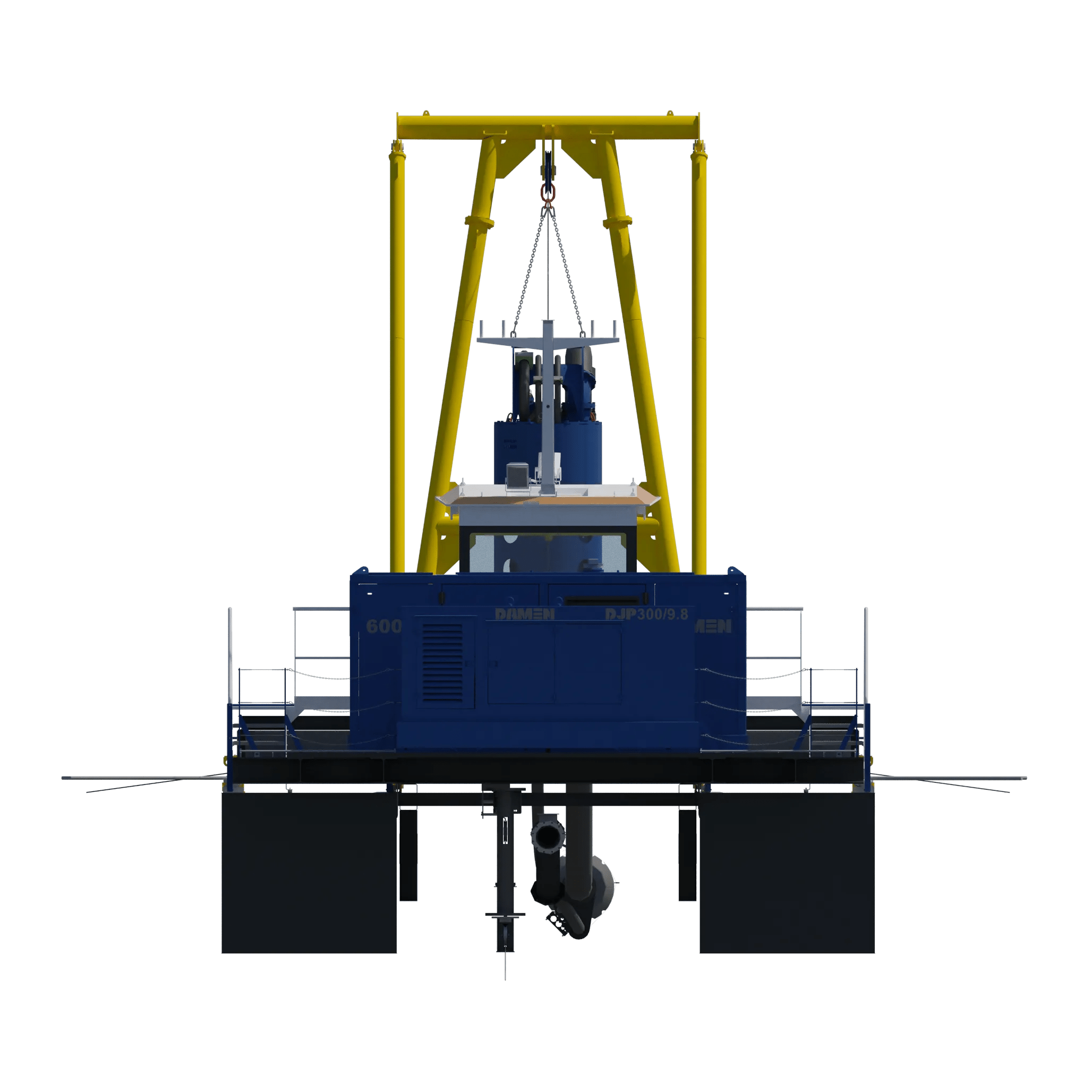

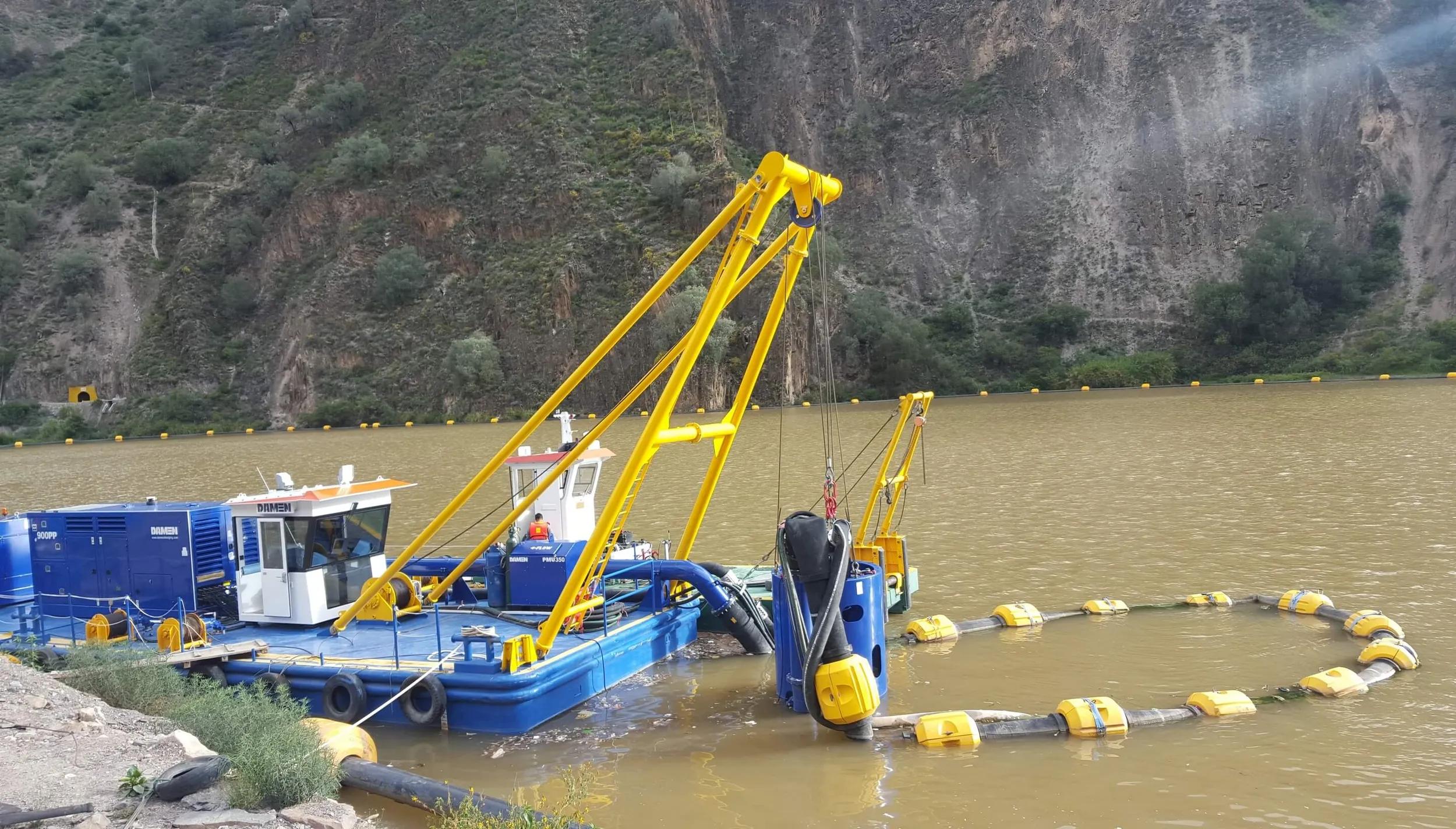

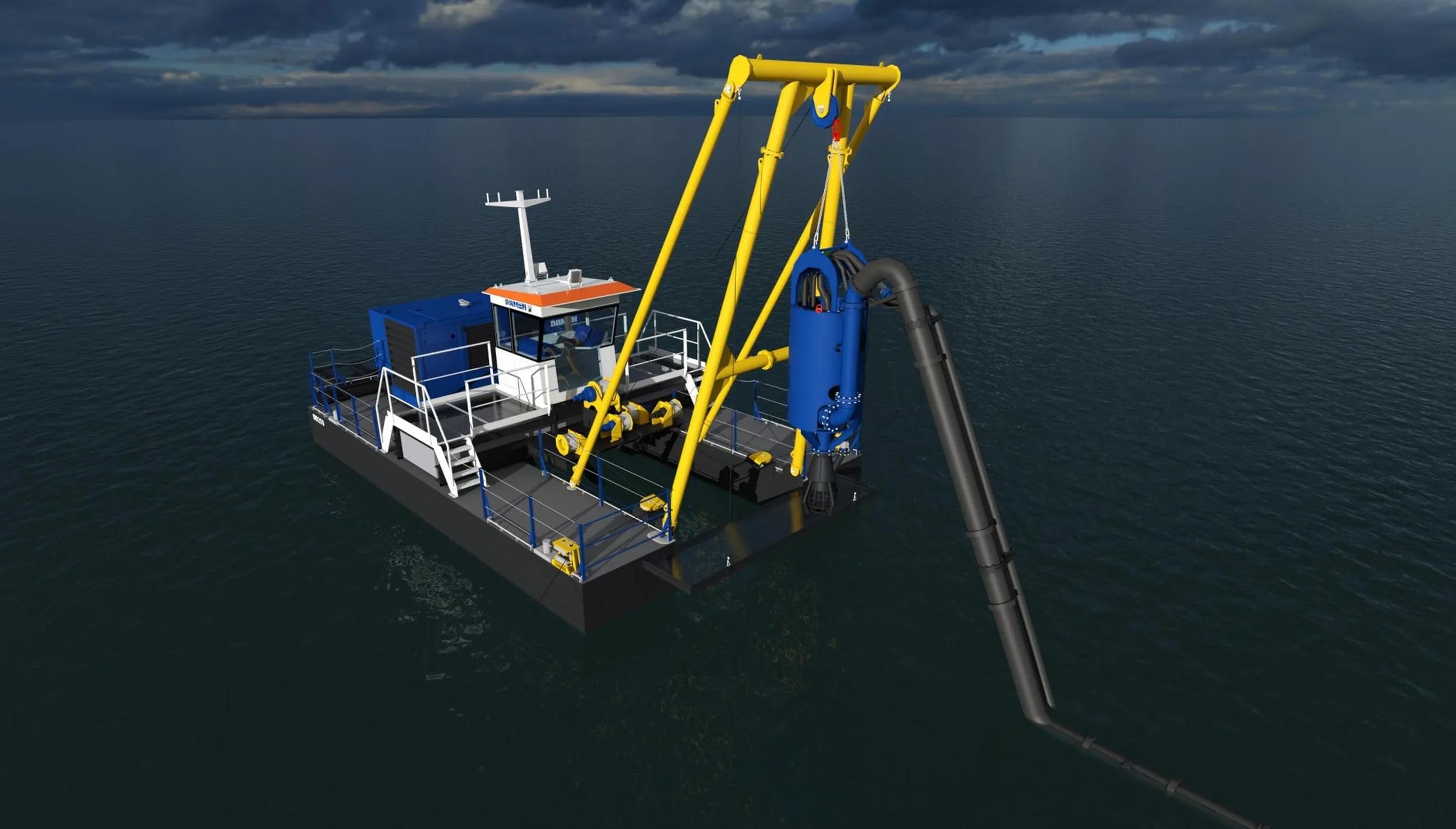

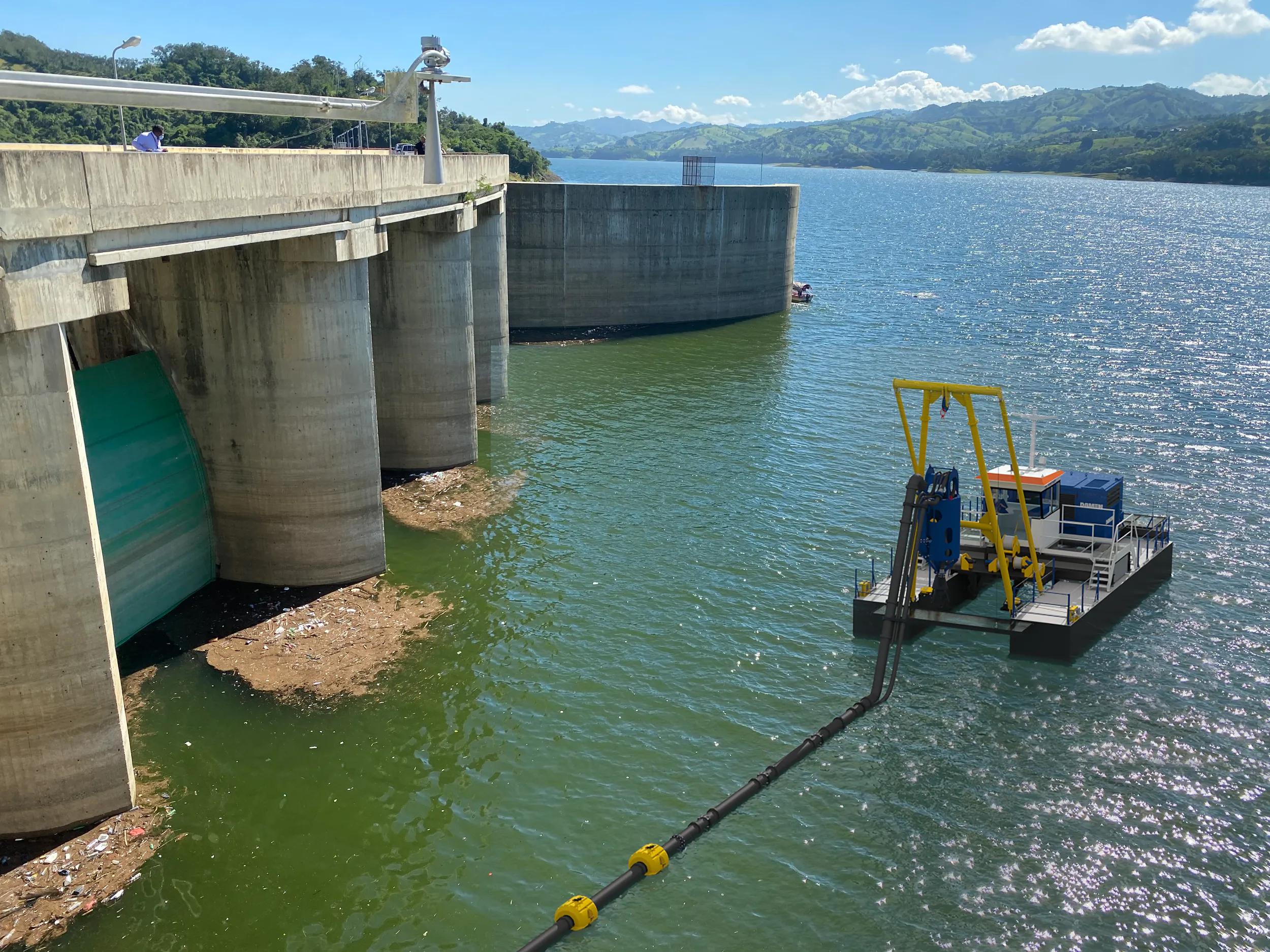

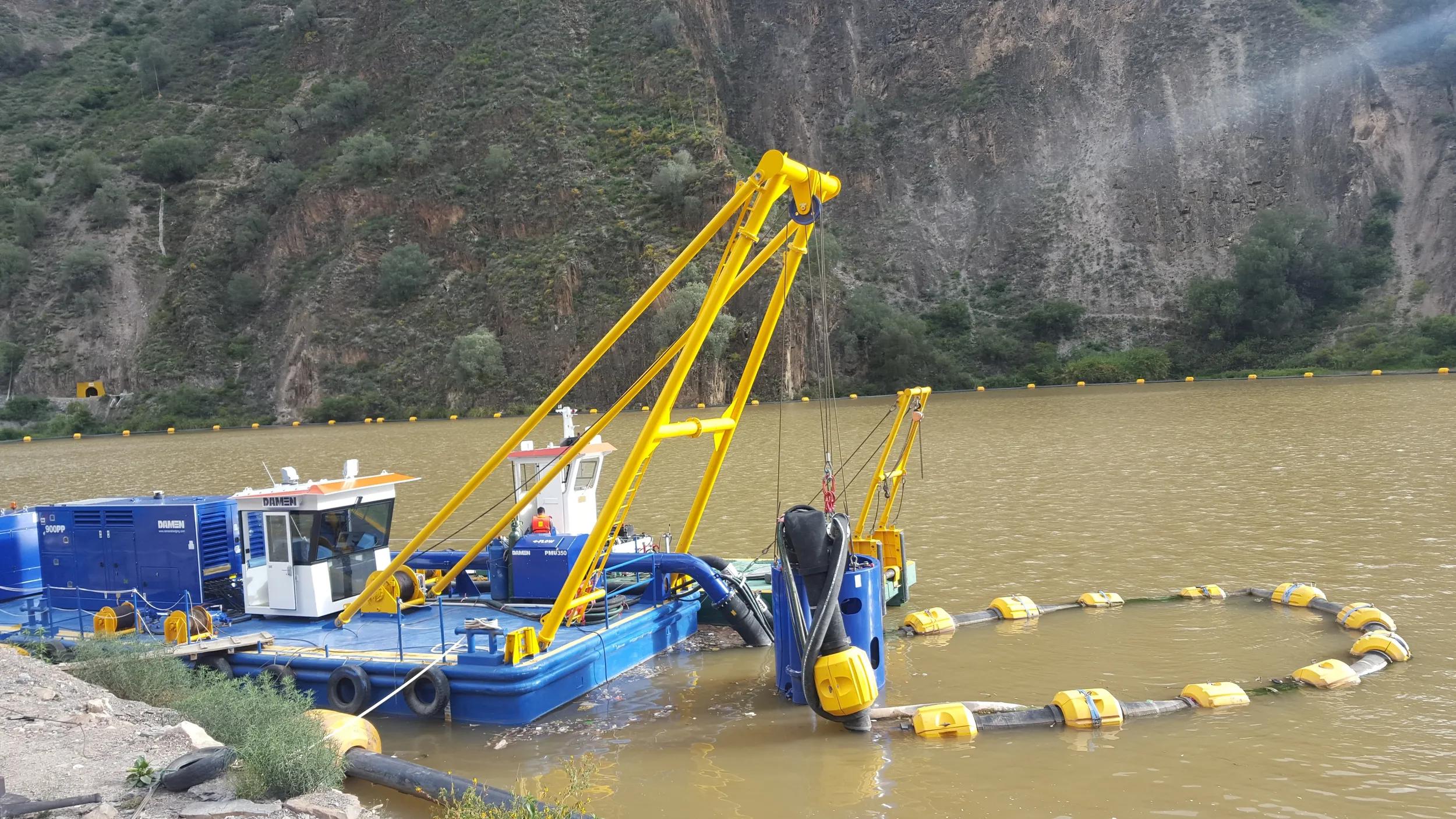

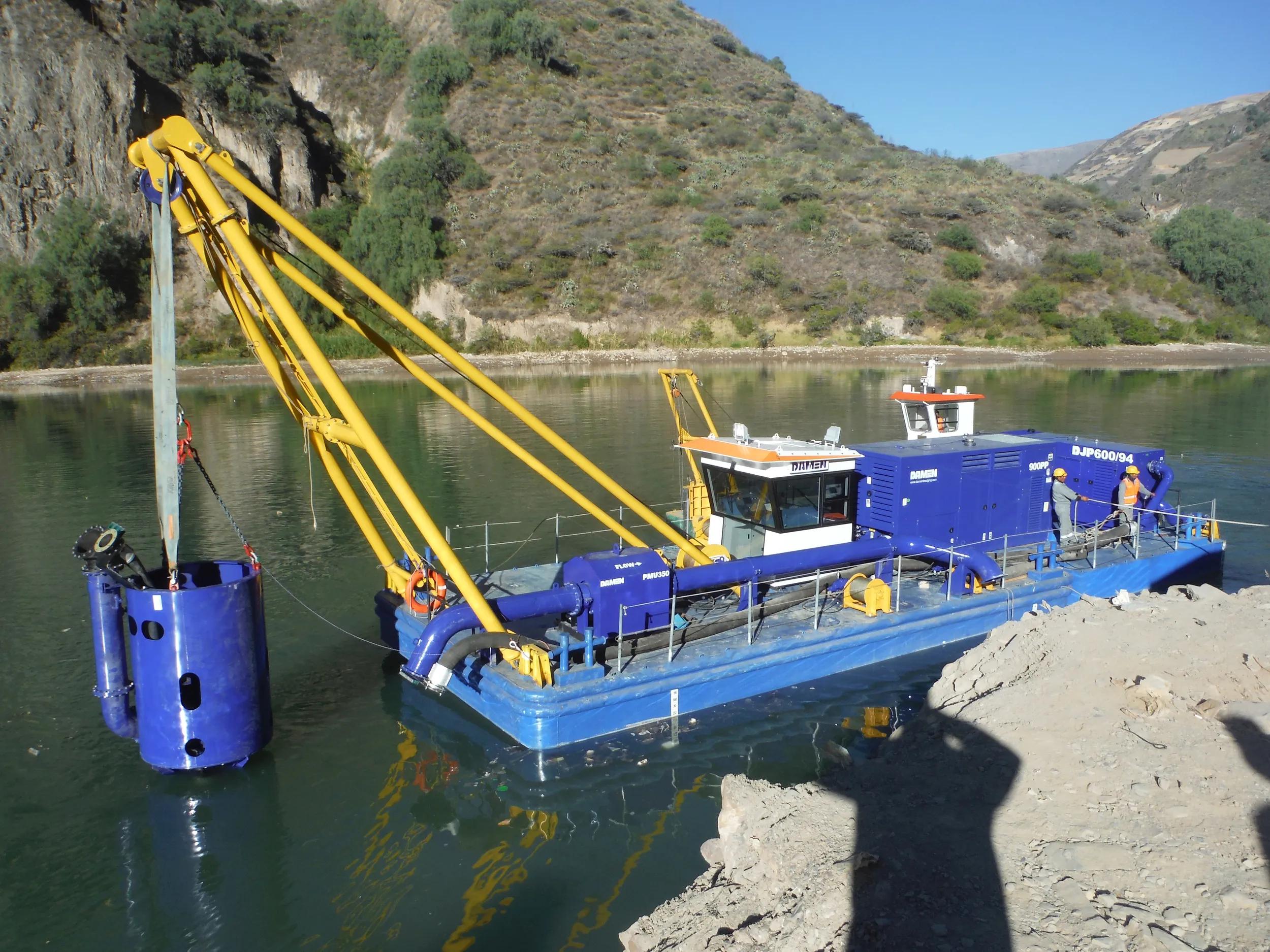

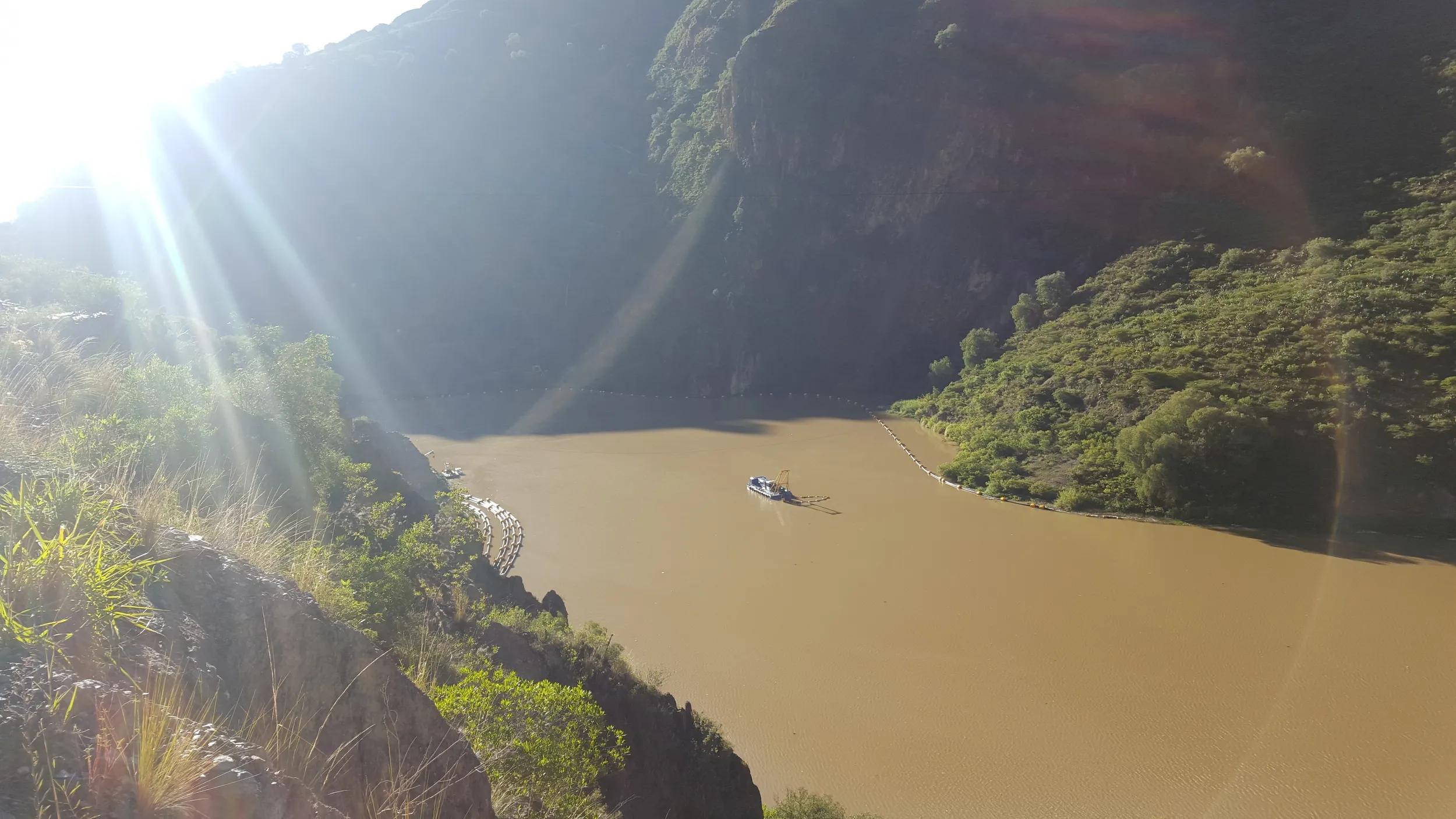

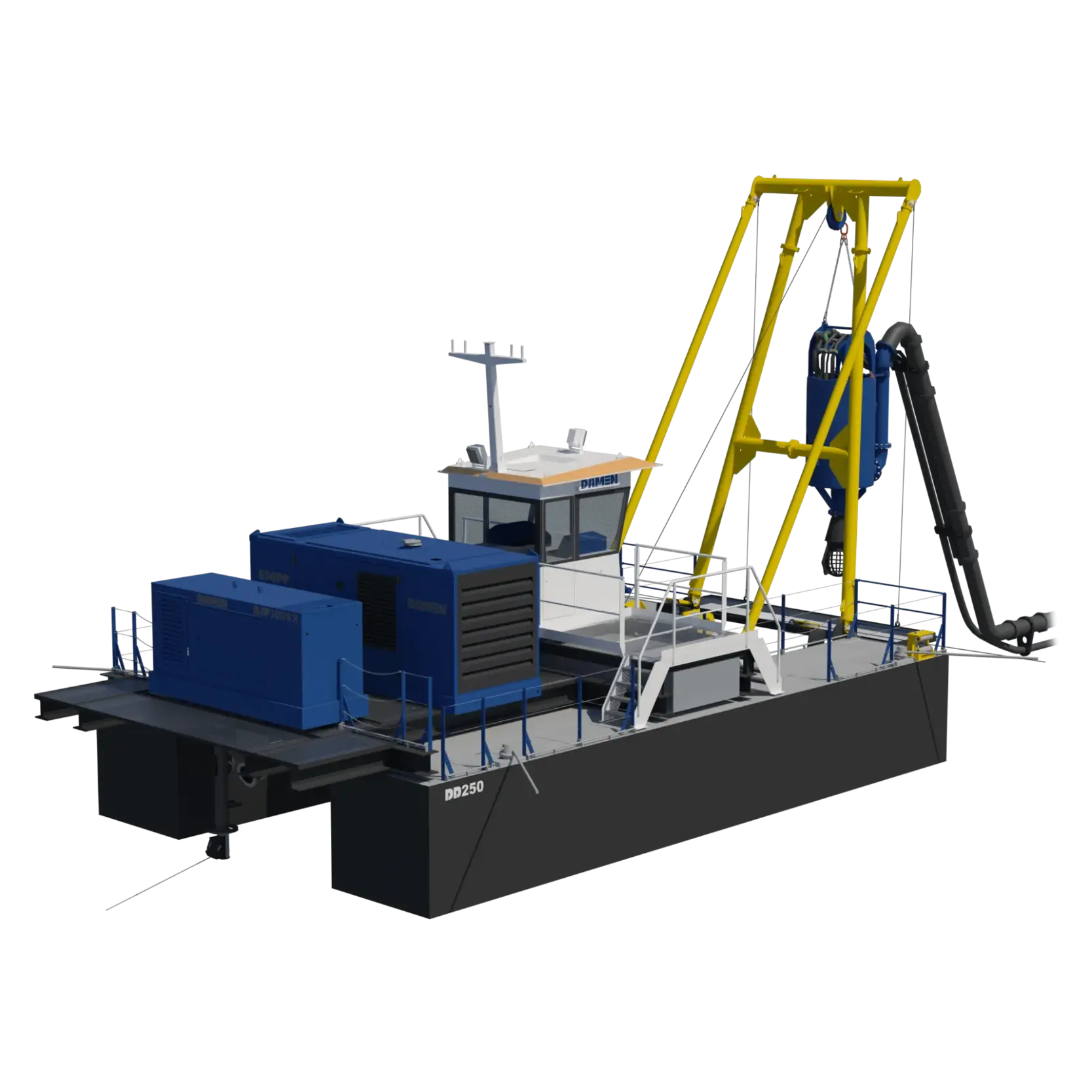

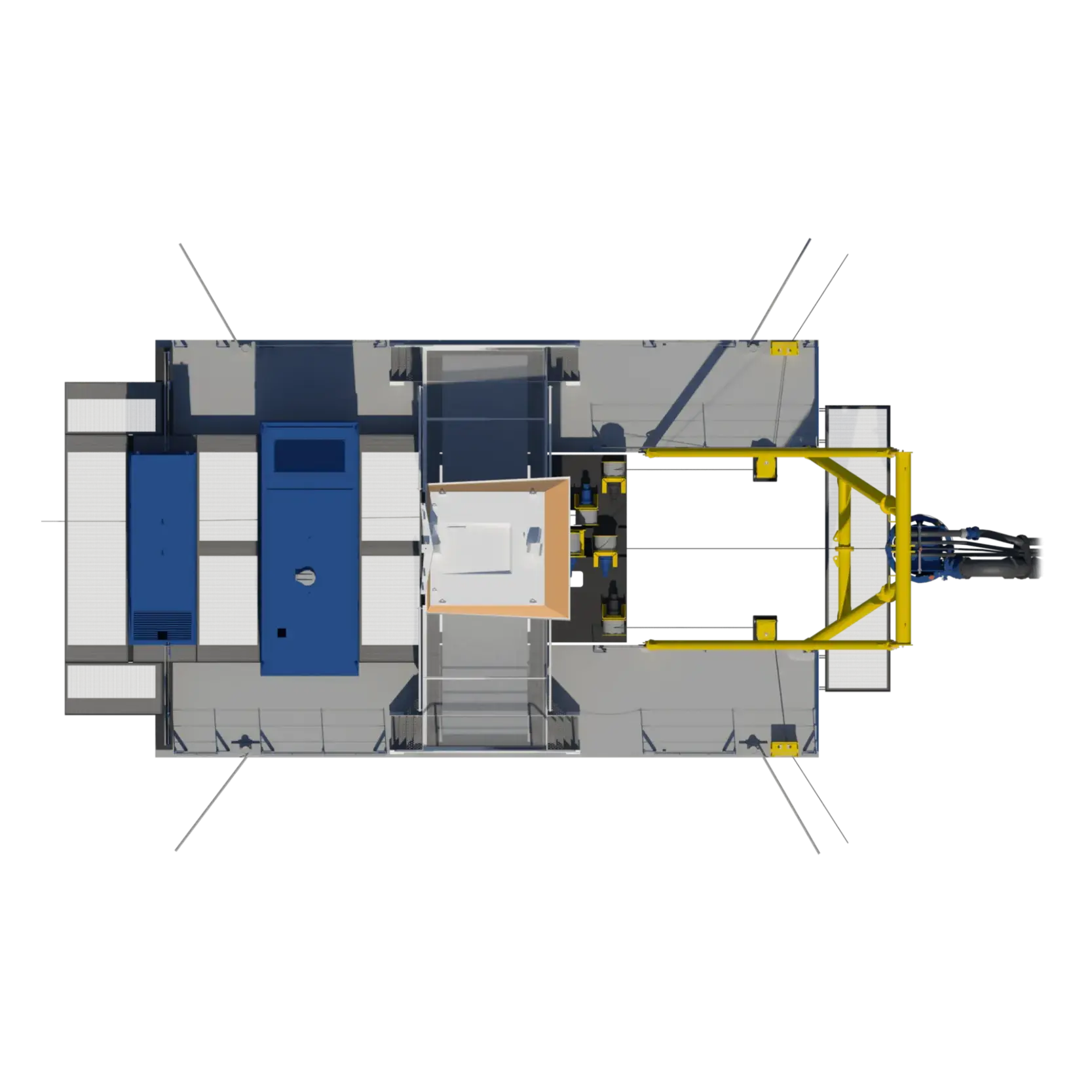

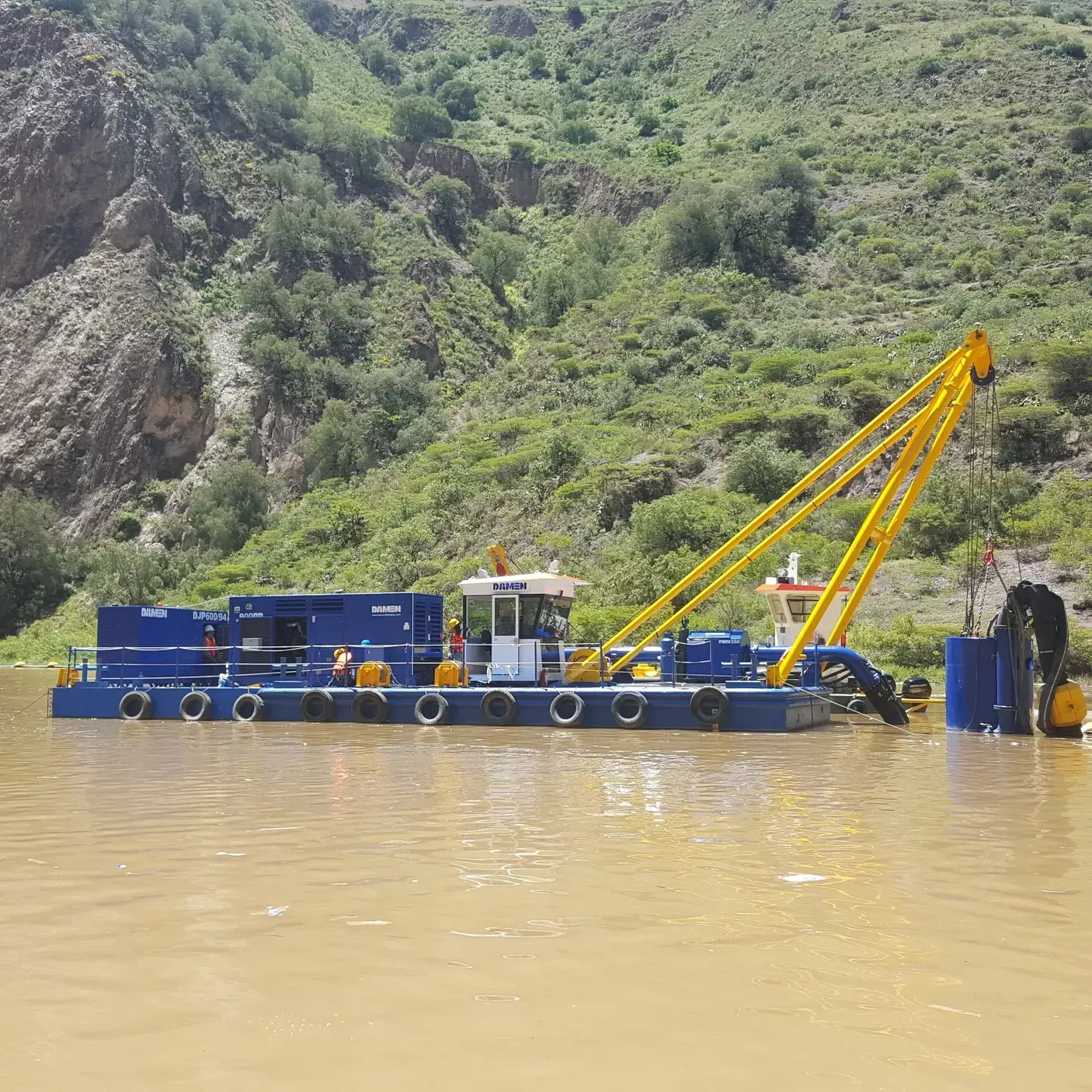

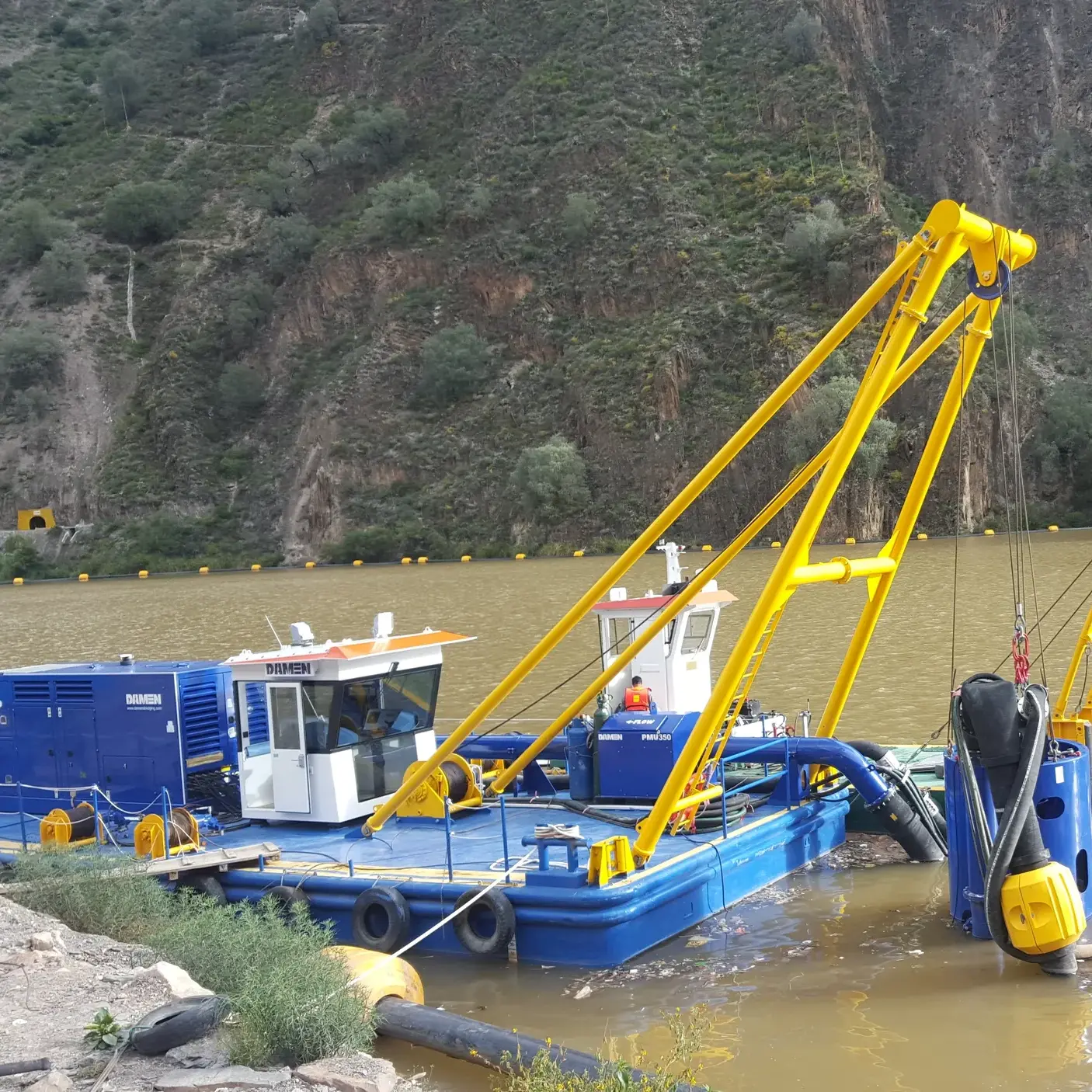

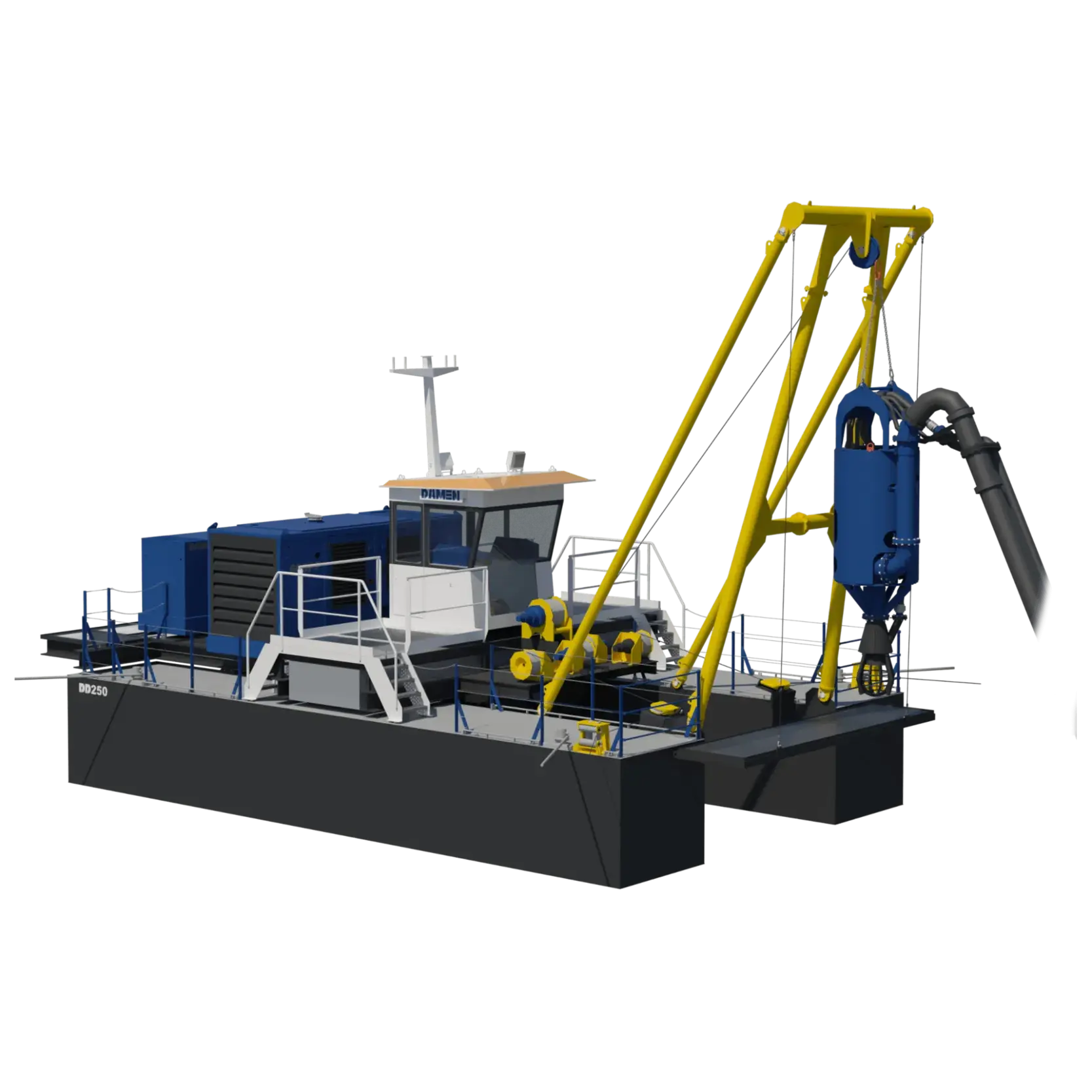

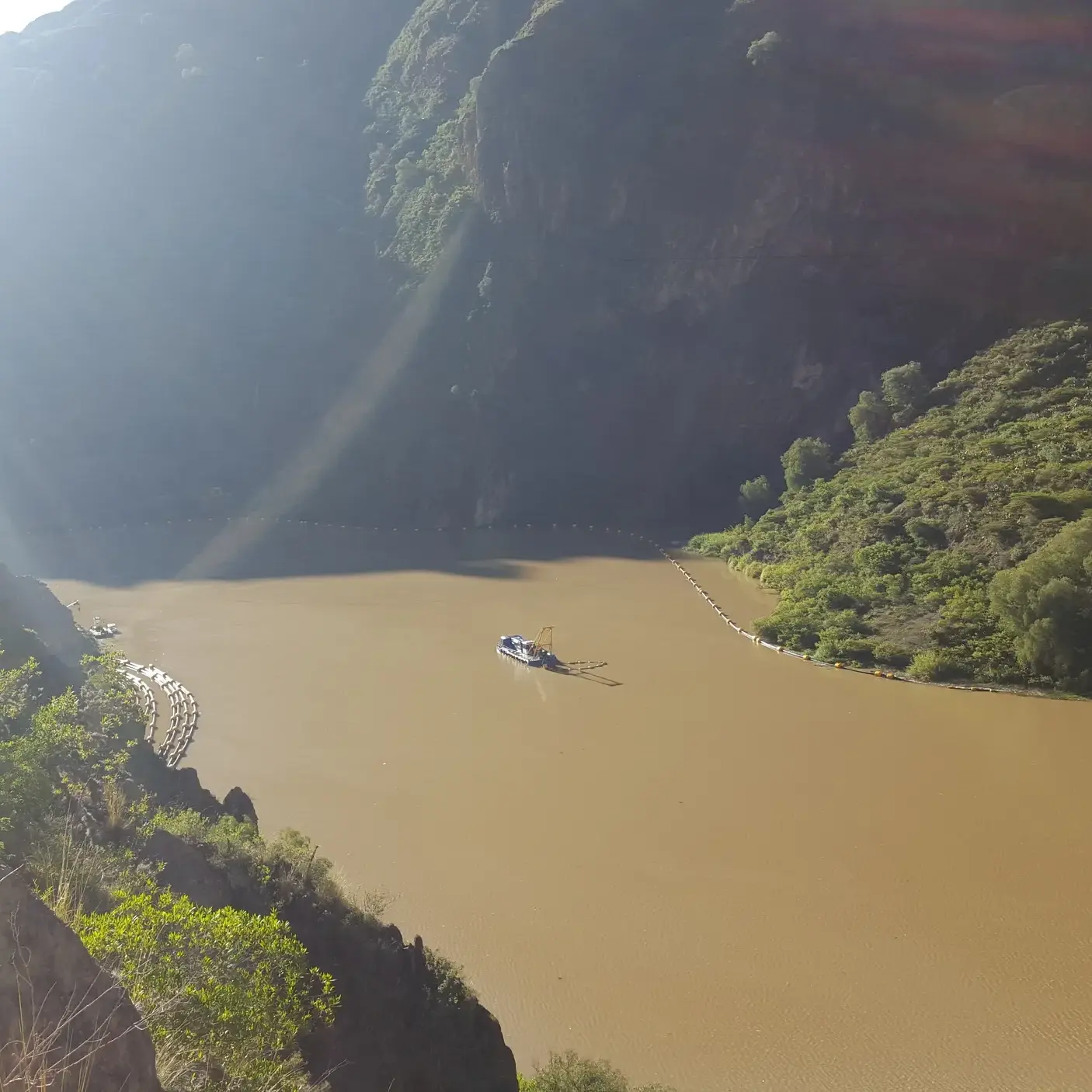

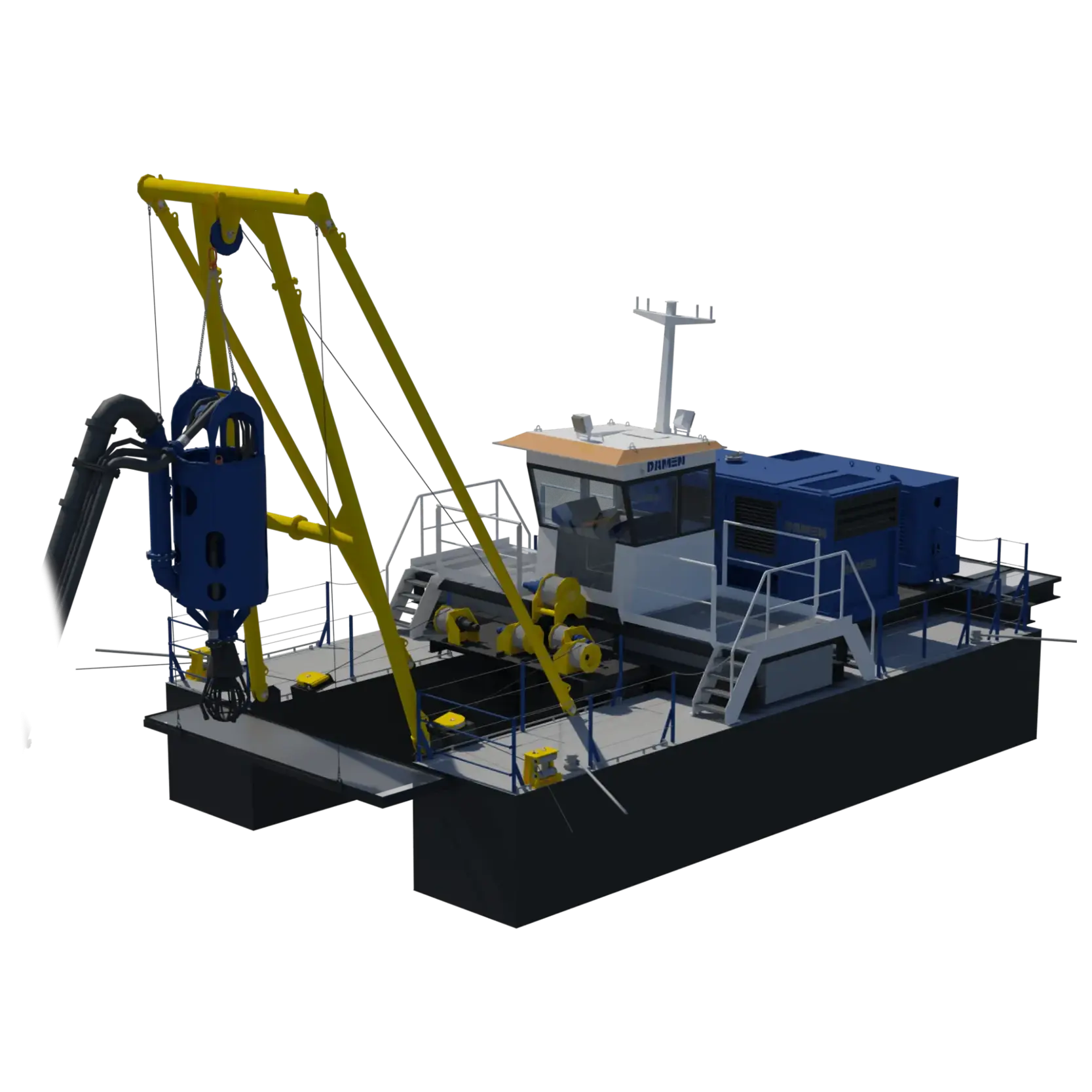

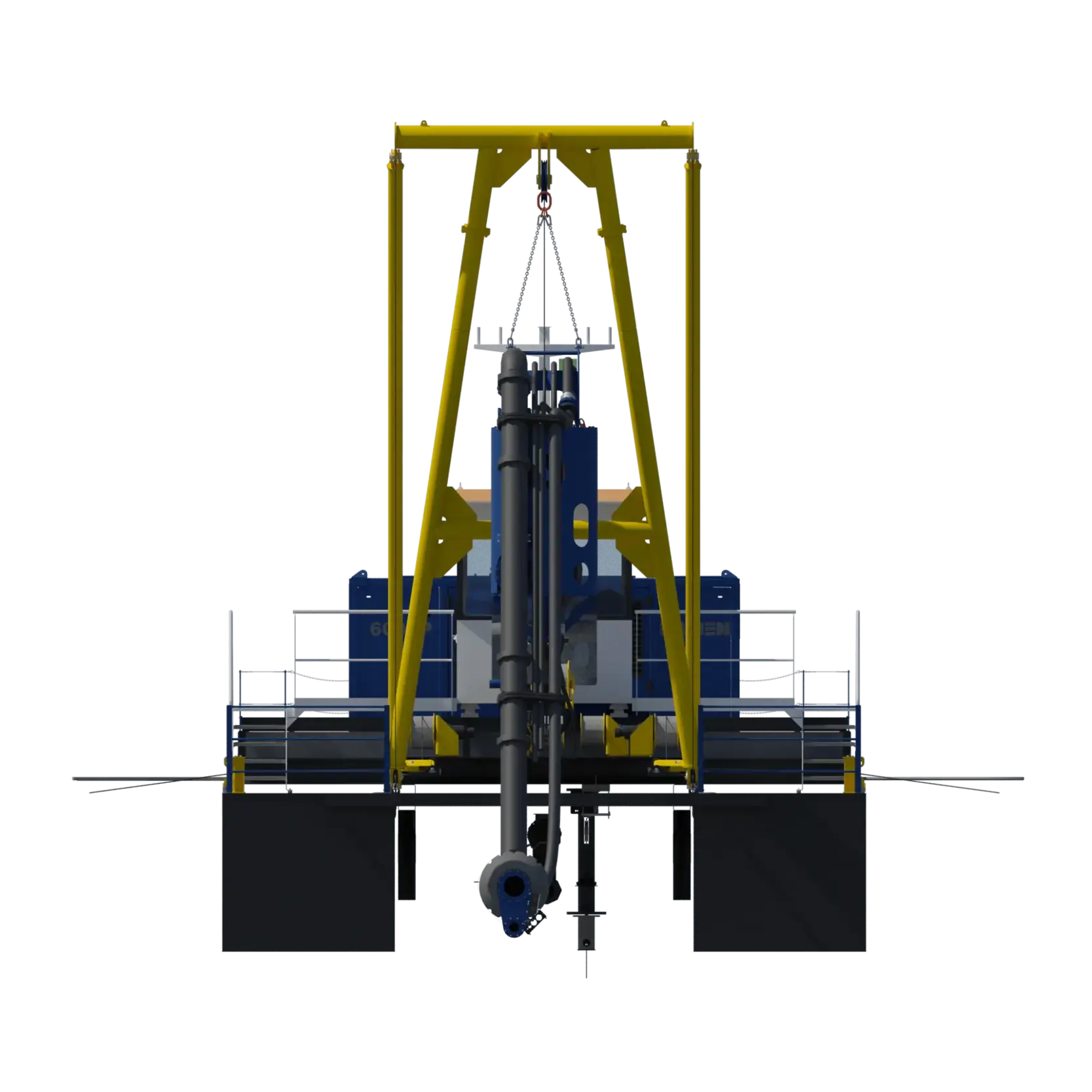

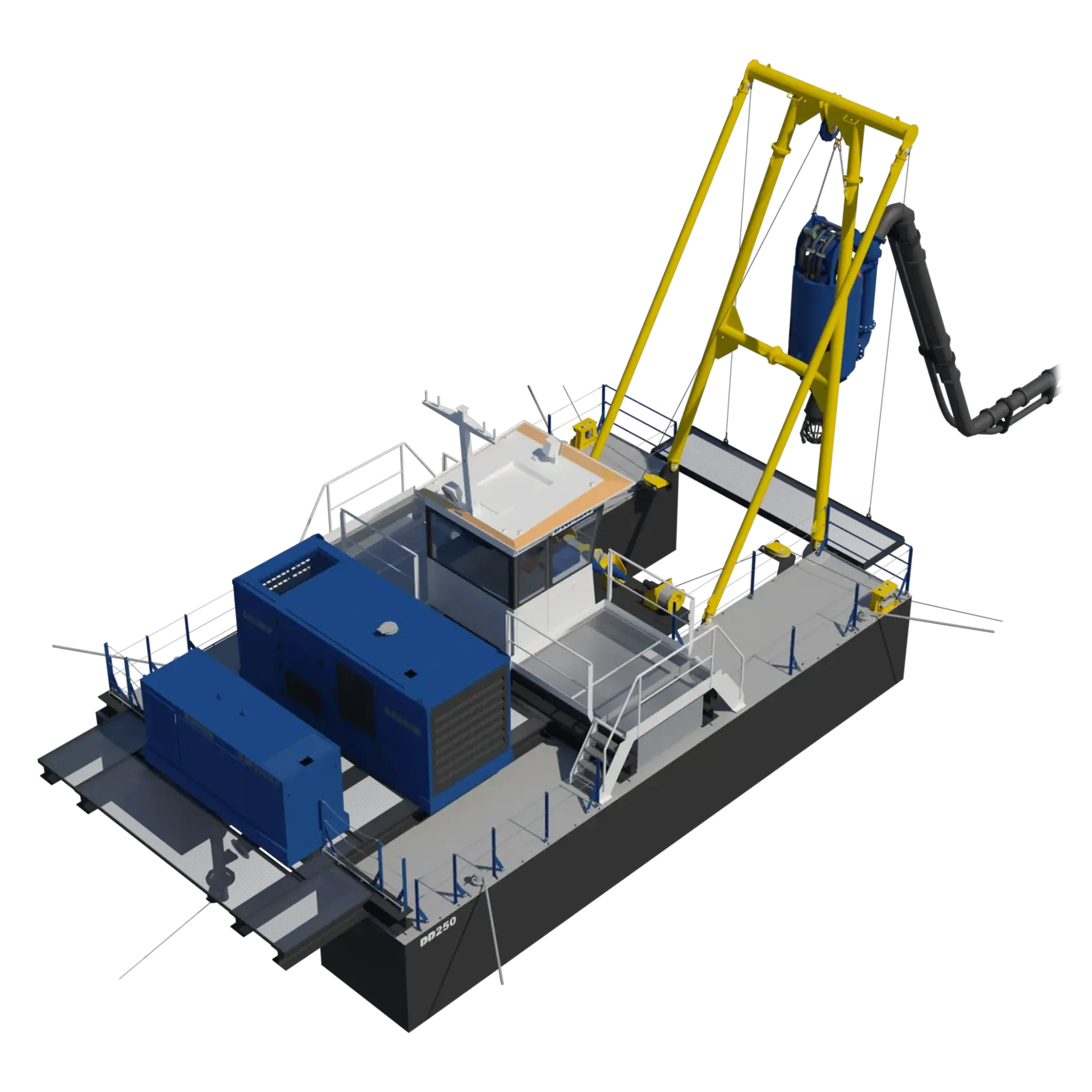

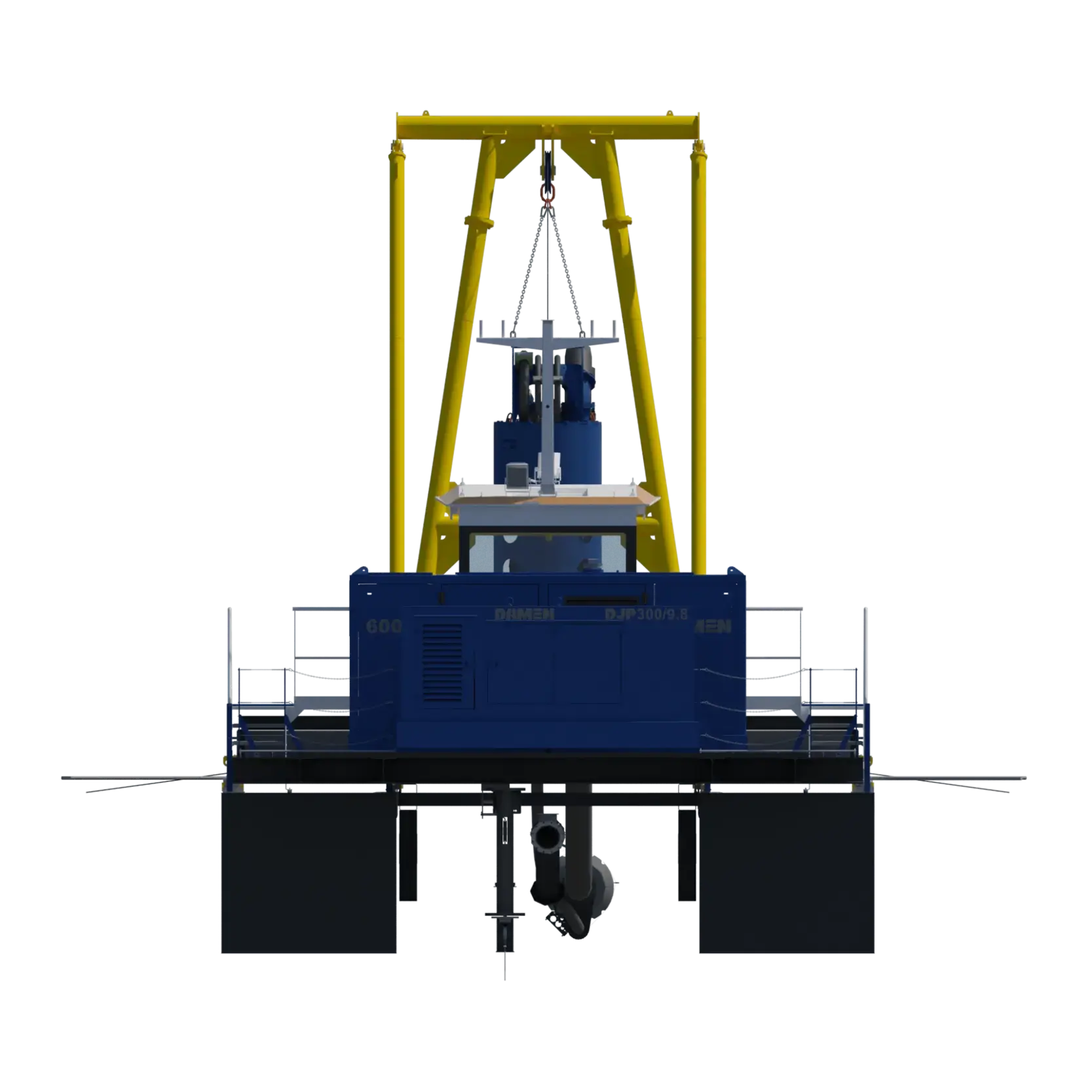

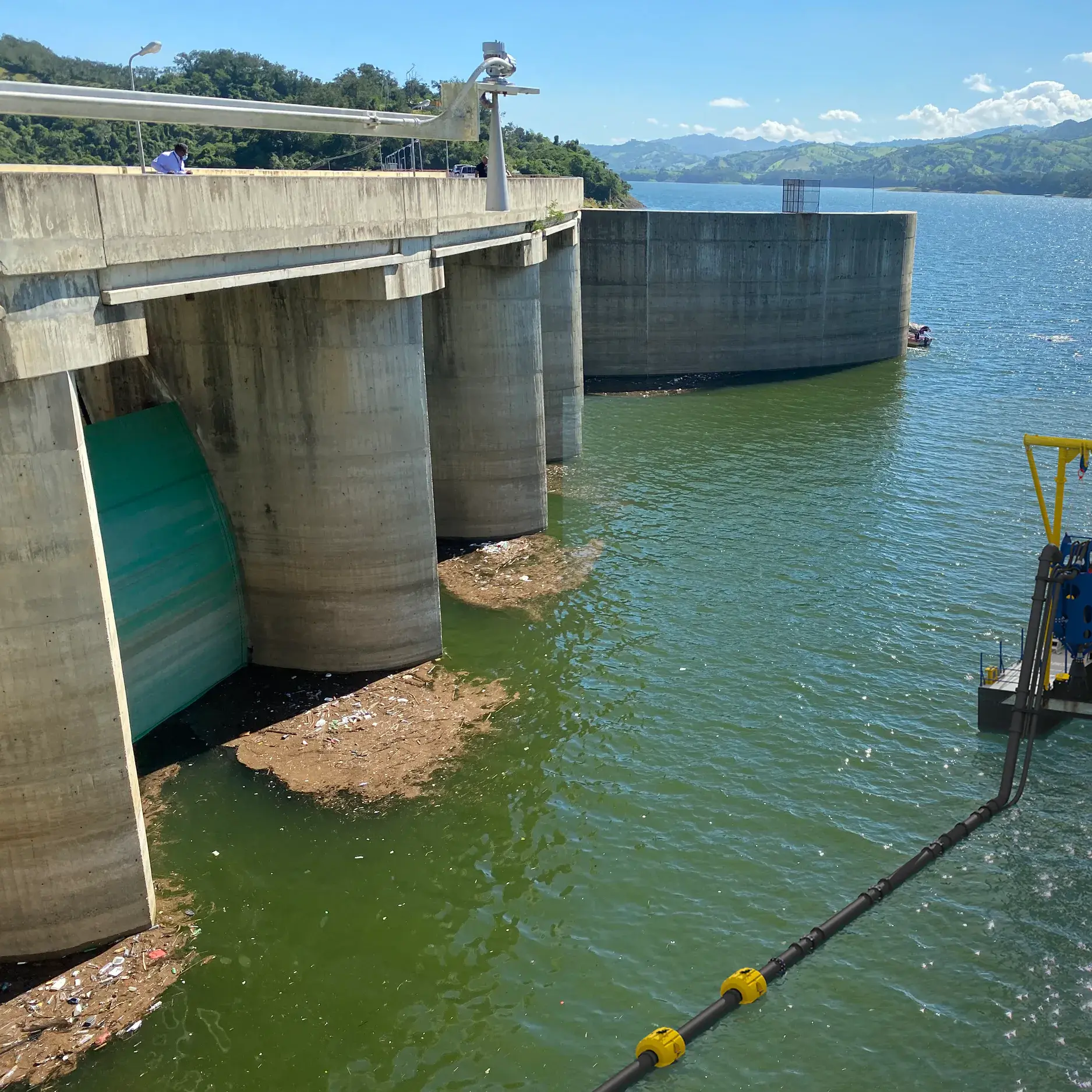

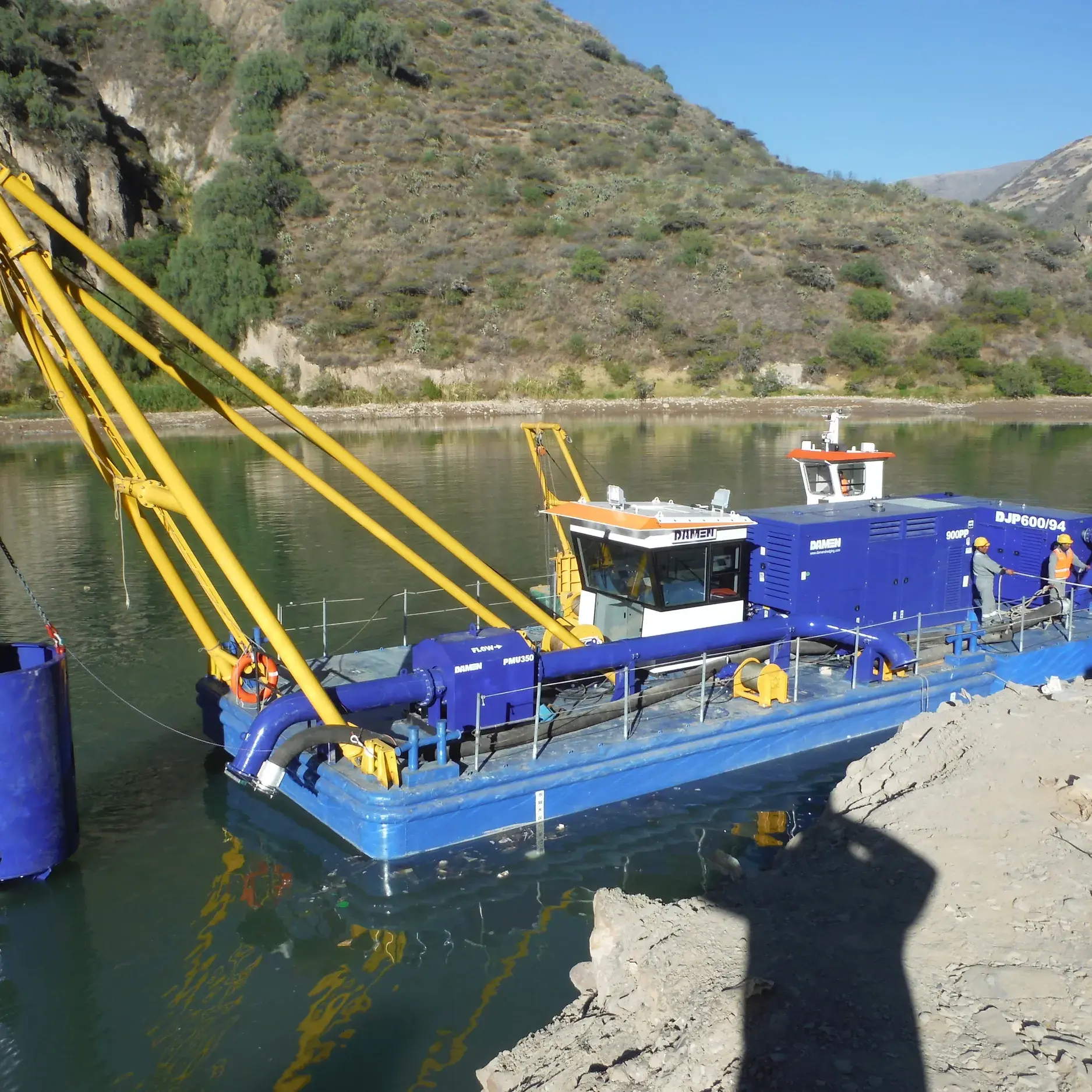

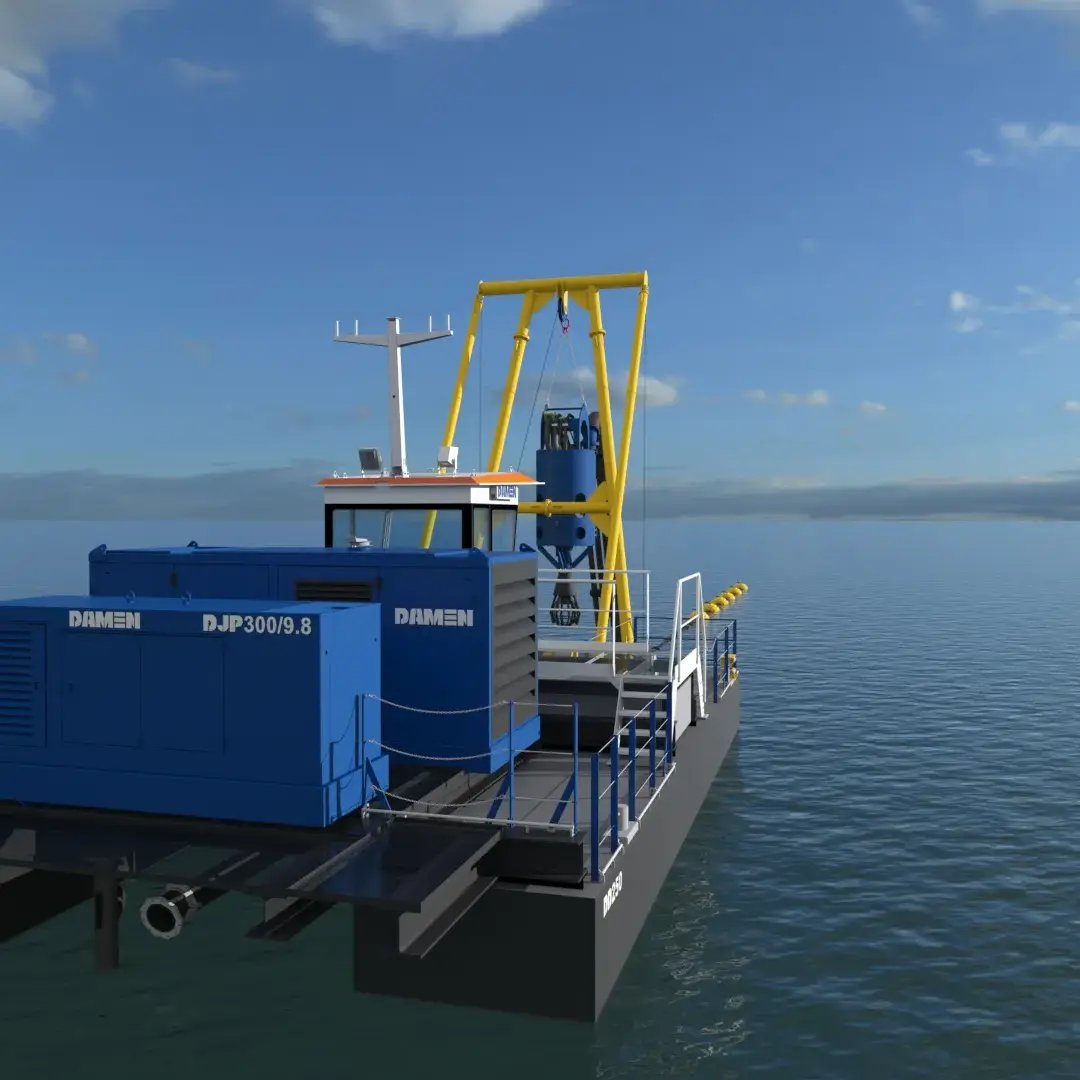

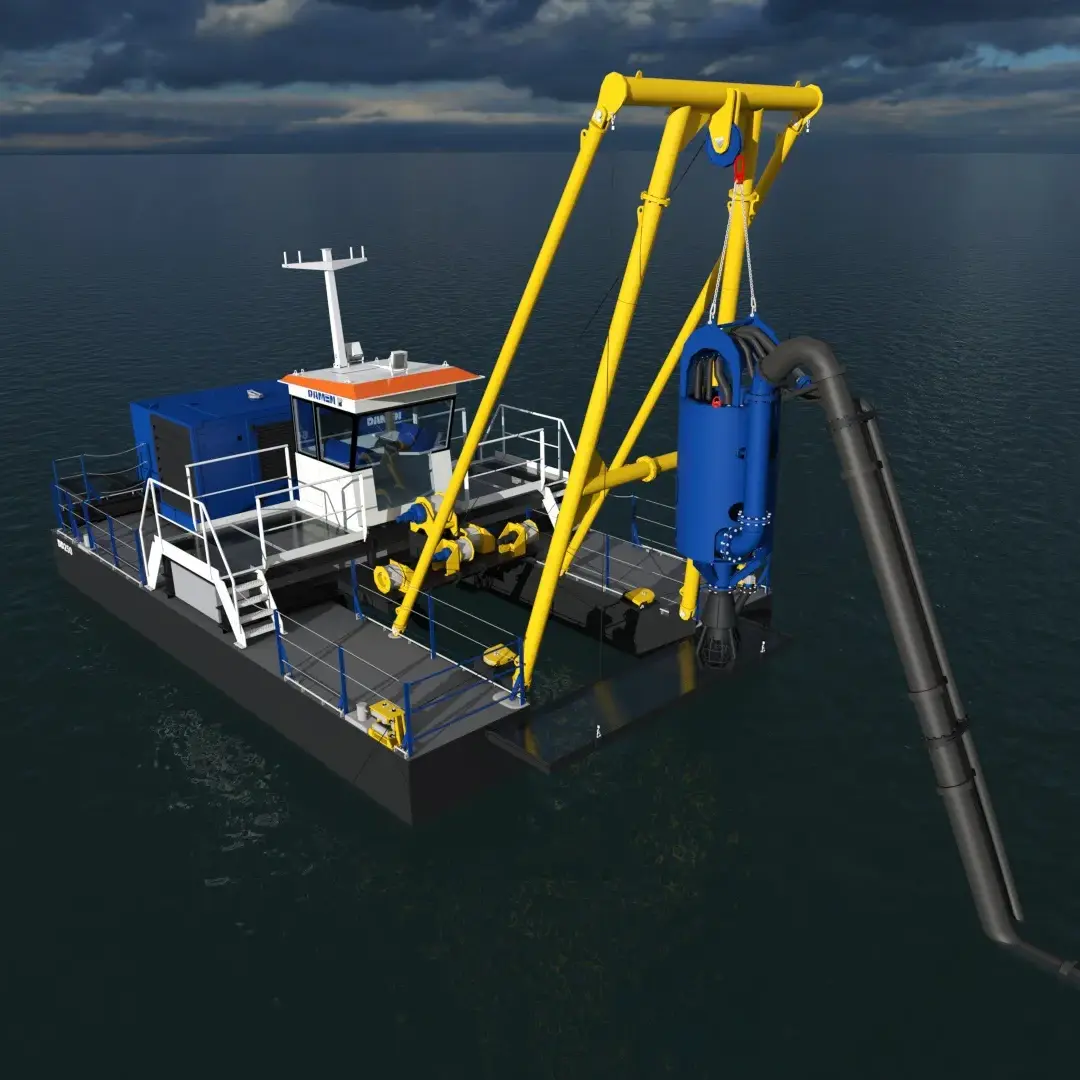

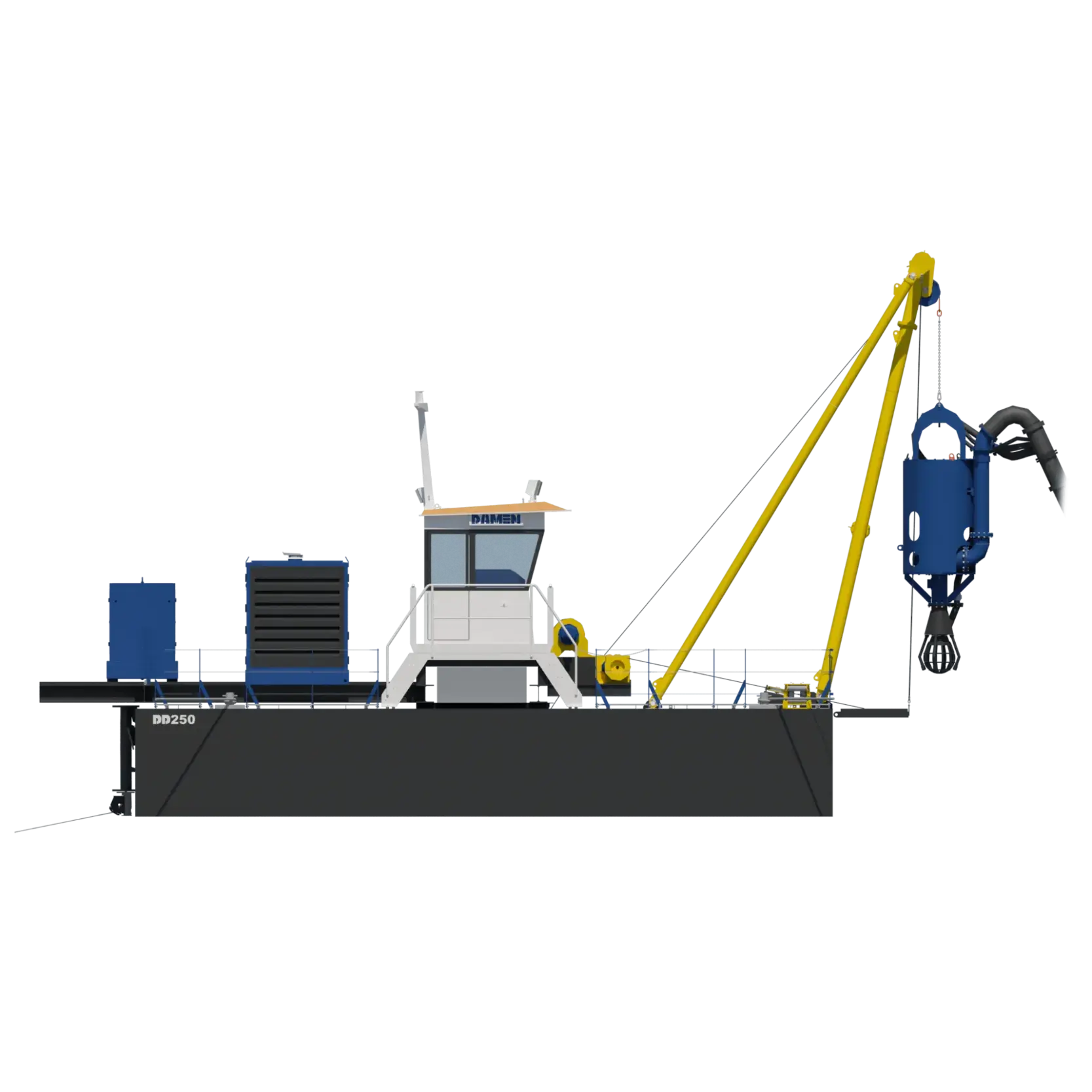

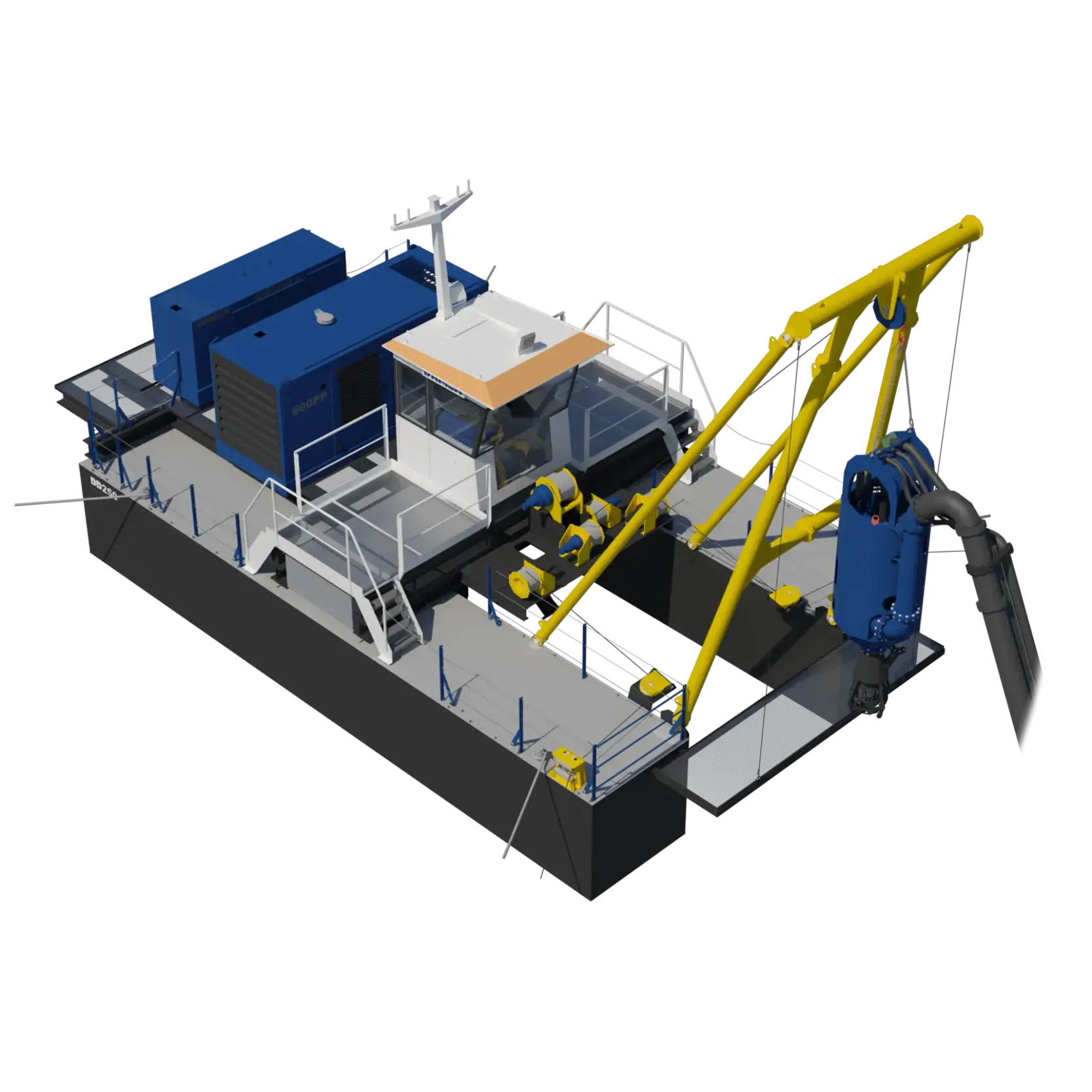

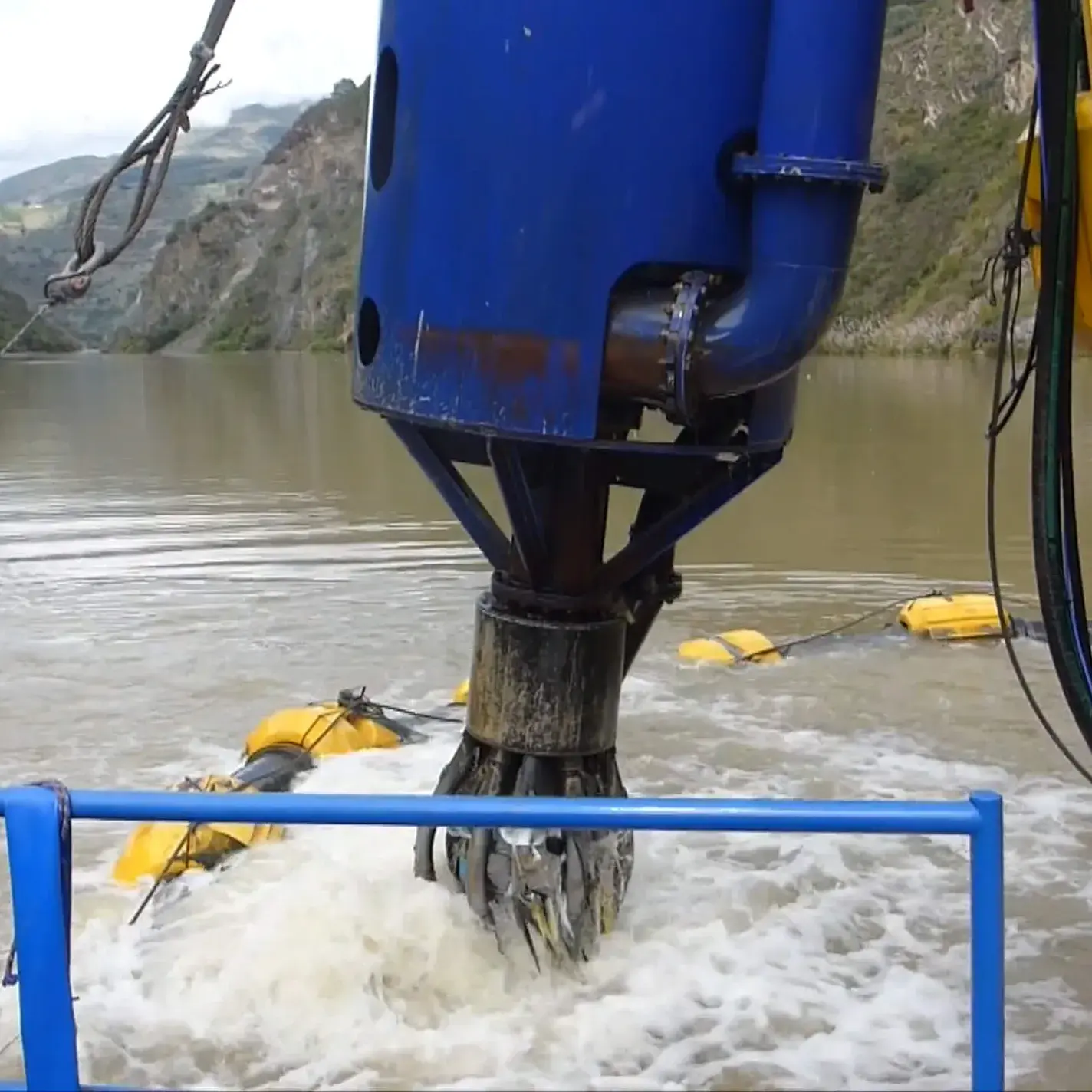

Sand mining or hydro power dam maintenance dredging has no depth limit when the DOP Dredger is used. The wire-suspended DOP submersible dredge pump is lowered to the required depth, maximising the mixture concentration which in turn boosts the dredger’s production. The pressurised jet water ensures a constant flow of sand and silt to the suction head. Additionally, the modular dredger can be dismantled into components that stack easily into standard containers, making it possible to reach the most remote areas.
- Production measurement
- Position visualisation
- Communication & navigation package

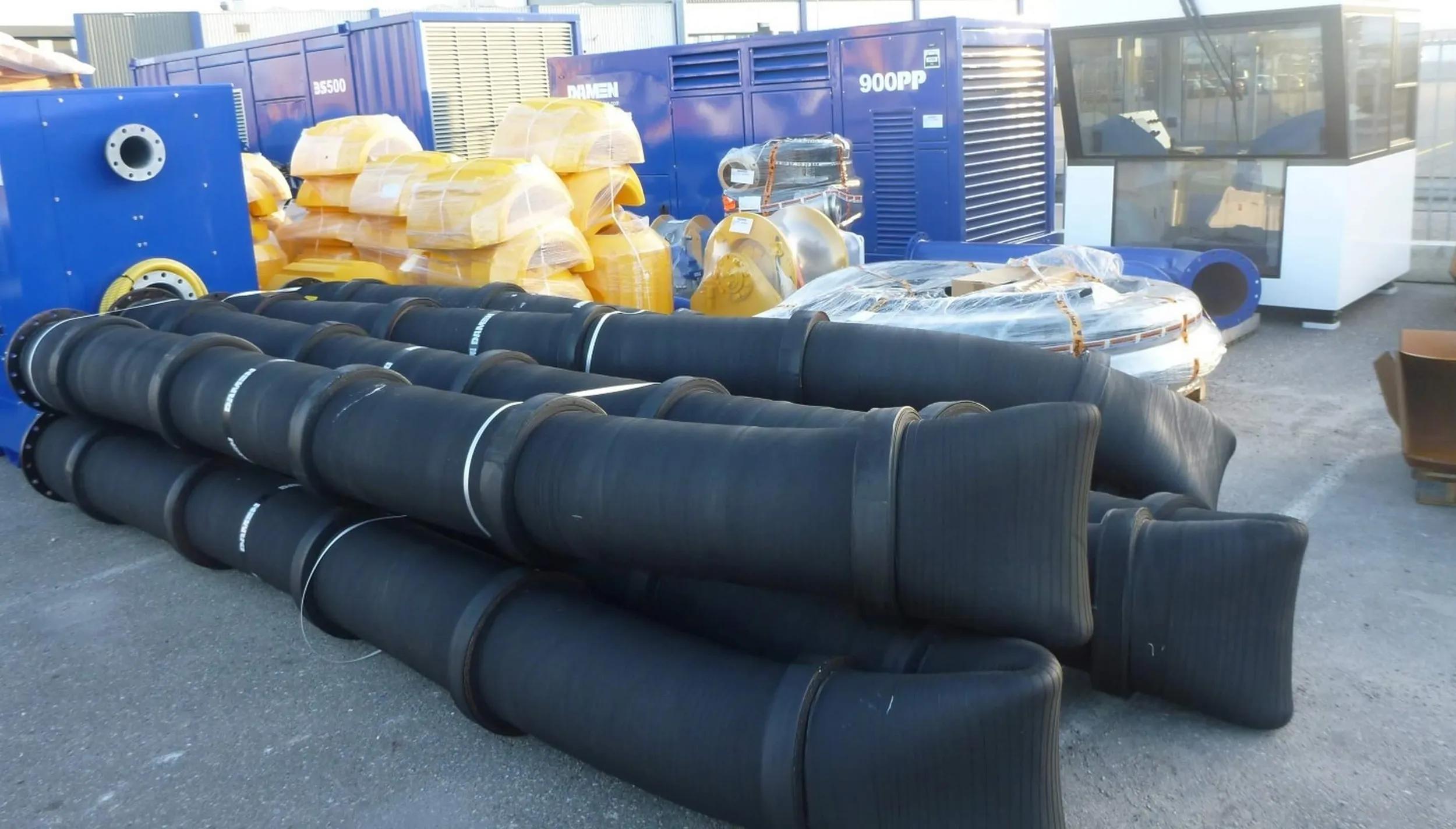

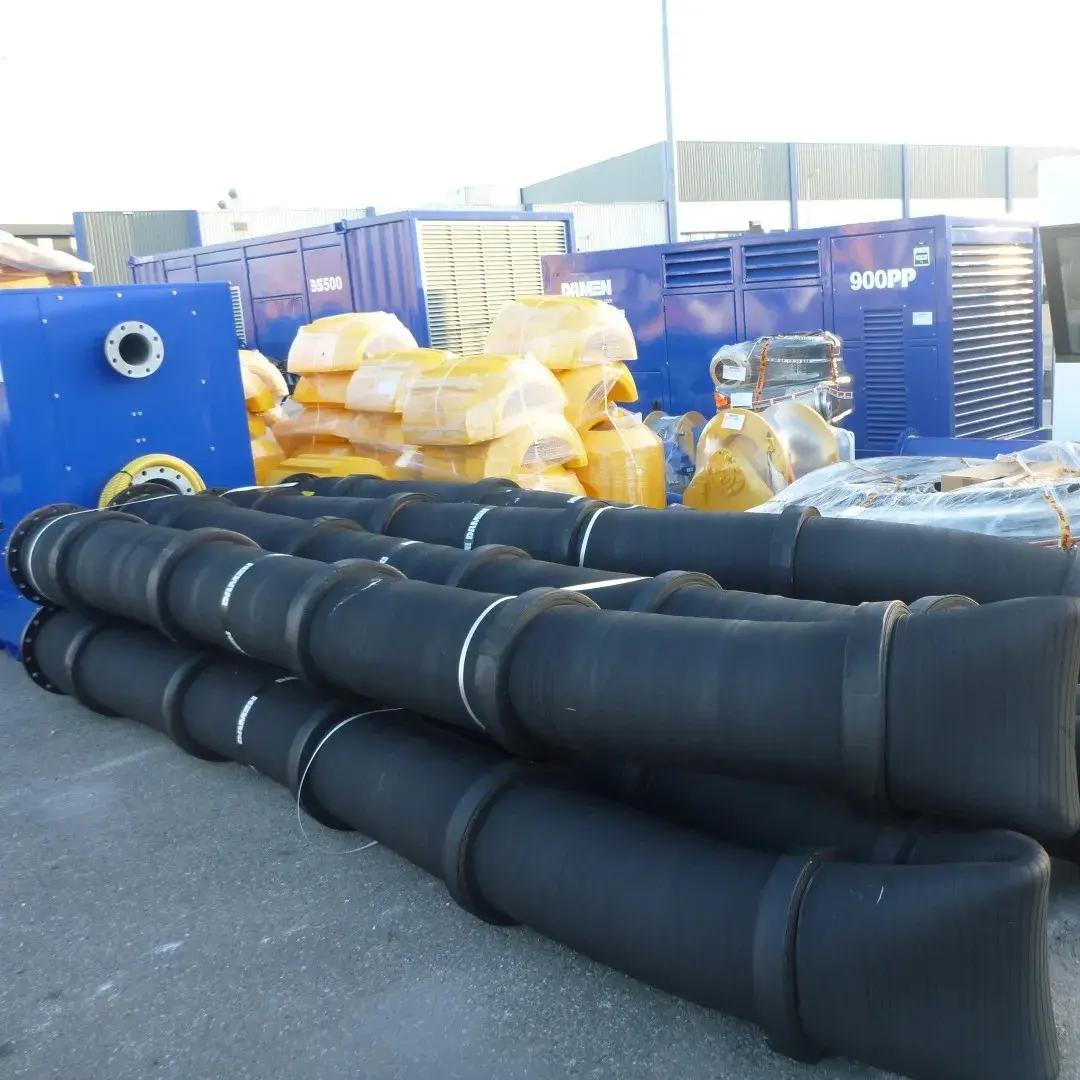

- Floating & land pipe line

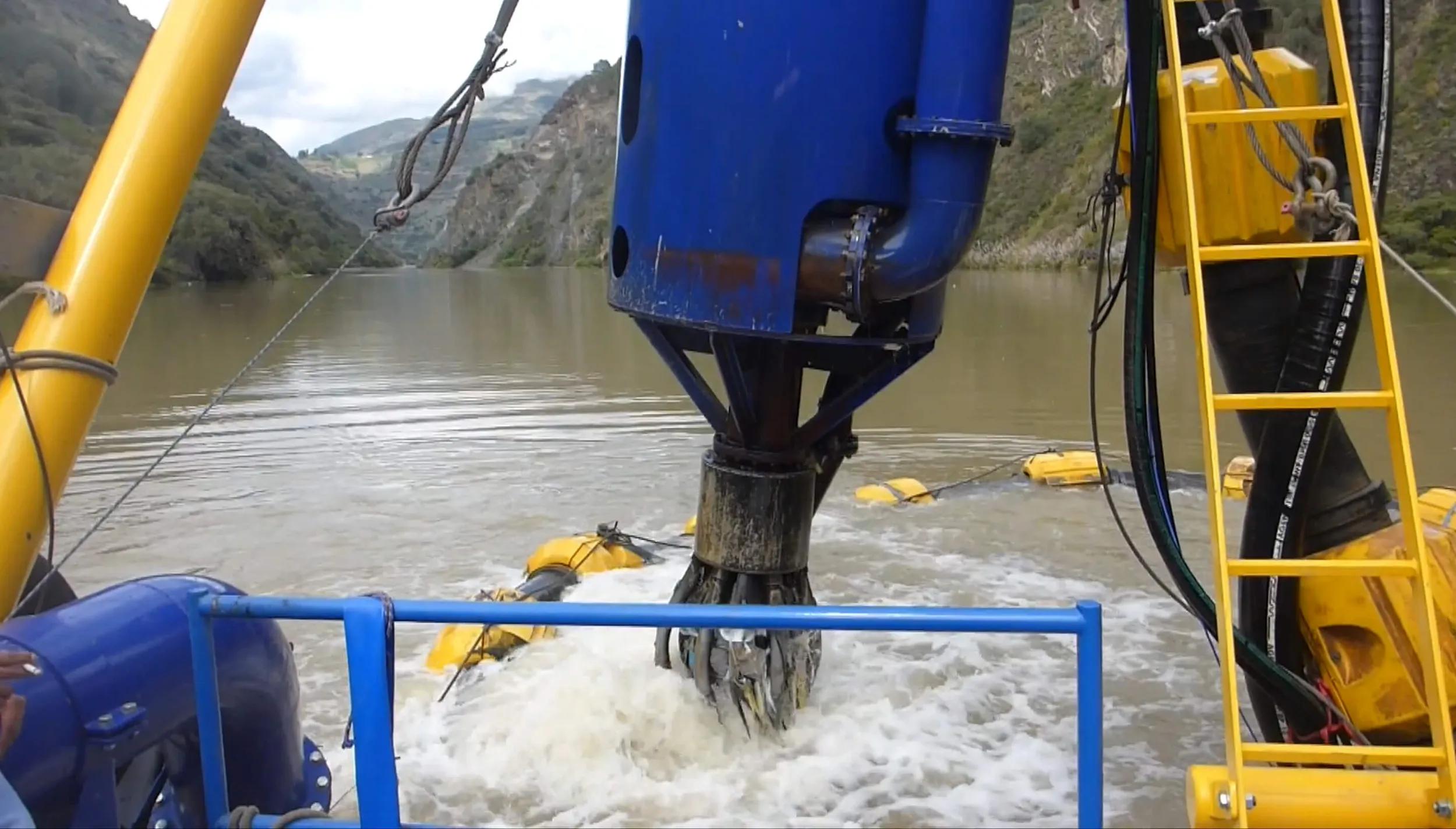

- Jet water assisted mining head

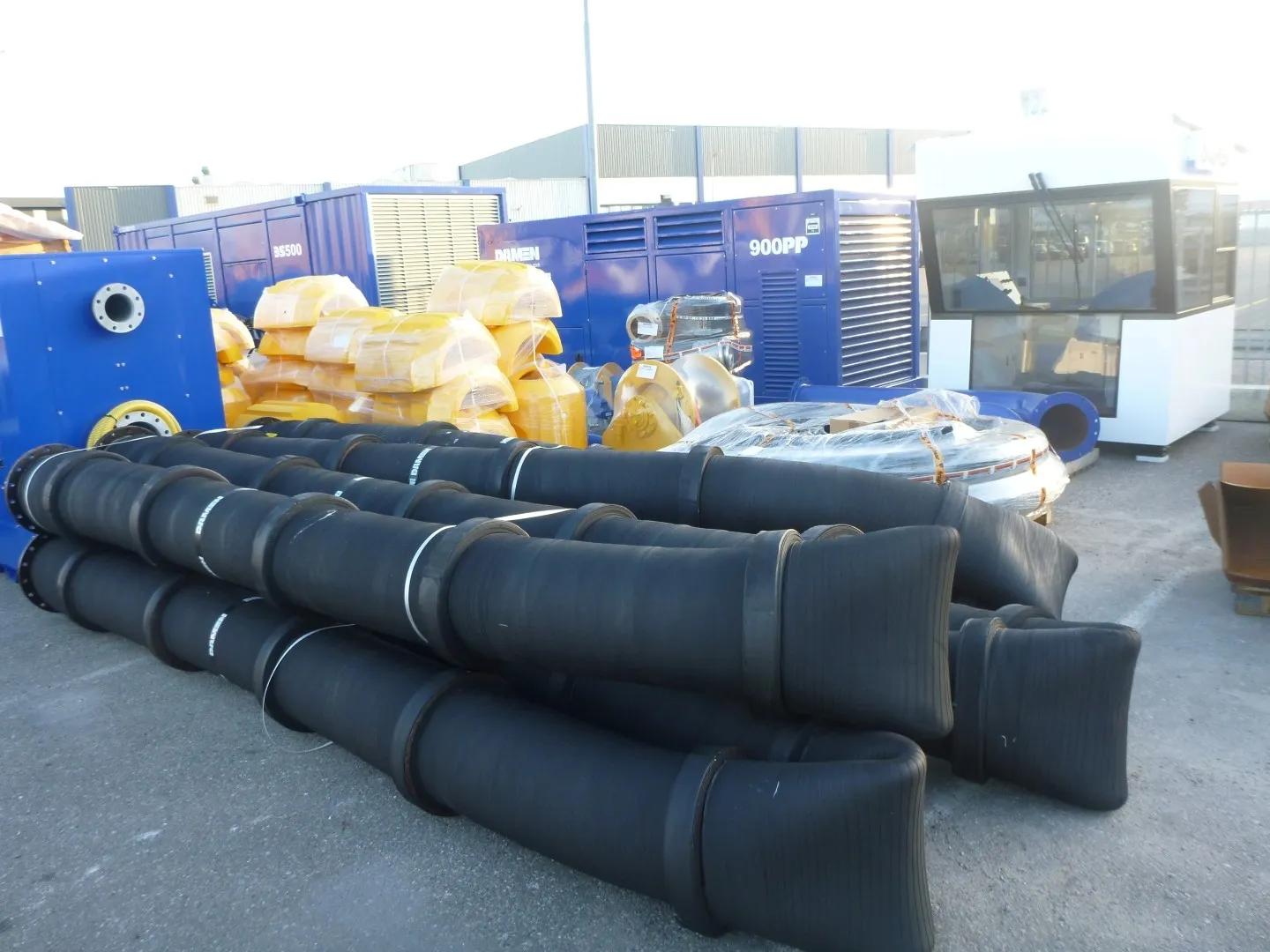

- Fully dismountable design
- Submersed dredge pump ensures high concentration
- Nearly unlimited dredging depth
Key figures
600 - 2400
-50
150 - 350
243 - 778
15 - 21
Dimensions
- Overall length
- 15 - 21 m
- Beam
- 7.35 m
- Depth pontoons
- 1.8 m
- Total weight
- 32 - 50 t
Engine installation
- Power pumpshaft
- 80 - 360 kW max
- Total installed power
- 243 - 778 kW
- Hydraulic power pack
- 252 - 972 I/min
- Jet water pack
- 125 - 900 m³/h
- Fuel tank
- 5 m³
Dredge installation
- Dredge production
- 600 - 2400 m³/h
- Dredge pipe diameter
- 150 - 350 mm
- Max head
- 3.2 - 5.3 bar
- Max dredging depth
- -50 m
Do you want to know more?
Compare similar vessels
Production (m³/h) | Max dredging depth (m) | Pipe diameter (mm) | Power (kW) | Length (m) | ||
---|---|---|---|---|---|---|
Unlimited mining tool | 600 - 2400 | -50 | 150 - 350 | 243 - 778 | 15 - 21 | |
Deep dredging | 600 - 2400 | -20 | 150 - 350 | 175 - 565 | 30 - 32 | |
Deeper dredging | 600 - 2400 | -30 | 150 - 350 | 175 - 565 | 44 - 46 |
Unlimited mining tool
- Production (m³/h)
- 600 - 2400
- Max dredging depth (m)
- -50
- Pipe diameter (mm)
- 150 - 350
- Power (kW)
- 243 - 778
- Length (m)
- 15 - 21
- Production (m³/h)
- 600 - 2400
- Max dredging depth (m)
- -20
- Pipe diameter (mm)
- 150 - 350
- Power (kW)
- 175 - 565
- Length (m)
- 30 - 32
- Production (m³/h)
- 600 - 2400
- Max dredging depth (m)
- -30
- Pipe diameter (mm)
- 150 - 350
- Power (kW)
- 175 - 565
- Length (m)
- 44 - 46
