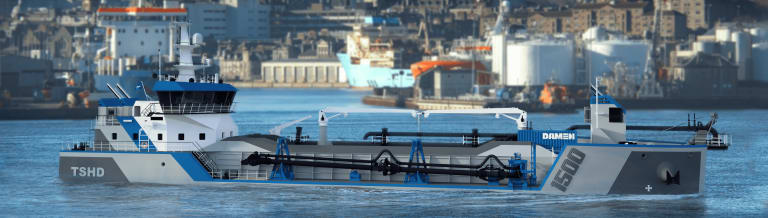

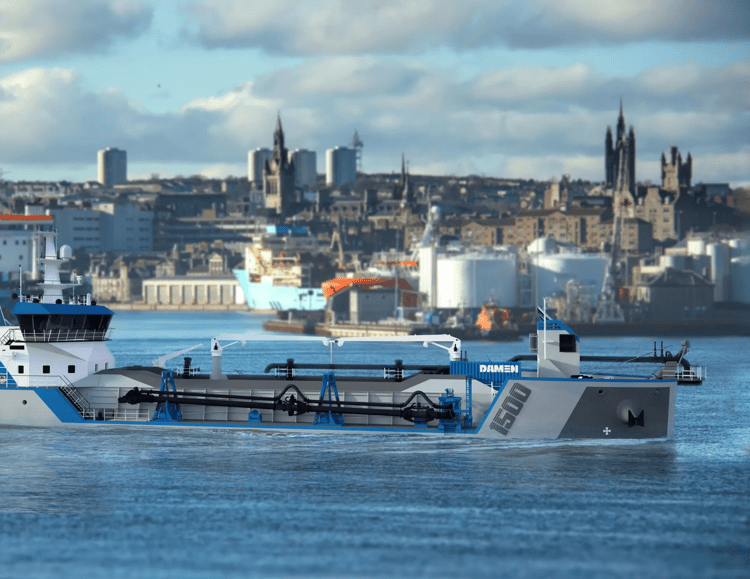

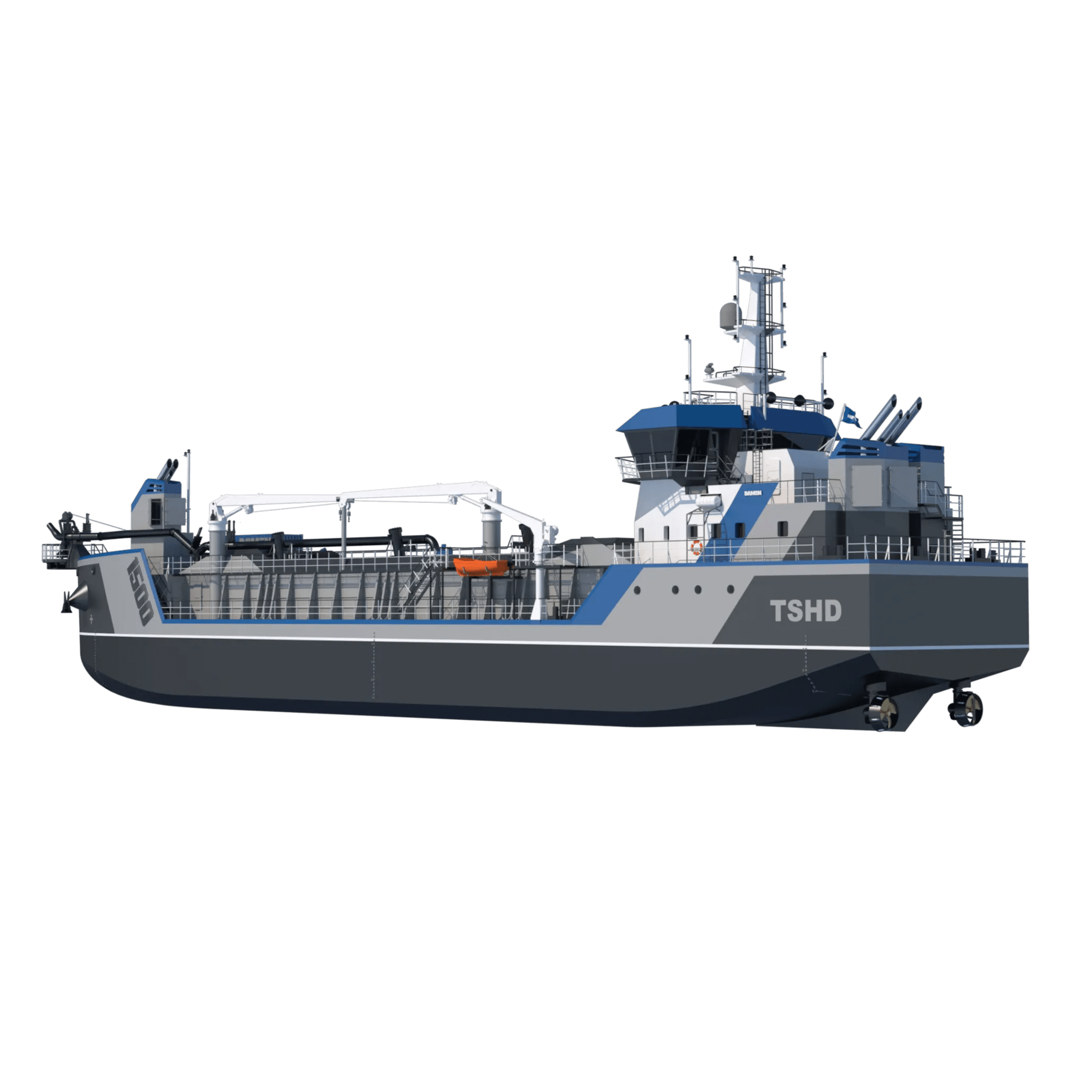

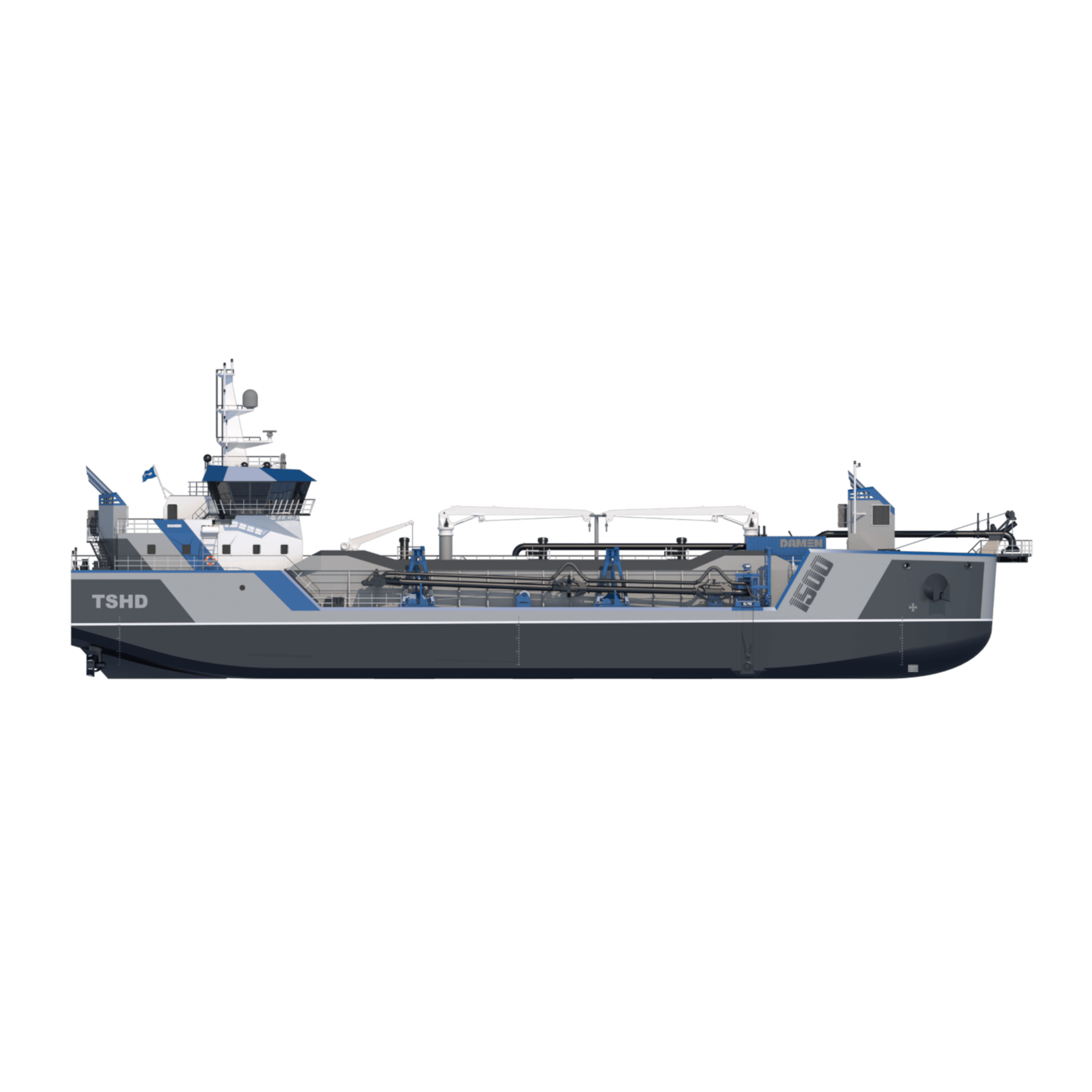

TSHD 1500 Port and Maintenance
TSHD 1500 Port and Maintenance

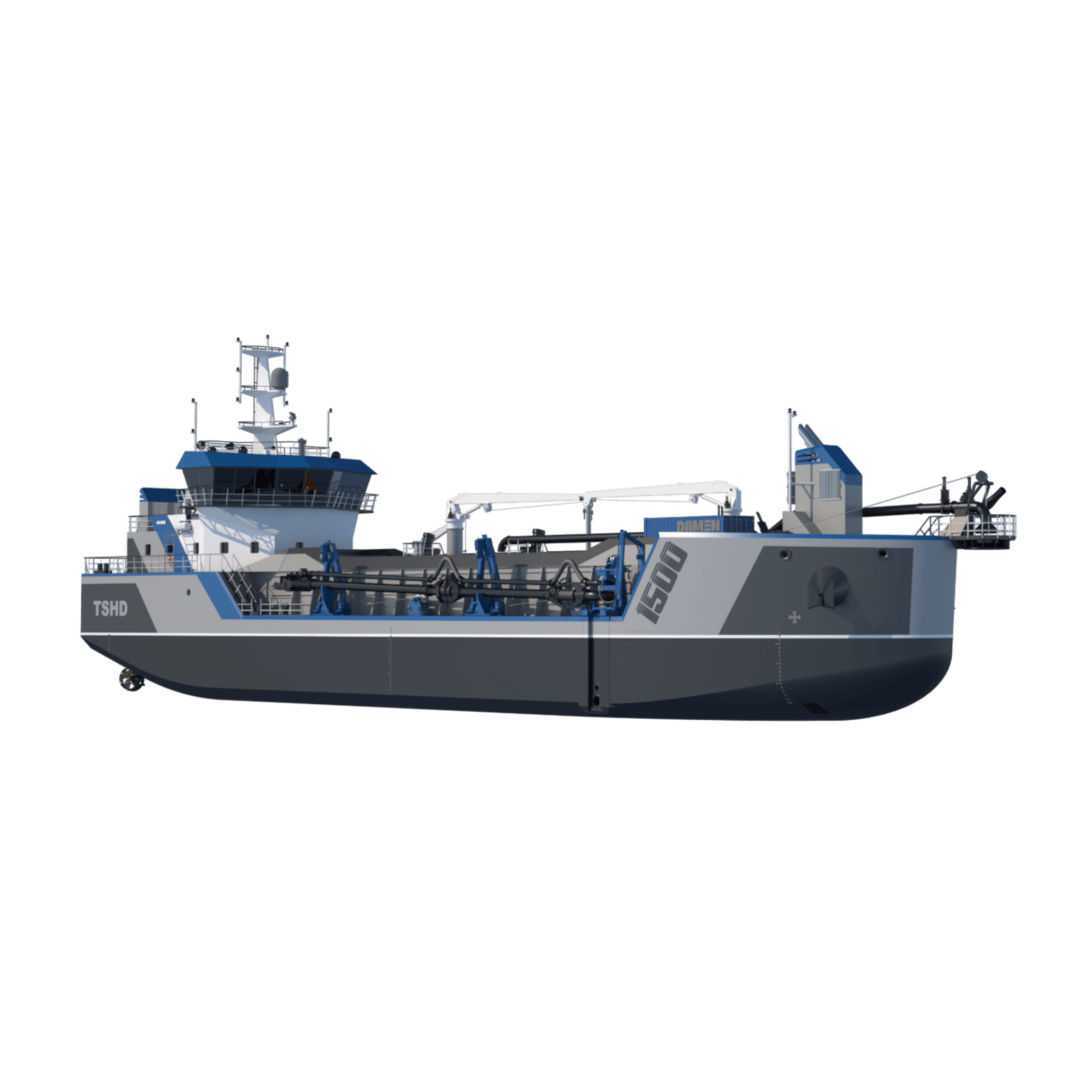

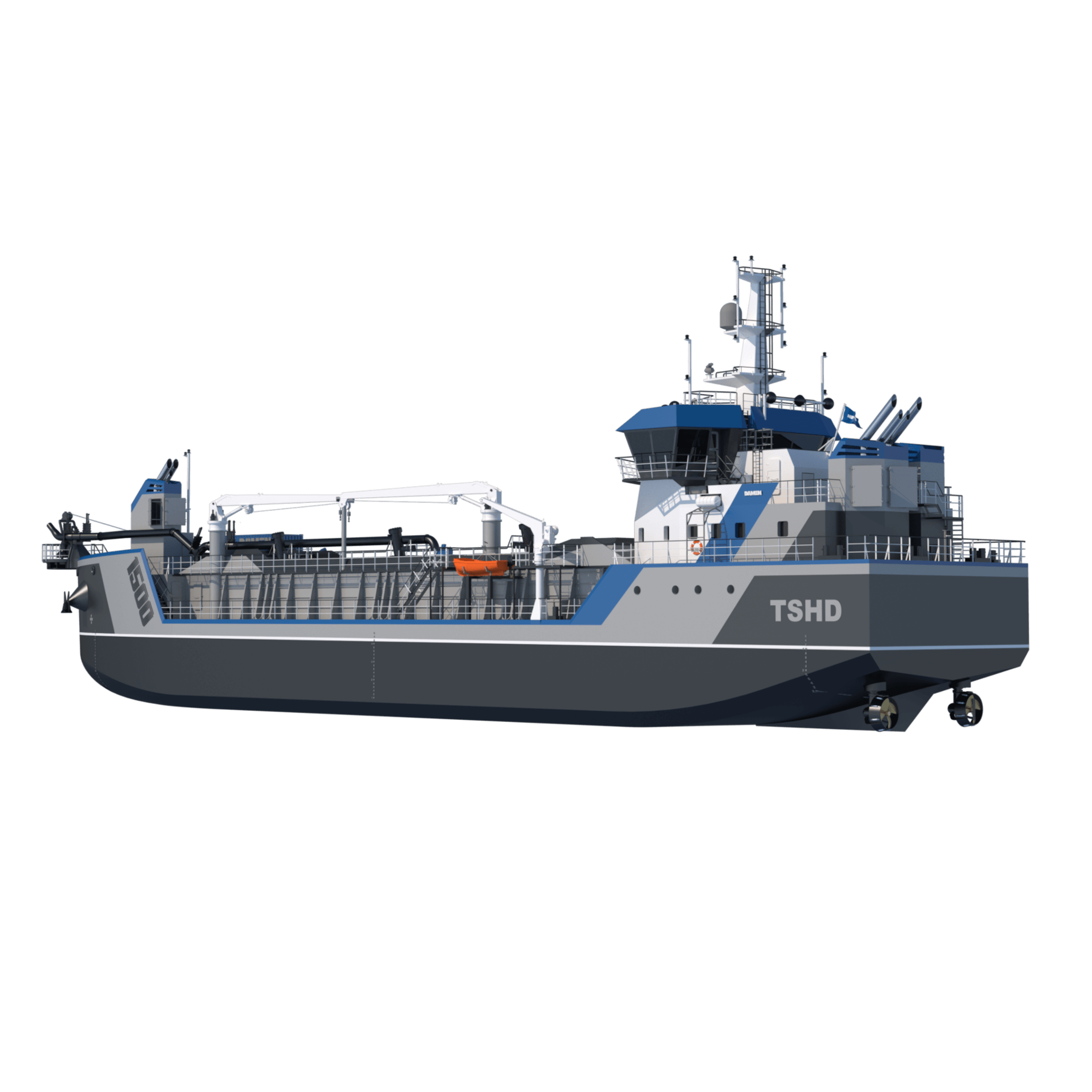

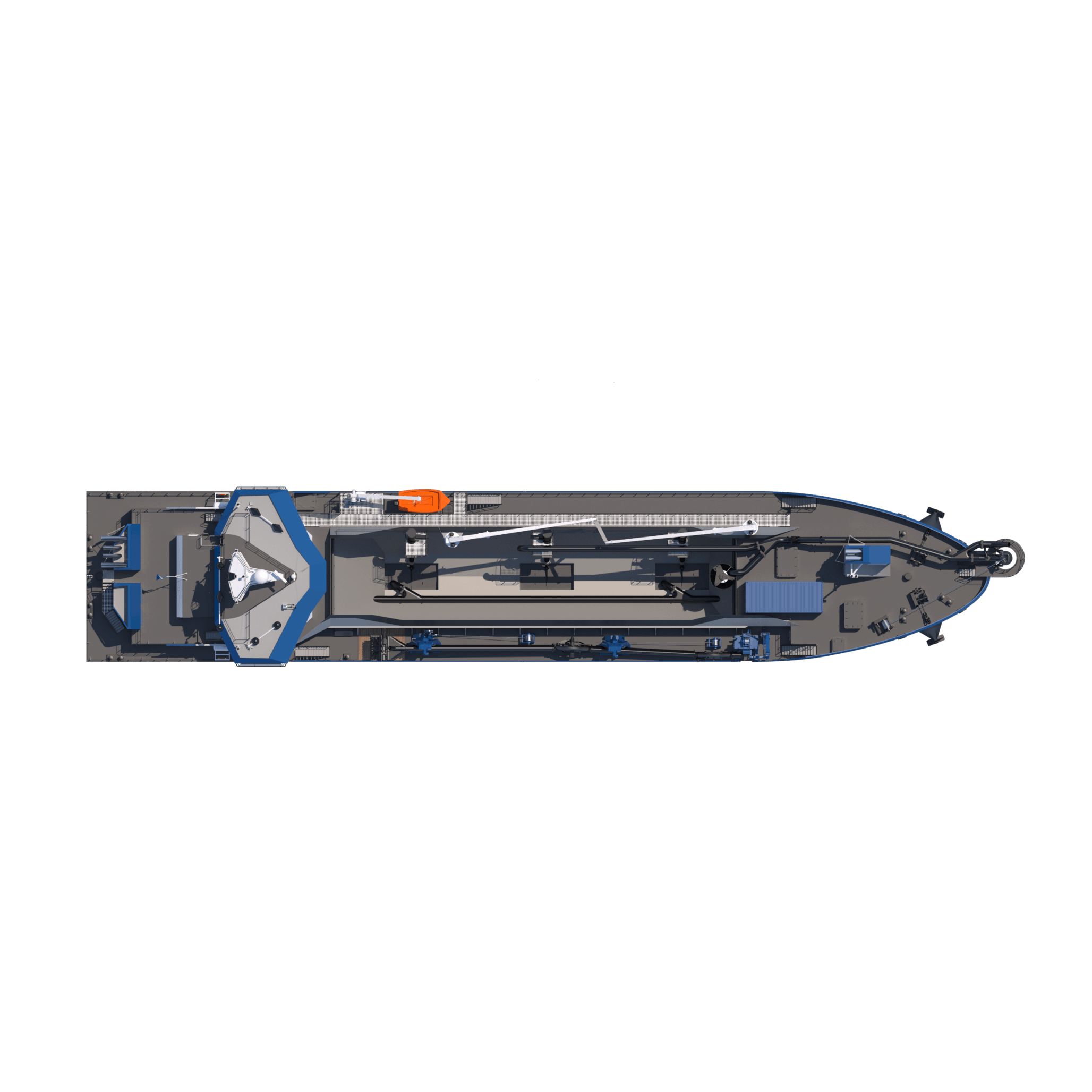

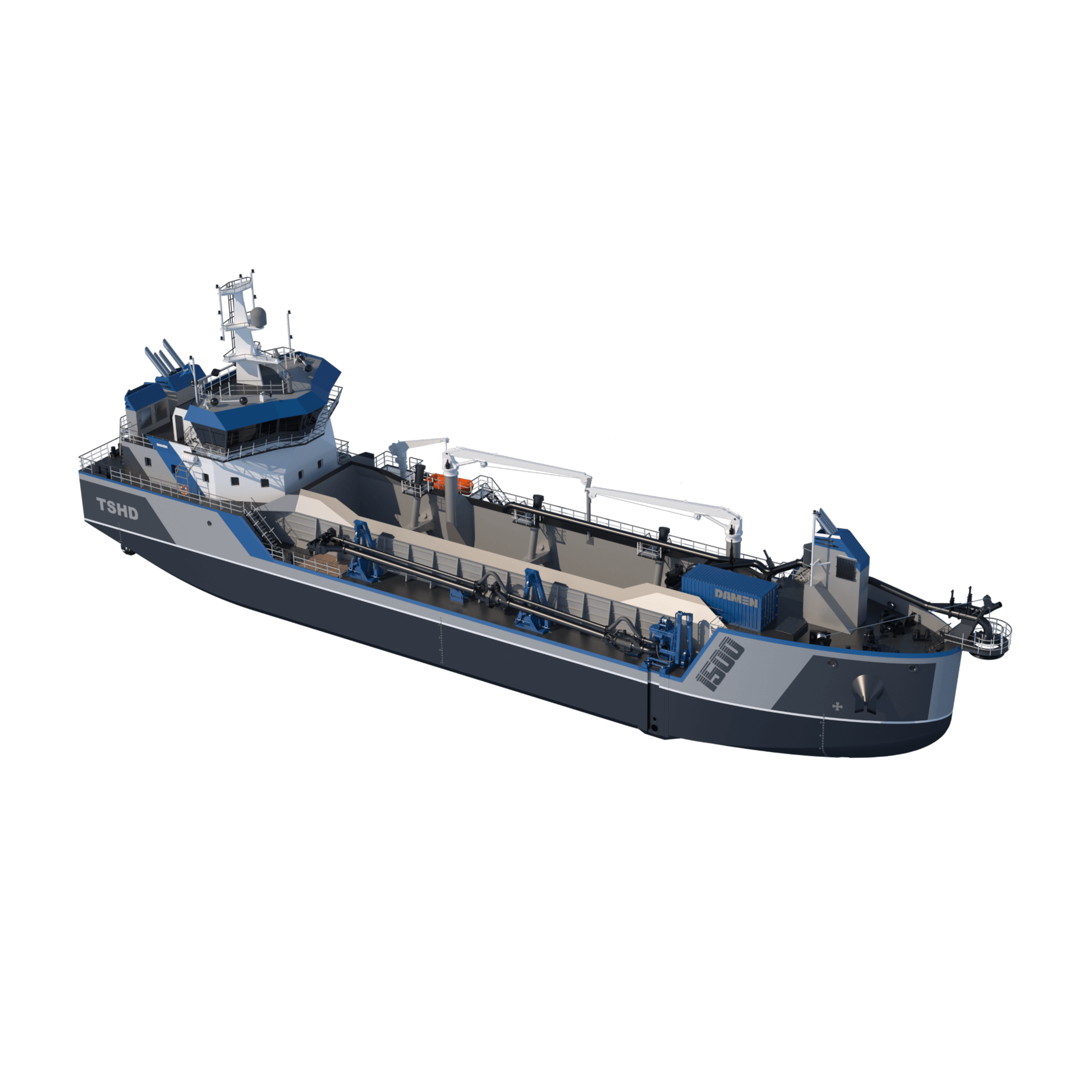

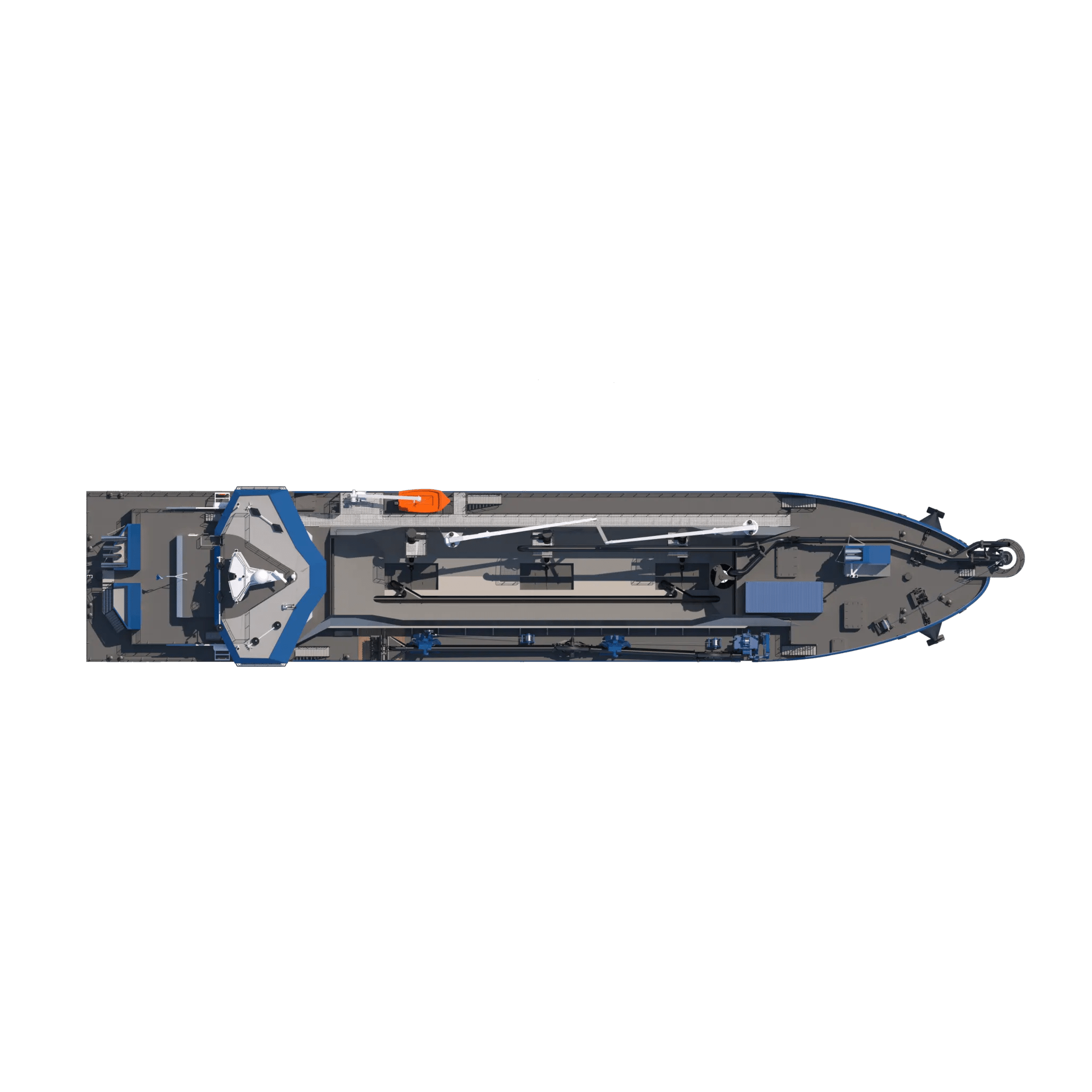

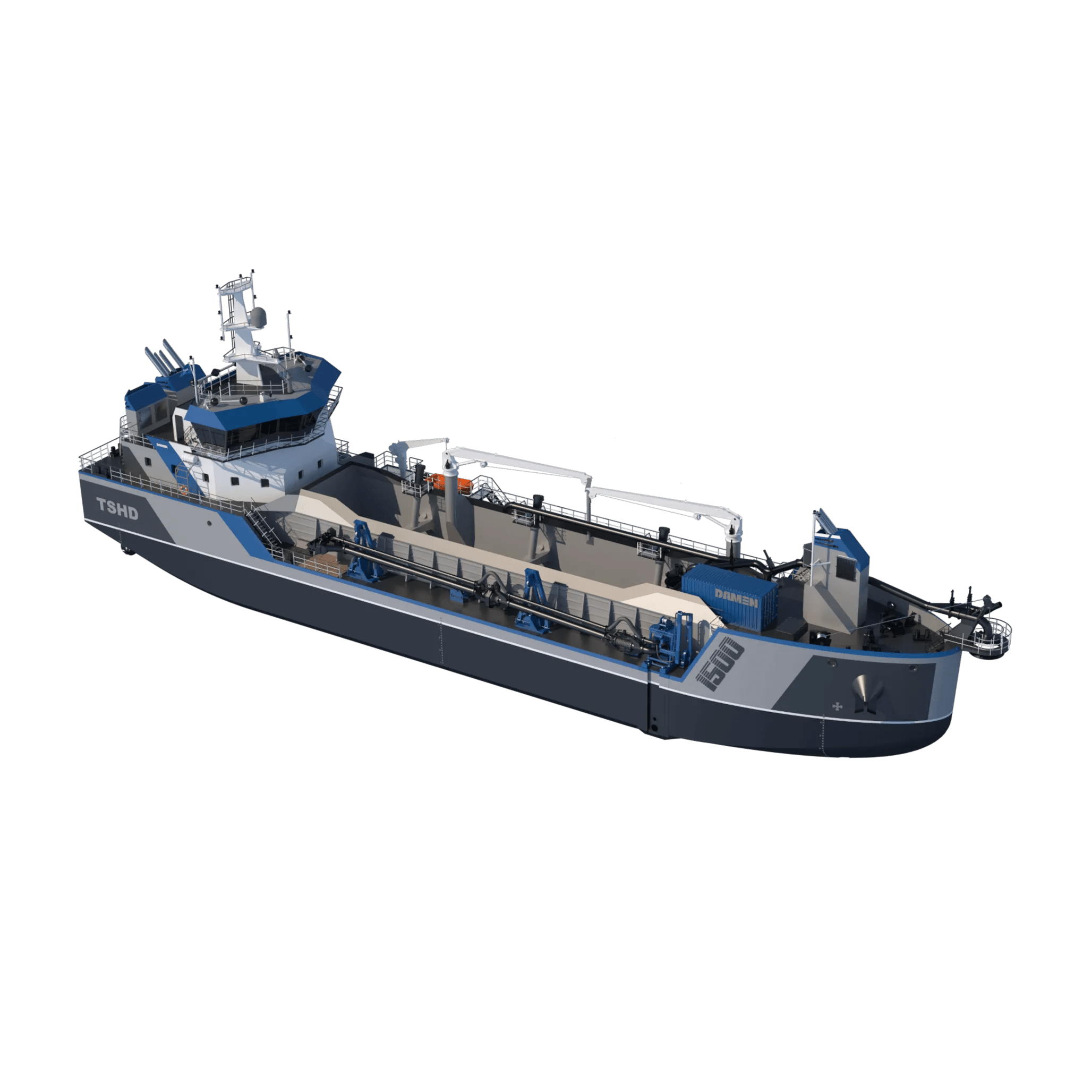

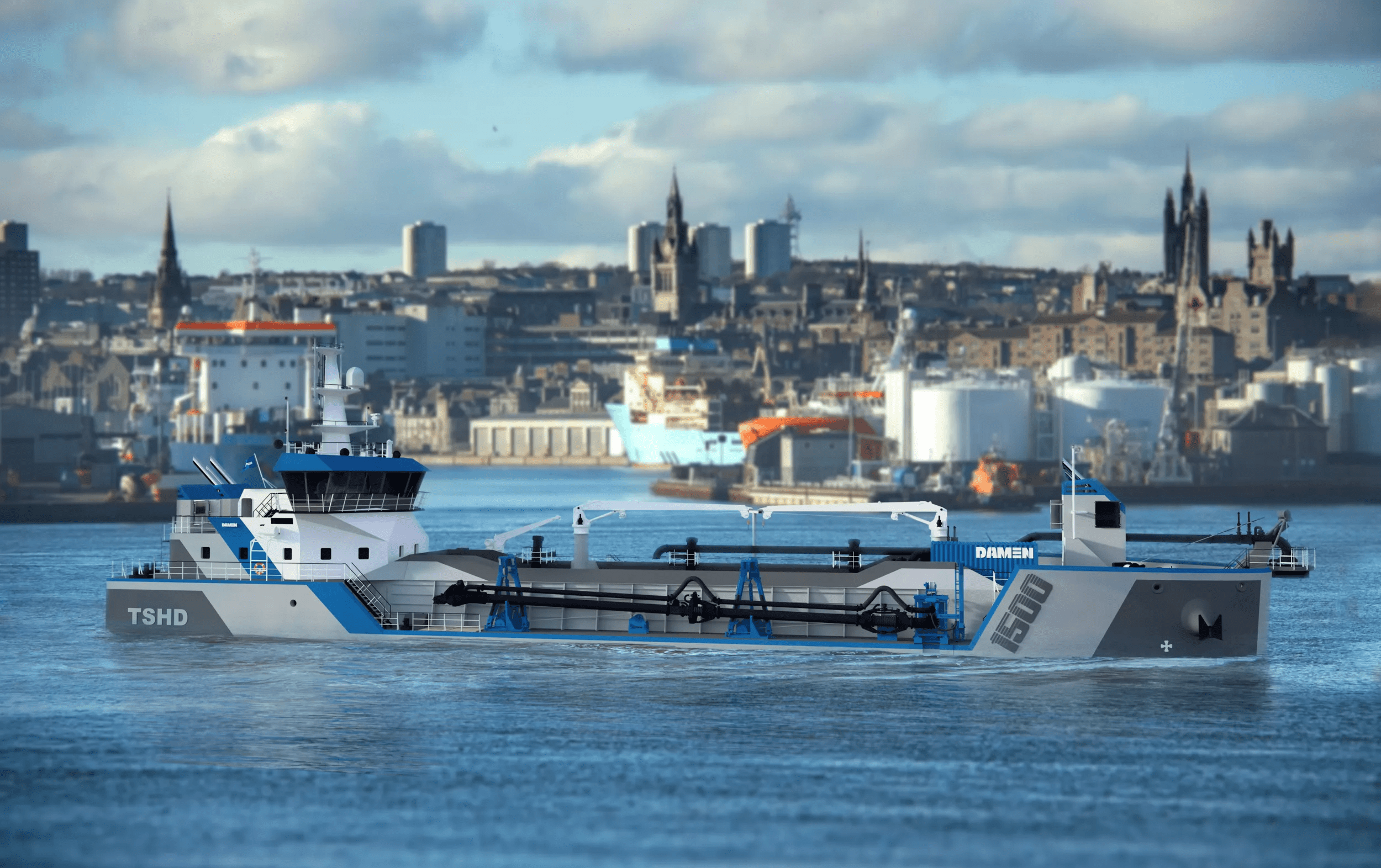

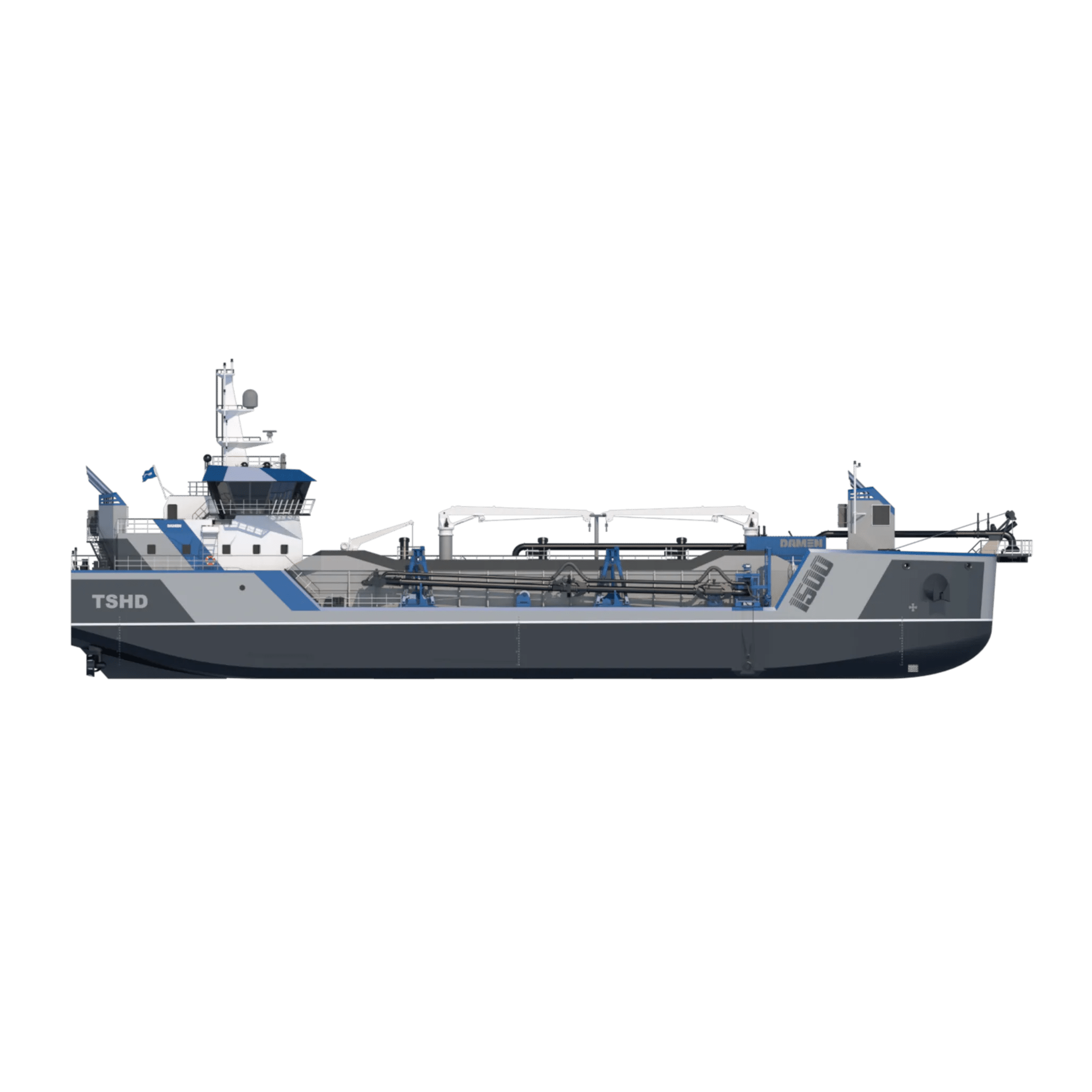

The TSHD1500 hopper dredger has been designed for optimal manoeuvrability in ports or areas with busy traffic through twin azimuth thruster and bow thruster. Hence, the compact dredger has excellent access all corners of the harbour. From the wheelhouse the dredge master has an excellent view over the clean hopper and the dredging equipment. Sustainability is key in the hopper dredger design; for instance all dredging operations are ballast water free.
- Bow coupling unit
- Degassing system
- IMO Tier III compliance
- Grab crane
- Powerful bow thruster
- Bottom doors for quick dumping
- Spacious accommodation for 12 crew
- Efficient wear resistant dredge pump
Key figures
20
1500 - 1800
2550
500
10.2
Dimensions
- Length o.a. (excl. bow coupling)
- 70 m
- Beam moulded
- 13.2 m
- Draught (dredging)
- 4.7 m
- Deadweight
- 2550 t
Dredge performance
- Hopper capacity
- 1500 - 1800 m³
- Dredging depth
- 20 m
- Trailing pipe diameter
- 500 mm
- Speed loaded
- 10.2 kn
Equipment
- Propulsion power
- 2 x 700 kW
- Azimuth FPP propeller
- 2 x 1450 mm
- Bow thruster power
- 280 kW
- Fuel oil
- 170 m³
Do you want to know more?
Compare similar TSHDs
Dredging depth (m) | Hopper capacity (m³) | Deadweight (t) | Trailing pipe diameter (mm) | Speed loaded (kn) | ||
---|---|---|---|---|---|---|
TSHD 1500 Port and Maintenance | 20 | 1500 - 1800 | 2550 | 500 | 10.2 | |
TSHD 2000 Port and Maintenance | 25 | 2000 - 2400 | 3350 | 600 | 11 | |

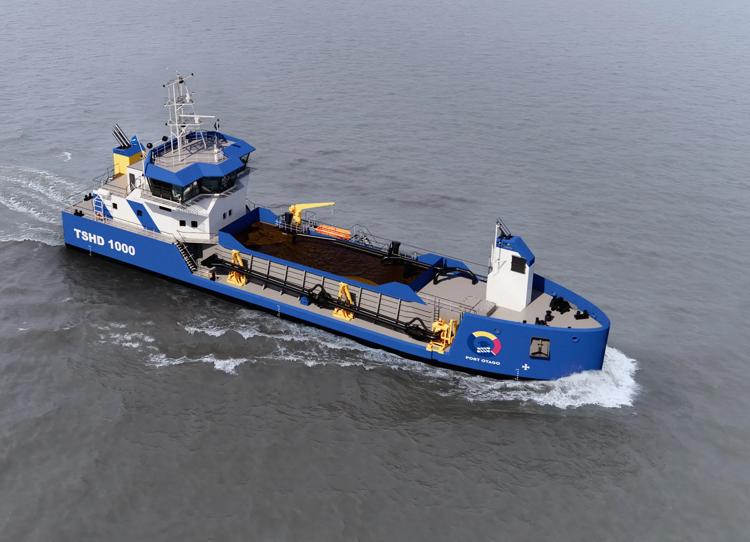

TSHD 1000 Port and Maintenance | 20 | 800 - 1000 | 1400 | 400 | 10 |
TSHD 1500 Port and Maintenance
- Dredging depth (m)
- 20
- Hopper capacity (m³)
- 1500 - 1800
- Deadweight (t)
- 2550
- Trailing pipe diameter (mm)
- 500
- Speed loaded (kn)
- 10.2
- Dredging depth (m)
- 25
- Hopper capacity (m³)
- 2000 - 2400
- Deadweight (t)
- 3350
- Trailing pipe diameter (mm)
- 600
- Speed loaded (kn)
- 11
- Dredging depth (m)
- 20
- Hopper capacity (m³)
- 800 - 1000
- Deadweight (t)
- 1400
- Trailing pipe diameter (mm)
- 400
- Speed loaded (kn)
- 10
