TSHD 1000 Port and Maintenance
TSHD 1000 Port and Maintenance

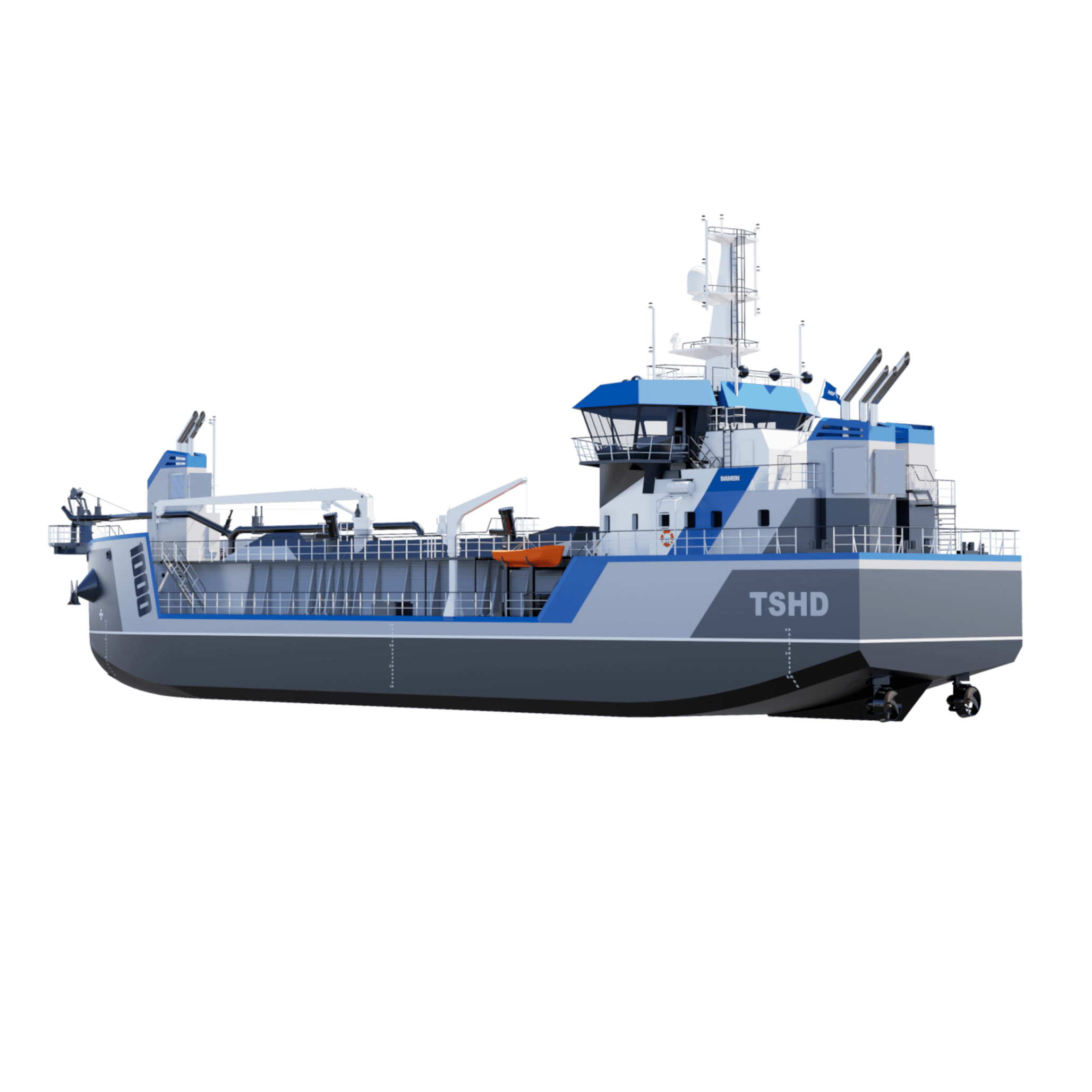

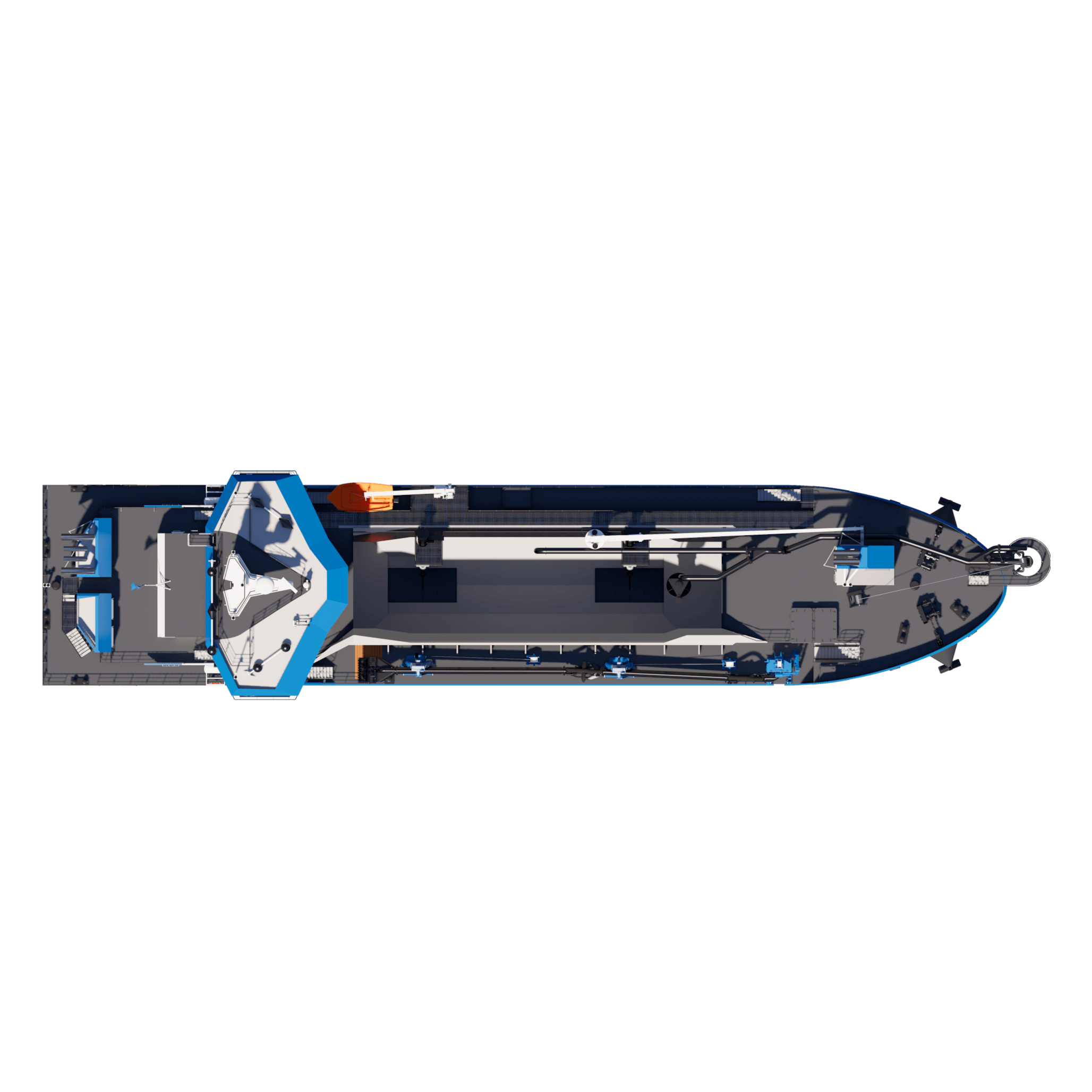

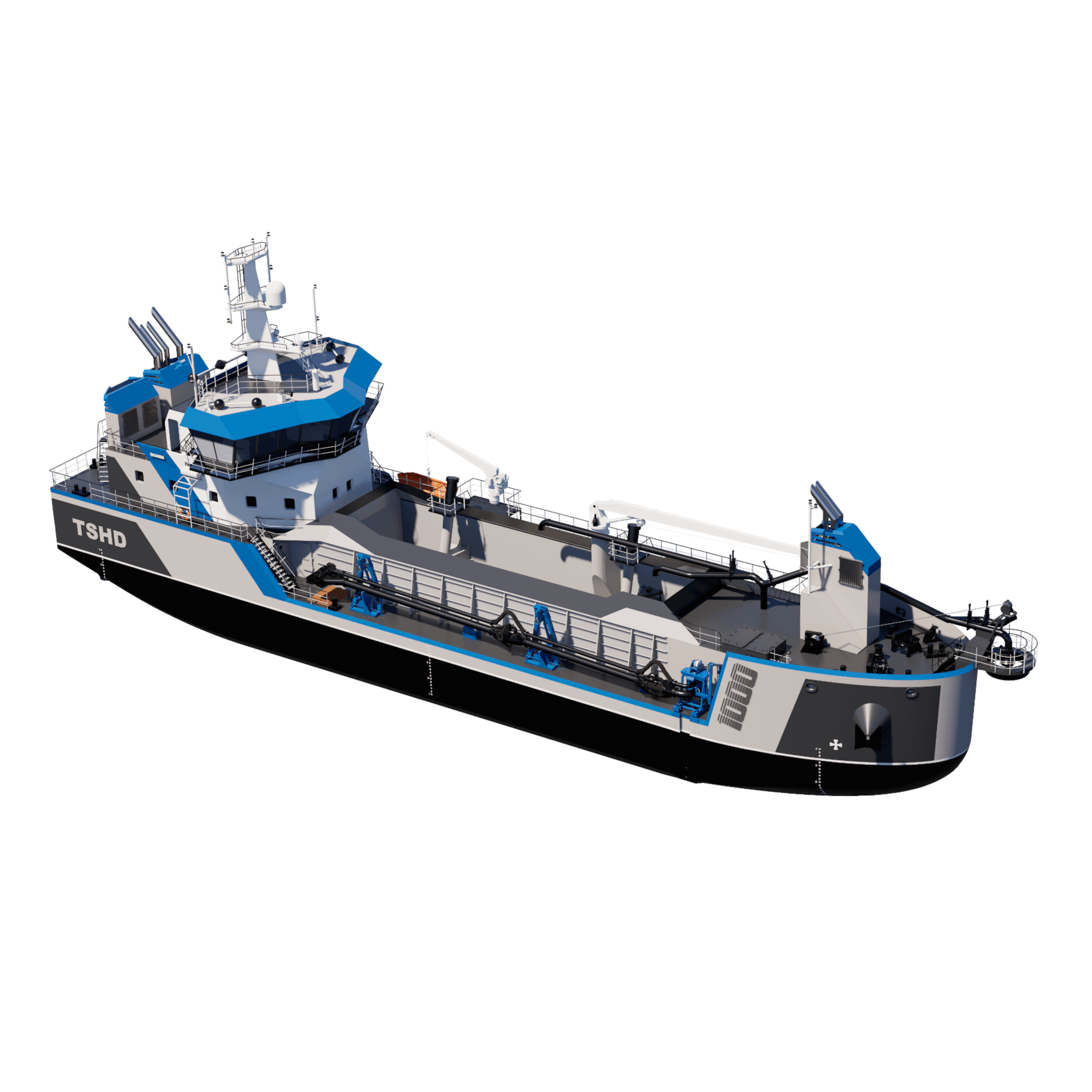

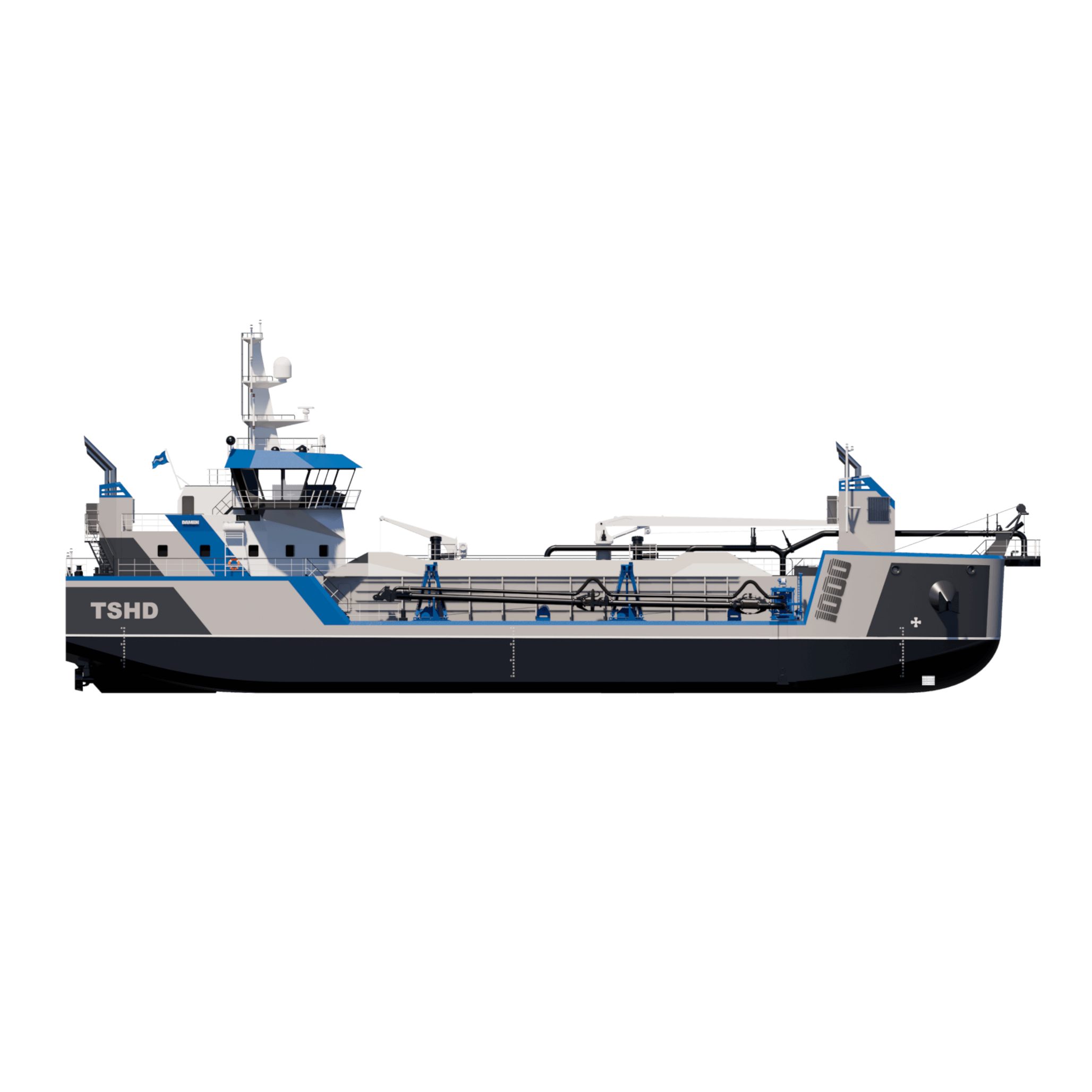

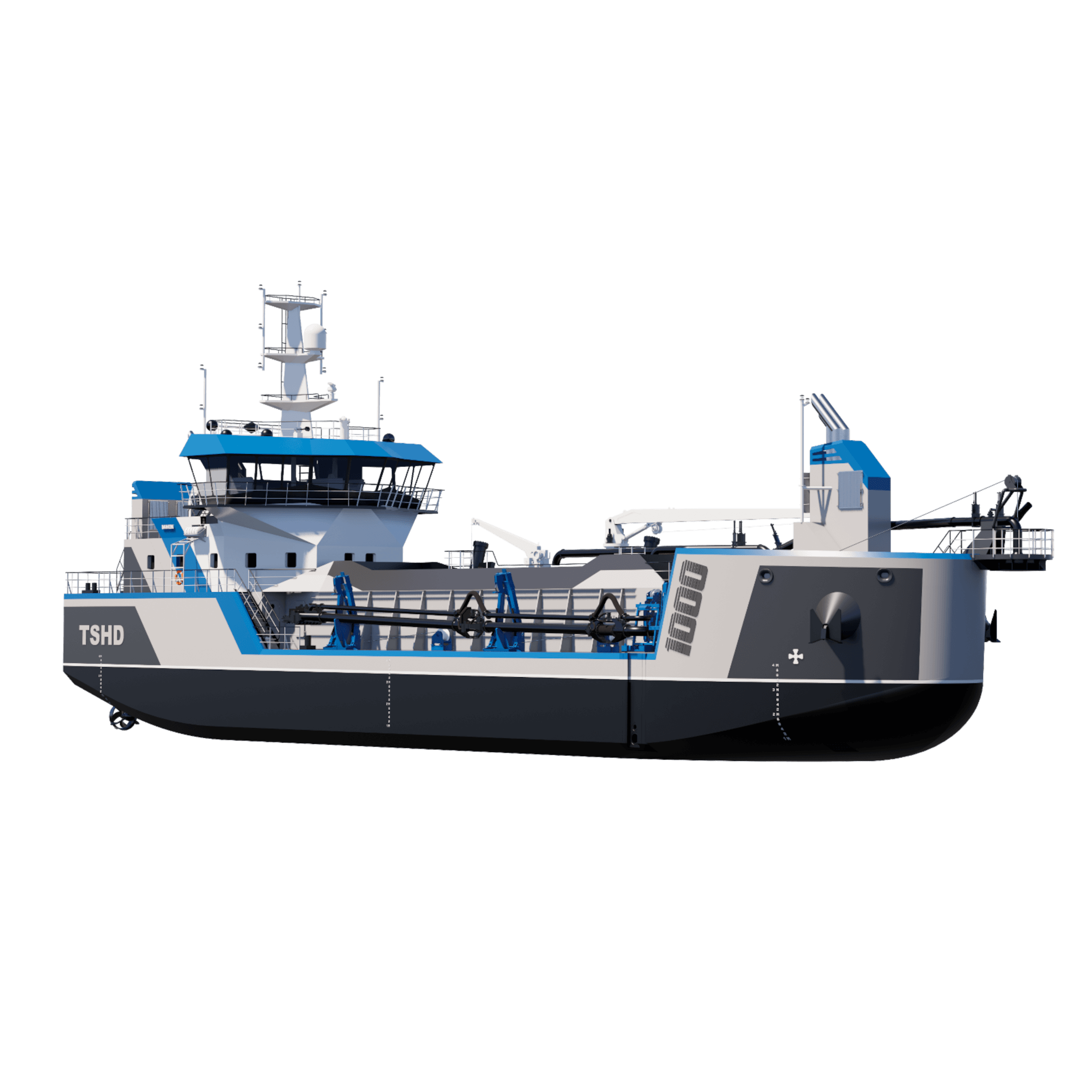

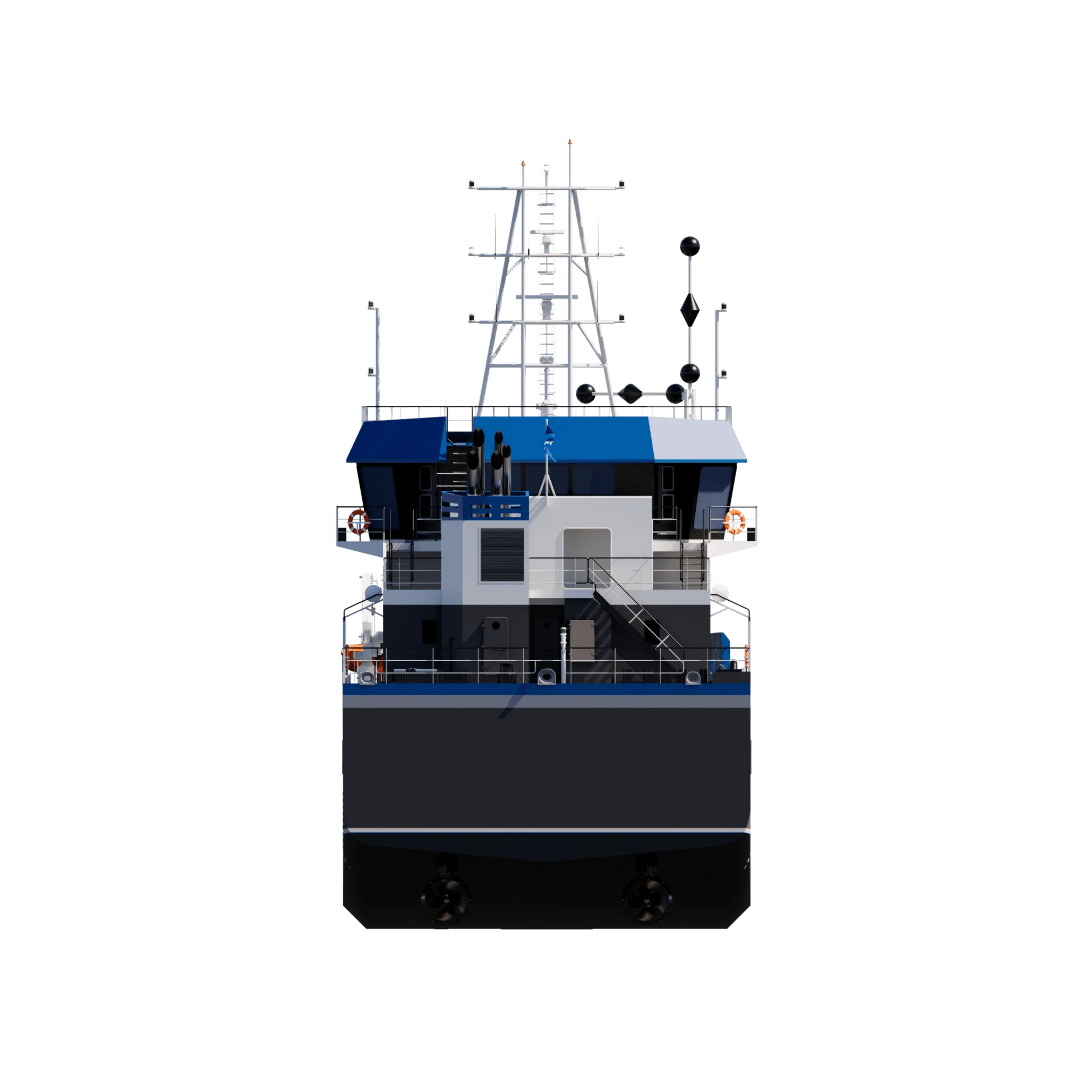

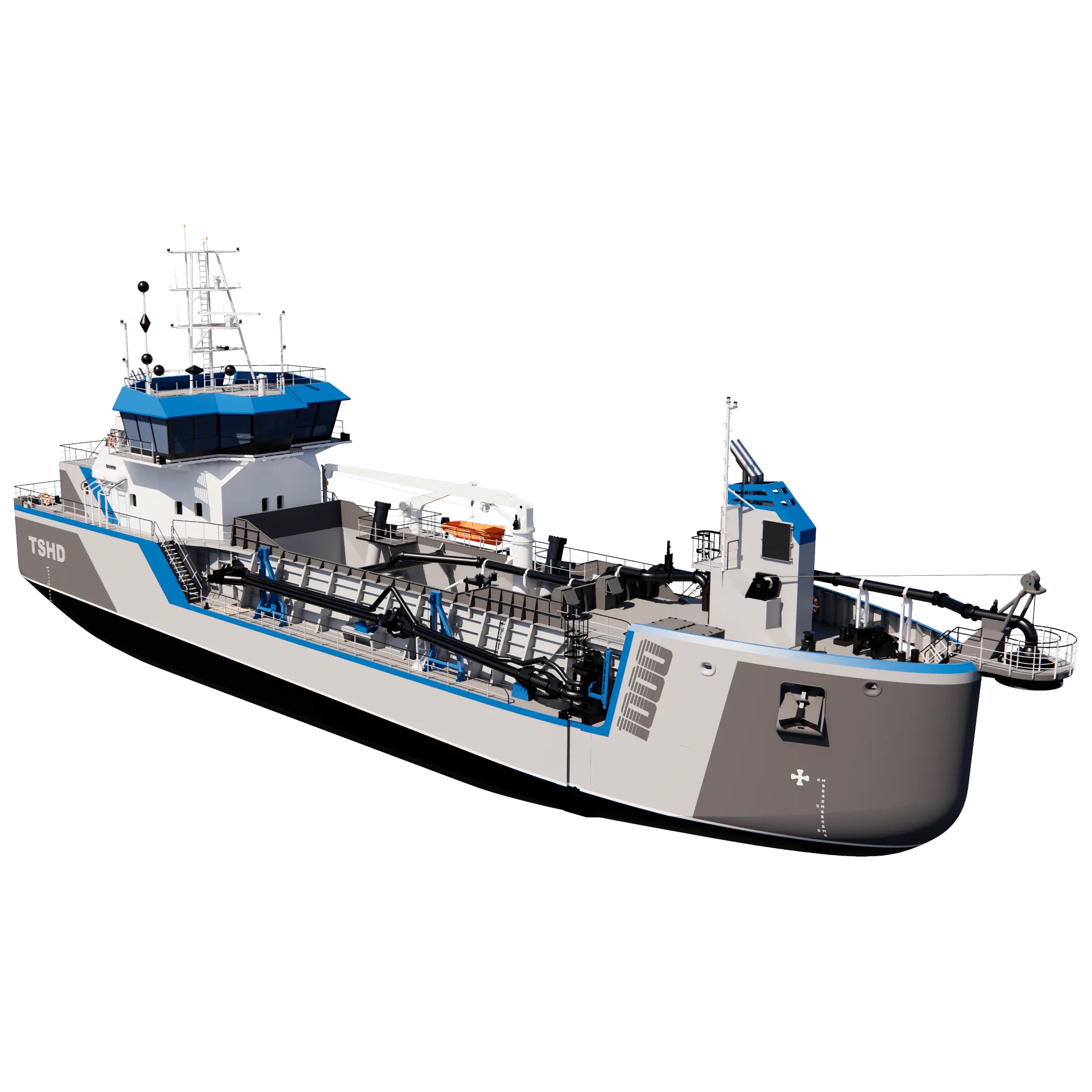

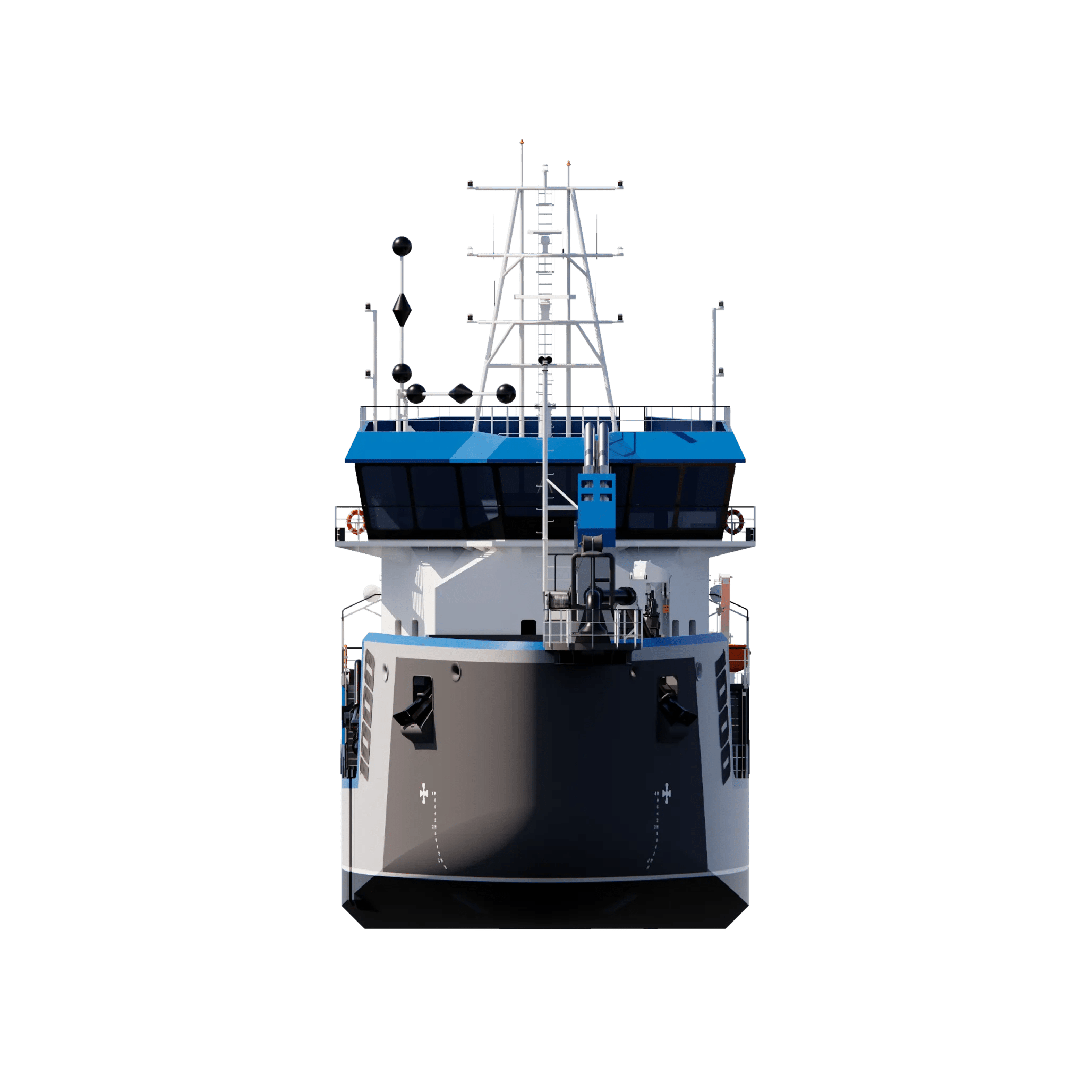

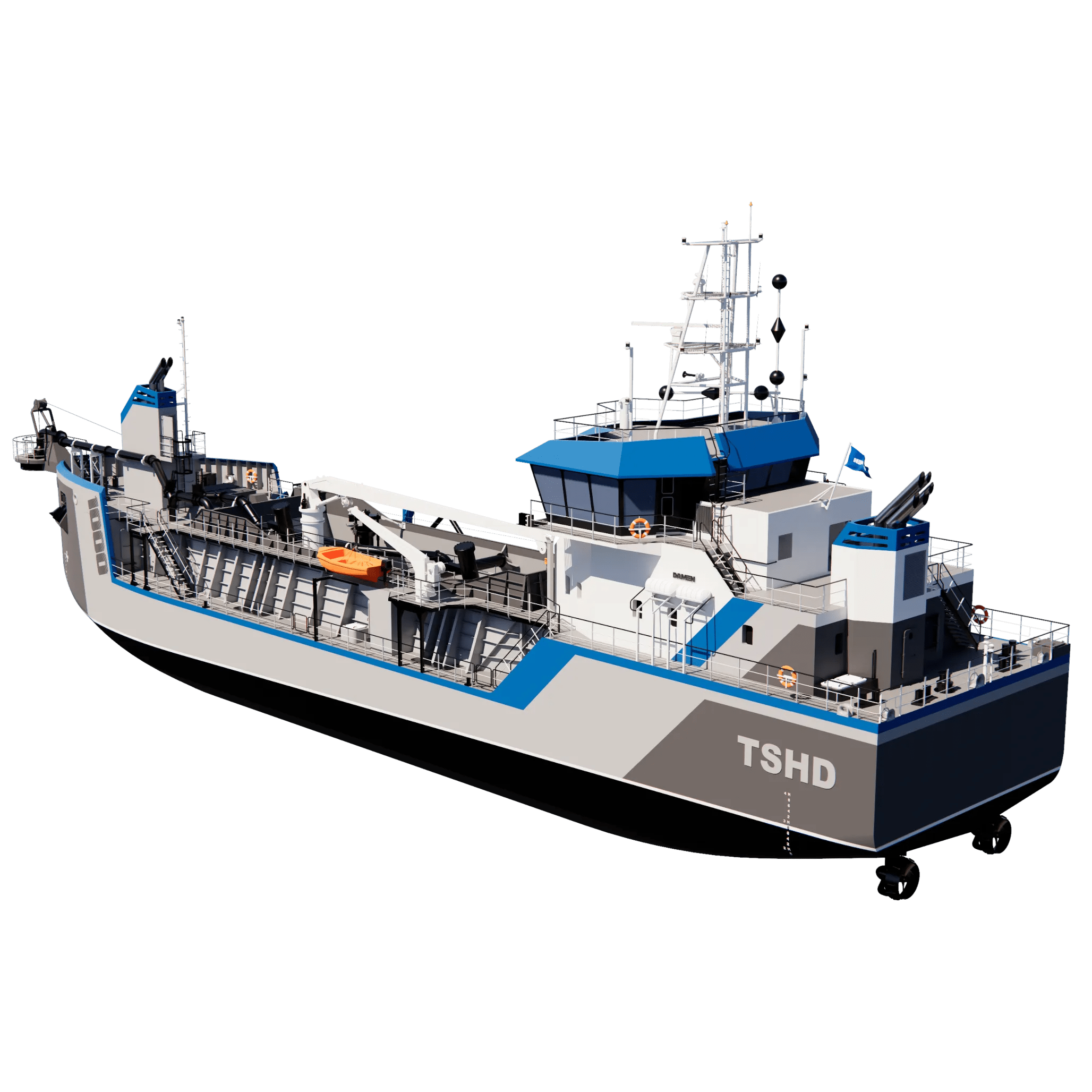

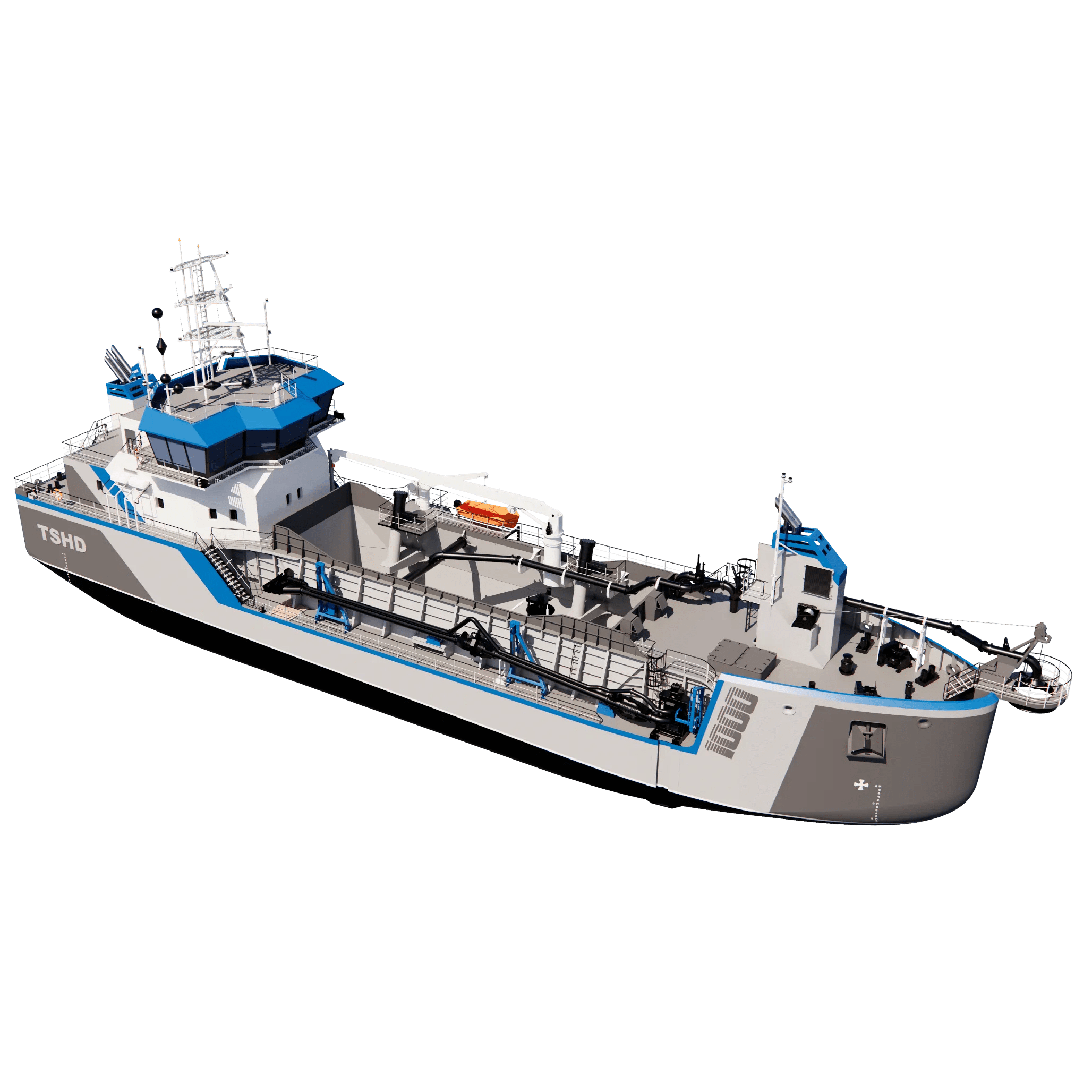

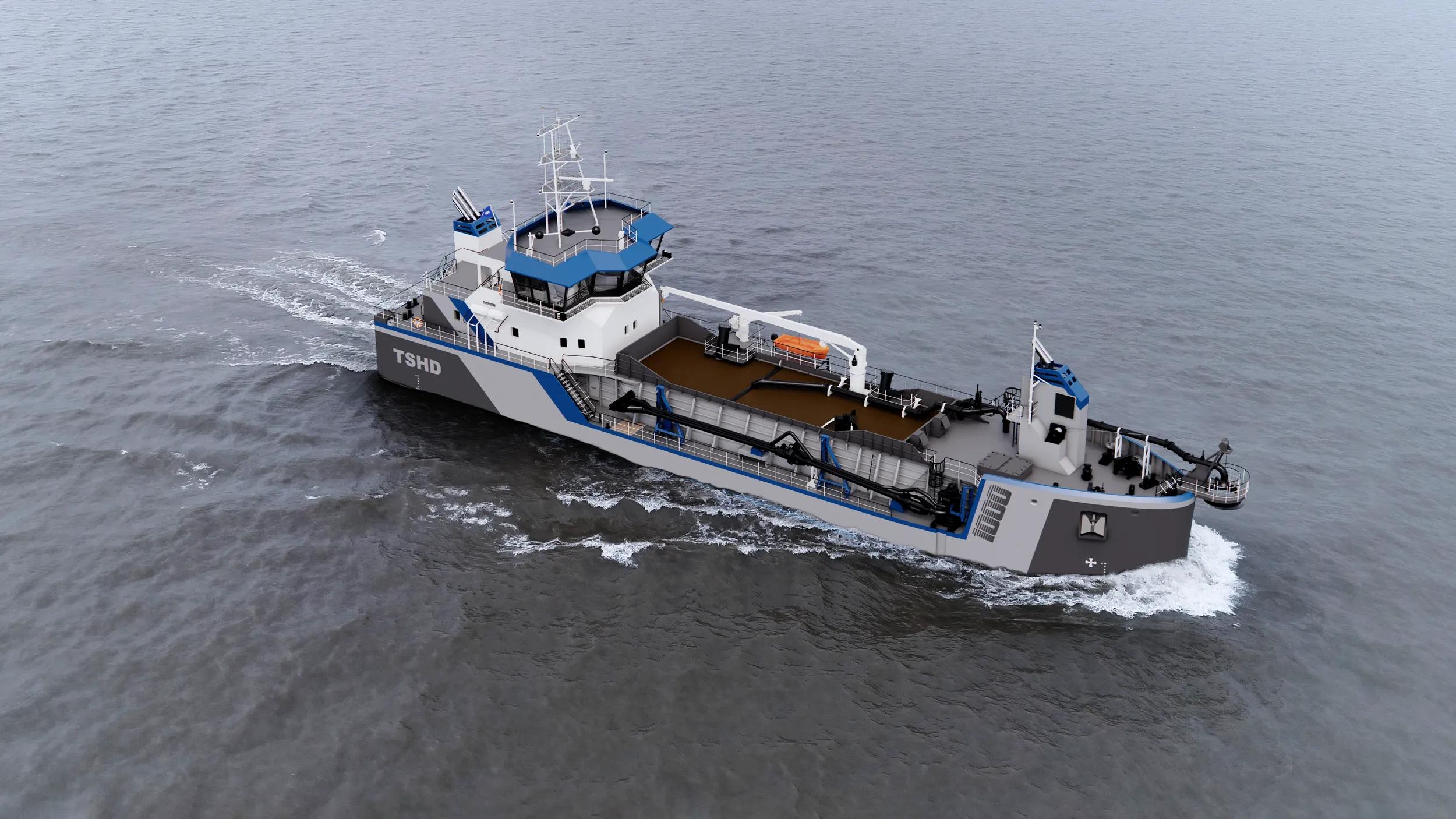

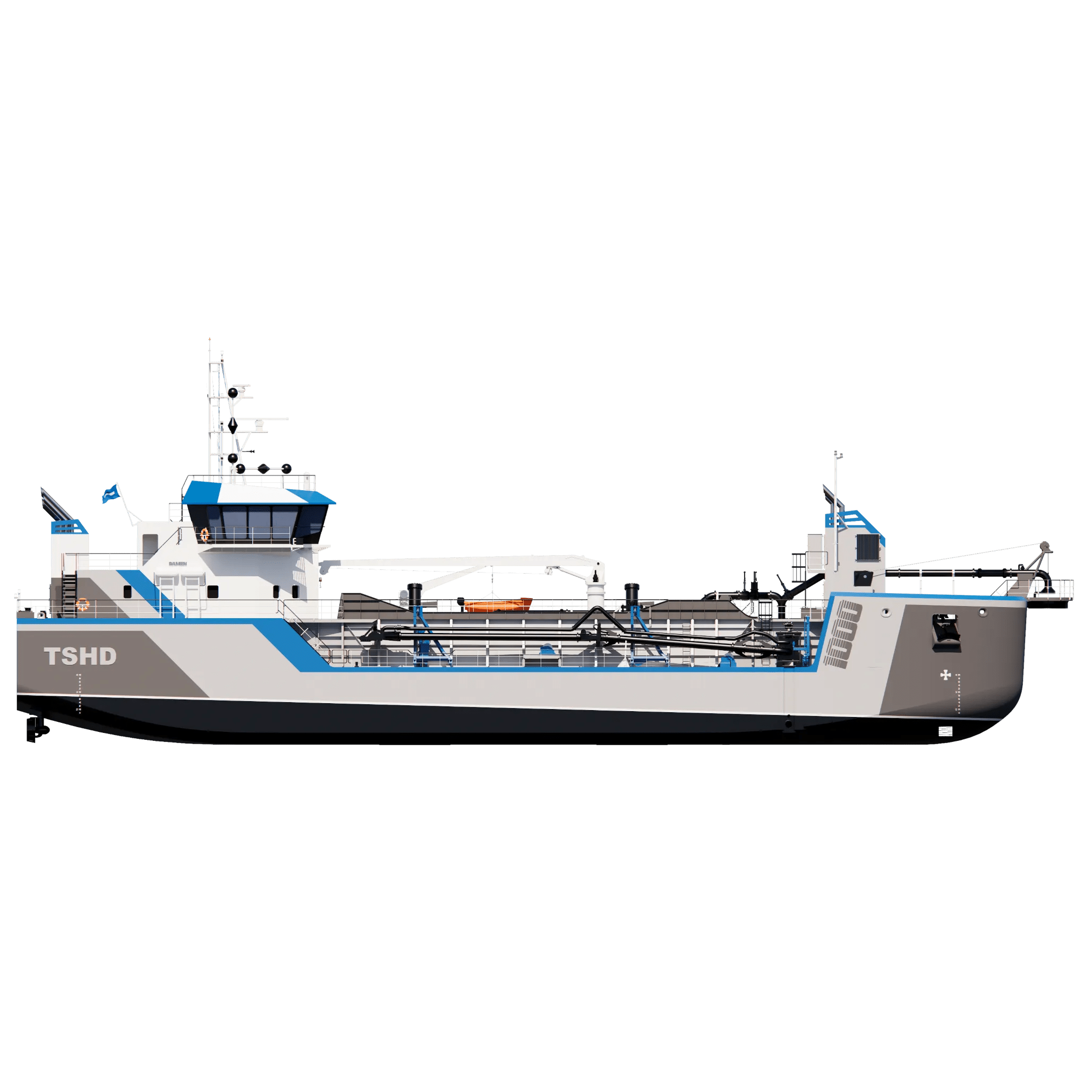

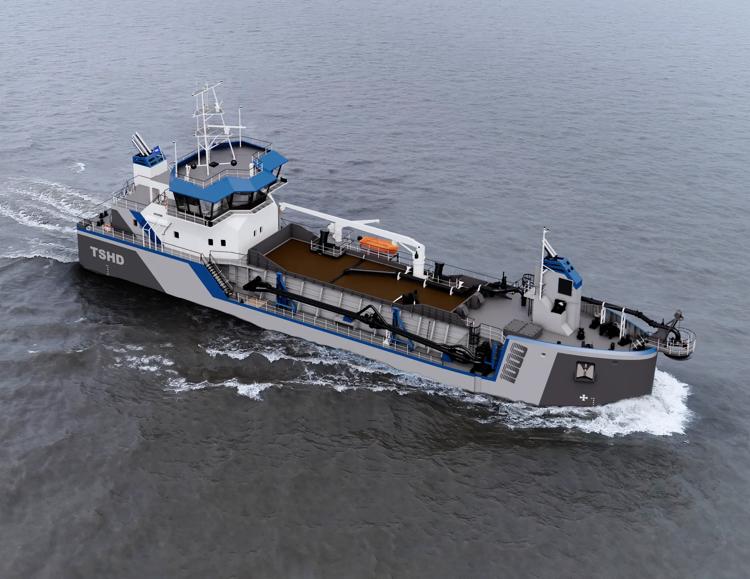

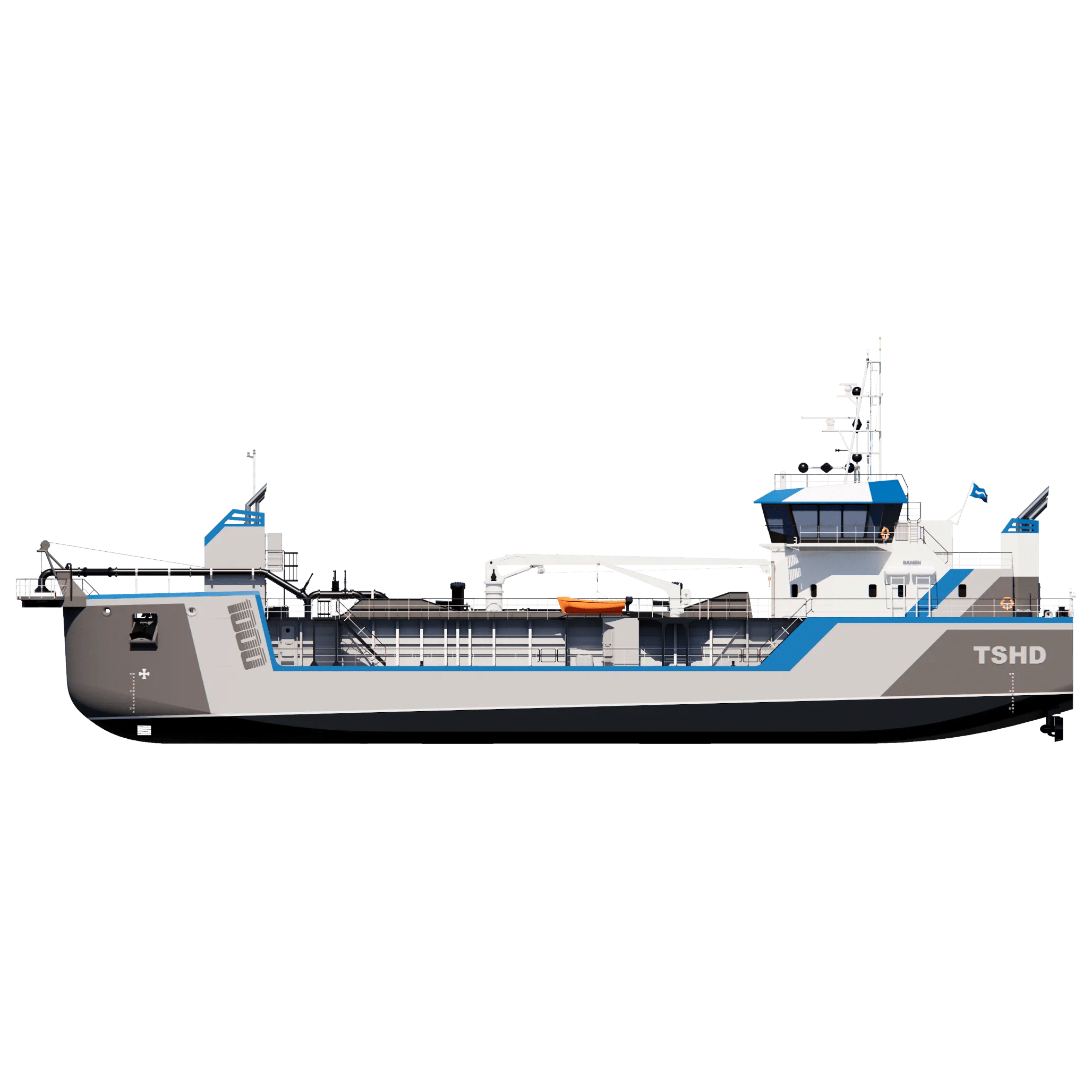

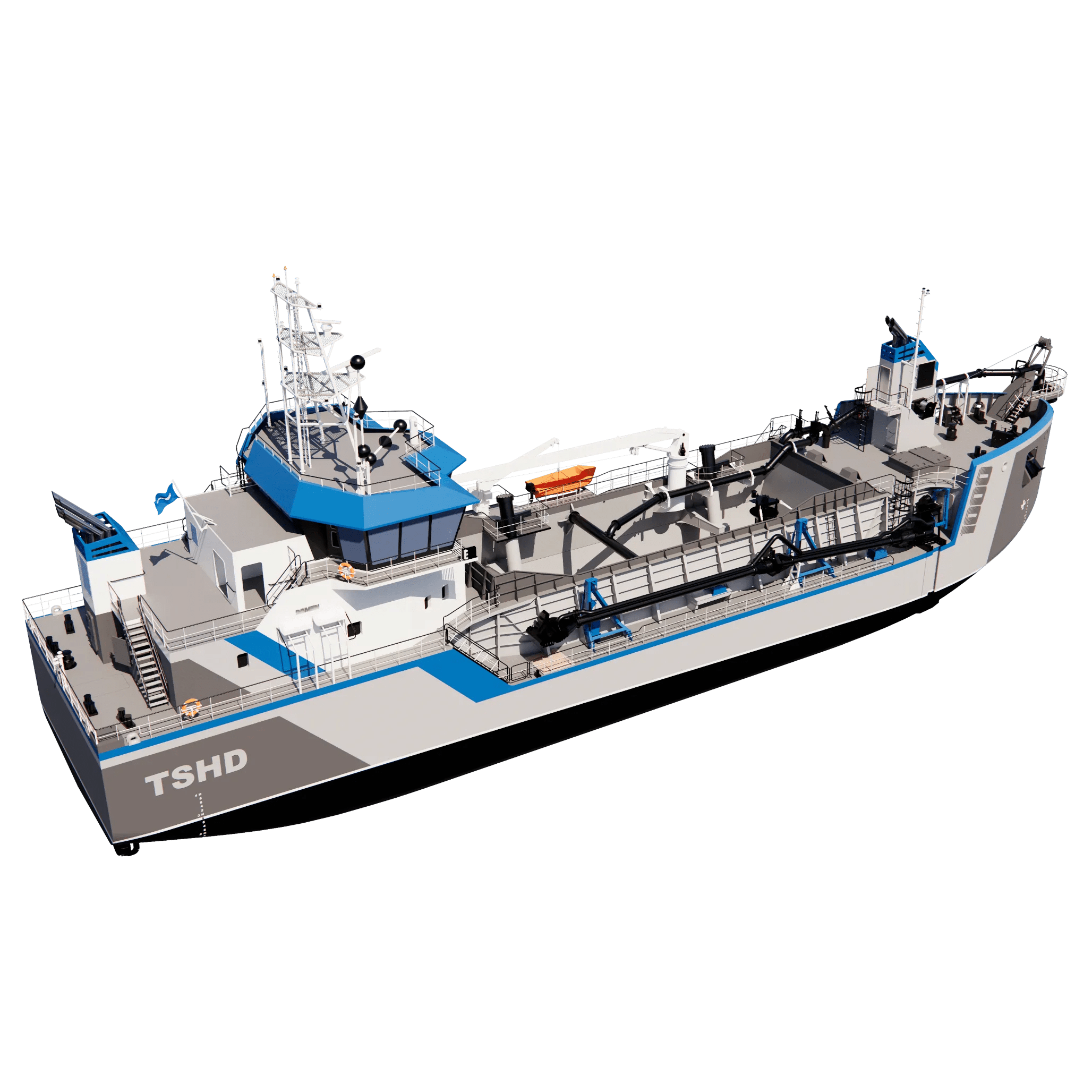

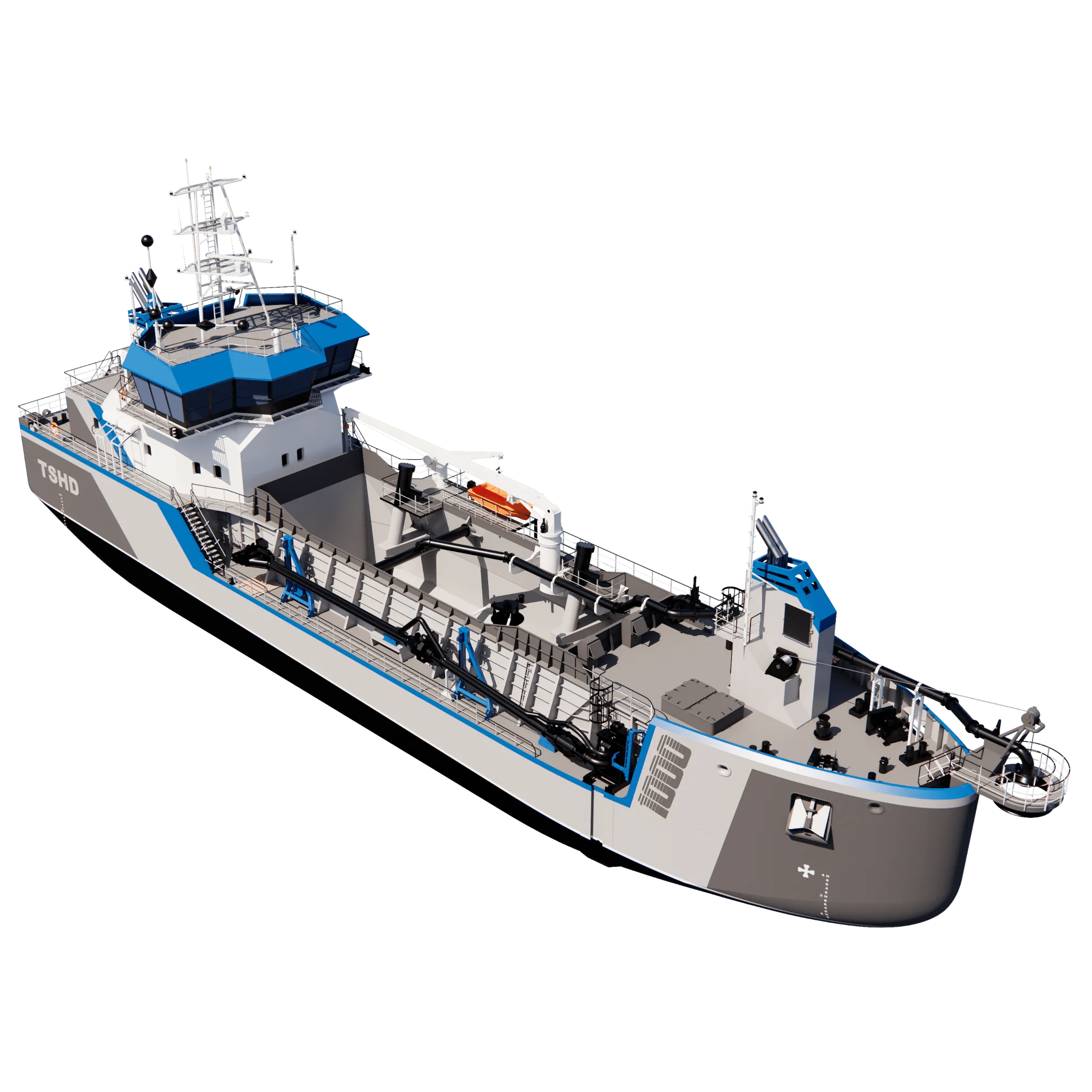

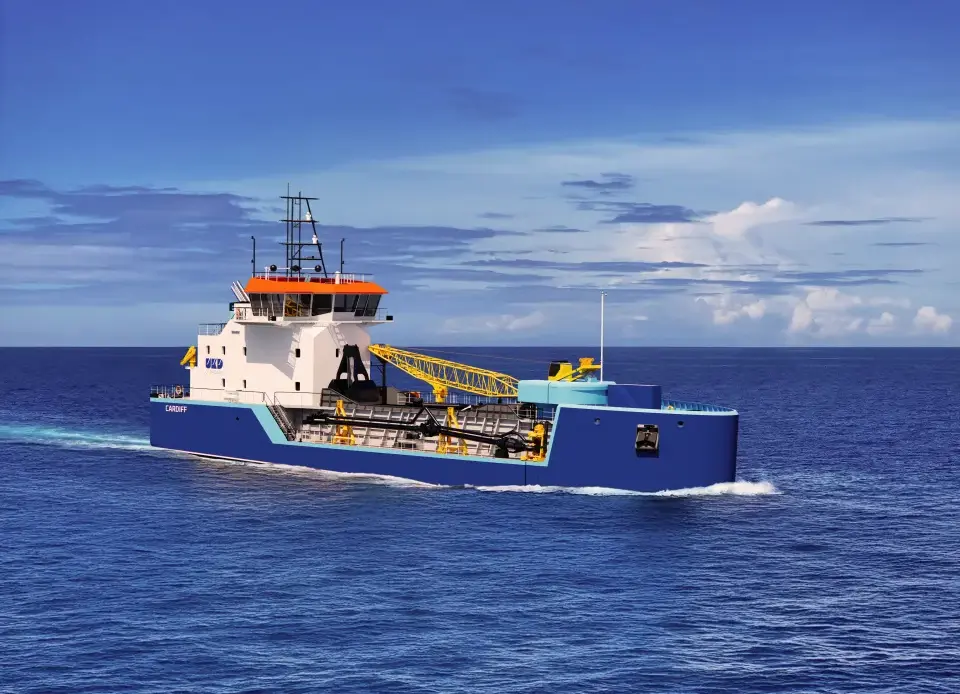

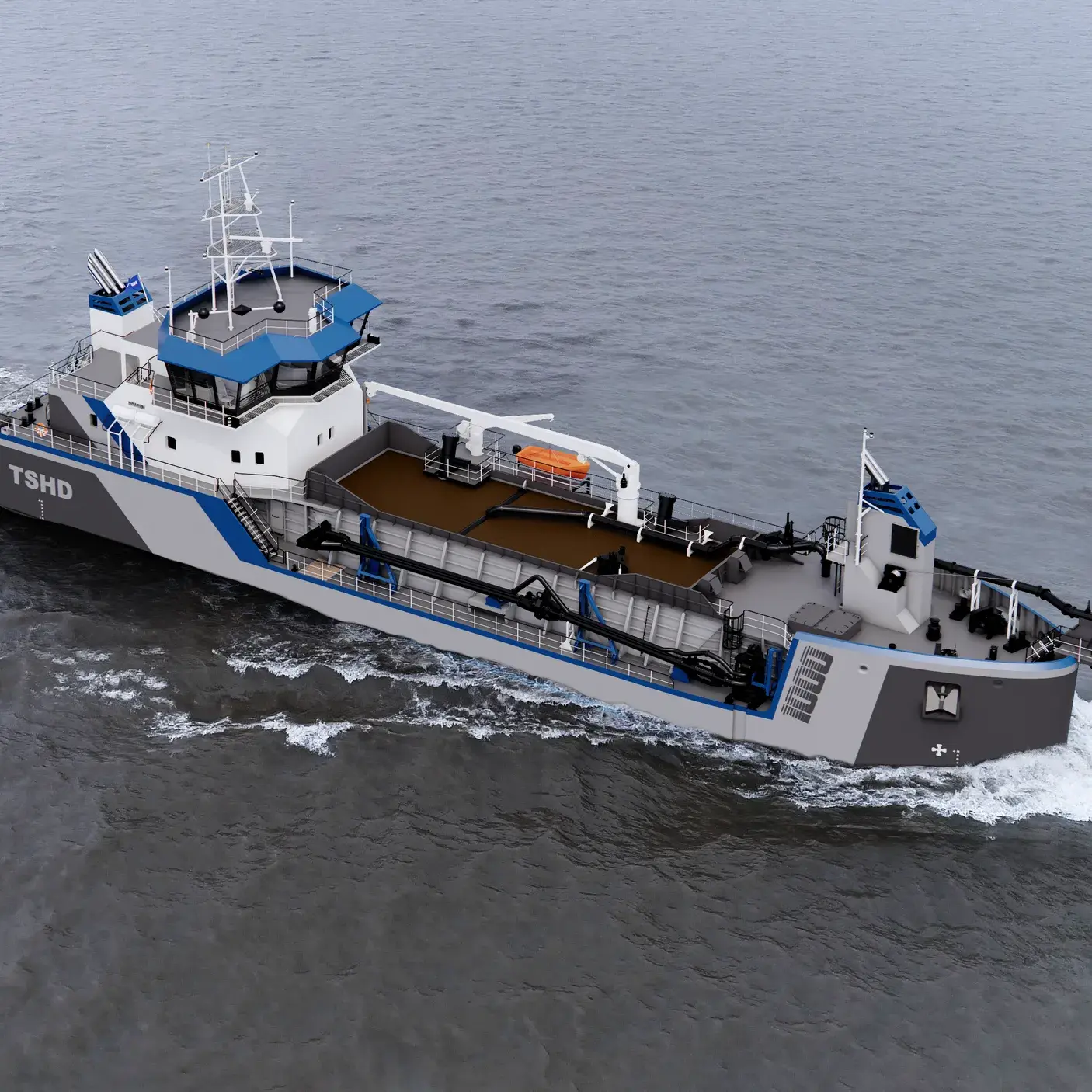

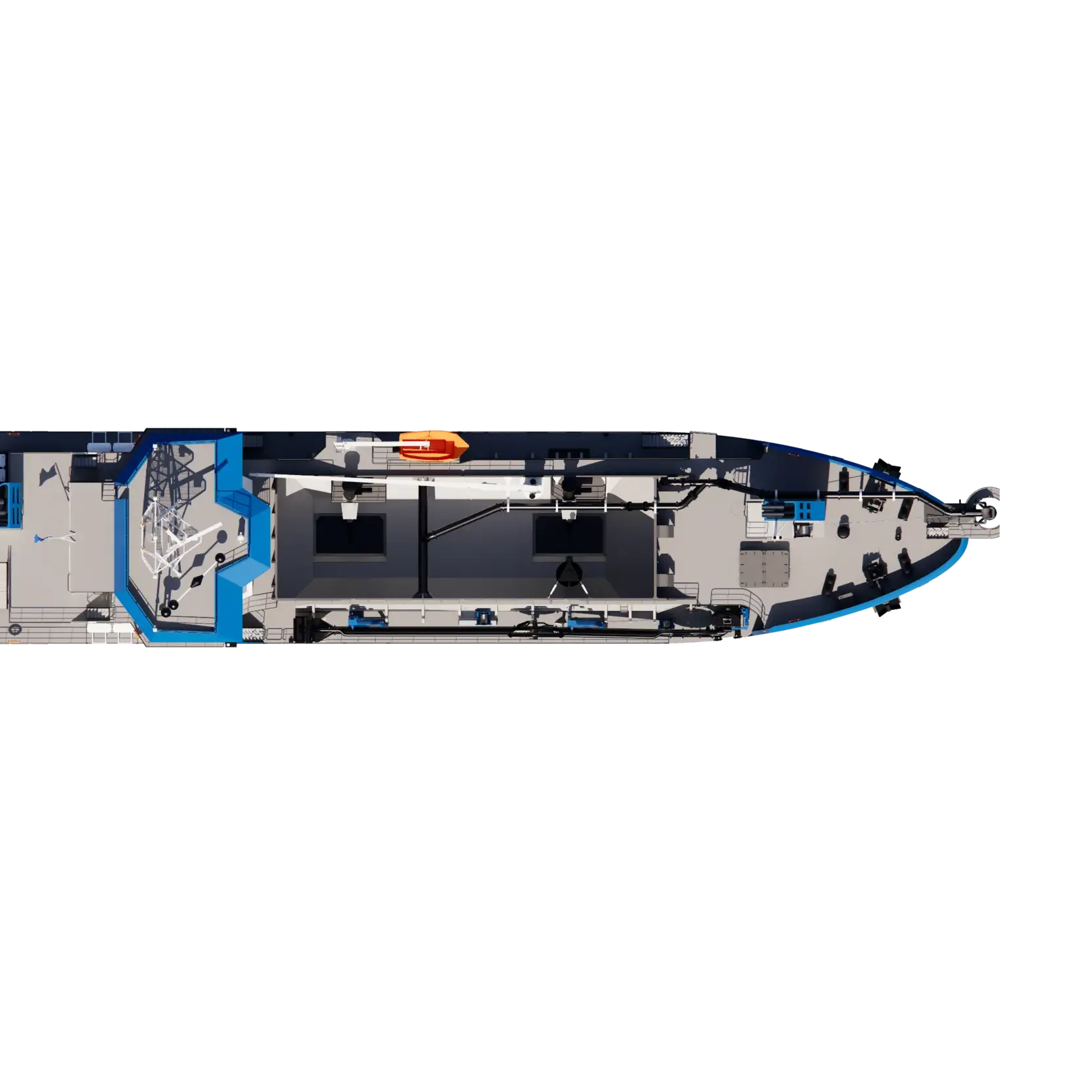

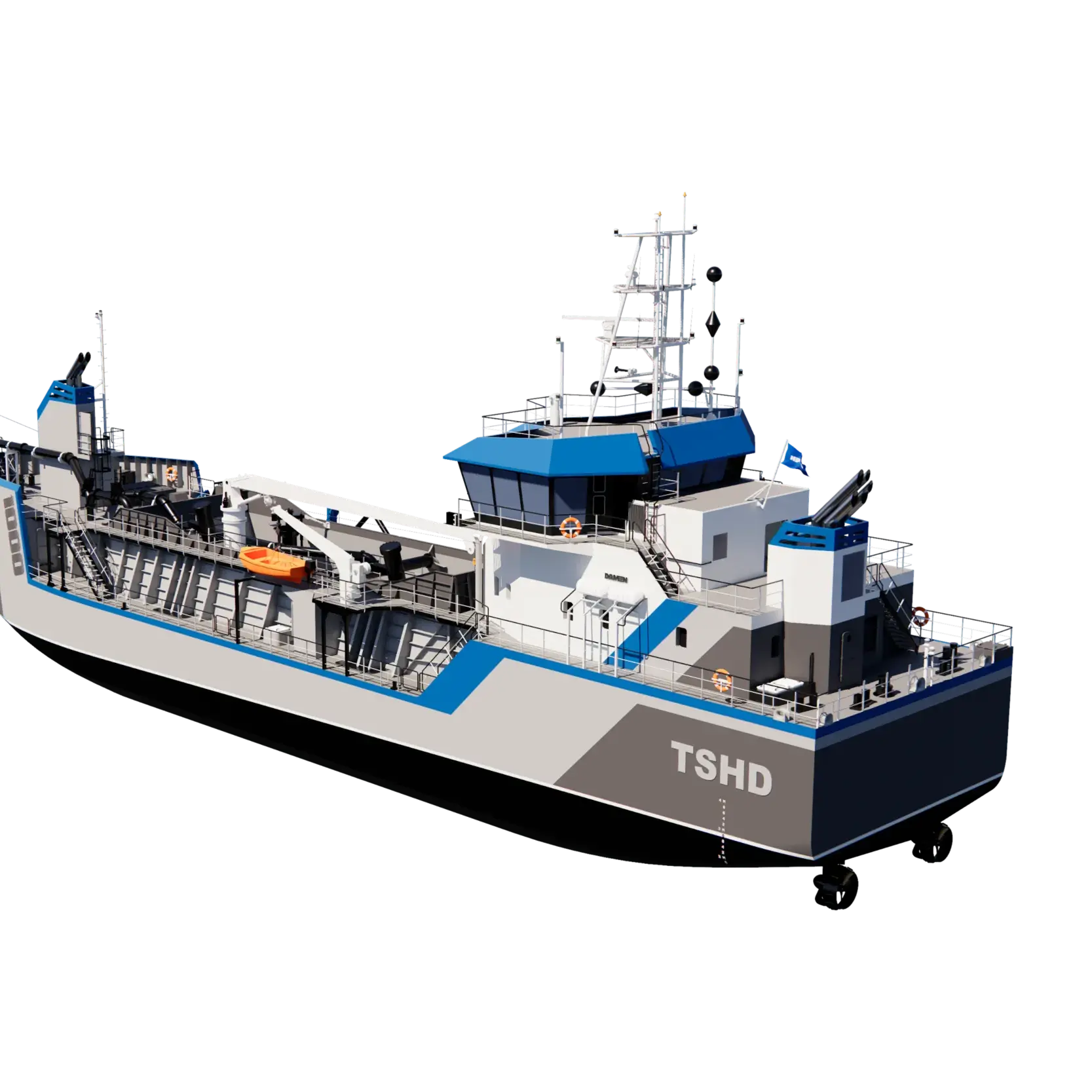

The versatile TSHD1000 has been designed as highly manoeuvrable maintenance dredger. The fuel efficient Trailing Suction Hopper Dredger (TSHD) is a cost-effective, flexible dredger with a modern wheelhouse located aft. Performance of the Hopper Dredger is optimised in maintaining ports, berths and waterways. The adaptable dredge design allows for practical tailoring to specific customer needs, such as the addition of a grab or enlargement of the crew quarters.
- Bow coupling unit
- Degassing system
- IMO Tier III compliance
- Grab crane
- Powerful bow thruster
- Bottom doors for quick dumping
- Spacious accommodation for 12 crew
- Efficient wear resistant dredge pump
Key figures
20
800 - 1000
1400
400
10
Dimensions
- Length o.a. (excl. bow coupling)
- 58.7 m
- Beam moulded
- 12.2 m
- Draught (dredging)
- 3.9 m
- Deadweight
- 1400 t
Dredge performance
- Hopper capacity
- 800 - 1000 m³
- Dredging depth
- 20 m
- Trailing pipe diameter
- 400 mm
- Speed loaded
- 10 kn
Equipment
- Propulsion power
- 2 x 500 kW
- Azimuth FPP propeller
- 2 x 1250 mm
- Bow thruster power
- 180 kW
- Fuel oil
- 135 m³
Do you want to know more?
Compare similar TSHDs
Dredging depth (m) | Hopper capacity (m³) | Deadweight (t) | Trailing pipe diameter (mm) | Speed loaded (kn) | ||
---|---|---|---|---|---|---|
TSHD 1000 Port and Maintenance | 20 | 800 - 1000 | 1400 | 400 | 10 | |
TSHD 2000 Port and Maintenance | 25 | 2000 - 2400 | 3350 | 600 | 11 | |
TSHD 1500 Port and Maintenance | 20 | 1500 - 1800 | 2550 | 500 | 10.2 |
TSHD 1000 Port and Maintenance
- Dredging depth (m)
- 20
- Hopper capacity (m³)
- 800 - 1000
- Deadweight (t)
- 1400
- Trailing pipe diameter (mm)
- 400
- Speed loaded (kn)
- 10
- Dredging depth (m)
- 25
- Hopper capacity (m³)
- 2000 - 2400
- Deadweight (t)
- 3350
- Trailing pipe diameter (mm)
- 600
- Speed loaded (kn)
- 11
- Dredging depth (m)
- 20
- Hopper capacity (m³)
- 1500 - 1800
- Deadweight (t)
- 2550
- Trailing pipe diameter (mm)
- 500
- Speed loaded (kn)
- 10.2
